LG LT0810CR User manual

LG
ROOM
AIR
CONDITIONER
OWNER'S MANUAL
ACONDICIONADOR
DE AIRE DE
VENTANA
MANUAL
DEL
PROPIETARIO
LG
website
http://www.lgservice.com
e-mail
http://www.lgeservice.com/techsup.html
Please read the
operating
instructions and
safety precautions carefully
and
thoroughly
before
installing
and
operating your
room air conditioner.
Por favor lea las instrucciones de
operacion y
las
precauciones
de
seguridad
cuidadosa
y
totalmente antes de instalar
y operar
su
acondicionador de aire de ventana.
MODELS,
MODELOS: LT0810CR
LT1010CR
LT1030CR
LT1210CR
LT1230CR
LT1430CR
IMPORTANT
Please read
through
this manual. It contains valuable
information about
your
air conditioner. This manual
may
help
save time and
money by explaining proper
air
conditioner maintenance and
preventing improper
use.
PRECAUTIONS
Pay
close attention to
precautions
in order to
prevent
potential
hazards and
damage
from misuse or
improper
installation. LG is not
responsible
for
any damages
caused
by
misuse of the air conditioner.
ENGLISH ESPANOL

2 Room Air Conditioner
Window-Type
Air Conditioner Owner's Manual

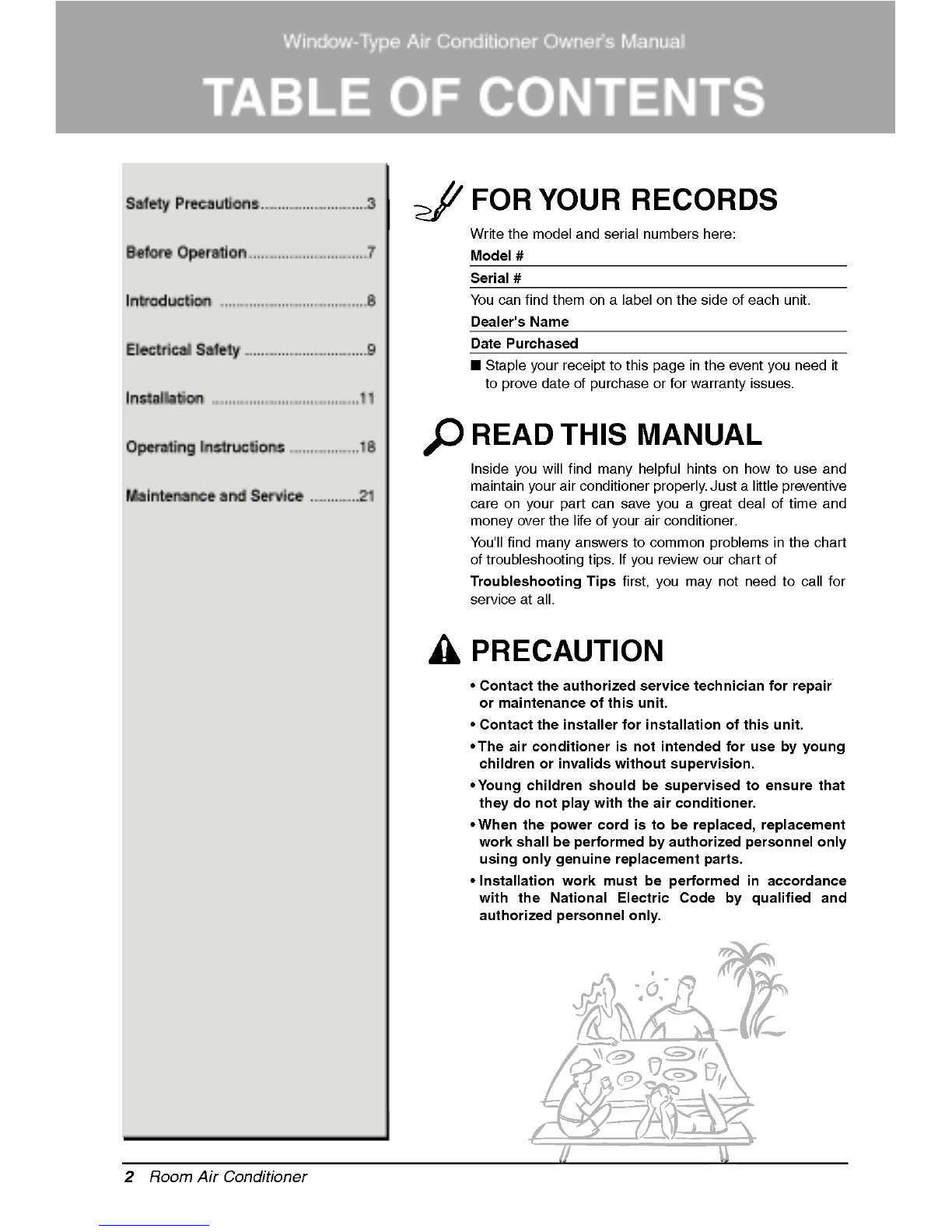

TABLE
OF CONTENTS
FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
Staple your receipt
to this
page
in the event
you
need it
to
prove
date of
purchase
or for
warranty
issues.
READ
THIS MANUAL
Inside
you
will find
many helpful
hints on how to use and
maintain
your
air conditioner
properly.
Just a little
preventive
care on
your part
can save
you
a
great
deal of time and
money
over the life of
your
air conditioner.
You'll find
many
answers to common
problems
in the chart
of
troubleshooting tips.
If
you
review our chart of
Troubleshooting Tips
first,
you may
not need to call for
service at all.
PRECAUTION
?
Contact the authorized service technician for
repair
or maintenance of this unit.
?
Contact the installer for installation of this unit.
?
The air conditioner is not intended for use
by young
children or invalids without
supervision.
?
Young
children should be
supervised
to ensure that
they
do not
play
with the air conditioner.
?
When the
power
cord is to be
replaced, replacement
work shall be
performed by
authorized
personnel only
using only genuine replacement parts.
?
Installation work must be
performed
in accordance
with the National Electric Code
by qualified
and
authorized
personnel only.
Safety
Precautions ..........................3
Before
Operation
.............................7
Introduction ....................................8
Electrical
Safety
..............................9
Installation ....................................11
Operating
Instructions .................18
Maintenance and Service ............21

Owner's Manual 3
ENGLISH

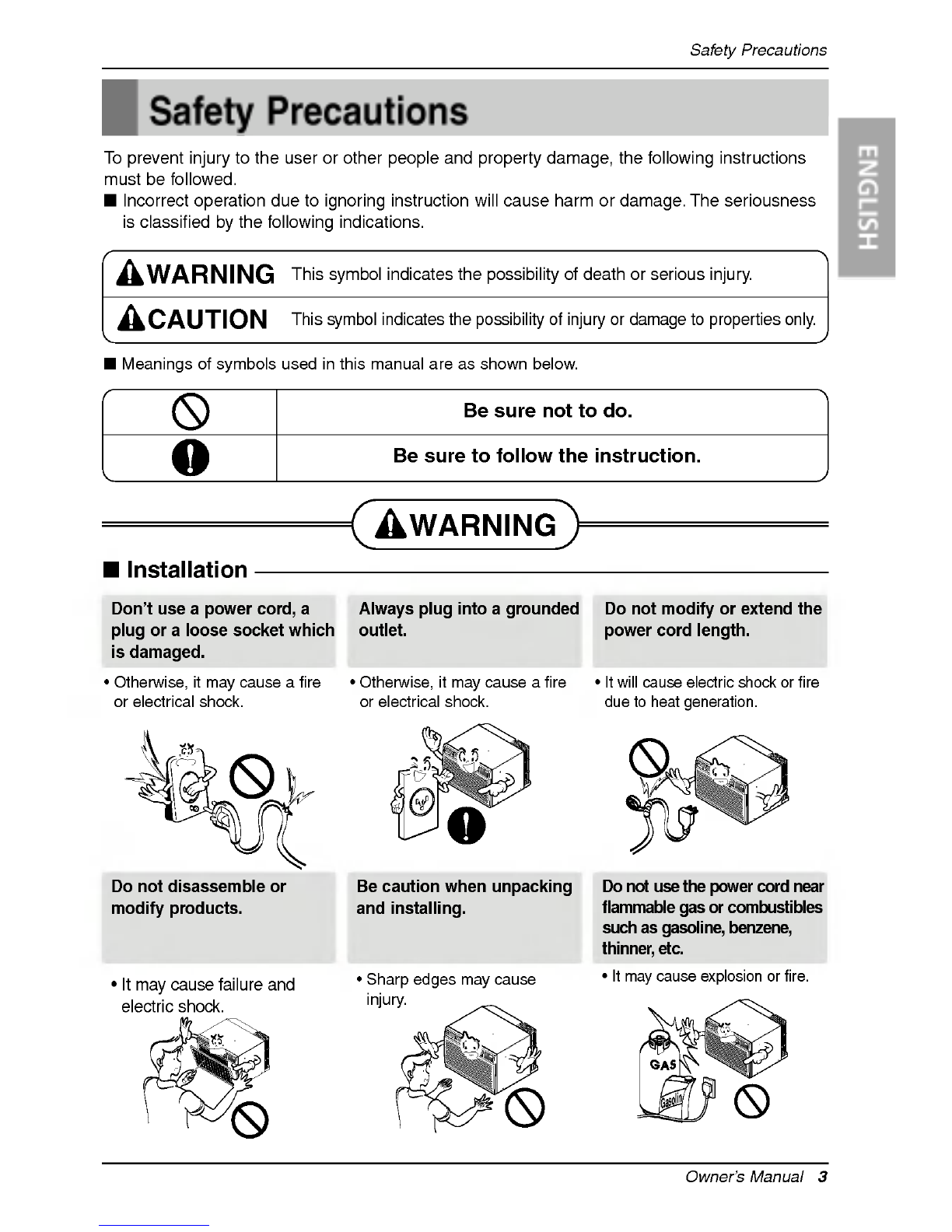

Safety
Precautions
Safety
Precautions
To
prevent injury
to the user or other
people
and
property damage,
the
following
instructions
must be followed.
Incorrect
operation
due to
ignoring
instruction will cause harm or
damage.
The seriousness
is classified
by
the
following
indications.
Meanings
of
symbols
used in this manual are as shown below.
WARNING
CAUTION
This
symbol
indicates the
possibility
of death or serious
injury.
This
symbol
indicates the
possibility
of
injury
or
damage
to
properties only.
WARNING
Installation
Be sure not to do.
Be sure to follow the instruction.
Don't use a
power
cord,
a
plug
or a loose socket which
is
damaged.
?
Otherwise,
it
may
cause a fire
or electrical shock.
Always plug
into a
grounded
outlet.
?
Otherwise,
it
may
cause a fire
or electrical shock.
Do not
modify
or extend the
power
cord
length.
?
It will cause electric shock or fire
due to heat
generation.
Do not disassemble or
modify products.
?
It
may
cause failure and
electric shock.
Be caution when
unpacking
and
installing.
?
Sharp edges may
cause
injury.
Do not use the
power
cord near
flammable
gas
or combustibles
such as
gasoline,
benzene,
thinner,
etc.
?
It
may
cause
explosion
or fire.
Gasolin

4 Room Air Conditioner
Safety
Precautions
Operation
Do not
place
the
power
cord
near a heater.
?
It
may
cause fire and electric
shock.
Do not allow water to run
into electric
parts.
?
It will cause failure of machine or
electric shock.
Use a soft cloth to clean. Do
not use
wax, thinner,
or a
strong detergent.
?
The
appearance
of the air
conditioner
may
deteriorate,
change
color,
or
develop
surface
flaws.
Wax
Thinner
Ventilate the room well when
using
this
appliance
together
with a
stove,
etc.
?
An
oxygen shortage may
occur.
Turn off the
power
and
breaker
firstly
when
cleansing
the unit.
?
Since the fan rotates at
high
speed during operation,
it
may
cause
injury.
Turn off the main
power
switch when not
using
it for
a
long
time.
?
Prevent accidental
startup
and
the
possibility
of
injury.
Unplug
the unit if
strange
sounds, odors,
or smoke
come from it.
?
Otherwise it
may
cause fire and
electric shock accident.
Do not
open
the suction
inlet
grill
of the
product
during operation.
?
Otherwise,
it
may
electrical
shock and failure.
If water enters the
product,
turn
off the the
power
switch of the
main
body
of
appliance.
Contact
service center after
taking
the
power-plug
out from the socket.
Do not
place heavy object
on the
power
cord and take
care so that the cord should
not be
pressed.
?
There is
danger
of fire or electric
shock.
Do not share the outlet with
other
appliances.
?
It will cause electric shock or fire
due to heat
generation.
Take the
power plug
out if
necessary, holding
the head
of the
plug
and do not touch
it with wet hands.
?
Otherwise,
it
may
cause a fire
or electrical shock.

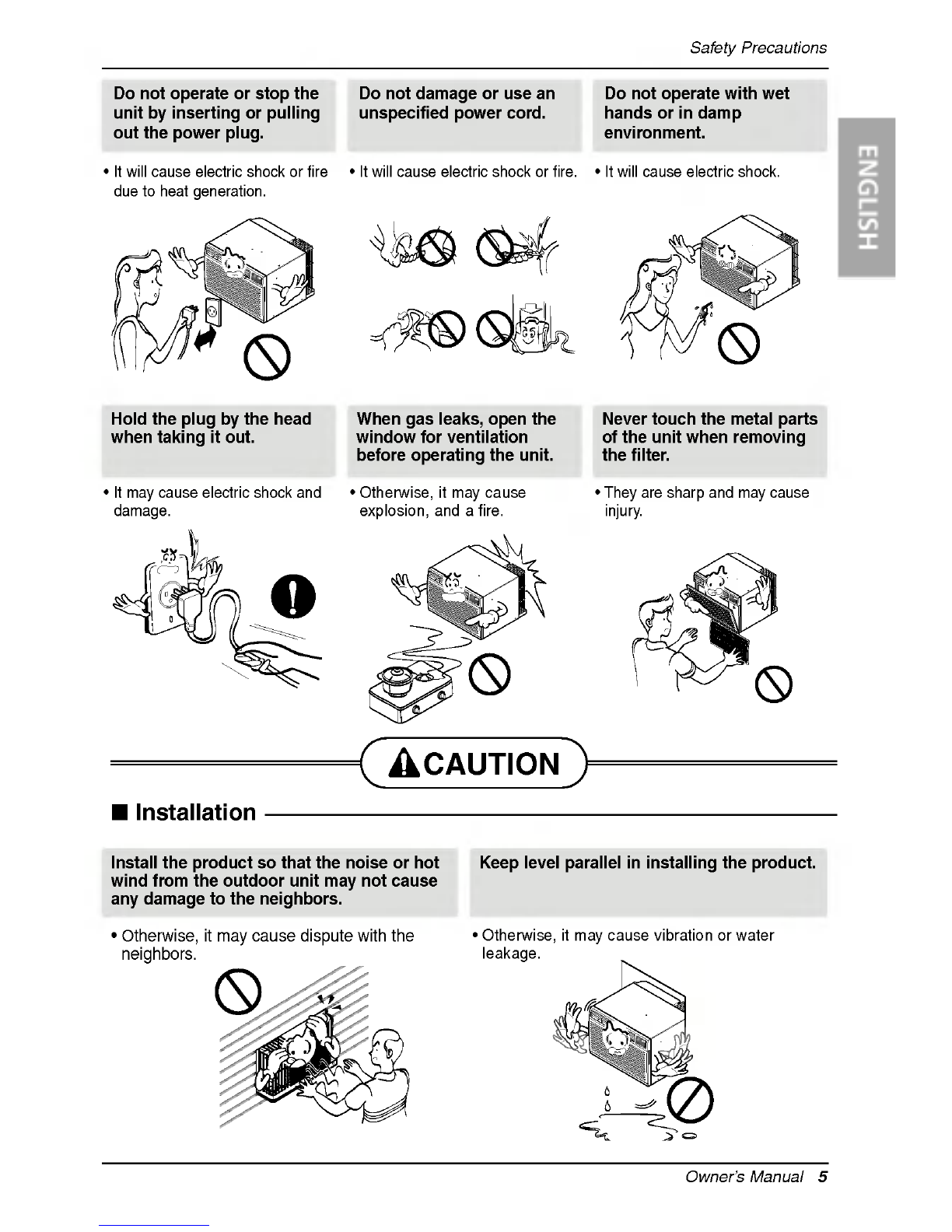

Owner's Manual 5
ENGLISH
Safety
Precautions
CAUTION
Installation
Do not
operate
or
stop
the
unit
by inserting
or
pulling
out the
power plug.
?
It will cause electric shock or fire
due to heat
generation.
Do not
damage
or use an
unspecified power
cord.
?
It will cause electric shock or fire.
Do not
operate
with wet
hands or in
damp
environment.
?
It will cause electric shock.
Hold the
plug by
the head
when
taking
it out.
?
It
may
cause electric shock and
damage.
When
gas
leaks,
open
the
window for ventilation
before
operating
the unit.
?
Otherwise,
it
may
cause
explosion,
and a fire.
Never touch the metal
parts
of the unit when
removing
the filter.
?
They
are
sharp
and
may
cause
injury.
Install the
product
so that the noise or hot
wind from the outdoor unit
may
not cause
any damage
to the
neighbors.
?
Otherwise,
it
may
cause
dispute
with the
neighbors.
Keep
level
parallel
in
installing
the
product.
?
Otherwise,
it
may
cause vibration or water
leakage.

6 Room Air Conditioner
Safety
Precautions
Operation
Be cautious not to touch the
sharp edges
when
installing.
?
It
may
cause
injury.
Avoid excessive
cooling
and
perform
ventilation
sometimes.
?
Otherwise,
it
may
do harm to
your
health.
Do not insert the hands or
bars
through
the air inlet or
outlet
during operation.
?
Otherwise,
it
may
cause
personal injury.
Do not
put
a
pet
or house
plant
where it will be
exposed
to direct air flow.
?
It
may
cause
injury.
Do not block the inlet or
outlet of air flow.
?
It
may
cause
product
failure.
Use a soft cloth to clean. Do
not use
wax, thinner,
or a
strong detergent.
?
The
appearance
of the air
conditioner
may
deteriorate,
change
color,
or
develop
surface
flaws.
Do not
step
on the
indoor/outdoor unit and do
not
put anything
on it.
?
It
may
cause an
injury through
dropping
of the unit or
falling
down.
Always
insert the filter
securely.
Clean it
every
two weeks.
?
Operation
without filters will
cause failure.
Do not drink water drained
from air conditioner.
?
It contains containments and will
make
you
sick.

Before
Operation
Owner's Manual 7
ENGLISH
Before
Operation
1. Contact an installation
specialist
for installation.
2.
Plug
in the
power plug properly.
3. Use a dedicated circuit.
4. Do not use an extension cord.
5. Do not
start/stop operation by plugging/unplugging
the
power
cord.
6. If the
cord/plug
is
damaged, replace
it with
only
an authorized
replacement
part.
1.
Being exposed
to direct airflow for an extended
period
of time could be
hazardous to
your
health. Do not
expose occupants, pets,
or
plants
to direct
airflow for extended
periods
of time.
2. Due to the
possibility
of
oxygen deficiency,
ventilate the room when used
together
with stoves or other
heating
devices.
3. Do not use this air conditioner for
non-specified special purposes (e.g.
preserving precision
devices, food,
pets, plants,
and art
objects).
Such
usage
could
damage
the items.
1. Do not touch the metal
parts
of the unit when
removing
the filter.
Injuries
can
occur when
handling sharp
metal
edges.
2. Do not use water to clean inside the air conditioner.
Exposure
to water can
destroy
the
insulation,
leading
to
possible
electric shock.
3. When
cleaning
the
unit,
first make sure that the
power
and breaker are turned
off. The fan rotates at a
very high speed during operation.
There is a
possibility
of
injury
if the unit's
power
is
accidentally triggered
on while
cleaning
inner
parts
of the unit.
For
repair
and
maintenance,
contact
your
authorized service dealer.
Preparing
for
Operation
Usage
Cleaning
and Maintenance
Service

8 Room Air Conditioner
Introduction
This
symbol
alerts
you
to the risk of electric shock.
This
symbol
alerts
you
to hazards that could cause harm to
the air conditioner.
This
symbol
indicates
special
notes.
NOTICE
This
appliance
should be installed in accordance with the National Electric Code.
Introduction
Symbols
Used
in
this Manual
Features
CABINET
FRONT GRILLE
INLET GRILLE
(Air Intake)
AIR FILTER
HORIZONTAL AIR DEFLECTOR
(Vertical Louver)
VENT CONTROL
VERTICAL AIR DEFLECTOR
(Horizontal Louver)
AIR DISCHARGE
SLEEVE ASSEMBLY
(Including
Aluminum Rear
grille)
THE SLEEVE AND THE REAR GRILLE
(optionally supplied
with
your unit)
THE UNIT
REAR GRILLE
(Aluminum
Rear
grille)

Electrical
Safety
Owner's Manual 9
ENGLISH
Electrical
Safety
115V~ 230V~
Power cord
may
include a current
interrupter
device. A test and reset button is
provided
on the
plug
case. The device
should be tested on a
periodic
basis
by
first
pressing
the TEST button and then the
RESET button. If the TEST button does not
trip
or if the RESET button will not
stay
engaged,
discontinue use of the air
conditioner and contact a
qualified
service
technician.
Use Wall
Receptacle
Power
Supply
Standard
125V,
3-wire
grounding
receptacle
rated
15A,
125V AC
Standard
250V,
3-wire
grounding
receptacle
rated
15A,
250V AC
Use 15 AMP. time
delay
fuse or 15 AMP.
circuit breaker.
Use 20 AMP. time
delay
fuse or 20 AMP.
circuit breaker.
Standard
250V,
3-wire
grounding
receptacle
rated
20A,
250V AC
Never
push
the test button
during
operation
Otherwise this
plug
can
damaged.
This device contains
chemical,
including
lead,
known to the State of California to
cause
cancer,
and birth defects or other
reproductive
harm.
Wash hands after
handling.
Do not
remove,
modify
or immerse this
plug.
If this device
trips,
the cause it to be
corrected before further use.
The conductors inside this cord are
surrounded
by
shields,
which monitor
leakage
current.
These shields are not
grounded.
<Made in Tower>
Periodically
examine the cord for
any
damage.
Do not use this
product
in the
event the shields become
exposed.
Avoid shock
hazard,
this unit can not
be user serviced
opening
the
tamper
resistant. Sealed
portion
of the unit
voids all warranties and
performance
claims. This unit not intended for use
as an on-off switch.
The
shape may
be different
according
to its model.
NOTICE
DO NOT USE AN EXTENSION CORD on
230,
208,
and 230/208 Volt units.
All
wiring
should be made in accordance with local
electrical codes and
regulations.
Aluminum house
wiring may pose special
problems.
Consult a
qualified
electrician.
NOTICE

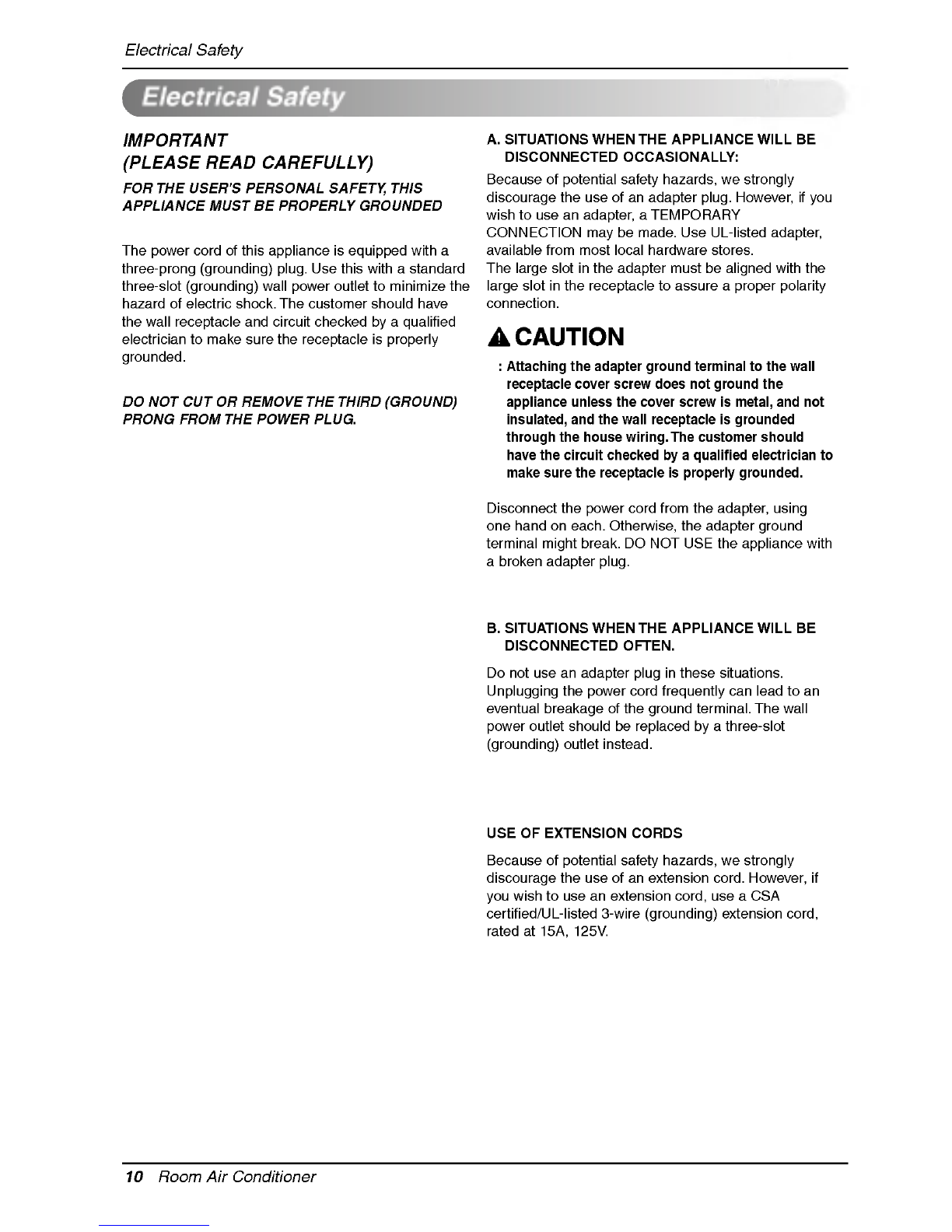

10 Room Air Conditioner
Electrical
Safety
IMPORTANT
(PLEASE
READ
CAREFULLY)
FOR THE USER'S PERSONAL
SAFETY,
THIS
APPLIANCE MUSTBE PROPERLY GROUNDED
The
power
cord of this
appliance
is
equipped
with a
three-prong (grounding) plug.
Use this with a standard
three-slot
(grounding)
wall
power
outlet to minimize the
hazard of electric shock. The customer should have
the wall
receptacle
and circuit checked
by
a
qualified
electrician to make sure the
receptacle
is
properly
grounded.
DO NOT CUT OR REMOVE THE THIRD
(GROUND)
PRONG FROM THE POWER PLUG.
A. SITUATIONS WHEN THE APPLIANCE WILL BE
DISCONNECTED OCCASIONALLY:
Because of
potential safety
hazards,
we
strongly
discourage
the use of an
adapter plug.
However,
if
you
wish to use an
adapter,
a TEMPORARY
CONNECTION
may
be made. Use UL-listed
adapter,
available from most local hardware stores.
The
large
slot in the
adapter
must be
aligned
with the
large
slot in the
receptacle
to assure a
proper polarity
connection.
:
Attaching
the
adapter ground
terminal to the wall
receptacle
cover screw does not
ground
the
appliance
unless the cover screw is
metal,
and not
insulated,
and the wall
receptacle
is
grounded
through
the house
wiring.
The customer should
have the circuit checked
by
a
qualified
electrician to
make sure the
receptacle
is
properly grounded.
Disconnect the
power
cord from the
adapter, using
one hand on each.
Otherwise,
the
adapter ground
terminal
might
break. DO NOT USE the
appliance
with
a broken
adapter plug.
B. SITUATIONS WHEN THE APPLIANCE WILL BE
DISCONNECTED OFTEN.
Do not use an
adapter plug
in these situations.
Unplugging
the
power
cord
frequently
can lead to an
eventual
breakage
of the
ground
terminal. The wall
power
outlet should be
replaced by
a three-slot
(grounding)
outlet instead.
USE OF EXTENSION CORDS
Because of
potential safety
hazards,
we
strongly
discourage
the use of an extension cord.
However,
if
you
wish to use an extension
cord,
use a CSA
certified/UL-listed 3-wire
(grounding)
extension
cord,
rated at
15A,
125V.
Electrical
Safety

Owner's Manual 11
ENGLISH

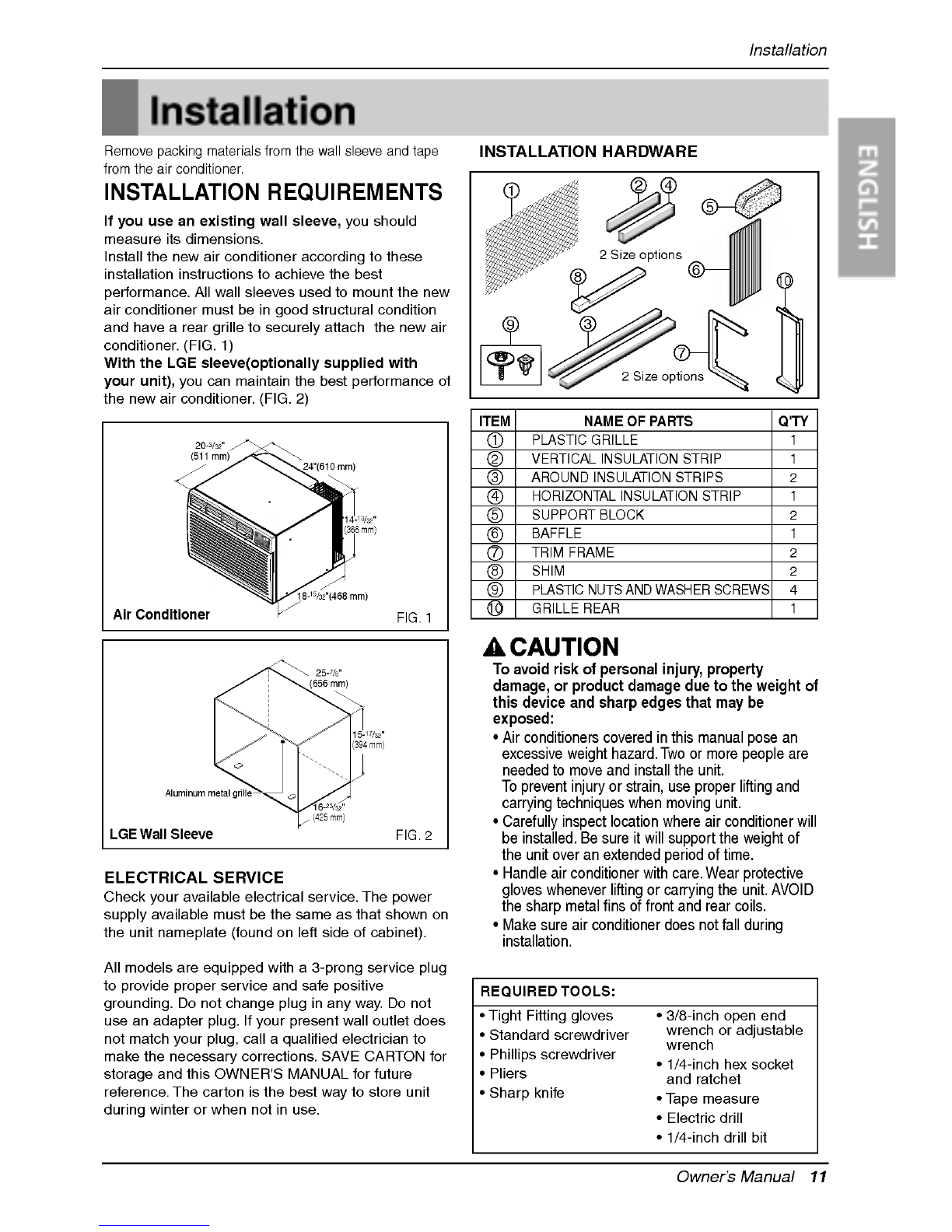

Installation
Installation
Remove
packing
materials from the wall sleeve and
tape
from the air conditioner.
INSTALLATION
REQUIREMENTS
If
you
use an
existing
wall
sleeve,
you
should
measure its dimensions.
Install the new air conditioner
according
to these
installation instructions to achieve the best
performance.
All wall sleeves used to mount the new
air conditioner must be in
good
structural condition
and have a rear
grille
to
securely
attach the new air
conditioner.
(FIG. 1)
With the LGE
sleeve(optionally supplied
with
your unit), you
can maintain the best
performance
of
the new air conditioner.
(FIG. 2)
ELECTRICAL SERVICE
Check
your
available electrical service. The
power
supply
available must be the same as that shown on
the unit
nameplate (found
on left side of
cabinet).
All models are
equipped
with a
3-prong
service
plug
to
provide proper
service and safe
positive
grounding.
Do not
change plug
in
any way.
Do not
use an
adapter plug.
If
your present
wall outlet does
not match
your plug,
call a
qualified
electrician to
make the
necessary
corrections. SAVE CARTON for
storage
and this OWNER'S MANUAL for future
reference. The carton is the best
way
to store unit
during
winter or when not in use.
INSTALLATION HARDWARE
14-13/32"
(366 mm)
24"(610 mm)
18-15/32"(468 mm)
20-3/32"
(511 mm)
1
10
5
6
7
8
3
24
9
2 Size
options
2 Size
options
To avoid risk of
personal injury, property
damage,
or
product damage
due to the
weight
of
this device and
sharp edges
that
may
be
exposed:
?
Air conditioners covered in this manual
pose
an
excessive
weight
hazard. Two or more
people
are
needed to move and install the unit.
To
prevent injury
or
strain,
use
proper lifting
and
carrying techniques
when
moving
unit.
?
Carefully inspect
location where air conditioner will
be installed. Be sure it will
support
the
weight
of
the unit over an extended
period
of time.
?
Handle air conditioner with care. Wear
protective
gloves
whenever
lifting
or
carrying
the unit. AVOID
the
sharp
metal fins of front and rear coils.
?
Make sure air conditioner does not fall
during
installation.
REQUIRED
TOOLS:
?
Tight Fitting gloves
?
Standard screwdriver
?
Phillips
screwdriver
?
Pliers
?
Sharp
knife
?
3/8-inch
open
end
wrench or
adjustable
wrench
?
1/4-inch hex socket
and ratchet
?
Tape
measure
?
Electric drill
?
1/4-inch drill bit
FIG. 1
Air Conditioner
ITEM NAME OF PARTS
Q'TY
1 PLASTIC GRILLE 1
2 VERTICAL INSULATION STRIP 1
3 AROUND INSULATION STRIPS 2
4 HORIZONTAL INSULATION STRIP 1
5 SUPPORT BLOCK 2
6 BAFFLE 1
7 TRIM FRAME 2
8 SHIM 2
9 PLASTIC NUTS AND WASHER SCREWS 4
10 GRILLE REAR 1
15-17/32"
(394 mm)
16-23/32"
(425 mm)
25-7/8"
(656 mm)
Aluminum metal
grille
FIG. 2
LGE Wall Sleeve

12 Room Air Conditioner
Installation
INSTALLATION
?
Pick a location which will allow the conditioned air
to blow into the area
you
want. Good installation
with
special
attention to the
proper position
of the
unit will lessen the chance that service will be
needed.
ITEMS IN INSTALLATION HARDWARE
You
may
not need all
parts
in the kit. Discard unused
parts
HOW TO INSTALL
Identify
the
existing
wall sleeve before
installing
the unit from the listed below.
All wall sleeves used to mount the new Air
Conditioner must be in sound structural condition
and have a rear
grille
that
securely
attaches to
sleeve,
or rear
flange
that serves as a
stop
for the
Air Conditioner.
Remove old air conditioner from
existing
wall
sleeve.
Clean the interior of an
existing
sleeve.
(Do
not disturb
seals.)
Wall sleeve must be
securely
fastened in wall
before
installing
the air conditioner. Use the
nails or screws
through
sleeve into
wall,
if
needed.
Repaint
sleeve if needed.
Prepare
the wall sleeve for installation of the
unit. If
you plan
to use
your existing
wall
sleeve,
and it is not
LGE,
use
procedure
B or C below.
Install new unit into wall sleeve.
When installation is
completed, replacement
unit
MUST have a rearward
slope
as shown. To
achieve 1/4"
slope,
remove the
backing
from the
11-13/16" shim
strips
and attach them as shown
below in
Fig.
3. Place the
higher portion
of shim to
the front of the rib on base of wall sleeve.
NOTICE
1
2
3
4
5
6
1/4"
Wall Sleeve
FRONT
UNIT
SHIM PLACEMENT UNIT INSTALLATION
1"
high
3/4"
High
Shim
6" 6"
FIG. 3
We
strongly
recommend the removal of the
old wall sleeve and the installation of a new
LGE Wall Sleeve.
If
you
decide to
keep
the
existing
wall
sleeve,
you
have to redirect the louvers at the back of
the wall sleeve illustration. The use of
pliers
is
recommended. If
you
DO NOT
redirect,
you
run the risk of
poor performance
or
product
failure. This is not covered under the terms of
the LGE
warranty.
ITEM
(inches) Qty.
Plastic
grille
263/4
x
161/2
1
Vertical insulation
strip
159/16
x
13/8
x
13/8
1
Around Insulation
Strips
671/8
x
13/8
x
25/32
1
5927/32
x
13/8
x
13/8
1
Horizontal Insulation
Strip
237/32 x
13/8
x 13/16 1
Support
Block
13/4
x
13/8
x
45/16
2
Baffle
14x41/2x1/8
1
Shim
1113/16x1x3/4
2
Trim Frame 2
Washer Screw 4
Nuts(Plastic)
4
Grille Rear 1
Wall Sleeve Dimensions
(inches)
Brand
Width
Height Depth
White-Westinghouse
25-1/2 15-1/4
16,
17-1/2
Frigidaire
or 22
Carrier
(52F series)
General Electric
26 15-5/8 16-7/8
/Hotpoint
Whirlpool
25-7/8 16-1/2 17-1/8
or 23
Fedders/Emerson 27 16-3/4 16-3/4
or 19-3/4
LGE 25-7/8 15-17/32 16-23/32
Emerson/Fedders 26-3/4 15-3/4 15
Carrier
(51S Series)
25-3/4 16-7/8 18-5/8
Friedrich 27 16-3/4 16-3/4
Procedure Brand
Depth(inches)
A LGE 16-23/32
White-Westinghouse
Frigidaire
Carrier
16,
17-1/2
(52F series)
or 22
B
General Electric
16-7/8
/Hotpoint
Whirlpool
17-1/8 or 23
Carrier
(51S series)
18-5/8
Fedders/Emerson
16-3/4
or 19-3/4
C
Emerson/Fedders 15
Friedrich 16-3/4

Owner's Manual 13
ENGLISH
Installation

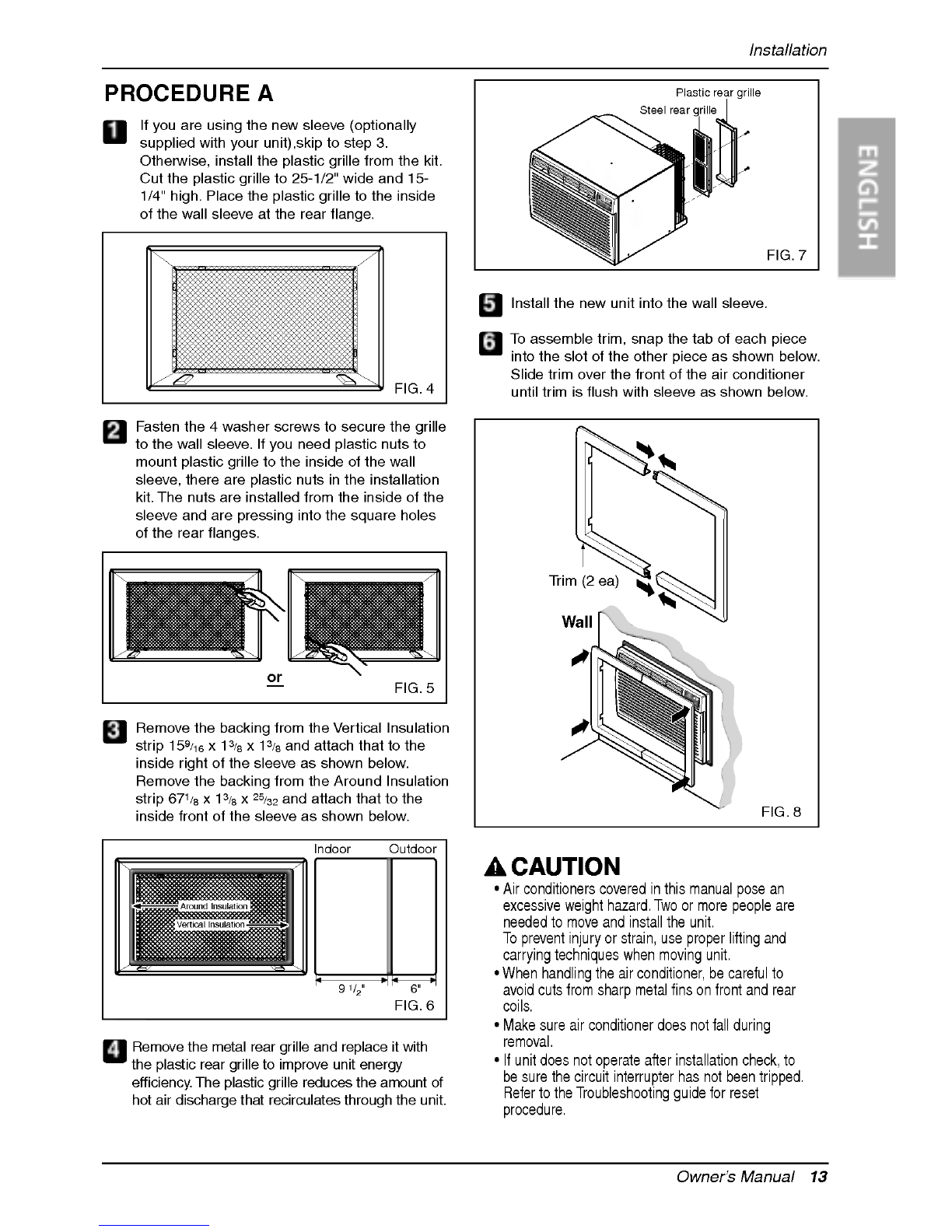

PROCEDURE
A
If
you
are
using
the new sleeve
(optionally
supplied
with
your unit),skip
to
step
3.
Otherwise,
install the
plastic grille
from the kit.
Cut the
plastic grille
to 25-1/2" wide and 15-
1/4"
high.
Place the
plastic grille
to the inside
of the wall sleeve at the rear
flange.
Fasten the 4 washer screws to secure the
grille
to the wall sleeve. If
you
need
plastic
nuts to
mount
plastic grille
to the inside of the wall
sleeve,
there are
plastic
nuts in the installation
kit. The nuts are installed from the inside of the
sleeve and are
pressing
into the
square
holes
of the rear
flanges.
Remove the
backing
from the Vertical Insulation
strip
159/16
x
13/8
x
13/8
and attach that to the
inside
right
of the sleeve as shown below.
Remove the
backing
from the Around Insulation
strip
671/8
x
13/8
x
25/32
and attach that to the
inside front of the sleeve as shown below.
Remove the metal rear
grille
and
replace
it with
the
plastic
rear
grille
to
improve
unit
energy
efficiency.
The
plastic grille
reduces the amount of
hot air
discharge
that recirculates
through
the unit.
Install the new unit into the wall sleeve.
To assemble
trim,
snap
the tab of each
piece
into the slot of the other
piece
as shown below.
Slide trim over the front of the air conditioner
until trim is flush with sleeve as shown below.
FIG. 4
Steel rear
grille
Plastic rear
grille
FIG. 7
Around Insulation
Vertical Insulation
9
1/2"6
"
Indoor Outdoor
FIG. 6
or
FIG. 5
1
2
3
4
5
6
Wall
Trim
(2 ea)
FIG. 8
?
Air conditioners covered in this manual
pose
an
excessive
weight
hazard. Two or more
people
are
needed to move and install the unit.
To
prevent injury
or
strain,
use
proper lifting
and
carrying techniques
when
moving
unit.
?
When
handling
the air
conditioner,
be careful to
avoid cuts from
sharp
metal fins on front and rear
coils.
?
Make sure air conditioner does not fall
during
removal.
?
If unit does not
operate
after installation
check,
to
be sure the circuit
interrupter
has not been
tripped.
Refer to the
Troubleshooting guide
for reset
procedure.

14 Room Air Conditioner
Installation
PROCEDURE
B

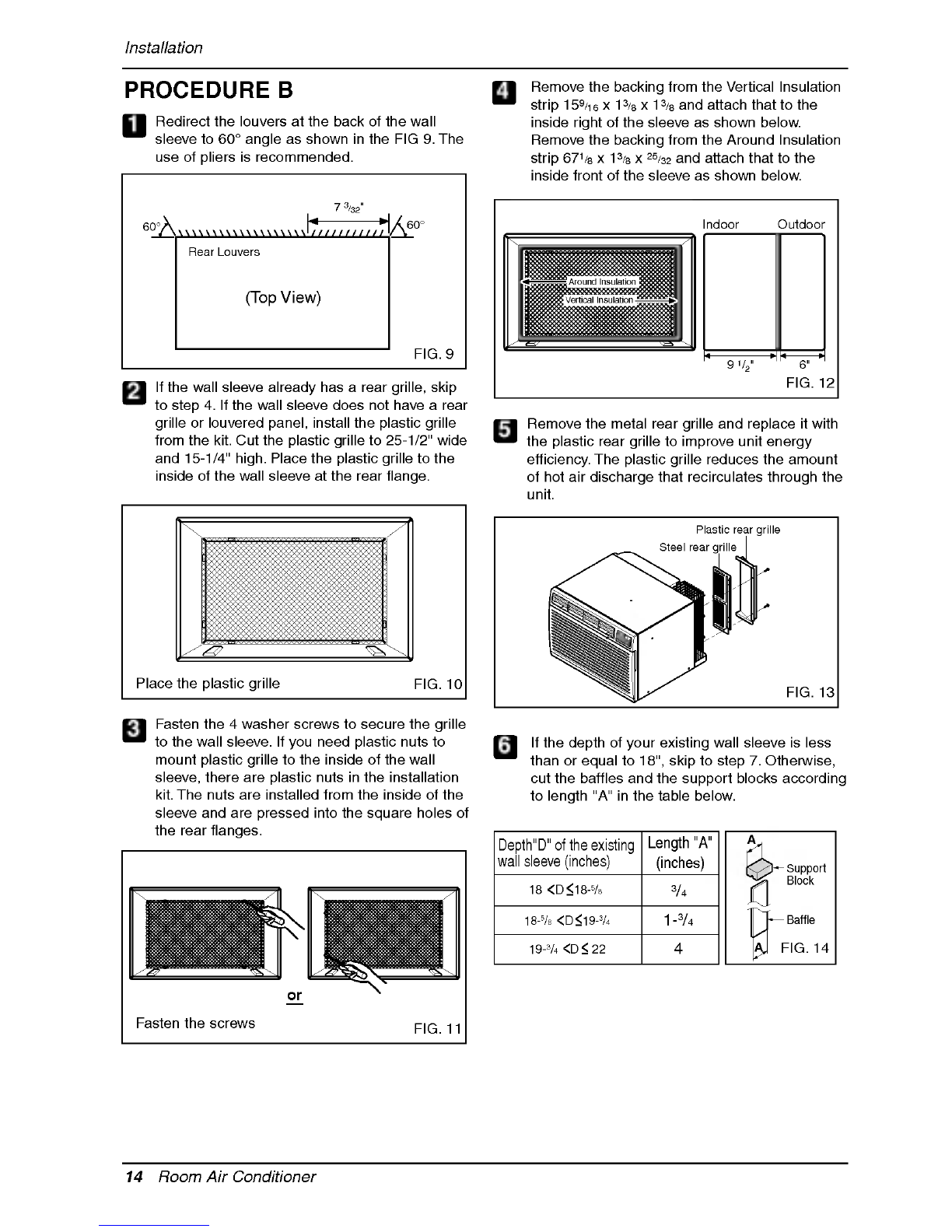

Redirect the louvers at the back of the wall
sleeve to 60°
angle
as shown in the FIG 9. The
use of
pliers
is recommended.
If the wall sleeve
already
has a rear
grille, skip
to
step
4. If the wall sleeve does not have a rear
grille
or louvered
panel,
install the
plastic grille
from the kit. Cut the
plastic grille
to 25-1/2" wide
and 15-1/4"
high.
Place the
plastic grille
to the
inside of the wall sleeve at the rear
flange.
Fasten the 4 washer screws to secure the
grille
to the wall sleeve. If
you
need
plastic
nuts to
mount
plastic grille
to the inside of the wall
sleeve,
there are
plastic
nuts in the installation
kit. The nuts are installed from the inside of the
sleeve and are
pressed
into the
square
holes of
the rear
flanges.
Remove the
backing
from the Vertical Insulation
strip
159/16
x
13/8
x
13/8
and attach that to the
inside
right
of the sleeve as shown below.
Remove the
backing
from the Around Insulation
strip
671/8
x
13/8
x
25/32
and attach that to the
inside front of the sleeve as shown below.
Remove the metal rear
grille
and
replace
it with
the
plastic
rear
grille
to
improve
unit
energy
efficiency.
The
plastic grille
reduces the amount
of hot air
discharge
that recirculates
through
the
unit.
If the
depth
of
your existing
wall sleeve is less
than or
equal
to
18",
skip
to
step
7.
Otherwise,
cut the baffles and the
support
blocks
according
to
length
"A" in the table below.
1
4
2
3
FIG. 10
Around Insulation
Vertical Insulation
9
1/2"6
"
Indoor Outdoor
FIG. 12
or
FIG. 11
Rear Louvers
(Top View)
60° 60°
7
3/32"
FIG. 9
Depth"D"
of the
existing
wall sleeve
(inches)
Length
"A"
(inches)
Support
Block
Baffle
A
A
3/4
1-3/4
4
18 D 18-5/8
18-5/8 D 19-3/4
19-3/4 D 22
5
6
Place the
plastic grille
Fasten the screws
FIG. 14
Steel rear
grille
Plastic rear
grille
FIG. 13

Owner's Manual 15
Installation

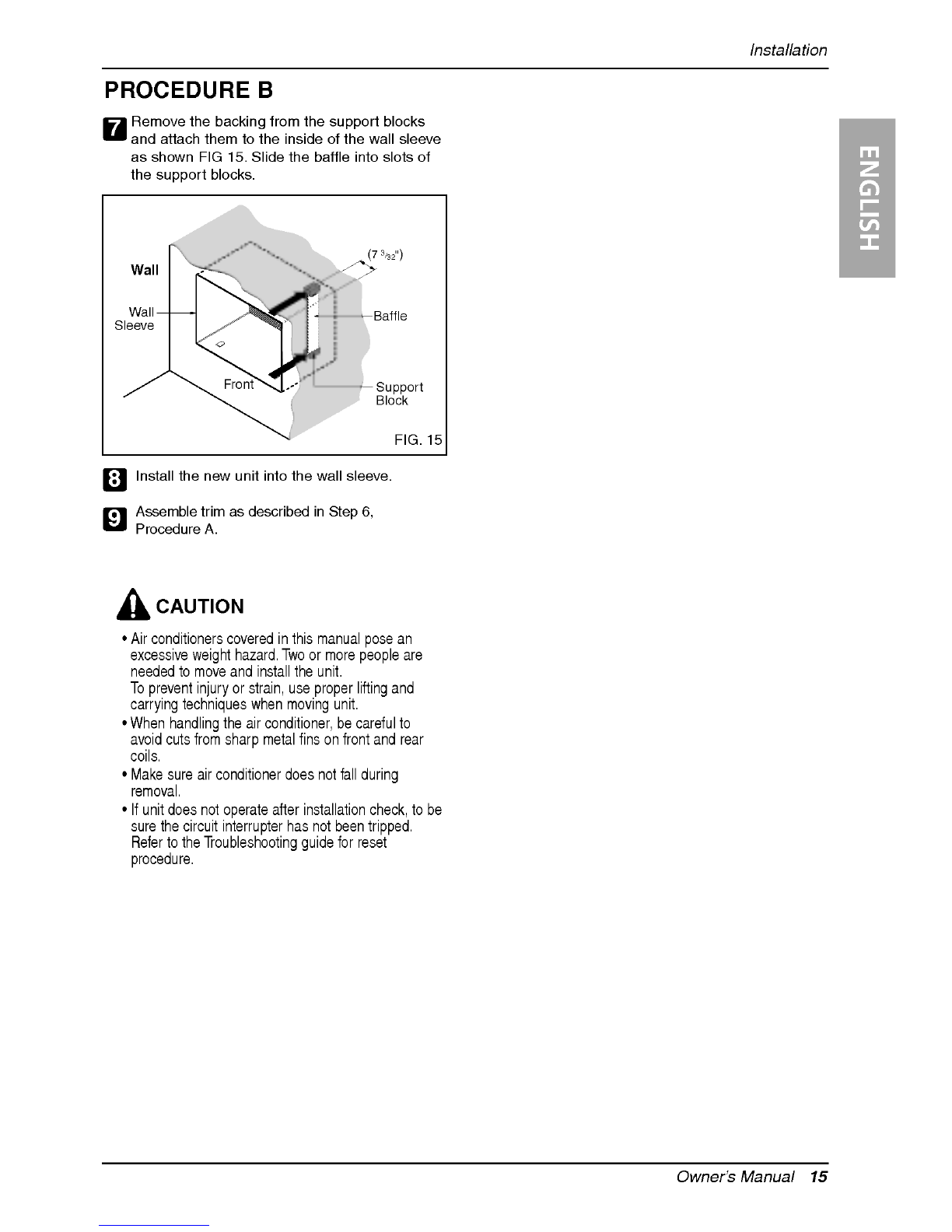

PROCEDURE
B
Remove the
backing
from the
support
blocks
and attach them to the inside of the wall sleeve
as shown FIG 15. Slide the baffle into slots of
the
support
blocks.
Install the new unit into the wall sleeve.
Assemble trim as described in
Step
6,
Procedure A.
Wall
Wall
Sleeve
Baffle
(7 3/32")
Front
Support
Block
FIG. 15
CAUTION
?
Air conditioners covered in this manual
pose
an
excessive
weight
hazard. Two or more
people
are
needed to move and install the unit.
To
prevent injury
or
strain,
use
proper lifting
and
carrying techniques
when
moving
unit.
?
When
handling
the air
conditioner,
be careful to
avoid cuts from
sharp
metal fins on front and rear
coils.
?
Make sure air conditioner does not fall
during
removal.
?
If unit does not
operate
after installation
check,
to be
sure the circuit
interrupter
has not been
tripped.
Refer to the
Troubleshooting guide
for reset
procedure.

16 Room Air Conditioner
Installation

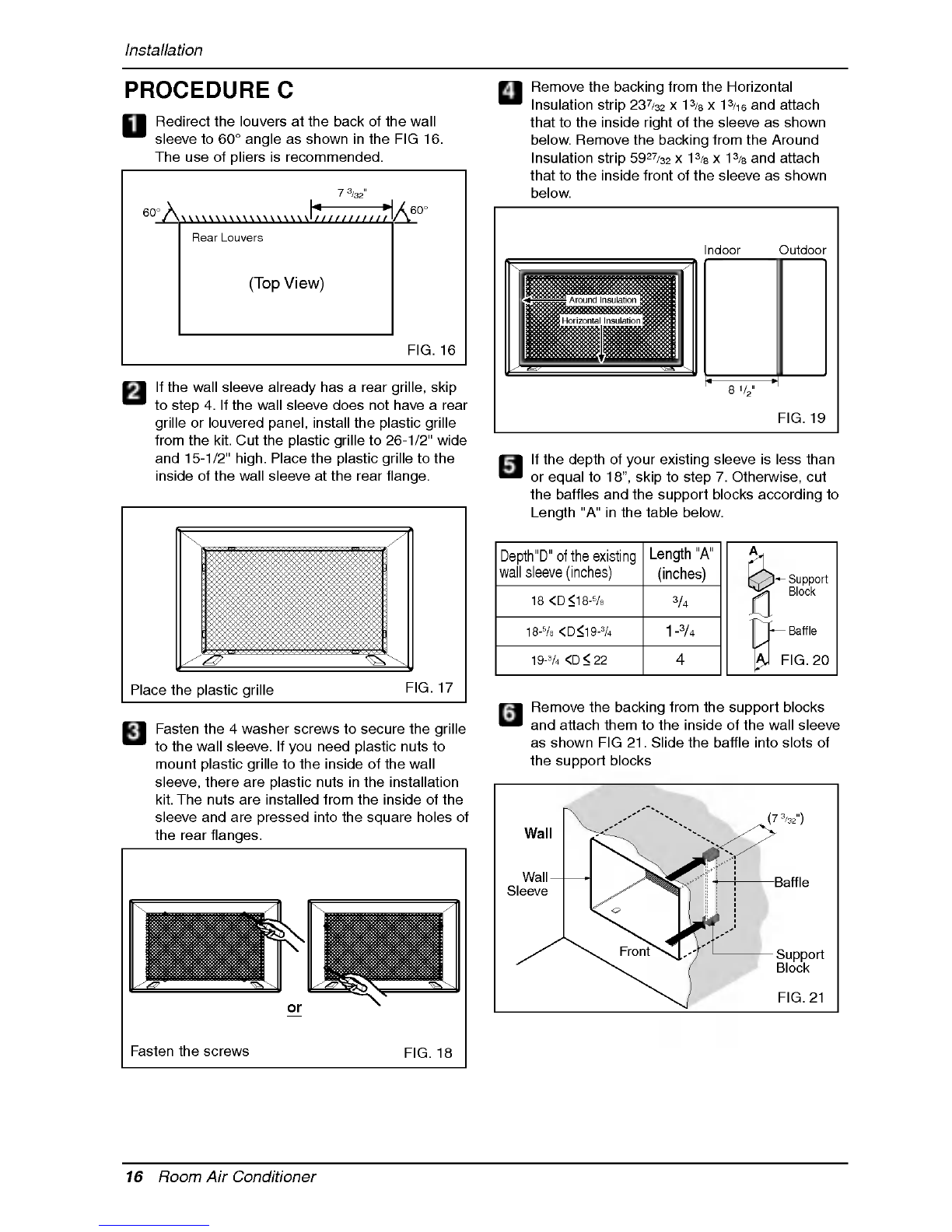

PROCEDURE C
Redirect the louvers at the back of the wall
sleeve to 60°
angle
as shown in the FIG 16.
The use of
pliers
is recommended.
If the wall sleeve
already
has a rear
grille, skip
to
step
4. If the wall sleeve does not have a rear
grille
or louvered
panel,
install the
plastic grille
from the kit. Cut the
plastic grille
to 26-1/2" wide
and 15-1/2"
high.
Place the
plastic grille
to the
inside of the wall sleeve at the rear
flange.
Fasten the 4 washer screws to secure the
grille
to the wall sleeve. If
you
need
plastic
nuts to
mount
plastic grille
to the inside of the wall
sleeve,
there are
plastic
nuts in the installation
kit. The nuts are installed from the inside of the
sleeve and are
pressed
into the
square
holes of
the rear
flanges.
Remove the
backing
from the Horizontal
Insulation
strip
237/32
x
13/8
x
13/16
and attach
that to the inside
right
of the sleeve as shown
below. Remove the
backing
from the Around
Insulation
strip
5927/32
x
13/8
x
13/8
and attach
that to the inside front of the sleeve as shown
below.
If the
depth
of
your existing
sleeve is less than
or
equal
to
18",
skip
to
step
7.
Otherwise,
cut
the baffles and the
support
blocks
according
to
Length
"A" in the table below.
Remove the
backing
from the
support
blocks
and attach them to the inside of the wall sleeve
as shown FIG 21. Slide the baffle into slots of
the
support
blocks
Depth"D"
of the
existing
wall sleeve
(inches)
Length
"A"
(inches)
Support
Block
Baffle
A
A
3/4
1-3/4
4
18 D 18-5/8
18-5/8 D 19-3/4
19-3/4 D 22
Wall
Wall
Sleeve
Baffle
Front
Support
Block
(7 3/32")
FIG. 21
FIG. 20
1
4
2
3
FIG. 17
8
1/2"
Indoor Outdoor
Around Insulation
Horizontal Insulation
FIG. 19
or
FIG. 18
Rear Louvers
(Top View)
60°
7
3/32"
60°
FIG. 16
5
6
Place the
plastic grille
Fasten the screws

Installation
Owner's Manual 17
ENGLISH
PROCEDURE C
To achieve rearward
slope
for unit
draining,
remove the
backing
from the
1113/16"
shim
strips
and attach them as shown below in
Fig.
23. The
higher portion
of shim is to be
placed
in front of the rib on the base of wall sleeve.
Remove the metal rear
grille
and
replace
it with
the
plastic
rear
grille
to
improve
unit
energy
efficiency.
The
plastic grille
reduces the amount
of hot air
discharge
that recirculates
through
the
unit.
Install the new unit into the wall sleeve
Assemble trim as described in
Step
6,
Procedure A.
8
9
10
7
FIG. 22
1"
high
3/4"
High
Shim
(2EA)
6" 6"
FIG. 23
Steel rear
grille
Plastic rear
grille
FIG. 24
?
Air conditioners covered in this manual
pose
an
excessive
weight
hazard. Two or more
people
are
needed to move and install the unit.
To
prevent injury
or
strain,
use
proper lifting
and
carrying techniques
when
moving
unit.
?
When
handling
the air
conditioner,
be careful to avoid
cuts from
sharp
metal fins on front and rear coils.
?
Make sure air conditioner does not fall
during
removal.
?
If unit does not
operate
after installation
check,
to be
sure the circuit
interrupter
has not been
tripped.
Refer to the
Troubleshooting guide
for reset
procedure.

18 Room Air Conditioner
Operating
Instructions
Operating
Instructions
Controls
The controls will look like one of the
following.
MODE TIMER POWER
FAN
SPEED
Fan
Energy
Saver
Cool
Timer
TEMP
'F
F1 LOW
F2 MED
F3 HIGH
REMOTE CONTROL SIGNAL
RECEIVER
POWER
MODE
-
Push this button to shift mode of
operation
from COOL ENERGY SAVER FAN.
-
COOL:
?
Fan runs
continually
for normal
cooling operation.
-
ENERGY SAVER:
?
The fan
stops
when the
compressor stops cooling. Approximately every
3 minutes the fan will turn on and the unit will
check the room air
temperature
to determine if
cooling
is needed.
-
FAN:
?
Fan-only operation.
TIMER
-
SHUT-OFF TIME
?
You will
usually
use shut-off time while
you sleep.
?
If unit is
running,
use Timer to set number of hours until shut-off.
?
For
your sleeping
comfort,
once Time is
set,
the
Temperature
setting
will raise 2°F after 30
min.,
and once
again
after another
30 min.
?
Push Timer button to advance
setting
from 1Hour 2Hours ...
12Hours maximum.
-
START TIME
?
If unit is
off,
use Timer to set number of hours before unit starts.
?
Push Timer button to advance
setting
from 1Hour 2Hours ...
12Hours maximum.
TEMPERATURE SETTING
?
Use this button to
automatically
control the
temperature
of the room.
The
temperature
can be set within a
range
of
60°F to 86°F
by
increments of 1°F.
?
The
setting appears
in the
display.
?
To turn the air conditioner
ON,
push
this button.
To turn the air conditioner
OFF,
push
the button
again.
?
This button takes
priority
over
any
other button.
?
When
you
first turn it
on,
the unit is in cool
mode,
High
fan
speed, Temperature setting
at
72°F.
FAN SPEED
?
Every
time
you push
this
button,
it advances the
setting
as follows:
{High
Low Med
High}
AUTO RESTART
When
power
is restored after an electrical
power
failure,
the unit will
begin
to run at its last
setting.

Owner's Manual 19
ENGLISH
Operating
Instructions
Remote control
The remote control and control
panel
will look like one of the
following pictures.
Pow er
Temp
Fan
Speed
Timer Mode
POWER
?
To turn the air conditioner
ON,
push
this button.
To turn the air conditioner
OFF,
push
the button
again.
?
This button takes
priority
over
any
other button.
?
When
you
first turn it
on,
the unit is in cool
mode,
High
fan
speed,
Temperature setting
at 72°F.
?
Auto Restart
In the event at a
power
failure,
the unit will run at the
previous setting
once
power
returns.
TEMPERATURE SETTING
?
Use this button to
automatically
control the
temperature
of the room.
The
temperature
can be set within a
range
of 60°F to 86°F
by
increments of 1°F.
?
The
setting appears
in the
display.
FAN SPEED
?
Every
time
you push
this button it advances the
setting
as follows:
(High
Low Med
High)
TIMER
-
SHUT-OFF TIME
?
You will
usually
use shut-off time while
you sleep.
?
If unit is
running,
use Timer to set number of hours until shut-off.
?
For
your sleeping
comfort,
once Time is
set,
the
Temperature setting
will
raise 2°F after 30
min,
and once
again
after another 30 min.
?
Push Timer button to advance
setting
from 1Hour 2Hours ...
12Hours maximum.
-
START TIME
?
If unit is
off,
use Timer to set of hours before unit starts.
?
Push Timer button to advance
setting
from 1Hour 2Hours ...
12Hours maximum.
MODE
-
Push this button to shift mode of
operation
from COOL ENERGY SAVER FAN.
-
COOL:
?
Fan runs
continually
for normal
cooling operation.
-
ENERGY SAVER:
?
The fan
stops
when the
compressor stops cooling. Approximately every
3 minutes the fan will turn on
and the unit will check the room air
temperature
to determine if
cooling
is needed.
-
FAN:
?
Fan-only operation.

20 Room Air Conditioner
Operating
Instructions
PULL OPEN / PUSH CLOSE
Ventilation
Air
Direction
The ventilation lever is located in the
right
of the air
discharge.
The ventilation lever must be in the CLOSE
position
in order to
maintain the best
cooling
conditions.
When fresh air is
necessary
in the
room,
set the ventilation lever to
the OPEN
position.
The
damper
is
opened
and room air is exhausted outside.
The direction of air can be controlled wherever
you
want
by adjusting
the horizontal louver and the vertical louver.
?
HORIZONTAL AIR-DIRECTION
CONTROL
The horizontal air direction is
adjusted by moving
vertical louver.
The lever of vertical louver is located in the
right
and
left side of the air
discharge.
?
VERTICAL AIR-DIRECTION CONTROL
The vertical air direction is
adjusted by moving
the
horizontal louver.
How to insert Batteries
1. Remove the cover from the back of the remote
controller.
2. Insert two batteries.
?
Be sure that the
(+)
and
(-)
directions are
correct.
?
Be sure that both batteries are new.
3. Re-attach the cover.
?
Do not use
rechargeable
batteries.
Such batteries differ from standard
dry
cells in
shape,
dimensions,
and
performance.
?
Remove the batteries from the
remote controller if the air
conditioner is not
going
to be used
for an extended
length
of time.
