OWNER'S MANUAL
LG
IMPORTANT
• Please read this owner's manual carefully and thoroughly
before installing and operating your room air conditioner.
• Please retain this owner's manual for future reference after
reading it thoroughly.
Prior to installation, this air-
conditioning unit must be submitted
for approval by the utility service
which provides electricity
(EN 61000-2, EN 61000-3 Norm).
ENGLISH ITALIANO ESPAÑOL FRANÇAIS DEUTSCH

Safety Precautions
2Multi Type Air Conditioner
Multi Type Air Conditioner Owner’s Manual
TABLE OF CONTENTS
FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
■ Staple your receipt to this page in the event you need it
to prove date of purchase or for warranty issues.
READ THIS MANUAL
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little
preventive care on your part can save you a great deal
of time and money over the life of your air conditioner.
You'll find many answers to common problems in the
chart of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
PRECAUTION
•Contact the authorized service technician for repair or
maintenance of this unit.
• Contact the installer for installation of this unit.
• The air conditioner is not intended for use by young
children or invalids without supervision.
• Young children should be supervised to ensure that
they do not play with the air conditioner.
• When the power cord is to be replaced, replacement
work shall be performed by authorized personnel only
using only genuine replacement parts.
• Installation work must be performed in accordance
with the National Electric Code by qualified and
authorized personnel only.
Safety Precautions.................3
Prior to Operation ..................6
Operating Instructions...........7
Remote Controller ..............7
Remote Control Operation.9
Additional features...............17
Maintenance and Service ....21
Operation Tips ..................25
Troubleshooting ..............26

Safety Precautions
Owner's Manual 3
ENGLISH
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is
classified by the following indications.
■Meanings of symbols used in this manual are as shown below.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage.
Be sure not to do.
Be sure to follow the instruction.
WARNING
Do not disassemble or repair the product. Always earth the product.
• Contact your dealer and service center. • It will cause fire or electric shock.
Do not handle the flamable gas or explosive
materials near the product. Do not install where flamable gas could leak.
• Otherwise, it may cause fire or failure of product. • Otherwise, it may cause esplosion or fire.
Do not install the product on an defected
installation stand. Be cautious when unpack and install the product.
• Otherwise, It may cause injury or accident. • Sharp edges could cause injury.
For installation, always contact the dealer or
service center. Do not install the product on an defected installation stand.
• Otherwise, it may cause fire, electric shock, explosion
or injury. • Otherwise, It may cause injury or accident.
For electric work, contact the dealer or
service center. Do not use damaged power cable.
• It will cause fire or electric shock. • It will cause fire or electric shock.
Always intstall an circuit breaker and main
breaker.
• No installation may cause fire and electric shock.
■Installation

Safety Precautions
4Multi Type Air Conditioner
■Operation
Do not touch(operate) product with wet
hands.
• Otherwise, it may cause fire or electric shock.
If strange sounds, or small or smoke comes
from product. Turn the breaker off or
disconnect the power supply cable.
• Otherwise, it may cause electric shock or fire.
Do not put the heater, etc. near the power
cable.
• Otherwise, it may cause fire and electric shock.
Do not put water into electric part.
• Otherwise, it may cause fire or failure of procuct, and
electric shock.
Ventilate well in using with a stove, etc.
• Otherwise, an ozygen shortage may occur.
When the product is not going to be used for
a long time,disconnect the power supply plug
or turn off the breaker.
• Otherwise, it may cause failure of product or fire.
Do not place heavy object on the power
cable.
• Otherwise, it may cause fire or electric shock.
When the product is flooded, contact the
service center.
• Otherwise, it may cause fire or eletric shock.
Cover the electric part.
• Otherwise, it may cause fire or electric shock.
Do not turn the breaker on/off or
connect/disconnect the power supply plug
during operation.
• Otherwise, it may cause fire or electric shock.
Do not open the suction inlet of the product
during operation.
• Otherwise, it may cause electric shock or failure.
Do not touch the metal parts of the product
when removing the air filter.
• Otherwise, it may cause personal injury.
Be cautious that children could not step on
the product.
• Otherwise, children may be seriously injured.
Do not step or put anyting on the product.
• Otherwise, it may cause personal injury and failure of
product.
Always inspect gas leakage after installation
and repair of product.
• Otherwise, it may cause failure of product.
Install the drain hose to ensure that drain can
be securely done.
• Otherwise, it may cause water leakage.
Take care to ensure that water could not enter
into the product.
• Otherwise, it may cause fire or electric shock.
Do not carry the product by oneself.
• Otherwise it may harm to your health.
Keep the level even in installing the product.
• Otherwise, it may cause vibration or water leakage.
■Installation
CAUTION

Safety Precautions
Owner's Manual 5
ENGLISH
■Operation
Do not expose your skin directly to cool air for a long
time.
When flamable gas leakages from the product,
open the window for ventilation.
• Otherwise, it may harm to your health. • Otherwise, it may cause explosion or fire.
Turn the main power off when cleaning the product. Do not put a pet or houseplant where it will be
exposed to direct air flow.
• Otherwise, it may cause fire and electric shock. • This could injure the pet or plant.
Do not use the product for special purpose to preserve
animals, vegetables, precision device, or art objects, etc.
Stop operation and close the window in strom or
hurricane.
• Otherwise, it may cause loss of property. • Otherwise, it may cause failure of product or electric
shock.
Do not place obstacles aroud the flow inlet or
outlet. Always insert the filter securly. Clean it once every two weeks.
• Othewise, it may cause failure of product. • Otherwise, it may cause failure of the product.
Useasoftclothtoclean,Donotusewax,
tinner or a strong detergent, etc. Do not drink water drained from the product.
• Otherwise, it may change the apperance of the
product. • Otherwise, it may harm to your health.
Do not insert your hand or bars, etc. into the
air inlet/outlet. Do not use the product at the closed space for a long time.
• Otherwise, it may cause personal injury. • Otherwise, it may cause suffocation due to poor
oxygen.
Do not operate the product for a long time in
high humidity, and leave a door or window open.
Do not step onto an unstable bench when
maintaining the product, etc.
• Otherwise, water may drop and wet or damage
furniture, etc. • Otherwise, it may cause personal injury.
Install the product so that noise or hot wind
from the outdoor unit. May not give any
damage to the neighborhoods.
• Otherwise, it may cause dispute with the
neighborhoods.
Replace the 2 batteries with new ones of
same type.
Do not charge or disassemble the batteries and
do not throw them into a fire.
• Otherwise, it may cause fire or an explosion.
If liquid from the batteries gets onto your skin
or clothes, wash it well with clean water.
Use a rated fuse.
• Otherwise it may harm to your health. • Otherwise, It will cause fire or electric shock.

Prior to operation
6Multi Type Air Conditioner
Prior to operation
1. Contact an installation specialist for installation.
2. Connect the power cable between indoor unit and outdoor unit properly.
3. Use a dedicated circuit.
4. If the cord/plug is damaged, replace it with only an authorized replacement part.
1. Being exposed to direct airflow for an extended period of time could be hazardous to your health.
Do not expose occupants, pets, or plants to direct airflow for extended periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used together with stoves or
other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g. preserving precision devices,
food, pets, plants, and art objects). Such usage could damage the items.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can occur when handling
sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can destroy the insulation,
leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned off. There is a
possibility of injury if the unit’s power is accidentally triggered on while cleaning inner parts of the
unit.
For repair and maintenance, contact your authorized service dealer.
Preparing for operation
Usage
Cleaning and maintenance
Service
Symbols Used in this Manual
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to the
air conditioner.
This symbol indicates special notes.
NOTICE

Operating Instructions
Owner's Manual 7
ENGLISH
Remote Controller
StandardType ArtcoolType Artcool DeluxeType
Operating Instructions
Storage and Tips For Using the Remote Controller
Remove the battery cover by pulling it according to the arrow
direction.
Insert new batteries making sure that the (+) and (-) of battery are
installed correctly.
Reattach the cover by sliding it back into position.
• Use 2 AAA(1.5volt) batteries. Do not use rechargeable batteries.
NOTICE
3
2
1
• The refering to the following picture, fix the remote controller holder onto the wall using screws.
• To operate the room air conditioner, aim the Remote Controller to the signal receptor.

Operating Instructions
8Multi Type Air Conditioner
Signal
receptor
Operation indication lamps
Operation indication lamps
Cooling Mode Lights up during Cooling operation. (Outline)
Auto Operation Mode Lights up during Auto operation.(Outline)
Healthy Dehumidification
Lights up during Healthy Dehumidification operation.(Outline)
Mode
Heating Mode Lights up during Heating operation.
(Heat Pump model only) (Outline)
Defrost Mode Lights up during Defrost controller or
Hot Start in Heating operation.(Outline)
Air circulation Mode Lights up during Air Circulation operation. (Outline)
Sleep Mode Lights up during Sleep Mode operation.
Timer Lights up during Timer operation.
Auto Cleaning Mode Lights up during Auto Cleaning reservation.
Jet Cool Mode Lights up during Jet Cool Operation.
Plasma Lights up during Plasma operation.
Fan Speed (Low) Lights up when Fan speed is low.
Fan Speed (Medium) Lights up when Fan speed is Medium.
Fan Speed (High) Lights up when Fan speed is High.
Fan Speed (Chaos) Lights up when Fan speed is Chaos.
Desire temperature For cooling,dehumidification,heating modes it display Destired temperature
indicator • Cooling : 18~30°C • AI : Auto Operation
• Dehumidification : 18~30°C • Po : Jet Cool
• Heating : 16~30°C • Lo :Test Mode
Desire temperature Icon
Indoor temperature Icon
Receives the signals from the remote controller.(Signal receiving sound: two short beeps or one long beep.)
Operation Indication Lamps
: Lights up during the system operation.
Sleep Mode : Lights up during Sleep Mode Auto operation.
Timer : Lights up during Timer operation.
Defrost Mode : Lights up during Defrost Mode or
Hot Start operation.(Heat pump model only)
Outdoor unit operation : Lights up during outdoor unit operation.
(Cooling model only)
PLASMA : Indicate PLASMA purifier operation.
Signal Receptor
Receives the signals from the remote controller.(Signal receiving sound: two short beeps or one long beep.)
Operation Indication Lamps
On/Off : Lights up during the system operation.
Sleep Mode : Lights up during Sleep Mode Auto operation.
Timer : Lights up during Timer operation.
Defrost Mode : Lights up during Defrost Mode or Hot Start operation (Heat pump model only)
: Lights up during outdoor unit operation. (Cooling model only)
OUT
DOOR
OUTDOOR UNIT
OPERATION
On/Off
Each icon shows its own function mode.

Operating Instructions
Owner's Manual 9
ENGLISH
ON OFF
CANCEL
AUTO CLEAN
SET
Cooling Operation
Auto Operation
Healthy Dehumidification Operation
Flip-up door
(opened)
Heating Operation
Signal transmitter
• Cooling Model( ), Heat Pump Model( )
51
3
10
9
16
17
12
15
6
4
2
7
11
8
13
14
Operation Mode
Remote Control Operation
The Remote Controller transmits the signals to the system.
START/STOP BUTTON
Operationstartswhenthisbuttonispressed
and stops when the button is pressed again.
OPERATION MODE SELECTION BUTTON
Used to select the operation mode.
ROOM TEMPERATURE
SETTING BUTTONS
Used to select the room temperature.
INDOOR FAN SPEED SELECTOR
Used to select fan speed in four steps
low, medium, high and CHAOS.
JET COOL
Used to start or stop the speed cooling/heating.
(Speed cooling/heating operates super high fan
speed.)
CHAOS SWING BUTTON
Used to stop or start louver movement and set
the desired up/down airflow direction.
ON/OFF TIMER BUTTONS
Used to set the time of starting and stopping
operation.
TIME SETTING BUTTONS
Used to adjust the time.
TIMER SET/CANCEL BUTTON
Used to set the timer when the desired time is
obtained and to cancel the Timer operation.
SLEEP MODE AUTO BUTTON
Used to set Sleep Mode Auto operation.
AIR CIRCULATION BUTTON
Used to circulate the room air without cooling or
heating.
ROOM TEMPERATURE CHECKING BUTTON
Used to check the room temperature.
PLASMA(OPTIONAL)
Used to start or stop the plasma-purification
function.
RESET BUTTON
Initialize remote controller.
2ndFButton
Used prior to using modes printed in blue at the
bottom of buttons.
AUTO CLEAN
Used to set Auto Clean mode.
LED LUMINOSITY
Used to control the luminosity of the display on
unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
15
(Heat Pump)
(Cooling Only)

Safety Precautions
10 Multi Type Air Conditioner
ON
Cooling Healthy
Dehumidification
Auto Heating
(Heat pump model only)
To lower the temperature
To raise the temperature
(Cooling Only
model) (Heat Pump model)

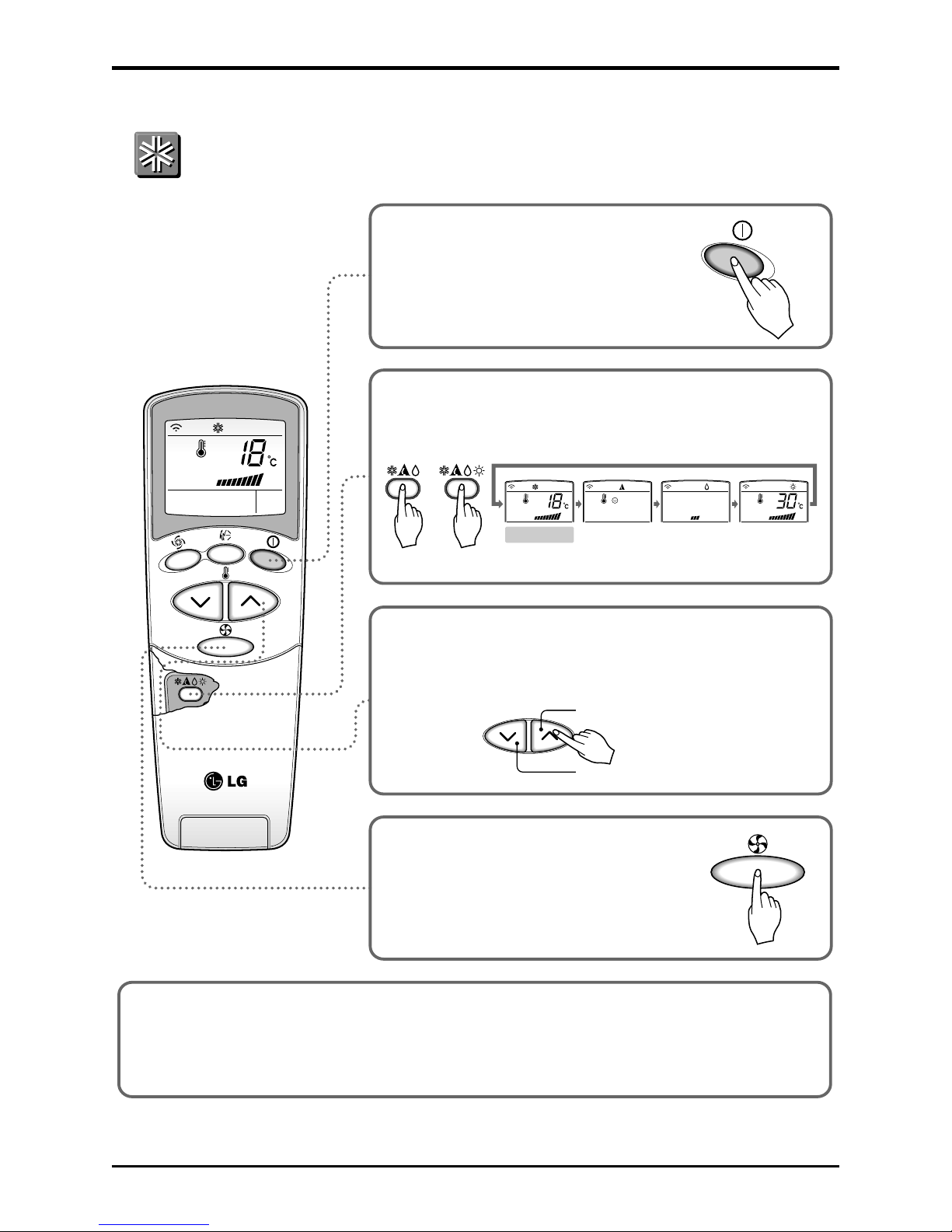

Open the door on the Remote Controller. To select Cooling
Operation, press the Operation Mode Selection button.
Each time the button is pressed, the operation mode is shifted
in the direction of the arrow.
Set the temperature lower than the room temperature.
The temperature can be set within a range of 18°C~30°Cin
1°C.
You can select the fan speed in four steps-
low, medium, high, or CHAOS. Each time the
button is pressed, the fan speed mode is
shifted.
Cooling Operation
Natural wind by the CHAOS logic
❏For more fresh feeling, press the Indoor Fan Speed Selector and set CHAOS mode. In this mode, the wind
blows like natural breeze by automatically changing fan speed according to the CHAOS logic.
Press the Start/Stop button.
The unit will respond with beep sound.
1
2
3
4

Safety Precautions
Owner's Manual 11
ENGLISH
ON
Cooling Healthy
Dehumidification
Auto Heating
(Heat pump model only)
To lower the temperature
To raise the temperature
(Cooling Only
model) (Heat Pump model)
Press the Start/Stop button.
The unit will respond with beep
sound.
Open the door on the Remote Controller. To select Auto
Operation, press the Operation Mode Selection button.
Each time the button is pressed, the operation mode is
shifted in the direction of the arrow.
The temperature and fan speed are automatically set by the
electronic controls based on the actual room temperature. If
you want to change the set temperature, press the Room
Temperature Setting buttons. The set temperature will be
changed considering room temperature.
DURING AUTO OPERATION:
❏You cannot switch the indoor fan speed. It has already been set by the Fuzzy rule.
❏If the system is not operating as desired, manually switch to another mode. The system will not
automatically switch from the cooling mode to the heating mode, or from heating to cooling, then you must
set the mode and the desired temperature again.
❏During Auto Operation, pressing the chaos swing button makes the horizontal louvers swing up and down
automatically. If you want to stop auto-swing, press the chaos swing button again.
Auto Operation
1
2
3

Operating Instructions
12 Multi Type Air Conditioner
ON
Cooling Healthy
Dehumidification
Auto Heating
(Heat pump model only)
(Cooling Only
model) (Heat Pump model)
Press the Start/Stop button.
The unit will respond with beep
sound.

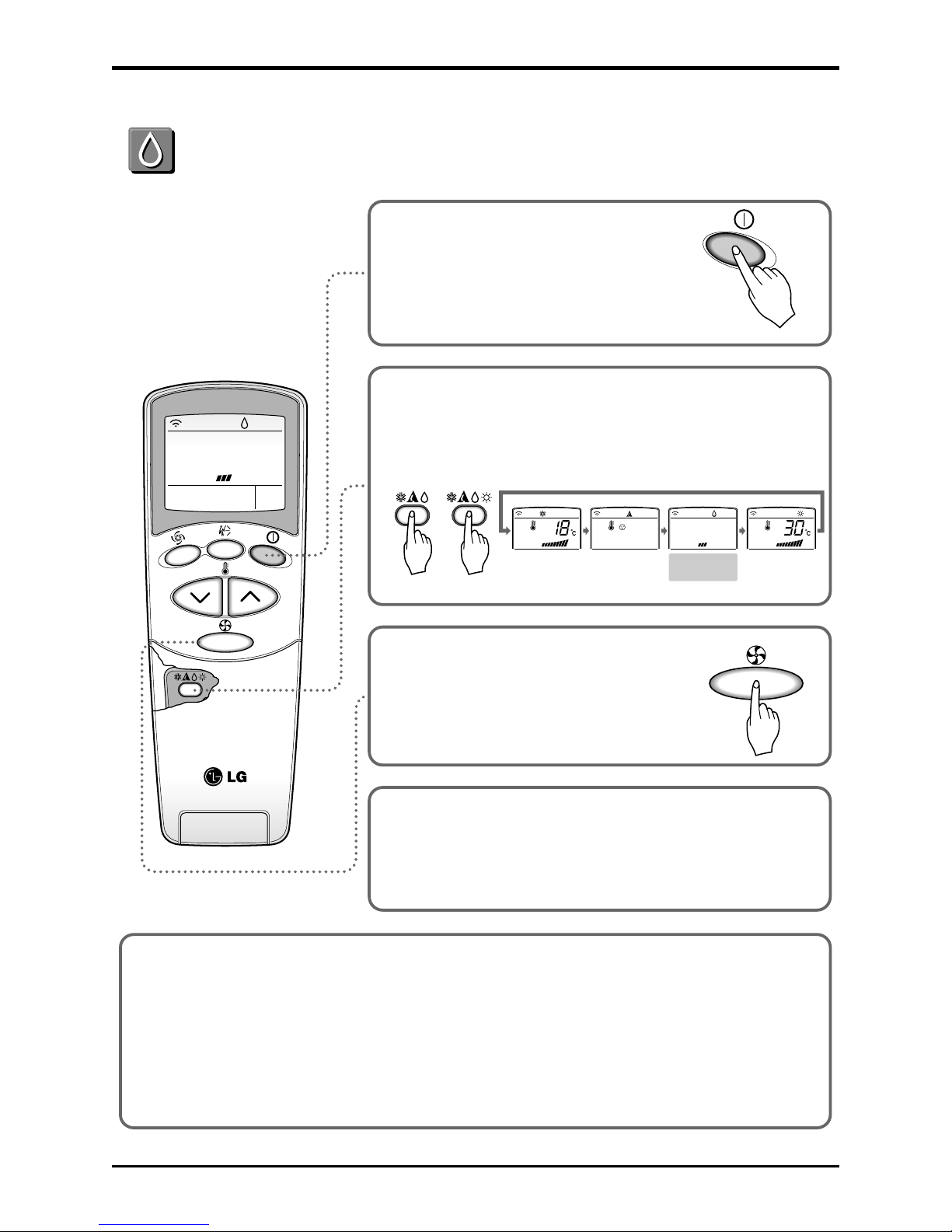

Open the door on the Remote Controller. To select Healthy
Dehumidification Operation, press the Operation Mode
Selection button.
Each time the button is pressed, the operation mode is shifted
in the direction of the arrow.
Set the fan speed. You can select the fan
speed in four steps - low, medium, high, or
CHAOS. Each time the button is pressed,
the fan speed mode is shifted.
DURING HEALTHY DEHUMIDIFICATION OPERATION:
❏If you select the dehumidification mode on the operation selection button, the A/C starts to run the
dehumidification function, automatically setting the room temp. and air volume to the best condition for
dehumidification based on the sensed room temp.
In this case, the setting temp. is not displayed in the Remote Controller and you are not able to control
the room temp. either.
❏During the healthy dehumidification function, the air volume is automatically set according to the
algorithm responding to the current room temp. and makes the room condition healthy and
comfortable even in the high humidity season.
Healthy Dehumidification Operation
NATURAL WIND BY THE CHAOS LOGIC
❏For more fresh feeling, press the Indoor Fan Speed Selector and set
CHAOS mode. In this mode, the wind blows like natural breeze by
automatically changing fan speed according to the CHAOS logic.
1
2
3

Operating Instructions
Owner's Manual 13
ENGLISH
ON
Cooling Healthy
Dehumidification
Auto Heating
(Heat pump model only)
To lower the temperature
To raise the temperature
Press the Start/Stop button.
The unit will respond with
beep sound.
Open the door on the Remote Controller. To select Heating
Operation, press the Operation Mode Selection button.
Each time the button is pressed, the operation mode is
shifted in the direction of the arrow.
NATURAL WIND BY THE CHAOS LOGIC
❏For more fresh feeling than other fan speed, press the Indoor Fan Speed Selector and set to CHAOS
mode. In this mode, the wind blows like natural breeze by automatically changing fan speed according to
the CHAOS logic.
1
2
Set the temperature higher than the room temperature.
The temperature can be set within a range of 16°C~30°Cin
1°C.
Set the fan speed again. You can
select the fan speed in four steps–low,
medium, high, or CHAOS. Each time
the button is pressed, the fan speed
mode is shifted.
3
4
Heating Operation(Heat pump model only)

Operating Instructions
14 Multi Type Air Conditioner
or or
Press the Start/Stop button.
The unit will respond with
beep sound.
Press the Jet Cool button to operate the
speed cooling/heating mode and the unit
will operate in super high fan speed on
cooling/heating mode for 30/60 minutes.
To cancel the Jet Cool mode, press the Jet Cool button or
the fan button or the room temperature setting button again
and the unit will operate in high fan speed in cooling/heating
mode
1
2
3
❏Jet Cool function in heating mode is available on Artcool type only.
❏During the JET COOL function at any moment, the A/C starts to blow the cool/heat air at
extremely high speed for 30/60 minutes setting the room temp. automatically to
18°C/30°C. It is especially used to cool/heat the room temperature in the shortest time.
❏In order to return to the normal cooling/heating mode from the Jet Cool mode, you just
press either the operation mode selection button, air volume selection or temp. setting
buttonortheJETCOOLbuttonagain.
NOTICE
Jet Cool

Operating Instructions
Owner's Manual 15
ENGLISH
PLASMA Air Purifying Operation only
Press the Start/Stop button.
The unit will respond with beep sound.
Open the door on the Remote
Controller. Press the PLASMA air
purifying operation ON/OFF button.
Operation will start when the button
is pressed and stop when the button
is pressed again.
Set the fan speed. You can select the fan speed in
four steps-low, medium, high or CHAOS.
Each time the button is pressed, the fan speed
mode is shifted.
❈Air purifying operation (PLASMA) is
available in Heating or any other operations.
1
2
3
NANO PLASMA Purification Operation(Optional)
If you press the PLASMA button, NANO PLASMA
air purifying operates.
Each time the button ( ) is pressed, the fan
speed mode is shifed.

Operating Instructions
16 Multi Type Air Conditioner
ON OFF
CANCEL
AUTO CLEAN
SET
AUTO CLEAN
ON OFF
CANCEL
SET
2nd F Operation
Press the Start/Stop button.
The unit will respond with
beep sound.
Open the door of the Remote Controller and press the 2nd F
button to operate functions printed in blue at bottom of
buttons.
(Check the indication of 2nd function on Remote Controller
display.)
These buttons operate the timer setting as follows:
2nd function goes off in a short time automatically or when the
button is pressed again.
For more details, refer to functions next page.
1
2
3

Operating Instructions
Owner's Manual 17
ENGLISH
Sleep Mode
Setting the Time
Delay Start/Pre-Set Stop
Delay OFF Timer Delay ON Timer Delay OFF and ON Timer Delay ON and OFF Timer
1. Press the Sleep Mode Auto button to set the time
you want the unit to turn off automatically.
1. The Timer is programmed in one-hour increments
by pressing the Sleep Mode Auto button 1 to 7
times.
The sleep mode is available for 1 to 7 times.
To alter the time period in steps of 1 hour, press
the Sleep Mode Button while aiming at air
conditioner.
3. Make sure the Sleep Mode Auto LED lights up.
To cancel the Sleep Mode, press the sleep
Mode Auto button several times until the star
( ) disappears from the operation display.
The Sleep Mode will be operated
at low fan speed (cooling) or medium fan
speed (heat pump only) for quiet sleeping.
IN COOLING MODE: The temperature will
automatically rise by 1°C over the next 30
minutes and by 2°C in 1 hour for comfortable
sleeping.
NOTICE
1. Time can be set only when you have pressed the
Reset button. If you have just replaced the
batteries, the Reset button should be pressed to
reset the time.
Press the Start/Stop button.
2. Press 2nd F button
and check if 2nd Ficonison.
3. Press the Time Setting buttons until the desired
time is set.
4. Press the Timer SET button.
Check the indicator for A.M. and
P.M.
NOTICE
1. Make sure the time is set correctly on the
Remote Controller display.
2. Press 2nd F button.
3. Press the ON/OFF Timer
buttons to turn Timer on or off.
4. Press the Time Setting
buttons until the desired
time is set.
5. Press the selected on/off setting by
pressing the Timer SET button while
aiming the Remote Controller at the signal
receptor.
To cancel the setting the timer.
Press the Timer Cancel button while
aiming Remote Controller at the signal
receptor.
(The timer lamp on the air conditioner and
the display will go out.)
Select one of the following four types of operation.
NOTICE
with the unit running
ON OFF
CANCEL
SET
Additional features
CANCEL
SET
CANCEL
SET

Operating Instructions
18 Multi Type Air Conditioner
Vertical Airflow Direction Control
The up/down airflow
(Vertical Airflow) can be
adjusted by using the
Remote Controller.
Press the Start/Stop button
to start the unit.
Open the door on the
Remote Controller.
Press Chaos Swing button and the
louvers will swing up and down.
Press the Chaos Swing button again
to set the vertical louver at the desired
airflow direction.
❏If you press the CHAOS swing button, the
horizontal airflow direction is changed automatically
based on the CHAOS algorithm to distribute the air
in the room evenly and at the same time to make
the human body feel most comfortable, as if
enjoying a natural breeze.
❏Always use the Remote Controller to adjust the
up/down airflow direction. Manually moving the
vertical airflow direction louver by hand could
damage the air conditioner.
❏When the unit is shut off, the up/down airflow
direction louver will close the air outlet vent of the
system.
To adjust left/right(Horizontal Airflow) direction
Caution : Ensure that the unit is turned
off before adjusting the horizontal
airflow direction control.
Carefully open vertical louver to
allow access to the horizontal
airflow direction.
Adjust the left/right airflow direction by hand.
NOTICE
Standard, Artcool Deluxe Type
Artcool Type
The up/down and right/left airflow can be adjusted by
using the Remote Controller.
Press the Start/Stop button to start the unit.
Press Chaos Swing button and the louvers will swing.
Press the button again and the louvers will stop. After
30 minutes, the louvers return to the maximum airflow
position automatically.

Operating Instructions
Owner's Manual 19
ENGLISH
AUTO CLEAN
AUTO CLEAN
Fan speed is on low. Fan speed is on medium. Fan speed is on high.CHAOS Air
•The Display Luminosity of the unit can be adjusted by using the
Remote Controller.
Press the start/stop button to start the unit. Open the door on the
Remote Controller, press the 2nd F button and, press display luminosity
button. Display will be dark. Press the button again to set bright display.
1. Press the Start/Stop button to Start the unit.
2. Open the door on the Remote Controller
Select Cooling Operation or Healthy Dehumidification Operation.
3. Press the Auto clean button.
4. Although the Start/Stop button is pressed, unit operates in Auto clean Mode for 15
minutes - operates in heating operation Mode for 1 minute and circulates the room
air without cooling and heating for 14 minutes. And then unit stops operating.
NOTE:
❏During Auto Clean function, moistures left in indoor units after Cooling Operation or Healthy
Dehumidification Operation can be removed.
❏During Auto Clean function, only Start/Stop button, Plasma button and Auto Clean button are available.
Auto Clean (Artcool, Artcool Deluxe Type Only)
Display Luminosity (Artcool Deluxe Type Only)
Circulates the room air without cooling or heating.
1. Press the Start/Stop button. The unit will respond with beep sound.
2. Open the door on the Remote Controller. Press the Air Circulation button. Now each time that you
press the Indoor Fan Speed Selector, the fan speed is shifted from low to CHAOS and back to low
again.
❏CHAOS Air economizes power consumption and prevents overcooling. The fan speed is automatically
changed from high to low or vice versa, depending on the ambient temperature.
NOTICE
Air Circulation Mode

High
Speed
High
Speed
High
Speed
Open the front
panel upward
Power
button
Power button
Power
button
Operating Instructions
20 Multi Type Air Conditioner
The operation will be started operation if the power button is pressed without remote controller.
If you want to stop operation, re-press the button.
Heat pump Model
Cooling Model Room Temp. ≥24°C21°C≤Room Temp. < 24°C Room Temp. < 21°C
Operating mode Cooling Cooling Healthy Dehumidification Heating
Indoor FAN Speed High High High High
Setting Temperature 22°C22°C23°C24°C
In case the power comes on again after a power failure, the unit operates automatically to the previous
operating conditions.
So there is no need of activating this function by pressing any key or button.
In the initial mode, the fan operates at a low speed and the compressor starts about 3 minutes later.
As the compressor starts, the fan speed also resumes its previous setting mode.
Helpful information
Fan speed and cooling capacity.
The cooling/heating capacity indicated in the specification is the value when the fan speed is set to high,
and the capacity will be lower at low or medium fan speed.
High fan speed is recommended when you wish to cool/heat the room quickly.
In case of absence for a long time while power failure, turn off main power to avoid
undersired Auto restart.
Forced Operation
Auto restart
