LG SF Chassis User manual

ENGLISH
LG Room
Air Conditioner
INSTALLATION MANUAL
LG
MODELS: SF Chassis
website http://www.lgservice.com
IMPORTANT
• Please read this instruction manual completely before
installing the product.
• When the power cord is damaged, replacement should be
performed by authorized personnel only.
• Installation work must be performed in accordance with
the national wiring standards by authorized personnel
only.
• Please retain this installation manual for future reference
after reading it thoroughly.
ENGLISH ITALIANO ESPAÑOL FRANÇAIS DEUTSCH GREEK

2Room Air Conditioner
Room Air Conditioner Installation Manual
TABLE OF CONTENTS
Safety Precautions............................3
Introduction........................................9
Symbols used in this manual..........9
Features...........................................9
Installation........................................10
Installation parts ............................10
Installation tools.............................10

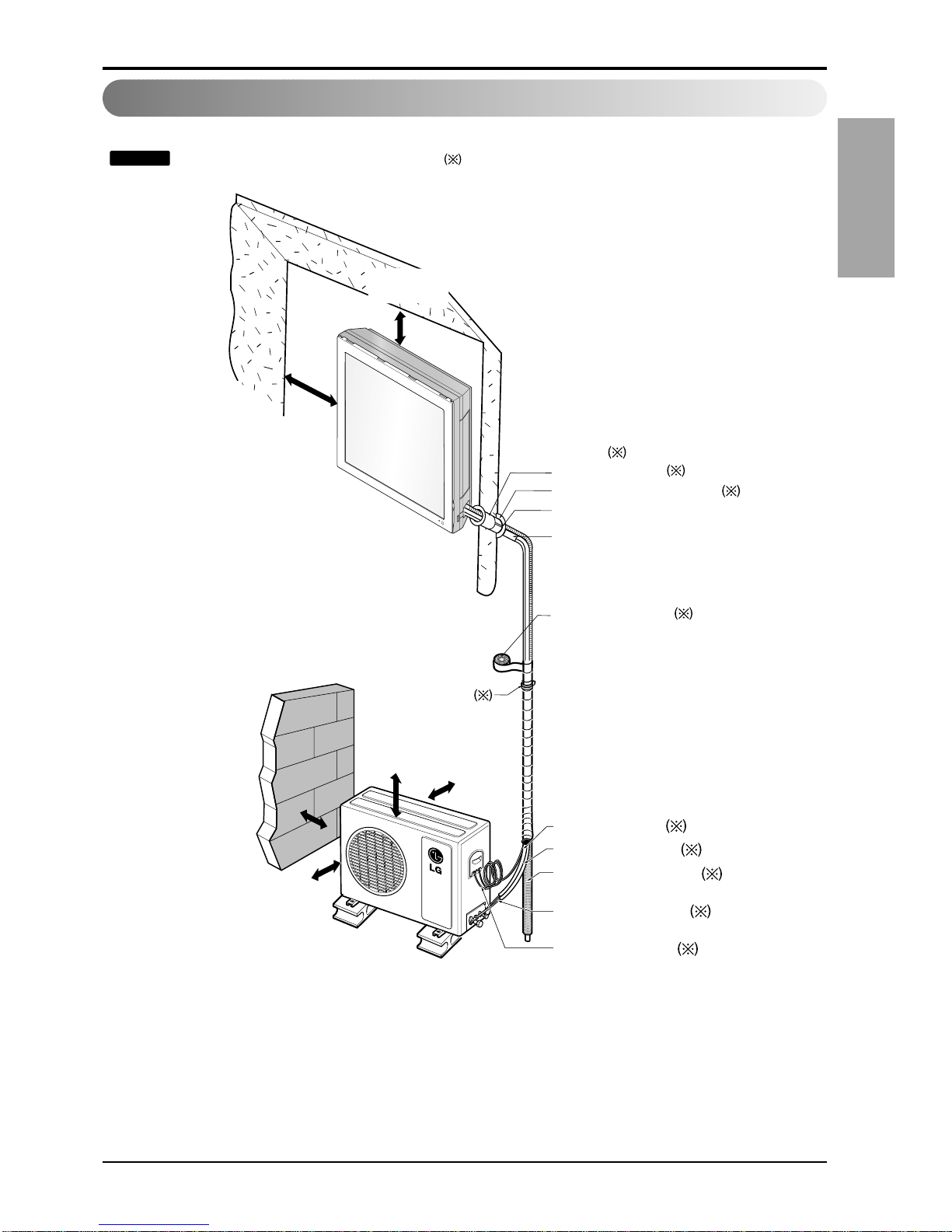

Installation map..............................11
Selecting the best location ...........12

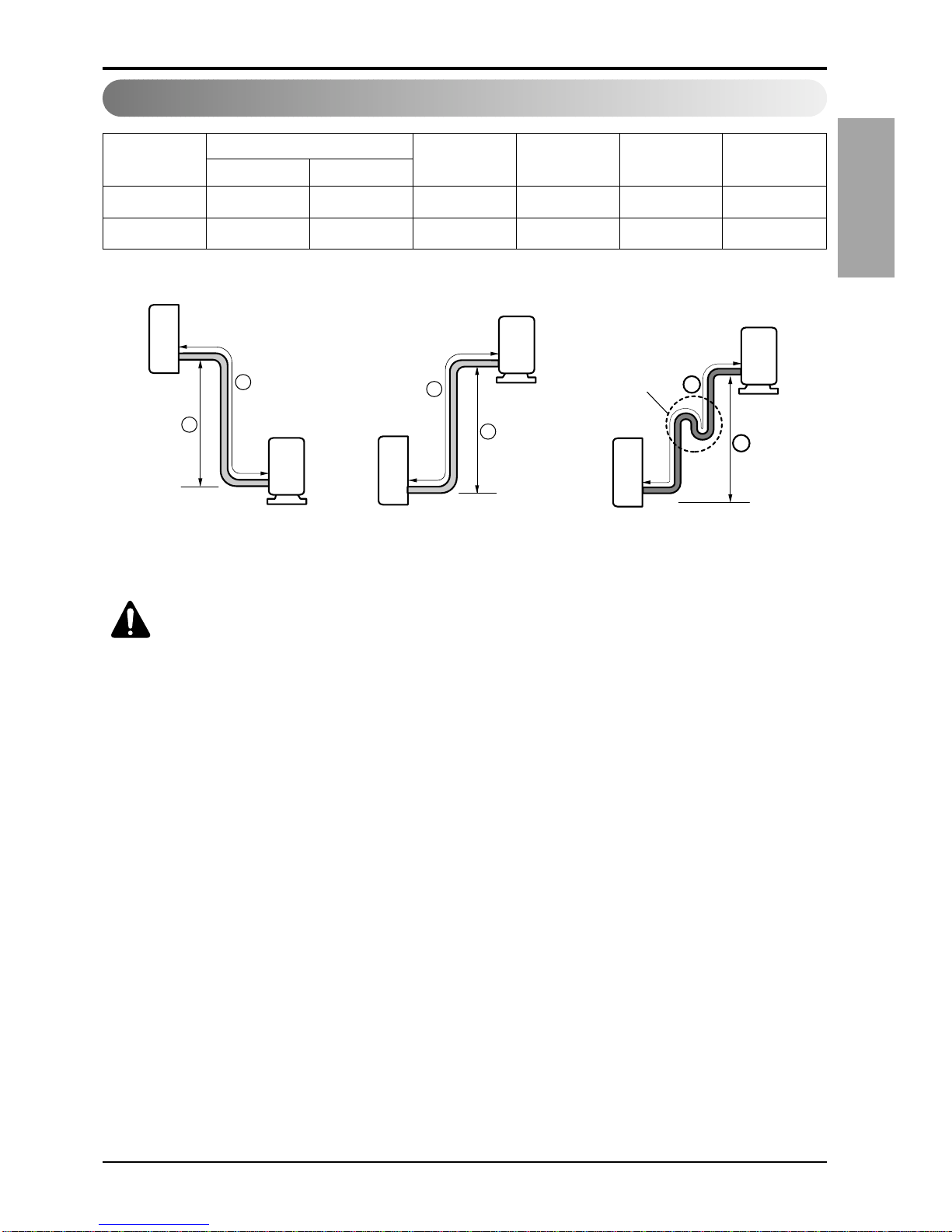

Piping length and elevation...........13
Preparing work for Installation......14
Fixing indoor unit...........................15
Drilling a hole in the wall...............15

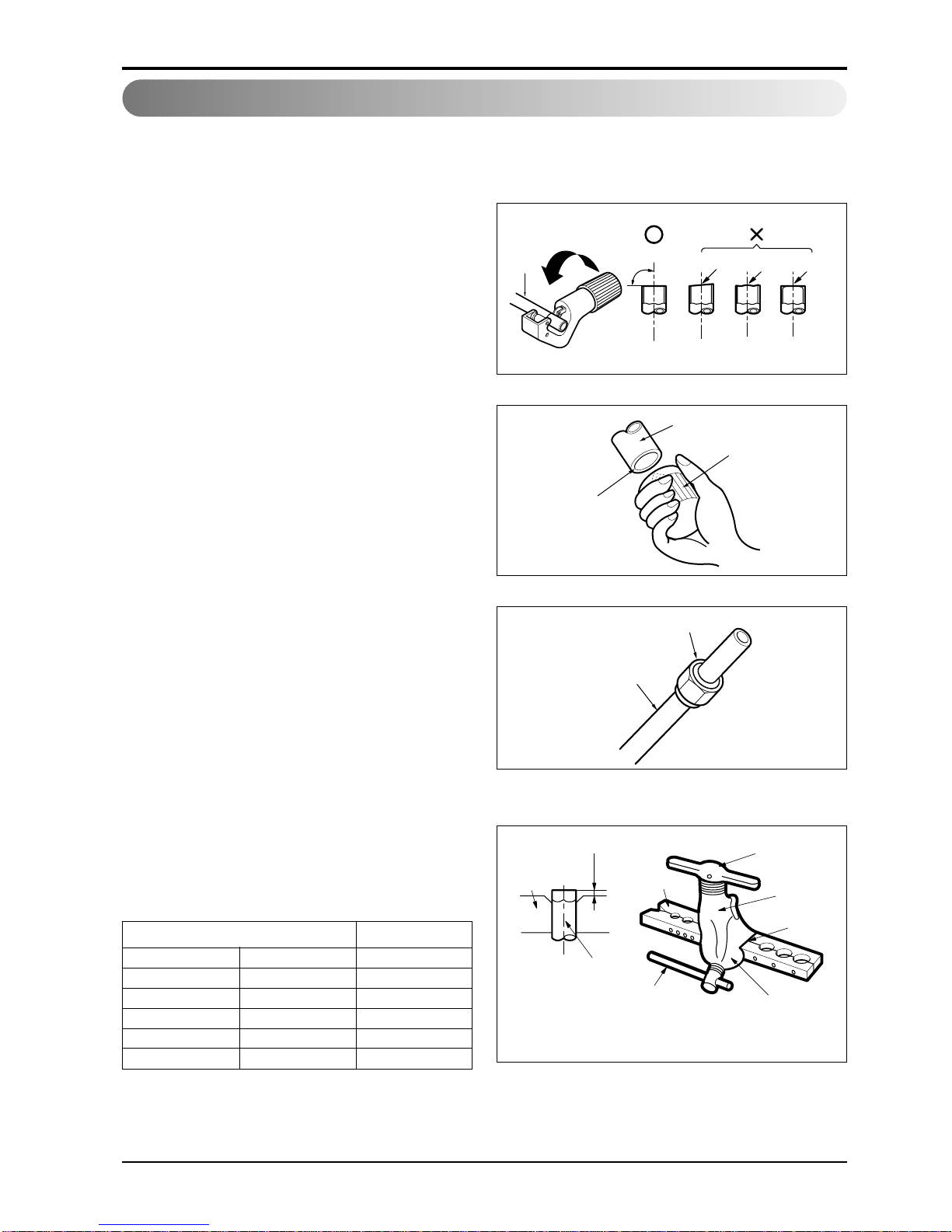

Flaring work...................................16
Connecting the piping ..................17
Connecting the cables ..................21
Checking the drainage..................23
Forming the piping.........................24
Air purging......................................25
Panel front assembly.....................27
Test running ...................................28
❏Four type "A" screws & plastic
anchors
❏Connecting cable
❏ Installation guide map
❏Pipes: Gas side ......................1/2"
Liquid side ...................1/4"
(Refer to page 13)
❏Insulation materials
❏Additional drain pipe
(Outer diameter ..............15.5mm)
❏Two type "B" screws
❏Level gauge
❏Screw driver
❏Electric drill
❏Hole core drill(ø50mm)
❏Horizontal meter
❏Flaring tool set
❏Specified torque wrenches
1.8kg.m, 4.2kg.m, 5.5kg.m,
6.6kg.m
(different depending on model No.)
❏Spanner........................Half union
❏A glass of water
❏Screw driver
❏Hexagonal wrench(4mm)
❏Leak detector
❏Vacuum pump
❏Gauge manifold
❏Owner's manual
❏Thermometer
❏Remote control holder
Installation
Requirements Required Parts Required Tools

Installation Manual 3
ENGLISH
Safety Precautions
To prevent the injury of the user or other people and property damage, the following instructions
must be followed.
■Be sure to read before installing the air conditioner.
■Be sure to observe the cautions specified here as they include important items related to safety.
■Incorrect operation due to ignoring instruction will cause harm or damage.The seriousness is
classified by the following indications.
■The meanings of the symbols used in this manual are as shown below.
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
Be sure not to do.
Be sure to follow the instruction.
Safety Precautions
■Installation
Do not use damaged power
cords, plugs, or a loose
socket.
• There is risk of fire or electric
shock.
For electrical work, contact
the dealer, seller, a qualified
electrician, or an Authorized
Service Center.
• There is risk of fire or electric
shock.
Always use the power plug
and socket with the ground
terminal.
• There is risk of electric shock.
Install the panel and the
cover of control box
securely.
• There is risk of fire or electric
shock.
Do not modify or extend the
power cord.
• There is risk of fire or electric
shock.
Do not install, remove, or re-
install the unit by yourself
(customer).
• There is risk of fire, electric
shock, explosion, or injury.

4Room Air Conditioner
Safety Precautions
■Operation
Be cautious when
unpacking and installing
the product.
• Sharp edges could cause
injury. Be especially careful of
the case edges and the fins
on the condenser and
evaporator.
For installation, always
contact the dealer or an
Authorized Service Center.
• There is risk of fire, electric
shock, explosion, or injury.
Do not install the product
on a defective installation
stand.
• It may cause injury, accident,
or damage to the product.
Be sure the installation area
does not deteriorate with
age.
• If the base collapses, the air
conditioner could fall with it,
causing property damage,
product failure, and personal
injury.
Do not let the air conditioner
run for a long time when the
humidity is very high and a
door or a window is left open.
• Moisture may condense and
wet or damage furnishings.
Take care to ensure that
power cords could not be
pulled out or damaged
during operation.
• There is risk of fire or
electrical shock.
Do not place anything on
the power cord.
• There is risk of fire or electric
shock.
Do not turn the air-
conditioner ON or OFF by
plugging or unplugging the
power plug.
• There is risk of fire or
electrical shock.

Installation Manual 5
ENGLISH
Safety Precautions
Use a dedicated outlet for
this appliance.
• There is risk of fire or
electrical shock.
Grasp the plug to remove
the cord from the outlet. Do
not touch it with wet hands.
• There is risk of fire or
electrical shock.
Do not place a heater or
other appliances near the
power cable.
• There is risk of fire and
electric shock.
Do not allow water to run
into electric parts.
• It may cause There is risk of
fire, failure of the product, or
electric shock.
Do not store or use
flammable gas or
combustibles near the air
conditioner.
• There is risk of fire or failure
of product.
Do not use the product in a
tightly closed space for a
long time.
• Oxygen deficiency could
occur.
Wax
Thinner
When flammable gas leaks,
turn off the gas and open a
window for ventilation
before turn the product on.
DO NOT use the telephone
or turn switches on or off.
• There is risk of explosion or
fire.
Unplug the unit if strange
sounds, odors, or smoke
comes from it.
• There is risk of electrical
shock or fire
Stop operation and close
the window in storm or
hurricane. If possible,
remove the air conditioner
from the window before the
hurricane arrives.
• There is risk of property
damage, failure of product, or
electric shock.

6Room Air Conditioner
Safety Precautions
■Installation
Do not open the inlet grill of
the product during
operation. (Do not touch the
electrostatic filter, if the unit
is so equipped.)
• There is risk of physical injury,
electric shock, or product
failure.
When the product is soaked
(flooded or submerged),
contact an Authorized
Service Center.
• There is risk of fire or eletric
shock.
Ventilate the product from
time to time when operating
it together with a stove, etc.
• There is risk of fire or
electrical shock.
Unplug the appliance before
performing cleaning or
maintenance.
• There is risk of electrical
shock.
When the product is not be
used for a long time,
disconnect the power supply
plug or turn off the breaker.
• There is risk of product
damage or failure, or
unintended operation.
Take care to ensure that
nobody could step on or fall
onto the outdoor unit.
• This could result in personal
injury and product damage.
Always check for gas
(refrigerant) leakage after
installation or repair of
product.
• Low refrigerant levels may
cause failure of product.
Install the drain hose to
ensure that water is drained
away properly.
• A bad connection may cause
water leakage.
Keep level even when
installing the product.
• To avoid vibration or water
leakage.
90˚

Safety Precautions
Installation Manual 7
ENGLISH
■Operation
Do not install the product
where the noise or hot air
from the outdoor unit could
damage the neighborhoods.
•It may cause a problem for
your neighbors.
Use two or more people to
lift and transport the air
conditioner.
•Avoid personal injury.
Do not install the product
where it will be exposed to
sea wind (salt spray)
directly.
•It may cause corrosion on the
product. Corrosion,
particularly on the condenser
and evaporator fins, could
cause product malfunction or
inefficient operation.
Do not direct airflow at
room occupants. (Don't sit
in the draft.)
•This could damage your
health.
Do not use the product for
special purposes, such as
preserving foods, works of
art, etc. It is a consumer air
conditioner, not a precision
refrigeration system.
•There is risk of damage or
loss of property.
Do not block the inlet or
outlet of air flow.
•It may cause product failure.
Use a soft cloth to clean. Do
not use harsh detergents,
solvents, etc.
•There is risk of fire, electric
shock, or damage to the
plastic parts of the product.
Do not touch the metal
parts of the product when
removing the air filter.They
are very sharp!
•There is risk of personal
injury.
Do not step on or put
anyting on the product.
(outdoor units)
•There is risk of personal injury
and failure of product.

8Room Air Conditioner
Safety Precautions
Always insert the filter
securely. Clean the filter
every two weeks or more
often if necessary.
•A dirty filter reduces the
efficiency of the air
conditioner and could cause
product malfunction or
damage.
Do not insert hands or other
objects through the air inlet
or outlet while the air
conditioner is plugged in.
•There are sharp and moving
parts that could cause
personal injury.
Do not drink the water
drained from the unit.
•It is not sanitary and could
cause serious health issues.
Use a firm stool or ladder when cleaning or
maintaining the air conditioner.
•Be careful and avoid personal injury.
Replace the all batteries in the remote
control with new ones of the same type. Do
not mix old and new batteries or different
types of batteries.
•There is risk of fire or explosion
Do not recharge or disassemble the
batteries. Do not dispose of batteries in a
fire.
•They may burn or explode.
If the liquid from the batteries gets onto
your skin or clothes, wash it well with clean
water. Do not use the remote if the batteries
have leaked.
•The chemicals in batteries could cause burns
or other health hazards.
■Disuse

Introduction
Installation Manual 9
ENGLISH
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that may cause harm to the
air conditioner.
This symbol indicates special notes.
NOTICE
Introduction
Symbols used in this Manual
Features
Signal Receptor
Front Panel
Air Discharge
Air Intake Vents
Air Outlet Vents
Power Cord
Connecting
Wires
Piping
Drain Hose
Base Plate
Air Filter
Plasma Filter

10 Room Air Conditioner
Installation
Type "A" screw and plastic anchor
Type "B" screw Remote control holder
Installation guide map
Figure FigureName
Screw driver
Electric drill
Measuring tape, Knife
Hole core drill
Spanner
Torque wrench
Ohmmeter
Hexagonal wrench
Ammeter
Leak detector
Thermometer,
Horizontal meter
Flaring tool set
Name
Installation Parts
Installation Tools
Installation
Read carefully, and then follow step by step.

Installation Manual 11
ENGLISH
Installation Map
More than
30cm
Installation parts you should purchase.
NOTICE
(Left and right
are identical)
More than 70cm
More than
60cm More than
30cm
Sleeve
Bushing-Sleeve
Putty(Gum Type Sealer)
Vinyl tape (Wide)
•To carry out the drainage
test, remove the air filter
and pour water into the heat
exchanger.
•Apply after carrying out a
drainage test.
Saddle
More than
20cm
More than
50cm
Gas side piping (Optional part)
Liquid side piping (Optional part)
Additional drain pipe
Vinyl tape (Narrow)
Connecting cable
(Optional part)
Bend the pipe as close as possible
on the wall but be careful so that it
may not break.

12 Room Air Conditioner
Installation
Indoor unit
1. Do not have any heat or steam near the unit.
2. Select a place where there are no obstacles
in front of the unit.
3. Make sure that condensation drainage can be
conveniently routed away.
4. Do not install near a doorway.
5. Ensure that the interval between a wall and
the left (or right) of the unit is more than
50cm.The unit should be installed as high as
possible on the wall, allowing a minimum of
20cm from ceiling.
6. Use a stud finder to locate studs to prevent
unnecessary damage to the wall.
Outdoor unit
1. If an awning is built over the unit to prevent
direct sunlight or rain exposure, make sure
that heat radiation from the condenser is not
restricted.
2. Ensure that the space around the back and
sides is more than 30cm.The front of the unit
should have more than 70cm of space.
3. Do not place animals and plants in the path
of the warm air.
4.Take the weight of the air conditioner into
account and select a place where noise and
vibration are minimum.
5. Select a place where the warm air and noise
from the air conditioner do not disturb
neighbors.
Select the best Location
More than 20cm
More
than 50cm
More than 2.3m
More
than 50cm
CAUTION: Install the indoor unit on the wall where the height from the
floor is more than 2.3 meters.
More than 30cm More than 30cm
More
than 60cm
More than 60cm
More than 70cm

Installation Manual 13
ENGLISH
Installation
Piping Length and Elevation
9k, 12k 3/8" 1/4" 7.5 7 15 20
14k 1/2" 1/4" 7.5 7 15 20
Pipe Size
Capacity
(Btu/h)
GAS LIQUID Max.
Length A (m)
Additional
Refrigerant (g/m)
Max.
Elevation B (m)
Standard
Length (m)
Outdoor unit
Indoor unit
A
B
Outdoor unit
Indoor unit
A
B
A
Oil trap
Outdoor unit
Indoor unit
B
If piping length is more than 5m
CAUTION: Capacity is based on standard length and maximum
allowance length is on the basis of reliability.
Oil trap should be installed every 5~7 meters.

14 Room Air Conditioner
Installation
Preparing Work for Installation
Open panel front
1. Pull the upper part of the front panel.
2. Lift up the panel.
3.To detach the front panel, remove the two screws at the lower part.
4. Detach the front panel from the body.
5.To detach the panel, disconnect the connector at the upper part.
Cover pipe and cover side remove
1. Please remove the screw of the center tuning
cover.
2. Pull up the side cover of desired connecting
direction, then cover side is separated.
3. Pick the pipe hole of the side cover.
CAUTION: After removing the
pipe hole, cut the burr for safety.
When making pipe path through rear
wall, you don’t need to pick the pipe hole.
NOTICE
Drain hose junction
1. Remove the rubber stopple in the desired
drain direction.
2. Insert drain hose into the handle of drain pan,
and join drain hose and connecting hose
according to the figure by.
Panel Front
Connector
Side cover
Pipe hole
Only the
desired direction
rubber cap
Only the
desired direction
Connecting
part
Adhesive
Drain
hose

Installation Manual 15
ENGLISH
Installation
Fixing Indoor Unit
•Drill the piping hole with a ø50mm hole core
drill. Drill the piping hole at either the right or
the left with the hole slightly slanted to the
outdoor side.
Drill a Hole in the Wall
5-7mm
(0.2~0.3")
Indoor WALL Outdoor
Plastic anchors
INSTALLATION GUIDE MAP
10mm
INSTALLATION GU
INSTAIIATION GUIDE MAP
Plastic anchors
INSTALLATION GUIDE MAP
INSTALLATIONGUIDE MAP
Hanger hole
(Rear side of
the product)
3. Make a hole with a diameter of 6mm and
depth of 30-35mm by piercing a screw
point.
5. Drive the fore plastic anchors into drilled
points.
7. Hang the hole of product at the upper
screws, and remove the map. (Falling
attention)
9. Check the fixed product with light power.
1. Attach an Installation guide map on the
desired surface. 2. Look at suited horizon by horizontal meter on the horizontal setting line, and
fix lightly the map by adhesive tape.
4.
Drill the pierted part as a diameter of 50mm
for connecting piping. (In case of piercing
rear surface)
6. First, Drive the two points of the upper
parts by screws. (Leave 10mm for hanging
the product)
8. Drive the lower parts after facing the hole
of product with plastic anchors, and fix
completely the upper screws.
10.
In case of nothing wrong, connect the
pipe and the wire. (Refer to installation
manual)
Horizontality
I
NSTALLATIONGUIDEMAP

16 Room Air Conditioner
Installation
Flaring Work
Main cause for gas leakage is due to defect in flaring work. Carry out correct flaring work in the
following procedure.
Cutting the pipes and the cable.
1. Use the piping kit accessory or the pipes
purchased locally.
2. Measure the distance between the indoor and
the outdoor unit.
3. Cut the pipes a little longer than measured
distance.
4. Cut the cable 1.5m longer than the pipe length.
Removing burrs
1. Completely remove all burrs from the cut cross
section of pipe/tube.
2. Put the end of the copper tube/pipe in a
downward direction as you remove burrs in
order to avoid dropping burrs into the tubing.
Putting nut on
•Remove flare nuts attached to indoor and
outdoor unit, then put them on pipe/tube having
completed burr removal.
(not possible to put them on after flaring work)
Flaring work
1. Firmly hold copper pipe in a die in the dimension
shown in the table below.
2. Carry out flaring work wiht the flaring tool.
Copper
pipe
90°Slanted Uneven Rough
Pipe Reamer
Point down
Flare nut
Copper tube
mm inch mm
Ø6.35 1/4" 1.1~1.3
Ø9.52 3/8" 1.5~1.7
Ø12.7 1/2" 1.6~1.8
Ø15.88 5/8" 1.6~1.8
Ø19.05 3/4" 1.9~2.1
Outside diameter A
Bar
Copper pipe
Clamp handle Red arrow mark
Cone
Yoke
Handle
Bar
"A"

Installation Manual 17
ENGLISH
Installation
Check
1. Compare the flared work with the figure by.
2. If a flared section is defective, cut it off and
do flaring work again.
Indoor
Preparing the indoor unit's piping and drain hose for installation through the wall.
CAUTION: If the drain hose is routed inside the room, insulate the
hose with an insulation material* so that dripping from
"sweating"(condensation) will not damage furniture or floors.
*Foamed polyethylene or equivalent is recommended.
1. Route the indoor tubing and the drain hose in
the direction of rear left or right
2.Tape the tubing, drain hose and the
connecting cable. Be sure that the drain hose
is located at the lowest side of the bundle.
Locating at the upper side can cause drain
pan to overflow inside the unit.
Inclined
Inside is shiny without scratches
Smooth all round
Even length
all round
Surface
damaged Cracked Uneven thickness
= Improper flaring =
Connecting the Piping
Drain hose
Connecting
cable Gas side piping
Liquid side piping
Drain hose
Loop

18 Room Air Conditioner
Wrap with vinyl tape
Drain hose
Pipe
Vinyl tape(wide)
Installation
Connecting the piping with the indoor
unit and drain hose with drain pipe
1. Align the center of the pipings and sufficiently
tighten the flare nut by hand.
2.Tighten the flare nut with a wrench.
3.When extending the drain hose at the indoor
unit, install the drain pipe.
Wrap the insulation material around
the connecting portion.
1. Overlap the connection pipe insulation
material and the indoor unit pipe insulation
material. Bind them together with vinyl tape
so that there may be no gap.
2.Wrap the area which accommodates the rear
piping housing section with vinyl tape.
3. Bundle the piping and drain hose together by
wrapping them with vinyl tape over the range
within which they fit into the rear piping
housing section.
Indoor unit tubing Flare nut Pipings
Torque wrench
Indoor unit tubing
Spanner (fixed)
Connection pipe
Flare nut
mm inch kgf.m
Ø6.35 1/4" 1.8~2.5
Ø9.52 3/8" 3.4~4.2
Ø12.7 1/2" 5.5~8.2
Ø15.88 5/8" 6.3~8.2
Ø19.05 3/4" 9.9~12.1
Outside diameter Torque
Vinyl tape(narrow)
Adhesive
Drain pipe
Indoor unit drain hose
Plastic bands Insulation material
Vinyl tape(narrow)
Connection
pipe
Connecting cable
Vinyl tape
(wide) Wrap with vinyl tape
Indoor
unit pipe
Pipe

Installation Manual 19
ENGLISH
Installation
CAUTION: Installation Information
For right piping. Follow the instruction below.
Good case
•Press on the upper side of clamp and unfold the tubing to downward slowly.
Bad case
•Following bending type from left to right may cause damage to the turbing.

20 Room Air Conditioner
Installation
Outdoor
Align the center of the pipings and sufficiently
tighten the flare nut by hand.
Finally, tighten the flare nut with torque wrench
until the wrench clicks.
•When tightening the flare nut with torque
wrench, ensure the direction for tightening
follows the arrow on the wrench.
mm inch kgf.m
Ø6.35 1/4" 1.8~2.5
Ø9.52 3/8" 3.4~4.2
Ø12.7 1/2" 5.5~6.6
Ø15.88 5/8" 6.3~8.2
Ø19.05 3/4" 9.9~12.1
Outside diameter Torque
Gas side piping
(Bigger diameter)
Torque wrench
Liquid side piping
(Smaller diameter)
Outdoor unit
