1. Features
ETWCERBC01 is the small size and low power module for IEEE 802.11ac wireless
LAN & BT5.0 + HS. ETWCERBC01 is based on Realtek RTL8822CU solution.
IEEE 802.11 a/b/g/n/ac Dual Band
Bluetooth 5.0+ HS , BLE
Size : 68.0 x 30.0 x 6.65mm
Two stream spatial multiplexing up to 300Mbps (802.11n) / 866.7Mbps (802.11ac)
Use on-chip OTP (One-Time Programmable)
Host Interface : USB2.0 (WLAN & BT)
-This model is using the common USB2.0 to control WLAN and BT
Security : 802.11e 802.11i (WPA, WPA2), WAPI
WAPI, WEP, WPA, WPA2, WMM, AES, TKIP, CKP
Application: DTV, DVR, HD DVDPlayer, Blue-ray Disk Player, STB

USER MANUAL
PAGE :
REG. DATE : 2021.4.21
MODEL NAME : ETWCERBC01 (LGIT)
LGSBWAC22 (LGE)
REV. DATE : 2021.4.21
REV.NO : 1.0
3/ 16
LG Innotek Confidential : This document is protected by security policies and laws.
[Confidential]
3. Absolute Maximum Ratings
Parameter Min Max Unit
Storage Temperature -20 +80 ℃
Storage Humidity (40℃)-90 %
Caution : The specifications in Table 1 define levels at which permanent damage to the
device can occur. Function operation is not guaranteed under these conditions.
Operating at absolute maximum conditions for extend periods can adversely affect the
long-term reliability of the device.
2. Block Diagram
. Other conditions
1) Do not use or store modules in the corrosive atmosphere, especially where chloride
gas, sulfide gas, acid, alkali, salt or the like are contained.
Also, avoid exposure to moisture.
2) Store the modules where the temperature
and relative humidity do not exceed 5 to 40℃and 20 to 60%.
3) Assemble the modules within 6 months.
Check the soldering ability in case of 6 months over.
< Table 1 >

USER MANUAL
PAGE :
REG. DATE : 2021.4.21
MODEL NAME : ETWCERBC01 (LGIT)
LGSBWAC22 (LGE)
REV. DATE : 2021.4.21
REV.NO : 1.0
4/ 16
LG Innotek Confidential : This document is protected by security policies and laws.
[Confidential]
4. Operating Conditions
Parameter Min Typ Max Unit
Ambient Temperature 0 - 60 ℃
Ambient Humidity (40℃)- - 85 %
Supply Voltage 3.135 3.3 3.6 Vdc
5. Standard Test Conditions
The Test for electrical specification shall be performed under the following condition
Otherwise this following conditions, not guaranteed this performance.
Temperature 25 ±5℃
Humidity 65 ±5%
Input power Supply Voltage
VDD_3.3V 3.135 ~ 3.6V
7-1. Ambient condition
7-2. Power supply voltages
7-3. Current consumption
Human Body Model (HBM) Min. Max. Unit
Contact -±4
kV
Air - ±15
7-4. ESD Information
Note 1. IEC 61000-4-2 (150pF, 330R)
Note 2. Test condition : After 8-pin USB Cable connect to module, progress ESD test.
Current Consumption Min. Typ. Max. Unit
TX Mode ( 11ac/80MHz) 1200
mA Idle and Associated state 300
Radio disabled state 70
Note 1. This figure is the RMS(root mean square) Value.

USER MANUAL
PAGE :
REG. DATE : 2021.4.21
MODEL NAME : ETWCERBC01 (LGIT)
LGSBWAC22 (LGE)
REV. DATE : 2021.4.21
REV.NO : 1.0
5/ 16
LG Innotek Confidential : This document is protected by security policies and laws.
[Confidential]
6. Electrical Specifications for Wi-Fi
6-1. RF Characteristics for IEEE802.11b ( 11Mbps mode unless otherwise specified)
Items Contents
Specification IEEE802.11b
Mode DSSS/CCK
Channel frequency 2400 ~ 2483.5 MHz
Data rate 1, 2, 5.5, 11Mbps
TX Characteristics Min. Typ. Max. Unit
Power Level 14 17 20 dBm
Spectrum Mask
1st side lobes ( to fc ±11MHz) -30 dBr
2nd side lobes ( to fc ±22MHz) -50 dBr
Modulation Accuracy (EVM) 35 %
Power On/Off ramp 2.1 Usec
Freq. Tolerance -20 20 ppm
Chip Clock Freq. Tolerance -20 20 ppm
RX Characteristics Min. Typ. Max. Unit
Minimum Input Level Sens. (FER ≤ 8%) -82 dBm
Maximum Input Level (FER ≤ 8%) -10 - dBm
Note 1. Normal Condition : 25℃, VDD=3.3V.
Note 2. This varies by regulatory domain.
Refer to the product documentation for specific details for each regulatory domain.
Note 3. The maximum power setting will vary by channel and according to individual country regulations.
Refer to the product documentation for specific details.

USER MANUAL
PAGE :
REG. DATE : 2021.4.21
MODEL NAME : ETWCERBC01 (LGIT)
LGSBWAC22 (LGE)
REV. DATE : 2021.4.21
REV.NO : 1.0
6/ 16
LG Innotek Confidential : This document is protected by security policies and laws.
[Confidential]
6-2. RF Characteristics for IEEE802.11g ( 54Mbps mode unless otherwise specified)
Items Contents
Specification IEEE802.11g
Mode OFDM
Channel frequency 2400 ~ 2483.5 MHz
Data rate 6, 9, 12, 18, 24, 36, 48, 54Mbps
TX Characteristics Min. Typ. Max. Unit
Power Level 12 15 18 dBm
Spectrum Mask
at fc ±11MHz -20 dBr
at fc ±20MHz -28 dBr
at fc ≥ ±30MHz -40 dBr
Constellation Error (EVM) -25 dB
Freq. Tolerance -20 20 ppm
Chip Clock Freq. Tolerance -20 20 ppm
RX Characteristics Min. Typ. Max. Unit
Minimum Input Level Sens. (PER ≤ 10%) -67 dBm
Maximum Input Level (PER ≤ 10%) -20 dBm
Note 1. Normal Condition : 25℃, VDD=3.3V.
Note 2. This varies by regulatory domain.
Refer to the product documentation for specific details for each regulatory domain.
Note 3. The maximum power setting will vary by channel and according to individual country regulations.
Refer to the product documentation for specific details.

USER MANUAL
PAGE :
REG. DATE : 2021.4.21
MODEL NAME : ETWCERBC01 (LGIT)
LGSBWAC22 (LGE)
REV. DATE : 2021.4.21
REV.NO : 1.0
7/ 16
LG Innotek Confidential : This document is protected by security policies and laws.
[Confidential]
6-3. RF Characteristics for IEEE802.11a ( 54Mbps mode unless otherwise specified)
Items Contents
Specification IEEE802.11a
Mode OFDM
Channel frequency 5150~5850 MHz
Data rate 6, 9, 12, 18, 24, 36, 48, 54Mbps
TX Characteristics Min. Typ. Max. Unit
Power Level 10 13 16 dBm
Spectrum Mask
at fc ±11MHz -20 dBr
at fc ±20MHz -28 dBr
at fc ≥ ±30MHz -40 dBr
Constellation Error (EVM) -25 dB
Freq. Tolerance -20 20 ppm
Chip Clock Freq. Tolerance -20 20 ppm
RX Characteristics Min. Typ. Max. Unit
Minimum Input Level Sens. (PER ≤ 10%) -67 dBm
Maximum Input Level (PER ≤ 10%) -30 dBm
Note 1. Normal Condition : 25℃, VDD=3.3V.
Note 2. This varies by regulatory domain.
Refer to the product documentation for specific details for each regulatory domain.
Note 3. The maximum power setting will vary by channel and according to individual country regulations.
Refer to the product documentation for specific details.

USER MANUAL
PAGE :
REG. DATE : 2021.4.21
MODEL NAME : ETWCERBC01 (LGIT)
LGSBWAC22 (LGE)
REV. DATE : 2021.4.21
REV.NO : 1.0
8/ 16
LG Innotek Confidential : This document is protected by security policies and laws.
[Confidential]
6-4. RF Characteristics for IEEE802.11gn ( MCS7 mode unless otherwise specified)
Items Contents
Specification IEEE802.11n –2.4GHz
Mode OFDM
Channel frequency 2400 ~ 2483.5 MHz
Data rate 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps
TX Characteristics Min. Typ. Max. Unit
Power Level (HT20:MCS7) 12 15 18 dBm
Spectrum Mask (HT20)
at fc ±11MHz -20 dBr
at fc ±20MHz -28 dBr
at fc ±30MHz -40 dBr
Constellation Error (EVM) -28 dB
Freq. Tolerance -20 20 ppm
Chip Clock Freq. Tolerance -20 20 ppm
RX Characteristics Min. Typ. Max. Unit
Minimum Input Level Sens.
(HT20,PER ≤ 10%) -65 dBm
Maximum Input Level (PER ≤ 10%) -20 dBm
Note 1. Normal Condition : 25℃, VDD=3.3V.
Note 2. This varies by regulatory domain.
Refer to the product documentation for specific details for each regulatory domain.
Note 3. The maximum power setting will vary by channel and according to individual country regulations.
Refer to the product documentation for specific details.

USER MANUAL
PAGE :
REG. DATE : 2021.4.21
MODEL NAME : ETWCERBC01 (LGIT)
LGSBWAC22 (LGE)
REV. DATE : 2021.4.21
REV.NO : 1.0
9/ 16
LG Innotek Confidential : This document is protected by security policies and laws.
[Confidential]
6-5. RF Characteristics for IEEE802.11an ( MCS7 mode unless otherwise specified)
Items Contents
Specification IEEE802.11n –5GHz
Mode OFDM
Channel frequency 5150~5850 MHz
Data rate 6.5, 13, 19.5, 26, 39, 52, 58.5, 65Mbps
TX Characteristics Min. Typ. Max. Unit
Power Level (HT20/HT40:MCS7) 10 13 16 dBm
Spectrum Mask (HT20)
at fc ±11MHz -20 dBr
at fc ±20MHz -28 dBr
at fc ±30MHz -40 dBr
Constellation Error (EVM) -28 dB
Freq. Tolerance -20 20 ppm
Chip Clock Freq. Tolerance -20 20 ppm
RX Characteristics Min. Typ. Max. Unit
Minimum Input Level Sens.
(HT20,PER ≤ 10%) -65 dBm
Minimum Input Level Sens.
(HT40,PER ≤ 10%) -62 dBm
Maximum Input Level (PER ≤ 10%) -30 dBm
Note 1. Normal Condition : 25℃, VDD=3.3V.
Note 2. This varies by regulatory domain.
Refer to the product documentation for specific details for each regulatory domain.
Note 3. The maximum power setting will vary by channel and according to individual country regulations.
Refer to the product documentation for specific details.

USER MANUAL
PAGE :
REG. DATE : 2021.4.21
MODEL NAME : ETWCERBC01 (LGIT)
LGSBWAC22 (LGE)
REV. DATE : 2021.4.21
REV.NO : 1.0
10 / 16
LG Innotek Confidential : This document is protected by security policies and laws.
[Confidential]
Items Contents
Specification IEEE802.11ac –5GHz
Mode OFDM
Channel frequency 5150 ~ 5850 MHz
Data rate 6.5,13,19.5,26,39,52,58.5,65,78Mbps
TX Characteristics Min. Typ. Max. Unit
Power Level
VHT20(MCS8) 912 15 dBm
VHT40(MCS9) 912 15 dBm
VHT80(MCS9) 912 15 dBm
Spectrum Mask (HT20)
at fc ±11MHz -20 dBr
at fc ±20MHz -28 dBr
at fc ±30MHz -40 dBr
Constellation Error
(EVM)
VHT20(MCS8) -30 dB
VHT40(MCS9) -32 dB
VHT80(MCS9) -32 dB
Freq. Tolerance 20 ppm
Chip Clock Freq. Tolerance -20 20 ppm
RX Characteristics Min. Typ. Max. Unit
Minimum Input Level Sens.
(VHT20,PER ≤ 10%) -57 dBm
Minimum Input Level Sens.
(VHT40,PER ≤ 10%) -54 dBm
Minimum Input Level Sens.
(VHT80,PER ≤ 10%) -51 dBm
Maximum Input Level (PER ≤ 10%) -30 dBm
6-6. RF Characteristics for IEEE802.11ac ( MCS8/9 mode unless otherwise specified)
Note 1. Normal Condition : 25℃, VDD=3.3V.
Note 2. This varies by regulatory domain.
Refer to the product documentation for specific details for each regulatory domain.
Note 3. The maximum power setting will vary by channel and according to individual country regulations.
Refer to the product documentation for specific details.

USER MANUAL
PAGE :
REG. DATE : 2021.4.21
MODEL NAME : ETWCERBC01 (LGIT)
LGSBWAC22 (LGE)
REV. DATE : 2021.4.21
REV.NO : 1.0
11 / 16
LG Innotek Confidential : This document is protected by security policies and laws.
[Confidential]
7. Electrical Specifications for Bluetooth
Parameter (Condition) Min. Typ. Max. Unit
Transmit Power (PGPSK) 5 8 10 dBm
Power Density 20 dBm
Frequency Range 2400 2483.5 MHz
20dB Bandwidth 1000 kHz
In-band Spurious Emissions
±500kHz -20 dBc
|M-N| = 2MHz -20 dBm
|M-N| ≥ 3MHz -40 dBm
Modulation Characteristics, frequency Deviation
ΔF1avg (00001111 sequence in payload) 140 175 kHz
ΔF2max (10101010 sequence in payload) 115 kHz
ΔF1avg / ΔF2max 80 %
Initial Carrier Frequency Tolerance -75 75 kHz
Carrier Frequency Drift
DH1 Packet -25 25 kHz
DH3 Packet -25 25 kHz
DH5 Packet -40 40 kHz
Drift rate -20 20 kHz / μs
7-1. Transmitter Performance
Note 2. Supported Bluetooth TX power class 1.
Note 1. Normal Condition : 25℃, VDD=3.3V.

USER MANUAL
PAGE :
REG. DATE : 2021.4.21
MODEL NAME : ETWCERBC01 (LGIT)
LGSBWAC22 (LGE)
REV. DATE : 2021.4.21
REV.NO : 1.0
12 / 16
LG Innotek Confidential : This document is protected by security policies and laws.
[Confidential]
Parameter (Condition) Min. Typ. Max. Unit
EDR Relative Transmit Power -4 1 dB
EDR Carrier Frequency Stability
ωi (2-DH5 and 3-DH5) -75 75 kHz
ω0 (2-DH5 and 3-DH5) -10 10 kHz
ωi + ω0 (2-DH5 and 3-DH5) -75 75 kHz
EDR Modulation Accuracy
RMS DEVM
2-DH5 20 %
3-DH5 13 %
99% DEVM
DEVM < 0.30, π/4-DQPSK
DEVM < 0.20, 8DPSK symbols
2-DH5 99 %
3-DH5 99 %
Peak DEVM
2-DH5 35 %
3-DH5 25 %
EDR Differential Phase Encoding
(packet with 0 error > 99%) 99 %
EDR In-band Spurious Emissions
|M-N| = 1MHz Ptx_ref-26 dBm
|M-N| = 2MHz -20 dBm
|M-N| = 3MHz -40 dBm
Enhanced Power Control 4 dBm
Parameter (Condition) Min. Typ. Max. Unit
Tx Power 5 8 10 dBm
Rx sensitivity (GFSK, BER, 1 Mbps) -80 dBm
Mod Char : delta F1 average 225 275 kHz
Mod Char : delta F2 max 99.9 - %
Mod Char : ratio 80 - %
7-2. Transmitter Performance
7-3. BLE RF Performance

USER MANUAL
PAGE :
REG. DATE : 2021.4.21
MODEL NAME : ETWCERBC01 (LGIT)
LGSBWAC22 (LGE)
REV. DATE : 2021.4.21
REV.NO : 1.0
13 / 16
LG Innotek Confidential : This document is protected by security policies and laws.
[Confidential]
7-4. Receiver Performance
Note 1. Normal Condition : 25℃, VDD=3.3V.
Parameter (Condition) Min. Typ. Max. Unit
Rx sensitivity
GPSK, 0.1% BER, 1Mbps -70 dBm
π/4-DQPSK, 0.01% BER, 2Mbps -70 dBm
8-DPSK, 0.01% BER, 3Mbps -70 dBm
C/I performance
C/I co-channel (GFSK, 0.1%BER) 11 dB
C/I 1MHz (GFSK, 0.1%BER) 0dB
C/I 2MHz (GFSK, 0.1%BER) -30 dB
C/I ≥3MHz (GFSK, 0.1%BER) -40 dB
C/I image (GFSK, 0.1%BER) -9 dB
C/I image±1MHz (GFSK, 0.1%BER) -20 dB
C/I co-channel (π/4-DQPSK, 0.1%BER) 13 dB
C/I 1MHz (π/4-DQPSK, 0.1%BER) 0dB
C/I 2MHz (π/4-DQPSK, 0.1%BER) -30 dB
C/I ≥3MHz (π/4-DQPSK, 0.1%BER) -40 dB
C/I image (π/4-DQPSK, 0.1%BER) -7 dB
C/I image±1MHz (π/4-DQPSK,0.1%BER) -20 dB
C/I co-channel (8-DPSK, 0.1%BER) 21 dB
C/I 1MHz (8-DPSK, 0.1%BER) 5dB
C/I 2MHz (8-DPSK, 0.1%BER) -25 dB
C/I ≥3MHz (8-DPSK, 0.1%BER) -33 dB
C/I image (8-DPSK, 0.1%BER) 0dB
C/I image±1MHz (8-DPSK, 0.1%BER) -13 dB
Intermodulation(BER≤0.1%)
Input = -64dBm, n=5 -39 dBm
Out-of-band blocking (CW, BER≤0.1%)
30MHz ~ 2000MHz -10 dBm
2000MHz ~ 2399MHz -27 dBm
2498MHz ~ 3000MHz -27 dBm
3000MHz ~ 12.75GHz -10 dBm
Maximum input (GFSK, 0.1% BER) -20 dBm

USER MANUAL
PAGE :
REG. DATE : 2021.4.21
MODEL NAME : ETWCERBC01 (LGIT)
LGSBWAC22 (LGE)
REV. DATE : 2021.4.21
REV.NO : 1.0
14 / 16
LG Innotek Confidential : This document is protected by security policies and laws.
[Confidential]

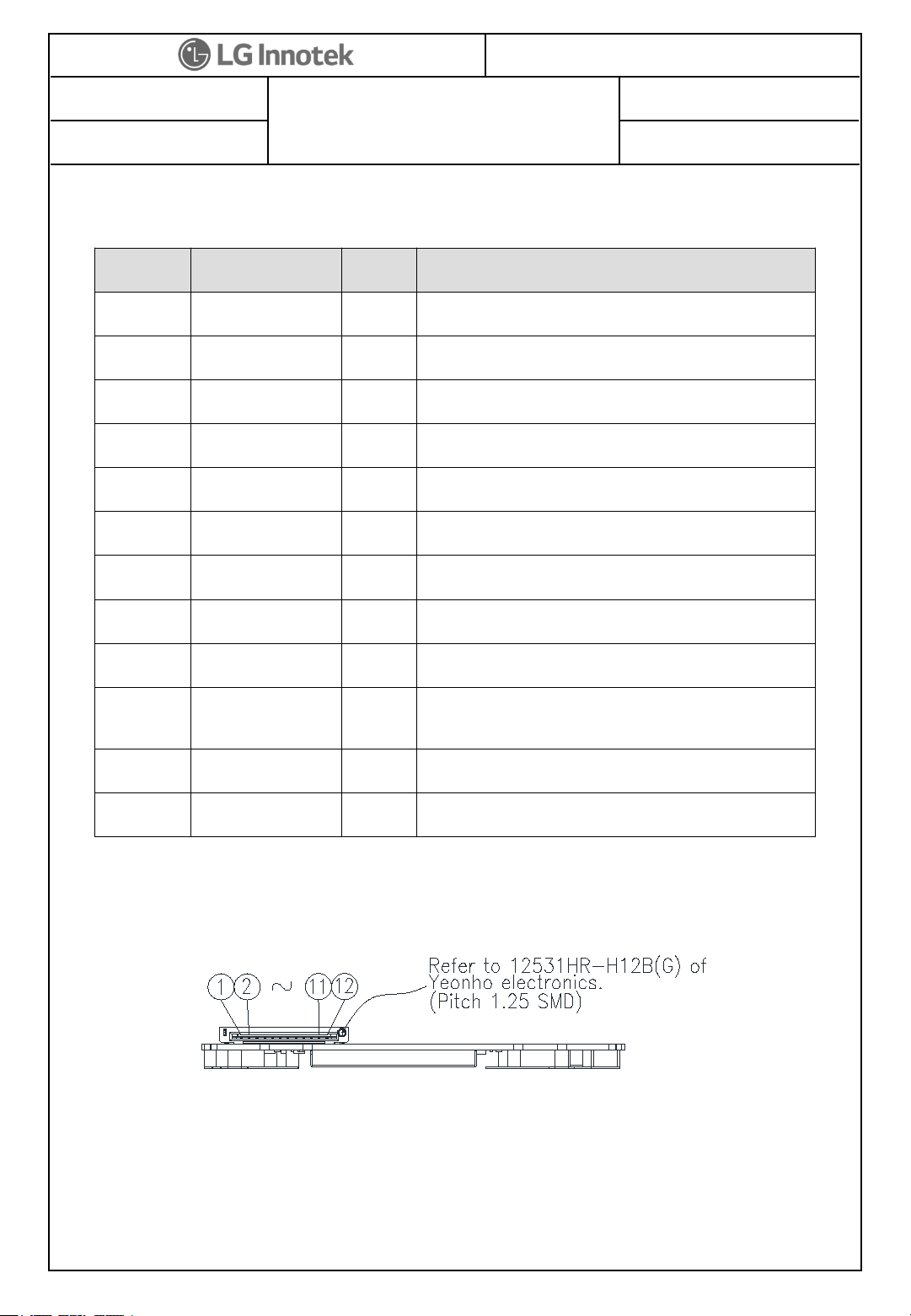

8. Pin Description
Pin No. Pin Name I/O Pin Description
1VCC IVDD 3.3V
2 D- I/O USB Communication signal USB_DN
3D+ I/O USB Communication signal USB_DP
4GND -GND
5WOWL OWake On WLAN
6VCC IVDD 3.3V
7RESUME ISUSPEND_RESUME
8GND -GND
9 RESET I RESET
10 WOBLE OHost wake up.
(Signal from Wi-Fi module to the host)
11 GND -GND
12 VCC -VDD 3.3V

USER MANUAL
PAGE :
REG. DATE : 2021.4.21
MODEL NAME : ETWCERBC01 (LGIT)
LGSBWAC22 (LGE)
REV. DATE : 2021.4.21
REV.NO : 1.0
15 / 16
LG Innotek Confidential : This document is protected by security policies and laws.
[Confidential]
9. Mechanical Characteristics
1) Outline view
Item Test Conditions
Assembly No defects of wiring, soldering and assembling
Appearance No dirt, rust, corrosion or foreign material
2) Appearance structure
Item Test Conditions
Dimension As assembly drawing
Mounting As assembly drawing
Weight 8.5g

USER MANUAL
PAGE :
REG. DATE : 2021.4.21
MODEL NAME : ETWCERBC01 (LGIT)
LGSBWAC22 (LGE)
REV. DATE : 2021.4.21
REV.NO : 1.0
16 / 16
LG Innotek Confidential : This document is protected by security policies and laws.
[Confidential]

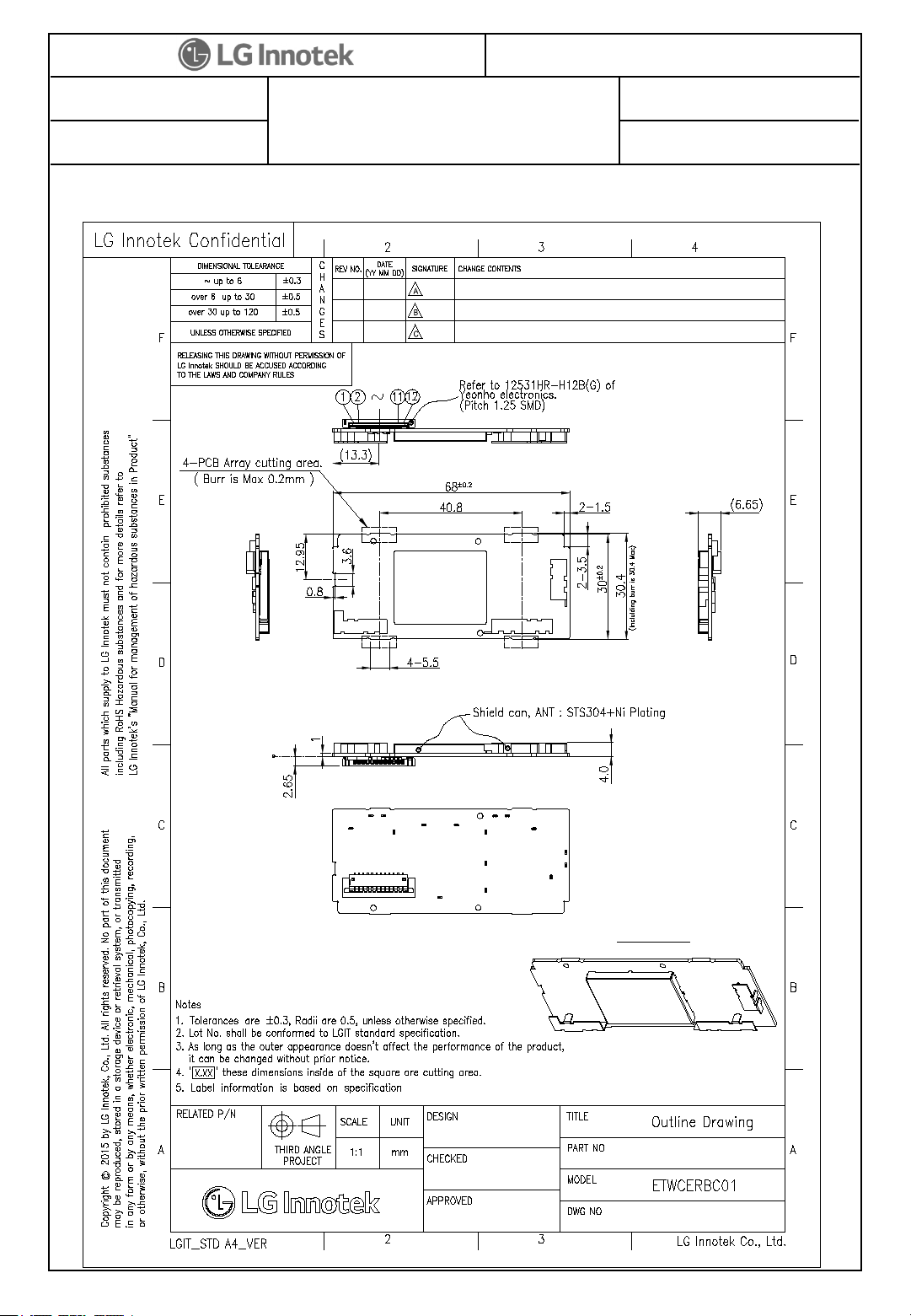

10. Outline Drawing
3D View
K.S Lee
'21. 04. 21
J.H Moon
S.D Chol
'21. 04. 21
'21. 04. 21

USER MANUAL
PAGE :
REG. DATE : 2021.4.21
MODEL NAME : ETWCERBC01 (LGIT)
LGSBWAC22 (LGE)
REV. DATE : 2021.4.21
REV.NO : 1.0
1 / 16
LG Innotek Confidential : This document is protected by security policies and laws.
[Confidential]
Regulatory Statement (FCC)
•Part 15.19 Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
•Part 15.105 Statement (Class B)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
•Part 15.21 Statement
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment. This device
must not be co-located or operating in conjunction with any other antenna or
transmitter.
•Responsible Party Information (Supplier's Declaration of Conformity)
LG Electronics USA
1000 Sylvan Avenue Englewood Cliffs
New Jersey, United States, 07632

USER MANUAL
PAGE :
REG. DATE : 2021.4.21
MODEL NAME : ETWCERBC01 (LGIT)
LGSBWAC22 (LGE)
REV. DATE : 2021.4.21
REV.NO : 1.0
15 / 16
LG Innotek Confidential : This document is protected by security policies and laws.
[Confidential]
Regulatory Statement (FCC)
Regulatory notice to host manufacturer according to KDB 996369 D03 OEM
Manual v01
List of applicable FCC rules
This module has been granted modular approval as below listed FCC rule parts.
- FCC Rule parts 15C(15.247,15.407)
Summarize the specific operational use conditions
The OEM integrator should use equivalent antennas which is the same type and equal
or less gain then an antenna listed in this instruction manual.
RF exposure considerations
The module has been certified for integration into products only by OEM integrators
under the following condition:
-The antenna(s) must be installed such that a minimum separation distance of at least
20 cm is maintained between the radiator (antenna) and all persons at all times.
-The transmitter module must not be co-located or operating in conjunction with any
other antenna or transmitter except in accordance with FCC multi-transmitter product
procedures.
-Mobile use
As long as the three conditions above are met, further transmitter testing will not be
required.
OEM integrators should provide the minimum separation distance to end users in their
end-product manuals.

USER MANUAL
PAGE :
REG. DATE : 2021.4.21
MODEL NAME : ETWCERBC01 (LGIT)
LGSBWAC22 (LGE)
REV. DATE : 2021.4.21
REV.NO : 1.0
15 / 16
LG Innotek Confidential : This document is protected by security policies and laws.
[Confidential]
•Antennas list
This module is certified with the following integrated antenna.
-Type: Metal Press Antenna
-Max. peak Antenna gain
1) ANT 1: -0.94 dBi (2412-2472MHz)/0.05 dBi (UNII-1)/0.98 dBi(UNII-2A)/1.41
dBi(UNII-2C)/1.44 dBi(UNII-3)
2) ANT 2: 1.50 dBi (2412-2472MHz)/1.42 dBi (UNII-1)/1.45 dBi(UNII-2A)/1.37
dBi(UNII-2C)/1.42 dBi(UNII-3)
3) BT Ant: 1.19 dBi (2402-2480 MHz)
Any new antenna type, higher gain than listed antenna should be met the requirements
of FCC rule 15.203 and 2.1043 as permissive change procedure.
•Label and compliance information
End Product Labeling
The module is labeled with its own FCC ID and IC Certification Number. If the FCC ID
and IC Certification Number are not visible when the module is installed inside another
device, then the outside of the device into which the module is installed must also
display a label referring to the enclosed module. In that case, the final end product must
be labeled in a visible area with the following:
Contains FCC ID: BEJLGSBWAC22
Contains IC: 2703H-LGSBWAC22
•Information on test modes and additional testing requirements
OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed (for example, digital device
emissions, PC peripheral requirements, additional transmitter in the host, etc.).
•Additional testing, Part 15 Subpart B disclaimer
The final host product also requires Part 15 subpart B compliance testing with the
modular transmitter installed to be properly authorized for operation as a Part 15 digital
device.
Regulatory Statement (FCC)
