LG LGSBWAC95 User manual

User Manual
PRODUCT NAME : RF Module
MODEL NAME : LGSBWAC95
(00)-0073
The information contained herein is the exclusive property of LG Innotek
and shall not be distributed, reproduced or disclosed in whole or no in part
without prior written permission of LG Innotek.

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2020.05.21 MODEL NAME: ETWCFMBC01(LGIT)
LGSBWAC95(LGE)
REV. DATE : 2020.05.21
REV.NO : V1.0
-
Copyrightⓒ. 2020. All Rights Reserved.
1/ 9
Index
No Description Page
1Features 2
2Picture of Product 2
3Installation Manual 3
4Block Diagram 4
5Absolute Maximum Ratings 4
6Operating Conditions 5
7Standard Test Conditions 5
8Pin Description 6
9Out Drawing 7
10 Packing Information 8

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2020.05.21 MODEL NAME: ETWCFMBC01(LGIT)
LGSBWAC95(LGE)
REV. DATE : 2020.05.21
REV.NO : V1.0
-
Copyrightⓒ. 2020. All Rights Reserved.
2/ 9
2. Picture of Product
1. Features
LGSBWAC95 is the small size and low power module for IEEE 802.11ac wireless LAN
& BT5.0 + HS. ETWCFMBC01 is based on Mediatek MT7668AUN solution.
IEEE 802.11 a/b/g/n/ac Dual Band Dual Concurrent (DBDC)
Bluetooth 5.0+ HS , BLE
Size : 68 x 30 x 6.65mm
Two stream spatial multiplexing up to 300Mbps(802.11n) / 867Mbps(802.11ac)
Use on-chip OTP (One-Time Programmable)
Host Interface : USB2.0 (WLAN & BT)
-This model is using the common USB2.0 to control WLAN and BT
Security : WAPI, WEP, WPA, WPA2, WMM, AES, TKIP, CKP
Application: DTV, DVR, HD DVD Player, Blue-ray Disk Player, STB

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2020.05.21 MODEL NAME: ETWCFMBC01(LGIT)
LGSBWAC95(LGE)
REV. DATE : 2020.05.21
REV.NO : V1.0
-
Copyrightⓒ. 2020. All Rights Reserved.
3/ 9
3. Installation Manual
Install the module like below in the back of the TV
LGSBWAC95 installed position

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2020.05.21 MODEL NAME: ETWCFMBC01(LGIT)
LGSBWAC95(LGE)
REV. DATE : 2020.05.21
REV.NO : V1.0
-
Copyrightⓒ. 2020. All Rights Reserved.
4/ 9

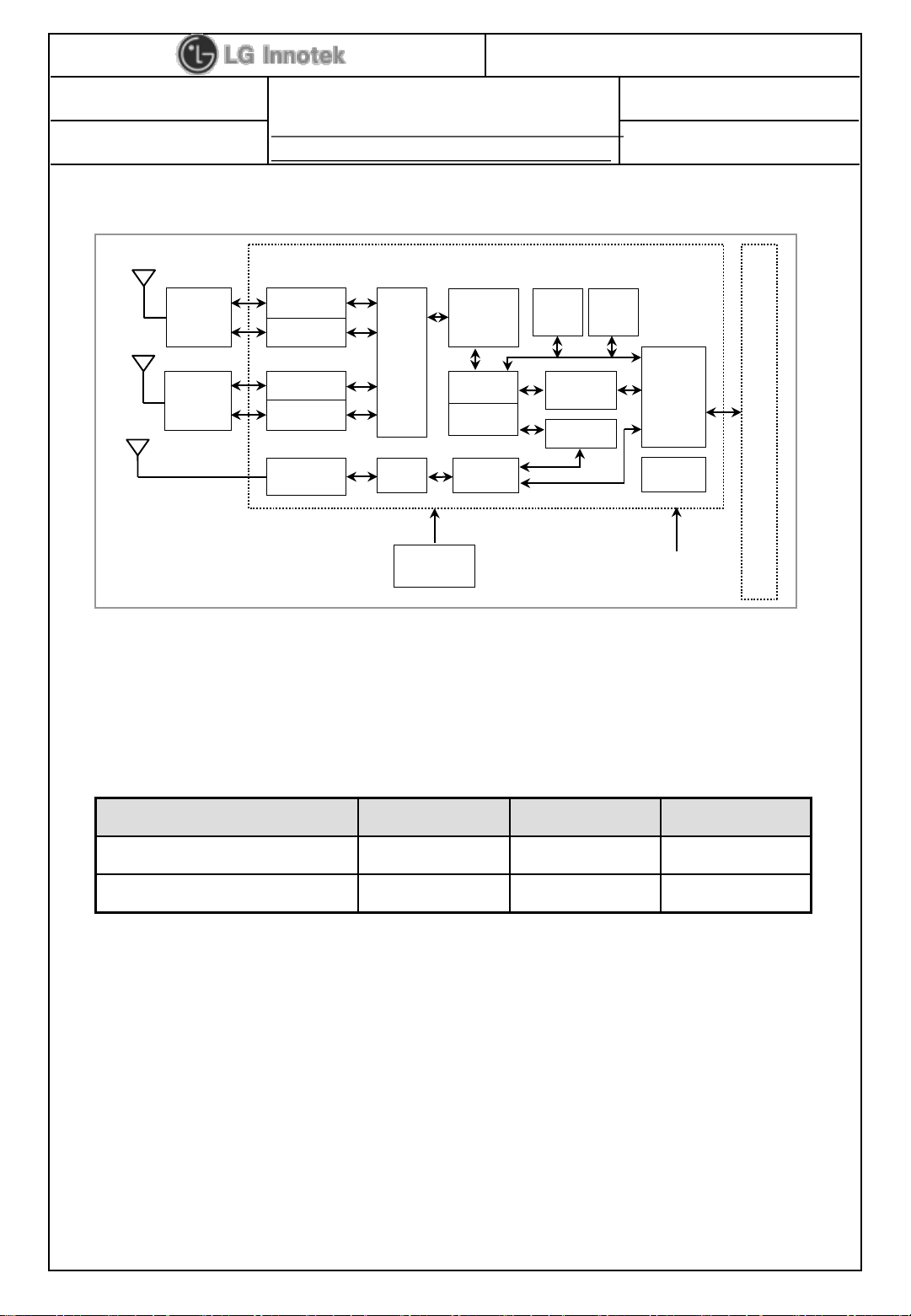

4. Block Diagram
5. Absolute Maximum Ratings
Parameter Min Max Unit
Storage Temperature -20 +80 ℃
Storage Humidity (40℃) - 90 %
Caution : The specifications in Table 1 define levels at which permanent damage to the
device can occur. Function operation is not guaranteed under these conditions.
Operating at absolute maximum conditions for extend periods can adversely affect the
long-term reliability of the device.
. Other conditions
1) Do not use or store modules in the corrosive atmosphere, especially where chloride
gas, sulfide gas, acid, alkali, salt or the like are contained.
Also, avoid exposure to moisture.
2) Store the modules where the temperature
and relative humidity do not exceed 5 to 40℃and 20 to 60%.
3) Assemble the modules within 6 months.
Check the soldering ability in case of 6 months over.
MT7668AUN
2.4GHz
5GHz
2.4GHz
5GHz
WiFi
RF
32bit
RISC
MCU
WiFi MAC
WiFi MAC
PMU
USB2.0
Interface
USB I/F 12PIN CONNECTOR
3.3V
Main
Clock
40MHz
Diplexer
Diplexer
ANT2
2.4GHz BT RF RF_CTL
BT ANT PTA
Packet
DMA
WiFi
Baseband
OTP

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2020.05.21 MODEL NAME: ETWCFMBC01(LGIT)
LGSBWAC95(LGE)
REV. DATE : 2020.05.21
REV.NO : V1.0
-
Copyrightⓒ. 2020. All Rights Reserved.
5/ 9
6. Operating Conditions
Parameter Min Typ Max Unit
Ambient Temperature 0 - 60 ℃
Ambient Humidity (40℃) - - 85 %
Supply Voltage 3.135 3.3 3.6 Vdc
7. Standard Test Conditions
The Test for electrical specification shall be performed under the following condition
Otherwise this following conditions, not guaranteed this performance.
Temparature 25 ±5℃
Humidity 65 ±5%
Input Voltage Supply Voltage
VDD_3.3V 3.135 ~ 3.6V
7-1. Ambient condition
7-2. Power supply voltages

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2020.05.21 MODEL NAME: ETWCFMBC01(LGIT)
LGSBWAC95(LGE)
REV. DATE : 2020.05.21
REV.NO : V1.0
-
Copyrightⓒ. 2020. All Rights Reserved.
6/ 9

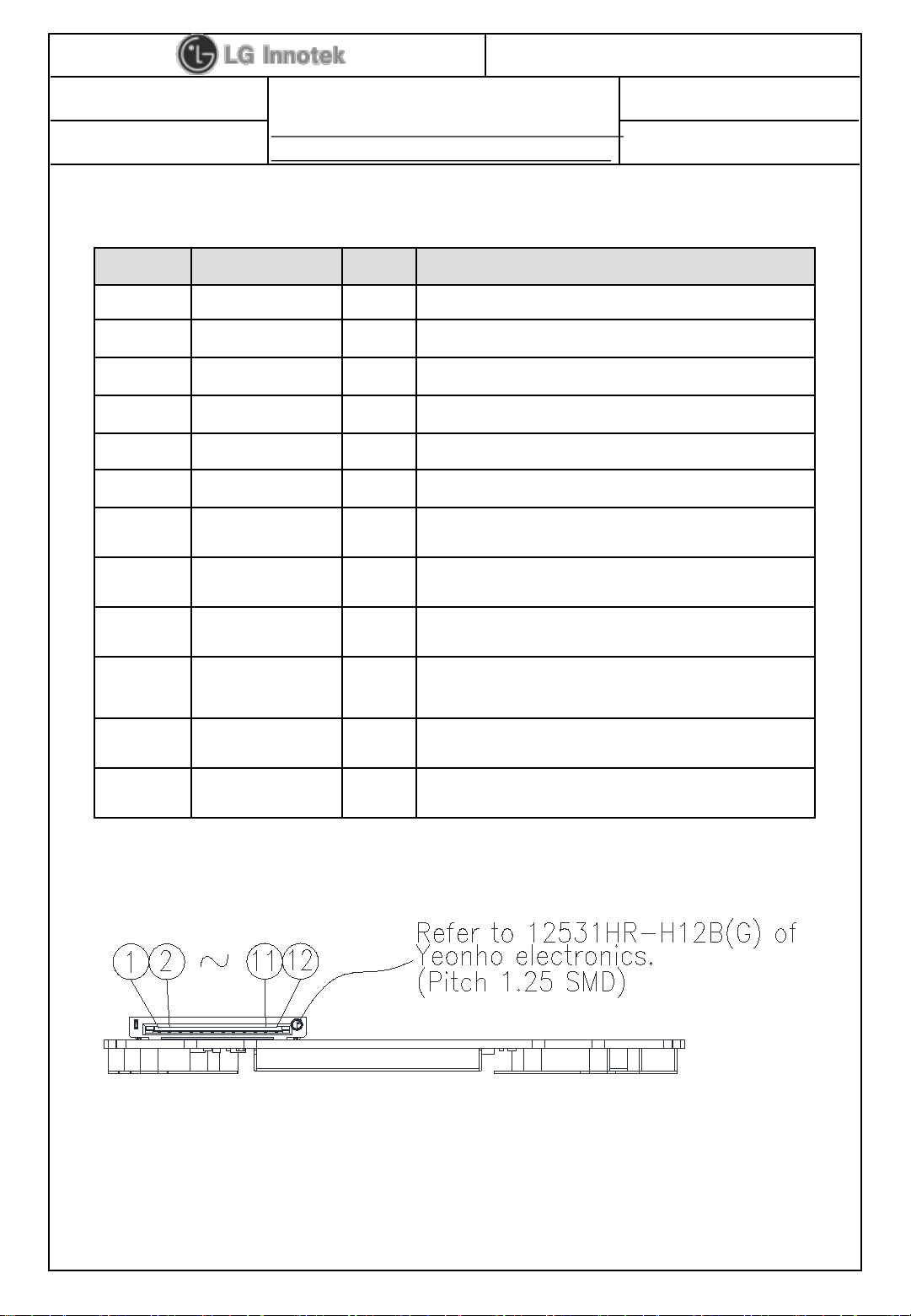

8. Pin Description
Pin No. Pin Name I/O Pin Description
1VCC IVDD 3.3V
2 D- I/O USB Communication signal USB_DN
3D+ I/O USB Communication signal USB_DP
4GND -GND
5WOWL OWake On WLAN
6VCC IVDD 3.3V
7RESUME ISUSPEND_RESUME
8GND -GND
9RESET I Bluetooth device wake up (option)
10 WOBLE OHost wake up.
(Signal from Wi-Fi module to the host)
11 GND -GND
12 VCC -VDD 3.3V

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2020.05.21 MODEL NAME: ETWCFMBC01(LGIT)
LGSBWAC95(LGE)
REV. DATE : 2020.05.21
REV.NO : V1.0
-
Copyrightⓒ. 2020. All Rights Reserved.
7/ 9
9. Outline Drawing
3D View
'20. 05. 21
'20. 05. 21
K.S Lee
'20. 05. 21
S.K Eun
S.D Chol

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2020.05.21 MODEL NAME: ETWCFMBC01(LGIT)
LGSBWAC95(LGE)
REV. DATE : 2020.05.21
REV.NO : V1.0
-
Copyrightⓒ. 2020. All Rights Reserved.
8/ 9

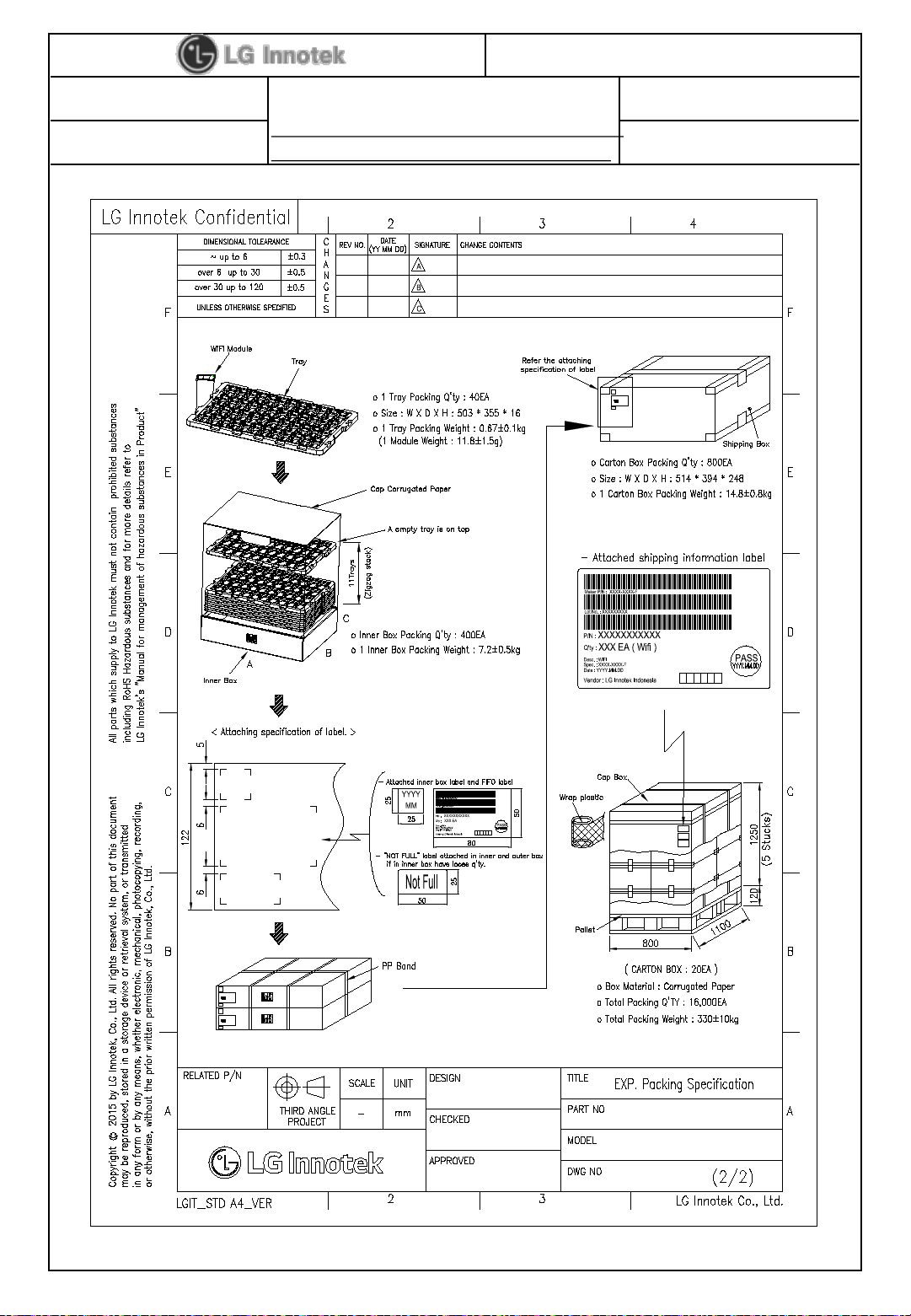

10. Packing Information
'19. 07. 10
Park
Il Hee.
'19. 07. 10
Choi
Seok Dong.
'19. 07. 10
Lee
Kap Soul.
ETWCFMBC01

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2020.05.21 MODEL NAME: ETWCFMBC01(LGIT)
LGSBWAC95(LGE)
REV. DATE : 2020.05.21
REV.NO : V1.0
-
Copyrightⓒ. 2020. All Rights Reserved.
9/ 9
FIFO
Label
BARCODE Label
NOT FULL
Label
'19. 07. 10
Lee
Kap Soul.
'19. 07. 10
Choi
Seok Dong.
'19. 07. 10
Park
Il Hee.
ETWCFMBC01

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2020.05.21 MODEL NAME: ETWCFMBC01(LGIT)
LGSBWAC95(LGE)
REV. DATE : 2020.05.21
REV.NO : V1.0
-
Copyrightⓒ. 2020. All Rights Reserved.
10 / 9
<Regulatory notice>
1. FCC Statement
FCC Part 15.19 Statements:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Part 15.105 statement (Class B)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Part 15.21 statement
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
Responsible Party Information
Supplier's Declaration of Conformity
47 CFR §2.1077 Compliance Information
Responsible Party –U.S. Contact Information
LG Electronics USA
1000 Sylvan Avenue Englewood Cliffs
New Jersey, United States, 07632
Telephone number or internet contact information

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2020.05.21 MODEL NAME: ETWCFMBC01(LGIT)
LGSBWAC95(LGE)
REV. DATE : 2020.05.21
REV.NO : V1.0
-
Copyrightⓒ. 2020. All Rights Reserved.
11 / 9
Regulatory notice to host manufacturer according to KDB 996369 D03 OEM Manual v01>
List of applicable FCC rules
This module has been granted modular approval as below listed FCC rule parts.
-FCC Rule parts 15C(15.247)
Summarize the specific operational use conditions
-The OEM integrator should use equivalent antennas which is the same type and equal or less gain then an antenna
listed in 2.7 in this instruction manual.
RF exposure considerations
The module has been certified for integration into products only by OEM integrators under the following condition:
-The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is maintained between
the radiator (antenna) and all persons at all times.
-The transmitter module must not be co-located or operating in conjunction with any other antenna or transmitter
except in accordance with FCC multi-transmitter product procedures.
-Mobile use
As long as the three conditions above are met, further transmitter testing will not be required.
OEM integrators should provide the minimum separation distance to end users in their end-product manuals.
Antennas list
This module is certified with the following integrated antenna.
-Type: Metal antenna (Internal Antenna)
-Max. peak Antenna gain
Any new antenna type, higher gain than listed antenna should be met the requirementsof FCC rule 15.203 and
2.1043 as permissive change procedure.
Label and compliance information
End Product Labeling
The module is labeled with its own FCC ID and IC Certification Number. If the FCC ID and IC Certification Number
are not visible when the module is installed inside another device, then the outside of the device into which the
module is installed must also display a label referring to the enclosed module. In that case, the final end product must
be labeled in a visible area with the following:
“Contains FCC ID: BEJLGSBWAC95”
“Contains IC: 2703H-LGSBWAC95”
Information on test modes and additional testing requirements
-OEM integrator is still responsible for testing their end-product for any additional compliance requirements required
with this module installed (for example, digital device emissions, PC peripheral requirements, additional transmitter in
the host, etc.).
Additional testing, Part 15 Subpart B disclaimer
-The final host product also requires Part 15 subpart B compliance testing with the modular transmitter installed to be
properly authorized for operation as a Part 15 digital device.
Frequency Band Dual Band Ant1 Dual BandAnt
2BT Ant (2402-2480)
2.4G (2412-2472) -1.19 dBi 1.50 dBi 1.19 dBi
UNII-1 (5180-5240) 0.05 dBi 1.42 dBi
UNII-2A (5260-5320) 0.98 dBi 1.45 dBi
UNII-2C (5500-5720)
(without 5600-5650) 1.41 dBi 1.37 dBi
UNII-3 (5745-5825) 1.44 dBi 1.42 dBi

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2020.05.21 MODEL NAME: ETWCFMBC01(LGIT)
LGSBWAC95(LGE)
REV. DATE : 2020.05.21
REV.NO : V1.0
-
Copyrightⓒ. 2020. All Rights Reserved.
12 / 9
2. ISED
RSS-GEN, Sec. 7.1.3–(licence-exempt radio apparatus)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
RF Exposure
The antenna (or antennas) must be installed so as to maintain at all times a distance minimum
of at least 20 cm between the radiation source (antenna) and any individual. This device may
not be installed or used in conjunction with any other antenna or transmitter.
l'exposition aux RF
L’antenne (ou les antennes) doit être installée de façon à maintenir à tout instant une distance
minimum de au moins 20 cm entre la source de radiation (l’antenne) et toute personne
physique.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer
could void your authority to operate this equipment. Attention:
Les changements ou modifications de cet appareil non expressément approuvé par le fabricant
peuvent annuler votre droit à utiliser cet équipement.
Étiquetage du produit final (IC)
Le module LGSBWAC95 est étiqueté avec sa propre identification FCC et son propre numéro
de certification IC. Si l’identification FCC et le numéro de certification IC ne sont pas visibles
lorsque le module est installé à l’intérieur d’un autre dispositif, la partie externe du dispositif
dans lequel le module est installé devra également présenter une étiquette faisant référence au
module inclus. Dans ce cas, le produit final devra être étiqueté sur une zone visible avec les
informations suivantes :
« Contient module émetteur identification FCC ID: BEJLGSBWAC95
« Contient module émetteur IC : 2703H-LGSBWAC95 »
“The 5150-5250 MHz band is restricted to indoor use only.”

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2020.05.21 MODEL NAME: ETWCFMBC01(LGIT)
LGSBWAC95(LGE)
REV. DATE : 2020.05.21
REV.NO : V1.0
-
Copyrightⓒ. 2020. All Rights Reserved.
13 / 9
3. CE
Simplified EU Declaration of Conformity
Hereby, LG Electronics Inc. declares that the radio equipment type RF Module is in compliance
with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the
following internet address: http://www.lg.com/global/support/cedoc/cedoc#
RF Exposure
The antenna (or antennas) must be installed so as to maintain at all times a distance minimum
of at least 20 cm between the radiation source (antenna) and any individual. This device may
not be installed or used in conjunction with any other antenna or transmitter
The use of the 5150 –5350 MHz band is restricted to indoor use only. This restriction will be
applied in all member states.
Manufacturer name: LG Electronics Inc.
The postal address: LG Electronics European Shared Service Center B.V. Krijgsman 1, 1186
DM Amstelveen, The Netherlands
The host manufacturer has the responsibility that the host device should be compliance with all
essential requirement of RED.
