LG LSI-110 User manual

CDMA Fixed Wireless Telephone
User Guide
Model: LSI-110

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
2
REVISED HISTORY
DATE ISSUE CONTENTS OF CHANGES REMARK
2002/05/13 ISSUE1 Initial Release

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
3
Blank Page

For more information about RF exposure, please visit the FCC website at www.fcc.gov
FCC RF EXPOSURE INFORMATION
In August 1996 the Federal Communications Commission (FCC) of the United States
with its action in Report and Order FCC 96-326 adopted an updated safety standard
for human exposure to radio frequency electromagnetic energy emitted by FCC
regulated transmitters. Those guidelines are consistent with the safety standard
previously set by both U.S. and international standards bodies. The design of this
phone complies with the FCC guidelines and these international standards.
Use only the supplied or an approved antenna. Unauthorized antennas,
modifications, or attachments could impair call quality, damage the phone, or result in
violation of FCC regulations.
Do not use the phone with a damaged antenna. If a damaged antenna comes into
contact with the skin, a minor burn may result. Please contact your local dealer for
replacement antenna.
To maintain compliance with FCC RF exposure requirements, maintain a 2.54 cm.
separation distance between the user’s body and the phone, including the antenna.
WARNING! Read this information before using your phone

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
4
CONTENTS
Highlights...............................................................................................................................6
1. Important Information......................................................................................................7
1.1 Safety Information.....................................................................................................7
1.2 Optimal Phone Performance.....................................................................................7
1.3 Care and Service ......................................................................................................7
2. Introduction .....................................................................................................................9
2.1 Front View of the Telephone.....................................................................................9
2.2 LCD Display............................................................................................................10
2.3 Installation...............................................................................................................11
2.4 Installation Steps.....................................................................................................13
3. Basic Operation ...............................................................................................................15
3.1 Making a Call ..........................................................................................................15
3.2 Redialing Last Outgoing Number............................................................................15
3.4 Signal Strength........................................................................................................16
3.5 Missed Call Message..............................................................................................16
4. List of Menu State............................................................................................................17
4.1 Volume / Ring..........................................................................................................18
4.1.1 Ring Volume..................................................................................................18
4.1.2 Key Volume...................................................................................................18
4.1.3 Ear Volume ...................................................................................................18
4.1.3 Ring Select....................................................................................................19
4.2 Additional feature....................................................................................................19
4.2.1 Wake-up Time...............................................................................................19
4.2.2 Minute Alert...................................................................................................19
4.2.3 Set Rx call mode...........................................................................................19
4.2.4 Backlight........................................................................................................20
4.2.5 Own number..................................................................................................20
4.3 Dial features............................................................................................................20
4.3.1 Hot Line.........................................................................................................20
4.3.2 Hot Line Time................................................................................................20
4.3.3 Auto Time-out................................................................................................21
4.3.4 Speed Dial (enable / disable)........................................................................21
4.3.5 Key-tone Length............................................................................................22
4.4 Security Features....................................................................................................22
4.4.1 Lock Mode Set..............................................................................................22
4.4.2 Clear Calls.....................................................................................................22

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
5
4.4.3 Clear Memory................................................................................................23
4.4.4 Emergency Call.............................................................................................23
4.4.5 Restriction Call Service.................................................................................23
5. Functions while in a call...................................................................................................25
5.1 Mute........................................................................................................................25
5.2 Ear Volume .............................................................................................................26
6. Searching, Editing & Dialing ............................................................................................26
6.1 Retrieving Phone Number by Name .......................................................................26
6.2 Retrieving Phone Number by Address....................................................................27
6.3 Retrieving Phone Number by NUMBER .................................................................28
6.4 Fast Searching........................................................................................................29
6.5 Clear Memory..........................................................................................................29
7.SMS (Short Message Service)..........................................................................................29
7.1 Checking & Deleting Received Message................................................................29
7.1.1 Text Message................................................................................................29
7.1.2 Voice Message..............................................................................................30
7.1.3 Erasing all Received Message......................................................................31
7.2 MSG Notification tone select...................................................................................31
7.3 Message Sending ...................................................................................................31
7.3.1 Sending a New Message..............................................................................31
7.3.2 Sending the sent Message or message after editing the Sent Message......32
7.3.3 Erasing a Sent Message...............................................................................33
8.Beside Functions ..............................................................................................................33
8.1 Redial......................................................................................................................33
8.2 Finding Last Call History.........................................................................................33
8.3 Flash .......................................................................................................................34
8.4 Safe mode...............................................................................................................34
9. Storing Phone Number.....................................................................................................34
9.1 Storing/Editing Phone Numbers..............................................................................34
9.1.1 Storing Phone Numbers................................................................................34
9.1.2 Erasing Stored Phone Numbers ...................................................................37
9.2 Finding Stored Phone Numbers..............................................................................37
10. General Information .......................................................................................................38

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
6
Highlights
Congratulations on your purchase of the LSI-110 Fixed Wireless Telephone. This
telephone has been designed to operate on the latest digital mobile communications
technology. This technology has greatly enhanced voice clarity and can provide various
advanced features.
The telephone provides:
 5-line LCD Display with status indicator
 A choice of 10 ring sounds
 A menu driven interface with prompts for easy operation
 Last Number Redial
 Speed Dialing with a 99-number memory
 Dial tone
 ROH (Receiver Off-Hook) tone
 Adjustable Ring Volume
 Internal Battery
 AC/DC Adapter
 Antenna
 Data Port for service and repair
 USB Connector for Data service
 Back light

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
7
1. Important Information
1.1 Safety Information
Warning
To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
Do not use this product near swimming pools or other bodies of water.
IMPORTANT
Before installing or operating this product read this information.
1.2 Optimal Phone Performance
 Do not operate your product when holding the antenna, or when someone is within four
inches (ten centimeters) of the antenna. Holding the antenna affects call quality and may
cause the telephone to operate at a higher power level than needed.
 For the best call quality, keep the antenna free from obstructions and point the antenna
straight up.
 Do not use the unit with a damaged antenna. Have your antenna replaced by a qualified
technician immediately. Use only a manufacturer-approved antenna. Non-approved
antennas, modifications, or attachments could impair call quality, damage the phone.
 RF energy may affect improperly installed or inadequately shielded personal medical
devices such as pace markers, hospital monitor. Consult the manufacturer of any
personal medical devices to determine if they are adequately shielded from external RF
energy. Turn your terminal OFF in health care facilities when any regulations posted in
the areas instruct you to do so. Hospitals or health care facilities may be using equipment
that could be sensitive to external RF energy.
 If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna
- Increase the distance between the radio or television and the telephone.
- Connect the equipment into an outlet on a circuit different from that to which the
terminal is connected.
- Consult you Authorized LGIC Dealer of an experienced radio/TV technician for help.
 Use only the battery, antenna and AC power supply provided by LGIC. Using any other
type will invalidate the warranty.
 Only authorized personnel should service the phone and its accessories. Faulty
installation or service any be dangerous and may invalidate the warranty.
 Do not use the unit in designated “no cellular phone use” area.
 Avoid exposure to high temperature or humidity.
 Avoid wetting the unit with any liquids. If the unit gets wet, turn the power off immediately
and remove the battery and AC power supply. If the unit is inoperable, then return to the
service agent for service.
 Avoid shock or impact.
 We recommend you to charge the internal battery before initial use. The battery may be
discharged during delivery.

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
8
1.3 Care and Service
 Unplug the telephone from the wall outlet and remove antenna (or disconnect antenna
cable) before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for
cleaning.
 If the unit fails for any reason, do not attempt to disassemble; contact the telephone
service provider for assistance.
 If any of the following conditions exist; unplug the unit at the wall plug, remove battery,
and call the service provider.
- AC/DC Adapter is damaged or frayed.
- Liquid has been spilled into the unit.
- The unit has been exposed to rain or water.
- The unit has been dropped or damaged.
- The unit does not work normally by following the operating instructions.

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
9
2. Introduction
2.1 Front View of the Telephone
①Navigation Left Key : Function for decreasing volume down.
②Navigation DOWN Key : Function for scrolling down menu in menu state.
③Menu( Soft 1) Key : Activate a Menu state
④Send Key : Function key to call / Function for 3- way calling In call state
⑤REDIAL Key : Function as a redialing
⑥Navigation UP Key : Function for entering a MSG menu in idle state
/ Function for scrolling up menu in menu state
⑦Navigation Right Key : Function for increasing volume up.
⑧Book( Soft 2) Key : Activate a Book state
⑨END Key : Terminate a call or a menu state.
⑩“ # ”Key : Function as a keypad lock.
⑪Clear Key : Key to delete the last digit.
①Navigation Left[◀]
⑦Navigation Right[▶]
⑥Navigation Up[]
②Navigation Down[]
③Soft Key 1[MENU]
④SEND[SEND]
⑤REDIAL[REDIAL]
⑧Soft Key 2[BOOK]
⑨END[END]
⑪CLEAR[CLEAR]
⑩“#” Key : Key Pad Lock

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
10
13 May, Mon
4 : 11 PM
BOOKMENU
13 May, Mon
4 : 11 PM
BOOKMENU
2.2 LCD Display
The LCD shows icons on the top of the LCD screen.
Different indicator appears based on the phone's operating mode.
1) RSSI indicator : Indicates the signal strength in the service area.
2) No service : The phone is not receiving system signal.
3) In use : Displayed when call is in progress or the phone is in off-hook and dial tone
heard.
:Noservice :Inuse
4) Text message : Displayed when a text message is received.
5) Voice message : Displayed when a voice message is received.
6) Alarm : Displayed when wake up alarm time was setting.
7) Caller ID : Displayed when caller ID is received.
8) Battery charge level : Indicates charged battery level.

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
11
2.3 Installation
You should follow each step carefully as shown below in order to guarantee proper
operation of CDMA Fixed Wireless Telephone.
STEP I. Check Components
 Fixed Wireless Terminal is supplied with the following standard unit and accessories;
1. LSI-110/1100 Main Unit with Antenna -1EA-
2. Battery -1EA-
3. User Guide -1EA-
4. AC/DC Adapter -1EA-
5. Charger -1EA-
 Please make sure that these components are present before you begin the unit
installation. And then compare the following figures and components. If components
are missing or damage is found, contact the store where you purchased the unit
immediately.
STEP II. Place the Terminal
 Place the terminal on the stable flat secure surface area (desk, table, etc.). Serious
damage may result if the unit falls. Do not place the unit on, or within 1 meter of
heaters or radiators. This unit is designed for desktop usage. Avoid direct exposure to
the sun lights and damp area.
 Read the SAFETY INFORMATION located at the first part of this document before you
place the terminal
STEP III. Connect Components (See the figures in “Installation Steps”.)
 Open the battery cover, securely connect the battery cord, place the battery and close
the cover.
 Connect the AC/DC Adapter cable to the DC input port located at the rear side of the
charger.
-. If it is good, beep tone is heard.
-. If it is not good, you have to connect the adapter or battery, again.
 Please follow the below to get better voice quality;
1. Keep away from electrical appliances such as TV, computer, radio and so on.
2. Keep terminal in a high and central location with no obstructions, such as metal
walls.
3. Raise the integral antenna of terminal to get maximum strength of receive signal
as shown figure at the next page.

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
12
STEP IV. Check the LCD Display
 After you follow the installation instruction step I to step III, please check the LCD for
normal operation.
 If you may not see status of service, please repeat the 2nd instruction of step III. And
conform Fixed Wireless Telephone to get the proper signal strength from service
operator system.
※
The adapter type may be different by country adaptation.

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
13

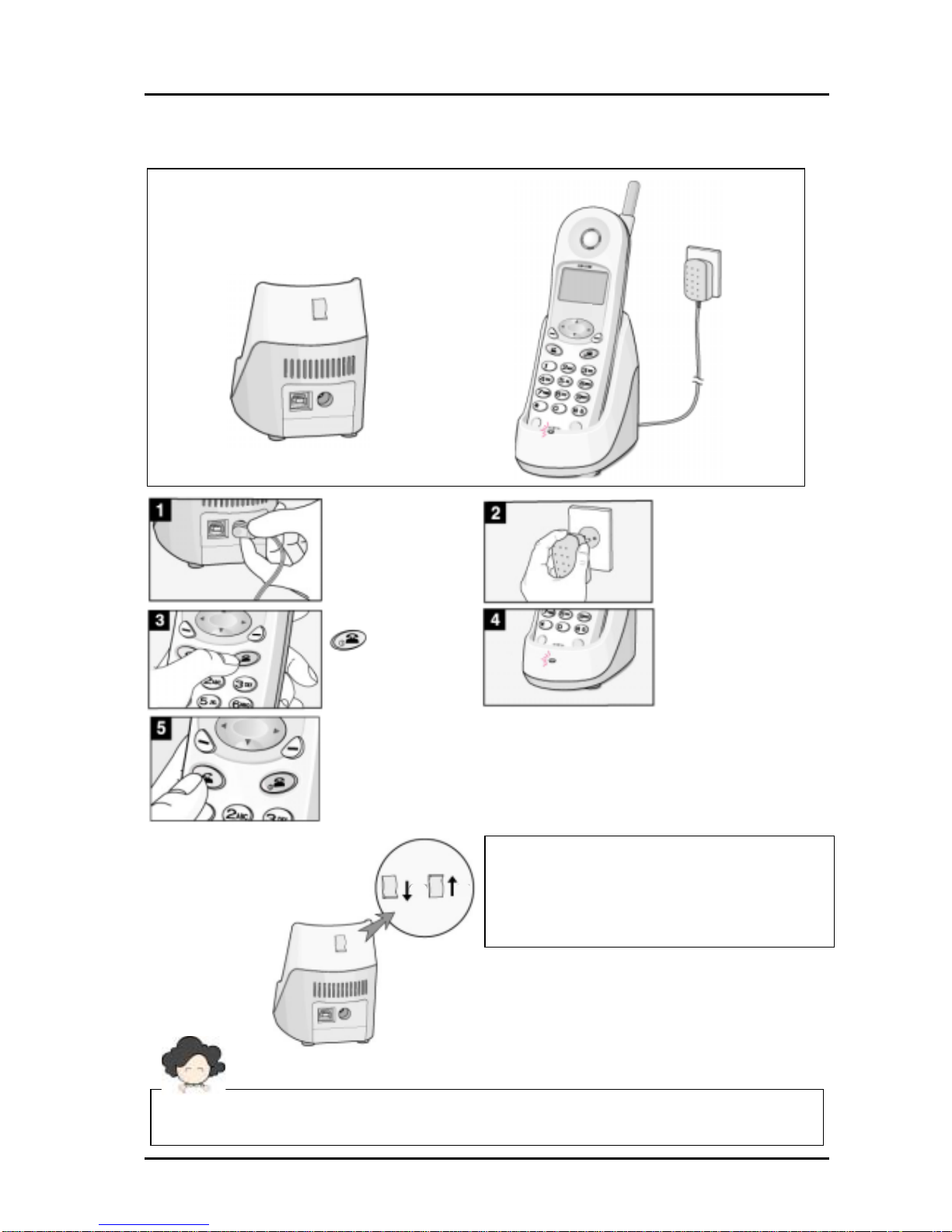

2.4 Installation
The adapter type may be different by country adaptation.
Be careful of power voltage.
Connect the AC
power supply line in
the charger
Connect adapter to
outlet.
Pick down the
handset on the
charger.
Press and hold the
button to
power on.
A
fter charging the
terminal, make a call.
Lock Switch :
 Lift up the lever to fix the handset on
charger.
 Lift up the lever to make a data call with
PC using USB port on charger.
UNLOCK
LOCK

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
14
2.4 Battery Replacement Step
①Battery
②Battery Cable
③Battery Cover
④Charging Slot
Open the battery
cover of the unit. Connect battery cable.
Insert battery in the
unit(give care to
polarity).
Replace the battery
cover.
Press button
to make phone be
powered on for 1 sec.

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
15
3. Basic Operation
3.1 Making a Call
1. Pick up the handset and press Send Key button
2. Listen for dial tone
3. Enter the phone number with area code if needed.
4. Wait for the Auto Time-out.
5. The call is connected and you can start conversation.
6. To disconnect the call, Press End button.
3.2 Redialing Last Outgoing Number
1. Pick up the handset and press Send Key button
2. Listen for dial tone.
Press Redial button. The last number that you called will be re-dialed.
 If re-dialed number is a received number,( LSI-1100 Only)
1. @ will be attached in front of re-dial number
2. You can’t connect a line even if you redial.
 Correcting dialing mistakes
1. Press Clear button shortly to erase the most recent digit.
2. Press and hold Clear button for at least one second.
 If the phone is locked, enter the Lock Code
 If the call did not go through, press the hook switch and dial again.
 Battery icon is displayed only when the terminal is operating by battery without AC power.
1234567
FINDSAVE
1234567
FINDSAVE
Calling. . .
1234567
Calling. . .
1234567

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
16
Call From
0123456789
Call From
0123456789
Time: 0 : 23
012345789
MUTEMENU
Time: 0 : 23
012345789
MUTEMENU
13 May, Mon
4 : 11 PM
BOOK
MENU
13 May, Mon
4 : 11 PM
BOOK
MENU
Missed 1 Call
10 : 51 AM
OK
Missed 1 Call
10 : 51 AM
OK
3.3 Receiving a Call
1. When bell rings, Press Any Key or pick up
the handset from the charger.
Press Send key at the Lock state.
2. Start conversation.
3. To disconnect the call, press End key or
pick down the handset on the charger.
3.4 Signal Strength
The quality of calls depends on the signal strength in your area.
The stronger the signal, the better the call quality.
The signal strength icon indicates the current strength
as a number of bars. You can see the antenna and
bars according to the strength of received signal in
the upper-left part.
3.5 Missed Call Message
If a call is received and not answered for user’s absence,
You are informed that you have missed a call.
The latest missed call time and number of missed call is
displayed.
Press [OK] to erase “Missed call” message.

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
17
4. List of Menu State
Main Menu Sub-Menu Setting Value Default
1. Ring Volume 4 steps
2. Key Volume 4 steps +silent
3. Ear Volume 4 steps
1. Volume / Ring
4. Ring Type 10 types
1. Wake-up time Off/Once/Always
2 .Minute alert On/Off
3.Rx call mode Voice / Fax for next / Always Fax /
Modem for next / Always modem
4.Backlight Always off / 10 seconds / 30
seconds
2. Additional
5.Own Number Display own number
1. Hot Line Off/On
2. Hot Line Time 2-9 Sec.
3. Auto time-out 2-9 Sec.
4. Speed Dialing Enable/Disable
3. Dial features
5. Key tone length Normal/Long
1. Set Lock mode On/Off
2. Clear calls No/Yes
3. Clear memory No/Yes
4. Emergency call Local(3.ea)
5. Restrict call
5.1 restrict set No restriction/restriction
/emergency only
5.2 permit memory Local(10.ea)
5.3 Deny memory Local(10.ea)
6. new code Create new lock code
4. Security

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
18
MAIN MENU
2:ADDITIONL
3:DIAL FEATURES
NEXTOK
1:VOLUME / RING
MAIN MENU
2:ADDITIONL
3:DIAL FEATURES
NEXTOK
1:VOLUME / RING
RING VOLUME
NEXT
OK
RING VOLUME
NEXT
OK
KEY VOLUME
NEXT
OK
K
KEY VOLUME
NEXT
OK
K
EAR VOLUME
NEXT
OK
K
EAR VOLUME
NEXT
OK
K
4.1 Volume / Ring
This menu allows you to adjust the various different volumes.
4.1.1 Ring Volume
The received tone when you receive a call can be adjusted.
 From the MENU
1. Press [MENU] + 1(Volume/Ring)+ 1(Ring Volume) in on-
hook state.
2. Press Navigation Left / Right Key or [NEXT] to adjust
ring volume.
3. Press [OK] to store the ring volume level
 By the Volume button
1. Press Navigation Left / Right Key to adjust ring volume
in on-hook state
4.1.2 Key Volume
The tone when you press a key can be adjusted.
1. Press [MENU] + 1(Volume/Ring) + 2(Key Volume) in on-
hook state.
2. Press Navigation Left / Right Key or [NEXT] to adjust
key volume
3. Press [OK] to store the key volume level
.
4.1.3 Ear Volume
The voice of the other party can be adjusted in on-hook state.
1. Press [MENU] + 1(Volume/Ring) + 3(Ear Volume) in on-
hook state.
2. Press Navigation Left / Right Key or [NEXT] to adjust ear
piece volume
3. Press [OK] to store the ear volume level.
Press Navigation Left / Right Key to adjust volume during conversation.

LGE CDMA Fixed Wireless Telephone
LSI-110/1100
19
RINGER TYPE
STANDARD
RING 1
RING 2
NEXTOK
RINGER TYPE
STANDARD
RING 1
RING 2
NEXTOK
MAIN MENU
1:VOLUME / RING
3:DIAL FEATURES
NEXTOK
2: ADDITIONAL
MAIN MENU
1:VOLUME / RING
3:DIAL FEATURES
NEXTOK
2: ADDITIONAL
ALARM TIME
Once
Always
Off
NEXTOK
ALARM TIME
Once
Always
Off
NEXTOK
Wake-up Time
11 : 10 AM
OKEDIT
Wake-up Time
11 : 10 AM
OKEDIT
MUNITUE ALERT
Off
On
NEXTOK
MUNITUE ALERT
Off
On
NEXTOK
4.1.3 Ring Select
You can select the various ring types.
1. Press [MENU] + 1(Volume/Ring) + 4(Ring Type) in on-hook state.
2. Select a desired ring type with Navigation Up / Down Key or [NEXT].
 There are 10 different ring types.
 Those are Standard,Option 1,Option 2, Option 3,
Option 4, Habanera, Deutsch song, La Primavera,
Oh! susanna, Beethoven
4.2 Additional feature
4.2.1 Wake-up Time
This function allows you to adjust Wake-up Time.
1.Press [MENU] + 2(ADDITIONAL) + 1(Wake-up Time)
In on – hook State
2.Select Off, Once or Always by [NEXT] and press [OK].
3.Press [EDIT] and set the time.
4.SelectA.M. or P.M. by [AM/PM].
5.If you want to modify the wrong time, press Clear button and
set again.
6.Press [OK] to save and exit
4.2.2 Minute Alert
Alerts you every minute during a call.
1. Press [MENU] + 2(ADDITIONAL) + 2(Minute Alert)
In on – hook State
2. Select On or Off by [NEXT] or Navigation Left / Right Key.
3. Press [OK] to save and exit
4.2.3 Set Rx call mode
