LGMG A45JE User manual
LGMG North America Inc.
Maintenance Manual
A45JE
Mobile Elevating Work Platform
ANSI
！
WARNING
Before operation and maintenance, the
drivers and service personnel shall
always read and thoroughly understand
all information in this manual. Failure to
do so may result in, fatal accidents or
personal injury.
This manual must be kept with this
machine at all times.
This page left blank intentionally
LGMG North America Inc. Maintenance Manual
I
Contents
Chapter 1 Maintenance...............................................................................1
1.1 Compliance....................................................................................... 3
1.2 Inspecting the Drive Hub Oil Level.................................................... 3
1.3 Inspecting the Hydraulic Oil And Filter .............................................. 4
1.4Regular maintenance......................................................................... 4
1.5 A45JE Maintenance Intervals ........................................................... 5
Chapter 2 Schematic Diagram ....................................................................7
LGMG North America Inc. Maintenance Manual
II
Foreword
Thank you for choosing to use this Mobile Elevating Work Platform from LGMG North America. This
machine is designed according to A92.20-2018.The information specified in this manual is intended for
the safe and proper operation of this machine for its’ intended purpose.
For maximum performance and utilization of this machine, thoroughly read and understand all the
information in this manual before starting, operating, or performing maintenance on this machine.
Ensure all preventive maintenance to the machine is performed according to the interval specified in the
maintenance schedule.
Keep this manual with this machine for reference at all times. When the ownership of this machine is
transferred, this manual shall be transferred with this machine. This manual must be replaced
immediately if it is lost, damaged, or becomes illegible.
This manual is copyrighted material. The reproduction or copy of this manual is not allowed without the
written approval of LGMG NorthAmerica.
The information, technical specifications and drawings in this manual are the latest available when this
manual is issued. Due to continuous improvement, LGMG North America reserves the right to change
the technical specifications and machine design without notice. If any specifications and information in
the manual are not consistent with your machine, please contact the service department of LGMG North
America.
△
! WARNING
Only personnel who have been properly trained and qualified to operate or
maintain this machine can operate, repair and maintain this machine.
Improper operation, maintenance, and repair are dangerous and can cause
personal injury and death.
Before any operation or maintenance, the operator shall thoroughly read this
manual. Do not operate, perform any maintenance or make any repairs on this
machine before reading and understanding this manual.
The user shall load the platform strictly according to the load rating of the
platform. Do not overload the platform or make any modifications to the platform
without permission from LGMG North America.
The operation regulations and preventions in this manual are only applicable for
the specified use of this machine.
LGMG North America Inc. Maintenance Manual
III
Safety Precautions
The operator of this machine shall understand and follow the existing safety regulations of state and
local governments. If these are unavailable, the safety instructions in this manual shall be followed.
To help prevent accidents, read and understand all warnings and precautions in this manual before
operation or performing maintenance.
The safety measures are specified in Chapter 1 Safety.
It is impossible to foresee every possible hazard and the safety instructions in this manual may not cover
all safety prevention measures. Always ensure the safety of all personnel and protect the machine
against any damage. If unable to confirm the safety of some operations, contact LGMG North America.
The operation & maintenance prevention measures listed in this manual are only applicable to the
specified uses of this machine. LGMG North America assumes no responsibility if this machine is used
beyond the range of this manual. The user and the operator shall be responsible for the safety of such
operations.
Do not perform any operation forbidden in this manual in any situation.
The following signal words are applicable for identifying the level of safety information in this manual.
△
! Danger:
An imminent situation, that if not avoided, will result in severe injuries or death. This
is also applicable to situations that will cause serious machine damage, if not
avoided.
△
! Warning:
A potentially dangerous situation, that if not avoided, may result in severe injuries or
death. This is also applicable to situations that may cause serious machine damage,
if not avoided.
△
! Notice:
A situation, that if not avoided, may result in minor or intermediate injury. This is also
applicable to situations that may cause machine damage or shorten machine service
life.
LGMG North America Inc. Maintenance Manual
IV
This page left blank intentionally
LGMG North America Inc. Maintenance Manual
1
Chapter 1 Maintenance
LGMG North America Inc. Maintenance Manual
2
LGMG North America Inc. Maintenance Manual
3
1.1 Compliance
1) The operator can only perform routine
maintenance items as specified in this
manual.
2) Regular maintenance inspections should
be performed by qualified authorized
service technicians as required by the
manufacturer
Maintenance Symbols
The following symbols appear in this manual to
indicate the relevant meaning in the
maintenance instructions. When one or more
symbols appear in front of the maintenance
procedure, the meanings expressed are as
follows.
It indicates a tool is required to perform this
procedure.
It indicates a new part is required to perform this
procedure.
It indicates that this procedure should be
performed by the dealer.
1.2 Inspecting the Drive Hub
Oil Level
1) Inspect the oil level of the drive hubs every
250 h or quarterly. Improper oil level will
result in reduced performance. Continuous
use will result in damage to components.
2) Inspect oil level
Figure 11-1 Traveling slowdown
1. Oil filler 2. Viewing port
Drive the machine until one plug is located
at the horizontal position as shown as
shown in Figure 11-1.
Remove the viewing port plug at the
horizontal position, and inspect oil level.
Result: Oil level shall be flush with the
bottom of the viewing port.
If necessary, add oil at the oil filler until the
oil level is flush with the bottom of the
viewing port, select gear oil by referring to
Machine Specifications section.
Coat the plugs with pipe thread sealant and
install the plugs.
Repeat this step for every drive hub.
Replace lubricant after the first 150h of use,
then every 1,000 h or yearly.
Figure 11-2 Swing Gearbox
1. Oil filler 2. Viewing port
3) Inspect oil level of swing gearbox
Remove the plug on the side and inspect
the oil level, as shown in Figure 11-2.
Result: Oil level shall be flush with viewing port
(2).
If necessary, add gear oil at the oil filler plug
until the oil level is flush with the bottom of
LGMG North America Inc. Maintenance Manual
4
the viewing port, select gear oil by referring
to the Machine Specifications section.
Coat the plugs with pipe thread sealant and
install the plugs.
Replace lubricant after the first 50h of use, then
every 1,000 h or yearly.
1.3 Inspecting the Hydraulic
Oil And Filter
1) Inspect hydraulic oil level every 8 h or every
day.
△
!Caution: Perform this step when
the boom is in the retracted position.
Park the vehicle on the flat site. Fully retract
the boom.
Figure 11-3 Oil Level Sight Gaugel
Examine the oil level on the hydraulic oil
tank, i.e., level shall fall within the M range
shown as Figure 11-3, and in the case of
level lower than L, it is necessary to add
hydraulic oil.
2) Inspect hydraulic oil leakage every 8 h or
daily.
△
!Caution: Personal injury danger,
i.e., leaking hydraulic oil can penetrate
or burn skin. Wear goggles and
protective gloves.
Leakage of high-pressure oil may be
invisible to eyes, use cardboard or wooden
boards as a search tool for hydraulic oil
leakage. Hands shall be prohibited from
being used for leakage confirmation.
Inspect oil drops or residual oil on the
following components:
Hydraulic oil tank, filter, pump, hydraulic oil
cylinder, motor, reduction gear, valve block
and hydraulic tubing.
Inspect oil drops or residual oil at the
following areas:
Rear of boom, fly jib, upper side of turntable,
upper and lower sides of chassis, and ground
underneath equipment.
1) Test or replace hydraulic oil every 1,000 h
or annually.
△
!Caution: If the oil isn’t replaced
after the two year interval, it must be
tested quarterly and replaced when it
no longer passes the testing.
Replace hydraulic oil suction filter, oil return filter
every 1000 h or every year. Replace oil suction
filter, oil return filter after first 500 h of use. It is
necessary to replace the hydraulic filter to
maintain performance and service life of the
machine. Dirt or a clogged filter may cause
performance degradation of hydraulic
components, and continuous use will cause
damage to components. In dirty work
environments it is necessary to increase the
change intervals.
1.4Regular maintenance
1) Maintenance work on a quarterly, annual
and biennial basis must be performed by
those who are trained and qualified in the
vehicle maintenance according to the
procedures specified in this manual.
2) If a machine has been idle for more than
three months, a quarterly maintenance
must be performed before it is operated.
LGMG North America Inc. Maintenance Manual
5
1.5 A45JE Maintenance Intervals
Maintenance
Interval
Component
Specification
Unit
Qty
Remarks
100h
Lithium grease
/
/
As
Necessary
Rotary support,
first 50h, then
every 100h
afterward
2000h
Lithium grease
/
/
As
Necessary
Wheel bearing
1000h
Filter element
SPX-06×10
Part
1
Oil return filter
1000h
Gear oil GL-5
85W-90 barrel
SAE85W/90GL-5
L/gal
0.68*2/
0.18*2
For the
first-time
operation of the
reducer,
replenish oil
after 150h.
Later, replenish
oil every 250h.
1000h
Oil suction filter
WU-63x180-J
WU-63x180-J
Part
1
Air filter EF2-32
EF2-32
Part
1
1000h
(or every
year)
Hydraulic oil
L-HV46#
L-HV46#
L/gal
30/7.9
Hydraulic oil
analysis
Maintenance of batteries and electrical components
Period
Description
Maintenance measures
Remarks
250h
Battery
Charging with matching
charger
1. Whether the battery is fully charged or not, if the
battery is not charged for a long time, the service life
of the battery will be shortened.
2. For a battery that has been fully charged, in
addition to the above maintenance measures, the
main power switch should be disconnected
whenever the battery will not be used for a long time
Add distilled water
If applicable check if the battery plates are covered
with electrolyte. If necessary, add distilled water to a
level just above the battery plates. Charge the
battery. Add water to 3mm/0.12in below the exhaust
well (plastic cover in the exhaust hole), and
reassemble the vent cap.
250h
Harness
Check electrical wiring
1. Check for burned, worn, corroded, extruded and
loosen wiring
2. Check if all harness joints other than connectors
are coated with sufficient insulating grease.
LGMG North America Inc. Maintenance Manual
6
LGMG North America Inc. Maintenance Manual
7

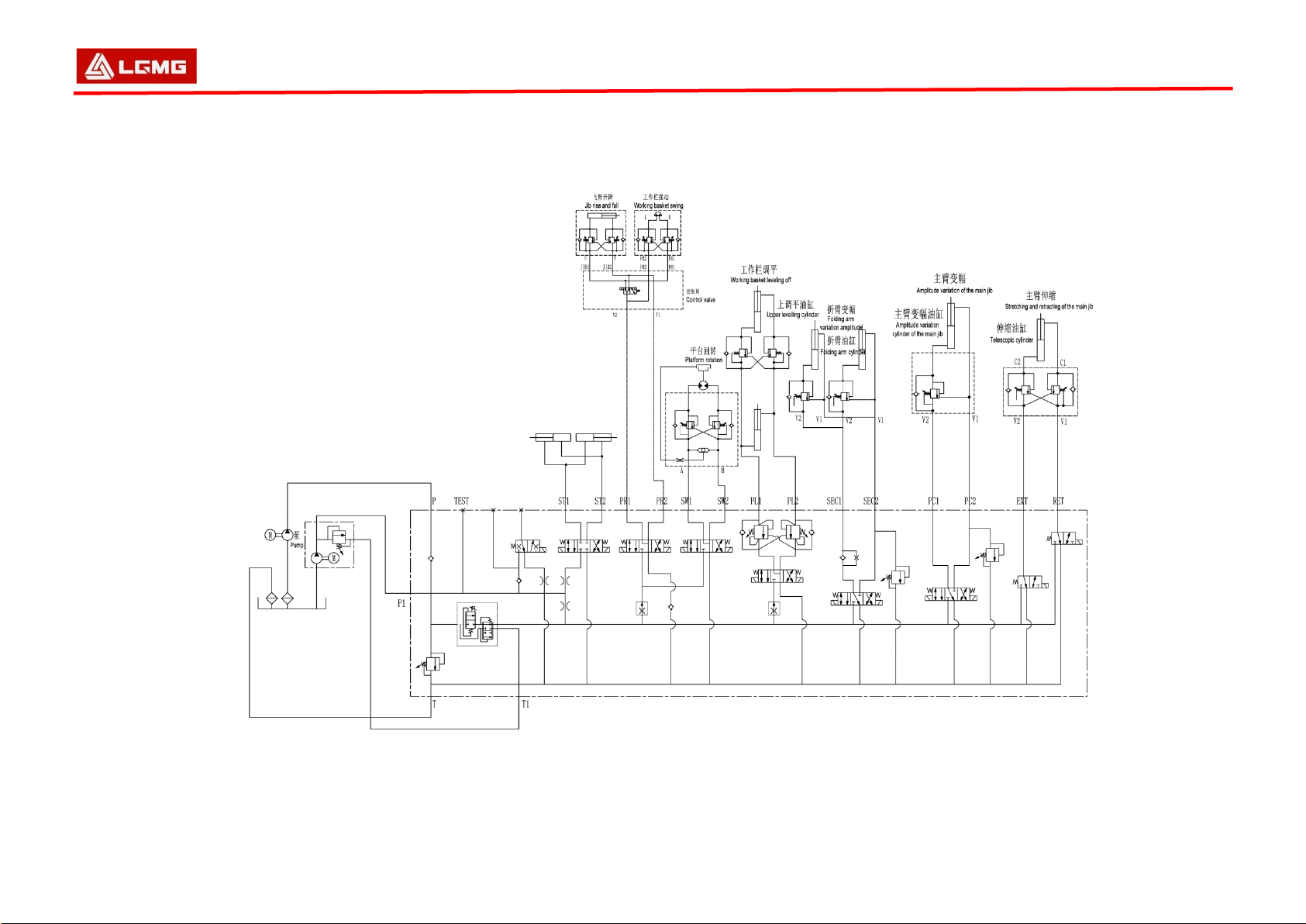

Chapter 2 Schematic Diagram
LGMG North America Inc. Maintenance Manual
8
This page left blank intentionally
LGMG North America Inc. Maintenance Manual
9

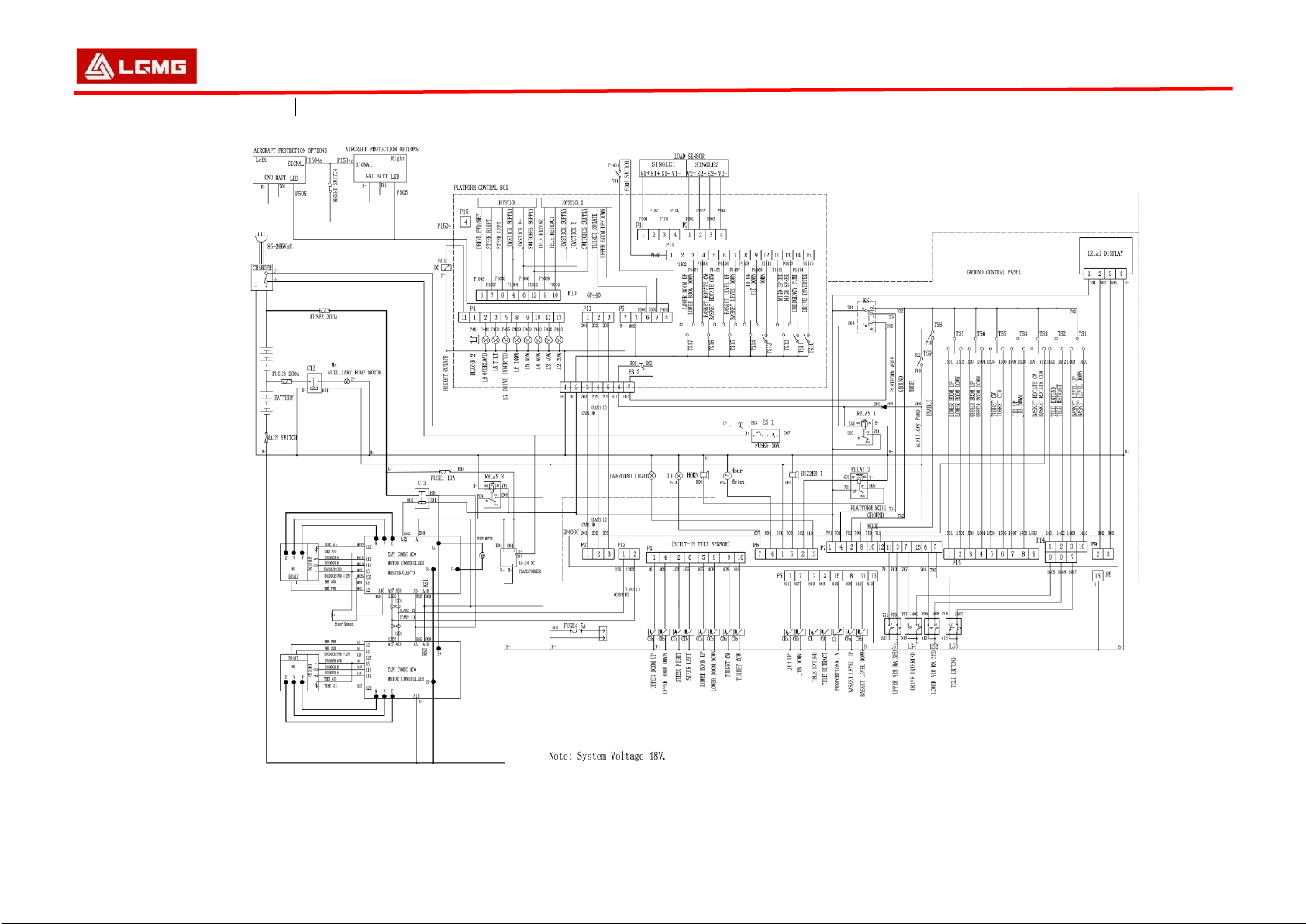

Electrical schematic diagram
LGMG North America Inc. Maintenance Manual
10
Hydraulic schematic diagram
11
This page left blank intentionally
Other manuals for A45JE
2
Table of contents
Other LGMG Elevator manuals
