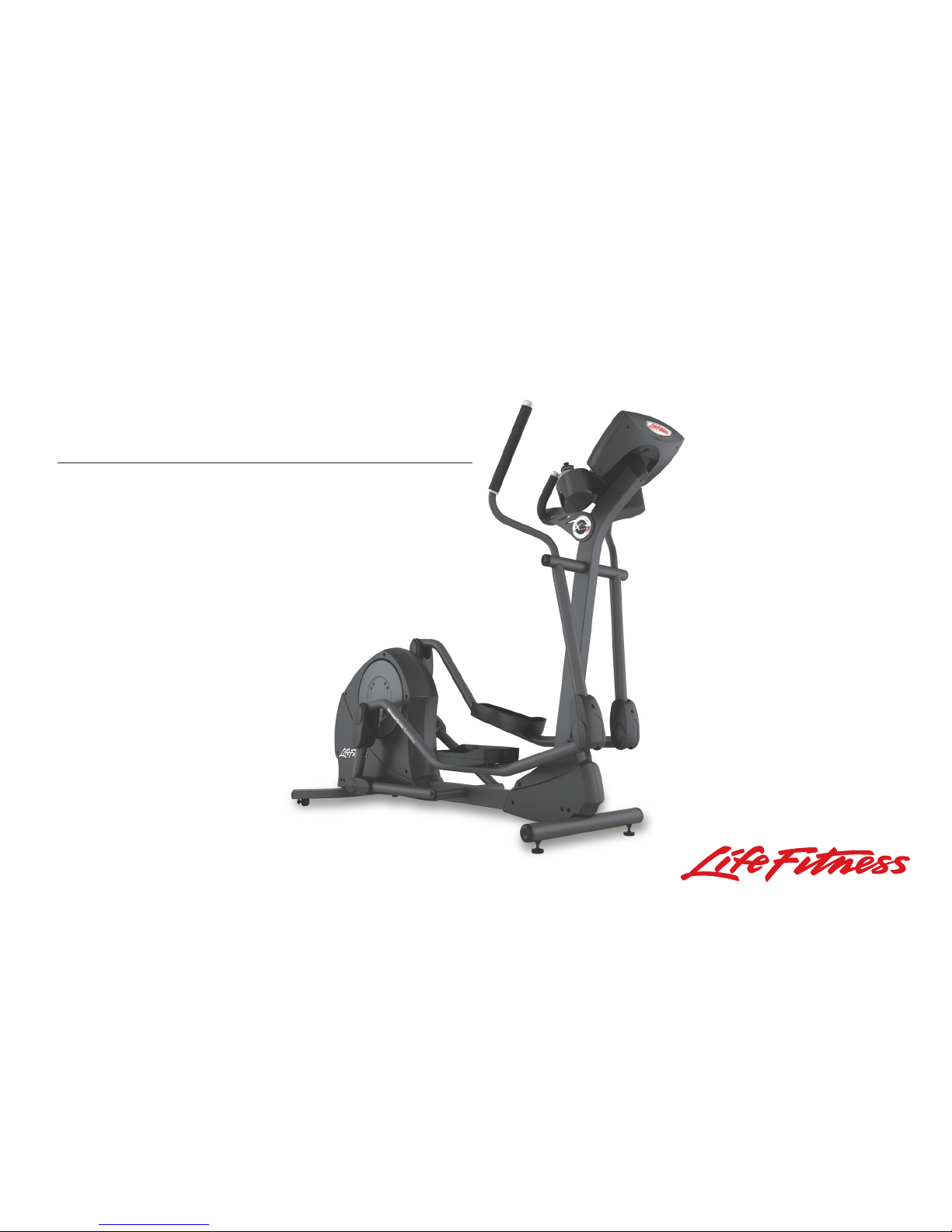

X 30TOTAL-BODY ELLIPTICAL CROSS-TRAINER
USER MANUAL

CORPORATE HEADQUARTERS
5100 North River Road
Schiller Park, Illinois 60176 • U.S.A.
www.lifefitness.com
INTERNATIONAL OFFICES
7953401
06/05
1
LIFE FITNESS ASIA PACIFIC LTD
Room 2610, Miramar Tower
132 Nathan Road
Tsimshatsui, Kowloon
HONG KONG
LIFE FITNESS ATLANTIC BV
LIFE FITNESS BENELUX
Bijdorpplein 25 - 31
2992 LB Barendrecht
THE NETHERLANDS
LIFE FITNESS DO BRAZIL
Av. Dr. Dib Sauaia Neto 1478
Alphaville, Barueri, SP
06465-140
BRAZIL
LIFE FITNESS VERTRIEBS GMBH
Dückegasse 7-9/3/36
1220 Vienna
AUSTRIA
LIFE FITNESS IBERIA
Pol. Ind. Molí dels Frares. c/C, nº 12
08620 Sant Vicenç dels Horts (Barcelona)
SPAIN
LIFE FITNESS EUROPE GMBH
Siemensstrasse 3
85716 Unterschleissheim
GERMANY
LIFE FITNESS ITALIA S.R.L.
Via Vittorio Veneto, 57/A
39042 Bressanone (Bolzano)
ITALY
LIFE FITNESS LATIN
AMERICA and CARIBBEAN
5100 North River Road
Schiller Park, Illinois 60176
U.S.A.
LIFE FITNESS UK LTD
Queen Adelaide
Ely, Cambs CB7 4UB
UNITED KINGDOM
LIFE FITNESS JAPAN
Nippon Brunswick Bldg., #8F
5-27-7 Sendagaya
Shibuya-Ku, Tokyo
JAPAN 151-0051

Before using this product, it is essential to read this
ENTIRE operation manual and ALL installation instructions.
This will help in setting up the equipment quickly
and in instructing others on how to use it correctly and safely.
FCC Warning - Possible Radio / Television Interference
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and
used in accordance with the operation manual, may cause harmful interference to radio communications. However, there
is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Class HB (Home): Domestic use. Not suitable for therapeutic purposes.
CAUTION: Any changes or modifications to this equipment could void the product warranty.
Any service, other than cleaning or user maintenance, must be performed by an authorized service representative.
There are no user-serviceable parts.
2

TABLE OF CONTENTS
1. Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
1.1 Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
1.2 Set-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Where to Place the Cross-trainer // How to Stabilize the Cross-trainer // Plug In the Cross-trainer
2 The Display Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2.1 The Display Console Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2.2 Display Console Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
2.3 The Reading Rack and Accessory Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

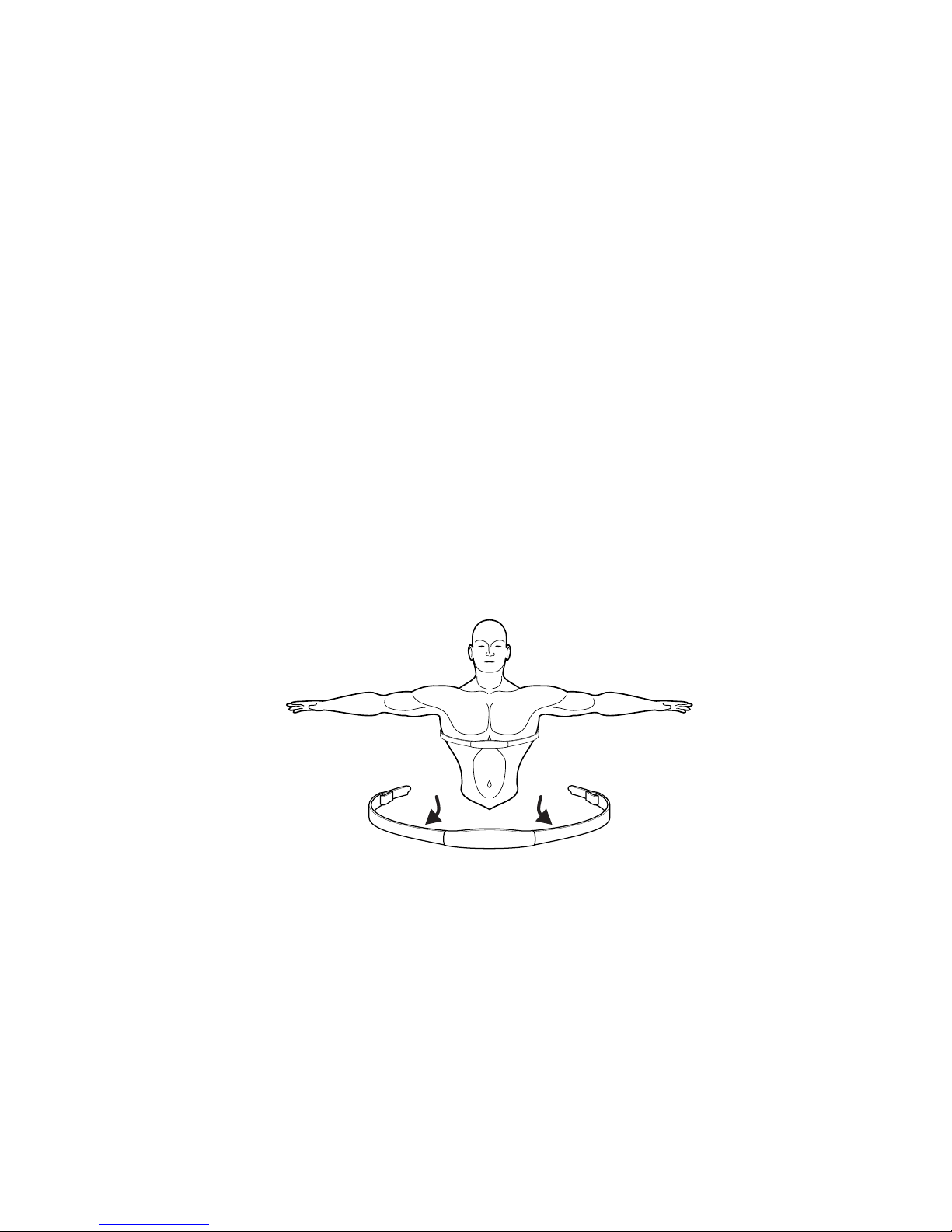

2.4 The Wireless Heart Rate Chest Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
3. Correct Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
3.1 Mounting and dismounting the Cross-Trainer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
3.2 Biomechanical Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
General // Forward Motion – Total Body // Reverse Motion – Total Body // Braking Resistance
4 The Workouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
4.1 Workout Overviews . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
3

4.2 Setting Up and Using the Workouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Selecting and Using Quick Start Manual Mode // Selecting a Workout // Entering a Duration //
Selecting and Adjusting the Intensity Level // Starting a Workout // Pausing a Workout //
Resetting a Workout // Reviewing a Completed Workout // Understanding the Heart Rate Zone
to Maximize Workout Benefits
4.3 Workout Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
4.4 Using the Workouts (Chart) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
5 Service and Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
5.1 Preventative Maintenance Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
5.2 Preventative Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
5.3 Troubleshooting the Wireless Heart Rate Chest Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
5.4 How to Obtain Product Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
6 Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
7 Cross-trainer Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
© 2005 Life Fitness, a division of Brunswick Corporation. All rights reserved. Life Fitness is a registered trademark of Brunswick
Corporation. Any use of these trademark, without the express written consent of Life Fitness is forbidden.
4

This Operation Manual describes the functions of the following products:
Life Fitness cross-trainer:
X30
See Section 7, titled Specifications page in this manual
for product-specific features.
Statement of Purpose: The cross-trainer is an exercise machine that combines low-impact elliptical pedaling with
push/pull arm motion to provide an efficient, effective total body workout.
Health-related injuries may result from incorrect or excessive use of exercise equipment. The manufacturer
STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise
program, particularly if the user has a family history of high blood pressure or heart disease; or is over
the age of 45; or smokes, has high cholesterol, is obese, or has not exercised regularly in the past year.
The manufacturer also recommends consulting a fitness professional on the correct use of this product.
If, at any time while exercising, the user experiences faintness, dizziness, pain, or shortness of breath,
he or she must stop immediately.
5

1GETTING STARTED
1.1 IMPORTANT SAFETY INSTRUCTIONS
SAFETY WARNING: The safety of the product can be maintained only if it is examined regularly
for damage and wear. See Preventative Maintenance section for details.
• Before using this product, it is essential to read this ENTIRE operation manual and ALL instructions.
The cross-trainer is intended for use solely in the manner described in this manual.
• Always follow the console instructions for proper operation.
• Close supervision is necessary when used by or near children, invalids or disabled persons.
• If the cross-trainer does not function properly after it has been dropped, damaged, or even partially immersed
in water, contact Customer Support Services for assistance.
• Never insert objects into any opening in the cross-trainer. If an object should drop inside, carefully retrieve it.
If the item is beyond reach, contact Customer Support Services.
• Never place liquids of any type directly on the unit, except in an accessory tray. Containers with lids
are recommended.
• Do not use the cross-trainer outdoors, near swimming pools or in areas of high humidity.
• Keep all loose clothing, shoelaces, and towels away from the cross-trainer pedals.
• Keep the area around the cross-trainer clear of any obstructions, including walls and furniture.
• Use caution when mounting or dismounting the cross-trainer. While exercising, always hold onto the user arms.
• Never operate a Life Fitness product if it has a damaged power cord or electrical plug, or if it has been dropped,
damaged, or even partially immersed in water. Contact Life Fitness Customer Support Services.
6

•Keep the power cord away from heated surfaces. Do not pull the equipment by the power cord or use the cord
as a handle.
•Do not run the power cord on the floor under or alongside of the Cross-Trainer.
• Wear shoes with rubber or high-traction soles. Do not use shoes with heels, leather soles, cleats or spikes.
Do not use the cross-trainer in bare feet.
• Do not tip the cross-trainer on its side during operation.
• Keep hands and feet away from all moving parts.
• To ensure proper functioning of this product, do not install attachments or accessories that are not provided
or recommended by Life Fitness.
• Use this product in a well-ventilated area.
• Use this product on a solid, level surface.
• Make sure that all components are fastened securely.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
7

1.2 SETUP
Read the entire Operation Manual before setting up the cross-trainer.
WHERE TO PLACE THE CROSS-TRAINER
Following all safety instructions in Section 1.1, move the cross-trainer to the location in which it will be used. See
Section 5, titled Specifications, for the dimensions of the footprint. Allow one foot (30.4 cm) of clearance in front of the
cross-trainer to allow for movement of the pedal levers. It should be easy to mount the cross-trainer from the side.
HOW TO STABILIZE THE CROSS-TRAINER
After placing the cross-trainer in position, check the unit's stability by attempting
to rock it in all directions. Any slight rocking indicates that the unit must be leveled.
Determine which foot is not resting completely on the floor. Loosen the jam nut (A)
with an open-end 17mm wrench, and rotate the stabilizing foot (B) to lower it. Verify
that the cross-trainer is stable, and repeat the adjustment as necessary until the
unit no longer rocks. Lock the adjustment by tightening the jam nut against the
stabilizer bar. It is extremely important that the stabilizing leg be correctly
adjusted for proper operation.
PLUG IN THE CROSS-TRAINER
The cross-trainer comes with a standard power supply for the U.S., or a power
supply with country-specific line cords.
Insert the power adapter jack (C) into the barrel plug on the back of the cross-
trainer. Then insert the power supply into the wall outlet. Make sure the cord is
routed so that it doesn't bind and will not be walked on.
Check that the console LEDs light up. If not, recheck the plug and wall
connections and make sure the wall outlet has power.
8

2THE DISPLAY CONSOLE
2.1 DISPLAY CONSOLE OVERVIEW
The computerized display console on the cross-trainer allows the user to tailor a workout to personal fitness abilities and
goals and to monitor progress. With this easy-to-use console the user can track fitness improvement from one workout
to the next.

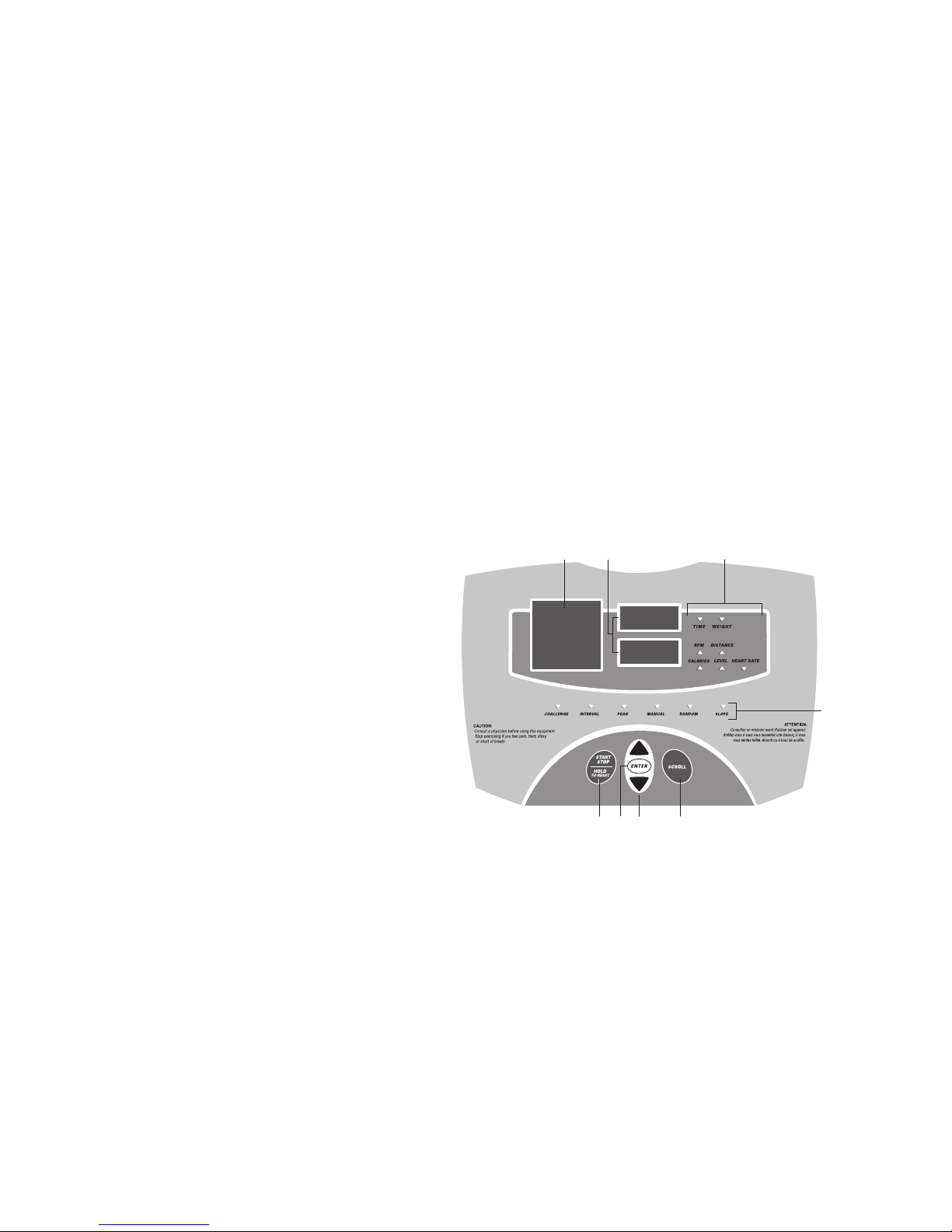

2.2 DISPLAY CONSOLE DESCRIPTIONS
The functions for the keys and display windows on the
cross-trainer console are listed and described in this
section. See Section 4, titled The Workouts, for detailed
information on using the console to set up workouts.
9
ACD
F
EG
B
E

ASTART/STOP/HOLD TO RESET: Use this key to initiate a number of different functions on the cross-trainer.
• Beginning a 30-minute QUICK-START MANUAL workout immediately, without setup steps
• Beginning a workout after completing the setup steps for a specific workout
• Pausing a workout-in-progress
• Restarting a paused workout
• Deleting a current workout and making it possible to set up a new workout
BENTER: Press this key to accept information displayed by the console when setting up a workout.
CARROW KEYS: Use these keys when setting up a workout to change displayed values for workout type, duration,
weight and resistance level. When a workout is in progress, use these keys to change the intensity level.
DSCROLL: During a workout-in-progress, press this key to browse through workout statistics displayed in the
bottom data window. Each time the SCROLL key is pressed, a different value is displayed, and it’s corresponding
light emitting diode (LED) lights up simultaneously.
Press this key to view summary data for a completed workout, including total calories burned and total distance traveled
EDATA WINDOWS: Two data windows are set in the center of the console display.
The top window displays the following statistics. Depending on which statistic is being displayed at any given
instance, the corresponding LED lights up at the same time.
•Time: The elapsed time of a workout-in-progress. During a workout setup, this window also shows the default
duration of 30 minutes, which the user can change using the ARROW keys.
•Weight: The user’s selected weight.
10

The bottom window displays the following statistics in alternating rotation for a workout-in-progress. Depending
on which statistic is being displayed at any given instance, the corresponding LED lights up at the same time.
•RPM (Revolutions Per Minute): The pedaling speed or rate
•Distance: The total distance traveled
•Calories: The number of calories burned
•Level: The level of a workout-in-progress
•Heart Rate: Actual user heart rate
FWORKOUT LED INDICATORS: One set of LEDs is matched to the cross-trainer’s set of workout options. During a
workout setup, each time the user presses an ARROW key to view another workout option, one of these LEDs lights
up to indicate that the corresponding workout is the currently displayed option. During a workout-in-progress, the
LED corresponding to that workout remains lit.
Another set of LEDs is matched to a set of workout statistics. See the DATA WINDOWS description above.
See the SCROLL key and DATA WINDOW descriptions above for more information.
GDOT MATRIX DISPLAY: This window displays a workout’s profile, which consists of columns of light that represent
the levels of intensity of each interval.
11

2.3 THE READING RACK AND ACCESSORY TRAY
A reading rack (A) for supporting a book or magazine is located at the base of the upper panel of the console.
A water bottle holder (B) is mounted on the monocolumn of the cross-trainer.
12
A
B
B

2.4 THE WIRELESS HEART RATE CHEST STRAP
The exercise bike is equipped with wireless, a heart rate monitoring system in which electrodes, pressed against the skin,
transfer heart rate signals to the exercise bike console. These electrodes are attached to a wireless heart rate chest strap
that the user wears during the workout. The chest strap is included with the exercise bike.
See the diagram below for correct positioning of the strap. The electrodes (A), which are the two grooved surfaces on the
underside of the strap, must remain wet to transmit accurately the electrical impulses of the heart back to the receiver. Moisten
the electrodes. Then, secure the strap as high under the chest muscles as possible. The strap should be snug, but comfortable
enough to allow for normal breathing.
The transmitter strap delivers an optimal heart rate reading when the electrodes are in direct contact with skin. However, it also
functions properly through a thin layer of wet clothing.
If it becomes necessary to re-moisten the chest strap electrodes, grasp the center of the strap, pull it away from the chest
to expose the two electrodes, and moisten them.
NOTE: Using the wireless chest strap will provide more accurate heart rate readings than the hand pulse sensors.
A A
13

14
3CORRECT USAGE
3.1 MOUNTING AND DISMOUNTING THE CROSS-TRAINER
If mounting from the user right side of the Cross-Trainer, grasp the user right handlebar with the right hand. Place the right foot
on the user right pedal and carefully step over the Cross-Trainer, grasp the user left handlebar with the left hand, and place
the left foot on the user left pedal. If mounting from the user left side, proceed in an opposite fashion. Reverse the process to
dismount the Cross-Trainer.
3.2 BIOMECHANICAL GUIDELINES
There are two exercise variations that can be performed on the Cross-Trainer. For each variation, it is important to follow
these general biomechanical guidelines as well as the specific instructions listed below.
GENERAL
• Feet should be in a comfortable position facing forward on the pedals so the knees move in a forward plane (not angled
inward or outward) and so the hips do not rotate outward.
• Keep back straight. Do not bend forward at the waist.
• Keep both feet on the pedals at all times.
• If desired, allow heels to slightly lift off the pedals during the motion.
• Do not lock knees during the workout. Keep them slightly bent throughout the motion.
FORWARD MOTION – TOTAL BODY
• Mount the Cross-Trainer facing forward
• Hands should be positioned comfortably on the moving handles such that the elbow creates a 90 degree angle when the
moving handlebar is rotated toward you
• Choose the desired workout profile and duration on the console
• Begin moving feet in a smooth forward pedaling motion by pushing top foot forward and pulling bottom foot backward
• Exercise at a speed that is comfortable for you

15
REVERSE MOTION – TOTAL BODY
• Mount the Cross-Trainer facing forward
• Hands should be positioned comfortably on the moving handles such that the elbow creates a 90 degree angle when
the moving handlebar is rotated toward you
• Choose the desired workout profile and duration on the console
• Begin moving feet in a smooth reverse pedaling motion by pulling top foot backward and pushing bottom foot forward
• Exercise at a speed that is comfortable for you
BRAKING RESISTANCE
The Life Fitness Cross-Trainer features speed-dependent braking resistance. For a set resistance level on the monitor, the resistance
increases with speed. The faster you go, the greater the resistance. The computer makes no adjustments to maintain the resistance
level based on your speed.

16
4THE WORKOUTS
4.1 WORKOUT OVERVIEWS
This section lists the cross-trainer’s pre-programmed workouts. For more detailed information, see Section 4.2, titled
Setting Up and Using the Workouts.
QUICK START MANUAL MODE is the fastest way to begin exercising, and it bypasses the steps involved in selecting
a specific workout program. After the START key is pressed, a constant-level workout begins. The resistance level does
not change automatically.
INTERVAL combines “hills” and “valleys” of different resistance levels, which is proven to provide effective,
time-efficient cardiovascular results.
RANDOM is an interval training workout for which the user selects a computer-generated profile of varying intensity levels.
MANUAL is a workout in which the resistance level does not change automatically.
PEAK is intended to burn fat by building up to, and maintaining, a constant level of resistance throughout the workout.
SLOPE gradually increases the intensity throughout the workout duration. It is intended to strengthen the heart, as well
as the major muscle groups that are most active during the workout, such as the leg muscle groups.
CHALLENGE begins at a high resistance level and maintains this level throughout the duration.

17
4.2 SETTING UP AND USING THE WORKOUTS
To activate the console, press any key, or simply start pedaling. When the console display lights up, either select
QUICK START MANUAL MODE, or select a specific workout. Setting up a specific workout involves five steps,
which are described in this section:
1. Selecting a workout
2. Entering a workout duration
3. Entering a weight
4. Selecting a level
5. Starting the workout (pressing START) or ENTER
SELECTING AND USING QUICK START MANUAL MODE
Press the START key to begin a 30-minute MANUAL workout immediately. Once the workout is in progress,
it is possible to change the resistance level using the ARROW keys.
SELECTING A WORKOUT
Press the ARROW KEYS until the LED display for the desired workout lights up. Then, press ENTER to confirm the
workout selection.
ENTERING A WORKOUT DURATION
After a workout is selected, the top DATA WINDOW flashes a default workout duration of 30 minutes. Press ENTER to
accept the default. Or, to change the duration, use the ARROW keys. Then, when the desired duration appears in the
DATA WINDOW, press ENTER to accept the duration. It is not possible to change the duration of a workout-in-progress.

18
ENTERING A WEIGHT
After a workout is selected, the top DATA WINDOW flashes a default weight. Press ENTER to accept the default.
Or, to change the weight, use the ARROW keys. Then, when the weight appears in the DATA WINDOW, press ENTER
to accept it. The on-board computer calculates the number and rate of calories burned using the entered weight as well
as the pedaling speed.
SELECTING A LEVEL FOR A MANUAL WORKOUT
After a duration is entered, the bottom DATA WINDOW flashes a default resistance level of “1”, which is the easiest of
the 16 resistance levels. Press ENTER to accept the default. Or, to change the level, use the ARROW keys. Then, when
the desired level appears in the DATA WINDOW, press ENTER to accept the duration. While the workout is in progress,
it is possible to change the resistance level (1-16).
NOTE: QuickStart and Manual Workouts have 1 - 16 resistance levels.
SELECTING A LEVEL FOR RANDOM, INTERVAL, SLOPE, PEAK, AND CHALLENGE WORKOUTS
After a duration is entered, the bottom DATA WINDOW flashes a default level of “1,” which is the easiest of the
9 difficulty levels. Press ENTER to accept the default. Or, to change the level, use the ARROW keys. Then, when the
desired level appears in the DATA WINDOW, press ENTER to accept the duration. While the workout is in progress,
it is possible to change the difficulty level.
NOTE: Random, Interval, Slope, Peak, and Challenge workouts have 1 - 9 levels.

19
DIFFICULTY LEVEL TABLE (APPLIES TO RANDOM, INTERVAL, SLOPE, PEAK, CHALLENGE)
Program Difficulty Level Resistance Level Range
1 1 to 8
2 2 to 9
3 3 to 10
44to11
5 5 to 12
6 6 to 13
7 7 to 14
8 8 to 15
9 9 to 16
EXPLANATION OF DIFFICULTY LEVELS
The difficulty level table shows the resistance level range at each difficulty level. Since some workouts have
predetermined profiles, a resistance level range had to be created. This allows the user to set a difficulty level of 1 - 9,
which will adjust the entire workouts intensity level.
STARTING A WORKOUT
After accepting a level, press START to begin the workout.
