Life Span TR7000iM User manual

Life’s short. Live longer.
Commercial Treadmill
Owner’s Manual for TR7000iM

Congratulations on Purchasing Your LifeSpan Treadmill!
At LifeSpan we take pride in the quality, safety, and reliability of our products as
well as the professionalism of our sales support and customer service teams.
Making it our number one priority that you have an exceptional experience
using our products.
To support the quality of our products we pre-assemble parts on the
manufacturing line whenever possible to reduce the number of steps and
complexity of customer assembly, independently certify our products to comply
with the latest industry Safety Standards, and use state of the art production
processes and quality components.
Then we back LifeSpan products with excellent warranties and a responsive
customer service department making it simple and easy to get assistance
should the need arise.
This attention to quality, our high standard for customer service and focus on
innovation has earned LifeSpan numerous awards and consistent praise from
independent review groups, industry authorities and you, the consumer.
Thanks for choosing LifeSpan.
Welcome
Please thoroughly read this manual before you assemble or operate your treadmill.
Neither LifeSpan nor its representatives can accept responsibility for any damages or injury
incurred as a result of information presented in this manual except under the terms of the
product warranty.

Contents
About Your Treadmill.................................................................................................4
Specications
Unique Features
Warranty, Registration
Safety First...................................................................................................................... 11
Children and Pets
Safety Tips
Safety Key
Proper Grounding
Assembling Your Treadmill................................................................................. 16

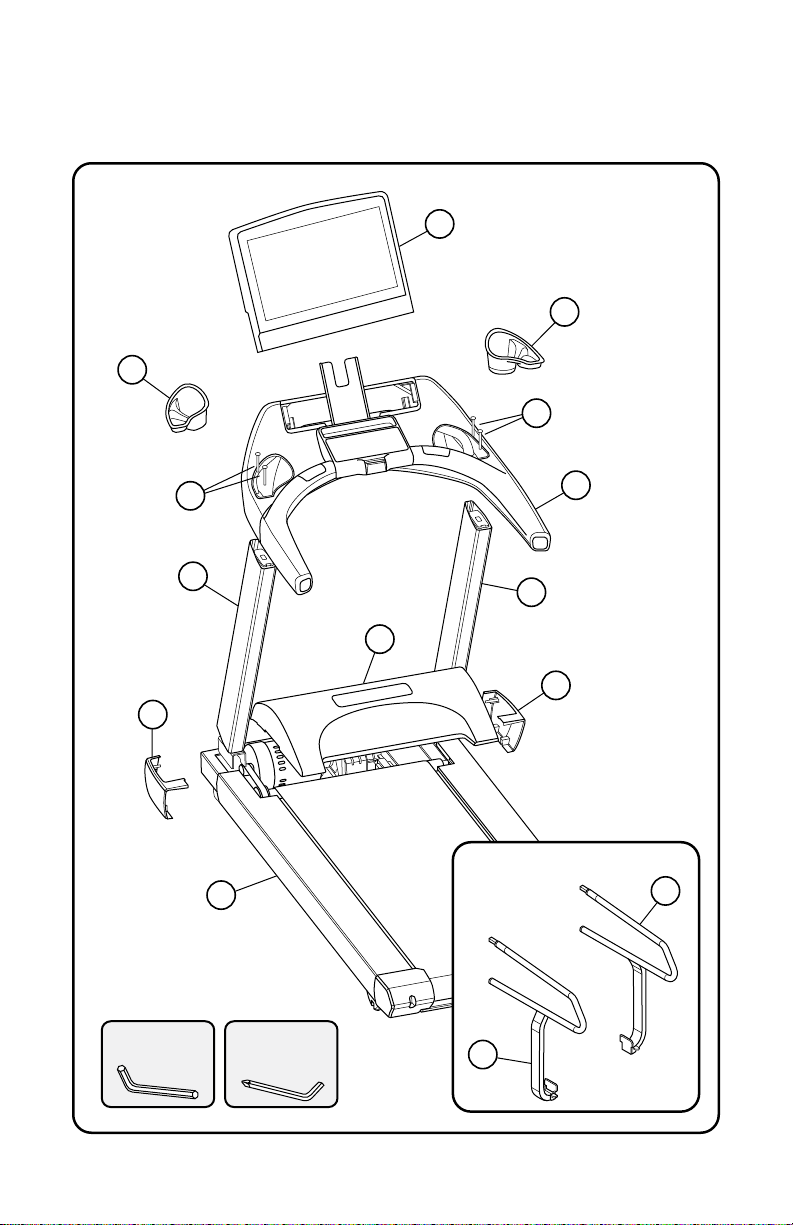

Exploded View & Hardware
Assembly Instructions
Console Basics.............................................................................................................. 34
Console Overview
Readout Display
Operating Keyboard

Contents
Operations...................................................................................................................... 41
Home Screen
Personal Settings
Bluetooth Speaker, Chest Strap and Arm Band
Quick Start
Manual Program
Preset Programs
Custom User Set-Up Programs
Heart Rate Control Programs
Summary Screen
Screencasting
Equipment Settings
Program Proles
Preset Program Operation
Maintenance and Tips............................................................................................ 40
Heart Rate Monitoring
Hand Pulse Sensors, Chest Strap
Belt Lubrication
Moving the Treadmill
Cleaning
Belt Tensioning, Belt Alignment
Troubleshooting

4
About Your Treadmill
Specications
Console
Display
18.5" Colorful Touch screen and Touch panel,
showing workout progress, and simultaneous
display of all readouts.
Readouts Program name, date and time, speed, incline,
distance, calories, steps, heart rate, and pace
Programs
Two heart rate control programs, and 42 programs
grouped by exercise motivation type for weight loss,
healthy living, and sports
Quickstart Yes
USB Ports 1 USB port for mobile device charging
Bluetooth Sync workout data with LifeSpan Club app
Heart Rate Grip pulse and BT Heart rate
Media Holder Book, magazine, and tablet computer holder
Emergency Stop
Mechanical safety clip, when detached, immediately
turns o power, bringing the treadmill to a gentle
stop
Units of Measure Standard and metric settings
Language Support English
Treadmill
Belt Size 22” W x 62” L (56cm W x 157.5cm L)
Drive Motor 5.0 HP Continuous Duty AC
Belt Type Multi-ply polyester belt with PVC non-slip surface
Incline Motor 1000 lbs. (453.6 kg) thrust
Rollers 3.0” (7.5cm) crown rollers keep belt centered
Speed 0.5 - 12 MPH (0.8 - 20 KPH)
Incline -3 to +12
Deck Suspension Independent shock absorbers

5
About Your Treadmill
Treadmill (Cont.)
Deck 1” (2.54cm) melamine laminated reversible deck
medium-density ber board
Dimensions: 80.5” L x 36.5” W x 61” H
(204.5 L x 93.2 W x 154.9 H cm)
Step-Up Height: 9.5" (24 cm)
Max. User Weight: 400 lbs. (181.4 kg)
Net Weight: 434 lbs. (197 kg)
Gross Weight 480 lbs. (218 kg) (including Medical Handrails)
Certications CE/ETL US and CA /FCC Class SB EN 20957-1,
EN 957-6
Included Accessory
Medical Handrails 42” high x 35” wide. 1.25” diameter steel tubing in
black powder coating

7
Intelli-Guard™
Walk condently knowing your safety is assured with Intelli-Guard™.
Step away from your treadmill for more than twenty seconds and your
treadmill’s belt will automatically glide to a smooth stop.
Intelli-Step™
Never miss a stride with Intelli-Step™. Your steps are automatically
calculated with meticulous precision, displaying immediate feedback.
USB Charging Port
Charges most of your mobile devices. 5V, 0.5A Power Output.
Unique Features
As a leader in the tness industry, LifeSpan has developed a number of unique
features in our treadmills making them more engaging, safer and easier to use.
Learn more about how to use these features in the Personal Settings sections
of this Owner’s Manual.
About Your Treadmill

8
Warranty
Your LifeSpan treadmill/bike desk comes with the following limited warranty
valid in North America. If you are outside of this area contact your local
authorized LifeSpan dealer.
LifeSpan warrants that the equipment it manufactures is free from defects in
materials and workmanship under normal use and services. The periods above
are based on the date of purchase. During these periods, LifeSpan will repair
or replace any defective part. Free labor is included on all parts that are not
normally assembled or replaced by the customer within the labor period.
If within the time frames specied above, any part fails to operate properly,
login to our website at www.LifeSpanFitness.com, click on “Customer Service”
and complete the form to request assistance or call 877.654.3837 x4 for a
Customer Service Agent (please note that certain kinds of service should only be
performed by a qualied service technician).
LifeSpan reserves the right to make changes and improvements to our products
without incurring any obligations to similarly alter any product purchased.
In order to insure our product warranty and to ensure the safe and ecient
operation of your LifeSpan product, only authorized parts can be used. The
warranty is void if any parts other than those provided by LifeSpan are used.
About Your Treadmill
Treadmill Usage - 6 Hrs/Day
Treadmill Frame Lifetime 10 Years
Motor Lifetime 5 Years
Parts 5 Years 5 Years
Labor 2 Years 1 Year
COMMERCIALRESIDENTIAL

9
Exclusions and Limitations:
• This warranty does not apply to any defects caused by negligence,
misuse, improper assembly, or maintenance, accident, or “act of God.”
• This warranty does not apply to discoloration of paints or plastics.
• LifeSpan shall not be responsible for incidental or consequential
damages.
• This warranty is non-transferable form the original owner.
Registration
You must register your LifeSpan product before a warranty claim can be
processed. To complete your registration online go to www.lifespantness.
com/support/registration. Registration must be completed withing 60 days
of delivery to activate the product warranty. Product warranties are not valid
unless the registration is properly completed within 60 days.
About Your Treadmill

11
Safety First
When using exercise equipment, basic precautions should always be followed,
including:
• Never drop or insert any object into any opening. If an object falls into
an opening, turn the power o and unplug the power cord from the
outlet. Remove the object or call customer service at 877.654.3837 x4.
• Never operate this treadmill if it has been damaged or partially
submersed in water.
• To reduce the risk of electric shock, unplug the treadmill from the wall
outlet when not in use, before performing any maintenance, or before
moving the treadmill.
• Do not use outdoors or in areas of high humidity or extreme
temperature changes.
• Do not lean against or climb on the treadmill.
• Do not operate where aerosol spray products are being used or where
oxygen is being administered.
• Never place the power cord under carpeting or place any object on top
of the cord, this may pinch or damage the cord causing re damage or
personal injury.
• Use this exercise product for its intended use as described in this
Owner’s Manual. Do not use attachments that are not recommended by
LifeSpan.
• Do not leave your treadmill running while not in use.
Children and Pets
• Keep children from playing on your treadmill at all times.
• When in use children and pets should be kept at least 10 feet (3m) away.
• This treadmill can be used by children ages 12 years and above and
persons with reduced physical, sensory or lack of experience and
knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children without
supervision.

12
Safety First
Safety Tips While in Use
• Always consult a physician before beginning an exercise program.
• If you experience chest pains, nausea, dizziness or shortness of
breath, stop exercising immediately and consult your physician before
continuing.
• Do not wear clothing or jewelry that might catch on any part of the
treadmill.
• Wear shoes with high traction rubber soles. Do not wear shoes with
heals, leather soles, cleats or spikes.
• In case of emergency, grab onto the side handrails and place your feet
on the side rails located on each side of the running belt.
• Do not walk or run backwards on the treadmill, always face forward.
• Allow the running belt to fully stop prior to getting o the treadmill.
• Keep the treadmill on a solid surface, with the side rails and front of
the treadmill a minimum of 2 feet (0.6m) from any walls or furniture.
Make sure that the area behind the treadmill remains completely clear
during use. A minimum of 7 feet (2m) of clearance is required for safety
reasons.
2 Feet (0.6 m)
7 Feet (2.1 m) 2 Feet 0(.6 m)
2 Feet (0.6 m)
Safety Clearance

13
Safety First
Push safety key
back into position
Securely attach
safety key clip in
case of a fall
WARNING: Heart rate monitoring systems may be inaccurate. Over
exercising may result in serious injury or death. If you feel faint stop
exercising immediately.
CAUTION:For your safety always attach safety key clip to an article
of clothing prior to use. The safety key clip needs to be securely
attached to clothing parallel to or above the height of the safety key.
Note: Read all instructions and save for future reference.
Safety Key
The safety key is required to operate this treadmill. With the safety key engaged
(pushed in) the treadmill is operational. With the safety key pulled, power is
turned o to the motor making the treadmill inoperable.

DO NOT use extension cords between the treadmill and power outlet.
DO NOT plug into a GFI outlet or circuit as it may trip the breaker.
14
Safety First
Proper Grounding
LifeSpan equipment must be grounded. Improper connection of the
equipment’s grounding conductor can result in the risk of electric shock. Check
with a qualied electrician or service person if you are in doubt as to whether
the outlet is properly grounded. Do not modify the plug provided with the
product or use a ground plug adapter to adapt to a non-grounded outlet. If
the plug will not t in the outlet, have the proper outlet installed by a qualied
electrician.
Power Cord Options
This treadmill should only be used with the proper power cord and power
outlet. Several power cord options (shown below) are available from LifeSpan.
We do our best do include the correct power cord with the treadmill for your
area. In the event that the correct power cord is not included in the packaging
please contact your local distributor.

16
4
6
8
1
10
10
2
3
5
7
11
9
Assembling Your Treadmill
6mm Allen
Wrench
5mm Allen
Wrench w/
Phillips
12
13
Optional Medical
Handrails

17
Exploded View
Prior to starting the assembly process take all of the parts out of the box.
Remove plastic bags and lay them out on the oor to become familiar with the
components.
Since your treadmill is a heavy piece of equipment it is recommended you use
two people during assembly and follow these assembly instructions to reduce
any problems that could occur.
Hardware Included
Item# Part Description
1 Main Frame
2 Left Accessory Tray
3 Right Accessory Tray
4 Left Support Post
5 Right Support Post
6 Motor Cover
7 Handlebar Assembly
8 Left Support Post Cover
9 Console
10 Bolts M8 x 55L
11 Right Support Post Cover
12 Left Optional Medical Handrail
13 Right Optional Medical Handrail
Assembling Your Treadmill
CAUTION:Avoid damaging parts by not using power tools.
M8 x 55L Bolt
(x4)

18
Step 1: Unpacking Treadmill
A. Cut packaging straps and remove.
B. Remove the box top.
C. Remove small parts and packaging material and unwrap parts.
D. Cut the corners of the bottom box and remove all packaging material to
begin assembly. The treadmill can be assembled in the box. No need to pick
the treadmill up to remove it from box.
Step 2: Remove Motor Cover
A. Loosen (do not remove) the four screws (14) along the bottom edge of the
motor cover (6).
B. Lift the motor cover straight up to remove.
Assembling Your Treadmill
6
14 14
5mm Allen
Wrench w/
Phillips

19
Step 3: Support Post Assembly
A. Remove the three bolts (15) and
washers (16) from the bottom of the
left upright (4).
B. Place the U shaped bracket on the
bottom of the support post onto the
main frame of the unit. Align the
three holes in the bracket with the
holes in the frame. Install the three
bolts (15) and washers (16) removed
in step 3-A. Do not tighten at this
time.
C. Remove the three bolts (15) and
washers (16) from the bottom of
the right upright (5). Make sure the
cable (17) is not in the U-shaped
bracket.
D. Place the U-shaped bracket on the
bottom of the right support post
(5) onto the main frame. Align the
three holes in the bracket with the
holes in the frame. Install the three
bolts (15) and washers (16) removed
in step 3-C. Do not tighten at this
time.
E. Connect cable (17) coming from the
bottom of the right support post to
cable (18) coming from the motor
control board.
Assembling Your Treadmill
Note:
Move cables 17 and 18 so
they do not get pinched
or damaged when
installing upright.
5
17
18
4
15 16

20
Step 4: Handlebar Attachment
A. Hold the handlebar set (7) above the upright posts (4 and 5). Feed the cable
(17) from the right support post (5) through the square hole on the right
side of the handlebar set.
B. Place the handlebar set (7) onto the support post (4 and 5). Be careful not
to pinch the cable (17) on the right side.
C. Align the bolt holes in the handlebar set (7) to the holes in the upper end of
the support posts (4 and 5).
D. Install the four bolts (10) from the hardware bag. Do not tighten the bolts
until all four bolts have been installed.
E. Tighten the three bolts (15) on the bottom of each support post
installed in steps 3-B and 3-D.
F. Connect the cable (17) from the support post to the cable (19) inside of the
handlebar set.
4
5
17
17
10
10
19
7
Assembling Your Treadmill
5mm Allen
Wrench w/
Phillips
M8 x 55L Bolt
(x4)

21
Assembling Your Treadmill
Black/RedBlack/Red
Step 5: Attach Console Set
A. Remove the four screws (22)
from the back of the
console (9).
B. Place the console (9) face down
on the handlebar set so the
bottom of the console is just in
front of the wires coming from
the console mount area.
C. Connect the 6-pin and 9-pin
ribbon cables.
D. Connect the 7-pin connectors
and the three remaining 2-pin
connectors from the console to
the connectors coming from the
console mount area.
One of the 2-pin connector sets is dierent so match this set rst.
These are marked with SK labels. For the other 2 pin connectors it
doesn’t matter which 2 get plugged together.
Note:
9
22

22
E. Lift the console up and carefully
push the excess wire into the
handlebar assembly.
F. Place the console set onto
the mounting bracket. Make
sure none of the wires will be
pinched when the console is
attached. Slide down into place.
G. Align the screw holes on the
back of the console with the
holes on the mounting bracket
and install the four screws (22)
removed in step 5-A.
Assembling Your Treadmill
22
