Life Span TR3000i User manual

Folding Treadmill
Owners Manual
For safe use and product knowledge, please
completely read this Product OWNERS MANUAL.
TR3000i / TR4000i
v. 2.0

Welcome to LifeSpan
Congratulations in taking a step forward to increase your level of physical activity or add
variety to your current exercise program. Physical activity is now more than ever a necessity
to keep your body healthy and fit. Whether your motivation is to Lose Weight, manage a
Chronic Disease like diabetes, train for a sporting event or just live a Healthy Lifestyle,
LifeSpan products can help you achieve your health and fitness goals.
In this manual we have included exercise information that is specific to each of these 4 key
motivations for exercise. We also invite you to the LifeSpan Fitness website at
www.LifeSpanfitness.com where we include additional information and tools to help you
maintain your exercise program and achieve your health and fitness goals.
ers who say they prefer to exercise in the comfort and privacy of their own homes. Each
Home series product is designed and manufactured to exceed your expectations for quality
and durability, simple assembly and ease of operation.
Please read this manual thoroughly before assembly and operation of your new LifeSpan
equipment. It includes information on proper operation, safety precautions, product
assembly and ongoing maintenance.
Remember that some types of service should only be performed by a qualified service
technician. In the instance that service is required, please contact your authorized LifeSpan
retailer or log on to our website and select the Customer Support option. Complete the
information requested and we will respond to your inquiry within 1 business day.
TR3000i / TR4000i
Folding Treadmill
U.S. and Canada International
Contact your local distributor
LifeSpan

Welcome

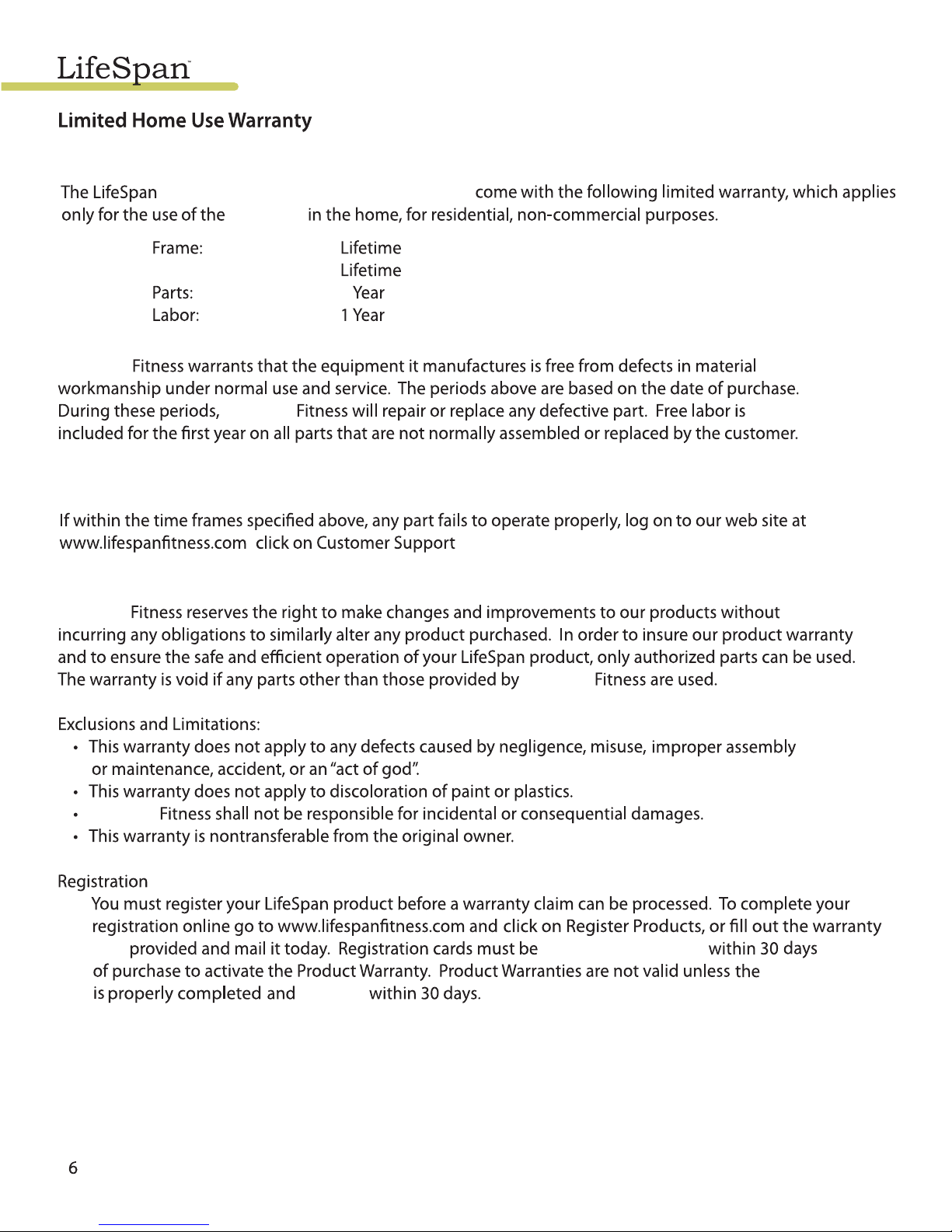

Limited Home Use Warranty
Important Safety Precautions
Assembly Instructions
Console Overview
Treadmill Operations
Innovative Features
Program Overview
Belt Lubrication and Treadmill Maintenance
Belt Tensioning and Alignment
Moving and Storage
Troubleshooting
Engineering Mode
3
5
6
7
10
16
19
22
23
31
32
33
35
36
8
Grounding and Power Requirements
40
Serial Number Information
Starting an Exercise Program 9

Program Name, Date and Time,
Workout Time, Calories, Step Count
Distance, Heart Rate, Speed,
Incline
Multi-Color LCD
Manual, Preset (17), User Set-up
(2), Heart Rate Control (2)
15 Rows by 20 Columns
5 Program Group Buttons for
Heart Rate Control, Healthy
Living, Sports Training, Weight
Loss and User Set-up Programs
Audio Center with in / out jacks
and integrated speakers
Grip Pulse and Receiver
(chest strap included)
Program Name, Date and Time,
Workout Time, Calories, Step Count
Distance, Heart Rate, Speed,
Incline
Multi-Color LCD
Manual, Preset (17), User Set-up
(2), Heart Rate Control (2)
15 Rows by 20 Columns
5 Program Group Buttons for
Heart Rate Control, Healthy
Living, Sports Training, Weight
Loss and User Set-up Programs
Audio Center with in / out jacks
and integrated speakers
Grip Pulse with Receiver
(chest strap not included)
TR4000i
TR3000i
0.5 - 12/0.8 - 19
0 - 15
20 x 56/50.8 x 142.2
2.5/64 tapered
1/2.5 Phenolic Deck with 8 Bumper
Suspension
2.75 HP Continuous Duty DC
Motor
800/362 Max Lift Rating
350/158
71/180.3 L x 34/86.4 W x 54/137.2 H
0.5 - 12/0.8 - 19
0 - 15
TR3000i / TR4000i
Folding Treadmill
Motor
55
Speed Range (mph/kph)
Incline Levels
Running Belt Size (in/mm)
Roller Size (in/mm)
Deck (in/cm)
Drive Motor
Lift Motor (lbs/kgs)
Max. User Weight (lbs/kgs)
Dimensions (in/cm)
20 x 60/50.8 x 152.4
2.5/64 tapered
1/2.5 Phenolic Deck with 8 Bumper
Suspension
3.25 HP Continuous Duty DC
Motor
800/362 Max Lift Rating
350/158
75/190.5 L x 34/86.4 W x 54/137.2 H
U.S. and Canada

TR3000i and TR4000i Folding Treadmills
Treadmill
Motor:
5s
and complete the form to request assistance,
or call 877-654-3837 x4 for a customer support agent.
The customer may be responsible to pay for the Service Technician’s travel time where travel in
excess of 20 miles (32 km) is required.
,
card received by
received
registration
(U.S. and Canada)
LifeSpan
LifeSpan
LifeSpan
LifeSpan
LifeSpan
LifeSpan

TR3000i / TR4000i
Folding Treadmill
(1.2m)
(3m)
(0.61m)
LifeSpan
treadmill.
“Warning! Heart rate monitoring may be inaccurate. Over exercising
may result in serious injury or death. If you feel faint stop exercising
Never drop or insert any object into any opening. If an object falls into an opening, turn the power
Do not use outdoors or in areas of high humidity or extreme temperature changes.
Wear shoes with high traction rubber soles. Do not wear shoes with heals, leather soles,
cleats or spikes.
immediately”.
4 feet
1.22m
2 feet
0.61m
2 feet
0.61m

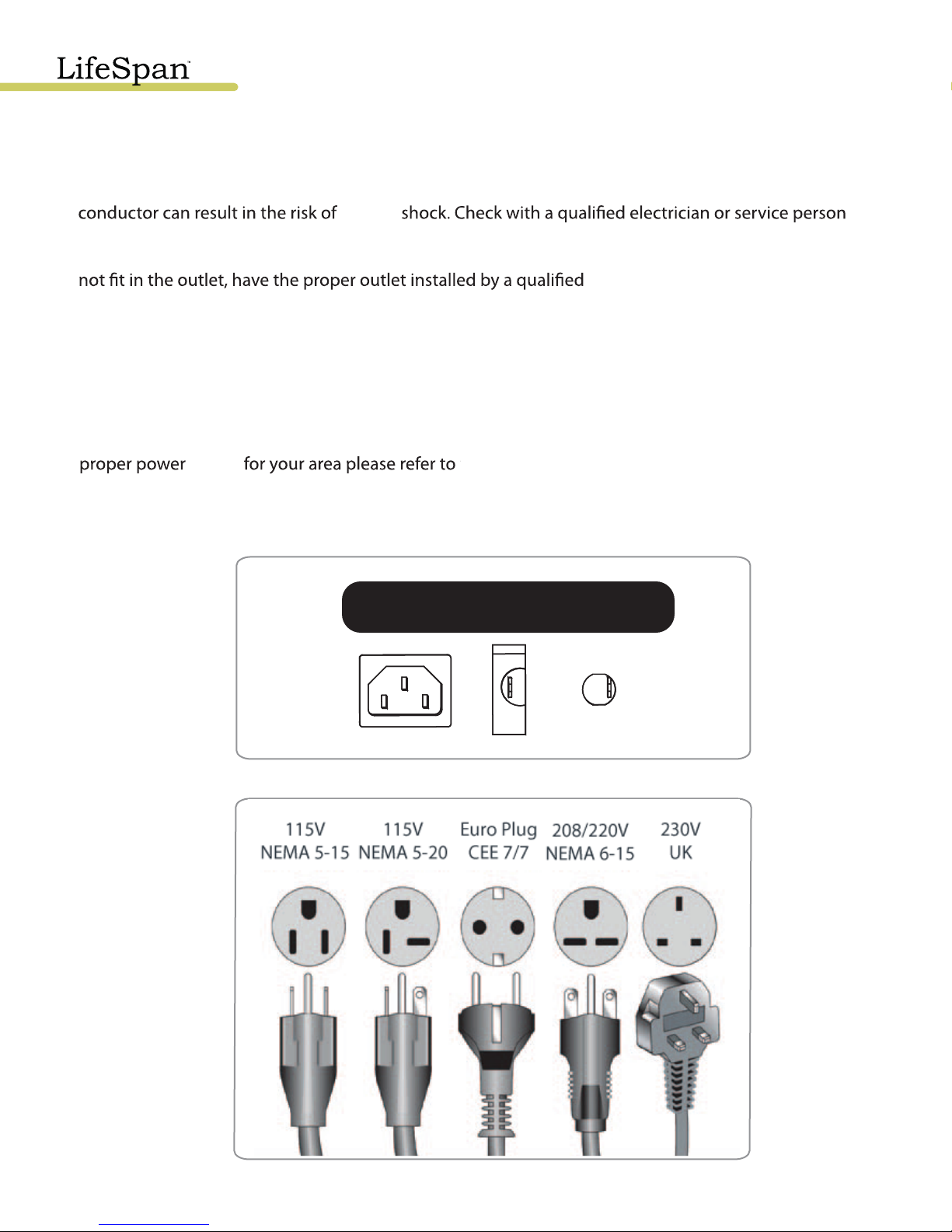

LifeSpan Fitness equipment must be grounded. Improper connection of the equipment’s grounding
if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided
with the product or use a ground plug adaptor to adapt to a non-grounded outlet. If the plug will
An extension cord should not be used between the equipment and the wall outlet.
T
the GFI circuit.
he unit should not be plugged into a GFI plug or on a GFI circuit. The unit may not work or trip
This product should only be run on the proper power designed for this unit. To locate the
POWER
CORD SOCKET
SWITCH-
AC POWER
OVERLOAD
SWITCH
8
FIG. 1
FIG. 2
FIG. 2. (example for the US and Canada, these
Grounding and Power Requirements
units require a 115V NEMA 5-15 non GFI circuit.)
outlet
electrician.
electric

9
TR3000i / TR4000i
Folding Treadmill

treadmill
1
13
10
6
5
7
9
14
4
11
2
3
8
12
15

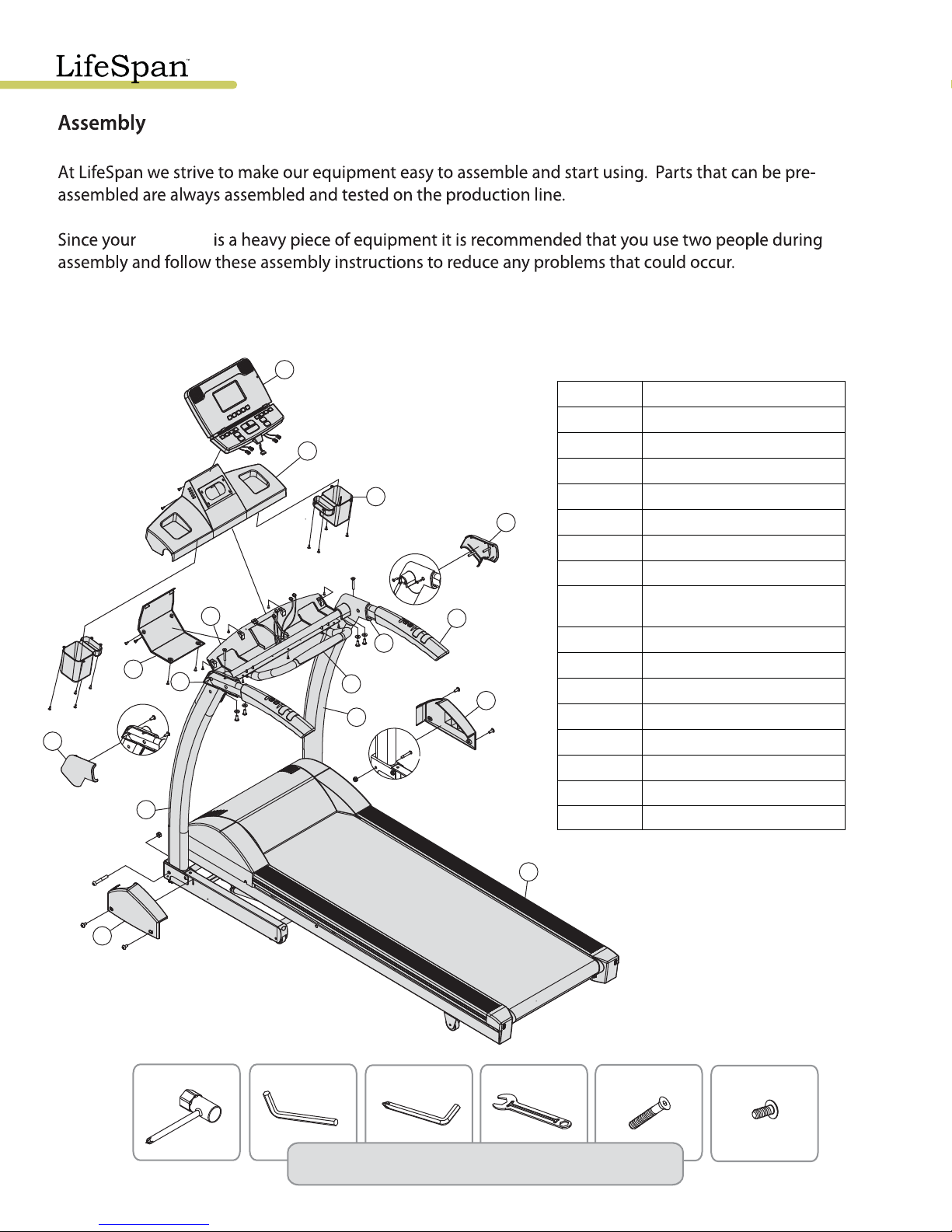

Item# description
1 Main Frame
2
3
4
5 Console
6 Accessory Tray
7 Back cover
8
9 Left handrail cover-outer
10 Right handrail cover-outer
11 Left handrail cover-inner
12 Right handrail cover-inner
13 Base cover-Left
14 Base cover-Right
15 Safety bar cover
Wrench-17mm
Wrench-5mm
Wrench-6mm M4*10L (4pcs)
M8*70L (2pcs)
Wrench-13mm
Tools and Screws included in Hardware Bag
10
Left handlebar support
Right handlebar support
Handlebar
25 Console housing
25
Plate console housing
frame mount

Step 2: Handlebar Support Post Assembly
A. Remove the screw (A) and nut (E) that are pre-assembled on the frame from each side of the
base using the 6 mm Allen wrench and 17 mm open end wrench provided in your tool kit.
These two screws will prevent the handlebars from rotating up into their upright position.
B. Stand the support posts and handlebars up into their operating position and re-attach the
screws (A) and nuts (E) removed in step 2A.Tighten securely.

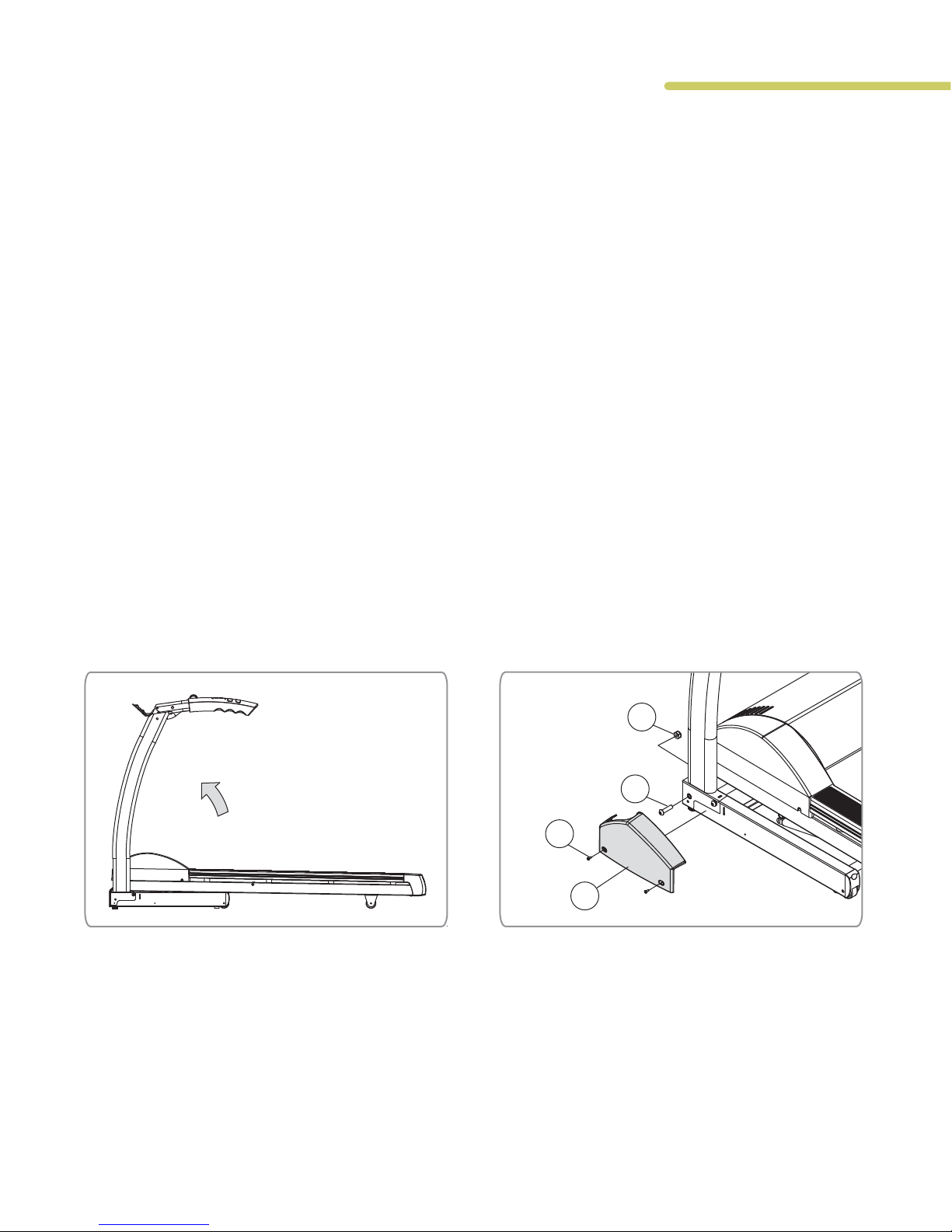

C. Attach the left (13) and right (14) base covers using a Phillips screwdriver and 2 machine screws (G)
on each side. The 4 base cover attaching screws are located in the hardware bag.
13
G
A
E
11
Step 1: Unpacking Treadmill
A.
B.
Cut packaging straps and remove.
Remove the box top.
C. Remove small parts and packaging material and unwrap parts.
D.
Cut corners of the bottom box and remove all packaging material to begin assembly. The
treadmill can be assembled in the box. No need to pick the treadmill up to remove it from box.
TR3000i / TR4000i
Folding Treadmill
Note: Make sure the wire harness coming from the front of the frame to the base of the right
handlebar support will not be pinched when pivoting the right handlebar support up
into position.

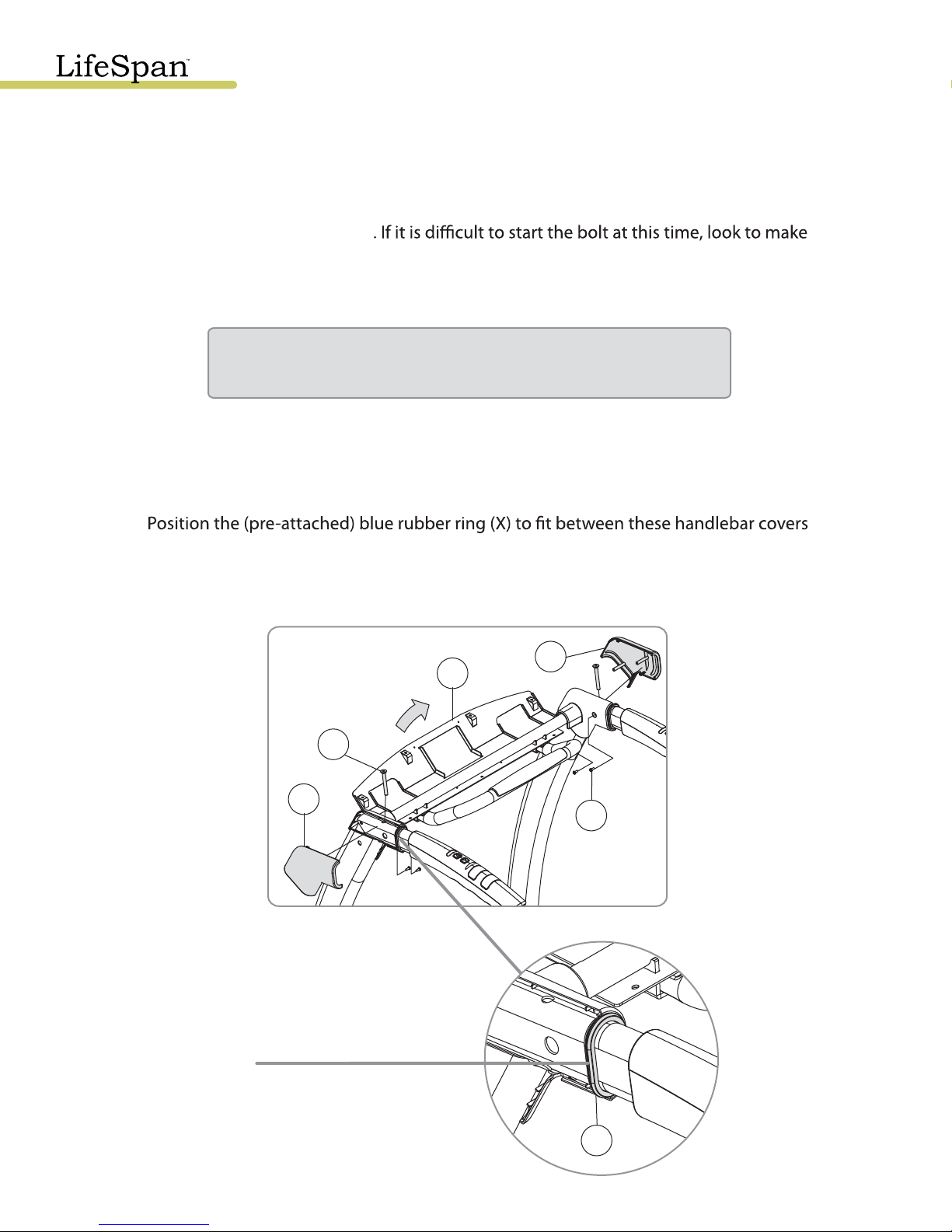

Step 3: Handlebar Assembly
A. Rotate the handlebars down so they are positioned on top of the handlebar posts.
Secure the right and left handlebars to the support post using the 2 M8 x70L screws (B)
provided in the hardware bag
Note: Make sure that the wires on both sides are not pinched
in-between the handlebars and the handlebar post.
B. Rotate the console bracket (8) up in the back until it reaches its normal operating position.
C. Place the left outside handlebar cover (9) next to the inside handlebar cover (pre-attached).
allowing the plastic ridge to sit in the groove of the blue rubber ring. Secure these three
parts together using the self-tapping screws (C), which are pre-installed in the outer cover.
Repeat this process on the other side with the right outside handlebar cover (10).
9C
B
10
blue rubber ring
X
8
12
sure there are no wires obstructing the bolt hole. Also, lightly pulling the handlebar
one way or the other will help line up the bolt holes.

Step 4: Assemble Console Components
A. Attach the blue accessory trays (6) to the
bottom of the console housing using 8
self tapping sc
console housing (25).
rews (G). Preinstalled in
B. Attach the console (5) to the console
housing (25) using 6 screws (G). These
screws are pre-installed on the back of the
and then reinstalled with the console in
place.
G
G
25 5
6
Step 5: Attach Console Assembly
A. Place the console assembly onto the
console housing frame mount (8) and
attach the assembly using the 7
screws (F), preinstalled in console
housing (25). Be sure not to pinch wire
harnesses during this step.
i. Main Harness: 5-pin and 7-pin
ii. Hand Pulse harness: 2-pin
iii. Speed Control Harness: 3-pin
(the wire colors need to be
matched.)
iv. Incline Control Harness: 3-pin
(the wire colors need to be
matched)
Note: Be careful to properly connect all wiring
connectors with their correct corresponding
wiring harness. Pay attention not to bend any
pins and make sure the connectors click in
place.
F
B. Connect all wire harnesses including:
C. Tuck extra wiring harness into the
opening behind the console.
13
8
(color doesn’t matter.)
TR3000i / TR4000i
Folding Treadmill

Step 6: Attach the Back Cover Plate

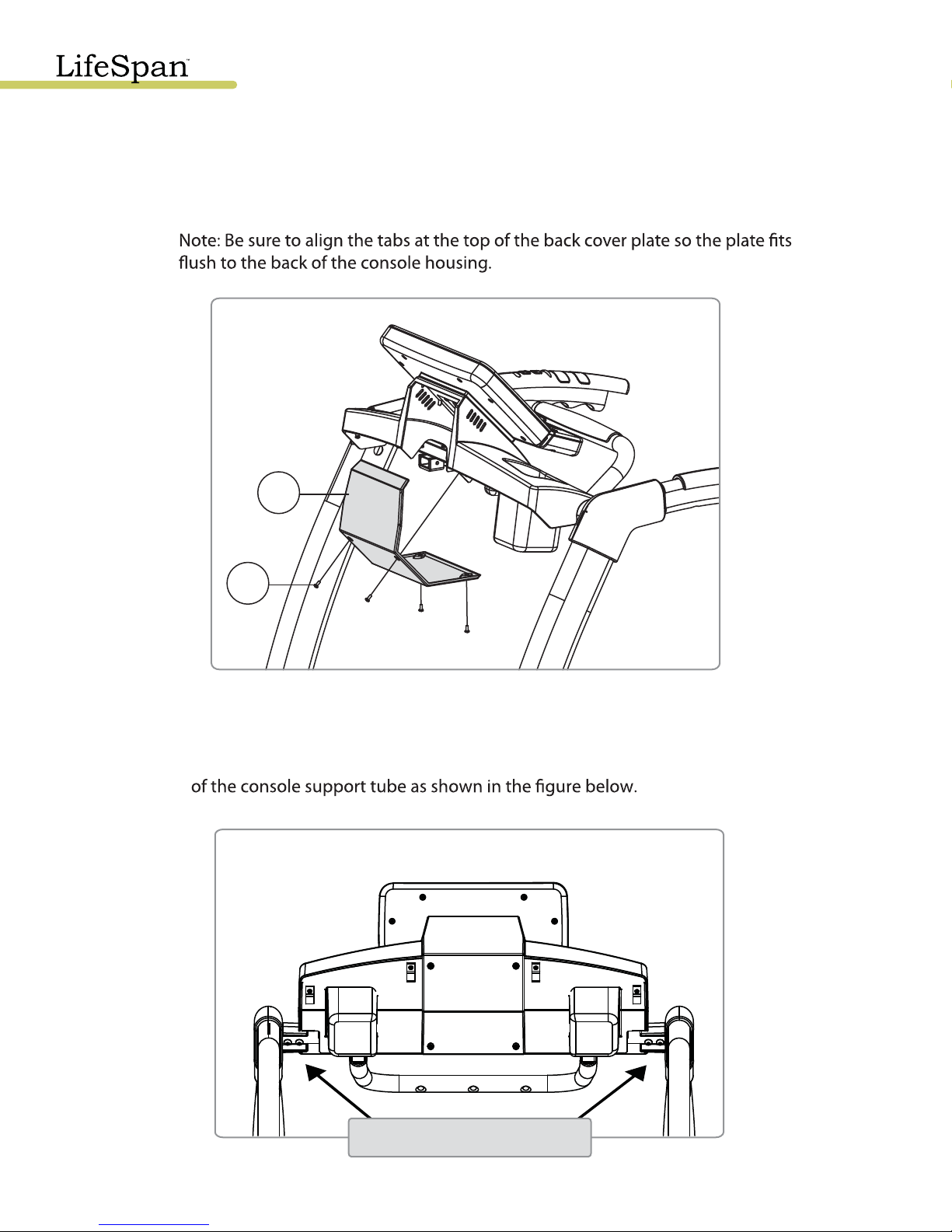

A. Align the back console cover plate (7) over the back of the console housing and
Step 7: Lock Console Angle
A. Using the 5 mm Allen wrench tighten the 2 Allen head bolts located at each end
7
H
Securely Tighten
14
attach using the 4 screws (H), pre-installed in the console housing frame mount.

15

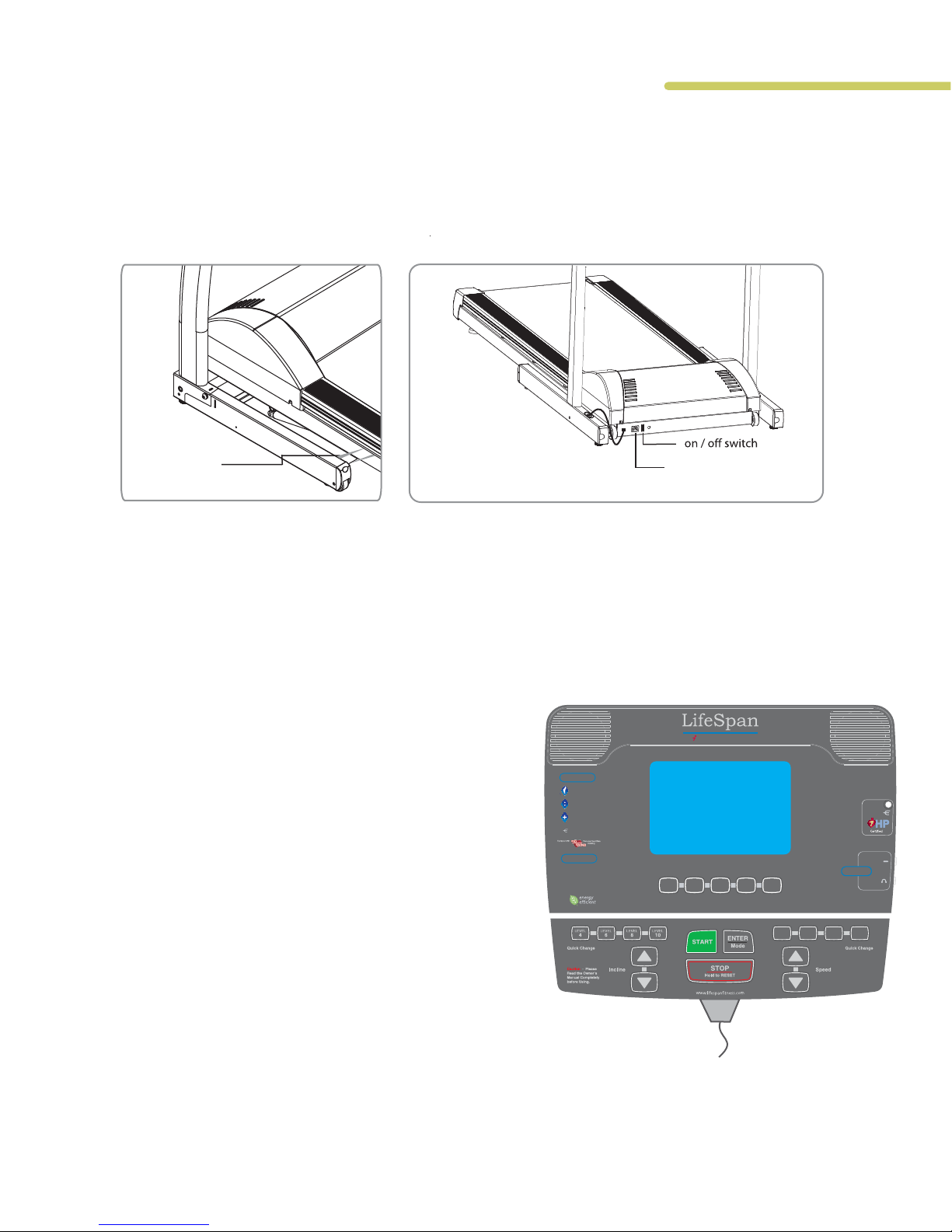

Step 8: Cut red tie strap and roll out of box
Step 9: Plug the power cord in and turn the treadmill on
Step 10: Install safety key
Step 11: Set date and time
power receptacle
red tie strap
Step 8 Step 9
See Moving and Storage on page 32
To set the date and time of day on your console
follow these steps:
1. Remove the safety key and re-install
2. Press any of the quick speed buttons for 3
seconds to initiate the date and time set up
mode.
3. Press the UP / DOWN buttons to set the correct
YEAR, Press Enter
4. Press the UP / DOWN buttons to select the
correct MONTH, Press Enter
5. Press the UP / DOWN buttons to select the
correct DAY, Press Enter
6. Press the UP / DOWN buttons to set the HOUR,
Press Enter
7. Press the UP / DOWN buttons to set the
MINUTES, Press Enter
safety key
TR3000i / TR4000i
Folding Treadmill
Program Group
HRC User
Setup
Healthy
Living
Sports
Training
Weight
Loss
USB - Port
Head
Phones
Mp3-IPod
compatible
AudioCenter
INTELLI - Guard
Automatic Safety pause
INTELLI - Step
Count your steps
INTELLI - Port
Transferand track your
workout data
INTELLI - Key
Light prompting user
set-up
3.0
MPH
4.0
MPH
5.0
MPH
6.0
MPH
nterActive Treadmill
Featu res
To Start
Press and hold START
button to turn on
Press START tobegin

STOP
Display Console

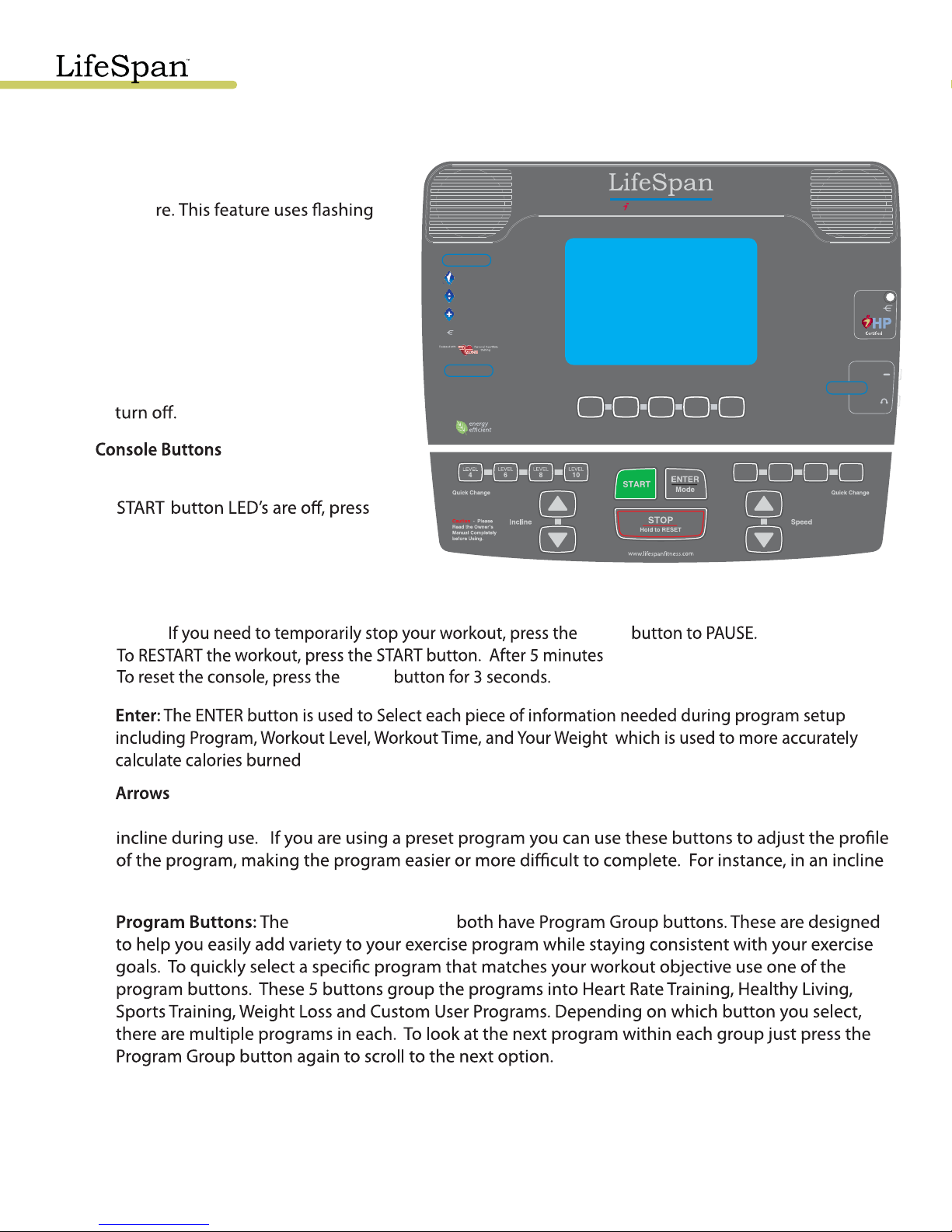

and Handlebar Control Buttons: The up and down buttons for speed and incline are used
to modify the value of each selection during the program set up process and to adjust the speed or
program, your can raise the incline level across the entire program by pressing the incline up button.
TR3000i and TR4000i
Quick Select Buttons: The TR3000i and TR4000i come with 4 quick select buttons for speed and
4 quick select buttons for incline. These buttons allow you to quickly jump directly to the desired
speed or incline rather than requiring that you scroll to get to the value.
The TR3000i and TR4000i come
with our innovative Intelli-Key
featu
STOP
16
of no activity the console will reset.
This will clear any current workout data.
(
).
LED’s to prompt the user on which
button(s) to press next. These
consoles also come with an
energy saving feature. After ten
minutes of no activity the console
will go into energy saving mode.
At this time all lights, except a dimly
lit LED at the START button, will
Start: If all lights except the
and hold this button for two seconds
to turn on the console. Pressing this
button in standby mode starts the
treadmill belt.
Stop:
Program Group
HRC User
Setup
Healthy
Living
Sports
Training
Weight
Loss
USB - Port
Head
Phones
Mp3-IPod
compatible
AudioCenter
INTELLI - Guard
Automatic Safety pause
INTELLI - Step
Count your steps
INTELLI - Port
Transfer and track your
workout data
INTELLI - Key
Light prompting user
set-up
3.0
MPH
4.0
MPH
5.0
MPH
6.0
MPH
nterActive Treadmill
Features
To Start
Press and hold START
button to turn on
Press START to begin

TR3000i / TR4000i
The TR3000i and TR4000i
The TR3000i and TR4000i
following
Incline: The level of belt incline ranging from 0-15
participate in
The TR3000i and TR4000i will also show the following information
This information will be used by the treadmill as part of the USB feature to save your workout
information on the date and time of your workout.
W
.
handlebars
17
and other pertinent information during setup mode.
a USB storage device, that has been synced with your online account,
the console will read your name, sex, height, weight, and age. Your name will appear in
the alpha display at the top and your gender, height, weight and age will appear below
the program matrix.
TR3000i / TR4000i
Folding Treadmill

TR3000i and TR4000i
both the TR3000i and TR4000i have a built-in receiver
for the use of a wireless chest strap. The TR4000i includes a chest strap. To purchase a chest strap
to use a chest strap or
18
handlebar
Note: The heart rate monitoring system will vary due to the users method of use, physiology, age
and other factors. LifeSpan does not guarantee the accuracy of the heart rate readings for all users.

- Use the Program buttons to select your desired Exercise Program. Each program
button has multiple programs that you can scroll through. Each time you press the program button
Select Program Mode - with each program selection you can choose to run the program in the
Incline Mode or the Speed Mode. Use the UP / DOWN arrows to make the selection then Press Enter.
quick speed
Set Program Level - There are 3 levels of intensity with each preset program (1 being the easiest
Use the UP / Down arrows to make the selection then Press Enter.
6.
19
Operating Your Treadmill
Starting in Manual Mode
UP / DOWN
TR3000i / TR4000i
Folding Treadmill

2. Select Program Mode - select either the Incline Control Mode or the Speed Control Mode using the
UP / DOWN arrow keys. Press Enter.
STOP
2. Select Program Mode - select either the Incline Control Mode or the Speed Control Mode using the
UP / DOWN arrow keys. Press Enter.
8.
Speed and Incline
Operating Your Treadmill (continued)
While using the HRC programs you will be required to hold the pulse grips or wear a chest strap for
the duration of the workout.
UP / DOWN
UP / DOWN
20
Interval program.
Constant
Constant
Interval
