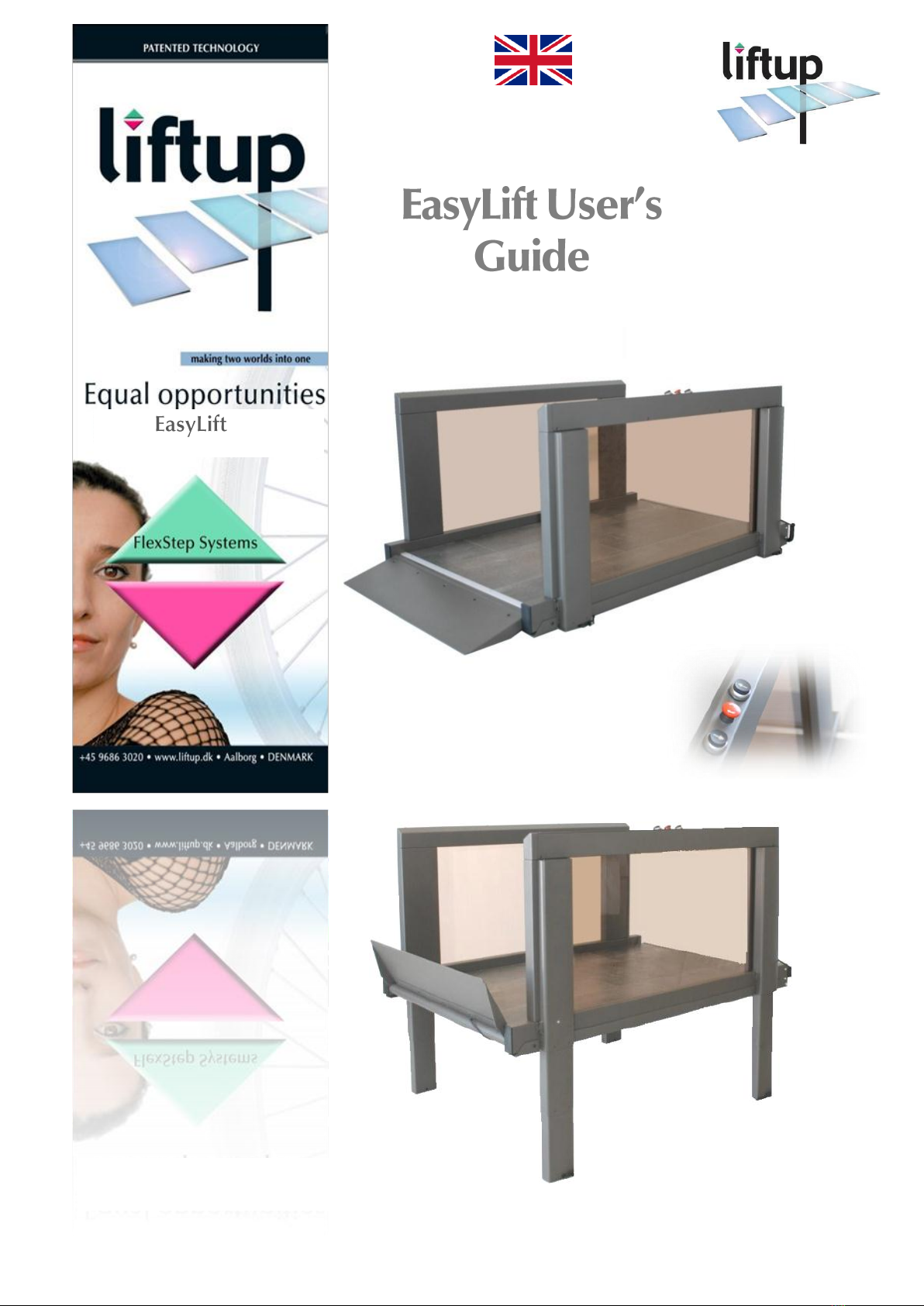

liftup EasyLift 800 V3 PLUS User manual

USER MANUAL EASYLIFT UK VERSION 2.1
LIFTUP ●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]

LIFTUP APS●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]
PAGE 2
Contents
Contents...........................................................................................................................................................................2
1. Foreword ...............................................................................................................................................................3
2. 2. EU declaration of conformity....................................................................................................................4
3. Type certificate....................................................................................................................................................5
4. Conditions of use ................................................................................................................................................6
5. Technical specifications...................................................................................................................................7
6. Safety directions .................................................................................................................................................8
Personal safety ..............................................................................................................................................9
Handling...........................................................................................................................................................9
7. Operating principles.......................................................................................................................................10
8. Assembly.............................................................................................................................................................10
9. Starting the platform......................................................................................................................................10
10. Operating the platform..................................................................................................................................11
11. Operation ............................................................................................................................................................12
12. Maintenance ......................................................................................................................................................13
13. Installation and transfer...............................................................................................................................14
14. Maintenance checklist ...................................................................................................................................15
15. Service logbook ................................................................................................................................................16
16. Spare parts .........................................................................................................................................................17
17. Disassembly.......................................................................................................................................................18
18. Disposal ...............................................................................................................................................................18
19. Warranty.............................................................................................................................................................18

LIFTUP APS●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]
PAGE 3
1. Foreword
Congratulations on buying your new lifting platform.
Make sure you read through this manual before using the lifting platform.
Setup and installation MUST be performed by a service engineer trained by Liftup, in order to
ensure correct assembly. Improper installation may lead to unintended hazards or risks.
EasyLift is a lifting platform for wheelchairs, offering users easy and stylish access between
two levels. The platform is simple to operate by means of operating panels mounted on the
wall or an elegant remote control.

LIFTUP APS●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]
PAGE 4
2. 2. EU declaration of conformity
EU declaration of conformity
Machinery Directive 2006/42/EU
Manufacturer: Liftup ApS
Address: Tingager 2, DK-9530 Støvring, Denmark
Telephone: [phone]
hereby declares that:
Equipment: EasyLift
Lifting platform for wheelchair users and persons with impaired
mobility
Year:2007
is in compliance with the key health and safety requirements of the Machinery
Directive:
The following was used for the assessment:
ISO 9386- 1: 2000 Power operated lifting platforms.
is in compliance with EMC-directive 2004/108/EC of 15 December 2004 on the
approximation of the member states’ legislation on electromagnetic compatibility.
Director Flemming Eriksen
______________________ ______________________________
Title Name
Liftup ApS, Hagensvej 21, DK-9530 Støvring, Denmark
__________________________________________________________________
Place
01-12-2009
________________________ ______________________________
Date Signature

LIFTUP APS●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]
PAGE 5
3. Type certificate
COPY OF THE CE-MARK
WILL BE MOUNTED HERE

LIFTUP APS●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]
PAGE 6
4. Conditions of use
The platform is exclusively for the use of wheelchair users and persons with impaired
mobility.
The maximum load is 300 kg evenly spread over the platform/a maximum of 2 persons.
Read this user's manual in full before using the platform.
The platform must NOT be used for transporting goods; do not load pallets with goods or
other types of heavy loads on the platform.
The platform owner is obligated to maintain it according to the Maintenance Guide in section
12.

LIFTUP APS●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]
PAGE 7
5. Technical specifications
High model
Low model
Technical specifications:
Power supply: 230V/50 Hz 10A.
Max. load: 300 kg or 2 persons
Dimensions: 900x1400 mm.
Weight: 100 kg approx.
Noice: < 70 db.
645

LIFTUP APS●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]
PAGE 8
6. Safety directions
Important safety measures
Installation and maintenance.
Do not attempt to install or maintain your EasyLift. This MUST be performed by an
authorized service engineer.
Do NOT remove the protective plates or safety plates as doing so may open your EasyLift to
causing unintended personal injury.
Unintentional movement of EasyLift.
If when using your EasyLift actions or movements occur which are not covered in this
manual, stop the unit and request technical support.
If your EasyLift does not move with a level movement as a platform, calibrate it by running it
down to floor level; if the problem persists, request technical assistance.
EasyLift movement.
Keep the area below EasyLift free of all objects or materials which may impede its downward
movement. Otherwise, EasyLift cannot be moved down to the lower level and thus cannot
fulfil its function as a lifting platform.
If an object/material prevents EasyLift moving in a downward direction, the platform will
suspend its movement and issue an audible alarm. The object or material must be removed
before the platform may be used again.
Avoiding personal injury.
In order to avoid personal injury, users may NOT use EasyLift when someone or something is
at risk of injury through crushing, cutting, falling, tripping or the like. The user/operator
shall strive to the greatest extent possible to ensure that EasyLift can move without risk of
causing injury.
Be extra vigilant when small children and disabled persons are on or around the platform,
since these groups cannot always be expected to be able to foresee the possible consequences
of the platform’s movements.
Overload of the platform.
In order to avoid damage to equipment due to overloading (max. 300 kg evenly spread),
EasyLift is fitted with overload protection which stops the platform and issues an audible
alarm if overload occurs. In the event of overload, run the platform downward to exit.
* Has undergone product and service training by Liftup.
Although the platform is fitted with
various safety features, never operate it if
persons or animals are close enough to be
at risk of being crushed. Never let
children play on or with the platform.
Warning

LIFTUP APS●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]
PAGE 9
Squeeze
protection zone
Personal safety
EasyLift is fitted with various safety mechanisms to ensure that the user or other persons are
not injured by using the platform.
Squeeze protection:
A pressure plate (squeeze protection) is fitted beneath the entire
platform and is activated if an object is compressed under it.
When the squeeze protection is activated the platform stops and
runs about 3-5 cm in reverse, while an audible alarm sounds at
the same time.
If the squeeze protection is activated, release the button, remove
any objects under the platform and then again run it
to floor level. (If necessary, move the platform up a
small distance so as to more easily remove objects
from under it).
NB! Be aware that in the case of outdoor installations, leaves, branches and snow can trigger
the squeeze protection, and you should therefore regularly check whether there are objects
beneath the platform. For outdoor installations we thus recommend returning the lift to
ground level after use, in order to prevent unwanted objects finding their way under the
platform.
Roll-off protection:
When moving the platform upward, the ramp will first pull up and lock before the platform
begins to move. The ramp now acts as roll-off protection.
When the platform is returned to floor level, the ramp will automatically lower and function
as a drive-on/off ramp.
If the platform is fitted with doors these will close and lock before it begins to move. These
doors will always be closed and locked when the platform has moved off ground level.
Handling
The platform is normally supplied by your dealer, who will also install it for you.
Do not attempt to move the platform by hand as there is a risk of permanent personal injury.
Move and handle the platform using the lifting equipment designed for this purpose.
Do not expose the platform to heavy bumps or jolts as this can damage its functionality.
Store the accompanying remote control* in a dry place and do not expose it to heavy knocks
(for example, by throwing it). Only clean using a firmly wrung cloth.
Ramp down as
entrance/exit ramp
Ramp up as roll-off
protection
* Additional equipment

LIFTUP APS●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]
PAGE 10
7. Operating principles
The EasyLift platform is a so-called “dead man operated” lift, i.e. the push buttons are to be
held down for the entire movement.
Platform operation is straightforward; the user activates it using one of the push buttons on
the wall or by means of the supplied remote control*.
When the user is on the platform it is operated from the side panel, from which the user can
choose to be transported to the upper or lower level respectively.
8. Assembly
Platform installation is undertaken by an authorized service engineer.
Do not attempt to move, disassemble or repair your EasyLift. These tasks MUST be performed
by an authorized service engineer.
Improper assembly may increase the risk of user injury. Liftup is exempt from any liability if
assembly and installation are not performed by a authorized service engineer.
For more information or assembly documentation, contact Liftup on [phone], or via
www.liftup.dk.
9. Starting the platform
The control unit of the platform must always be connected to a 230V power point and be
powered on.
Under normal circumstances the platform is always in stand-by mode, i.e. it is ready for use
as soon as one of the operating buttons is pressed.
If the emergency stop has been pushed, this must be deactivated before the platform can be
used (refer to section 10 on Operating the platform).
* Additional equipment

LIFTUP APS●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]
PAGE 11

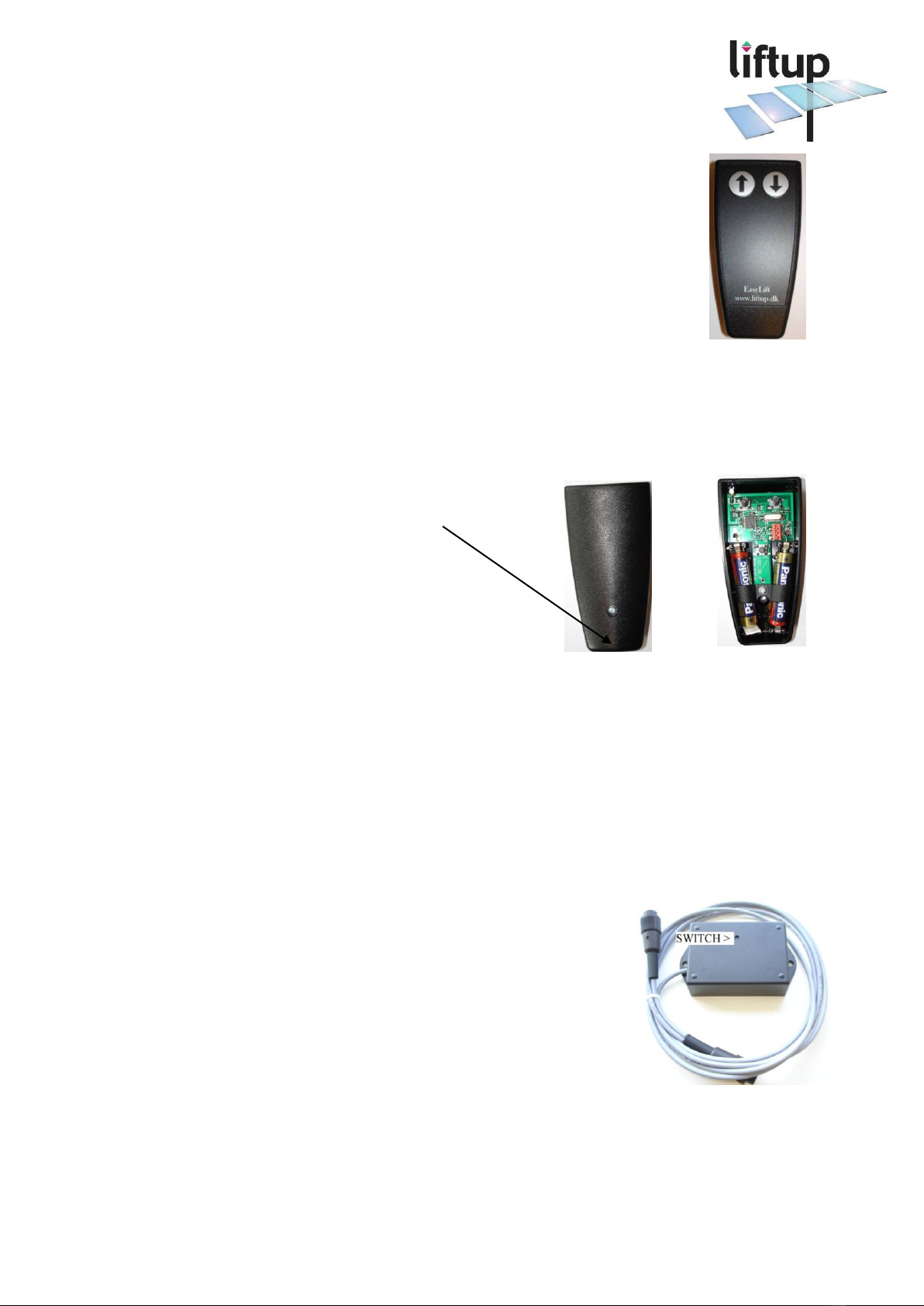

Fig. 2
Remote control
10. Operating the platform
Everyday use.
Your EasyLift is operated via the two operating panels above and below it, or by using the
remote control*. The remote control replaces the two button panels.
To call the lift down, hold down the button (Fig. 1) sited at the lower level or
on the remote control (Fig. 2) with the down arrow until the platform has
moved completely down and come to a stop, and the ramp has lowered (and
the doors have opened, if fitted*). Once the ramp has lowered, the user can
enter the platform.
To call the lift up, hold down the button (Fig. 1) sited at the upper
level or on the remote control (Fig. 2) with the up arrow until the
platform has moved completely up and come to a stop and the
doors* have opened (if fitted).
Once the doors have fully opened, the user can enter the
platform.
Three buttons are on the platform –one with an up-arrow, one with a down-arrow, and an
emergency stop.
When you are on the platform and wish to ascend to the upper level, press the up
button. The ramp or the doors* will close and the platform will start to move
upward. Hold down the button until you have reached the upper level, the platform
has come to a stop and the doors* have fully opened. You can now exit the platform.
When you are on the platform and wish to access the lower level, press and hold the
down button. The doors* will close and the platform will start to move downward.
Keep the button pressed until you have reached the ground level, the platform has
come to a stop and the ramp/doors* have fully opened. You can now exit the
platform.
Emergency stop
If the platform makes an unintended or undesired movement, or if it must be
stopped in order to avoid potential risks, press the EMERGENCY STOP button.
To reset the emergency stop, turn the button clockwise and the system is again
ready for use.

LIFTUP APS●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]
PAGE 12
11. Operation
For normal operation, EasyLift must always be connected to a 230V power supply.
It is very important that you do not disconnect or switch off the power because long-term
power outage (1-2 weeks) can drain the battery, thus causing your EasyLift to stop working.
Note that in the event of power failure an audible alarm will sound. For more information,
refer to the section below on Battery Backup.
Battery Backup.
In the event of a 230V power failure or if the control unit is for some other reason not
supplied with power, the system will automatically switch to backup mode. This means the
system will continue to function as normal since it is being powered by the battery backup.
Mains power failure will be signalled by a beeping alarm sound; as soon as the mains is
reconnected this alarm will cease. The system is now running as normal.
If it is not possible immediately to re-establish the mains supply and you wish to cancel the
alarm, press the emergency stop button. (Note that in such a case the system will need to be
calibrated –see below).
Important!
If both the 230V supply and the emergency stop have been disconnected at the same time, the
system automatically switches to a safety mode and must then be calibrated. (See below).
Calibration after emergency stop/power failure
If the emergency stop has been activated and the power supply has been interrupted, or if the
system registers other kinds of irregularities, it will require calibration. The platform then
goes into a special safety mode which only permits it to move downwards at very low speed.
Safe mode
In special conditions where the EasyLift is out of synchronization, the Easylift will go into a
safe mode where the Easylift will stop after around a 10 cm movement. Then press the
emergency stop and release it, after which, the down button is again activated. Continue this
procedure until the platform is completely down and the ramp lowered. Once the ramp is
down and all 4 legs are on the floor the system is calibrated and will now function as normal.
IMPORTANT!
If you notice the platform not moving as expected, or stopping after only a few
centimetres, there may be technical issues which need to be resolved by qualified
engineers. In such a case, contact your dealer.
On/Off switch must be on 1

LIFTUP APS●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]
PAGE 13
Fig. 2
Receiver
Fig. 1
Remote control
12. Maintenance
Only perform general cleaning using a firmly wrung cloth. Do NOT use
high-pressure hoses or hose down the platform directly.
Any oiled wooden surfaces should be treated regularly (approx. every 3
months) with wood oil in order to ensure long service life.
Regularly check under the platform for leaves, branches or other unwanted
objects and remove them to ensure its full and free movement.
Mechanical maintenance of the platform should normally only be
undertaken in connection with the bi-annual service inspection and be
performed by a authorized service engineer.
If any unexpected faults or abnormal sounds occur, contact your dealer at
once to have them remedied.
Remote control (accessory)
Two batteries are installed in the remote control. To ensure reliable function, replace
these every six months. To replace the batteries perform the following steps:
1. Undo the screw on the rear panel
2. Remove the rear panel.
3. Undo the screw holding the batteries.
4. Remove the old batteries and insert the new ones.
5. Replace the rear panel and test the device.
If the power has been disconnected from the handset or the receiver for a long period of time,
it may be necessary to calibrate the system (pair the two units). Proceed as follows:
How to pair receiver and transmitter:
Before you start:
-Check that the cables in the receiver are correctly connected to the black control box.
-Ensure that the system is powered up and that the emergency stop button is not
activated.
To pair the transmitter and receiver:
1. Use a pointed object and lightly press once on the switch in
the receiver unit* (see Fig. 2)
2. Next, and within 5 seconds, press the UP (↑) and DOWN (↓)
buttons on the handset at the same time for one second.
3. Test the system to ensure that the pairing has been correctly
performed; if not, repeat 1 and 2 above.
Up to 4 handsets can be connected to a receiver/platform.
*NOTE! If the switch is depressed for 2 seconds or more the pairings of all handsets will be
cancelled. In such a case all handsets will need to be paired with the receiver again.

LIFTUP APS●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]
PAGE 14
13. Installation and transfer
This form is to be filled out on installation.
Customer:
Product:
Address:
Product Type No.:
Postcode:
Serial No.:
Telephone:
Installation date:
Customer acceptance of installation:
Installed by:
Checklist:
No.
Description
Performed?
Comments
1
Tested jointly with customer

2
Emergency stop

3
Safety mode

4
Review of manual

5
Show squeeze protection incl. alarm

6
Overload

7
Ramp/door function (switch)

8
230V to control unit (must not be
switched off)

9
Any replacement of remote control
batteries.

10
Any pairing of remote control.

11

12

13

14


LIFTUP APS●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]
PAGE 15
14. Maintenance checklist
Besides the general maintenance described in section 12, as the manufacturer we
recommend that the platform undergoes a routine inspection every 6 months by an
authorized service engineer.
Your dealer will offer this service, but if you prefer to use another service provider, the owner
of the platform is responsible for ensuring that the chosen service engineer is qualified to
service the product.
For safety reasons it is very important to have this inspection, since if it is not made or
performed incorrectly, personal injury may result.
IMPORTANT! Before inspecting the platform, or the area below it, the platform
MUST be decoupled from the control unit so as to prevent unintended operation. It is
the responsibility of the service engineer to do this before beginning servicing work.
N.B. It is not enough to simply disconnect the 230V mains supply as the system will then
switch to battery backup.
The form below is to be filled out on every inspection.
Customer:
Product:
Address:
Product Type No.: 100xxx
Postcode:
Serial No.:
Telephone:
Installation date:
Contact person:
Telephone:
Last service date:
Installation data:
Platform:
2 Stop:
IN:
Out:
Stairs Timeout:
Agreed date and time of service visit:
Agreements on the visit:
Checklist:
SW Ver.
Retighten M10 screws in steps.
Retighten screws in rail guides.
Operating units
Emergency stop switch
Load sign
Acoustic check of actuators.
Load check of actuators.
IR safety
All pressure plate switches
Check of acoustic beeper
Acoustic check of ramp motor
Check of ramp friction
Joystick
Operating manual
Barrier check
Door function
Door locks and door switches
Spare parts replaced
Item no.
Quantity
Description
Unit price
Price
Follow-up by telephone
Comments:
Other comments:
Servicing technician:
Signature:

LIFTUP APS●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]
PAGE 16
15. Service logbook
Form to be filled in on each inspection.
Customer:
Product:
Address:
Product Type No.: 100xxx
Postcode:
Serial No.:
Telephone:
Installation date:
Contact person:
Telephone:
Installed by:
Installation data:
Platform:
2 Stop:
IN:
Out:
Stairs Timeout:
No.
Date:
Comments:
Signature
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

LIFTUP APS●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]
PAGE 17
16. Spare parts
Original spare parts must be used at all times. Replacement of parts may only be performed
by authorized service engineers.
If other spare parts are used than those prescribed, the warranty is voided and Liftup at the
same time releases itself from any liability in respect of product safety.
Part no.
Description
101175
Spare parts bundle - dealer
100255
Mounting kit for steps
100298
Ramp_lock suspension - Compact
100328
Plate for Lifting Column
100336
DC motor for Ramp - Compact
100338
Micro Switch - Safety system - V4L IP67
100339
Emergency Stop Button
100360
IR Safety termination board
100361
Mainboard - CP & EL
100363
Programming cable incl. software –Compact/EasyLift
100409
Micromatch Cable for IR-print
100410
SUB15 M/F extension cable
100413
Spring for ramp lock.
100418
Joystick w/ Rubber –30 mm
100419
Actuator - M/F extension cable
100425
SUB15-7/7 Spiral Cable
100426
DC Motor for Safety Barrier
100429
Pushbutton - Lift
100430
Pushbutton - Stairs
100433
Micromatch 6-pin connector
100455
Cable for DL4
100487
DL4 for Compact, collected + extended
100582
Actuator internal fittings (DB4)
101131
Actuator sleeve valves, set
101157
Cable with 4-pole DIN plug, 10m

LIFTUP APS●HAGENSVEJ 21 ●[phone] ●DK-9530 STØVRING ●DENMARK ●[e-mail]
PAGE 18
17. Disassembly
In order to ensure correct disassembly before any reuse in another installation, we
recommend employing a authorized service engineer. Contact your dealer for disassembly
assistance.
Note that there is a risk of overturning when EasyLift is detached from the building.
18. Disposal
It is the owner’s responsibility to dispose of this product in accordance with the regulations
applicable at the time.
Note, in particular, that the batteries in the control unit must be disposed of separately.
If necessary, ask your dealer for assistance with disposal.
19. Warranty
The warranty is valid in accordance with the regulations governing warranties at the time in
question. Refer to the terms of sale and delivery for further information.
The warranty is only valid if the prescribed service inspections are carried out.
Should the customer decide to opt out of these inspections, Liftup is no longer liable for
product safety. It is then the responsibility of the customer to ensure that the platform at all
times complies with the applicable safety regulations.
Wishing you much pleasure and good service from your
new EasyLift!
Best wishes, Liftup
