8021 Open Downlight Trim and C6DAIC Deep Housing Frame-In Kit Shown
6” Dia
Calculite®Evolution Compact Fluorescent Downlight C6CFL32
Page 1 of 1 6" Aperture Triple Tube CFL Conversion Kit
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
L ghtol er a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 67 - 710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Thomas Group LLC (Lightolier Division) • B0711
Features
CFL Convers on K t: Designed for field conversion of 6” Evolution incandescent
120V Frame-In kit to energy saving compact fluorescent lamp without additional
rewiring, or can be used in new installation. Use compatible Calculite CFL
reflector trims.

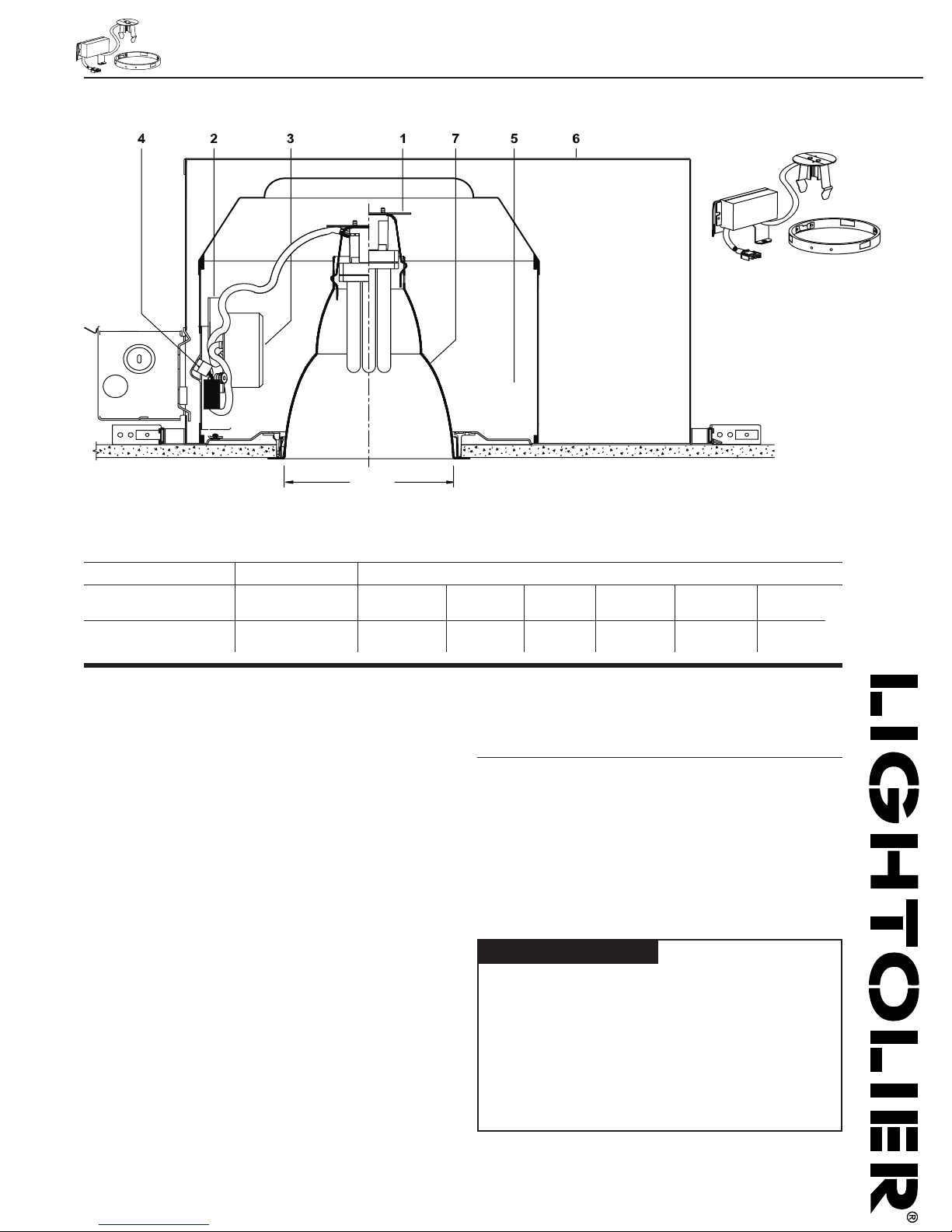

1. Lampholder Assembly: Die-formed lampholder plate and spring snaps onto
reflector neck for easy tool-less installation; assures lamps maintain proper
optical alignment to reflector. Prewired with #18 ga. AWM leads to ballast.
2. Ballast Mount ng Bracket: Die-formed steel, 16 ga. galvanized steel;
slides onto frame housing for easy attachment. Built-in rubber feet to ensure
quiet operation.
3. Ballast:: 120V, electronic, short circuit and end-of-lamp-life protection
THD<10%, Class P, high power factor, No PCBs, quiet operation. Meets FCC
part 18 limits for conducted and radiated electromagnetic radiation to
eliminate interference with other electronic devices.
4. Qu ck Power Plug: Keyed to accept connector from Frame-In Kit; provides
power to ballast.
5. Mount ng R ng: Die-formed steel ring with springs secure reflector trim to
Frame-In Kit.
6. Frame-In K ts: Compatible frames are listed above. See separate reflector
trim/frame-in kit specification sheets for additional information.
7. Reflector Tr ms: Compatible reflector trims are listed above. See separate
reflector trim specification sheets for complete catalog number, finishes, and
details.
Complete lum na re cons sts of Fluorescent Convers on K t, Evolut on Incandescent Frame-In K t & Fluorescent Reflector Tr m. Order each separately.
CFL Convers on K t Frame-In K t Reflector Tr m Ser es
Compatible Evolution Vertical Open Horizontal Lensed Cross blade Vertical Open Lensed
Catalog No. Lamp Frame-in Kit Downlight Downlight Downlight Downlight Wall Washer Wall Washer
C6CFL32 1-26 or 32W C6DAIC 8021 8031 8091 8091CB 8021WW 8046
Triple Tube
Opt ons & Accessor es
2-W re D mm ng Consult factory
Electr cal
Lamp Input Watts Input Current Ballast Factor
1-26W 29 0.2 A 1.05
1-32W 32 0.31A 1.05
Labels
UL listed for damp locations, I.B.E.W.
C6CFL32
