ProSpec™ 277V Track Lighting 37000
Page 1 of 4 Track
Features
1. Track: 6063T-5 structural aluminum extrusion; average wall thickness .08.
2. Conductors: “U” shaped copper conductor, increases contact surface area
minimizes contact resistance provides reliable positive connection.
3. Insulated liner: .040” wall, high temperature extruded thermoplastic.
4. Toggle Bolts and Screws: furnished with track unit.
5. Dead End Cap: molded thermoplastic.
Mechanical
Track units plug together and lock securely to prevent accidental separation.
ProSpec™ track fixtures can be attached at any point along the track. Track units
may be field cut.
Electrical
(2) circuits. Each circuit is 277V, 60Hz, 20 AMP compatible. Each circuit has
dedicated neutral for maximum control flexibility. Track units are continuously
grounded throughout. Electrical conductors are concealed in an insulated liner
in the track. Intended for wiring to branch circuit building wire with ground, in
accordance with National and local codes.
Finish
All painted finishes are baked enamel.
Label
cUL us, I.B.E.W
Catalog No.
Finishes Plain Track
4' 8' 12'
Matte White 37004WH 37008WH 37012WH
Matte Black 37004BK 37008BK 37012BK
Plain Track
7 Feed Track
47-5/8"
95-5/8"
143-5/8"
13/64"
13/64"
10
11
12
13
Feed
Feed
Feed
See Detail A ( pg 4)
4
1
2
3
1 3/16"
1 9/16"
3/8"
5
13/64"
48"
96"
144"

Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0510
ProSpec™ 277V Track Lighting 37000
Page 2 of 4 Track

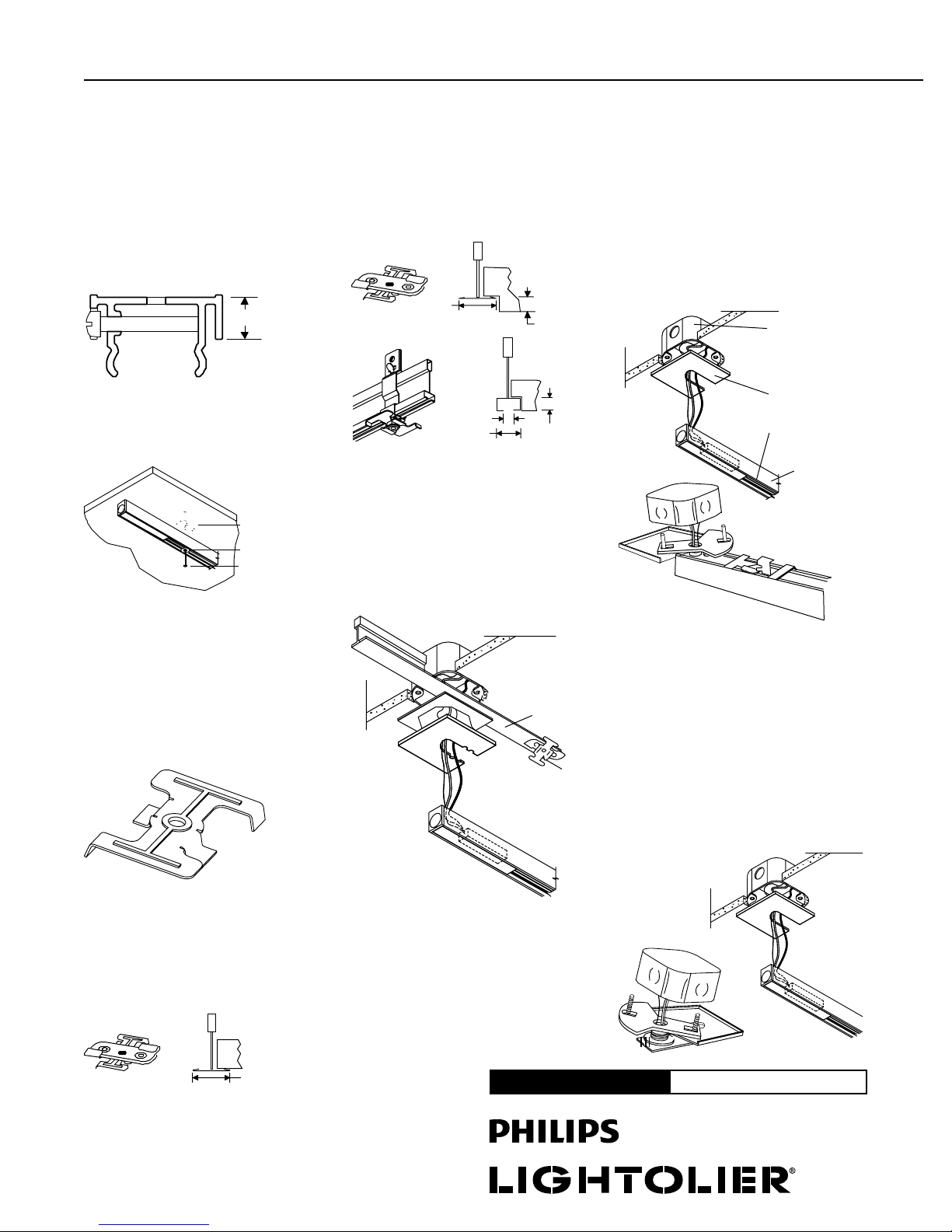

Track Mounting Clips
3/8” Standoff Clips, order separately. Recommended
2 clips per 4’, 3 clips per 8’, 4 clips per 12’ track units.
Use additional clips for more support in high load
applications. Toggle bolts are included.
Not recommended for wall mounting.
26478WH Matte White (4) per pack.
26478BK Matte Black (4) per pack.
Direct Mounting
Mount through existing holes in track. Top of track
sits flush to ceiling.
Recommended for wall and ceiling mounting.
1/16" Flush Mount Clips
Nylon coated spring steel. Spaces track 1/16” from
ceiling. Recommended 2 per 4’, 3 per 8’, and 4 per 12’
track sections. Use additional clips for more support
when track is heavily loaded. Clips may be ordered
separated.
Not recommended for wall mounting.
56451WH Matte White (set of 10)
56451BK Matte BK (set of 10)
Grid Ceiling Mounting Clips
Square Edge Panels and 9/16” - 15/16” T-Bars Clip
is supplied assembled. Mounts easily onto T-Bars by
rotating clips. Use two per 4’ track, three per 8’ and
12” track.
6089 (9) Clips
Regressed Edge Panels
9/16” - 15/16” T-Bars
Clips or supplied assembled. Mounts easily onto
T-Bars by rotating clips. Use two per 4’ track, three
per 8’ and 12’ track.
Grid Ceiling Canopy Kit (End & Floating)
For mounting the track to grid suspended ceilings.
Mounts to ceiling types shown above using clips
6087, 6088, or 6089 which are ordered separately.
Includes a special outlet box to fit onto runners.
Power can be fed to Feed Track, Live End, “L”, “T”,
“X”, In-Line connectors and Powertrip canopy ver-
sion. Mounts along runner or at the intersection of
runners.
26096WH Matte White
Surface Canopy Kit (End)
Canopy can be mounted directly over the live end,
in-line, ‘L’, ‘T’, and ‘X’ connectors. Canopy also can
be positioned anywhere on the track up to 4' from
edge of the track extrusion (floating feed, wire
cover included). Power can be fed into live end and
Powertrip only utilizing the floating feed option.
Canopy mounts to a 4” octagonal outlet box. Use
1/16” flush mounting clips (supplied with track) or
direct mount to ceiling or wall.
26060WH Matte White
26060BK Matte Black
Standoff Canopy Kit (End)
For use with 26478WH, BK 3/8” standoff mounting
clips (ordered separately). Canopy can be mounted
directly over the live end, in-line, ‘L’, ‘T’, and ‘X’ con-
nectors. Canopy also can be positioned anywhere on
the track up to 4' from edge of the track extrusion
(floating feed, wire cover included). Power can be fed
into live end and Powertrip only utilizing the floating
feed option. Canopy mounts to a 4” octagonal outlet
box. Use 1/16” flush mounting clips (supplied with
track) or direct mount to ceiling or wall.
26061WH Matte White
26061BK Matte Black
Track Mounting and Power Feed Systems
Plain Track
7 Feed Track
47-5/8"
95-5/8"
143-5/8"
13/64"
13/64"
10
11
12
13
Feed
Feed
Feed
See Detail A ( pg 4)
4
1
2
3
1 3/16"
1 9/16"
3/8"
5
13/64"
48"
96"
144"
Toggle Bolt
Nylon Spacer
Screw
T-Runner
Square
Edge Panel
9/16" - 15/16"
6088 (9) Clips
9/16"
15/16"
1/4" -
9/16" 5/16"
Slotted Grid
Runner
T-Runner
Regressed
Edge Panel
6087 (9) Clips
6088 (9) Clips
Slotted Grid
Runner
5/16"
9/16"
1/4"
1/8" &
4" Octagon
Outlet Box
(by others)
T-Bar
T-Bar Mounting Clip
Live End Connector
Track
4" Octagon
Outlet Box
(by others)
Square Canopy
Live End
or Connector
Track
1/16" Flush
Mounting Clip

Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0510
ProSpec™ 277V Track Lighting 37000
Page 3 of 4 Track
Swivel Stem Mounting Kits
Adjusts from 0° to 90°. Can be field cut. 48”
stem. 8' maximum length of suspension. Can
feed live end only. Stem can be field cut.
7480 Matte White
7481 Matte Black
Cable Power Feed for
Suspended Mounting
(3) 12ga wires and (1) 12ga ground. Fiber glass jacket
white or black. Can be field shortened. Can feed into
all connectors.
37005WH/BK ProSpec 277V, 2 Circuit, 20A Power
Feed for Suspended Mtg. 5', White/Black
37010WH/BK ProSpec 277V,
2 Circuit, 20A Power Feed for
Suspended Mtg. 10', White/Black
37020WH/BK ProSpec
277V, 2 Circuit, 20A Power
Feed for Suspended
Mtg. 20', White/Black
Track Mounting and Power Feed Systems
3" or 4" Octagon
Outlet Box
(by others)
This end may be
field cut.
Stem 1/4"-18
NPSM Thread
Clamp Set
3" or 4" Octagon
Outlet Box
(by others)
0° - 90° Ceiling
Slope
This end may be
field cut.
Stem 1/4"-18
NPSM Thread
Clamp Set
Stem Extension
1/2" O.D. Steel
Tube
1/4 - 18 NPSM
Thread.
Clamp Set
1-3/16"
4-3/16" 3-1/8"
Line
Joint
See Detail A
(pg. 4)
Live End
5-7/8"
3/8"
Connector
Beam
Jump
Track Track
Live End
Connector
Wall
Live End
Connector
3/8" Connector
Jump (Conduit)
Track Track
Live End
Connector
Live End
Connector
Wall
Stem Mounting Kits
Mounts to a 4” Octagon outlet box or surface.
Use two per 4’ track, three per 8’ and 12’ track.
When making a run of track do not exceed 4’
between stems. Use additional stems for addi-
tional support.Can feed live end only. 8ft maxi-
mum length of suspension. Stem can be field cut.
Not recommended for wall mounting.
18” Stem 48” Stem
Actual length for ceiling to top of track:
17 3/8” 47 3/8”
Matte White 7584 7586
Matte Black 7683 7681
Stem Extension Kit
Mounts to any system kit to extend its length to 48”.
Cannot be field cut.
7582 Matte White
7680 Matte Black
Live End Feed Connector (Live End)
Feeds power at either end of track. Not polarized.
Can be fed directly from surface or from ceiling using
a 3/8” or 1/2” electrical connector (by others).
37046WH Matte White
37046BK Matte Black
Over Beam or Through Beam
Through Wall or Column
Powerfeed Cord 10'
To be used with stems or
cables. (3) 12ga wires and
(1) 12ga ground. Fiber glass
jacket white or black. Can
be field shortened. Not a
mechanical support. Can
feed into all connectors.
37310WH White
37310BK Black
.295"
Cable Suspension Kit
Maximum distance
between suspension
cables is 8ft.
37205 Black/White
37210 Black/White
37220 Black/White
.295"
Cable length
adjuster
.062 Dia
Steel Cable
.062 Dia
Steel Cable

Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • C0510
ProSpec™ 277V Track Lighting 37000
Page 4 of 4 Track
Invisible Coupler
Used to connect two pieces of track together
mechanically and electrically. Power cannot be feed
into the mini-coupler.
37049WH Matte White
37049BK Matte Black
Detail A
Use 12ga. solid copper wire for feed
connections including ground.
NEUT
NEUT
GN D
See Detail A
Typ. for all Track
Connections
4.18"
3.59"
5 1/4"
Extruded Aluminum Housing
3 7/16"
Line Joint
No Space
Two wires may be
attached to one
screw terminal.
Feed Connections for Surface, Cable and Stem Mounted Patterns
All connectors can be fed directly from above using a 3/8” or 1/2” electrical connector (by others).
NEUT
GN D
Extruded Aluminum Housing
10 9/16"
3.59"
3.59"
5 1/4" 7 3/16"
NEUT
See Detail A
Typ. for all Track
Connections
NE UT
NE UT
GND
7 3/16"
3.59"
See Detail A
Typ. for all Track
Connections
Extruded Aluminum Housing
10 9/16"
GN D
6.44"
Extruded
Aluminum
Housing 6 3/16"
3 3/32" See Detail A
Typ. for all Track
Connections
NEUT
NEUT
“L” Connector
The “L” connector is pre-wired.
Not polarized.
37050WH Matte White
37050BK Matte Black
“T” Connector
The “T” connector is not pre-wired or
polarized. Used to make “T” pattern with
track. 12ga. copper jumper wires supplied
to make all necessary connections.
37051WH Matte White
37051BK Matte Black
“X” Connector
The “X” connector is not pre-wired. Used to make
“X” pattern with track. 12ga. copper jumper wires
supplied to make all necessary
connections. Not polarized.
37052WH Matte White
37052BK Matte Black
In-Line Connector
Permits power feed-in between
track units in a straight run of
track. The “In-Line” connector
is pre-wired. Not polarized.
37054WH Matte White
37054BK Matte Black
