Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • G07811
Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lytecaster®Recessed Downlighting 1170M1
Page 1 of 2 6 3/4" Aperture Basic White Reflector Reflector Trim
Features
1. Reflector: Hydroformed aluminum, .040" thick (18 ga.) ; non-yellowing,
scruff-resistant Perma White finish with 88% reflectance; white trim flange.
2. Cone: Injection molded high temperature opaque white polymer.
3. Frame-In Kit: (1102P1 standard frame shown). Other frames listed above
and shown on the right. See Frame-In Kit specification sheets for more
details.
Accessories
Medium Base Socket Extender: 1968 - For short neck Par30 lamp
Labels
UL (Suitable for Damp Locations), I.B.E.W.
1170M1/1102P1
Standard Incandescent
1170M1/1104IC/N
0™IC/Non-IC
Convertible
1170M1/1100 DEEP IC Series
Incandescent Insulated Ceiling
7 1/2”
1170M1/1103R
0™Non-IC
Remodeler Ring
6 5/8”
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim
Frame-In Kit — See Individual Frame-In Kit Specification Sheets
1170M1
Basic White
Incandescent Fluorescent
Frame-In Kit Ceiling Type Lamping Height Frame-In Kit Ceiling Type Lamping Height
1102P1
1103R
Non-IC
Non-IC Remodeler
75W A19, PAR30*
85W BR30
6 5/8"
6 5/8"
1104F13 Series IC (1) Quad/Triple 13W (GX24q-1) 7 1/2"
1104F18** Series IC (1) Quad/Triple 18W (GX24q-2) 7 1/2"
1100IC
1100AICM
1104IC/N
1104ICR
1104ICX/N
IC
AirSeal®IC
AirSeal®IC
IC Remodeler
AirSeal®-IC
75W PAR30
85W BR30
90W PAR38†*
7 5/16"
7 5/16"
7 1/2"
7 1/2"
7 1/4"
1104F26** Series IC (1) Quad/Triple 26W (GX24q-3) 7 1/2"
1100FTU Series Non-IC (1) Triple 26/32W (GX24q-3) 6 5/8"
1100AICMFT AirSeal®-IC (1) Triple 26/32W (GX24q-3) 6 7/8"
1910XDH1 Conversion Kit (2) Quad 13W (GX23-2) 6 5/8"
1910XFH1 Conversion Kit (1) Quad 13W (GX23-2) 6 5/8"
1100DICM
1100DAICM
Deep IC
Deep AirSeal®-IC
75W PAR30*
85W BR30
9 1/2"
9 1/2"
1104IC/N
1104ICR
Non-IC
Non-IC Remodeler
75W PAR30
85W BR30
7 1/2"
7 1/2"
* Use Socket Extender 1968 For Short Neck PAR30.
** Lightolier recommends the use of triple tube lamps
Lytecaster®Recessed Downlighting 1170M1
Page 2 of 2 6 3/4" Aperture Basic White Reflector Reflector Trim
Job Information Type:
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • G0711

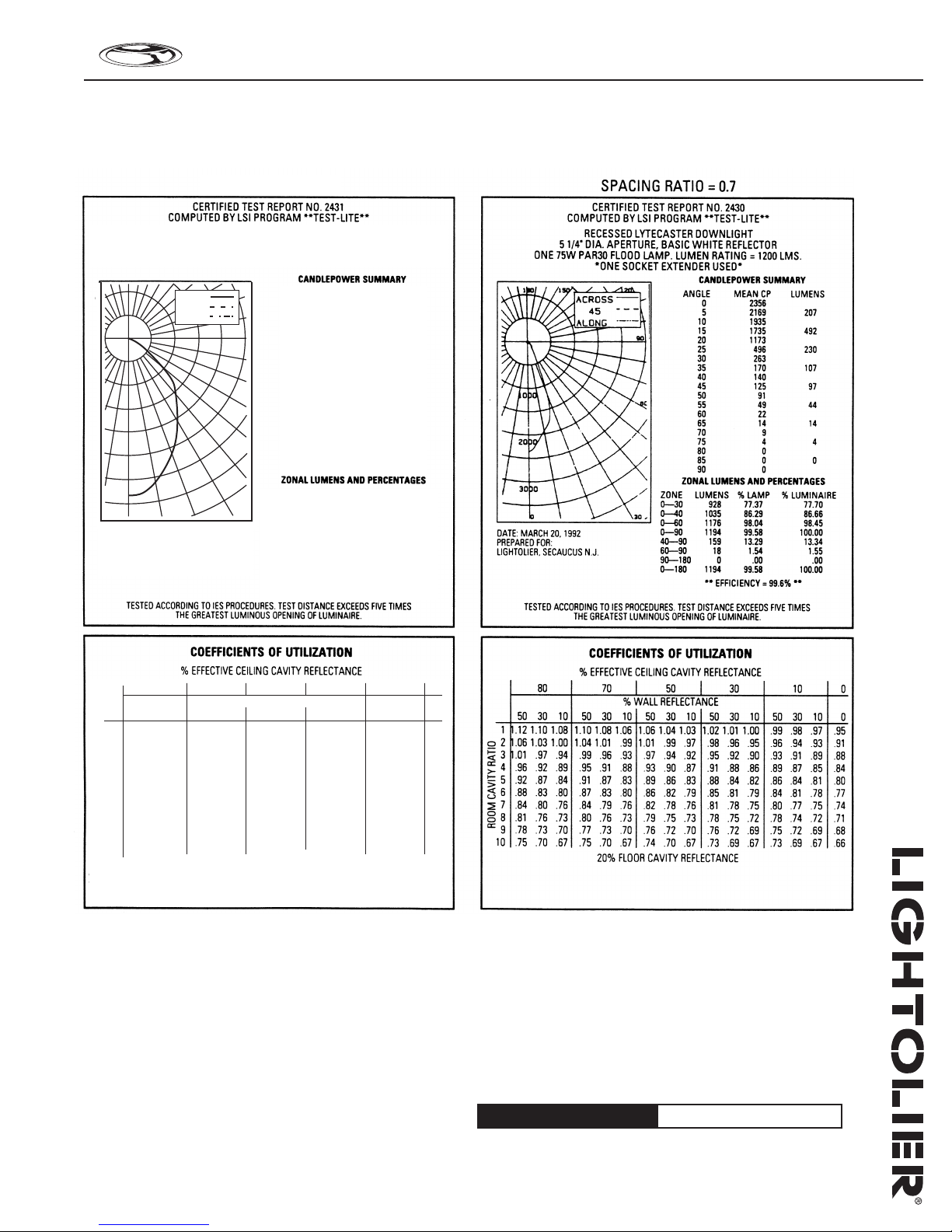

To convert lighting data for a lower wattage incandescent lamp of the same type, multiply the footcandle (or candlepower) values by the ratio of the lumens of the two lamps.
The coefficients of utilization remain the same.
Conversion Factors: 2 Lt. 13W Quad Tube, C. U. x 0.40, 1 Lt. 13W Qyad Tube, C. U. x
0.45. 75W A19, C. U. x 0.50.
80 70 50 30 10
% WALL REFLECTANCE
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0
1 1.09 1.06 1.04 1.07 1.04 1.02 1.03 1.01 .99 .99 .97 .96 .96 .94 .93 .91
2 1.00 .96 .92 .99 .94 .91 .95 .92 .89 .92 .90 .87 .90 .87 .85 .83
3 .92 .87 .82 .91 .86 .82 .88 .84 .80 .86 .82 .79 .83 .80 .78 .76
4 .85 .79 .74 .84 .79 .74 .82 .77 .73 .80 .76 .72 .78 .74 .71 .70
5 .79 .72 .67 .78 .71 .67 .76 .70 .66 .74 .69 .66 .73 .69 .65 .64
6 .73 .66 .61 .72 .66 .61 .70 .65 .61 .69 .64 .60 .68 .63 .60 .58
7 .67 .60 .56 .66 .60 .55 .65 .59 .55 .63 .58 .54 .62 .58 .54 .53
8 .62 .55 .51 .61 .55 .50 .60 .54 .50 .59 .54 .50 .58 .53 .50 .48
9 .57 .51 .46 .57 .50 .46 .56 .50 .46 .55 .49 .45 .54 .49 .54 .44
10 .53 .46 .42 .52 .46 .42 .51 .46 .42 .51 .45 .41 .50 .45 .41 .40
20% FLOOR CAVITY REFLECTANCE
ROOM CAVITY RATIO
SPACING RATIO = 0.9
RECESSED LYTECASTER DOWNLIGHT,
5 1/2” DIA. APERTURE, BASIC PERMA-WHITE
ONE PHILIPS 85W BR30 FLOOD LAMP,. LUMEN RATING = 925 LMS.
ANGLE MEAN CP LUMENS
0 678
5 670 36
10 642
15 582 164
20 502
25 428 200
30 369
35 322 203
40 281
45 223 167
50 136
55 70 71
60 42
65 30 31
70 23
75 16 17
80 9
85 5 6
90 2
ZONE LUMENS % LAMPS % LUMINAIRE
0-30 426 46.14 46.29
0-40 629 68.09 68.32
0-60 868 93.89 94.20
0-90 922 99.68 100.00
40-90 292 31.58 31.68
60-90 53 5.78 5.80
90-180 0 .00 .00
0-180 922 99.68 100.00
** EFFICIENCY = 99.7% **
DATE: DATE APRIL 10, 1997
PREPARED FOR:
LIGHTOLIER, FALL RIVER, MA
200
400
600
030
60
90
180 150 120
ACROSS
45
ALONG
10 20 30 40 50 60 70 80 90
3 4 5 6 7 8 9 10
CENTER TO CENTER DISTANCE OF FIXTURES IN FEET
AREA PER FIXTURE IN SQUARE FEET
60
50
40
30
20
10
AVERAGE INITIAL FOOTCANDLES
ROOM SURFACE REFLECTANCES:
80% Ceiling; 60% Walls; 20% Floor
925 Lumens Per Lamp
Large Room (RCR=1)
Small Room (RCR=5)
