Lightolier Armstrong F7000-17 User manual

Job Information Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
"JSQPSU3PBE'BMM3JWFS."tt'BY
We reserve the right to change details of design, materials and finish.
XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

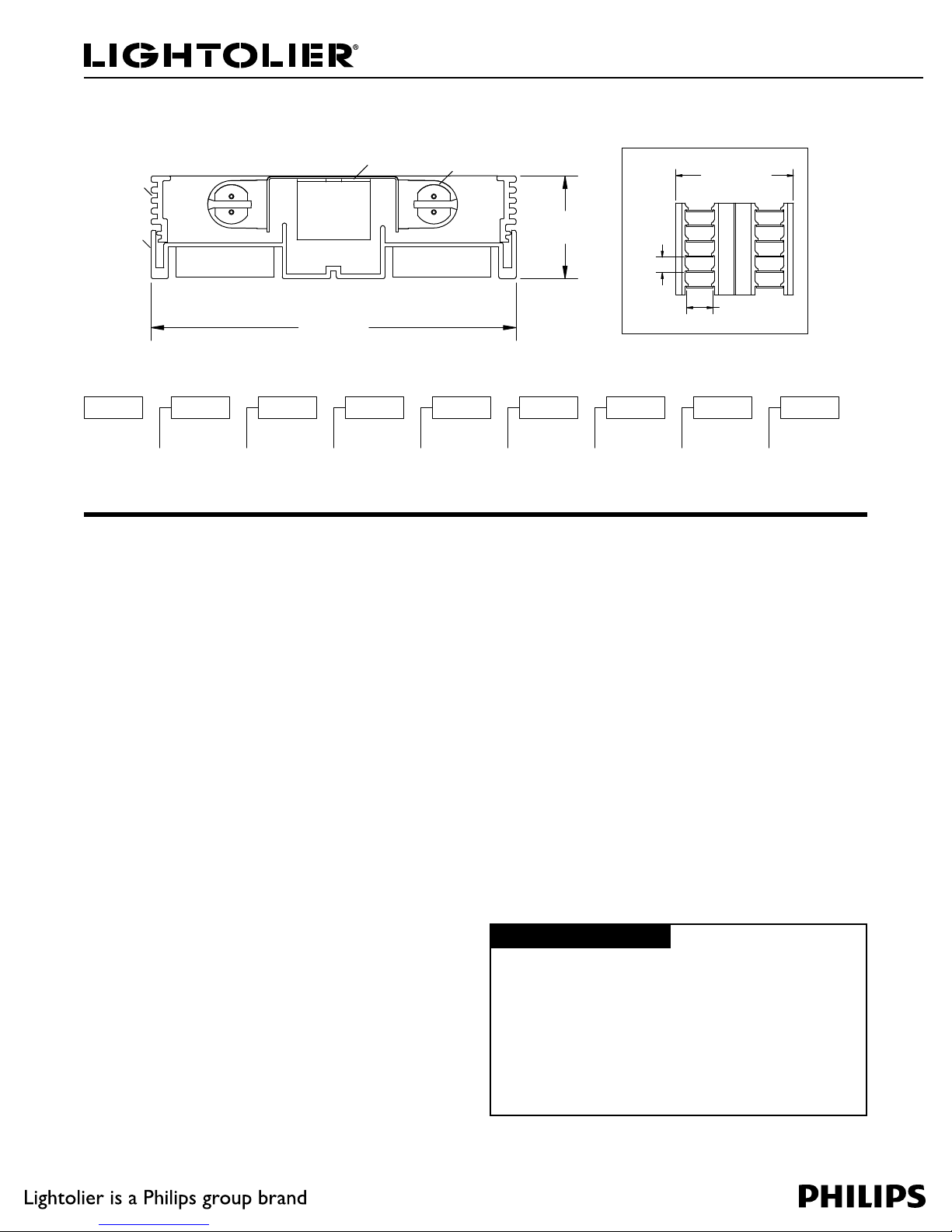

Lighting Systems F7000-17
1BHFPG '4FSJFT-JHIU5-PVWFS4JEF-FOT
&
5.77” (14.66cm)
1.63”
(4.14cm)
1
1
54
5.770” (14.66cm)
1.304”
(3.31cm)
.750
(1.91cm)
6. Louver Shielding
Features for Suspended Modules
1. Housing: Single piece of high purity extruded aluminum, a portion fromrecy-
cled material. Extruded acrylic lens reveal installed on the top of the housing,
runs the length of the housing.
2. Housing End: Die-cast aluminum, welded in place.
3. End Cap: Die-cast aluminum. Encloses the suspension cable and power feed
cord for the end of the run.
4. Lamps: F28T5 or F54T5HO as specified. By others. Installed fromthe ceiling
side of the luminaire.
5. Ballast: Electronic. Meets ANSI starting, end-of-life protection and sound rat-
ing specifications. Low THD.
6. Shielding: Integral, regressed flat louver blades punched and formed fromfix-
ture housing, finished to match, no light leaks. Blades are .56” (1.42cm) high
on .75” (1.91cm) centers.
Electrical
Connections: 18 gauge pre-wired with polarized cannon plug connectors for
simultaneous mechanical/electrical connection.
Emergency Battery Pack: 90 minute operation, 700 lumens for 54W and 520
lumens for 28W.
Dimming: Advance Mark X standard (no additional wires required); use compat-
ible dimmer. Dimming ballasts using additional control wires (eg Lutron Hi-Lume
or ECO-10, Osram) can be used; consult factory and use X4 or X5 power feeds
with additional leads, as appropriate. Ballast not to exceed 1.25” (3.18cm) wide by
1.20” (3.05cm) high.
iGEN: F7000 accepts iGEN (DALI) with supplemental 2-wire control technology.
Use with X5 power feed.
Power Tray: Code-gauge, die-formed steel, pre-paint white enamel finish;
secured by quarter-turn fasteners for easy access to wiring. Holds ballasts, sock-
ets, and wiring. Accepts ballasts up to 1.25” (3.18cm) wide by 1.20” (3.05cm) high.
Power Feeds: Standard 18/3 power feed is rated for 10 amps. X4 power feed
is 18/4 and is rated for 7 amps. Observe amperage limitations and provide addi-
tional Intermediate Power Cables, as required. When providing an additional
power feed, the through wiring fromthe previous module must be disconnected
fromthe cannon plug and capped.
Dual Switching: Use DS option for separate switching of the lamp rows. DS
includes a 4th through wire. Use X4 power feed.
Finish
Powder-coated, baked enamel, white or aluminum, as specified.
Mounting
Cable suspension is on 48” (121.92cm) and 96” (243.94cm) centers and consists of
a 4 1/2” (11.43cm) diameter canopy finished white enamel and a 1/16” (0.16cm)
diameter stainless steel aircraft cable adjustable up to 36” (91.44cm).
Labels
UL, cUL and I.B.E.W.
Ordering Instructions
Individual Fixtures:
1. Order one MODULE.
2. Order one POWER FEED END SET
Continuous Rows:
1. Order the appropriate number of MODULES for the complete run.
2. Order one POWER FEED END SET.
3. Order one INTERMEDIATE CABLE SET per MODULE minus one.
4. For runs that exceed amperage limits, order the appropriate number
of CABLE/CORD SETs.
Ordering Information
F7
Family Series
4
Type Lamps Color Wattage Voltage Length Options
4 2
4= Block
w/ Lens
4= Louver 2= 2 Lamps AL = Aluminum
WH = White
1= 28W
2= 54W
3= 28W Dimming
4= 28W EM
5= 54W Dimming
6= 54W EM
1= 120v
2= 277v
4= 4’ (121.92cm)
8= 8’ (243.84cm)
X4 = 4 Through
Wires
X5 = 5 Through
Wires
DS = Dual Switch
Complete Ordering Instructions below.
Factory installed ballast disconnect allows the ballast to be disconnected fromand
reconnected to incoming power under load without turning the entire circuit off.
Armstrong®5FDI;POFÜ$PNQBUJCMF

Job Information Type:
"JSQPSU3PBE'BMM3JWFS."tt'BY
We reserve the right to change details of design, materials and finish.
XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt
Lighting Systems F7000-17
1BHFPG '4FSJFT-JHIU5-PVWFS4JEF-FOT
&
CANDLEPOWER
ZONE 0 22 45 67 90
DEG. CANDELAS
0 1260 1260 1260 1260 1260
5 1227 1246 1253 1262 1269
15 1074 1125 1211 1310 1363
25 871 961 1147 1331 1403
35 643 762 989 1055 1076
45 406 566 652 641 628
55 244 353 364 423 451
65 158 215 241 280 310
75 83 125 156 184 196
85 16 52 83 110 118
95 60 149 148 162 164
105 321 520 527 520 508
115 581 819 938 948 945
125 829 1046 1224 1322 1348
135 1033 1197 1427 1523 1551
145 1198 1301 1499 1618 1662
155 1317 1374 1486 1583 1620
165 1393 1413 1446 1483 1504
175 1424 1427 1418 1415 1418
180 1417 1417 1417 1417 1417
Performance
CANDLEPOWER CURVE
1600
1200
800
400
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
REPORT NO.: ITL54677.IES
LAMPS: 2-F54T5
LUMENS: 5000 each
EFFICIENCY: 81.7%
CAT. NO.: F7442WH214
DISTRIBUTION
Zone Lumens % Lamp %Luminaire
0 - 90 2701 26.6 33.0
90 - 180 5491 55.1 67.0
0 - 180 8191 81.7 100.0
Mounting Accessories
Power Feed End Set:
F7EC36WH = White
F7EC36AL = Aluminum
F7EC36WHX4 = White 4 Wire
F7EC36ALX4 = Aluminum4 Wire
F7EC36WHX5 = White 5 Wire
F7EC36ALX5 = Aluminum5 Wire
Intermediate Power Cable
F7CC36 = 3 Wire
F7CC36X4 = 4 Wire
Intermediate Cable Set
F7C36
80% 70% 50%
50 30 10 50 30 10 50 30 10
0 858585 7676 76 616161
1 747067 6764 62 535149
2 656056 5954 51 474442
3 575147 5147 43 423835
4 504540 4641 36 373330
5 463934 4135 31 332927
6 413429 3731 28 302623
7 363026 3328 24 282320
8 332723 3025 21 252118
9 302520 2823 19 231916
10 28 22 18 26 20 17 21 17 14
20% FLOOR CAVITY REFLECTANCE
COEFFICIENTS OF UTILIZATION
% EFFECTIVE CEILING CAVITY REFLECTANCE
WALL REFLECTANCE
ROOM CAVITY RATIO
“X” Joiner Block
F7XWH = White
F7XAL = Aluminum
12" (30.48cm)
“T” Joiner Block
F7TWH = White
F7TAL = Aluminum
6" (15.24cm)
12" (30.48cm)
“L” Joiner Block
F7LWH = White
F7LAL = Aluminum
6"
(15.24cm)
Fixture Lengths & Mounting Reflected (Plan View)
4'-0" (121.92cm)
8'-0" (243.84cm)
4'-0"
(121.92cm)
3/4" (1.91cm)
1-1/2"
(3.81cm)
3/8" (0.95cm)
END OF ROW DETAIL
GAP BETWEEN FIXTURES
JOINING DETAIL
4'-3" (129.54cm)
8'-0" (243.84cm)
4'-0" (121.92cm)
12'-3" (373.38cm)
8'-0" (243.84cm)
8'-0" (243.84cm)
16'-3" (495.30cm)
8'-3" (251.46cm)
8'-0" (243.84cm)
20'-3" (617.22cm)
8'-0" (243.84cm)
Inline Joiner Block
F7ILWH = White 1’ (30.48cm)
F7ILAL = Aluminum1’ (30.48cm)
F7IL2WH = White 2’ (60.96cm)
F7IL2AL = Aluminum2’(60.96cm)
F7IL4WH = White 4’ (121.92cm)
F7IL4AL = Aluminum4’ (121.92cm)
F7IL8WH = White 8’ (243.84cm)
F7IL8AL = Aluminum8’ (243.84cm)
12" (30.48cm)
