Vetro Architectural Decorative FP02
Page 1 of 2 Pendant
Features
1. Power Compartment: Die Cast and Machined Aluminum Components.
Brushed and Clear Lacquer Finish.
2. Primary Diffuser: (PG01) Triplex hand blown glass or (PA01) opal acrylic.
3. Decorative Glass/Acrylic Assembly: (GL01) A straight section of clear
extruded glass with polished edges or (GL01A) a straight section of clear
acrylic. All outer assemblies come with a die cast aluminum holder ring with
stainless steel support pins.
Lamping (by others)
Incandescent: 150W Max. T-4 Mini Candelabra
Compact Fluorescent:
General Electric Osram/Sylvania Philips
(1) 26W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F26TBX/*/A/4P CF26DT/E/IN/* PL-T26W/*/4P/Alto
(1) 32W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F32TBX/*/A/4P CF32DT/E/IN/* PL-T32W/*/4P/Alto
*Manufacturers Color Temperature Designation
7"
4 3/4"
16 1/2"
2 1/4"
1
2
3
7"
4 3/4"
Electrical
Lampholders
Incandescent: E11 Base, Porcelain, Copper Nickel Plated Screw Shell.
Compact Fluorescent: 4-Pin, 26/32 watt base: GX24q-3
Ballasts: Fluorescent: Electronic 26 Watts 32 Watts
Voltage 120 277 120 277
Total Imput Watts 28 28 38 36
Max. Line Current (Amps) .25 .11 .30 .13
Labels
cULus Listed. Suitable for Damp Locations.
4 5/8"
3/8" Swivel Joint
3/8" Steel Tubing
4 5/8"
3"
3/8"
4 5/8"
1 1/2"
3 3/4"
3/8"
Close to CeilingStem
Cable/Cord Track Mount
Ordering Information: Complete fixture consists of Powerhead + Inner Diffuser + Outer Glass/Acrylic + Suspension Kit. Each sold separately (ie PM32SA + PG01 + GL01 + SK01).
Spec ID (reference only) Powerhead Inner Diffuser Outer Glass/Acrylic Suspension Kit Lamp Volts
FP02 PM32SA
PG01 or PA01 GL01 or GL01A *See suspensions below
CFL, 26/32 120/277V
FP02MX1 PM32MX1SA Mark X Dimming 26/32W 120V
FP02MX2 PM32MX2SA Mark X Dimming 26/32W 227V
IP02 PM150SA T-4 Mini-Can 150W 120V
Suspension Kit:
Cat. No Finish Description
SK01 Satin Aluminum Clear Metallic Straight Cord/Cable, 120" Length, (10') with canopy
SK02 Satin Aluminum Clear Metallic Straight Cord/Cable, 300" Length, (25') with canopy
ST01 Satin Aluminum 36" Length 3/8" Stem with canopy
ST02 Satin Aluminum 60" Length 3/8" Stem with canopy
CTC Satin Aluminum Close To Ceiling Kit with canopy
TM01 Satin Aluminum Silver Track Mounting Kit with Clear Metallic Straight Cord/Cable, 120" Length, (10') (120V only)
SMK Satin Aluminum Flush Mounting Kit
Must Order Powerhead and Glass separately. Suspension Kit must be ordered separately. Spec ID is for reference only.

Job Information Type:
631 Airport Road, Fall River, MA 02720 • [phone] • Fax [phone]
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2010 Philips Group • B0710
Vetro Architectural Decorative FP02
Page 2 of 2 Pendant
Catalog No. FP02/FP01, 32W Triple Tube, 2400 Lumens.
Catalog No. FP02/FP01, 26W Triple Tube, 1800 Lumens
Report No. 3095FR
SC = 2.0

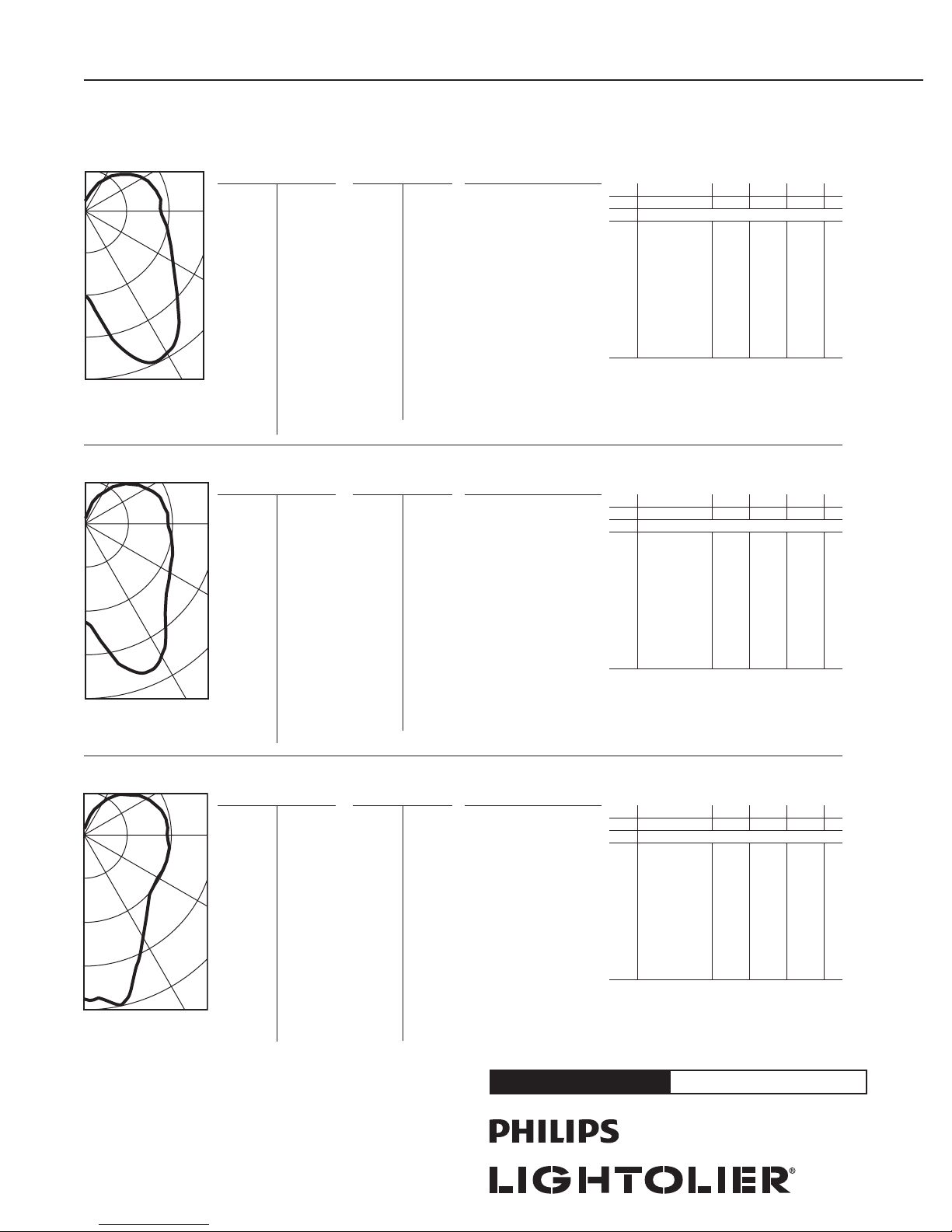

CANDLEPOWER SUMMARY
Angle Mean CP Angle Mean CP
0 140 95 123
5 157 100 122
10 194 105 119
15 232 110 116
20 256 115 112
25 267 120 106
30 265 125 99
35 254 130 92
40 235 135 84
45 212 140 75
50 190 145 66
55 175 150 57
60 163 155 47
65 153 160 37
70 146 165 26
75 139 170 14
80 133 175 5
85 127 180 2
90 122
ZONAL LUMENS AND PERCENTAGES
Zone Lumens %Lamp %Fixt
0-30 204.54 8.5 11.9
0-40 362.64 15.1 21.1
0-60 683.78 28.5 39.8
0-90 1121.98 46.7 65.3
90-120 370.57 15.4 21.6
90-130 459.74 19.2 26.7
90-150 566.71 23.6 26.7
90-180 597.18 54.9 34.7
0-180 1719.16 71.6 100
** Efficiency = 71.6% **
60°
30°
0
67
134
200
267
204
60°
30°
153
102
51
0
CANDLEPOWER SUMMARY
Angle Mean CP Angle Mean CP
0 124 90 103
5 139 95 104
10 166 100 103
15 190 105 101
20 200 110 98
25 203 115 94
30 193 120 89
35 176 125 84
40 157 130 77
45 143 135 70
50 134 140 63
55 128 145 55
60 123 150 47
65 119 155 39
70 116 160 31
75 113 165 22
80 111 170 11
85 107 175 3
90 103 180 2
ZONAL LUMENS AND PERCENTAGES
Zone Lumens %Lamp %Fixt
0-30 160.61 8.9 11.9
0-40 270.4 15 20
0-60 496.44 27.6 36.7
0-90 851.27 47.3 62.9
90-120 313.17 17.4 23.1
90-130 387.96 21.6 28.7
90-150 477.26 26.5 28.7
90-180 502.48 27.9 37.1
0-180 1353.75 75.2 100
** Efficiency = 75.1% **
COEFFICIENTS OF UTILIZATION
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
Room Cavity Ratio
0 83 83 83 83 78 78 68 68 59 59 47
1 73 68 64 60 64 57 55 50 48 43 34
2 65 58 52 47 54 45 47 39 40 34 26
3 59 50 44 38 47 36 41 32 35 28 21
4 54 44 37 32 41 30 36 27 31 23 18
5 49 39 32 27 37 26 32 23 27 20 15
6 45 35 28 23 33 22 29 20 25 17 13
7 42 31 25 20 30 19 26 17 22 15 11
8 39 28 22 18 27 17 23 15 20 13 10
36 26 20 16 24 24 15 22 13 19 12 9
10 34 24 18 14 22 13 20 12 17 11 8
Determined In Accordance With Current IES Published Procedures
Luminaire Input Watts = 29.0
ZONAL LUMEN SUMMARY
Zone Lumens
0-10 14.08
10-20 53.67
20-30 92.85
30-40 109.8
40-50 111.18
50-60 114.85
60-70 118.45
70-80 119.92
80-90 116.46
90-100 113.2
100-110 109.73
110-120 93.24
120-130 74.79
130-140 54.55
140-150 34.75
150-160 18.27
160-170 6.37
170-180 .58
Report No. 3096FR
SC = .96
Catalog No. IP02/IP01 150W T-4, 950 Lumens.
60°
30°
0
240
180
120
60
ZONAL LUMENS AND PERCENTAGES
Zone Lumens %Lamp %Fixt
0-30 170.48 6.1 12.2
0-40 263.56 9.4 18.8
0-60 467.85 16.7 33.4
0-90 838.84 30 59.8
90-120 350.51 12.5 25
90-130 434.83 15.5 31
90-150 535.51 19.1 31
90-180 563.65 20.1 40.2
0-180 1402.49 50.1 100
** Efficiency = 50.1% **
COEFFICIENTS OF UTILIZATION
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
Room Cavity Ratio
0 55 55 55 55 51 51 38 44 38 38 30
1 48 45 42 40 42 37 31 32 31 28 21
2 43 38 34 31 36 29 26 25 26 22 16
3 39 33 29 25 31 24 22 21 22 18 13
4 35 29 25 21 27 20 20 17 20 15 11
5 33 26 21 18 24 17 18 15 18 13 9
6 30 23 19 15 22 15 16 13 16 11 8
7 28 21 17 13 20 13 15 11 15 10 7
8 26 19 15 12 18 11 13 10 13 9 6
9 24 17 13 11 16 10 15 9 12 8 6
10 22 16 12 10 15 9 14 8 11 7 5
Determined In Accordance With Current IES Published Procedures
Luminaire Input Watts = 150
ZONAL LUMEN SUMMARY
Zone Lumens
0-10 21.93
10-20 64.18
20-30 84.37
30-40 93.08
40-50 94.43
50-60 106.86
60-70 118
70-80 125.89
80-90 127.1
90-100 126.29
100-110 119.43
110-120 104.78
120-130 84.33
130-140 61.35
140-150 39.33
150-160 20.57
160-170 6.98
170-180 .59
Report No. 3094FR
CANDLEPOWER SUMMARY
Angle Mean CP Angle Mean CP
0 229 95 116
5 226 100 115
10 236 105 113
15 234 110 110
20 204 115 106
25 183 120 100
30 165 125 94
35 148 130 87
40 135 135 79
45 125 140 71
50 121 145 62
55 119 150 53
60 118 155 44
65 119 160 34
70 119 165 24
75 119 170 12
80 119 175 3
85 116 180 1
90 115
ZONAL LUMEN SUMMARY
Zone Lumens
0-10 16.16
10-20 65.89
20-30 122.49
30-40 158.1
40-50 163.81
50-60 157.34
60-70 152.38
70-80 147.13
80-90 138.68
90-100 133.65
100-110 126.18
110-120 110.74
120-130 89.16
130-140 65.13
140-150 41.84
150-160 22.03
160-170 7.67
170-180 .78
COEFFICIENTS OF UTILIZATION
Ceiling 80% 70% 50% 30%
Wall 70 50 30 10 50 10 50 10 50 10 0
RCR Zonal Cavity Method - Effective Floor Reflectance = 20%
Room Cavity Ratio
0 79 79 79 79 75 75 66 66 58 58 47
1 70 66 62 58 61 55 54 49 47 43 43
2 63 56 50 46 52 43 46 38 40 34 27
3 57 48 42 37 45 35 40 31 34 28 22
4 52 42 36 31 40 29 35 26 30 23 18
5 47 38 31 26 35 25 31 22 27 20 18
6 43 34 27 22 32 21 28 19 24 17 13
7 40 30 24 19 28 18 25 17 22 15 11
8 37 27 21 17 26 16 23 15 20 13 10
9 34 25 19 15 23 14 21 13 18 12 9
10 32 23 17 13 22 13 19 12 17 10 8
Determined In Accordance With Current IES Published Procedures
Luminaire Input Watts = 33.0
