#153IR Controller
Owner’s Manual
#153IR Controller
Owner’s Manual

2
Table of contents
Installing and powering your 153IR Controller 3-7
Wiring accessories with your 153IR Controller 8-9
Choosing a location for your 153IR Controller 10
Adjusting your 153IR Controller 11-12
Accessory and signal wiring examples 13-18
Notes 19
Limited Warranty/Lionel Service 20
Congratulations on your purchase of the Lionel 153IR Controller. Place this device on any Lionel O or O-27 gauge three-rail layout to activate any track side accessory. The 153IR
Controller uses an infrared beam to detect passing trains, cueing the device to activate your
signals and accessories. The 153IR Controller was built to provide years of reliable operation.
Congratulations!
The following Lionel marks are used throughout this Owner’s Manual and are protected under
law. All rights reserved.
Lionel®, LionChief™, LionChief Plus™,TMCC®, LEGACY®, FasTrack®,TrainMaster®, Odyssey®,
RailSounds®, CrewTalk™, TowerCom™, DynaChuff™, StationSounds™, Pullmor®, ElectroCoupler™,
Magne-Traction®, CAB-1®Remote Controller, American Flyer®, Lionel ZW®, ZW®, MagniVision®,
TMCC®, Lionelville®, Wireless Tether™, Powerhouse™, LionMaster®, Conventional Classics™, Postwar
Celebration Series™, TruRail™, PH-1 Powerhouse®, Powermaster®, Powerstation-Powerhouse®,
Accessory Motor Controller™, AMC™, Accessory Switch Controller™, ASC™, Action Recorder
Controller™, ARC™, Track Power Controller 300™, TPC 300™, Track Power Controller 400™, TPC
400™, Block Power Controller™, BPC™, Operating Track Controller™, OTC™, FatBoy™, Lionel
Lines®, Joshua Lionel Cowen Series™, Lockon®, TrainSounds™, MultiHorn™, MultiWhistle™,
Choo-Choo™, SensorTrack™, Plug-Expand-Play™, Imagineering™, SensorCar™, LionScale™

3
Installing and powering your 153IR Controller
Your 153IR Controller must be powered to control the infrared detection circuit and also to provide power to the accessory it is controlling. There are two ways to accomplish this.
Powering the 153IR and the accessory from the track
You can power the 153IR and the accessory from the track. To accomplish this use the two
wires with Fastrack compatible terminals to connect the wires to the underside of any Fastrack
straight or full curve section. The red terminal connects to the center rail. The black terminal
connects to the outside rail. See figure 1 below.
BLACK WIRE
Connections are made under FasTrack
RED WIRE
Figure 1. Wire connections with FasTrack

4
Installing and powering your 153IR Controller continued
To make the proper connections to the auxilary power terminals, you need the ends of
the wires to be stripped back 1/4” to 3/8”. To strip the wires, use a pair of wire strippers
or a sharp knife. Only an adult should perform this task! Always use care when strip-
ping wires.
If you are using tubular track, simply cut off the slide on terminals and strip the wires back. Connect
the black wire with the white tracer to a Universal Lockon (6-24213) for the center rail. Connect the
solid black wire to the outside rail. See figure 2 below.
Caution
BLACK WIRE
BLACK WITH WHITE TRACER WIRE
Figure 2. Wire connections with Tubular track

5
If you chose to power your 153IR using method 1 above, open the long hatch on the back side of the
153IR base and move the switch to the “Track Power” position. (If the switch is not in the track power
position the 153IR will not function, providing it is powered from the track). See figure 3 below.
Installing and powering your 153IR Controller continued
TRACK
POWER
AUX
POWER
ACC
PWR
ACC
GND
NO
NC
A U
FLIP UP DOOR
POWER SELECTION
SWITCH
Figure 3. Back of the 153IR with the power selection switch in the TRACK POWER position

6
Installing and powering your 153IR Controller continued
Powering the 153IR and the accessory from an auxiliary AC power
transformer
You can power the 153IR and the accessory from an auxiliary AC power transformer. If you use
auxillary power, do not connect the track wires to the track. Refer to figure 4 below for proper-
ly wiring the 153IR to an accessory power transformer. It is very important you get the polarity
correct for your accessory to operate properly.
To make the proper connections to the auxilary power terminals, you need the ends of
the wires to be stripped back 1/4” to 3/8”. To strip the wires, use a pair of wire strippers
or a sharp knife. Only an adult should perform this task! Always use care when strip-
ping wires.
Caution
TRACK
POWER
AUX
POWER
ACC
PWR
ACC
GND
NO
NC
A U
BLACK WIRE
RED WIRE
Figure 4. 153IR connected to a transformer
Set the input voltage to the 153IR Controller to 12-14 VAC (you can increase this input voltage if the
accessory you have it connected to requires more power than 12 to 14 Volts).

7
Installing and powering your 153IR Controller continued
If you chose to power your 153IR using an auxilary AC power transformer, open the long hatch on
the back side of the 153IR base and move the switch to the “Aux Power” position. (If the switch is
not in the aux power position the 153IR will not function, providing it is powered from an accessory
transformer). See figure 5 below.
TRACK
POWER
AUX
POWER
ACC
PWR
ACC
GND
NO
NC
A U
POWER SELECTION
SWITCH
Figure 5. Back of the 153IR with the power selection switch in the AUX POWER position
FLIP UP DOOR

Wiring accessories with your 153IR controller
8
Accessories are only connected to the terminals labeled “ACC PWR”, “ACC GND”, “NO” and “NC”. NO is “Normally Open” and is not powered until the 153IR detects a train. NC
is Normally Closed and is powered until the 153IR detects a train. When the 153IR detects a
train the NC output turns off and the NO output turns on. When the train passes and the
153IR deactivates the NO output turns off and the NC output turns on again. Figure 6 below
illustrates where these terminals are located. The ACC PWR terminal provides power to your
accessory (AC Hot or red). The ACC GND terminal provides AC Ground to your accessory (AC
Ground/U/black) at all times.
Do not use a wire larger than 24 gauge!
Note
TRACK
POWER
AUX
POWER
ACC
PWR
ACC
GND
NO
NC
A U
AUXILARY POWER
SUPPLY
ACCESSORY TERMINALS
FLIP UP DOOR
POWER SELECTION
SWITCH
ACC PWR NO
ACC GND NC
Figure 6. 153IR wire terminals and connections

9
Wiring accessories with your 153IR controller continued
Table 1 provides the basic wiring for various accessories (lamps, sounds, animation, etc.). Some
accessories feature only one animation such as a light that turns on and off. Other accessories feature
two animations such as a light and some type of motion (a gateman figure for instance).
Refer to the specific wiring examples that appear on pages 12- 15 to help determine which
accessory terminals control the different accessory animations.
Power is constantly ON POWER terminal on the accessory connected
to the ACC PWR terminal
GROUND terminal on the accessory connected
to the ACC GND terminal
Power is ON until triggered by the train POWER terminal on the accessory connected
to the ACC PWR
GROUND terminal on the accessory connected
to the NC terminal
Power is OFF until triggered by the train POWER terminal on the accessory connected to
the ACC PWR
GROUND terminal on the accessory connected
to the NO terminal
Table 1. Accessory option and wiring configurations

10
Choosing a location for your 153IR controller
With the 153IR Controller you are able to activate signals and accessories for more proto- typical operation of your layout. Position your 153IR Controller so that the train will
trigger the 153IR to activate the accessory before the train arrives. For example, if your train
is moving from left to right (in figure 7 below), position the 153IR to the left side of the
accessory so that the train triggers the activation before the train arrives where the accessory
is placed. (In this instance we use a grade crossing gate and signal).
DIRECTION OF TRAIN
DIRECTION OF TRAIN
GATE 2
BLACK WIRE
BLACK WIRE
GATE 1
153 IR CONTROLLER
153 IR CONTROLLER
SIGNAL
Figure 7. Single 153IR Controller location
Figure 8. Signal and 153IR Controller locations
If you are using a block signal you may want the signal to change from green to red once the train
passes the signal. In this instance you will want to place the 153IR after the signal itself. Refer to
figure 8 below.
BLACK WITH
WHITE TRACER
WIRE
BLACK WITH
WHITE
TRACER
WIRE

11
Adjusting your 153IR Controller
Your 153IR Controller allows you to fine tune its performance. You can adjust the sensitiv- ity of the detection as well as the duration the Controller keeps an accessory activated for.
These adjustments can be made using the two adjustment dials located under the “battery
box” on the 153IR.
Adjusting the duration
Use the “TIME” dial located under the battery box hatch on top of the 153IR base (refer to fig-
ure 9) to set the length of time that the 153IR Controller remains activated. Begin by turning
the “TIME” dial counter clockwise until it stops, this will set the activation to the shortest
amount of time. Quickly pass your hand in front of the sensor (the red lens on the track fac-
ing side of the 153IR) and note how long the accessory stays activated. If you would like the
accessory to remain activated for a longer period of time turn the “TIME” dial clockwise slow-
ly. Some experimentation will be required to fine tune the duration to your liking. It is not
unlikely for this adjustment setting to take several tries to find the "sweet" spot.
The accessory will turn on while the infrared beam is reflected back by the train. Once
the train has moved past the sensor the duration timing begins. When the timer runs
out the accessory will deactivate. If the train passes in front of the sensor prior to the
timer running out the accessory will continue to be activated.
Note
Flip up door
Battery Box, Sensitivity
and Time Adjustment
Location
SENSITIVITY TIME
SHORTLOW
LONGHIGH
Figure 9. TIME and SENSITIVITY adjustment knobs

12
Adjusting the sensitivity
Use the “SENSITIVITY” dial if the 153IR Controller does not properly detect your locomotive
and/or rolling stock. Dark colored finishes may not be detected by the 153IR without adjusting
the sensitivity. To remedy this problem; you can adjust the “SENSITIVITY” dial located under
the battery box. Refer to figure 9 on page 10. Turn the dial counter clockwise to INCREASE
the sensitivity or clockwise to DECREASE the sensitivity of the sensor. Some fine tuning will be
required to make the 153IR Controller work properly for your layout.
Adjusting your 153IR Controller continued

13
Accessory wiring examples
Refer to the following diagrams as you wire your accessories. The section entitled Wiring
accessories with your 153IR controller explains these connections.
NO NC
ACC
PWR
ACC
GND
GATE 1
GATE 2

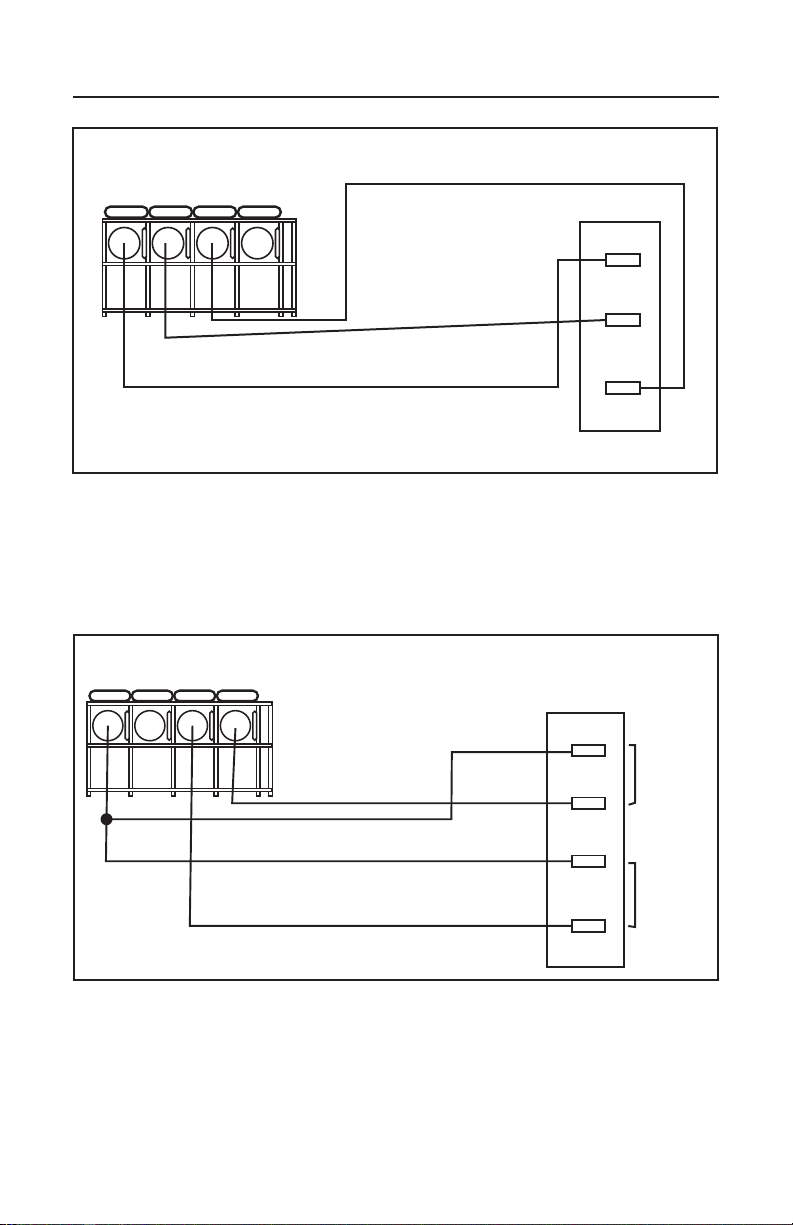

Figure 10. Crossing Gates (6-12714)
Figure 11. Automatic Crossing Gate (6-12714); Automatic Crossing Gate and Signal Mainline
Automatic Crossing Gate (6-22947); Automatic Operating Semaphore (6-12727); Railroad Crossing
Flasher (6-12888); Mainline Automatic Operating Semaphone (6-22944); Banjo Signal (6-12709)
NO NC
ACC
PWR
ACC
GND
Black
Red
Black
Red

14
Accessory wiring examples continued
NO NC
ACC
PWR
ACC
GND
RED
RED
GREEN LAMP
(NC)
RED LAMP
(NO)
RED
WHITE
WHITE
BLACK
GREEN
(OR YELLOW)
Figure 12. Automatic Crossing Gate (6-12714); Mainline Automatic Crossing Gate (6-22947);
Automatic Operating Semaphore (6-12727); Railroad Crossing Flasher (6-12888); Mainline
Automatic Operating Semaphore (6-22944); Automatic Crossing Gate and Signal (6-62162); Banjo
Signal (6-12709), Dwarf Signal (2014; 6-12883)
NO NC
ACC
PWR
ACC
GND
Figure 13. Dwarf Signal (pre-2014; 6-12883); Mainline Dwarf Signal (6-22951)

15
Accessory wiring examples continued
NO NC
ACC
PWR
ACC
GND
SPRING CLIP FOR
GREEN LAMP
SPRING CLIP FOR
COMMON/GROUND
SPRING CLIP FOR
RED LAMP
Figure 14. Single Signal Bridge (6-12894); Mainline Cantilever Signal (6-22931)
Figure 15. Whistle Shack (6-12737 & 6-12903 Diesel Horn Variant)
NO NC
ACC
PWR
ACC
GND

16
Accessory wiring examples continued
NO NC
ACC
PWR
ACC
GND

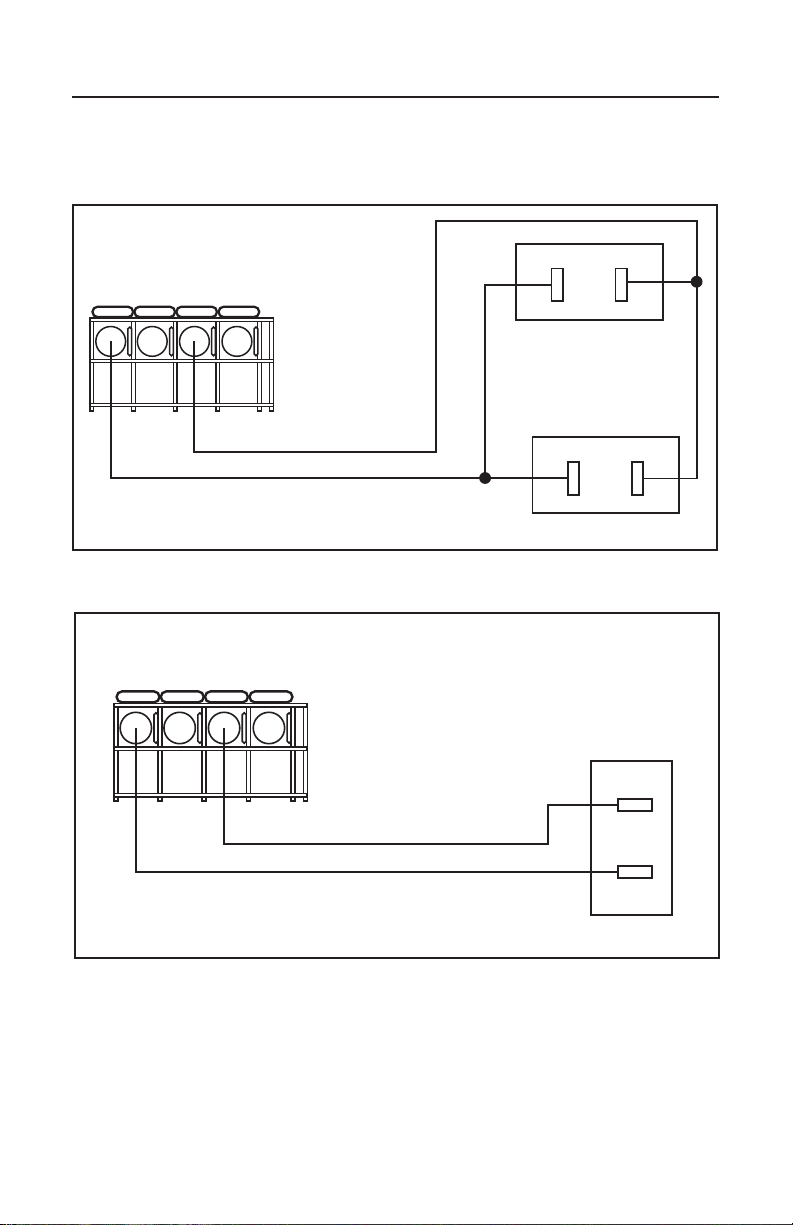

Figure 16. Automatic Gateman (6-12713)
Figure 17. Animated Maiden Rescue(6-32919)
NO NC
ACC
PWR
ACC
GND

17
Accessory wiring examples continued
Figure 18. Mainline Auto Crossing Gate (pre-2015 Production; 6-14098)
NO NC
ACC
PWR
ACC
GND
A U
Transformer
White
Yellow
Black
Red
Blue

18
Accessory wiring examples continued
Figure 19. Mainline Auto Crossing Gate (2015 Production; 6-14098)
NO NC
ACC
PWR
ACC
GND
Yellow
Black
Red

19
Notes

©2015 LIONEL L.L.C., CONCORD, NC 28027
UNITED STATES OF AMERICA
PRINTED IN CHINA
Lionel Limited Warranty Policy & Service
T
his Lionel product, including all mechanical and electrical components, moving parts, motors and structural components, with the exception of LIGHT
BULBS, LED’s & TRACTION TIRES are warranted to the original owner-purchaser for a period of two years from the original date of purchase
against original defects in materials or workmanship when purchased through a Lionel Authorized Retailer*.
This warranty does NOT cover the following:
• Normal wear and tear
• Light bulbs or LED’s
• Defects appearing in the course of commercial use
• Damage resulting from abuse/misuse of the product
Transfer of this product by the original owner-purchaser to another person voids this warranty in its entirety. Modification of
this product in any way; visually, mechanically or electronically, voids the warranty in its entirety.
Any warranted product which is defective in original materials or workmanship and is delivered by the original owner-
purchaser (this warranty is non-transferrable) to Lionel LLC or any Lionel Authorized Service Station MUST be accompanied by
the original receipt for purchase (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired
or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is
not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available. In the
event a comparable model is not available the customer will be refunded the original purchase price (requires proof of purchase
from the Authorized Lionel Retailer* it was originally purchased). Lionel will pay postage both ways on all VISION products
during the warranty period. Transportation and shipping charges are not covered as part of this warranty.
NOTE: Products that require service that do not have a receipt from an LIONELAUTHORIZED RETAILER* will be
required to pay for all parts required to repair the product (labor will not incur a charge) providing the product is not
older than 3 years from date of manufacture and is within 1 year from date of purchase. A copy of the original sales receipt
is required.
In no event shall Lionel LLC be held liable for incidental or consequential damages.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not
apply to you. This warranty gives you specific legal rights and you may have other rights which vary from state to state.
Instructions for Obtaining Service
If service for this Lionel LLC product is required; bring the item, along with your DATED sales receipt and completed
warranty information (at the bottom of this page) to the nearest Lionel Authorized Service Station. Your nearest Lionel Service
Station can be found by calling 1-800-4-LIONEL or by accessing the website at www.lionel.com.
If you prefer to send your Lionel product directly to Lionel, for repair you must FIRST call 586-949-4100 extension 2 or
write to Lionel Customer Service, 6000 Victory Lane, Concord, NC 28027. Please have the 6-digit Lionel product number, the
date of original purchase, the dealer where the item was purchased and what seems to be the problem. You will receive a return
authorization (RA) number to ensure your merchandise will be properly tracked and handled upon receipt at Lionel LLC.
Once you have your Return Authorization (RA) number, make sure the item is packed in its original Styrofoam inner container
which is placed inside the original outer display box (this will help prevent damage during shipping and handling). This shipment
MUST be prepaid and we recommend that it be insured with the carrier of your choice.
Please make sure you have followed all of the above instructions carefully before returning any merchandise for service. You
may choose to have your product repaired by one of Lionel LLC’s Authorized Service Stations after its warranty has expired. A
reasonable service fee should be expected once the product warranty has expired.
Warranty Information
Please complete the information below and keep it, along with your DATED ORIGINAL SALES RECEIPT. You MUST
present this form AND your DATED SALES RECEIPT when requesting warranty service.
*A complete listing of Lionel Authorized retailers can be found by calling 1-800-4-LIONEL or by visiting our website at www.
lionel.com.
Products that are more than 3 years old, from date of manufacture, are not applicable for warranty coverage, even if they have
never been sold prior to this date. (Under no circumstance shall any components or labor be provided free of charge.)
Name _________________________________________________________________________
Address ________________________________________________________________________
Place of Purchase _________________________________________________________________
Date of Purchase __________________________________________________________________
Product Number __________________________________________________________________
Product Description ________________________________________________________________
