3. STARTING GOCATOR
NOTE: Gocator must be connected to a host computer in order to launch the user interface and setup the sensor.
Gocator sensors are configured by connecting with a web browser.
The user interface is supported with FireFox 3.5+, Chrome 4.0+, & Internet Explorer 8.0+. (Use FireFox or Chrome for optimal
performance.) The Adobe Flash browser plugin version 10.0+ must be installed.
TROUBLESHOOTING
PROBLEM SUGGESTED RESOLUTION
Mechanical / Environmental
The sensor is warm. • It is normal for a sensor to be warm when powered on.
Connection
When connecting with a web browser, the
sensor is not found (page does not load).
• Verify the sensor power is on. This will be indicated by an illuminated POWER LED.
• Verify the cable from the sensor’s LAN connector is plugged into the Ethernet port on the client computer.
• Verify that the client computer’s network settings are properly configured. Refer to the Connecting to a New
• Sensor section in the Gocator user manual or to your computer’s documentation on configuring a network adapter.
• Download 14405-x.x.x.x_software_go2_tools.zip from the downloads area of LMI’s website at www.lmi3D.com.
Unzip and run the Sensor Discovery Tool [bin>win32>kDiscovery.exe] to verify that the sensor has the correct network settings.
When attempting to log in, the password is not
accepted.
• Download 14405-x.x.x.x_software_go2_tools.zip from from the downloads area of LMI’s website at www.lmi3D.com.
Unzip and run the Sensor Discovery Tool [bin>win32>kDiscovery.exe] to discover the sensor on the network and restore default settings.
NOTE: Using the Sensor Discovery tool will reset your configuration settings to default - these settings can be recovered from the backup
files if previously saved.
Laser Profiling
When the Play button is pressed, the sensor
does not emit laser light.
• Ensure that the decal covering the laser emitter window, normally affixed to new sensors, has been removed.
• Verify that the LASER LED on the Gocator is illuminated, if not, the laser safety input signal is off. Refer to
•Laser Safety Input Section in the Gocator user manual to determine the correct solution for your application.
• The exposure setting may be too low. Refer to the Exposure section in the Gocator User Manual for more information
• on configuring exposure time.
The sensor emits laser light, but the
Range Indicator does not illuminate and/or
points are not displayed in the Profile Viewer.
• Verify that the measurement target is within the sensor’s field of view and measurement range.
The RANGE LED on the Gocator will illuminate when the target is in range.
• Check that the exposure time is set to a reasonable level. Refer to the Exposure section in the Gocator User Manual
•for more information on configuring exposure time.
The sensor CPU level is near 100%.
• Review the active measurements and eliminate any that are unnecessary measurements.
• Consider reducing the trigger speed.
• Consider reducing the laser profiling resolution.
Once connected to the Gocator, click the Help icon to
view the User Manual, update firmware, or download SDK
An example of the user interface in use
Worldwide Email:
[e-mail]
Web:
www.lmi3D.com
North America Phone:
[phone]
Fax:
[phone]
Europe Phone:
[phone]
Fax:
[phone]
Quick Start Guide
In Windows 7
•Open the Control Panel>Network and Sharing Center>Change Adapter
Settings.
•Right-click desired network connection, then click Properties.
•On the Networking tab, click Internet Protocol Version 4 (TCP/IPv4),
then click Properties.
•Select “Use the following IP address” option.
•Enter IP Address “192.168.1.5” and Subnet Mask “255.255.255.0”, then
click OK.
In Mac OS X 10.6
•Open the Network Pane in System Preferences and select Ethernet.
•Set Configure to “Manually”.
•Enter IP Address “192.168.1.5” and Subnet Mask “255.255.255.0”, then
click Apply.
B. RUNNING GOCATORA. LAUNCHING THE INTERFACE
Open a web browser and enter the sensor address
Select language of choice
Step 2
Step 3
Step 1
The Administrator password is initially blank. Press the Login
button to connect
Step 4
Gocator is shipped with the following default network
configuration
Setting Default
DCHP Disabled
IP Address 192.168.1.10
Subnet Mask 255.255.255.0
Gateway 0.0.0.0
Step 1
Select the Connection PageChange network setting on host computer
Step 3
Ensure data source is set to LIVE and the Laser Safety switch
is enabled or the Laser Safety input is high. Press the PLAY
button in the toolbar to start the sensor (a laser line should
now be visible)
Step 4
Move target into the laser plane and measure!
For the user manual, CAD drawings, firmware release notes, SDK, and
more, go to www.lmi3D.com/downloads
Step 2
Select what the Gocator will be connected to
RECORD
SNAPSHOT
START
DATA SOURCE
Single Sensor: Select Standalone
Using Master 400: Select Master 400
Using Master 800: Select Master 800
Using Master 1200: Select Master 1200
Using Master 2400: Select Master 2400
15161-1.2-Manual_Quickstart_Gocator-2000-Series
©2014 LMI Technologies Inc. All rights reserved.

MASTER 200
ETHERNET
CORDSET
"MAIN"GOCATOR
"BUDDY"GOCATOR
ETHERNET SWITCH
Power &
Laser Safety:
24-48VDC @ 10W
Wire rich I/O
as required by application
ex. Serial / Analog /
Trigger Input, Photocell / etc.
USER PC
Wire encoder to
"PORT 1&2"
GOCATOR I/O
CORDSET
CAT5E ETHERNET
CABLE
Mount the sensor using four M5 x 0.8 screws of suitable length.
The recommended thread engagement into the housing is 8 - 10 mm.
Do not occlude camera’s view of the laser Do not install near surfaces that might
create unanticipated laser reflections

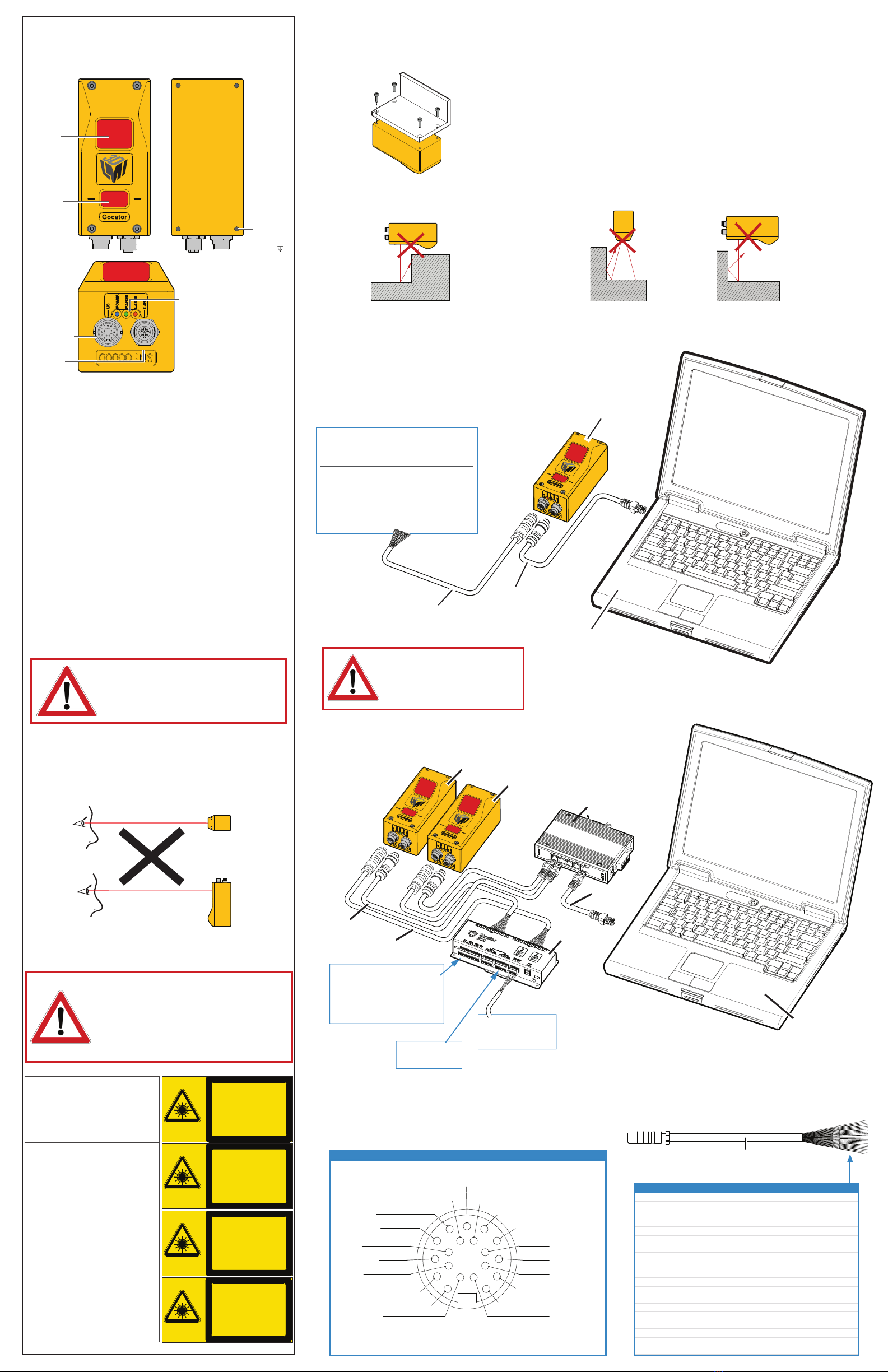

2. CONNECTING GOCATOR TO A HOST COMPUTER
1. MOUNTING
GOCATOR I/O
CORDSET
ETHERNET
CORDSET
USER PC
(can be disconnected after setup)
GOCATOR
Power: 24-48VDC @ 10W
Laser Safety: +24-48VDC to enable
Wire rich I/O
as required by application
ex. Serial / Analog / Trigger Input,
Encoder / Photocell / etc.
Standalone System
Dual Sensor System
GOCATOR OVERVIEW
There are several sensor models in the Gocator 2000 series, each
designed with a unique Clearance Distance (CD), Measurement
Range (MR) and Field of View (FOV). Refer to your User Manual
for more information about your model.
GROUNDING GOCATOR
Gocator housings should be grounded to the earth and the
grounding shield of the Gocator I/O cordsets. Gocator
sensors have been designed to provide adequate grounding
through the use of M5 x 0.8 screws. Always check grounding
with a multi-meter to ensure electrical continuity between the
mounting frame and the Gocator connectors.
The frame or electrical cabinet that the Gocator is mounted to
must be connected to earth ground.
ELECTRICAL SAFETY
Minimize voltage potential between system ground
and sensor ground
Care should be taken to minimize the voltage potential
between system ground (ground reference for I/O signals)
and sensor ground. Use shielded cables with shield grounded
at both ends. Sensor housing should be connected to earth
ground.
Use a suitable power supply
The +24-48V power supply used with Gocator 2000 sensors
should be an isolated supply with inrush current protection.
Use care when handling powered devices
Wires connecting to the sensor should not be handled while
the sensor is powered. Doing so may cause electrical shock to
the user or damage to the equipment.
Failure to adhere to the guidelines described
in this section may result in electrical shock
or equipment damage.
NOTE: Mounting the Gocator is recommended prior to applying power. Ensure that a proper earth ground and
heat sink have been properly established prior to applying power.
LASER SAFETY
The full laser safety details including precautions,
responsibilities and requirements are stated in the Gocator
User Manual. Use of controls or adjustments or performing
procedures other than those specified in the User Manual may
result in hazardous radiation exposure.
Laser
Laser
Sensor
WARNING: DO NOT LOOK DIRECTLY
INTO THE LASER BEAM
The light emitted from these devices has been set in accordance
with IEC60825. However, staring into the beam, whether directly
or indirectly, must be avoided. IEC60825 classifies laser products
into three different categories depending on light emitted,
wavelength and eye safety.
This product is designated for use solely as a component and as
such it does not fully comply with the standards relating to laser
products specified in U.S. FDA CFR Title 21 part 1040 and
IEC 60825-1.
Connector Pin Details
Camera
Laser
Emitter
Ethernet
Connector
Mounting
Holes
M5X0.8 10
LED Indicators
When starting the Gocator,
the Power indicator and the
Laser (if safety is enabled)
should be illuminated - if
they are not, please refer to
the trouble shooting table or
your User Manual.
Always power down sensor
before removing cables
from the sensor
Power &I/O
Connector
GOCATOR I/O
CORDSET
Label Text Conductor Color
DC_24-48V (White Green & Black) and (Green Black)
Serial_out+ White
Serial_out- Brown
Trigger_in+ Grey
Safety_in+ Blue/Black
Analog_out- (Yellow) & (Maroon/White)
Safety_in- White/Blue & Black
Trigger_in- Pink
Encoder_B+ Black
Encoder_B- Violet
GND_0V (White/Orange & Black) & (Orange/Black)
Encoder_A+ White/Brown & Black
Out_1+ Red
Out_1- Blue
Analog_out1+ Green
Unused Maroon
Out_2+ Ta n
Out_2- Orange
Encoder_A- Brown/Black
39
10
18
19
11
2
12
1
13
15 16
17
8
7
6
14
5
4
Trigger_in+
Out_1-
Serial_out-
Safety_in+
Analog_out1+
Analog_out-
Out_1+
Serial_out+
DC 24-48V
Encoder_A+ Encoder_A-
GND 0V
Encoder_B-
Out_2-
Encoder_B+
Out_2+
Trigger_in-
Safety_in-
Unused
Gocator I/O connector pin details
IEC 60825-1:2007
LASER RADIATION
AVOID EXPOSURE TO THE BEAM
CLASS 3B LASER PRODUCT
PEAK POWER:
EMITTED WAVELENGTH:
This product is designated for use solely as a
component and as such it does not fully comply
with the standards relating to laser products
specified in U.S. FDA CFR Title 21 part 1040
and IEC 60825-1
130 mW
660 nm
IEC 60825-1:2007
INVISIBLE LASER RADIATION
AVOID EXPOSURE TO THE BEAM
CLASS 3B LASER PRODUCT
PEAK POWER:
EMITTED WAVELENGTH:
This product is designated for use solely as a
component and as such it does not fully comply
with the standards relating to laser products
specified in U.S. FDA CFR Title 21 part 1040
and IEC 60825-1
450 mW
808 nm
IEC 60825-1:2007
LASER RADIATION
DO NOT STARE INTO THE BEAM
OR VIEW DIRECTLY WITH OPTICAL
INSTRUMENTS OR MAGNIFIERS
CLASS 2M LASER PRODUCT
PEAK POWER:
EMITTED WAVELENGTH:
This product is designated for use solely as a
component and as such it does not fully comply
with the standards relating to laser products
specified in U.S. FDA CFR Title 21 part 1040
and IEC 60825-1
1 mW
660 nm
IEC 60825-1:2007
LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
PEAK POWER:
EMITTED WAVELENGTH:
This product is designated for use solely as a
component and as such it does not fully comply
with the standards relating to laser products
specified in U.S. FDA CFR Title 21 part 1040
and IEC 60825-1
5 mW
660 nm
Class 2M: LASER RADIATION
DO NOT STARE INTO THE BEAM
OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS CLASS
2M LASER PRODUCT
Class 3R: LASER RADIATION
AVOID DIRECT EYE EXPOSURE
CLASS 3R LASER PRODUCT
Class 3B: LASER RADIATION
AVOID EXPOSURE TO BEAM
CLASS 3B LASER PRODUCT
View: Looking into the connector on the sensor.
