LNS HYDROBAR SPRINT 555 User manual

Serial Nr:
Phone# [phone]
http://www.LNSAmerica.com
Main fax# [phone]
Service fax# [phone]
LNS America, Inc.
USA
4621 East Tech Drive
Cincinnati, Ohio 45245
CNC
CNC
CNC
SPRINT 555
SPRINT 555SPRINT 555
INSTRUCTION MANUAL
FOR AUTOMATIC
MAGAZINE BAR
LOADER
INSTRUCTION MANUAL
FOR AUTOMATIC
MAGAZINE BAR
LOADER
INSTRUCTION MANUAL
FOR AUTOMATIC
MAGAZINE BAR
LOADER

V1.0
(02.01.2006)
Table of Contents
Chapter 1 Basic Notions 1-1
Structure 1-2
Rights 1-4
Declaration of Compliance 1-5
Safety Instructions 1-6
Safety Devices 1-8
Chapter 2 Technical Data 2-1
Characteristics 2-2
Floorplans 2-2
Layout of the elements 2-4
Chapter 3 Setting Into Operation 3-1
Transportation 3-2
Mounting 3-5
Anchoring to the ground 3-6
Connecting 3-6
Chapter 4 Electrics 4-1
Electrical equipment 4-2
Electrical control cabinet 4-5
Diagrams 4-14
Interface 4-24
Chapter 5 Pneumatics 5-1
Pneumatic equipment 5-2
Air filtering unit 5-4
Pneumatic valve battery 5-6
Diagrams 5-8
Chapter 6 Hydraulics 6-1
Hydraulic equipment 6-2
Diagrams 6-4
HYDROBAR SPRINT 555

Chapter 7 General Description 7-1
Bar magazine 7-2
Guiding elements 7-3
Feeding pusher 7-5
Belt drive 7-17
Vise 7-19
Front rest (standard outboard support) 7-21
Automatic front rest (option) 7-22
Retraction device (option) 7-23
Chapter 8 Operation 8-1
Remote control 8-2
Powering up 8-7
Automatic sequence 8-8
Cycling 8-9
Settings 8-13
Chapter 9 Malfunctions 9-1
Error messages 9-2
Factors affecting performance 9-4
Maintenance 9-8
Appendices
Appendix A Ordering form
Appendix B LNS Agencies
Appendix C Programming example
Appendix D Conversion table metric/inch
Appendix E Conversion table for shaped materials
HYDROBAR SPRINT 555

HYDROBAR SPRINT 555

HYDROBAR SPRINT 555

CHAPTER 1: BASIC NOTIONS
HYDROBAR SPRINT 555
1-1
CHAPTER 1:BASIC NOTIONS
CHAPTER 1: BASIC NOTIONS 1-1
1. STRUCTURE 1-2
1.1 Cross-references 1-2
1.2 Captions 1-2
1.3 Symbols and terminology 1-3
2. RIGHTS 1-4
3. DECLARATION OF COMPLIANCE 1-5
4. SAFETY INSTRUCTIONS 1-6
5. SAFETY DEVICES 1-8
5.1 Description 1-8
5.2 Layout 1-8

CHAPTER 1 : BASIC NOTIONS
1-2
1. STRUCTURE
This manual consists of various chapters, each containing several points, paragraphs,
etc. Lists may be contained in paragraphs.
The page number and title are indicated in the top of the page.
The model of the bar feed system is indicated in the bottom of the page.
1.1 Cross-references
Each chapter generally contains all of the information related to the description and
settings of the devices and elements represented therein.
Therefore, if a setting must be made while you are handling the system, please refer to
the chapter on the device to be set, for example: (see chapter *) or (see point *).
1.2 Captions
Whenever possible, the reference numbers contained in the instruction manual are
shown with the LNS ordering number of the indicated element.
To make it easier to place an order of supplies, a form has been included in the annex
at the end of this manual.
HYDROBAR SPRINT 555

CHAPTER 1: BASIC NOTIONS
HYDROBAR SPRINT 555
1-3
1.3 Symbols and terminology
This sign recommends following the directions very closely avoiding
causing an incident that could result in injury, damage to the equipment,
or data loss.
This sign indicates that safety measures must be taken to avoid possible
electrical shocks or mishaps.
Located in the margin on the left side of the page, the notes stress
interesting points or comments and provide useful advice for optimal
system operation.
Note:
Indicates what conditions must be met to conduct the desired operation.
Conditions:
Used in sequential diagrams, this sign indicates that the required
function has been accomplished.
Used in sequential diagrams, this sign indicates that the required
function has not been accomplished.

CHAPTER 1 : BASIC NOTIONS
1-4
2. RIGHTS
All rights reserved. Reproduction, recording or transmission of all, or any portion, of
this manual, in any form or through any means whatsoever, whether mechanical,
photographic, sound, or other, without the express written authorization of LNS SA, is
prohibited. LNS SA disclaims all responsibility for errors which may be contained in
this manual and the problems which may result there from.
LNS SA and its subsidiaries cannot be made responsible for the debts, losses,
expenses, or damage incurred, or suffered, by the buyer of this product, or a third
party, following an accident, incorrect use, or misuse, or stemming from modifications,
repairs, or transformations not authorized by LNS SA.
LNS SA and its subsidiaries cannot be held responsible for damage and problems
arising from the use of options and products other than LNS products, or products
approved by LNS SA.
The names of the products indicated in this manual are registered trademarks.
HYDROBAR SPRINT 555

CHAPTER 1: BASIC NOTIONS
HYDROBAR SPRINT 555
1-5
3. DECLARATION OF COMPLIANCE
(Directive 89/392/CEE, Article 4.2 and Appedix II, Chapter B)
PROHIBITION OF PUTING INTO OPERATION
Manufacturer : LNS SA
Address : Route de Frinvillier
CH-2534 Orvin
Declares that :
The HYDROBAR SPRINT 555 automatic bar feed system
-Is designed to be incorporated into a machine, or to be assembled with other
machines, to create a machine covered by Directive 89/392/EEC amended, and
that the following (parts/paragraphs) of the harmonized standards have been
applied: EN 292, EN 60 204 1, EN 1088, EN 418, EN 60947, 89/336/EEC,
73/23/EEC.
-And furthermore declares that it is prohibited to put the machine into operation
before the machine into which it is to be inserted, or of which it will become a part,
has been examined and declared in conformity with the provisions of Directive
89/392/EEC and the national laws transposing it, i.e. forming a whole including
the machine to which reference is being made in the present declaration.
Orvin, 20.08.2004
LNS SA
B. Brügger
Sales manager

CHAPTER 1 : BASIC NOTIONS
1-6
4. SAFETY INSTRUCTIONS
•Do not handle the equipment without having knowledge of the safety instructions
and the instructions for use. Safety instructions for the bar feed system, as well as
the CNC lathe, must be strictly observed.
•Non-qualified personnel, children, and persons under the influence of alcohol or
medication should not handle the equipment.
•Loose garments, long hair and jewelry can be dangerous.
•Do not remove any covers while the bar feeder or the machine is under electrical
power.
•Do not conduct any maintenance operations during the automatic cycle.
•Do not grasp moving or rotating objects, or nearby elements.
•If certain safety shields or safety covers are removed to conduct maintenance,
they must be reinstalled as soon as the maintenance work is completed.
•No servicing should be carried out on the interface or inside the electrical cabinet
while the bar feeder or the lathe is under electrical power.
•It is strictly prohibited to jump wire or remove circuit breakers, main switches, and
especially safety switches.
•To avoid any harm to persons, or damage to components, use only the indicated
points for lifting and moving the bar feeder system. No one should be near the
hanging load, or within the operating range of the overhead hoist/crane, forklift, or
any other means used for lifting and transportation. Do not knock the bar feeder
while moving it as this could damage it.
•Do not move the bar feeder while it is electrically powered on.
•The work area surrounding the bar feed system should always be clear of objects
and well lit. The presence of oil on the ground could cause falls; it is important to
maintain the floor clean on a regular basis.
HYDROBAR SPRINT 555

CHAPTER 1: BASIC NOTIONS
HYDROBAR SPRINT 555
1-7
•Do not place the machine in a damp area and make sure that water or oil does not
come into contact with the electrical equipment.
•Do not open the clamping device (collet or chuck) of the lathe manually when the
bar feeder is in automatic mode (Interface).
•Each time the diameter is changed, also adapt spindle reduction tube. The use of
spindle reduction tubes is highly recommended for machining bars with diameters
smaller than the maximum capacity of the spindle.
•Do not attempt to recharge the batteries of the PLC.
•For the use and maintenance of the bar feeder, use only parts provided by or
recommended by LNS.
•If it is necessary to move the bar feeder once it has been originally installed, do
not reinstall it before first contacting LNS or its local representative.
•LNS disclaim all responsibility for possible accidents or property damage caused
when safety instructions are not followed.

CHAPTER 1 : BASIC NOTIONS
1-8
5. SAFETY DEVICES
5.1 Description
The Hydrobar Sprint 555 bar feed system has been designed with a focus on
maximum safety during its handling and complies with all CE requirements.
Safety covers and devices make access to the moving parts of the bar feed system
impossible. Safety switches keep the bar feed system from operating when these
protections are open.
The design of the switches, as well as their insertion into the bar feed system, makes it
practically impossible to bypass them.
By pressing the emergency stop button located on the remote control, the functions of
the bar feed system and the lathe are immediately stopped.
The LNS company, or its local representative, may not be held
responsible for possible accidents or property damage, whether
caused directly or not, by any means whatsoever, if certain safety
devices have not been included.
5.2 Layout
SQ11 SQ15 C
Designation Description
A Emergency Stop push button
B Main access cover
C Main access grid
SQ10 Safety switch for retraction device (option – not visible)
SQ11 Safety switch for main access cover
SQ15 Safety switch for main access grid
SQ16 Magazine safety switch (optical cell)
A
B
SQ10
SQ16
HYDROBAR SPRINT 555

CHAPTER 2: TECHNICAL DATA
HYDROBAR SPRINT 555
2-1
CHAPTER 2:TECHNICAL DATA
CHAPTER 2: TECHNICAL DATA 2-1
1. CHARACTERISTICS (*) 2-2
2. FLOORPLANS 2-2
2.1 Loading from the left/front 2-3
3. LAYOUT OF THE ELEMENTS 2-4

CHAPTER 2: TECHNICAL DATA
HYDROBAR SPRINT 555
2-2

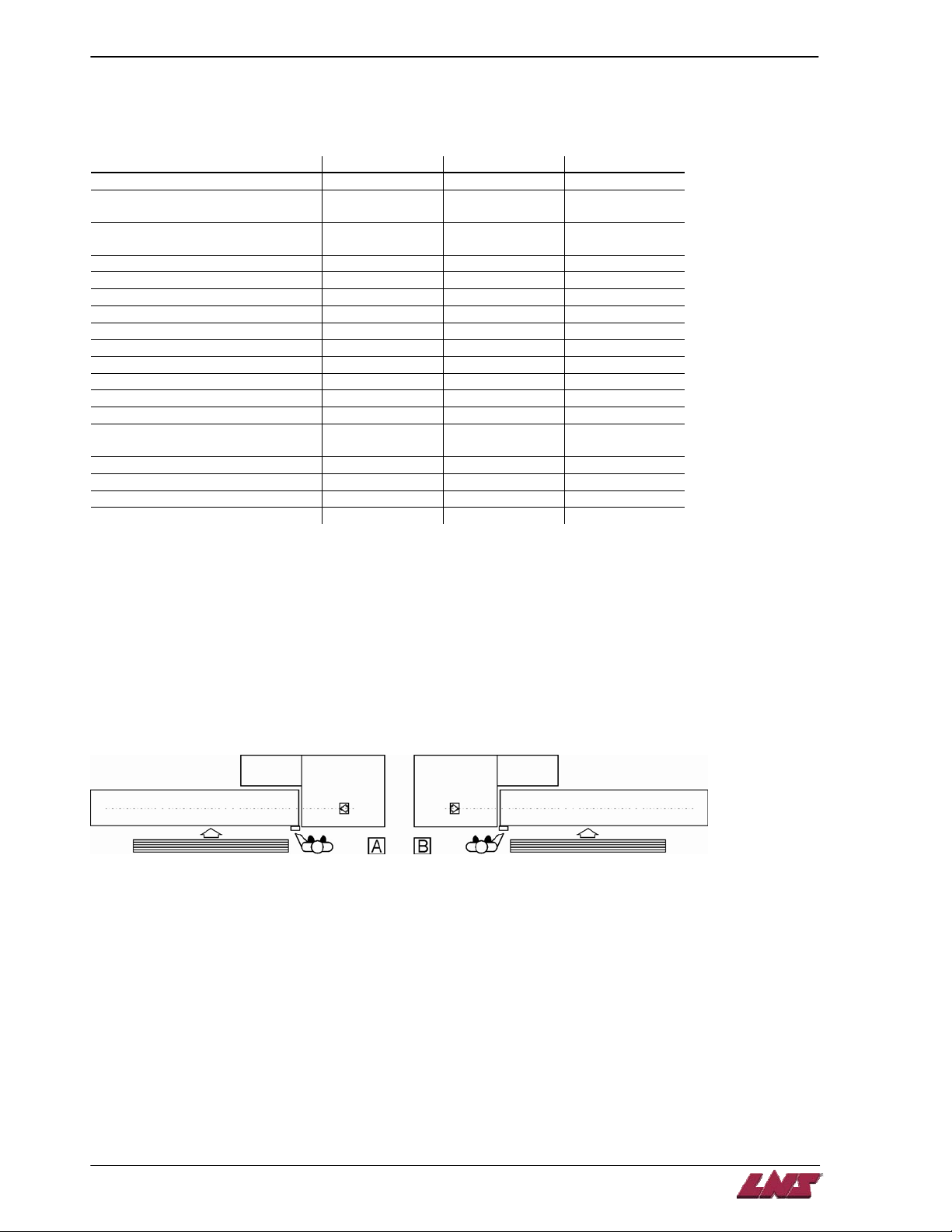

1. CHARACTERISTICS (*)
3 m 12 ' 4 m
Weight 700 kg 750 kg 810 kg
Overall length (w/o automatic front
rest) 3855 mm 4465 mm 4855 mm
Overall length (w/ automatic front
rest) 4090 mm 4700 mm 5090 mm
Overall width 730 mm 730 mm 730 mm
Centerline range 900 - 1200 mm 900 - 1200 mm 900 - 1200 mm
Z-axis retraction travel (option) 500 mm 500 mm 500 mm
Minimum diameter 5 mm 5 mm 5 mm
Maximum diameter 55 mm 55 mm 55 mm
Min. bar stock length 1500 mm 1500 mm 1500 mm
Max. bar stock length 3200 mm 3810 mm 4200 mm
Min. remnant length 110 mm 110 mm 110 mm
Max. remnant length 400 mm 400 mm 400 mm
Air pressure 5 bar 5 bar 5 bar
Main electrical power (Volt) 3 x 220 – 480
50 Hz – 60 Hz 3 x 220 – 480 50 Hz – 60 Hz 3 x 220 – 480 50 Hz – 60 Hz
Max. pushing force / torque 55 Nm 55 Nm 55 Nm
Max. feed rate >100 m/min >100 m/min >100 m/min
Loading time 30 – 40 sec. 30 – 40 sec. 30 – 40 sec.
Hydraulic oil ISO 100/50 kg ISO 100/50 kg ISO 100/50 kg
* Depending on the country and the standards in effect, certain technical data, such as
the power supply, may vary. Please see the technical card delivered with the device.
2. FLOORPLANS
The following floor space plans indicate the most frequently used dimensions for
placing the bar feed system. Details on the dimensions of other parts or elements of
the bar feed system will be furnished upon request.

CHAPTER 2: TECHNICAL DATA
HYDROBAR SPRINT 555
2-3

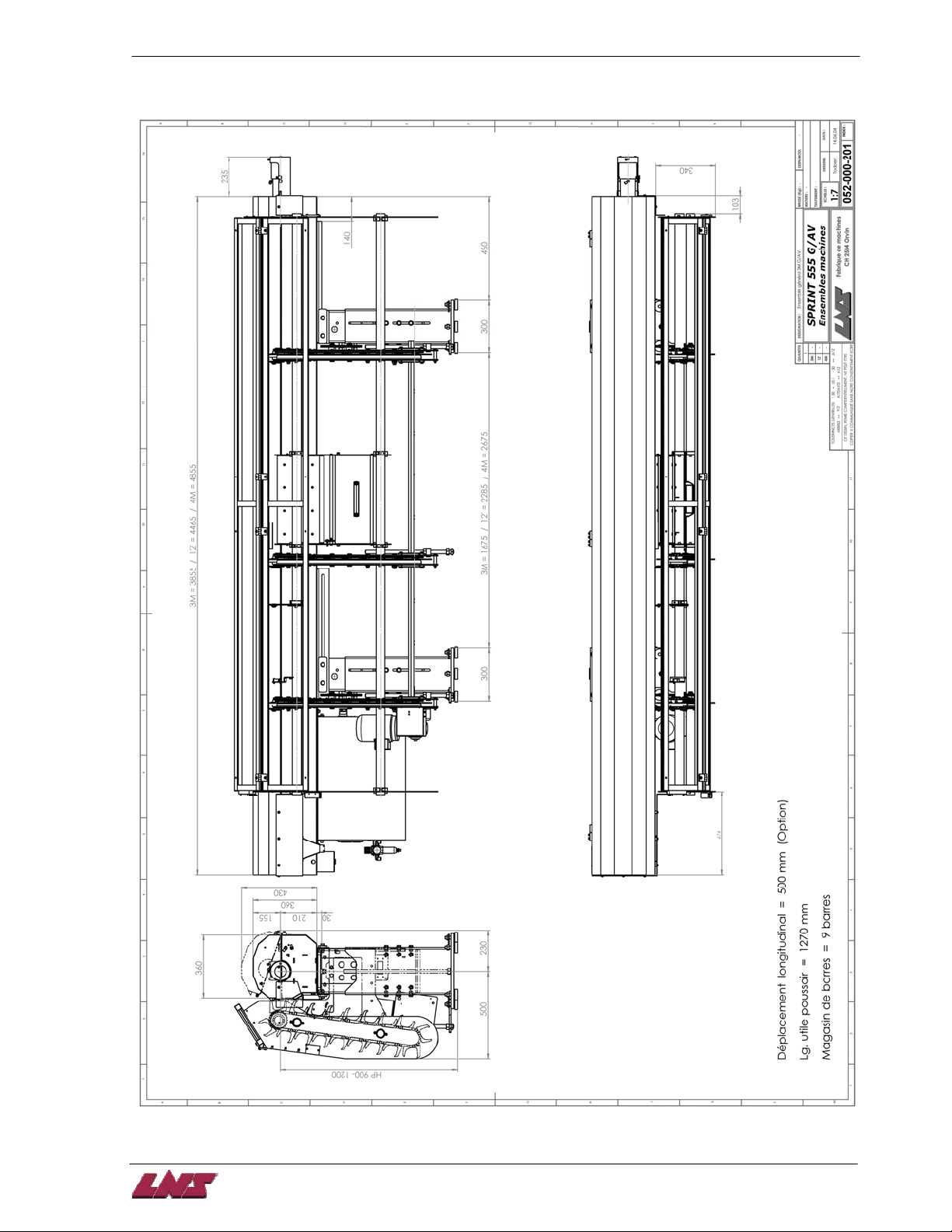

2.1 Loading from the left/front

CHAPTER 2: TECHNICAL DATA
HYDROBAR SPRINT 555
2-4
3. LAYOUT OF THE ELEMENTS
G
H
I
K
M
L
A
B C DE
F N
O
Q
R
T S
P
Designation Description
A Feeding pusher
B Belt driving mechanism
C Vise
D Remnant control
E Guiding blocks
F Remnant drop tray
G Remote control station
H Main access cover
I Front rest (pneumatic rest) (option – automatic rest not shown)
J Interface plug (according to OEM requirements – not visible)
K Air blast
L Positioning switch
M Front foot
N Retraction system (option)
O Rear foot
P Magazine
Q Air filtering unit
R Electrical cabinet
S Pneumatic assembly
T Main access grid
