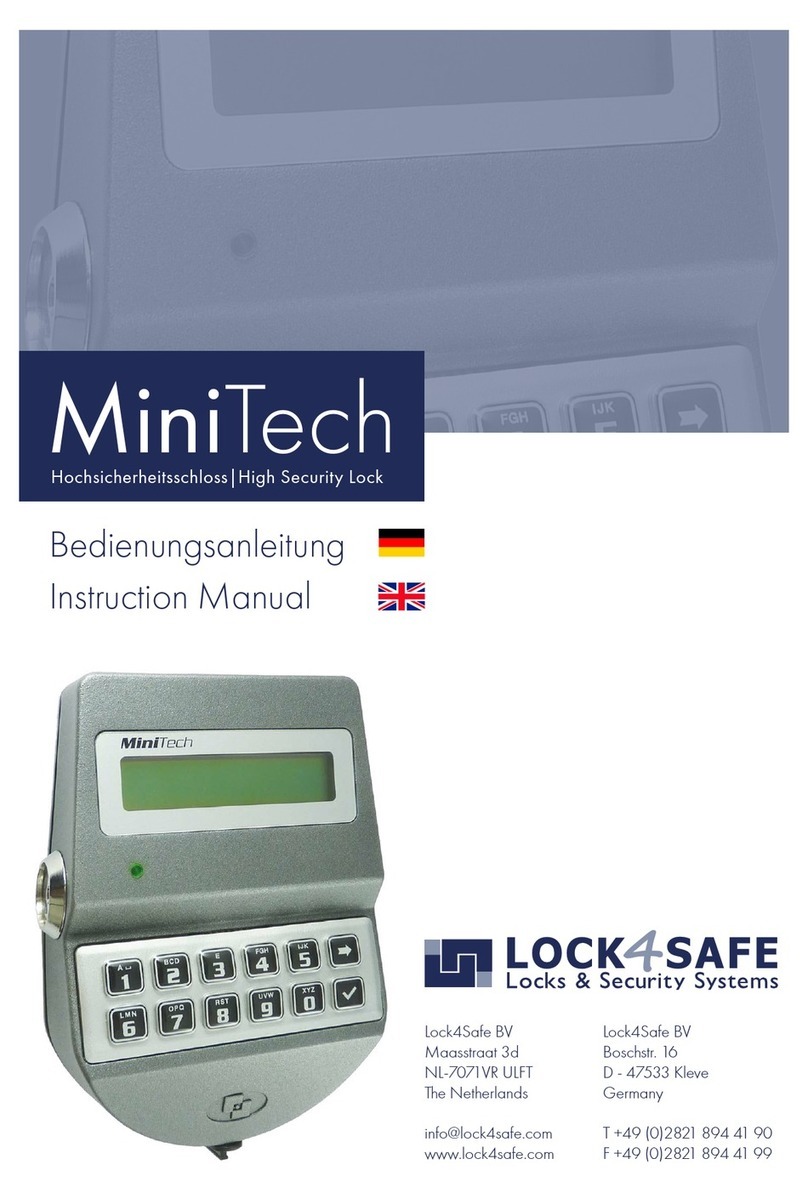

Lock4Safe MiniTech User manual

Lock4Safe BV
Maasstraat 3d
NL-7071VR ULFT
The Netherlands
[email protected]
www.lock4safe.com
Lock4Safe BV
Boschstr. 16
D - 47533 Kleve
Germany
T [phone]
F [phone]
MiniTech
DigiTech
TechMaster
Entry Units
with LCD display
Technical
Manual

Entry Units with LCD display – Technical Manual www.Lock4Safe.com
2
Features
The entry units for TechMaster, MiniTech
and DigiTech are dierent in some cases in
their electronic functions, but the entry units
are mechanicly constructed in the same way.
Therefore they have the same technical
characteristics:
1. Two-line (16 characters) LCD display
2. LED (red/green)
3. Dallas Terminal (on the left side) -
optional
4. Keypad with 10 number and
2 symbol keys
5. Battery compartment with cover
6. Serial data port (Banana plug),
(on the right side)
Mounting dimensions
5
1
2
36
4
5
We recommend mounting the input unit permanently (standard).
In exceptional cases, it may be advisable to mount them removable.
(see technical drawing below)

3
www.Lock4Safe.com Technical Manual – Entry Units with LCD display
Standard mounting
(recommended)
• Clean the surface of the recessed area for the
keypad from dust and grease/oils.
• Remove protective layer from the backside of the
keypad, align the membrane at the top and glue it
to the surface.
• Feed the entry unit cable through the hole and
tighten the entry unit with the M4 screws supplied.
Do not tighten the screws yet so that the entry
unit can still be optimally aligned.
• Align entry unit and tight the screws
.
• Prepare the mounting and cable /spindle holes
on the safe door.
• Deburr the cable hole well so that the cable can
cannot be damaged.
2
1
4
• Mount Lock(s) and other devices according to their
technical manuals.
• Perform a full system test.
3
11 mm
41,50 mm
M4

Entry Units with LCD display – Technical Manual www.Lock4Safe.com
4
2
1
Mount entry unit
removeable
• Prepare the mounting and cable /spindle holes
on the safe door (vertical).
• Deburr the cable hole well so that the cable
cannot be damaged.
• Attach the shoulder screws (not supplied in the
standard) in the two M4 holes.
• Feed the cable through the hole.
• Hook the entry unit on the shoulder screws, and
press downwards until it snaps into place.
41,50 mm
M4
11 mm
