4
Safety Warnings
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
• This appliance must be installed by a qualied Gas Safe registered
engineer. The manufacturer is not responsible for any damage caused
by incorrect installation.
• Check whether there is any damage to the appliance after you have
unpacked it. If any damage is found, do not use the appliance and
contact the store where you purchased it.
• This appliance is for indoor domestic use only.
• This appliance is for cooking purposes only. It must not be used for other
purposes, for example room heating.
• For disconnection from the mains supply you must have a switch with
a contact separation of at least 3.0 mm in all poles and rated 32 Amp that
provides full disconnection, this must be incorporated in the xed wiring
in accordance with the local wiring rules.
• If the mains cable gets damaged, it should be replaced by an authorized
service agent or qualied electrician in order to avoid a hazard.
• The cooker must be used in a well ventilated location and installed on
at / level surface.
• Only operate your appliance in a dry atmosphere.
• Keep the electrical cables of your other appliances away from hot areas;
do not let them touch the appliance.
• Ensure that the appliance is switched o at the mains supply switch
and allowed to completely cool down before cleaning, replacing the
oven lamp or performing any maintenance to avoid the possibility of an
electric shock or burns.
• The use of a gas cooking appliance results in the production of heat,
moisture and products of combustion in the room in which it is installed.
Ensure that the kitchen is well ventilated especially when the appliance
is in use. Keep natural ventilation holes open or install a mechanical
ventilation device (mechanical extractor hood).
LFTG90W14_IB.indd 4 09/02/2015 17:51

5
• Prolonged intensive use of the appliance may call for additional ventilation,
for example opening of a window, or more eective ventilation, for
example increasing the level of mechanical ventilation where present.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children should be supervised to ensure that they do not play with
the appliance.
• During use the appliance becomes hot. Care should be taken to avoid
touching the parts inside the oven or the hob burners/pan stands.
• The appliance and its accessible parts may become hot during use.
Young children should be kept away.
• Unattended cooking on a hob with fat or oil can be dangerous and may
result in re. NEVER try to extinguish a re with water, but switch o the
appliance and then cover the ame e.g. with a lid or a re blanket.
• Danger of re: Do not store items on the cooking surfaces.
• When the hob is hot never touch any parts that get hot. Allow the hob to
cool before touching these parts.
• When the oven is hot never touch the oven glass or any other parts that
get hot. Allow the oven to cool before touching these parts.
• Do not use harsh abrasives cleaners or sharp metal scrapers to clean the
oven door glass since they can scratch the surface, which may result in
the glass shattering.
• Before starting to use your appliance, keep curtains, tulle, paper or
ammable materials away from your appliance.
• Do not keep combustible or ammable things in, on or near the appliance.
• Do not use steam cleaners for cleaning the appliance.
• Do not rest any items on the open door and do not let children climb on
or stand on it.
LFTG90W14_IB.indd 5 09/02/2015 17:51

6
• Take care when handling parts with glass, knocks, chips, heavy handling
and dropping could cause the glass to shatter.
• The glass doors use toughened glass and are designed to break into
many‘nugget’ size pieces if it breaks. These pieces will still have sharp
edges, please handle broken glass with care.
• The appliance is not intended to be operated by means of an external
timer or separate remote-control system.
• This appliance is not designed to be used with hob guards. Use of
inappropriate hob guards can cause accidents.
• The inside surface of storage compartment may be hot during use. Care
should be taken to avoid touching inside surfaces.
LFTG90W14_IB.indd 6 09/02/2015 17:51

7
Main Unit
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local
regulations.

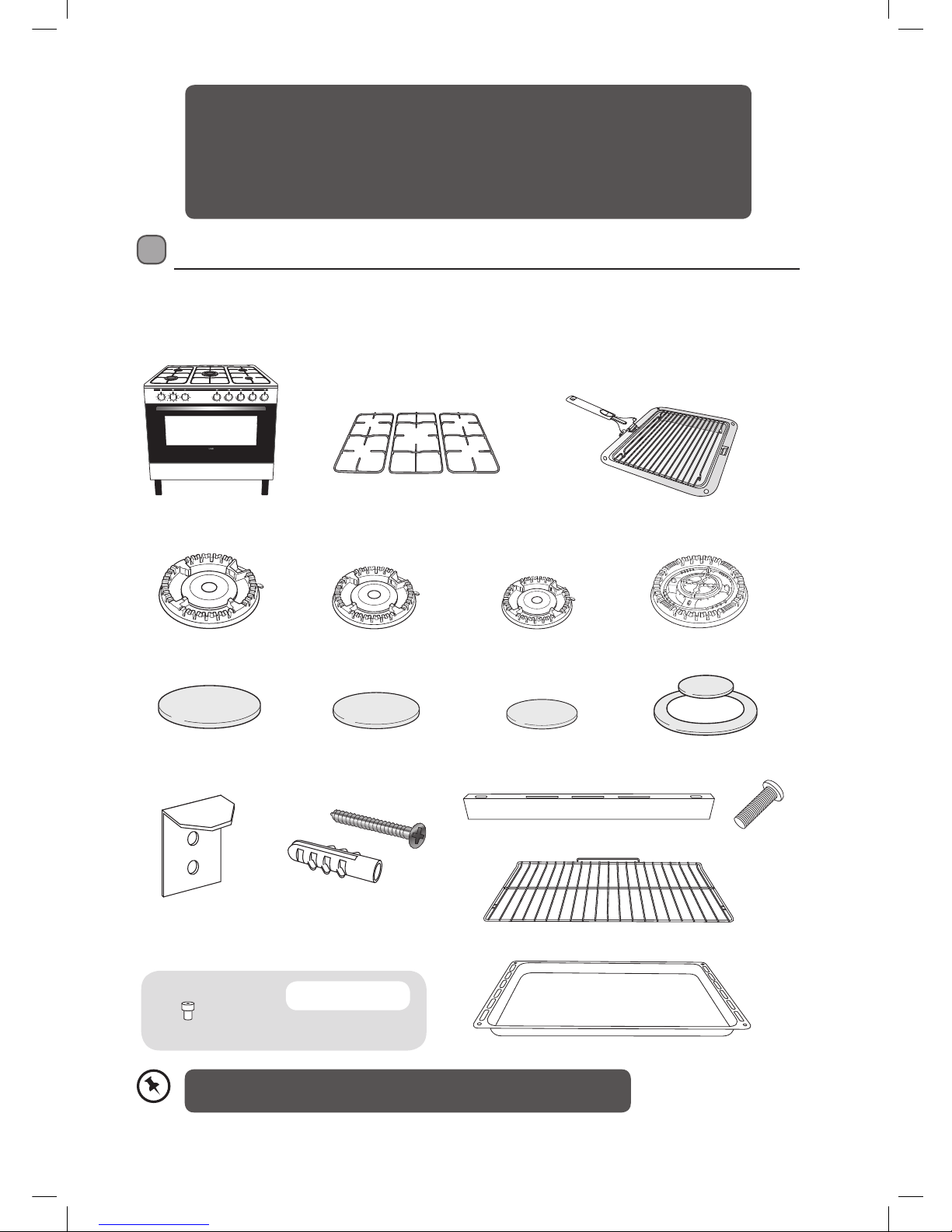

The following items are included:
Pan Support (Left/Middle/Right) × 3 Grill Pan Handle set x 1
100 mm Burner Ring × 1
100 mm Burner Cap × 1
Stability Bracket × 1 Stability Bracket Screws × 2
Stability Bracket Wall Plugs × 2 Shelf × 2
Baking Pan Shelf × 1
Splash Back × 1 Splash Back Screws × 2
75 mm Burner Ring × 2
75 mm Burner Cap × 2
55 mm Burner Ring × 1 Multi Ring Burner Ring × 1
55 mm Burner Cap × 1 60 mm & 130 mm Multi
Ring Burner Cap × 1
Thank you on the purchase of your new Logik Dual Fuel Range Cooker.
You must read this manual in order to fully understand how to operate it correctly.
This unit MUST be installed by a competent and registered engineer (Gas Safe in the UK).
Please allow the installer to view the installation section of this manual.
Read all the safety warnings carefully before use and keep this manual for future reference.
If items are missing or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
* All images are for indication only; please refer to your individual unit for actual item.
LPG Replacement Rating
Plate Sticker × 1
LPG Conversion Kit:
LPG Nozzle × 5
Type of gas
3+ G30/31 28-30/37 mbar
LFTG90W14_IB.indd 7 09/02/2015 17:51

8
Product Overview
The Hob
Control Panel
1. Standard Burner (75 mm)
2. Large Burner (100 mm)
3. Small Burner (55 mm)
4. Multi Ring Burner (middle 60mm, outer 130mm)
1. Oven Timer Control
2. Oven Functions Control
3. Oven Temperature Control
4. Front Left Hob Control
5. Back Left Hob Control
6. Multi Ring Hob Control
7. Back Right Hob Control
8. Front Right Hob Control
2 3 4 5 6 7 81
1
3
4
2
* All images are for indication only; please refer to your individual unit for actual item.
1
LFTG90W14_IB.indd 8 09/02/2015 17:51

9
Oven
2
1
3
4
5
6
7
8

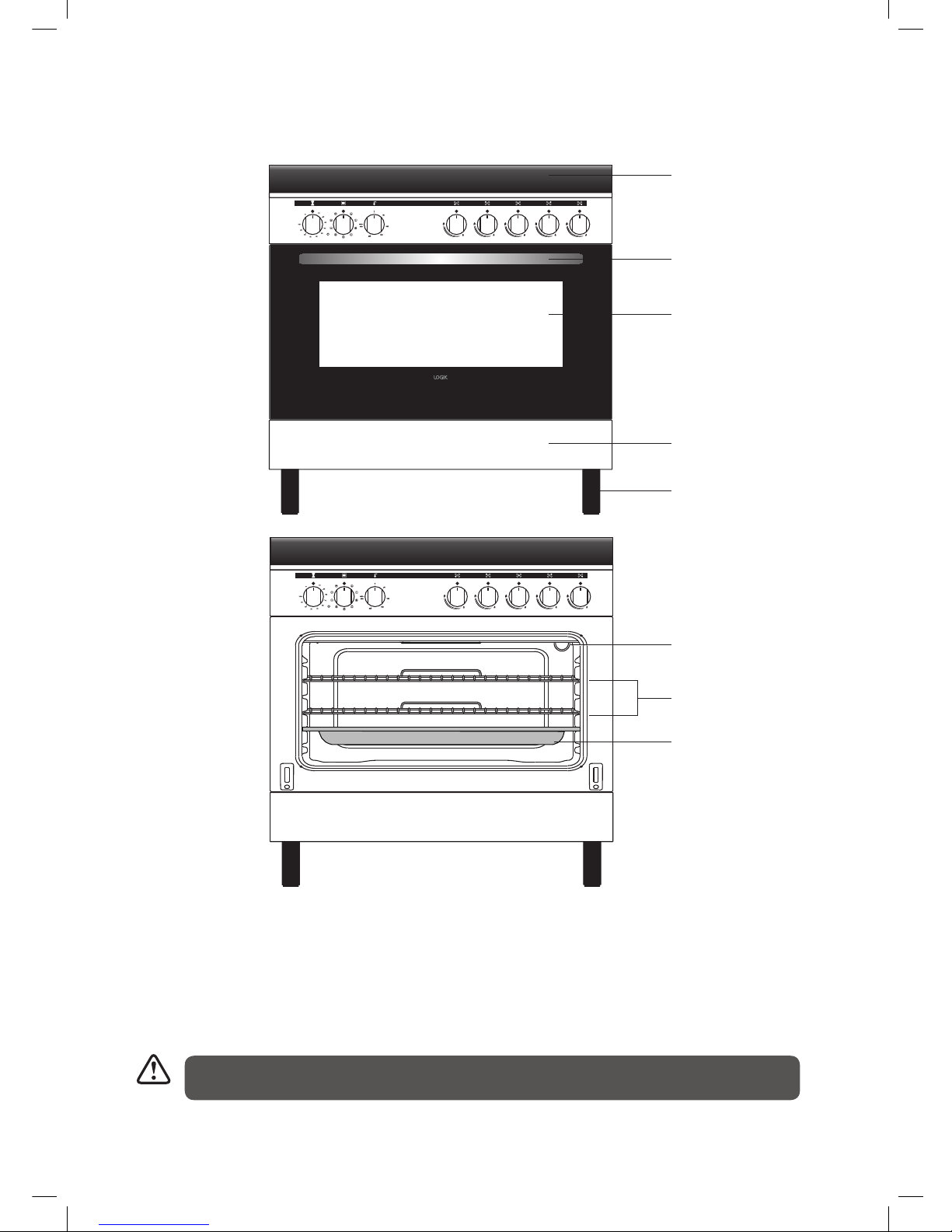

1. Splash Back
2. Oven Door Handle
3. Oven Door
4. Storage Flap
5. Adjustable Feet
6. Oven Light
7. Oven Shelves
8. Deep Baking Pan Shelf
The inside surface of storage compartment may be hot during use. Care should be taken to avoid
touching inside surfaces.
LFTG90W14_IB.indd 9 09/02/2015 17:51

10
Lighting the Hob

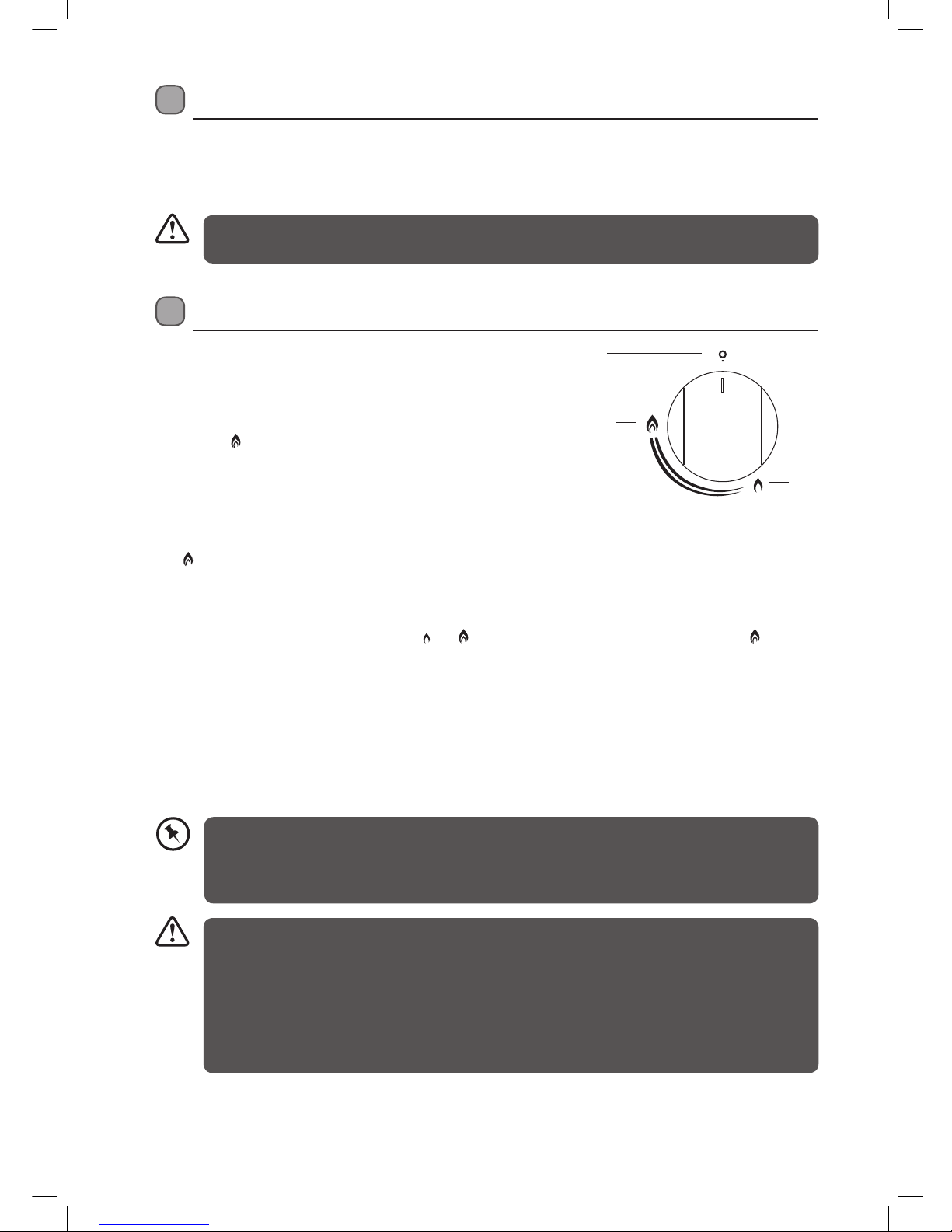

1. Choose the control for the burner you want to use.
2. Press and hold the Burner control in. The spark ignition will
operate whilst you hold in the control. While pressing the
burner control down, turn it anti-clockwise to the large flame
symbol . Continue to hold the control in for approximately
5-10 seconds after the burner has lit. Releasing the control too
soon will extinguish the flame due to the flame failure safety
feature.
Manual Ignition (in case of electricity failure)
To ignite one of the burners, press and turn the control counter-clockwise so that the control is at the
position. Hold an ignition source (e.g. candle lighter) close to the upper circumference of the burner.
Move the ignition source away as soon as you see a stable flame. Continue holding the control in for
approximately 5-10 seconds after the burner has lit. Releasing the control too soon will extinguish the flame
due to the flame failure safety feature.
3. Adjust the flame anywhere between the and positions. Do not adjust the flame between the and Off
position.
4. After ignition, check the flames visually. If you see yellow tipped, lifted or unstable flames; turn the control
off. Allow the burners to cool before touching, then check the assembly of the burner rings and caps. Also,
make sure that no liquid has entered into the burner cups. If the burner flames go out accidentally, turn the
burners off, and do not try to light them again for at least 60 seconds (to allow the gas to disperse).
5. When turning the hob off, turn the control in a clockwise direction to the off mark, ‘O’.
Before Using the Hob
Before using your new hob, please:
• Read this manual fully taking special note of the ‘Safety Warnings’ section.
• Make sure the cooker is connected to the mains supply so that the ignition circuit will work.
O
High
Low
• If the burner does not light within 15 seconds, turn the control off and wait for at least 60 seconds
before trying again.
• To switch the burner off, turn the control clockwise to the off ‘O’ position.
• After use, always turn the controls to the off position.
This appliance is for cooking purposes only. It must not be used for other purposes, e.g. room
heating.
• This appliance is for cooking purposes only. It must not be used for other purposes, for example
room heating.
• The use of a gas cooking appliance results in the production of heat, moisture and products of
combustion in the room in which it is installed. Ensure that the kitchen is well ventilated especially
when the appliance is in use: keep natural ventilation holes open or install a mechanical ventilation
device (mechanical extractor hood). Prolonged intensive use of the appliance may call for
additional ventilation, e.g. opening of a window, or more effective ventilation, e.g. increasing the
level of mechanical ventilation where present.
* All images are for indication only; please refer to your individual unit for actual item.
LFTG90W14_IB.indd 10 09/02/2015 17:51
