Logik L7PDVD10 User manual

7” Portable DVD Player
Instruction Manual
L7PDVD10

Contents
Unpacking the DVD Player ..........................................................................................4
Product Overview.........................................................................................................5
DVD Player.............................................................................................................................................5
Remote Control ...................................................................................................................................6
Remove the Insulating Strip from the Remote Control ........................................................7
Battery Installation for the Remote Control..............................................................................7
Remote Control Operation Range................................................................................................8
Power Supply ................................................................................................................9
Using the Mains Adapter (for indoor use)..................................................................................9
Using the Car Power Adapter (for in-car use) ...........................................................................9
Using the Built-in Battery..............................................................................................................10
Connections ............................................................................................................... 11

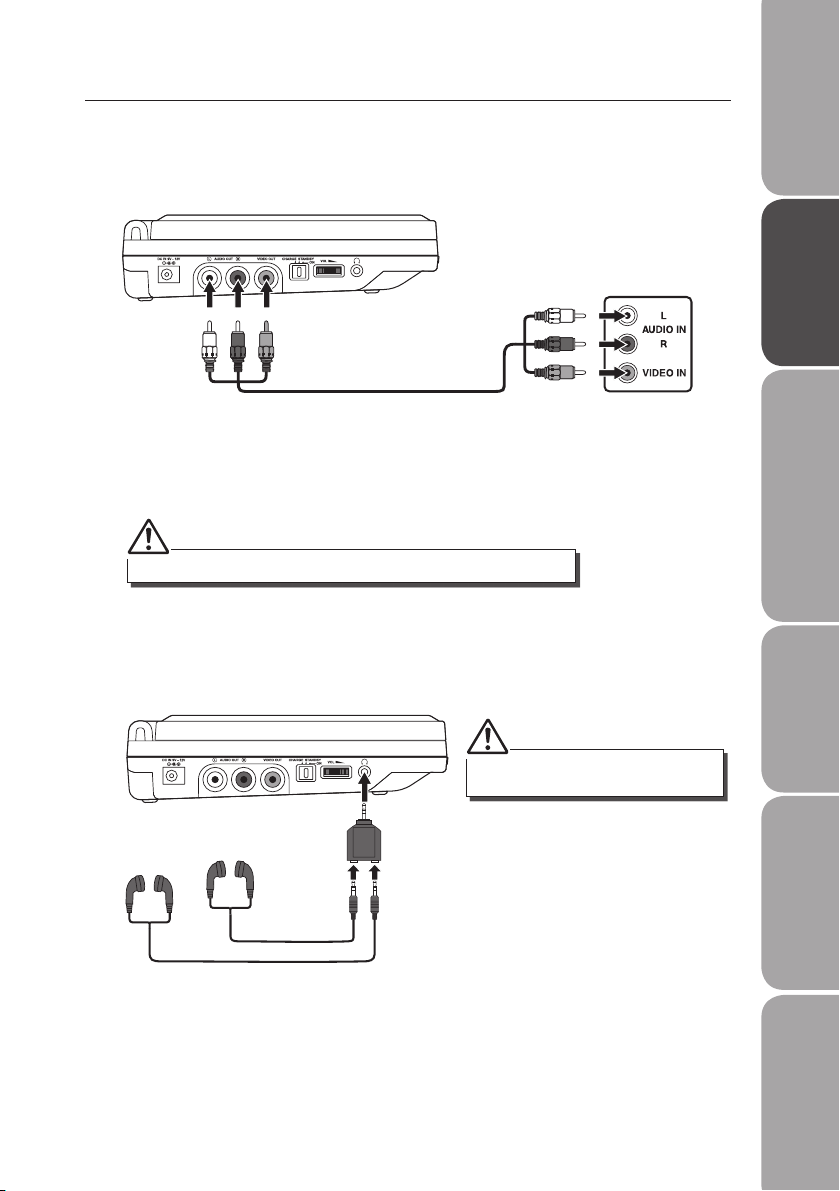

Connecting a TV...............................................................................................................................11
Using Earphones..............................................................................................................................11
Compatible Disc Types .............................................................................................. 12
Supported Formats.........................................................................................................................12
Region Code ......................................................................................................................................12
Turning on the Unit ................................................................................................... 13
Basic Playback............................................................................................................ 13
Playing a Disc ....................................................................................................................................13
Pausing Playback (Still Mode) .....................................................................................................13
Stopping Playback...........................................................................................................................13
Fast Forward / Fast Reverse..........................................................................................................13
Skip (Forward / Reverse)................................................................................................................14
Audio Selection ...............................................................................................................................14
Subtitle Selection ............................................................................................................................ 14
Angle Selection ...............................................................................................................................15
Display Function .............................................................................................................................15
Adjusting the LCD Screen............................................................................................................. 15

Locating a Desired Section ....................................................................................... 16
Locating a Specic Title.................................................................................................................16
Locating a Specic Chapter / Track ...........................................................................................16
Locating a Specic Time ............................................................................................................... 16
DVD Programmable Memory ................................................................................... 17
Repeat Playback ........................................................................................................ 18
Repeating a Chapter.......................................................................................................................18
Repeating a Title...............................................................................................................................18
To Resume Normal Playback .......................................................................................................18
Repeating a Single Track...............................................................................................................18
Repeating a Whole Disc.................................................................................................................18
To Resume Normal Playback .......................................................................................................18
Repeating a Specic Section .......................................................................................................18
To Resume Normal Playback .......................................................................................................18
Viewing JPEG Files..................................................................................................... 19
Customising the Function Settings.......................................................................... 20
Language Setup............................................................................................................................... 20
Video Setup........................................................................................................................................20
System Setup.....................................................................................................................................21
Maintenance .............................................................................................................. 23
Hints and Tips ............................................................................................................ 24
Specications............................................................................................................. 25
Safety Warnings......................................................................................................... 26

Safety WarningsProduct Overviews Connections System Set-upPlayable Disc / Supportive
Formats / Playback Functions
Hints and Tips
and Specification
GB-4
DVD Player x 1
Mains Adapter x 1
(P.N.: 133-010901W142)
Earphone x 1
(P.N.: 114-010331W002)
Car Power Adapter x 1
(P.N.: 133-030627W004)
Remote Control x 1
(P.N.: 043-A13232W210)
Instruction Manual x 1
(P.N.: 811-837391W071)
Quick Start Guide x 1
(P.N.: 810-837395W030)
If items are missing or damaged, please contact Partmaster (UK only).
Tel: [phone] for assistance.
Unpacking the DVD Player
Remove all packaging from DVD Player. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
Congratulations on the purchase of your new Logik DVD Player.
We recommend that you spend some time reading this instruction manual in
order that you fully understand all the operational features it oers. You will
also nd some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction
manual for future reference.
7” Portable DVD Player
Instruction Manual
L7PDVD10

Safety Warnings Product OverviewsConnectionsSystem Set-up Playable Disc / Supportive
Formats / Playback Functions
Hints and Tips
and Specification
GB-5
Product Overview
DVD Player
LCD Screen1)
DC IN 9V-12V Socket2)
AUDIO / VIDEO OUT Sockets3)
CHARGE / STANDBY / ON Switch4)
VOLUME Control5)
Adjust the volume.
Headphone Socket6)
7) NEXT Button
Move forward to next chapters/
tracks/titles on a disc.
PREV Button
Move back to the beginning of the
current chapter/titles for DVD; or
previous track for CD.
PAUSE Button
Pause playback and frame advance.
PLAY Button
Start or resume playback of a disc.
STOP Button
Stop playing a disc.
SEARCH Button
Press to perform fast forward playback.
SEARCH Button
Press to perform fast reverse playback.
CHARGING Indicator8)
A green light will illuminate when the
CHARGE / STANDBY / ON switch is at
the CHARGE position.
ON Indicator9)
A red light will illuminate when the
CHARGE / STANDBY / ON switch is at
the ON position.
Remote Sensor10)
Receives signals from the remote
control.
Open Switch11)
Slide rightwards to open the disc door.
Disc Door12)
Push to close the disc door.
1
2 3 4 5 6 7 8 9 10 11
12

Safety WarningsProduct Overviews Connections System Set-upPlayable Disc / Supportive
Formats / Playback Functions
Hints and Tips
and Specification
GB-6
Remote Control
6
4
2
1 15
14
12
10
9
11
13
5
7
8
3
VIDEO MODE Button1)
Adjust Brightness, Panel Display and
Contrast of the LCD screen.
2) PREV Button
Move back to the beginning of the
current chapters/titles for DVD; or
previous track for CD.
3) / SEARCH Buttons
SEARCH: Fast reverse playback.
SEARCH: Fast forward playback.
GOTO Button4)
Skip directly to a location on a DVD.
Cursor (5) , , , ) Buttons
Move between selections on a menu
screen and adjust certain settings.
ENTER Button
Conrm selections on a menu screen.
MEMORY Button6)
Set titles/chapters/tracks in a desired
order.
Number (0 - 9) Buttons7)
Create programs or locate a title/
chapter/track or specic time.
REPEAT A-B Button8)
Perform point-to-point repeat playback
on a DVD or CD.
REPEAT DISC Button
Repeat a DVD chapter or title.
Repeat a CD track or the entire disc.
SETUP Button
Display the SETUP menu in STOP mode.
SUBTITLE Button9)
Select one of the subtitle languages
programmed on a DVD (if available).
RETURN Button
Return to normal operation after using
the SETUP menu of a DVD.
AUDIO Button10)
Select one of the audio sound tracks on
a DVD (if more than one is available) or
select the audio output mode on a CD.
ANGLE Button11)
Switch between multiple camera angles
when the DVD you are playing has been
programmed with multiple camera
angle.
DISPLAY Button12)
Show status information on the screen.
13) STOP Button
Stop playing a disc.
PLAY Button
Start or resume playback of a disc.
PAUSE Button
Pause playback and frame advance.
14) NEXT Button
Move forward to next chapters/tracks
titles on a disc.
MENU Button15)
Enter and exit the main DVD menu.

Safety Warnings Product OverviewsConnectionsSystem Set-up Playable Disc / Supportive
Formats / Playback Functions
Hints and Tips
and Specification
GB-7
Battery Installation for the Remote Control
Remove the Insulating Strip from the Remote Control
Remove the insulating mylar strip from the battery if the battery is
being used for the rst time. It is located at the bottom back side
of the remote control.
Handling the Battery
Improper or incorrect use of batteries may cause corrosion or battery leakage, which could•
cause re, personal injury or damage to property.
Install the battery correctly by following the polarity (+ and -) indications in the battery•
compartment.
When the battery is exhausted, the remote control will not function.•
Only use the battery type indicated in this manual.•
Do not dispose of the used battery as domestic waste. Dispose of it in accordance with the•
local regulations.
Small button cell batteries such as the one used in the remote control are easily swallowed by•
young children and this is dangerous. Keep loose button cells away from young children and
make sure that the battery holder tray is secure in the remote control. Seek medical advice if
you believe a cell has been swallowed.
Handling the Remote Control
Take care of your ngernails when you press and hold the battery release tab.•
Do not drop or cause impact to the remote control.•
Do not spill water or any liquid on the remote control.•
Do not place the remote control on a wet object.•
Do not place the remote control under direct sunlight or near sources of excessive heat.•
Remove the battery from the remote control when not in use for a long period of time, as it•
could cause corrosion or battery leakage and may result in physical injury and/or property
damage including re.
Press and hold the battery release1.
tab and pull out the battery holder
completely.
Remove the old battery, and place a2.
new battery in the holder.

Safety WarningsProduct Overviews Connections System Set-upPlayable Disc / Supportive
Formats / Playback Functions
Hints and Tips
and Specification
GB-8
Remote Control Operation Range
Point the remote control at the DVD player no
more than 2 metres from the remote control sensor
and within 40° of the front of the DVD player. The
operating distance may vary depending on the
brightness of the room.
30° 30°
Within about 2 m
20° 20°

Safety Warnings Product OverviewsConnectionsSystem Set-up Playable Disc / Supportive
Formats / Playback Functions
Hints and Tips
and Specification
GB-9
Using the Car Power Adapter (for in-car use)
The 12V car power adapter allows the unit to be used with vehicles that have a 12V electrical
system.
Power Supply

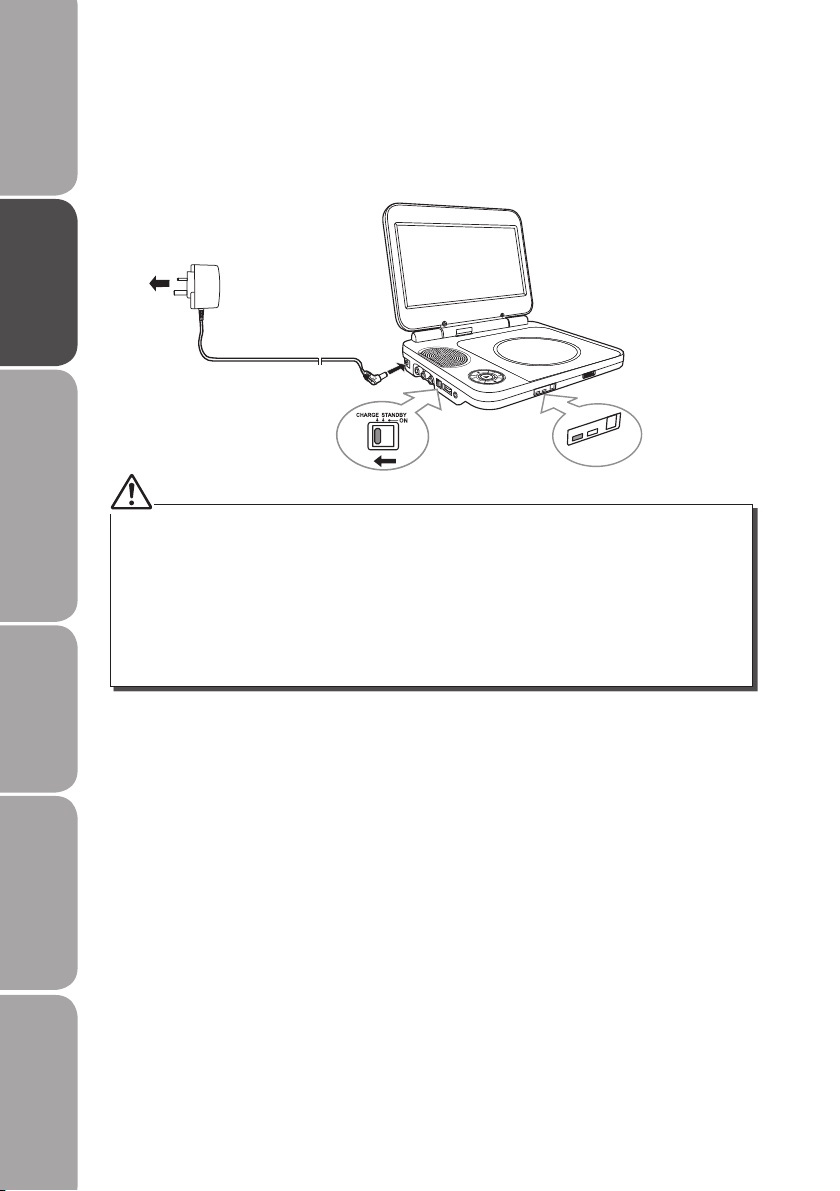

Using the Mains Adapter (for indoor use)
Only use the mains adapter provided with the unit. Do not use it with any other equipment.•
When the unit is not going to be used for a long period of time, disconnect the mains adapter from the mains•
socket.
When the mains adapter is plugged in, the unit is not completely disconnected from the main power supply,•
even when the power is turned o.
In order to disconnect the unit from the mains completely, the mains adapter should be disconnected from the•
mains socket outlet completely.
Disconnect the car power adapter when not in use. Not for use in 24V vehicles.•
Only use the car power adapter provided with the unit. Other car power adapters could damage the unit.•
In the interest of trac safety, do not operate this unit or view videos while driving a vehicle.•
Make sure the unit is securely fastened to prevent it from falling or ying through the air in the event of an•
accident.
When the inside of the cigarette lighter socket is dirty with ash or dust, the plug section may become hot due•
to poor contact. Be sure to clean the cigarette lighter socket before use.
After use, disconnect the 12V car power adapter from both the unit and the cigarette lighter socket.•
To Mains
Socket
Mains Adapter (included)
Left Side of Unit
To DC IN 9V-12V Socket
Car Power Adapter (included)
To DC IN 9V-12V Socket
Left Side of Unit
To Cigarette
Lighter Socket

Safety WarningsProduct Overviews Connections System Set-upPlayable Disc / Supportive
Formats / Playback Functions
Hints and Tips
and Specification
GB-10
Using the Built-in Battery
The unit has a built-in, non-replaceable, rechargeable battery. Charge the built-in battery before
using it for the rst time. The normal charging time should be 4-5 hours. The charging light will
go out when the built-in battery is fully charged.
To Recharge the Built-in Battery
The built-in battery can only be recharged when the unit is in CHARGE mode while using the mains adapter.•
The built-in battery cannot be recharged when the unit is in power ON mode.•
The unit and the battery should not be exposed to direct sunlight and other sources of heat.•
When the built-in battery power is low,“Battery Low” will display on the screen and the unit will stop playing.•
Recharge the built-in battery before you are ready to use the unit again.•
While using the built-in battery, the environmental temperature should be 41°F (5°C) to 95°F (35°C).•
To get the longest service life out of the built-in battery, charge at room temperature.•
The built-in battery in this device may present a risk of re or chemical burn if mistreated. Do not disassemble,•
heat above 212°F (100°C), or incinerate.
When discarding the unit, local rules or laws governing the disposal of such products must be strictly followed.•
Mains Adapter (included)
To Mains Socket
TO DC IN 9V-12V socket
Slide the switch
to CHARGE Charging light
ON
Recharging
is completed
when charging
light goes out
