Logitech ZONE WIRELESS User manual

VERSION COMMUNICATIONS
UNIFIÉES UC
VERSION MICROSOFT
TEAMS
LOGITECH ZONE WIRED EARBUDS
Setup Guide
Guide d’installation
UNIFIED COMMUNICATIONS
UC VERSION
MICROSOFT
TEAMSVERSION

CONTENTS
English . . . . . . . . . . . . . . . . .3
Français . . . . . . . . . . . . . . . 11
Español . . . . . . . . . . . . . . . . 19
Português . . . . . . . . . . . . . . 27

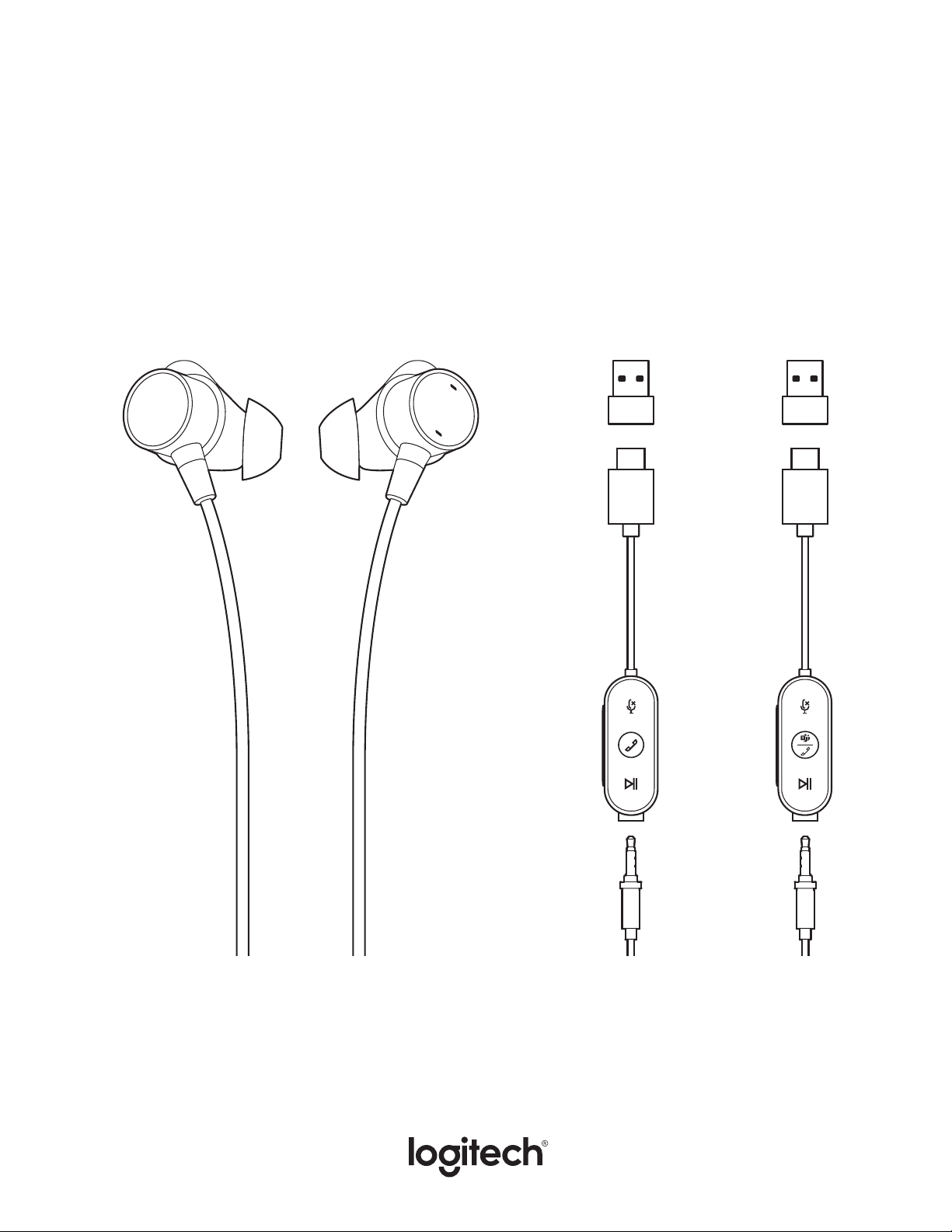

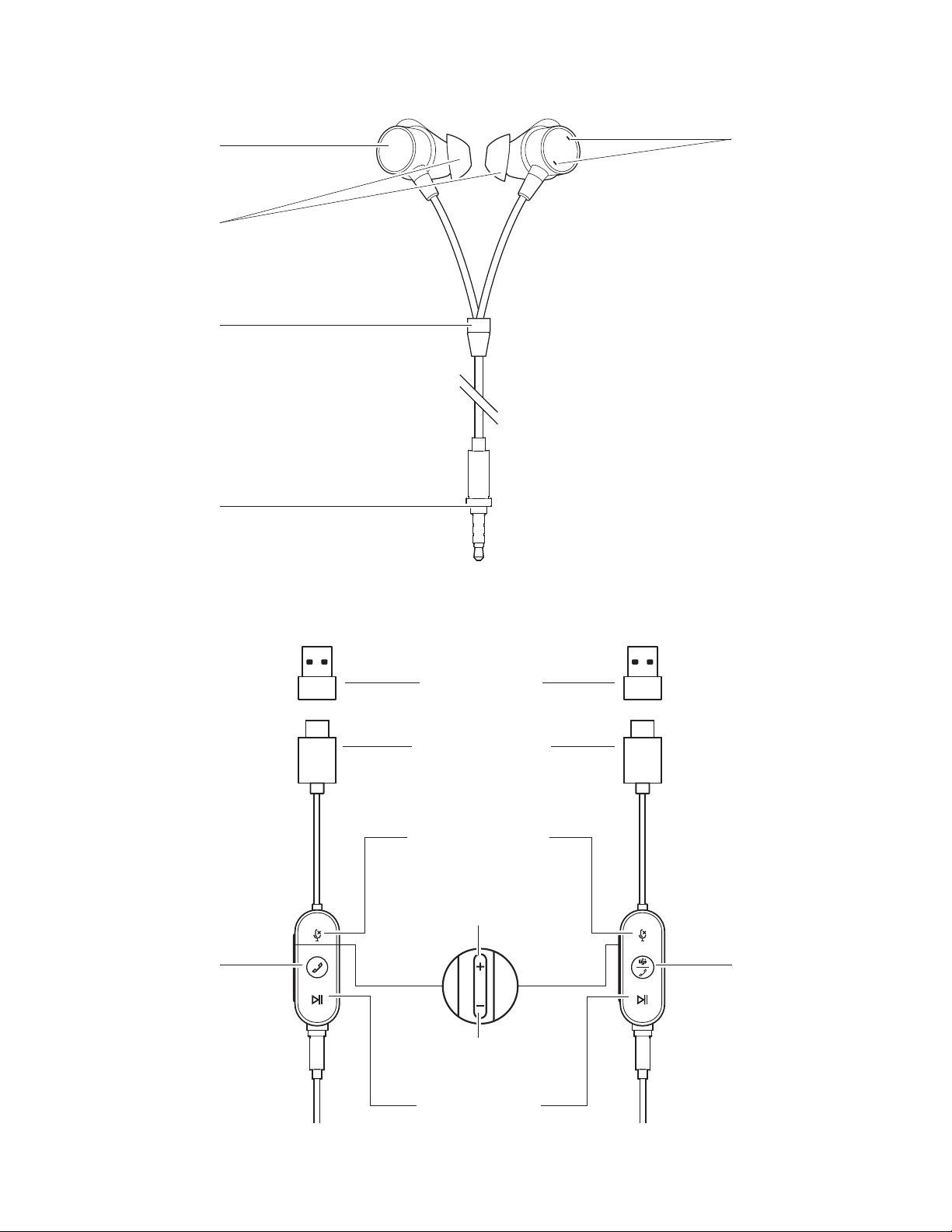

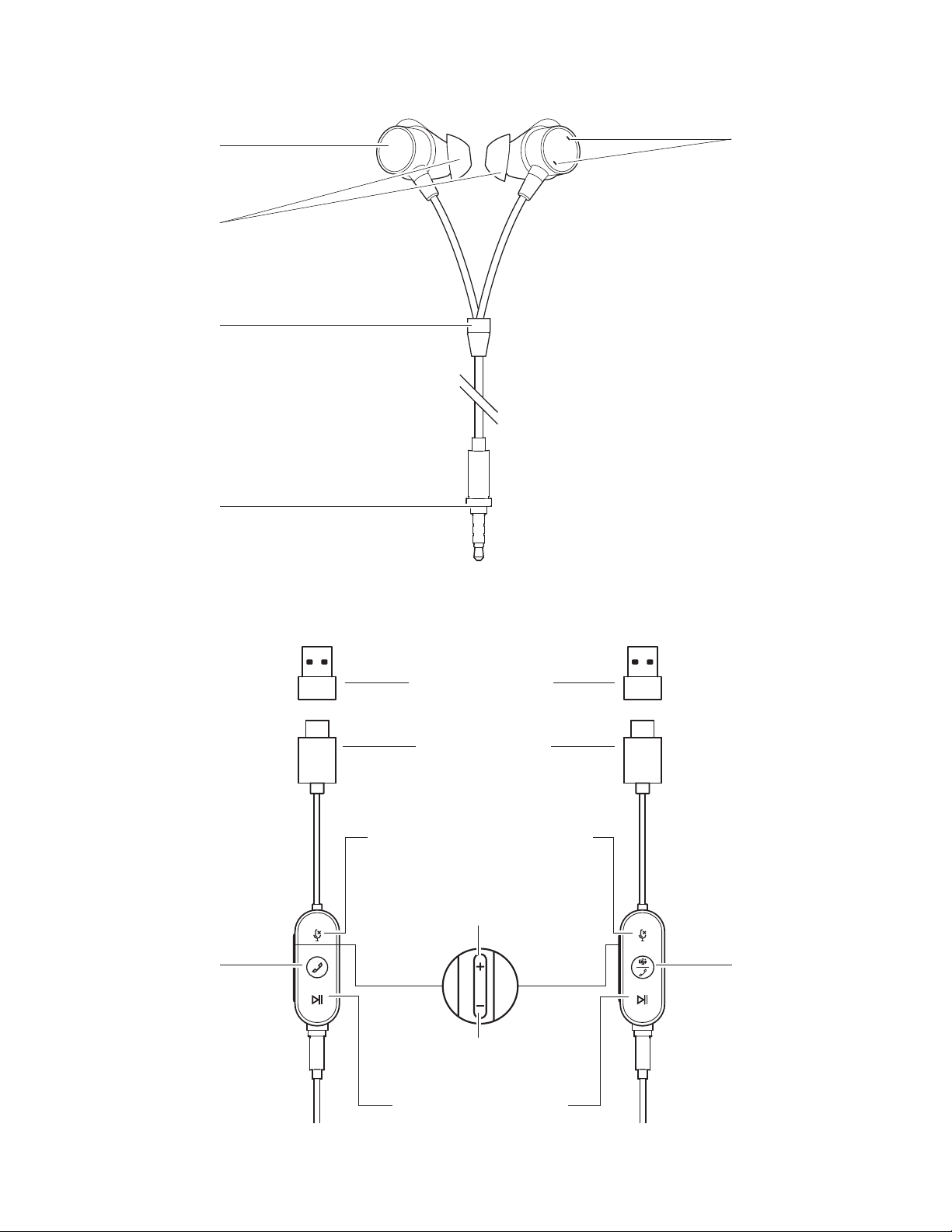

KNOW YOUR PRODUCT
Embedded
noise-canceling
microphones
Media controls
UC VERSION TEAMS VERSION
Magnetic snap
Slider at Y-joint
3.5mm connector
Microphone mute
Replaceable eargels
INLINE CONTROLLER
USB-C connector
USB-A adapter
Call controls
&Voiceassistant
Call controls
&Microsoft Teams
Volume up
Volume down
3English

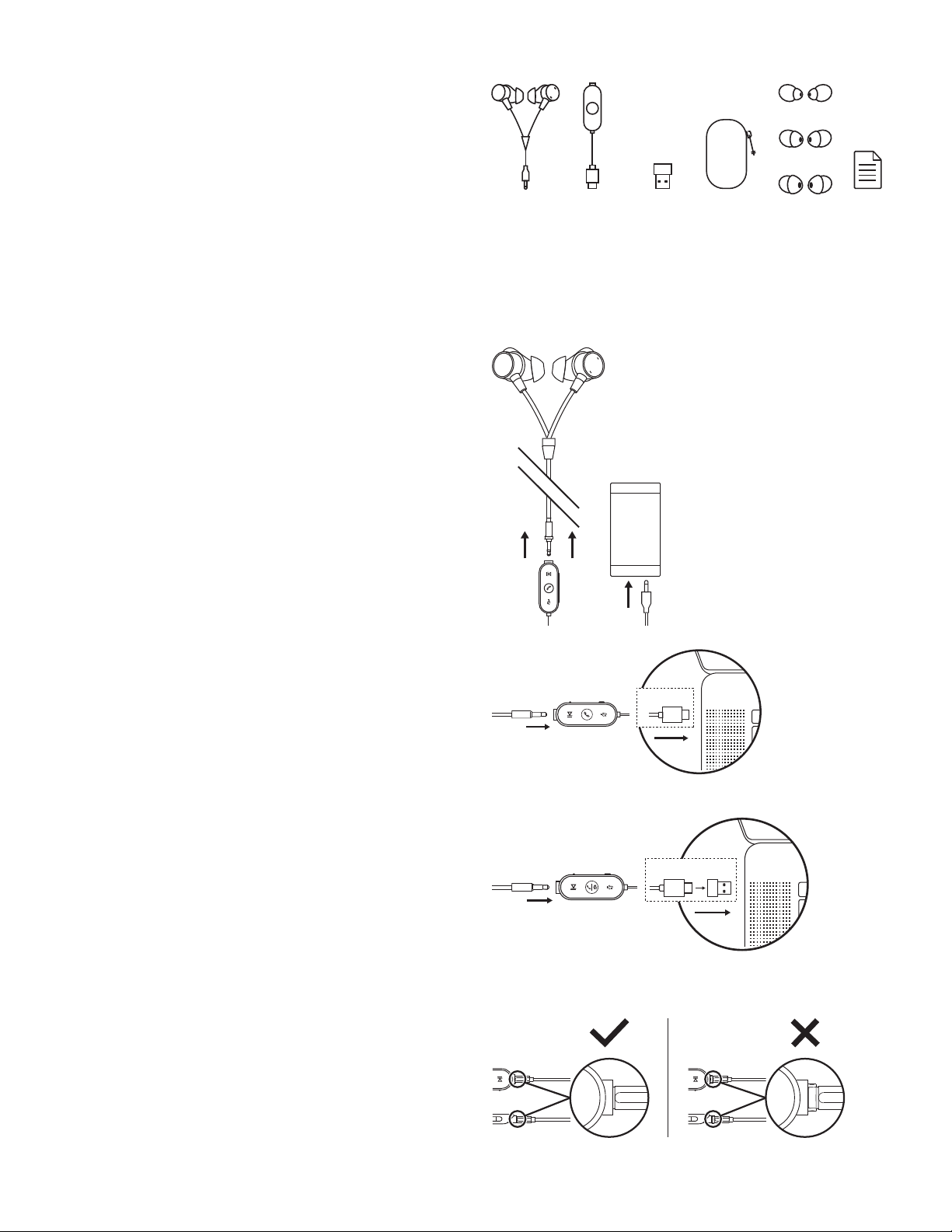

WHAT’S IN THE BOX
1. Wired earbuds with M size eargels and
3.5mm connector
2. In-line controller with USB-C connector
3. USB-A adapter
4. Travel bag
5. Replaceable eargels (1 pair per XS/S/L size)
6. User documentation
CONNECTING THE EARBUD
Connect via 3.5mm
1. Unplug 3.5mm connector from the in-line
controller.
2. Plug the 3.5mm connector into your mobile
ortablet 3.5mm port.
Note: Compatibility may depend on device models.
Mic and audio quality will convert to analog
with 3.5mm connector.
Connect via USB-C
1. Plug the 3.5mm connector into the controller.*
2. Then plug the USB-C connector into your
computer USB-C port.
Note: Compatibility may depend on device models.
Connect via USB-A
1. Plug the 3.5mm connector to the controller.*
2. Plug the USB-C connector into the
USB-A adapter.
3. Plug the USB-A connector into your computer
USB-A port.
Note: Only use the USB-A adapter with the
provided earbuds.
*Make sure 3.5mm connector is fully inserted
into the controller.
USB-C USB-A3.5mm
S
L
XS
USB-C
USB-A
4English

EARBUD FIT
1. Earbuds are marked ‘L’ and ‘R’ for theleft
and right ear. Earbuds are tted with
medium size eargels out of the box.
If your earbuds are not comfortable,
changetoalternative sized eargels.
Seenextsection for the replacement steps.
• Try a small size if you feel too much pressure
on your ear, or large size if the earbuds are
tooloose.
• Note that you may use dierent sized eargels in
each ear as your ears may not be the same size.
2. Slightly move the earbud around to be
securely positioned in your ear.
3. Move the slider at the Y-joint up and down
toadjust the cable length.
L
L
M
S
XS
5English

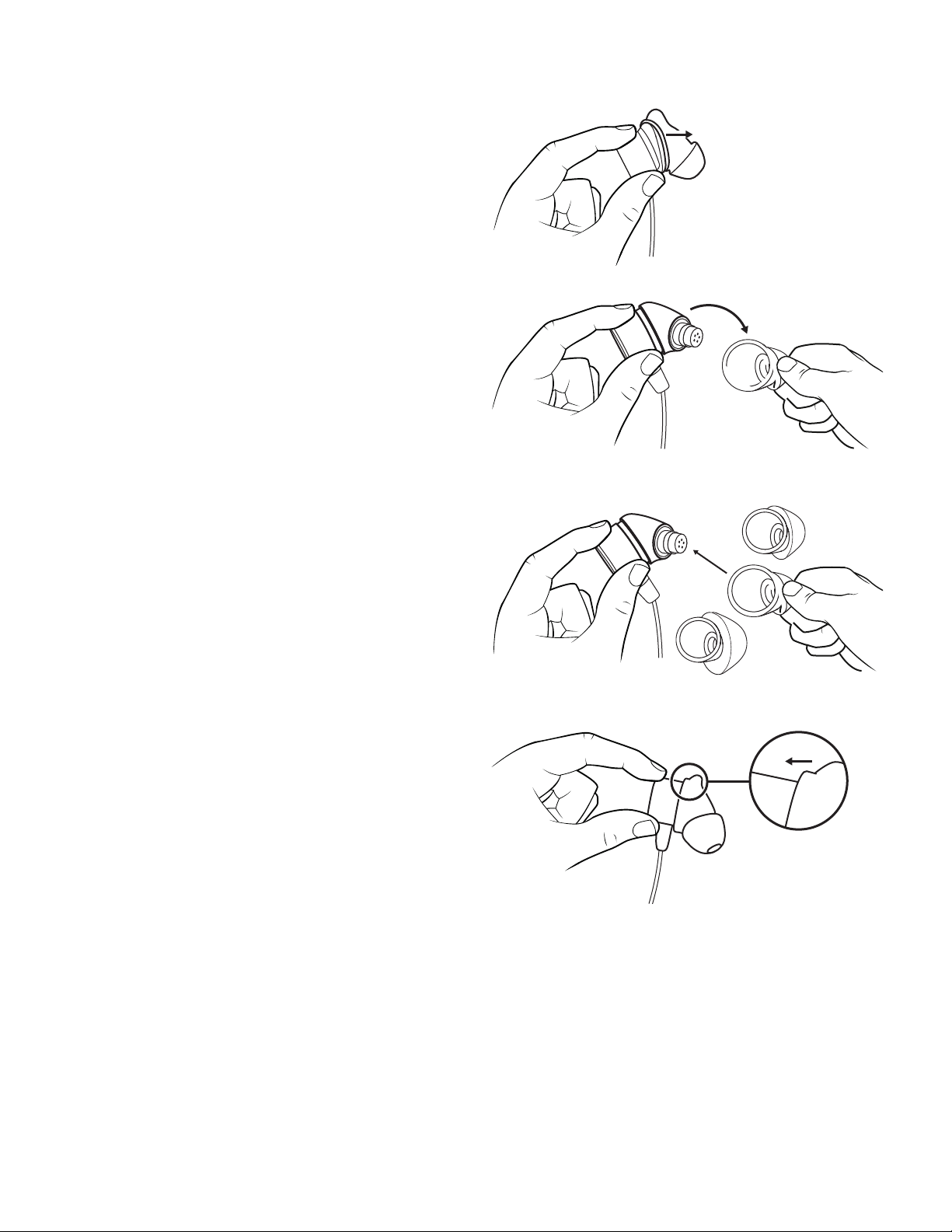

REPLACING THE EARGEL
1. Hold the body of the earbud with one hand.
2. With the other hand, gently pull the whole eargel
away from the body of the earbud.
3. Grab alternative sized eargels. Please nd the size
inside the eargel.
4. Gently stretch the eargel onto the earbud,
untilthereis no gap between eargel and body
oftheearbud.
M
XS
L
L
S
6English

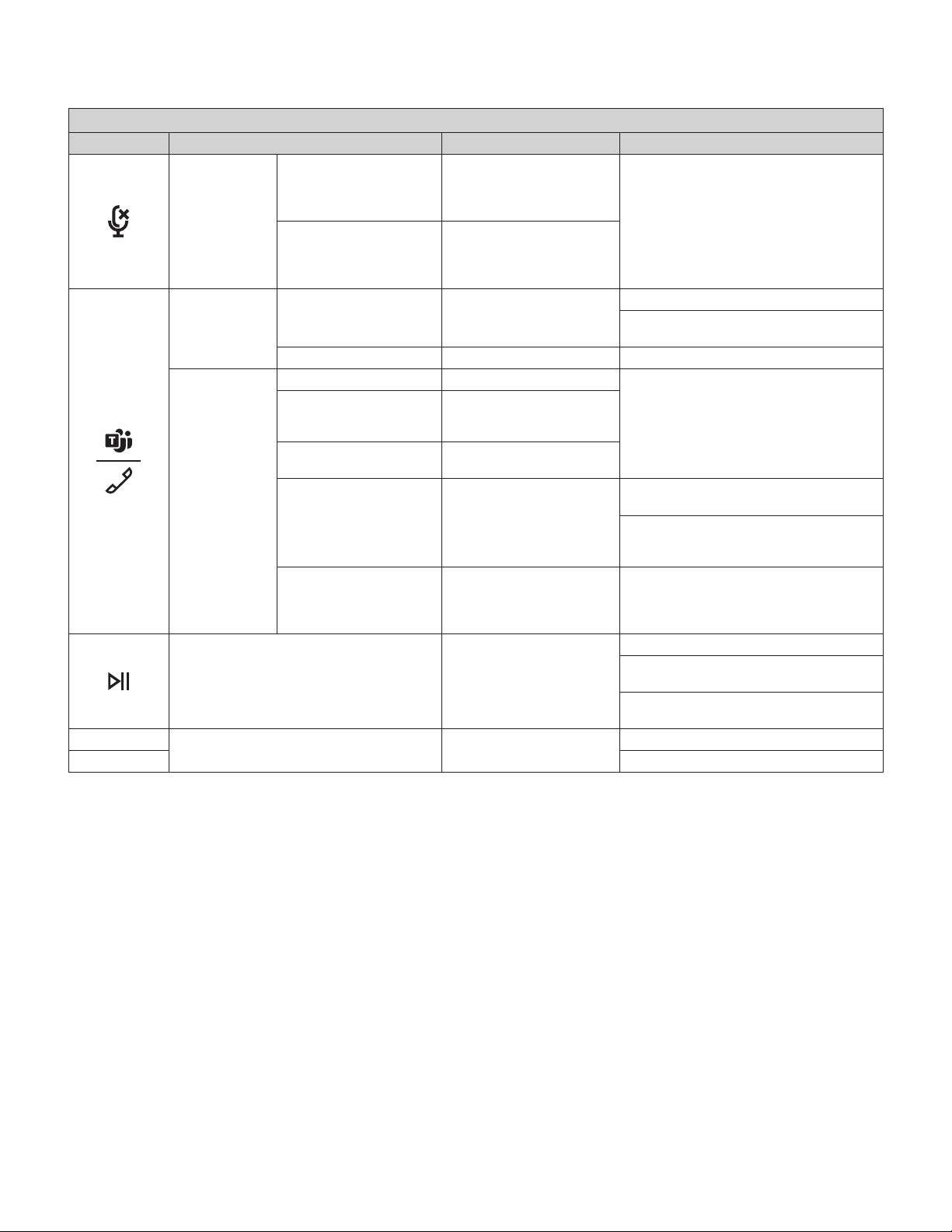

TEAMS version
Button Usage Indicator Light Action
Mute
Mute on Solid RED
Short press to mute / unmute
Mute o No light
Call Controls Incoming calls Flashing WHITE Short press to answer calls 2 seconds press to reject calls
Ongoing calls Solid WHITE Short press to end calls
Teams Activities
Connecting to Teams Pulsing PURPLE
Short press to check connection to Teams
Failed connection to Teams Flashing PURPLE for
10secs then o
Not connected to Teams Flashing PURPLE 3 times
then o
Connected to Teams Solid PURPLE
Short press to quickly access Teams
2 seconds press to trigger Teams voice skills
(Cortana)
Teams Missed call /
Voicemail / Join meeting
notications
Pulsing PURPLE Short press to Respond to Teams
notications
Media Controls No light
Short press to play / pause
Double press to track forward
Triple press to track backward
+Volume No light Short press to volume up
-Short press to volume down
Note: Teams activities are only functional when Teams is running on unlocked PC or Mac.

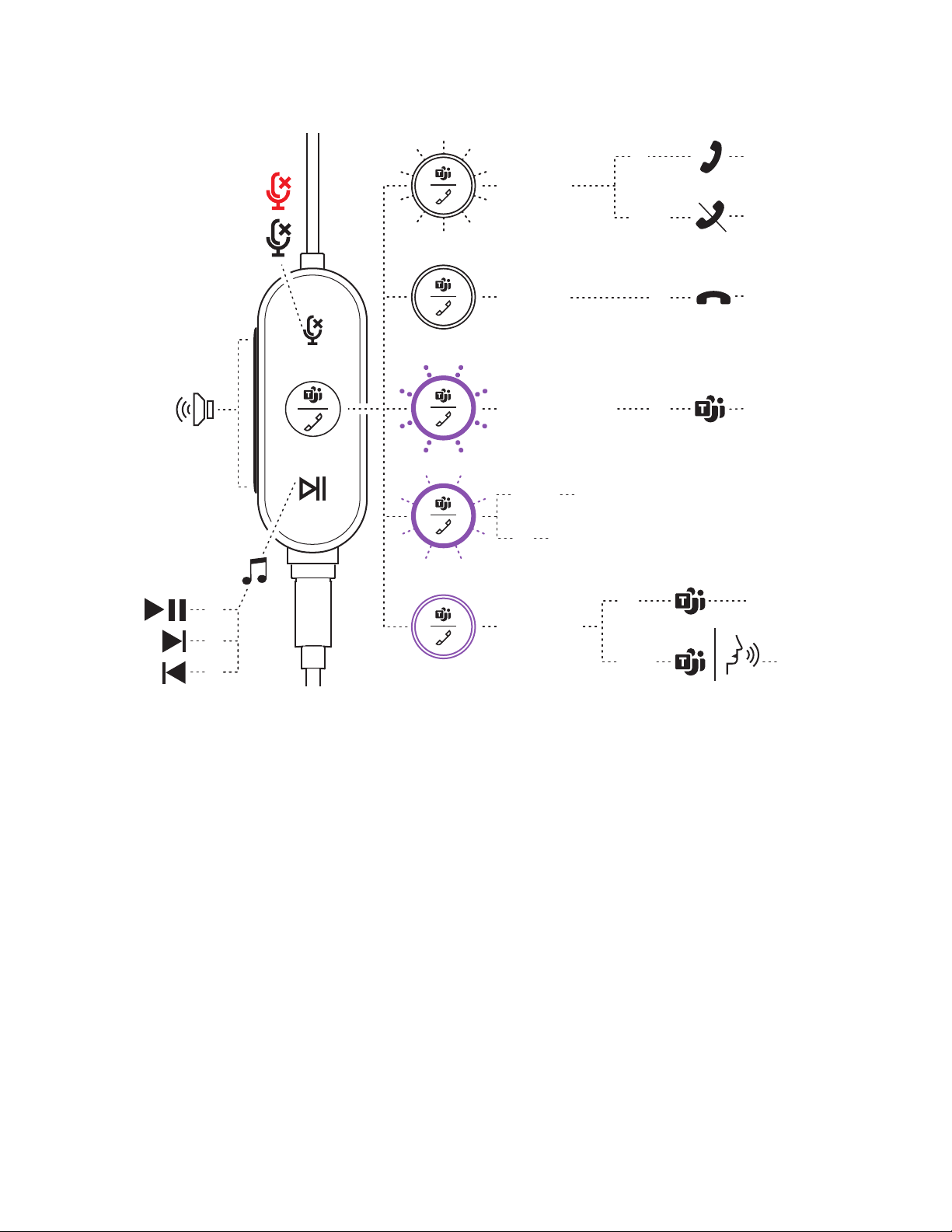

HEADSET INLINE CONTROLS AND INDICATOR LIGHT
7English

1x
2x
3x
1x
1x
1x
1x
+
-
3x
UNMUTE - - - 1x - - - MUTE ON INCOMING
CALL
MEDIA CONTROLS
ONGOING
CALL
ANSWER CALLS
REJECT CALLS
END CALLS
FAILED CONNECTION TO TEAMS
CONNECTED
TO TEAMS
QUICKLY ACCEDD
TEAMS
TRIGGER TEAMS
VOICE SKILLS
(CORTANA)
10 sec.
2 sec.
2 sec.
NOT CONNECTED TO TEAMS
CONNECTING TO TEAMS/
TEAMS MISSED CALL/
VOICE MAIL/
JOIN METTING NOTIFICATIONS
TEAMS MISSEDCALL/
VOICE MAIL/
JOIN METTING
NOTIFICATION
MUTE - - - 1x - - - MUTE OFF
8English

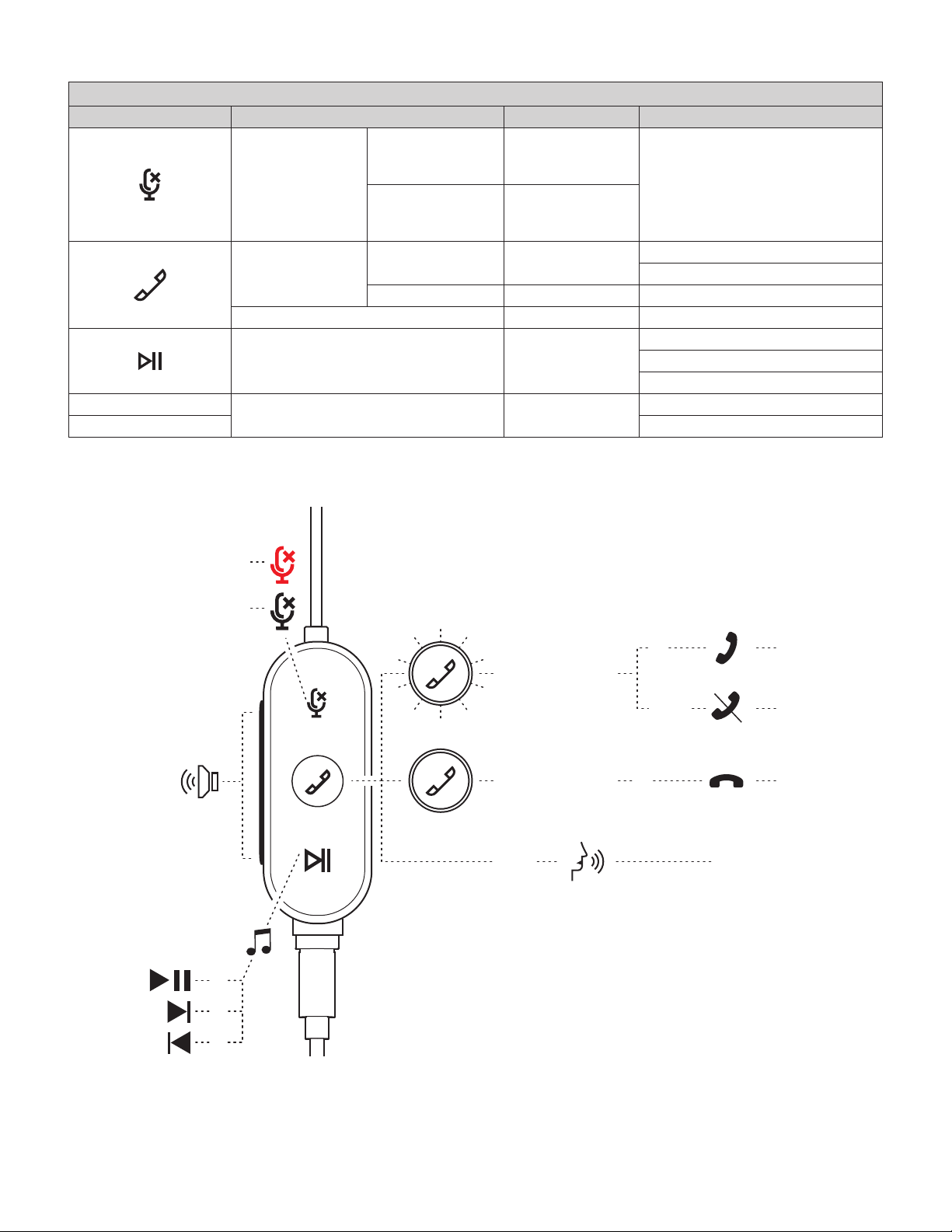

UNMUTE - - - 1x - - - MUTE ON
MUTE - - - 1x - - - MUTE OFF
INCOMING CALLS
ANSWER CALLS
REJECT CALLS
END CALLS
MEDIA CONTROLS
TRIGGER VOICE ASSISTANT
2 sec.
2 sec.
1x
2x
3x
+
-
1x
1x
* Voice assistant functionality may depend on device models.
UC version
Button Usage Indicator Light Action
Mute
Mute on Solid RED
Short press to mute / unmute
Mute o No light
Call Controls Incoming calls Flashing WHITE Short press to answer calls 2 second press to reject calls
Ongoing calls Solid WHITE Short press to end calls
Voice Assistant No light 2 second press to trigger voice assistant*
Media Controls No light
Short press to play / pause
Double press to track forward
Triple press to track backward
+Volume No light Short press to volume up
-Short press to volume down
ONGOING CALLS
9English

DIMENSION
Earbuds:
Height x Width x Depth: 23.8 mm x 14.4 mm x 22.6 mm
Weight: 0.059 Kg
Adapter:
Height x Width x Depth: 24.5 mm x 15.4 mm x 8.6 mm
SYSTEM REQUIREMENTS
Works with Windows, Mac, or Chrome™ based computer and Android™ or iOS based mobile
devices via available 3.5 mm, USB-C or USB-A port. 3.5 mm connector compatibility may depend
on device models. Functionality for mobile devices with USB-C depends on device models.
TECHNICAL SPECIFICATIONS
Input Impedance: 16 Ohms
Sensitivity (headphone): 117dB SPL/1mW/1KHz (driver level)
Sensitivity (microphone): Dual mic conguration each with -38dBV/Pa (mic component level)
Frequency response (Headset): 20-15kHz
Frequency response (Microphone): 100-8kHz
Cable length: 1.45 m
www.logitech.com/support/zonewiredearbuds
© 2021 Logitech, Logi and the Logitech Logo are trademarks or registered trademarks of Logitech
Europe S.A. and/or its aliates in the U.S. and other countries. Logitech assumes no responsibility
for any errors that may appear in this manual. Information contained herein is subject to change
without notice.
LOGI TUNE
Logi Tune helps boost your earbud performance with
periodic software and rmware updates.
Learn more and download Logi Tune at:
www.logitech.com/tune
