lopital Nemo User manual

Instructions for use
Nemo Shower-toilet chair

2 | Instructions for use | Nemo Shower-toilet chair
Instructions for use
Nemo
5100 5100
Shower-toilet chair
Basic UDI-DI: 872025610304251005100DP

Nemo Shower-toilet chair | Instructions for use | 3
Important:
Read these instructions carefully before using the Nemo!
Date first used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manufacturer
Lopital Nederland B.V.
Laarakkerweg 9
5061 JR Oisterwijk
T [phone]
www.lopital.nl
[email protected]
All of the aids produced by Lopital fulfil the following norms for medical products Class 1 (MDR (EU) 2017/745).
Explanation of symbols in ‘instructions for use’ and on labels
Note Follow the instructions
for use
Date of production Read cleaning and
disinfecting protocol
Maximum load Antibacterial
Global trade identification
number Temperature
Serialnumber Air pressure
Humidity level

4 | Instructions for use | Nemo Shower-toilet chair
Contents
1. Introduction ..............................................................................5
1.1. Introduction ..............................................................................5
1.2. Safety .........................................................................................5
1.3. Warranty....................................................................................7
2. Use .............................................................................................7
2.1. First use .....................................................................................7
2.2. Working with the Nemo .......................................................10
3. Operation ................................................................................11
3.1. Wheel blocking .......................................................................11
3.2. Footrests ..................................................................................11
3.3. Armrests ..................................................................................13
3.4 Head / neck support .............................................................14
3.5. Tilting .......................................................................................14
3.6. Toilet function .........................................................................15
4. Cleaning and maintenance ...................................................16
5. Environmental conditions .....................................................17
6. Removal of parts ....................................................................17
7. Technical specifications .........................................................17
7.1. Structure ..................................................................................17
7.2. Dimensions .............................................................................18

Nemo Shower-toilet chair | Instructions for use | 5
1. Introduction
1.1. Introduction
The Nemo tilting shower-toilet chair is a medical device for caring for and washing
clients in an ergonomically responsible manner. For both the client and the carer,
the comfort is optimal. The Nemo can be used with a commode pan / bucket or in
combination with a toilet, can also be used as a toilet seat. The Nemo consists of a base
and a chair section. The seat section has the same comfort as a normal chair and offers
the same proper support.
The frame of the Nemo has an antibacterial coating. The coating contains silver ions.
Antibacterial coating based on silver ions prevents dangerous micro-organisms such
as bacteria, fungi and algae multiply and spread. The effectiveness was confirmed
in several tests. Germs were demonstrably reduced in a short time to 99.99%. The
coating only affects bacteria that are found on the surface and not on airborne micro-
organisms. The coating protects users or others from disease-causing bacteria, germs,
viruses or other harmful organisms. On a dirty surface, the coating loses its antibacterial
properties. So proper cleaning and disinfection is still a must.
The expected technical lifetime of the Nemo is 10 years, provided that daily and
periodic maintenance is carried out according to the specified maintenance schedule
(See chapter 4. Cleaning and maintenance).
The Nemo is a medical class 1 product with CE marking. This marking is in accordance
with the regulation MDR (EU) 2017/745.
1.2. Safety
A failure to comply with the following safety points and the further definitions in
these instructions for use could lead to hazardous situations. Please read carefully
before use.
Use
• Make sure that the Nemo brake is applied before transferring clients.
• Notify the client before moving the Nemo.
• Close the armrests with front closure before moving the Nemo upwards or tilting it.
• Beware of obstacles when tilting the seat frame.
• Make sure that the client always places his / her arms on the armrests provided to
prevent possible entrapment.

6 | Instructions for use | Nemo Shower-toilet chair
• Keep the armrests or front closure down / closed when moving the Nemo.
• Only drive and manoeuver the Nemo in a non-tilted position.
• When moving the Nemo, do not tilt.
• Always try to move backwards over obstacles (rather than forwards).
• It is not permitted to charge the Nemo with more than 150 kg / 330 lbs.
• The Nemo is only suitable for moving and caring for one person.
• Only use original parts, supplied by Lopital.
• The use of components (for instance the gas spring) that have not been supplied by
Lopital may result in a dangerous situation.
• Use the Nemo in a clean and tidy working environment.
• Swimming pool locations are not considered to be ‘normal conditions’ and will
substantially shorten the lifespan of certain components.
• The Nemo cannot be used on a surface with a gradient over 5 degrees laterally.
• The Nemo cannot be used on a surface with a gradient of over 10 degrees forwards /
backwards.
• The Nemo may only be used indoors.
Maintenance
• If the gas spring or the cable become damaged, they must be replaced.
• In the event of damage to the seat, back or backrest, always replace them for reasons
of hygiene.
• The Nemo must be inspected and serviced at least once a year.
• Servicing and maintenance of the Nemo may only be carried out by persons
authorised by Lopital.
• Service and maintenance must not be carried out while a client is sitting on the chair.
• If erroneous use, transport, an accident or improper maintenance leads to deformation
of the Nemo, it may no longer be used and you must contact the supplier.
In the event of breakdowns, you must contact Lopital or your local supplier.
E-mail: in[email protected]
The Nemo shower-toilet chair should only be operated by competent personnel
who have experience in working with the user target group and have watched
the instruction / training videos on the Lopital website.
The Nemo has been developed and produced for use in professional care
environments.

Nemo Shower-toilet chair | Instructions for use | 7
Making changes to the contruction can affect the safety of the Nemo.
Furthermore, the liability and guarantee conditions of Lopital lapse. As a
result, the Nemo no longer meets the Medical Devices Regulation.
1.3. Warranty
All Lopital products are supplied with a 2-year warranty, on construction and / or
material faults, unless otherwise stated. In the event of varying warranty terms, the
exact period will be indicated on your invoice; this also serves as the warranty itself.
Components and batteries that are subject to wear and tear will not fall under warranty
unless there are clear construction and / or material faults.
2. Use
2.1. First use
On page 8 you can find the components of the Nemo. In the event of damage, these
parts can be replaced by authorised persons.

8 | Instructions for use | Nemo Shower-toilet chair
Control handle gas spring
Bumper
Swivel wheel
Ø 12.5 cm
Dual braking
Handle
Seat inlay
Bedpan /
guides
Armrest
Gas spring
Seat
Back support
Footrest
complete
Head / neck
support complete
Frame

Nemo Shower-toilet chair | Instructions for use | 9

10 | Instructions for use | Nemo Shower-toilet chair
2.2. Working with the Nemo
Step 1
Make sure that the Nemo is placed in the sitting position and fold the armrests upwards
(See paragraph 3.3. Armrests).
Step 2
If necessary, fold the foot plates up or turn out the foot plates of the Nemo
(See paragraph 3.2. Footrests).
Step 3
The Nemo must be put on the brakes before transferring persons (See paragraph
3.1. Wheel blocking).
Step 4
The client can take a seat in the chair. Support the client if necessary.
Step 5
Place both feet on the footrests and calves against the calf-supports. (See paragraph 3.2.
Footrests).
Step 6
Fold the armrests downwards after the client has sat down in the chair
(See paragraph 3.3. Armrests).
Step 7
Notify the client about the processes you will be carrying out.
Step 8
Take the chair off the brake when you wish to move it (See paragraph 3.1. Wheel
blocking).
Step 9
When you wish to tilt the chair, you must apply the brake (See paragraph 3.5. Tilting).

Nemo Shower-toilet chair | Instructions for use | 11
3. Operation
3.1. Wheel blocking
• The brake can be applied on the Nemo by pushing the
blue lip (1) on the wheel downwards (See figure 1).
• In order to take the Nemo off the brake, the same lip on
the wheel must be moved upwards by tapping the upper
side of the lip (2) (See figure 1).
Option: Swivel wheel left front.
3.2. Footrests
• Before the client takes a seat in the Nemo, the footrests must be folded upwards.
This will ensure there is sufficient space for the person to easily take a seat in the
chair (See figure 2). If more room is required, the footrests can be turned out (See
figure 3). First, the footrests must be slightly raised (1) and then they can be turned
outwards (2).
• The carer or the client first raises one leg; the carer can then fold the footrest down
(See figure 4). The same procedure is then carried out with the other leg.
Always replace this component on the chair when you have finished using it.
This will avoid the component being lost.
Figure 4 Folding down foot-
rests.
Figure 2 Folding up footrests.
Figure 1 Swivel wheel.
21
Figure 3 Turning out footrests.
2
1

12 | Instructions for use | Nemo Shower-toilet chair
Option: Comfort leg supports
The comfort leg supports provide the legs with additional support. The comfort leg
supports can be adjusted in length as well as according to the sitting angle. The angle of
the leg supports can be adjusted to 4 positions (See figures 5 to 8). To change the
seating angle, you have to release the locking pin. When you have determined the
correct position, lock the sitting angle of the comfort once again (See figure 9).
Make sure that the locking pin slips in well into one of the 4 holes.
To adjust the length of the leg supports, you have to release the locking pin underneath
by loosen it a bit (See figure 9). Choose the right length for the leg support and tighten
the locking pin again.
Make sure that both the sitting angle and the length of the leg supports are
locked properly as soon as they have to support a load.
Always place these parts on the seat as soon as you finish using them. This
prevents you from looking for the parts.
30°
48°
83°
65°
Figure 5 to 8 Adjustable seating angle.
Figure 9 Locking pins.
Setting the angle of the locking pin
Setting the length of the locking pin

Nemo Shower-toilet chair | Instructions for use | 13
3.3. Armrests
• The independent folding armrests are easy to fold up.
• Protect the user when moving the armrests upwards and
downwards.
• In the folded up position, they should not fall back down
by themselves; in other cases: consult your supplier.
Option: Armrests with front closure
• When the client has taken a seat on the Nemo, the
armrests with front closure can be folded down; these are
then turned in front of the client.
• The armrests with front closure are secured in a horizontal
position.
• The armrests can be unlocked by pressing the security
catch at the hinging point on the frame (See figure 11).
The armrests can then be turned up for the client and
folded up.
• Always protect the client when folding the armrests up
or down.
• The armrests can also be used as a support when taking a
seat or standing up.
Be aware that the armrests are not locked in all positions.
Option: Dual locking.
• The extra lock ensures that the front closure is also locked
when turned away (See figure 13).
When folding the armrests away, avoid the hinging
point to prevent possible entrapment.
When folding the armrests away, avoid fingers or
body parts becoming entrapped between the armrest
and the back support.
The armrests or front closure must not be used as a le-
ver arm (e.g. when moving the chair over an obstacle)
or as a push / pull bar. You must not sit on it either.
This could damage the Nemo and / or present a hazard.
Figure 10 Armrest.
Figure 11 Armrests with front
closure.
Figure 12 Armrest with dual
locking.
Figure 13 Armrest turned out.

14 | Instructions for use | Nemo Shower-toilet chair
3.4. Head / neck support
• The Nemo has a head / neck support that can be adjusted
in terms of both height and depth.
• In order to set its height, the rotating button (1) on the back
of the chair must be undone. Once you have reached the
required height, do the button up again (See figure 14).
• To set the depth of the head / neck support, the handle (2)
is unlocked. Once you have reached the required height, do
the handle up again. The depth setting has a range of 7 cm.
• The Nemo has a curved head / neck support, allowing the
head of the client to be supported effectively.
Always replace this component on the chair when you have finished using it.
This will avoid the component being lost.
3.5. Tilting
• In order to tilt the Nemo in an ergonomic and responsible
manner, the operator should be standing diagonally
behind the Nemo. Grasp the hand grip using your right
hand (1). Using the left hand, hold the frame of the head
support firmly (2) (See figure 15). The chair frame can be
tilted by squeezing the operating handle.
• The Nemo is equipped with a tilting function up to a
maximum of 30 degrees backwards. This function can
be operated by pressing the control handle. The seat
element will then tilt (See figure 16).
• To operate the tilt function you must put the Nemo on
the brake.
• The caregiver can stop the tilting at any time by releasing
the handle.
• To tilt the Nemo forwards the control handle can be used
again (See figure 16).
• During the tilting the arm supports must be folded
downwards and the arms of the client must rest on the
arm supports.
• In addition, during the tilting the client must have placed
his / her feet on the foot support.
• Maintain contact with the client during the tilting.
Figure 16 Control handle.

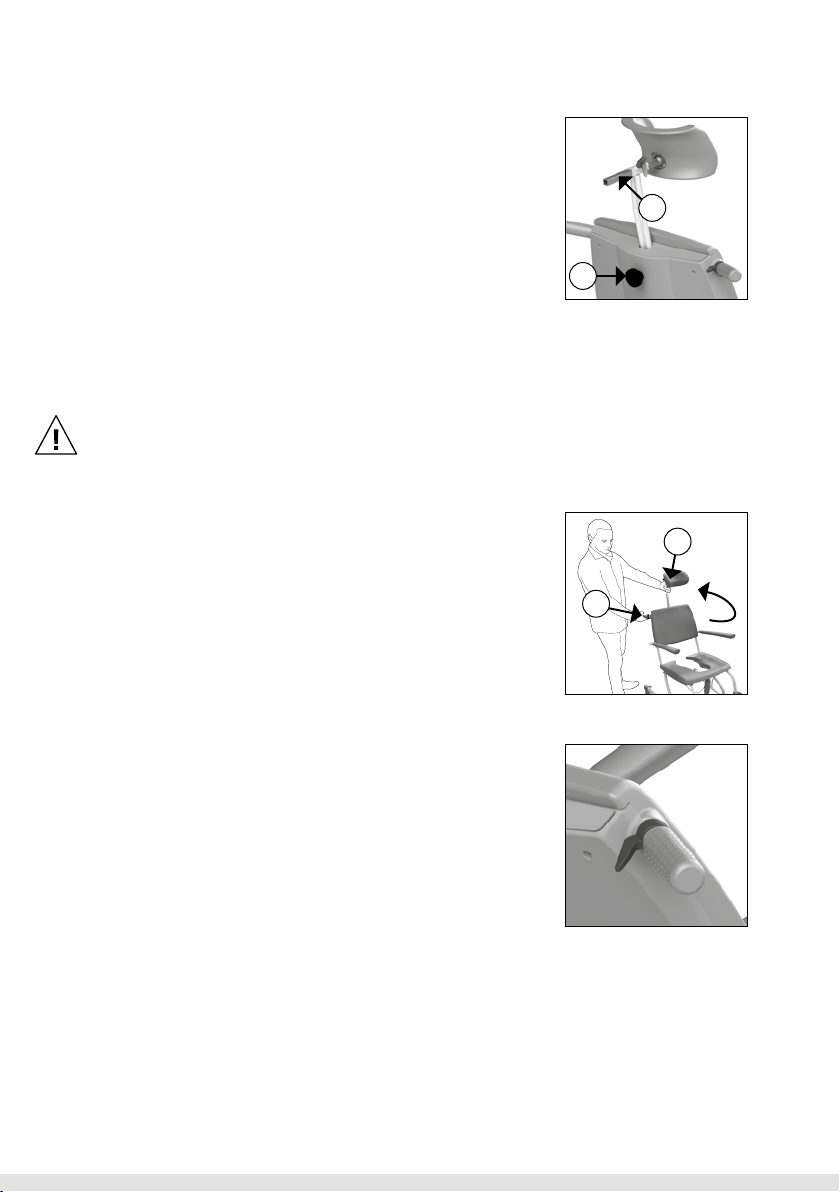

Figure 14 Head / neck support.
2
1
Figure 15 Tilting frame.
2
1

Nemo Shower-toilet chair | Instructions for use | 15
Before tilting the chair, check to ensure there are no
persons or objects in the vicinity of the chair.
3.6. Toilet function
3.6.1. In combination with toilet
• Remove the lid on the seat before the person sits down
in the chair.
• The Nemo can now be moved backwards over the toilet.
The Nemo does not fit over every toilet.
3.6.2. Use of a bedpan or bucket
• If the Nemo is being used as a toilet chair, the special
guides under the seat can be used to accommodate a
stainless steel / plastic bedpan or bucket.
• The bedpan or bucket is slid in from the back of the chair
(See figure 17).
• If you are using the Lopital plastic bedpan, you must slide
it as far forwards as possible (See figure 18).
• If you are using a stainless steel bedpan or bucket, the
bedpan can be placed in 2 positions under the seat. At the
front of the seat (See figure 19) or at the back of the seat
(See figure 20).
In order to avoid injuries, we advise the carer to re-
move the inlay from the seat and insert the bucket or
bedpan before the client takes a seat on the chair.
The Lopital plastic bedpan, stainless steel bedpan and
bucket must be cleaned and disinfected after use, for
example in a bedpan washing unit.
If the Lopital plastic bedpan, stainless steel bedpan or
bucket has been used, it must be removed from the
chair before the chair is moved or adjusted in height.
Figure 17 Bedpan.
Figure 18 Lopital plastic
bedpan.
Figure 19 Stainless steel
bedpan, front.
Figure 20 Stainless steel
bedpan, back.

16 | Instructions for use | Nemo Shower-toilet chair
4. Cleaning and maintenance
The Nemo must be cleaned after every use, with water and regular household cleaning
agents. PUR integrated foam components with IMC coating should be rubbed clean and
disinfected. Do not use any abrasive or other aggressive cleaning products. If necessary,
the PUR components can be disinfected with a solution of 70% ethanol or propanol.
The time the products must be left on the components has a significant impact upon the
lifespan of the PUR components. As a result of the material properties of PUR, contact
with sharp objects must be avoided. This could lead to damage or tears in the material.
Finally, we would like to point out that non-critical parts of the PUR components must
also be cleaned and disinfected.
Check the wheels regularly for hairs, dust and soap residues and remove when ne-
cessary. Maintenance and repairs to the Nemo may only be carried out by authorised
personnel.
Maintenance schedule
After every use
• Clean chair with water and regular household cleaning
products.
• PUR foam components must be cleaned and disinfected.
• Check to ensure all parts of the Nemo are present, including
the footrests, head support and inlay for the seat.
Weekly
• Check wheels for hairs, dust and soap residues and remove
if necessary.
• Check that the chair is still working correctly.
Annually • According to the regulation MDR (EU) 2017/745 medical
devices, a chair must be maintained according to the
manufacturer’s guidelines.
For a detailed explanation regarding cleaning and disinfecting, see the document
‘Cleaning and Disinfection Protocol’ on our website www.lopital.com/downloads.

Nemo Shower-toilet chair | Instructions for use | 17
5. Environmental conditions
Conditions during storage and transport
Conditions during use
6. Removal of parts
All parts that are replaced or removed can be sent back to Lopital BV. You may also offer
the parts to the engineer for destruction. We will ensure that all parts are processed in
an environmentally-friendly manner.
7. Technical specifications
7.1. Structure
Frame: Stainless steel, steel tubes and plates equipped with
a two-layer powder coating
Hinge points: Stainless steel
Wheels: Plastic, Ø 12.5 cm / 4.9 inch, double blocking facility
Body support : PUR (polyurethane).
Weight: 24 kg / 52.9 lbs
Maximum permitted load: 150 kg / 330 lbs
Weight comfort leg support: 3.6 kg / 8 lbs per unit

18 | Instructions for use | Nemo Shower-toilet chair
7.2. Dimensions
Surface area: 66 cm / 26 inch wide, 100 cm / 39.4 inch deep
Head support adjustment: depth 7 cm / 2.8 inch & height 12 cm / 4.7 inch
Tilt adjustment: 30 degrees backwards

Nemo Shower-toilet chair | Instructions for use | 19

20 | Instructions for use | Nemo Shower-toilet chair
