lopital Elexo XXL User manual

Instructions for use
Elexo XXL
Shower-toilet chair

2 | Instructions for use | Elexo XXL Shower-toilet chair
Instructions for use
Elexo XXL
5100 5300
Shower-toilet chair
Basic UDI-DI : 872025610316551005300JX

Elexo XXL Shower-toilet chair | Instructions for use | 3
Important:
Read these instructions carefully before using the Elexo XXL!
Date first used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Manufacturer
Lopital Nederland B.V.
Laarakkerweg 9
5061 JR Oisterwijk
T [phone]
www.lopital.nl
[email protected]
All of the aids produced by Lopital fulfil the following norms for medical products Class 1 (MDR (EU) 2017/745).

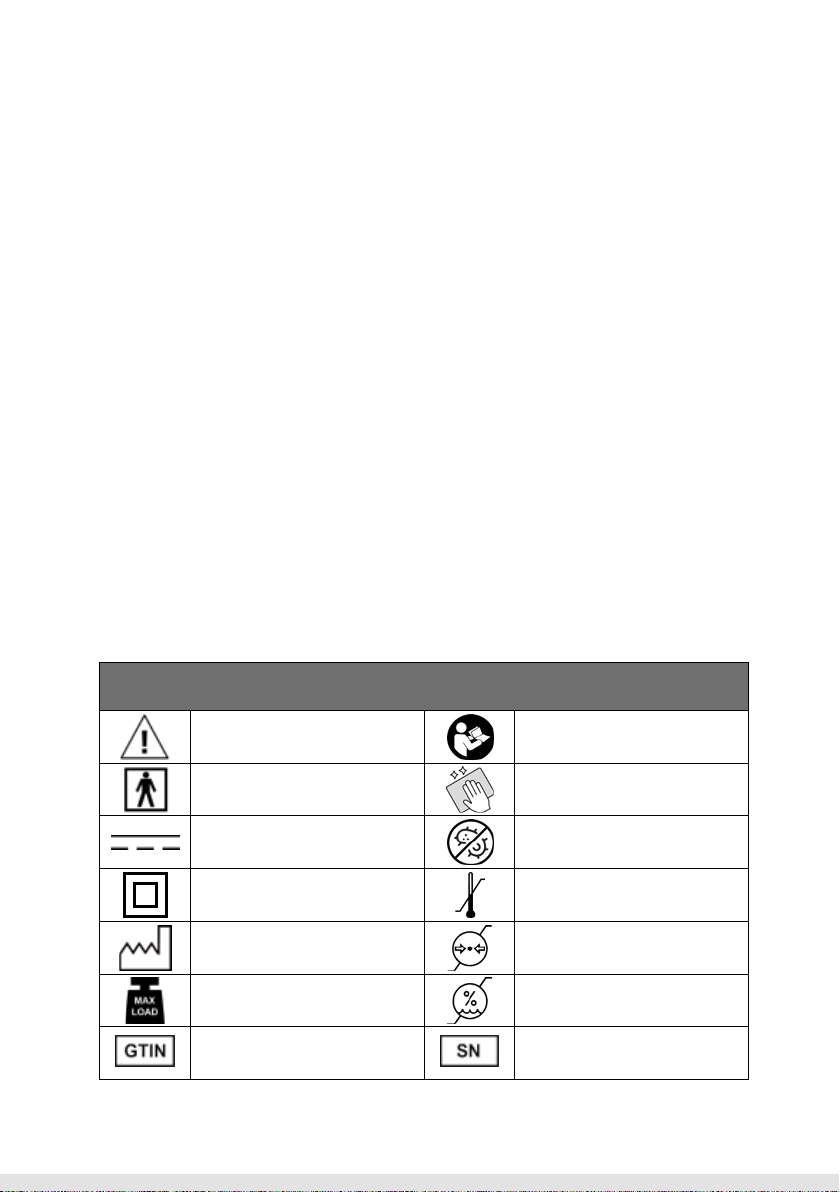

Explanation of symbols in ‘instructions for use’ and on labels
Note Follow the instructions
for use
Applied parts Read cleaning and
disinfecting protocol
Direct current 24V DC Antibacterial
Class 2 EMC Temperature
Date of production Air pressure
Maximum load Humidity level
Global trade identification
number Serialnumber

4 | Instructions for use | Elexo XXL Shower-toilet chair
Contents
1. Introduction ..............................................................................5
1.1. Introduction ..............................................................................5
1.2. Safety .........................................................................................5
1.3. Warranty....................................................................................7
2. Use ...........................................................................................10
2.1. First use ...................................................................................10
2.2. Activating ................................................................................10
2.3. Working with the Elexo XXL..................................................11
3. Operation ................................................................................12

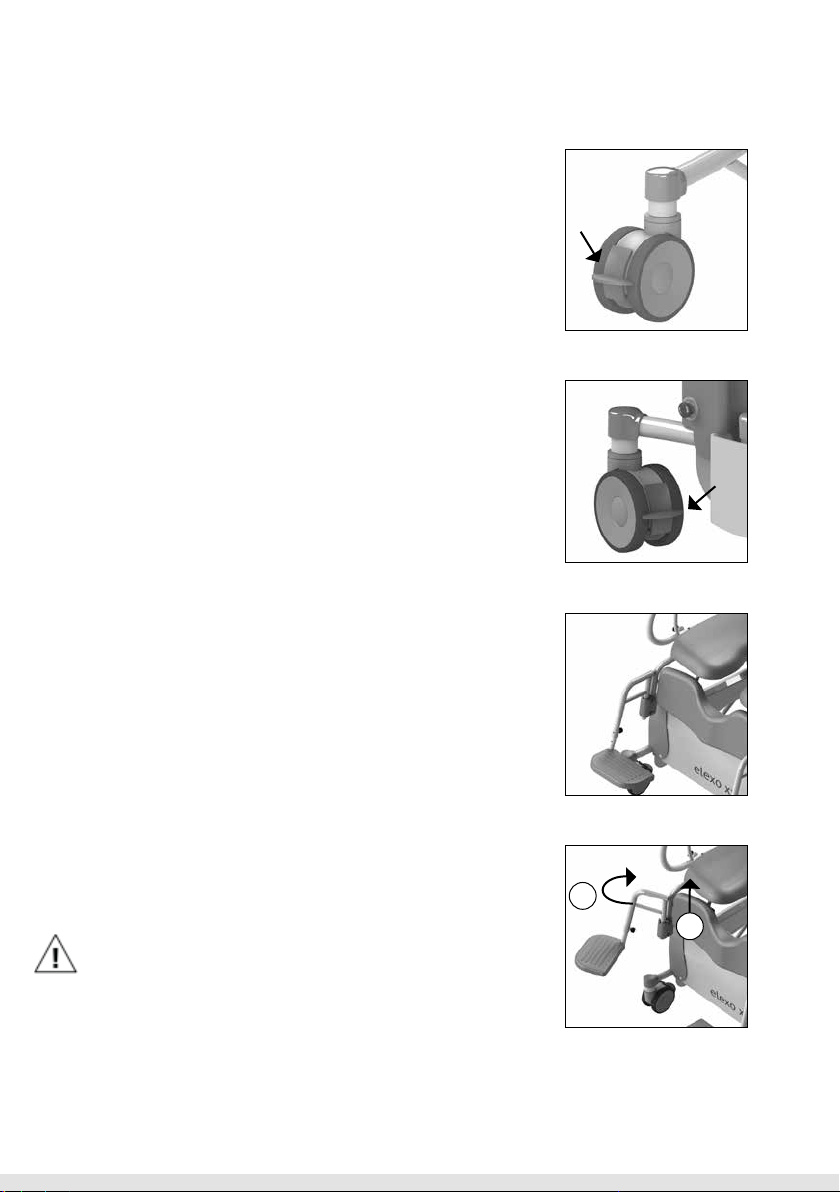

3.1. Wheel blocking .......................................................................12
3.2. Directional wheel ...................................................................12
3.3. Footrests ..................................................................................12

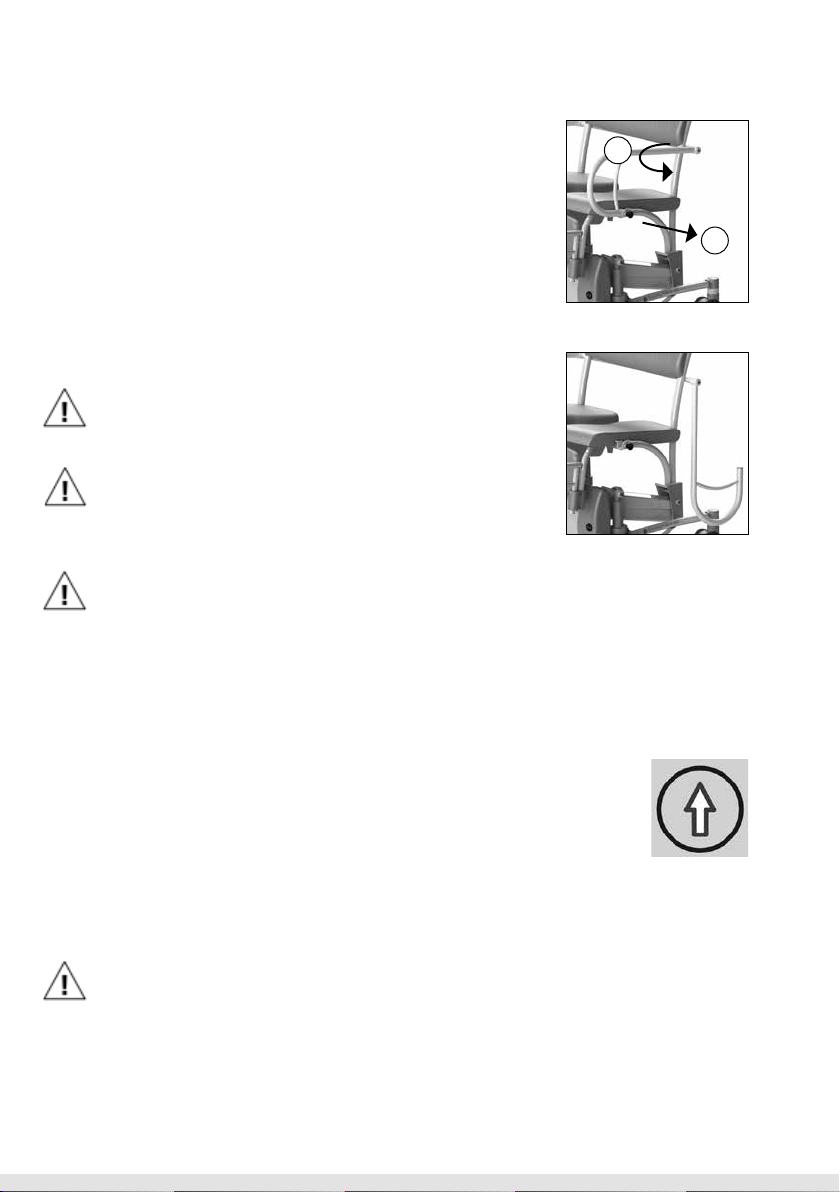

3.4. Armrests ..................................................................................13

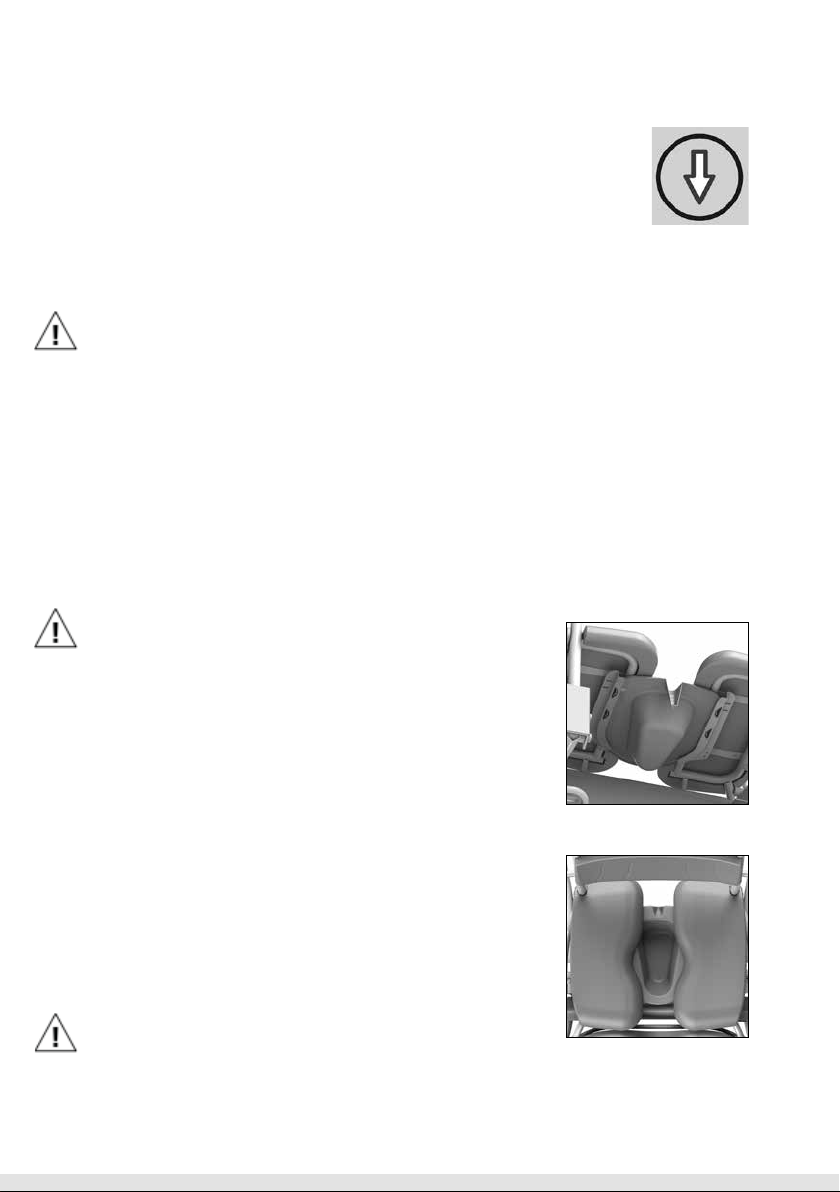

3.5. Moving upwards / downwards............................................13
3.6. Toilet function .........................................................................14
3.6.1. In combination with toilet.....................................................14
3.6.2. Use of a bedpan or bucket ....................................................14
3.7. Removable seat .....................................................................15
3.8. Charging batterie ...................................................................15
4. Safety functions .....................................................................17

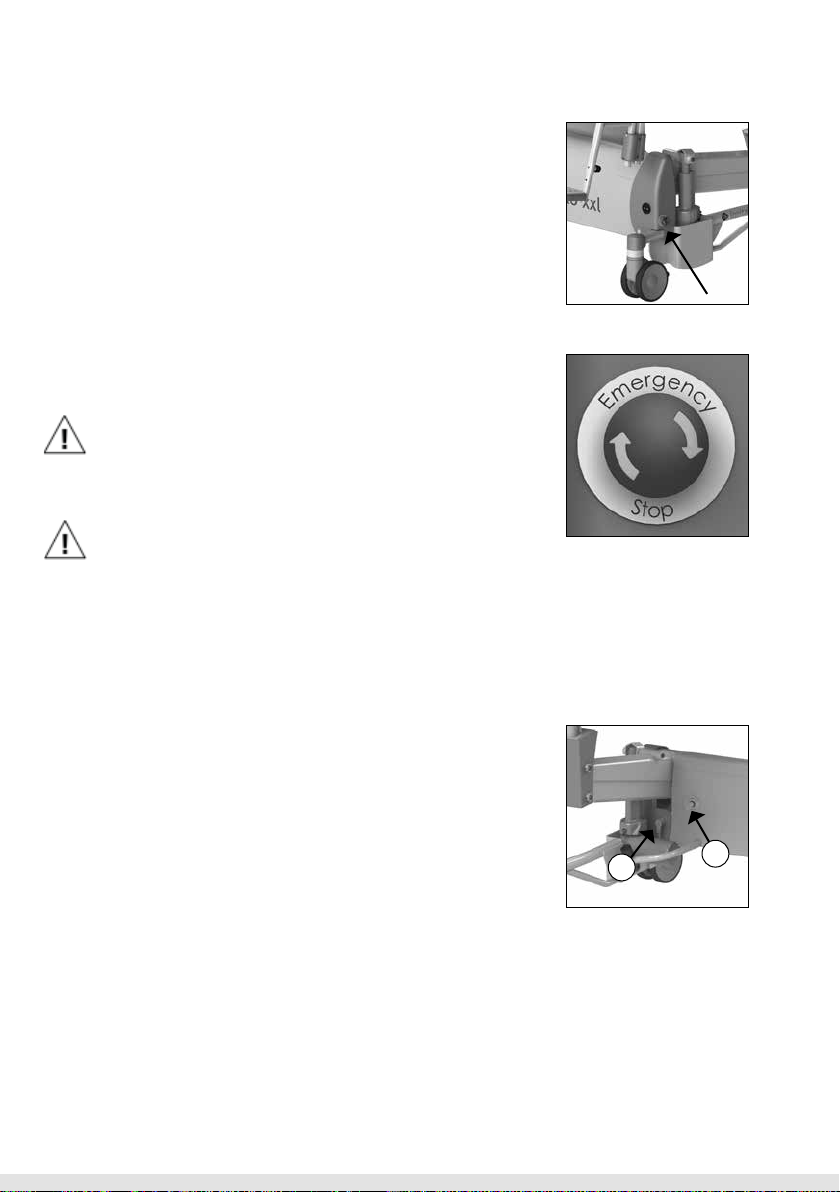

4.1. Emergency stop......................................................................17
4.2. Sleep setting ...........................................................................17
4.3. Emergency lowering ..............................................................17
4.4. On / off switch .......................................................................18
5. Cleaning and maintenance ...................................................18

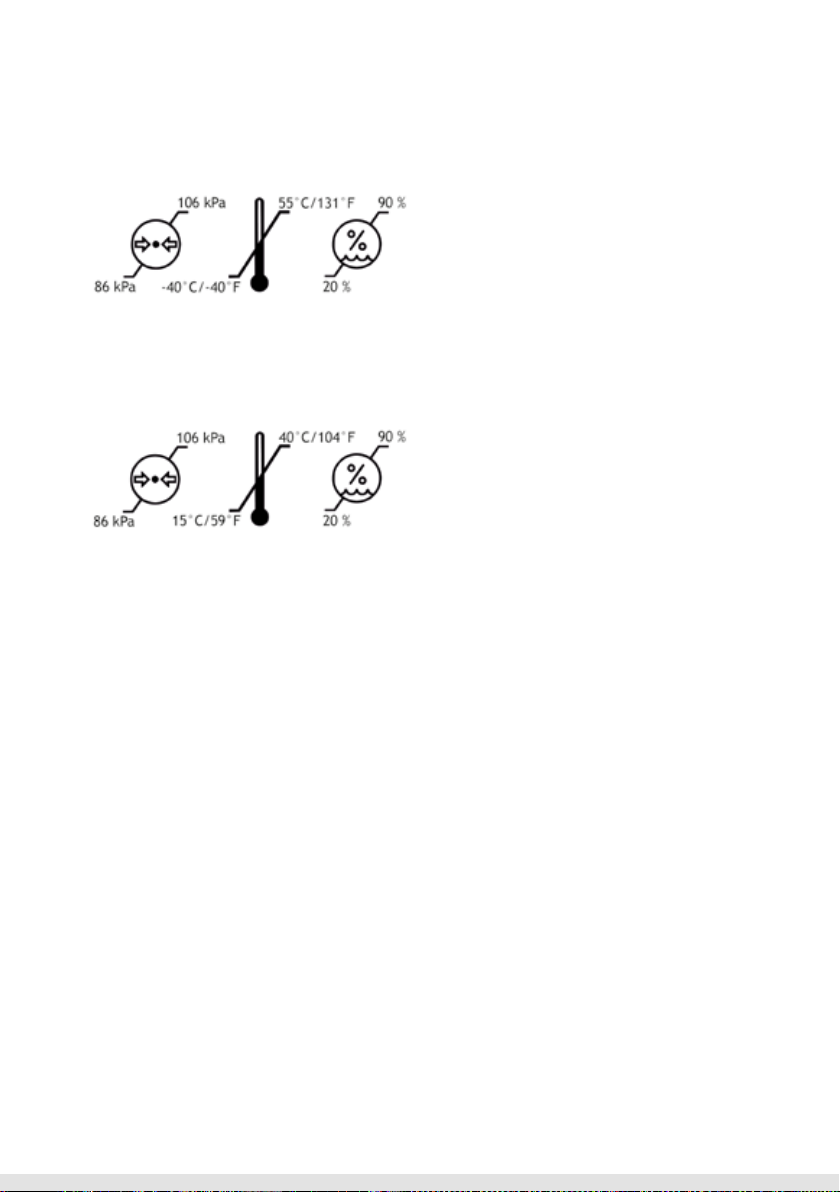

6. Environmental conditions...................................................... 20
7. Removal of parts ................................................................... 20
8. Technical specifications ........................................................ 21
8.1. Structure ................................................................................. 21
8.2. Drive ....................................................................................... 21
8.3. Dimensions ............................................................................ 21
9. Electromagnetic compatibility ..............................................24

Elexo XXL Shower-toilet chair | Instructions for use | 5
1. Introduction
1.1. Introduction
The Elexo XXL electric height-adjustable shower-toilet chair is an aid for the ergonomic
care and washing of the client. For both the client and the carer, the comfort is optimal.
The Elexo XXL can be used with a commode pan / bucket or in combination with a
toilet, can also be used as a toilet seat.

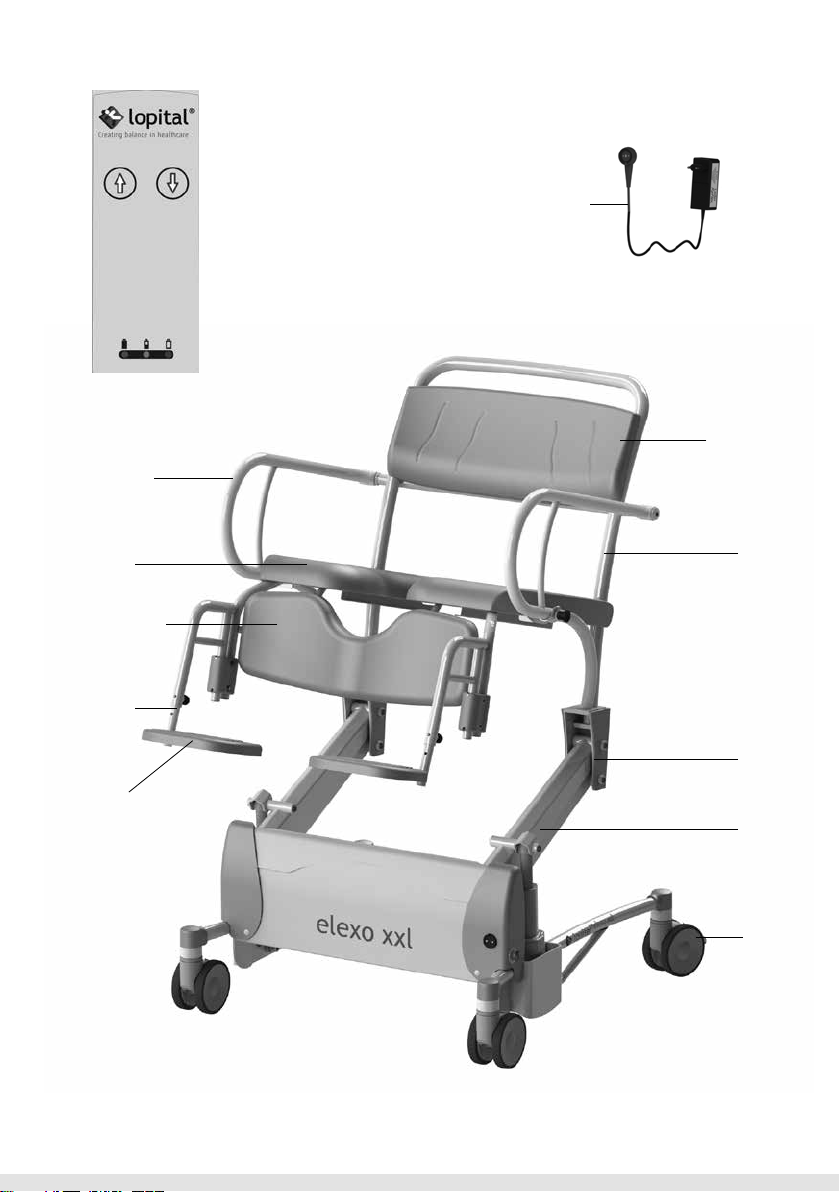

The Elexo XXL consists of a base and a chair section. The seat section has the same
comfort as a normal chair and offers the same proper support. There are no essential
performances.
The frame of the Elexo XXL has an antibacterial coating. The coating contains silver
ions. Antibacterial coating based on silver ions prevents dangerous micro-organisms
such as bacteria, fungi and algae multiply and spread. The effectiveness was confirmed
in several tests. Germs were demonstrably reduced in a short time to 99.99%.
The coating only affects bacteria that are found on the surface and not on airborne
micro-organisms. The coating protects users or others from disease-causing bacteria,
germs, viruses or other harmful organisms. On a dirty surface, the coating loses its
antibacterial properties. So proper cleaning and disinfection is still a must.
The expected technical lifetime of the Elexo XXL is 10 years, provided that daily and
periodic maintenance is carried out according to the specified maintenance schedule
(See chapter 5. Cleaning and maintenance).
The Elexo XXL is a medical class 1 product with CE marking. This marking is in
accordance with the regulation MDR (EU) 2017/745. The Elexo XXL is tested for electro-
magnetic radiation according to the 60601-1-2 standard.
1.2. Safety
A failure to comply with the following safety points and the further definitions
in these instructions for use could lead to hazardous situations. Please read
carefully before use.
