Lorell Value Series User manual

Corner Workstation
Station de travail de coin
Estación de trabajo (esquinero)
LLR44308 44309

LLR44308/44309_081104 Page 1 of 63
INSTRUCTIONS:
IF YOU ARE MISSING PARTS OR OTHER CONCERNS PLEASE CALL OUR TOLL FREE
NUMBER: 1-888-436-6881 EXT. 7678
MONDAY – FRIDAY 9:00 AM TO 4:00 PM – EASTERN STANDARD TIME
Please pr vide the f ll wing inf rmati n:
1. Full Name
2. Physical Address – do not include P.O. Box as our carriers cannot deliver to a P. O. Boxes
3. Ph ne Number
4. M del Number
5. Part Number
6. Quantity
7. Reas n f r the request
No e: Our policy is to send all parts requests normal ground transportation, if your requirements are to have these parts via
overnight/next day, please provide your designated carrier and account number.
Before you begin:
Open, identify and c unt all parts pri r t assembly. Lay ut the parts n a n n-abrasive surface
such as carpet r blanket. Y u will need the t ls identified bel w:
1. Phillips Head Screw Driver
2. Flat Head Screw Driver
3. Rubber Mallet (rec mmended)

LLR44308/44309_081104 Page 2 of 63
HARDWARE IDENTIFICATION

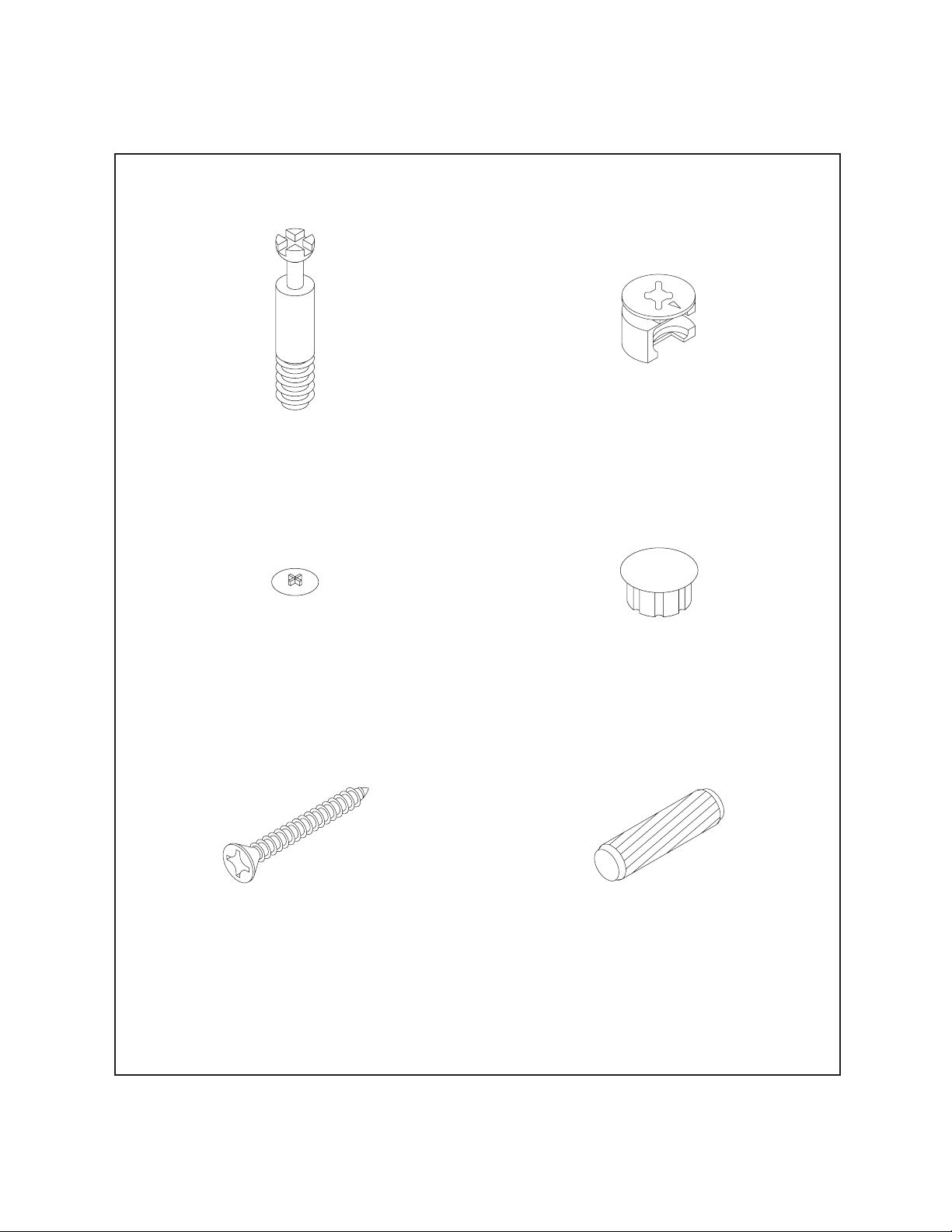

3. Cam Cover 14pcs 4. Large Cam Cap 3pcs
5. 4x40 Screw 40pcs 6. Wood Dowel 28pcs
1. Cam Screw 49pcs 2. Cam Lock 49pcs

LLR44308/44309_081104 Page 3 of 63
HARDWARE IDENTIFICATION

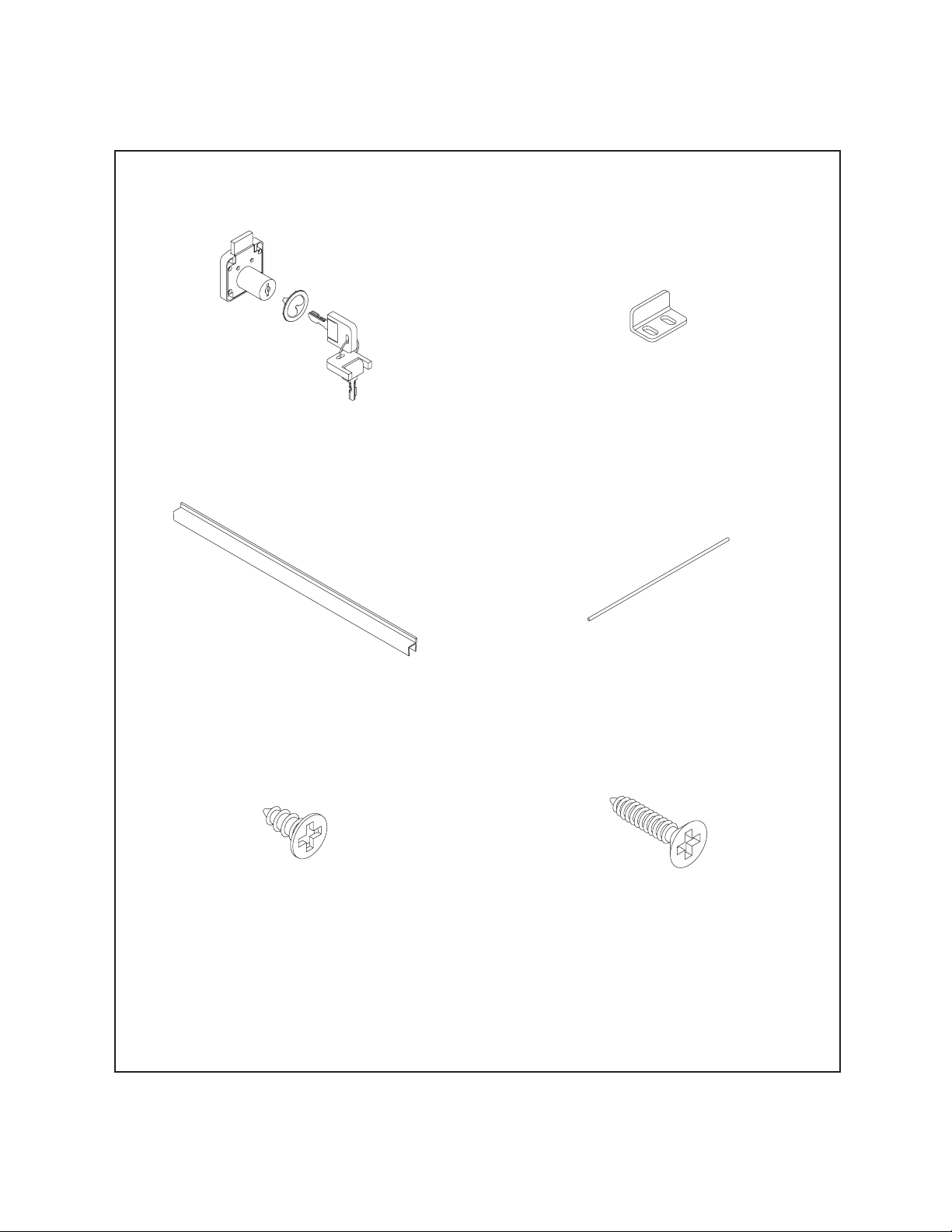

9. angrai 4pcs 10. ang Bar 4pcs
11. 4x9.5 Screw 56pcs 12. 3.5x18 Screw 8pcs
7. Lock 2pcs 8. Lock Clip 2pcs

LLR44308/44309_081104 Page 4 of 63
HARDWARE IDENTIFICATION

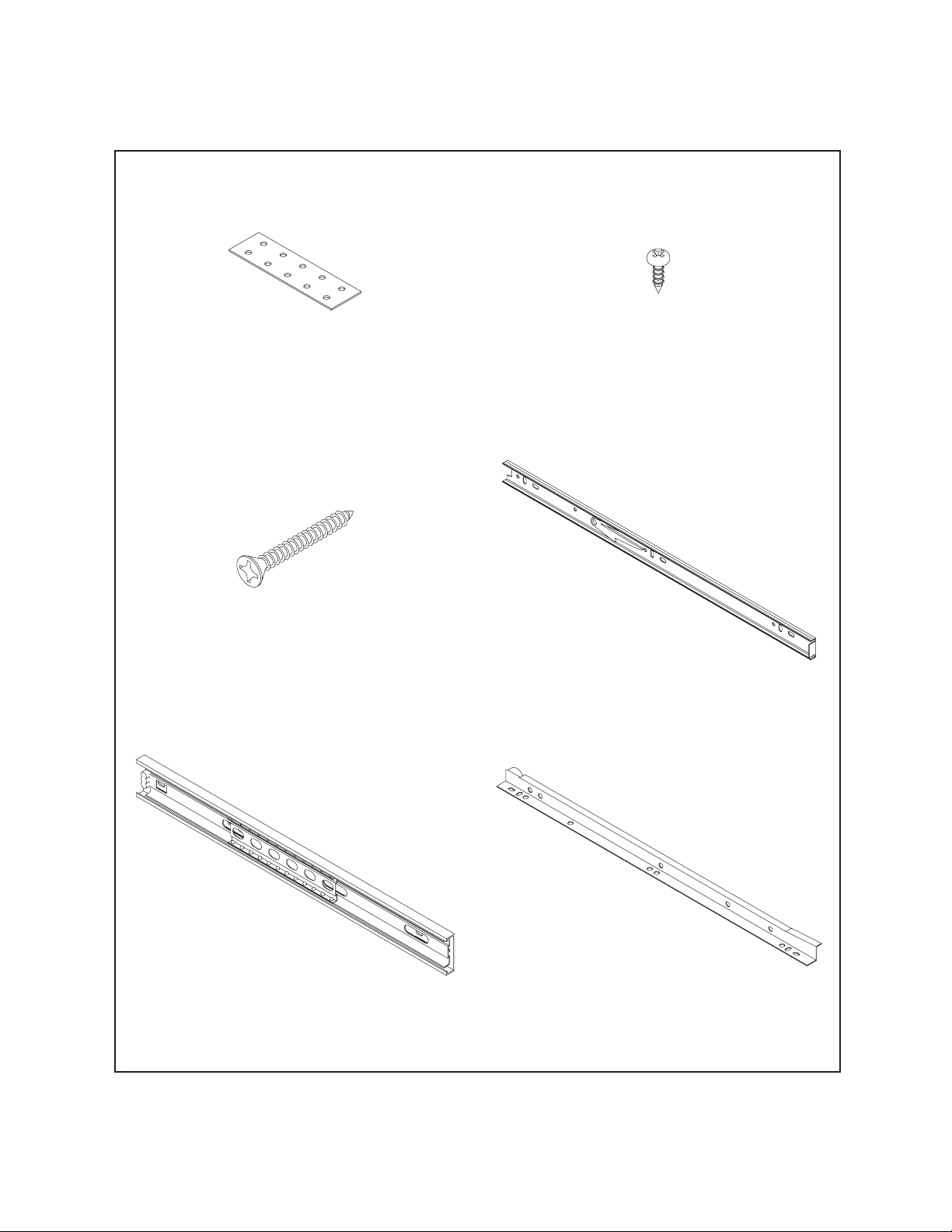

15. 4x35 Screw 3pcs 16. File Drawer Suspension 2pcs
17. File Drawer Slide Suspension 2pcs 18. Box Drawer Track-Right 2pcs
13. Flat Bracket 2pcs 14. 6x15 Screw 16pcs

LLR44308/44309_081104 Page 5 of 63
HARDWARE IDENTIFICATION
21. Washer 8pcs 22. Adjustable Foot 6pcs
23. Box Drawer Slide-Left 2pcs 24. Box Drawer Track-Left 2pcs
19. Box Drawer Slide-Right 2pcs 20. 6x21 Bolt 8pcs

LLR44308/44309_081104 Page 6 of 63

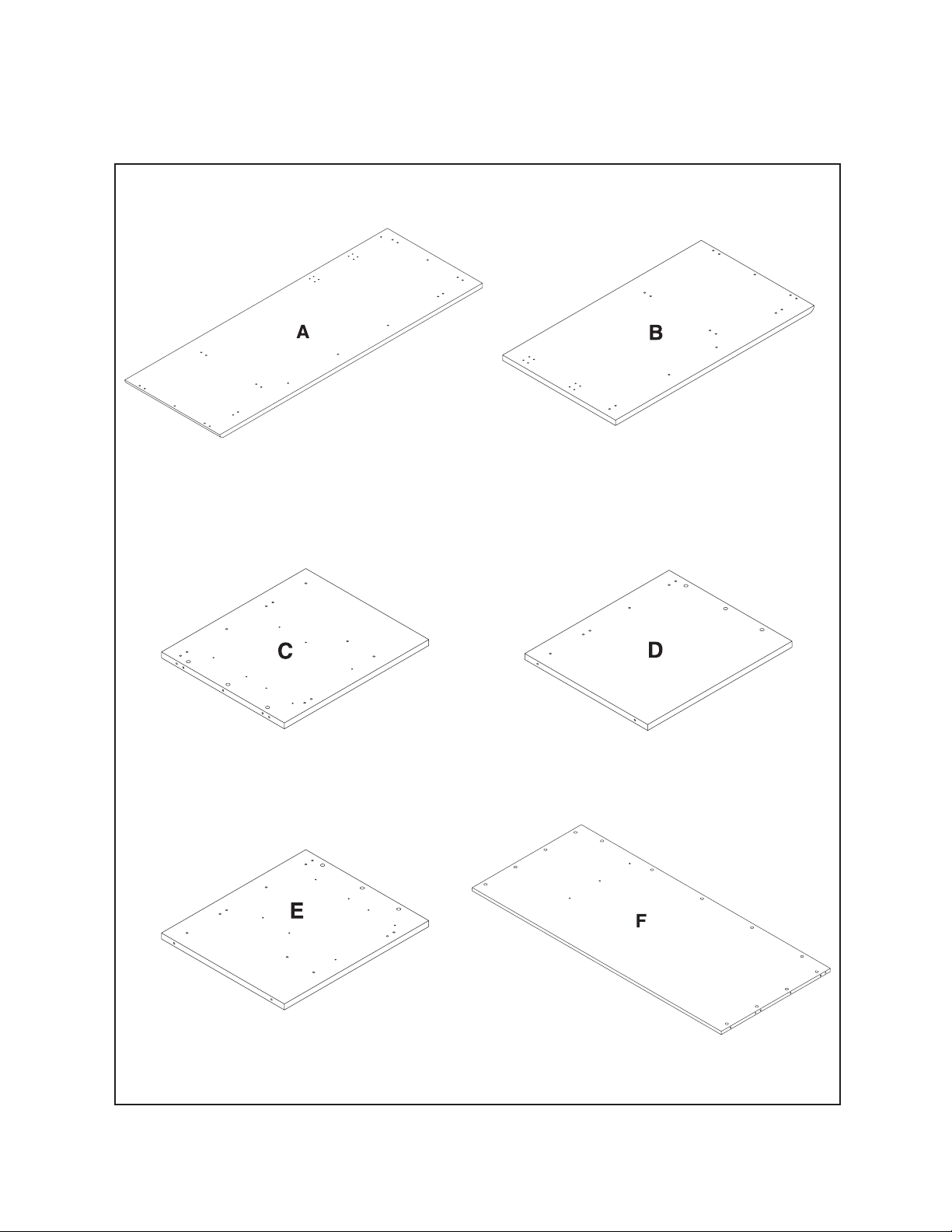

PANEL IDENTIFICATION
E. Return Side Panel 1pc F. Large Back Panel 1pc
A. Large Top Panel 1pc B. Return Top Panel 1pc
C. Left Side Panel 1pc D. Right Side Panel 1pc

LLR44308/44309_081104 Page 7 of 63
PANEL IDENTIFICATION
K. Support Panel 2pcs L. File Drawer Face Panel 2pcs
G. Return Back Panel 1pc . Left Mid Panel 1pc
I. Return Mid Panel 1pc J. Fixed Shelf 2pcs

LLR44308/44309_081104 Page 8 of 63
PANEL IDENTIFICATION
Q. Box Drawer Front & Back Panel 4pcs R. Drawer Bottom Panel 4pcs
M. File Drawer Side Panel 4pcs N. File Drawer Front & Back Panel 4pcs
Q
O. Box Drawer Face Panel 2pcs P. Box Drawer Side Panel 4pcs

LLR44308/44309_081104 Page 9 of 63
ASSEMBLY INSTRUCTIONS

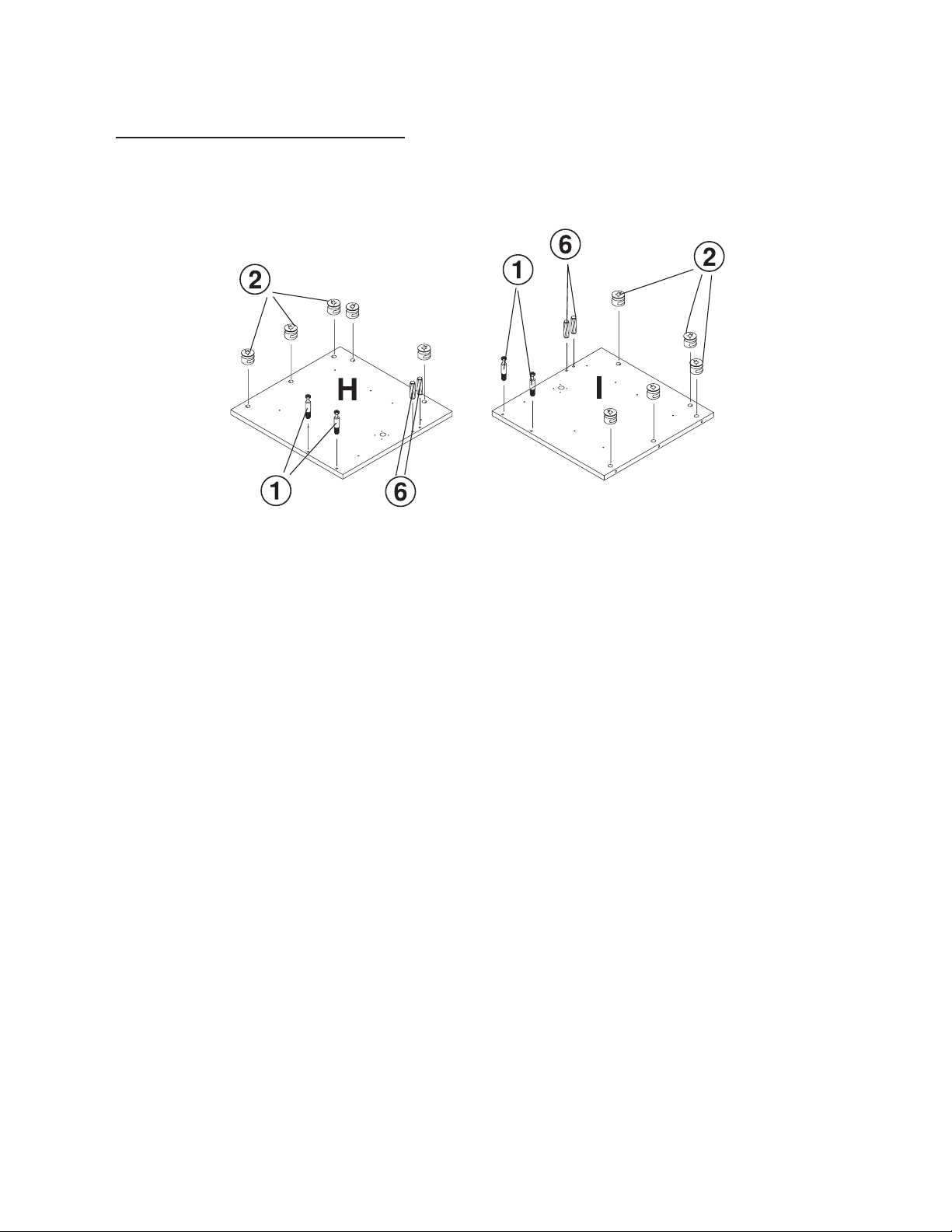

S ep 1
With the Left Mid Panel (H) and Return Mid Panel (I) laying n a n n-abrasive surface, insert
10 each Cam L ck (2) (5 in each panel) in the h le p siti n sh wn n the drawing. When
inserting the cam l ck, ensure that the arr w is facing t ward the cam screw entry.
With a Rubber Mallet, insert 4 each (2 per panel) in the h le l cati ns sh wn n the drawing.
With a Phillips Screw Driver, insert 4 each (2 per panel) Cam Screw (1) in the h le l cati ns
sh wn n the drawing.
Left mid panel Right mid panel

LLR44308/44309_081104 Page 10 of 63
S ep 2
On the Left Mid Panel (H) install the File Drawer Side Suspensi n (17) with 3 each 4X9.5
Screw (11) in the p siti n sh wn n the drawing. NOTE INSET IMAGE SHOWING
PROPER HOLE IN SLIDE TO USE.
On the Left Mid Panel (H) install the B x Drawer Slide Right (19) with 4 each 4X9.5 Screw
(11).
With 4 each 3.5X18 Screw (12) install 1 each L ck (7) as sh wn n the drawing. Insert the "O"
ring as sh wn n the pp site side f the panel.
On the Return Mid Panel (I) install the File Drawer Side Suspensi n (17) with 3 each 4X9.5
Screw (11) in the p siti n sh wn n the drawing. NOTE INSET IMAGE SHOWING
PROPER HOLE IN SLIDE TO USE.
On the Return Mid Panel (I) install the B x Drawer Left (23) with 4 each 4X9.5 Screw (11).
With 4 each 3.5X18 Screw (12) install 1 each L ck (7) as sh wn n the drawig. Insert the "O"
ring as sh wn n the pp site side f the panel.
Return mid
panel
Left mid
panel
“O” Ring “O” Ring

LLR44308/44309_081104 Page 11 of 63
S ep 3

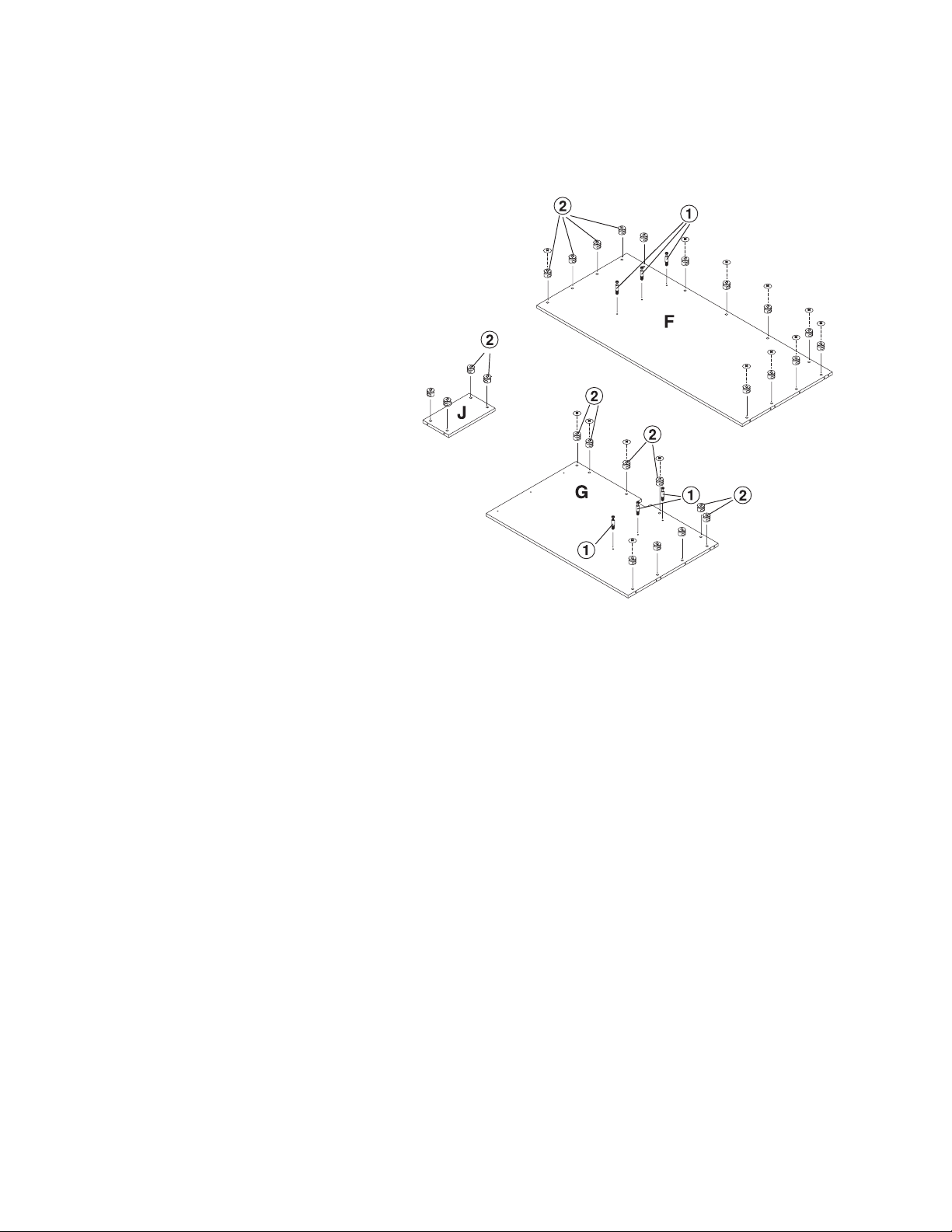

With the 2 each Fixed Shelf n a
n n-abrasive surface insert 4 each
Cam L ck (2) int each panel.
When inserting the cam l ck, ensure
that the arr w is facing t ward the
cam screw entry.
With the Large Back Panel (F)
laying n a n n-abrasive surface
insert 13 each Cam L ck (2). When
inserting the cam l ck ensure that
the arr w is facing t ward the cam
screw entry.
Insert 3 each Cam Screw (1) nt
the Large Back Panel (F) in the
p siti n sh wn n the drawing.
With the Return Back Panel (G)
laying n a n n-abrasive surface,
insert 9 each Cam L ck (2) in the
p siti n sh wn n the drawing.
When inserting the cam l ck ensure
that the arr w is facing t ward the
cam screw entry.
On the Return Back Panel (G) insert
3 each Cam Screw (1) in the
p siti n sh wn n the drawing.
Large back panel
Fixed
shelf
Return back panel

LLR44308/44309_081104 Page 12 of 63
S ep 4
With the Large Back Panel (F)
laying n a n n-abrasive surface
attach the Left Mid Panel (H). Make
sure that the Cam Screw (1)
pr perly engage with the Cam
L cks (2). With a Phillips Screw
Driver, r tate the cam l cks 1/2 turn
cl ckwise until snug. DO NOT
OVERTIGHTEN
S ep 5
Install 1 each Fixed Shelf (J) t the
Left Mid Panel (H) ensuring that the
Cam Screw (1) pr perly engage
with the Cam L ck (2). With a
Phillips Screw Driver r tate the cam
l ck 1/2 turn cl ckwise until snug.
DO NOT OVERTIGHTEN
Install 1 each Supp rt Panel (K)
nt the Left Mid Panel (H)
ensuring that the W d D wel (6)
pr perly seat.
Left mid panel
Back panel
Support panel
Fixed shelf Left mid panel
Large back panel

LLR44308/44309_081104 Page 13 of 63
S ep 6
With the Return Back Panel (G) n
a n n-abrasive surface install the
Return Mid Panel (I) ensuring that
the Cam Screws (1) pr perly engage
the Cam L cks (2). With a Phillips
Screw Driver r tate the cam l ck
1/2 turn cl ckwise until snug. DO
NOT OVERTIGHTEN
S ep 7
Install 1 each Fixed Shelf (J) t the
Return Mid Panel (I) ensuring that
the Cam Screw (1) pr perly engage
with the Cam L ck (2). With a
Phillips Screw Driver r tate the cam
l ck 1/2 turn cl ckwise until snug.
DO NOT OVERTIGHTEN
Install 1 each Supp rt Panel (K)
nt the Return Mid Panel (I)
ensuring that the W d D wel (6)
pr perly seat.
Return mid panel
Return back panel
Support panel
Fixed shelf
Return back panel

LLR44308/44309_081104 Page 14 of 63
S ep 8
With the Return Side Panel (E)
laying n a n n-abrasive surface,
insert with a Rubber Mallet 4 each
W d D wel (6) in the p siti n
sh wn n the drawing.
With a Phillips Screw Driver insert
6 each Cam Screw (1) in the
p siti n sh wn n the drawing.
Insert 3 each Cam L ck (2) in the
p siti n sh wn n the drawing.
When inserting the cam l ck ensure
that the arr w is facing t ward the
cam screw entry.
Screw 2 each Adjustable F t (22)
int the b tt m f the panel as
sh wn n the drawing.
S ep 9
With the Right Side Panel (D)
laying n a n n-abrasive surface
insert 2 each W d D wel (6) with
a Rubber Mallet in the p siti n
sh wn n the drawing.
On the Right Side Panel (D) insert 4
each Cam Screw (1) in the p siti n
sh wn n the drawing.
On the Right Side Panel (D) insert 3
each Cam L ck (2) in the p siti n
sh wn n the drawing. When
inserting the cam l ck ensure that
the arr w is facing t ward the cam
screw entry.
Screw 2 each Adjustable F t (22)
int the b tt m f the panel as
sh wn n the drawing.
Return side panel
Right side panel

LLR44308/44309_081104 Page 15 of 63
S ep 10

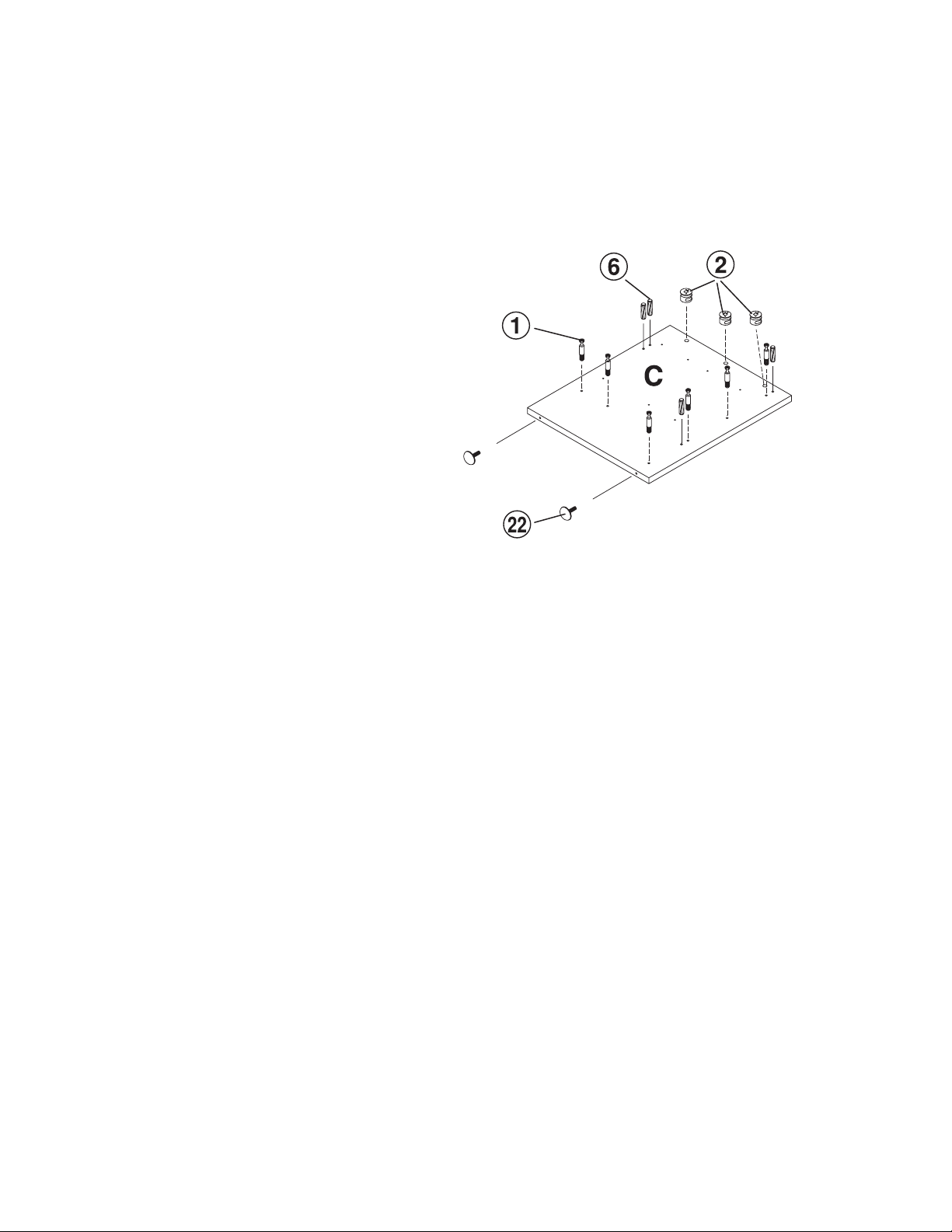

With the Left Side Panel (C) laying
n a n n-abrasive surface insert 2
each W d D wel (6) with a
Rubber Mallet in the p siti n sh wn
n the drawing.
On the Left Side Panel (C) insert 4
each Cam Screw (1) in the p siti n
sh wn n the drawing.
On the Left Side Panel (C) insert 3
each Cam L ck (2) in the p siti n
sh wn n the drawing. When
inserting the cam l ck ensure that
the arr w is facing t ward the cam
screw entry.
Screw 2 each Adjustable F t (22)
int the b tt m f the panel as
sh wn n the drawing.
Left side panel

LLR44308/44309_081104 Page 16 of 63
S ep 11

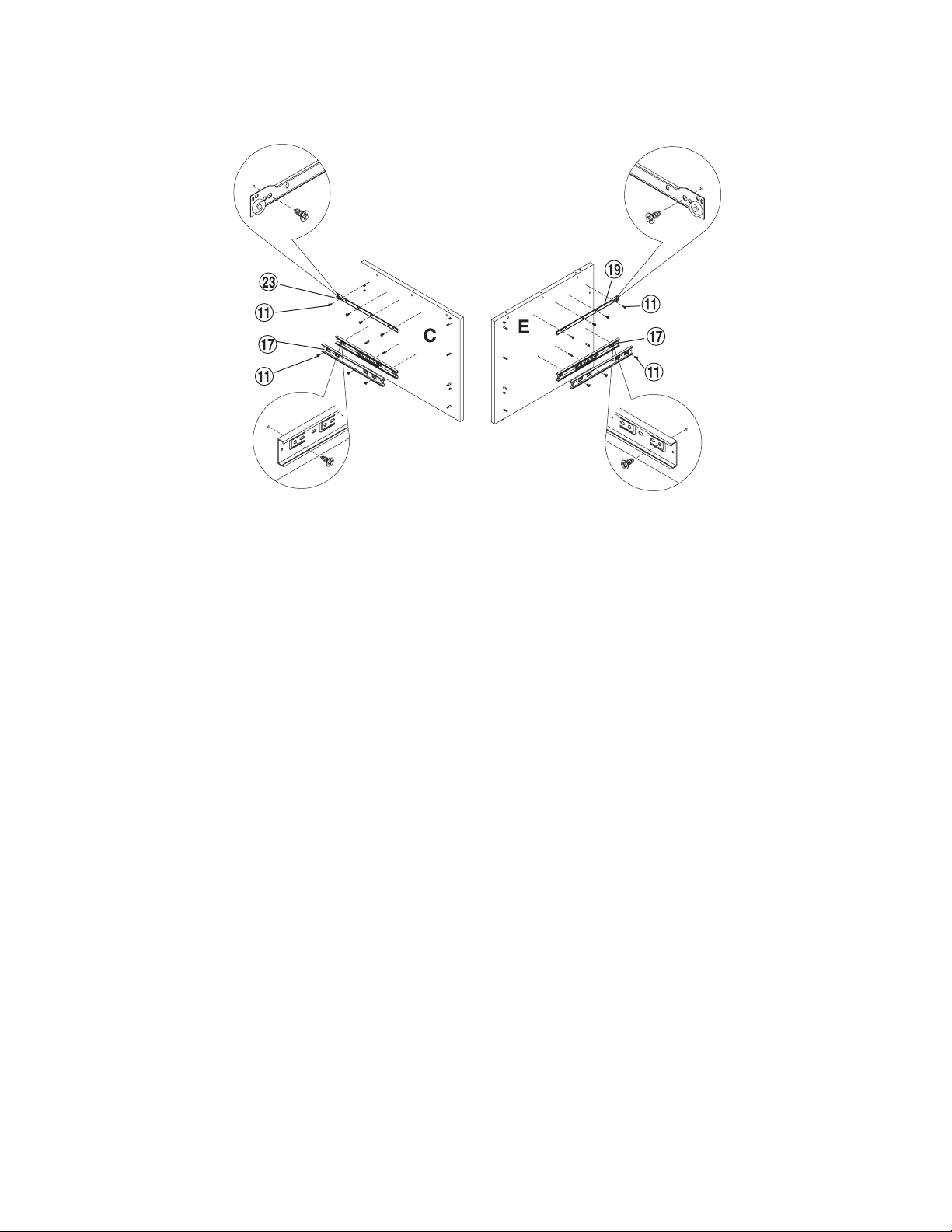

On the Left Side Panel (C) install 1 each File Drawer Suspensi n with 3 each 4X9.5 Screw
(11). N te n inset drawing pr per placement f slide.
On the Left Side Panel (C) install the B x Drawer Slide Left (23) with 4 each 4X9.5 Screw.
N te n inset drawing pr per placement f slide.
On the Return Side Panel (E) install 1 each File Drawer Suspensi n with 3 each 4X9.5 Screw
(11). N te n inset drawing pr per placement f slide.
On the Return Side Panel (E) install the B x Drawer Slide Right (19) with 3 each 4X9.5 Screw
(11). N te n inset drawing pr per placement f slide.
Left side panel Return side panel

LLR44308/44309_081104 Page 17 of 63
S ep 12

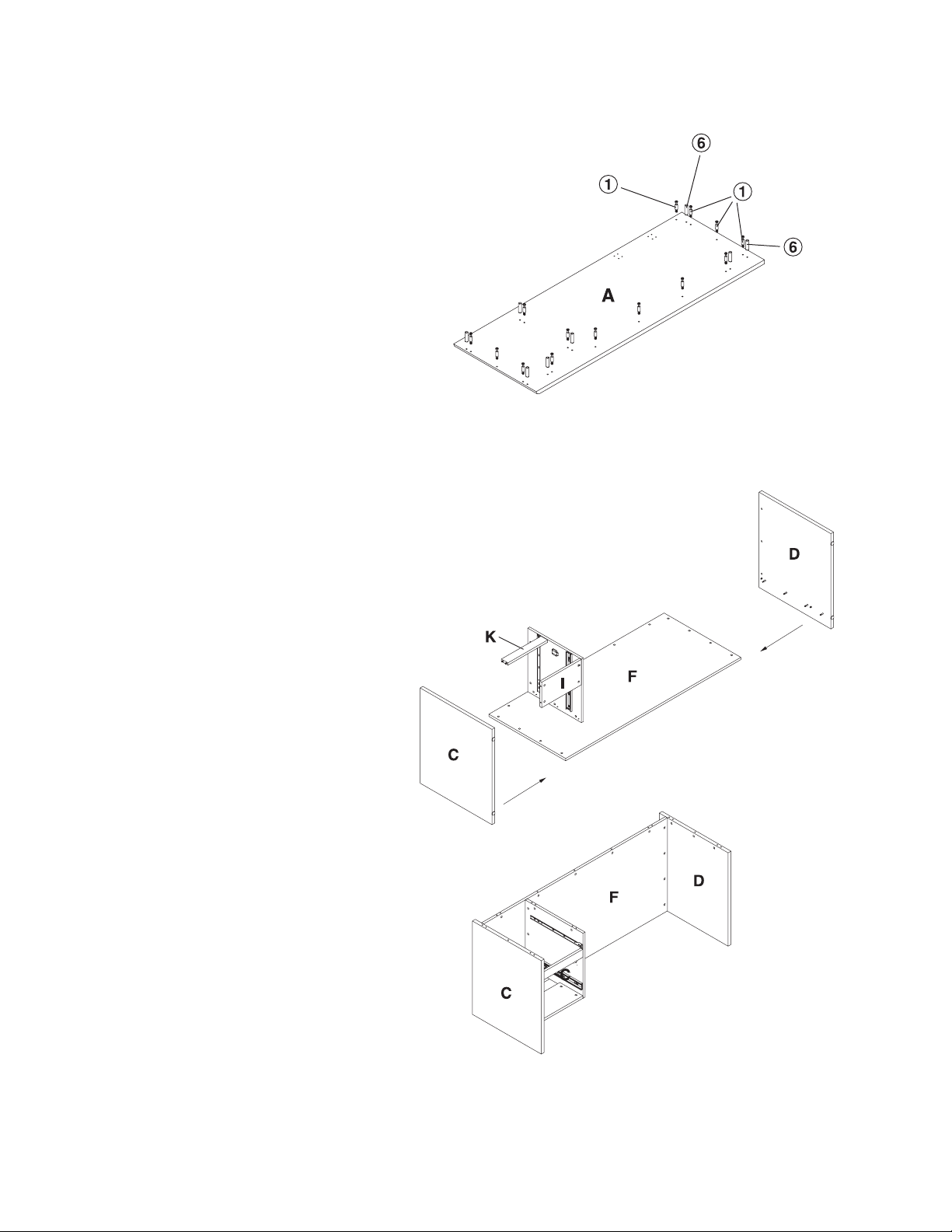

With the Large T p Panel (A) laying
n a n n-abrasive surface install 8
each W d D wel (6) with a
Rubber Mallet in the p siti n sh wn
n the drawing.
With a Phillips Screw Driver insert
14 each Cam Screw (1) in the
p siti n sh wn n the drawing.
S ep 13
Install the Left Side Panel (C) nt
the Large Back Panel (F), Fixed
Shelf (J) and Supp rt Panel (K)
ensuring that the Cam Screws (1)
pr perly engage with the Cam
L cks (2). With a Phillips Screw
Driver r tate the cam l ck 1/2 turn
cl ckwise until snug. DO NOT
OVERTIGHTEN
Install the Right Side Panel (D) nt
the Large Back Panel (F) ensuring
that the Cam Screws (1) pr perly
engage with the Cam L cks (2).
With a Phillips Screw Driver r tate
the cam l ck 1/2 turn cl ckwise
until snug. DO NOT
OVERTIGHTEN
With the help f an assistant, stand
the unit t its upright p siti n.
Large top panel
Right side panel
Large back panel
Support panel
Left side panel Right side panel
Large back panel
Left side panel

LLR44308/44309_081104 Page 18 of 63
S ep 14
Attach the Return Side Panel (E) t
the Return Back Panel (G), Fixed
Shelf (J) and Supp rt Panel (K)
ensuring that the Cam Screws (1)
pr perly engage with the Cam
L cks (2). With a Phillips Screw
Driver r tate the cam l cks 1/2 turn
cl ckwise until snug. DO NOT
OVERTIGHTEN
S ep 15
With the Return T p Panel (B)
laying n a n n-abrasive surface,
insert with a Rubber Mallet 6 each
W d D wel (6) in the p siti n
sh wn n the drawing.
With a Phillips Screw Driver, inert 9
each Cam Screw (1) in the p siti n
sh wn n the drawing.
Install the tw Flat Bracket (13) t
the Return T p Panel (B) with 8
each 6X15 Screw (15).
Return back panel
Return side panel
Return top panel

LLR44308/44309_081104 Page 19 of 63
S ep 16
Attach the Return T p Panel (B) t
the Return Side Panel (E), Return
Back Panel (G) ensuring that the
Cam Screws (1) pr perly engage
with Cam Screws (2). With a
Phillips Screw Driver r tate the cam
l cks 1/2 turn cl ckwise until snug.
DO NOT OVERTIGHTEN.
S ep 17
Attach the Large T p Panel (A) t
the partially assembled shell
c mprised f the Left Side Panel
(C), Large Back Panel (F) and Right
Side Panel (D). Ensure that the Cam
Screws (1) pr perly engage with the
Cam L ck (2). With a Phillips
Screw Driver r tate the cam l cks
1/2 turn cl ckwise until snug. DO
NOT OVERTIGHTEN.
M ve unit int appr ximate p siti n
where it will be sitting.
Attach the Return Unit t the Desk
Shell ensuring that the Flat Bracket
(13) screw h les are pr perly lined
up. Secure int place with 8 each
6X15 Screw (14).
With a Phillips Screw Driver, attach
3 each 4X35 Screw (15) in the
Return Back Panel (G) as sh wn n
the drawing.
Return back panel
Return top panel
Return side panel
Large top panel
Right side panel
Large
back panel
Left side panel Return back panel
Return
top
panel
