Lorell LLR44216 User manual

Microwave Cart
Chariot pour four à micro-ondes
Carrito para microondas
LLR44216
LLR44216_ManualENG.indd 1LLR44216_ManualENG.indd 1 3/4/11 3:33 PM3/4/11 3:33 PM

Page 1 of 36
INSTRUCTIONS:
If you are missing parts or have other concerns, please email [e-mail]
or fax: [phone].
Please provide the following information:
1. Full Name
2. Physical Address – do not include P.O. Box as our carriers cannot deliver to a P.O. Boxes
3. Phone Number
4. Model Number
5. Part Number
6. Invoice #
7. Date of Purchase
Note: Our policy is to send all parts requests normal ground transportation, if your requirements are to have these parts
via overnight/next day, please provide your designated carrier and account number. Replacement panels are not available.
If damaged has occurred during shipment, please return the entire unit to place of purchase for credit and replacement.
Original Invoice may be required.
Before you begin:
Open, identify and count all parts prior to assembly. Lay out the parts on a non-abrasive surface
such as carpet or blanket. You will need the tools identified below:
1. Phillips Head Screw Driver
2. Flat Head Screw Driver
3. Rubber Mallet (recommended)
4. Hammer
LLR44216_ManualENG.indd 2LLR44216_ManualENG.indd 2 3/4/11 3:33 PM3/4/11 3:33 PM

Page 2 of 36

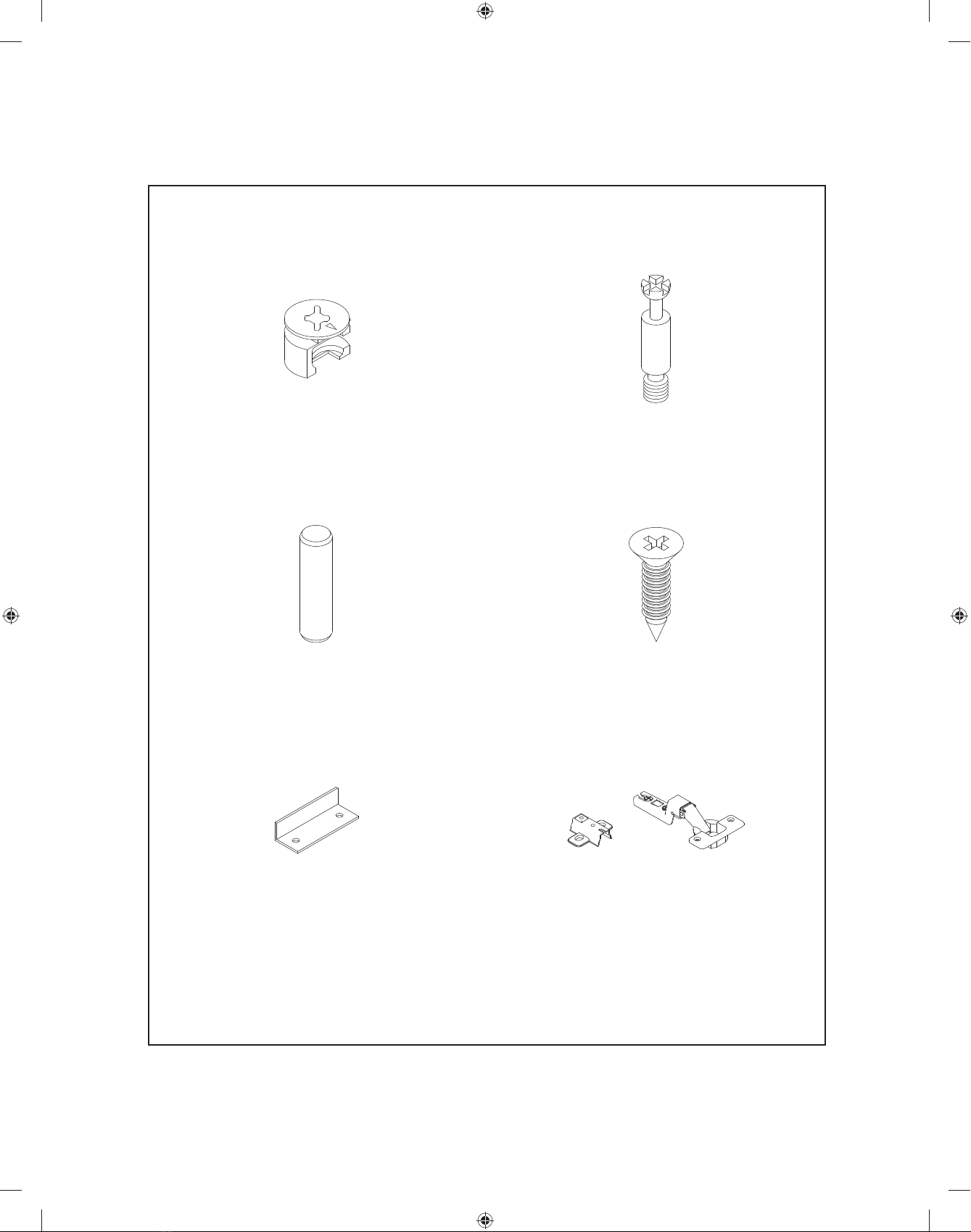

HARDWARE IDENTIFICATION
D. Screw 16pcsC. Wood Dowel 12pcs
A. Cam Lock 12pcs B. Cam Screw 12pcs
F. Door Hinge 4 sets
E. Door Stop 1pc
LLR44216_ManualENG.indd 3LLR44216_ManualENG.indd 3 3/4/11 3:33 PM3/4/11 3:33 PM

Page 3 of 36

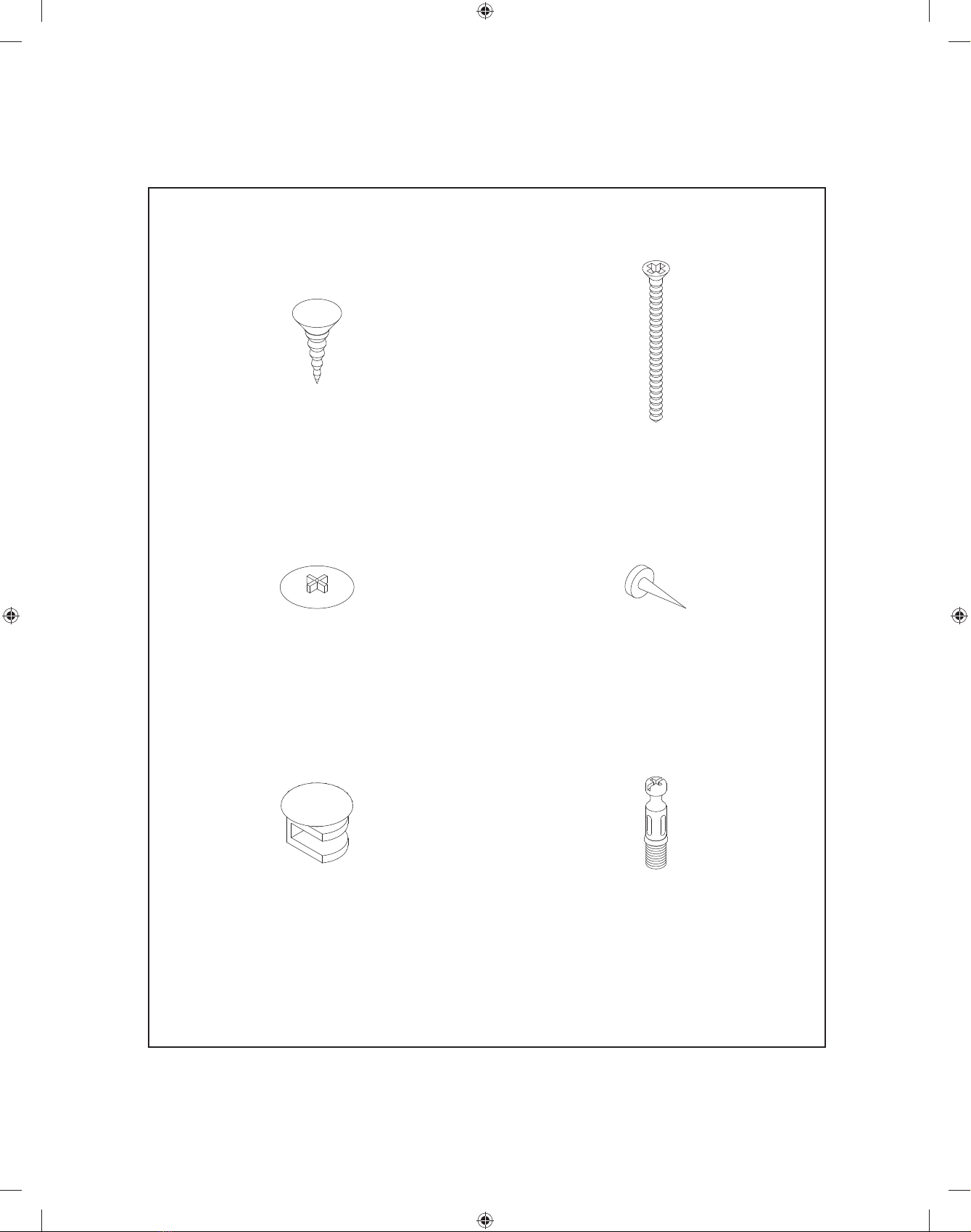

HARDWARE IDENTIFICATION
J. Nail 16pcsI. Cam Cap 4pcs
G. Small Screw 14pcs H. Long Screw 4pcs
L. Small Cam Screw 4pcs
K. Small Cam Lock 4pcs
LLR44216_ManualENG.indd 4LLR44216_ManualENG.indd 4 3/4/11 3:33 PM3/4/11 3:33 PM

Page 4 of 36

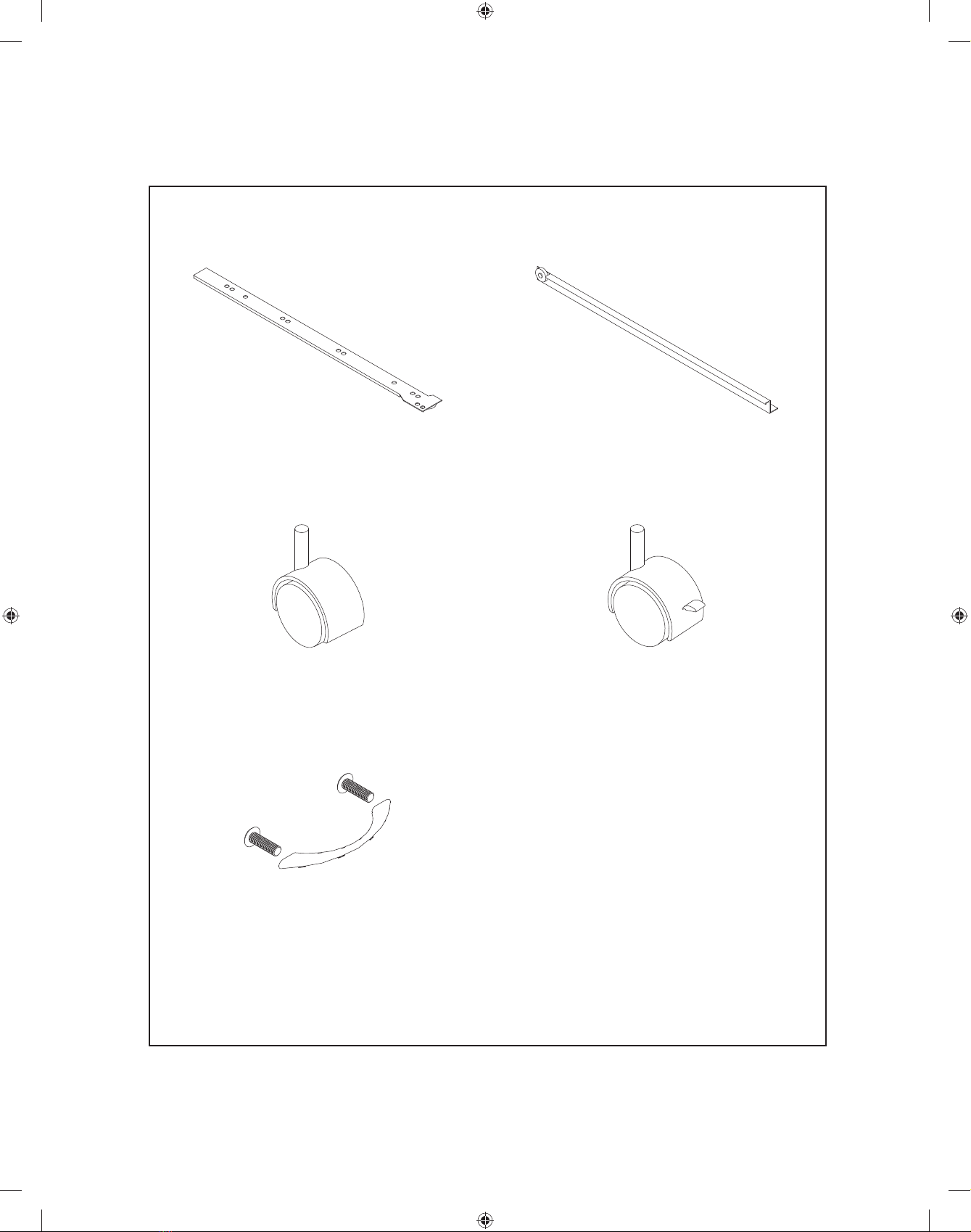

HARDWARE IDENTIFICATION
P. Locking Caster 2pcsO. Caster 2pcs
M. Drawer Track 2pcs N. Track 2pcs
Q. Handles 3 sets
LLR44216_ManualENG.indd 5LLR44216_ManualENG.indd 5 3/4/11 3:33 PM3/4/11 3:33 PM

Page 5 of 36
PANEL IDENTIFICATION
5. Right Side Panel 6. Back Panel (2pcs)
4. Left Side Panel3. Left Door
1. Top Panel 2. Right Door
(There are one of each item on this list except for no. 6)
LLR44216_ManualENG.indd 6LLR44216_ManualENG.indd 6 3/4/11 3:33 PM3/4/11 3:33 PM

Page 6 of 36
PANEL IDENTIFICATION
10. Drawer Front9. Drawer Bottom Panel
7. Shelf Panel 8. Bottom Panel
11. Drawer Back Panel 12. Drawer Left Side Panel
13. Drawer Right Side Panel
LLR44216_ManualENG.indd 7LLR44216_ManualENG.indd 7 3/4/11 3:33 PM3/4/11 3:33 PM

Page 7 of 36

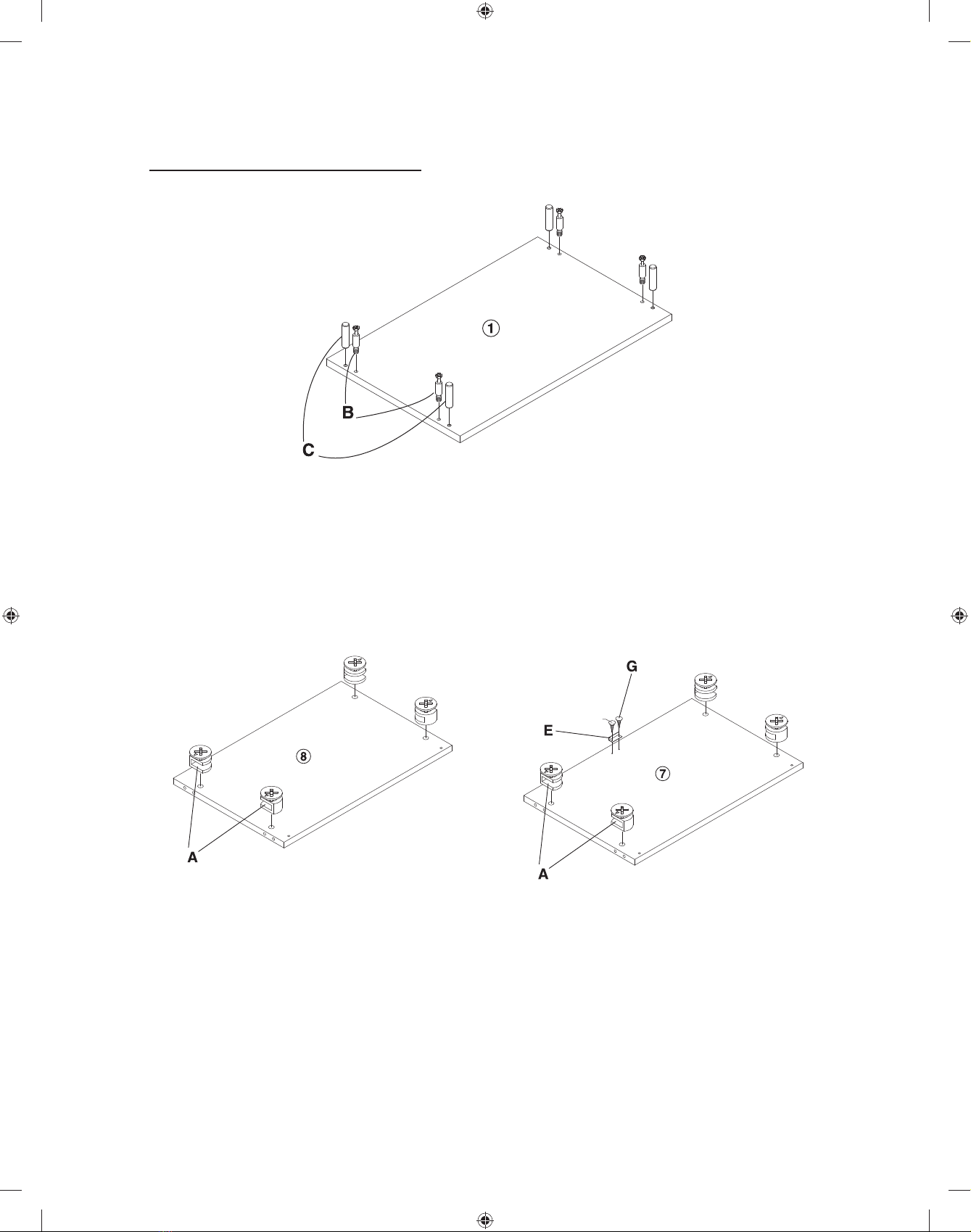

ASSEMBLY INSTRUCTIONS
Step 2
With the Bottom Panel (8) and Shelf Panel (7) laying on a non-abrasive surface insert 4 each
Cam Lock (A) into each panel in the holes provided. When inserting the cam locks, ensure that
the arrow is facing toward the cam screw entry.
Using 2 each Small Screw (G) install the Door Stop (E) in the position as shown on the
drawing.
Step 1
With the Top Panel (1) laying on a non-abrasive surface insert 4 each Cam Screws (B) in the
holes shown on the drawing.
Using a Rubber Mallet, insert the 4 each Wood Dowel (C) in the holes provided.
Top Panel
Bottom Panel
small screw
Shelf Panel
LLR44216_ManualENG.indd 8LLR44216_ManualENG.indd 8 3/4/11 3:33 PM3/4/11 3:33 PM

Page 8 of 36
Step 3
With the Left Side Panel (4) and Right Side Panel (5) laying on a non-abrasive surface install
attach the Drawer Track (M) to each with 3 each Small Screw (G) in each. NOTE: There is a
left and right side drawer track and please utilize the drawing as your guide for determining the
proper track per panel.
On both the Left Side Panel (4) and Right Side Panel (5) insert 2 each Cam Lock (A) per panel.
When inserting the cam lock, ensure that the arrow is facing toward the cam screw entry.
On these same two panels, insert 4 each Wood Dowel (C) per panel in the positions shown. Tap
securely into position with a Rubber Mallet.
Again, on the same two panels insert with a Phillips Screw Driver 4 each Cam Screws (B) per
panel.
Finally, install the 4 each Door Hinge (F) (2 per Panel) with 8 each Screw (D). At this time it is
only necessary to install the small bracket of the Door Hinge (F).
Left side Panel
small
screw Right side Panel
Left Side
Panel
Right Side
Panel
small
screw
LLR44216_ManualENG.indd 9LLR44216_ManualENG.indd 9 3/4/11 3:33 PM3/4/11 3:33 PM

Page 9 of 36
Step 4
With the Left Door (3) and Right Door (2) laying on a non-abrasive surface install the 4 each
Door Hinge (F) (2 per door) with 8 each Screw (D) as shown on the drawing.
Step 5
On the Drawer Left Side Panel (12) and Drawer Right Side Panel (13) install the Track (N)
with 3 each Small Screw (G) per track. NOTE: There is a left and right side drawer track and
please utilize the drawing as your guide for determining the proper track per panel.
On the Drawer Left Side Panel (12) and Drawer Right Side Panel (13) insert 4 each Small Cam
Lock (K). (2 per panel) When inserting the cam lock, ensure that the arrow is facing toward the
cam screw entry.
Right door
Left door
Drawer left side panel Drawer right side panel
LLR44216_ManualENG.indd 10LLR44216_ManualENG.indd 10 3/4/11 3:33 PM3/4/11 3:33 PM

Page 10 of 36

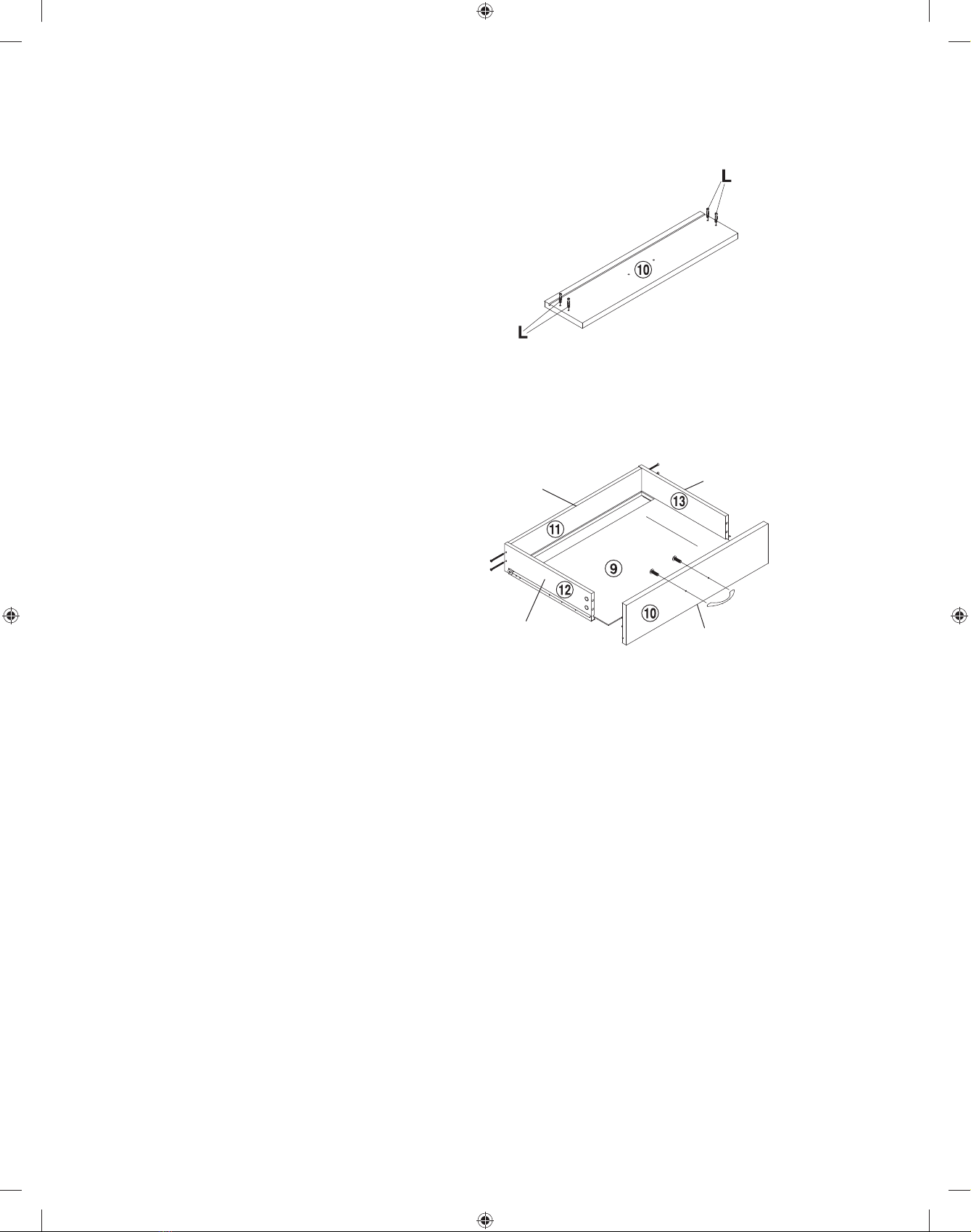

Step 6
On the Drawer Front (10) insert 4
each Small Cam Screw (L) with a
Phillips Screw Driver.
Step 7
Attach the Drawer Left Side Panel
(12) and Drawer Right Side Panel
(13) to the Drawer Back Panel (11)
by inserting 2 each Long Screw (H)
per panel. NOTE: The groove in the
panels should line up.
Slide the Drawer Bottom Panel
(9) into the groove created by
the Drawer Left Side Panel (12),
Drawer Right Side Panel (13) and
Drawer Back Panel (11).
Attach the Drawer Front (10)
making sure that the Small Cam
Screws (L) properly engage with
the Small Cam Lock (K). With a
Phillips Screw Driver rotate the cam
locks 1/2 turn clockwise until snug.
DO NOT OVERTIGHTEN
Attach 1 each Handle (Q) to the
Drawer Front (10).
Drawer front
Drawer right
side panel
Drawer back panel
Drawer left side panel Drawer front
Drawer bottom panel
LLR44216_ManualENG.indd 11LLR44216_ManualENG.indd 11 3/4/11 3:33 PM3/4/11 3:33 PM

Page 11 of 36

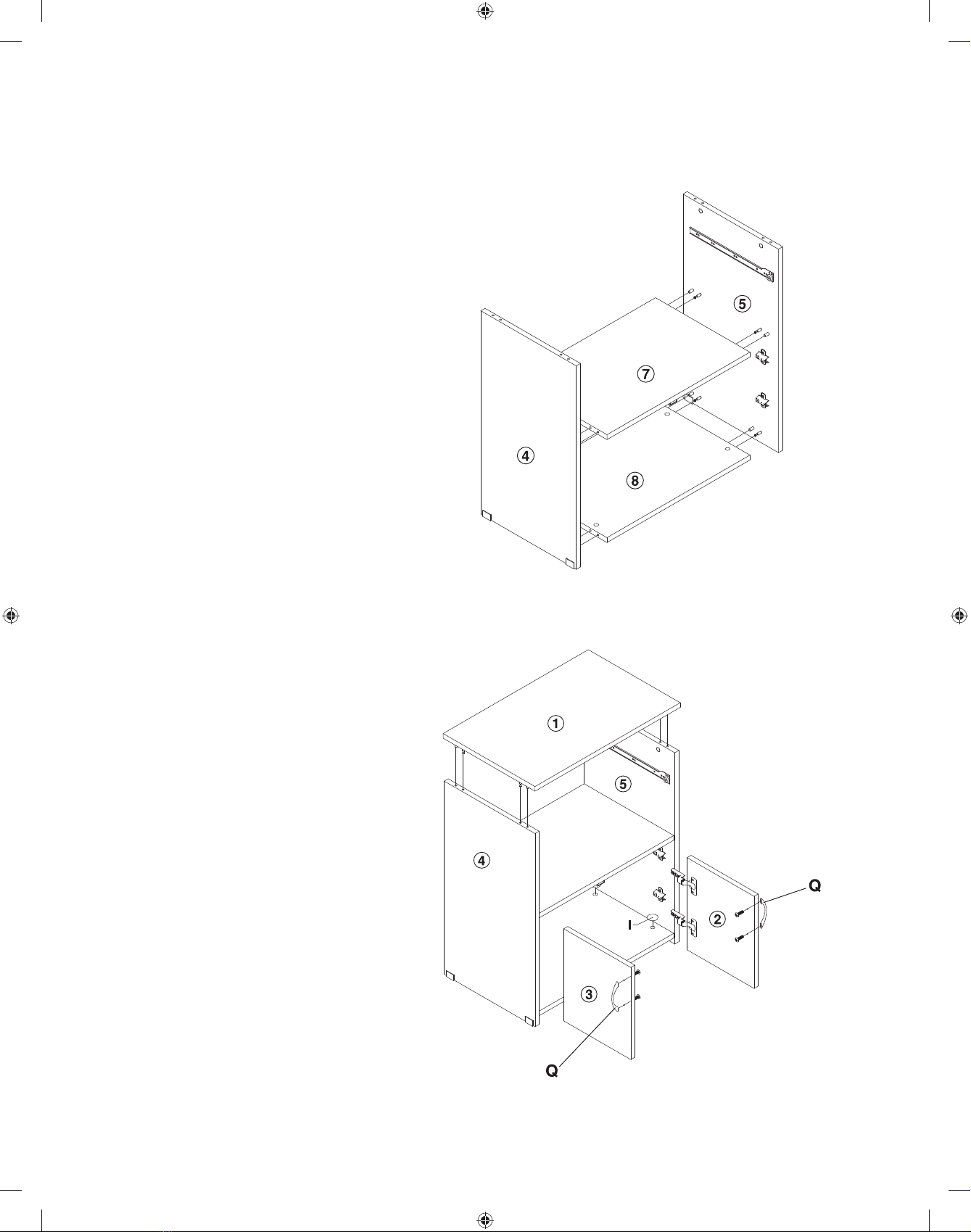

Step 8
With the Left Side Panel (4) laying
on a non-abrasive surface, install the
Shelf Panel (7) making sure that the
cam screws properly engage with
the cam locks. Rotate the cam locks
1/2 turn clockwise until snug. DO
NOT OVERTIGHTEN
Install the Bottom Panel (8) in the
same manner making sure that the
cam screws properly engage with
the cam locks. Rotate the cam locks
1/2 turn clockwise until snug. DO
NOT OVERTIGHTEN
Attach the Right Side Panel (5)
so that the Cam Locks (A) on the
Shelf Panel (7) and Bottom Panel
(8) properly engage with the Cam
Screws (B). With a Phillips Screw
Driver, rotate the cam locks 1/2
turn clockwise until snug. DO NOT
OVERTIGHTEN
Step 9
Carefully stand the unit upright.
Attach the Top Panel (1) so that the
Cam Screws (B) properly engage
with the Cam Locks (A). With a
Phillips Screw Driver, rotate the
cam locks 1/2 turn clockwise until
snug. DO NOT OVERTIGHTEN
Attach the Left Door (3) and Right
Door (2) to the unit ensuring that
the Door Hinge (F) properly unite.
The hinges may be adjusted with
a Phillips Screw Driver so that the
doors fit squarely into place.
Using a Phillips Screw Driver,
attach 2 each Handle (Q) to each
Left Door (3) and Right Door (2).
Right side panel
Shelf panel
Bottom panel
Left side panel
Top panel
Cap
LLR44216_ManualENG.indd 12LLR44216_ManualENG.indd 12 3/4/11 3:33 PM3/4/11 3:33 PM

Page 12 of 36

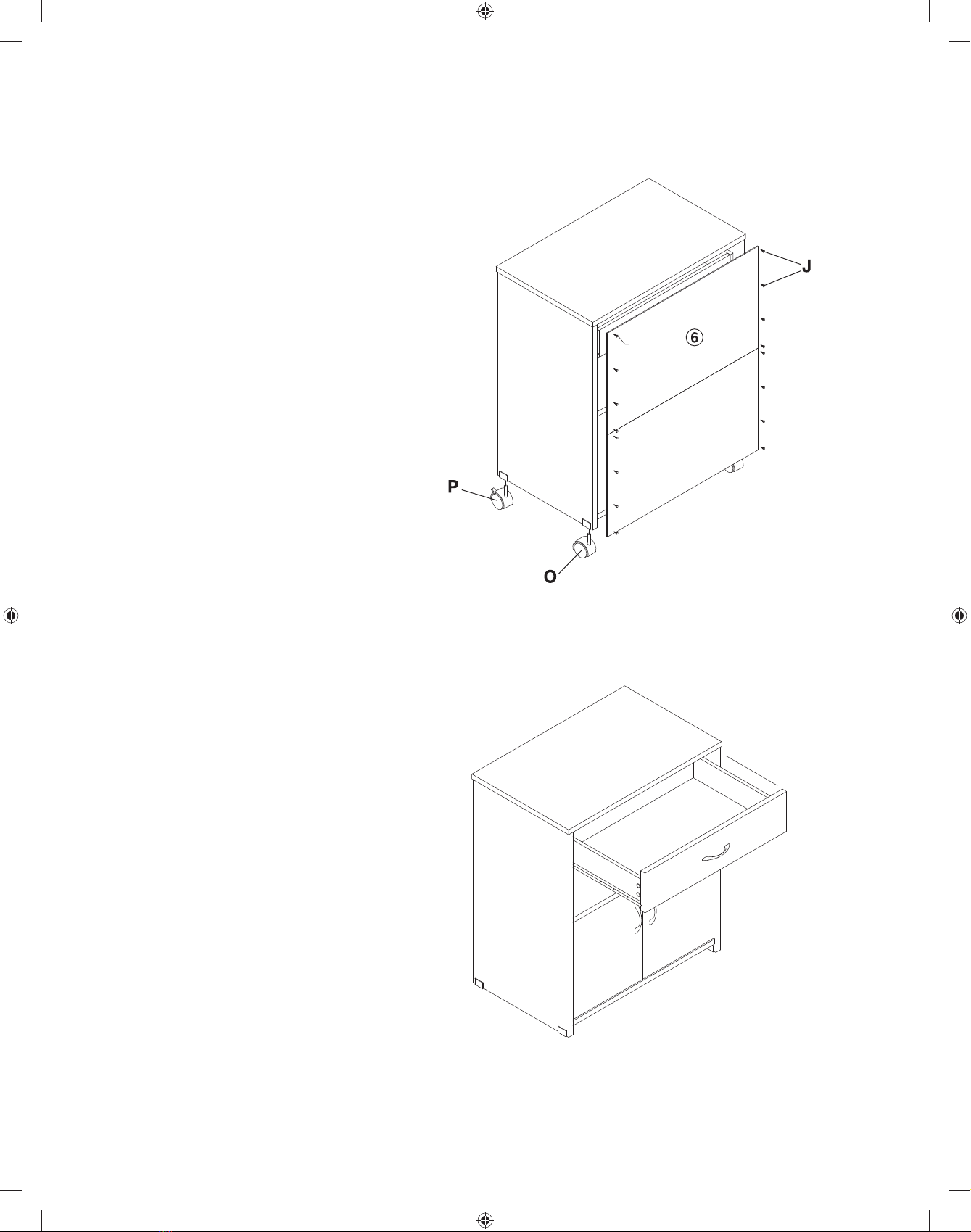

Step 10
Carefully lay the unit down, on
its side and insert 2 each Locking
Caster (P) to the front of the unit in
the sockets provided.
Insert the 2 each Caster (O) in the
sockets provided at the rear of the
unit.
With a Hammer and the 16 each
Nail (J) attach the two pieces for
the Back Panel (6) to the rear of the
unit.
Step 11
Carefully stand the unit upright onto
the casters and insert the completed
drawer.
YOU HAVE NOW
SUCCESSFULLY COMPLETED
THE ASSEMBLY OF THIS UNIT.
THANK YOU FOR YOUR
PURCHASE!
Back panel
nail
Back panel
LLR44216_ManualENG.indd 13LLR44216_ManualENG.indd 13 3/4/11 3:33 PM3/4/11 3:33 PM

Page 13 of 36
INSTRUCTIONS:
Veuillez nous faire parvenir un courriel à [e-mail] ou un fax à : 404-472-9063, s’il vous
manque des pièces ou que vous éprouvez d’autres inquiétudes.
Veuillez fournir l’information suivante :
1. Nom complet
2. Adresse physique – ne donnez pas votre boîte postale car nos livreurs ne peuvent pas livrer à une
boîte postale
3. Numéro de téléphone
4. Numéro de modèle
5. Numéro de pièce
6. # de facture
7. Date de l’achat
Note: Notre politique est de livrer toutes les demandes de pièces par la voie terrestre; prière de fournir le nom de votre
transporteur ainsi que votre numéro de compte si vos exigences sont d’avoir ces pièces livrées pendant la nuit/le lendemain.
Des panneaux de remplacement ne sont pas disponibles. Si des dommages sont survenus durant le transport, prière de
retourner l’unité entière à l’endroit de l’achat pour un crédit et un remplacement. La facture originale peut être exigée.
Avant de commencer :
Ouvrez, identifiez et comptez toutes les pièces avant de procéder à l’assemblage. Disposez les
pièces sur une surface non-abrasive telle un tapis ou une couverture. Vous aurez besoin des
outils identifiés ci-après :
1. Tournevis à tête Phillips
2. Tournevis à tête plate
3. Maillet de caoutchouc (recommandé)
4. Marteau
LLR44216_ManualFRE.indd 1LLR44216_ManualFRE.indd 1 3/4/11 3:34 PM3/4/11 3:34 PM

Page 14 of 36
IDENTIFICATION DE LA QUINCAILLERIE
D. Vis 16mcxC. Chevilles de bois 12mcx
A. Verrou à came 12mcx B. Vis de came 12mcx
F. Charnière de porte 4 ensemblesE. Butée de porte 1mc
LLR44216_ManualFRE.indd 2LLR44216_ManualFRE.indd 2 3/4/11 3:34 PM3/4/11 3:34 PM

Page 15 of 36
IDENTIFICATION DE LA QUINCAILLERIE
J. Clou 16mcxI. Capuchon de came 4mcx
G. Petite vis 14mcx H. Longue vis 4mcx
L. Vis de petit verrou 4mcxK. Petit verrou à came 4mcx
LLR44216_ManualFRE.indd 3LLR44216_ManualFRE.indd 3 3/4/11 3:34 PM3/4/11 3:34 PM

Page 16 of 36
IDENTIFICATION DE LA QUINCAILLERIE
O. Roulette 2mcx
N. Rail 2mcx
Q. Poignée 3 ensembles
P. Roulette avec blocage 2mcx
M. Rail de tiroir 2mcx
LLR44216_ManualFRE.indd 4LLR44216_ManualFRE.indd 4 3/4/11 3:34 PM3/4/11 3:34 PM

Page 17 of 36
IDENTIFICATION DES PANNEAUX
(Il y a un article de chacun des articles sur la liste à l’exception du no. 6)
6. Panneau arrière (2mcx)
4. Panneau de gauche3. Porte de gauche
1. Panneau supérieur 2. Porte de droite
5. Panneau de droite
LLR44216_ManualFRE.indd 5LLR44216_ManualFRE.indd 5 3/4/11 3:34 PM3/4/11 3:34 PM

Page 18 of 36
IDENTIFICATION DES PANNEAUX
10. Devant du tiroir9. Panneau du fond du tiroir
7. Panneau de tablette 8. Panneau inférieur
12. Panneau de gauche du tiroir
11. Arrière du tiroir
13. Panneau de droite du tiroir
LLR44216_ManualFRE.indd 6LLR44216_ManualFRE.indd 6 3/4/11 3:34 PM3/4/11 3:34 PM

Page 19 of 36
INSTRUCTIONS D’ASSEMBLAGE
Étape 1
Pendant que le panneau supérieur (1) est couché sur une surface non-abrasive, insérez 4 vis de
came (B) dans les trous montrés sur le dessin.
À l’aide d’un maillet de caoutchouc, insérez les 4 chevilles de bois (C) dans les trous prévus.
Panneau supérieur
Panneau inférieur
Petite vis
Panneau de tablette
Étape 2
Pendant que le panneau inférieur (8) et que le panneau de tablette (7) sont couchés sur une
surface non-abrasive, insérez 4 verrous à came (A) dans les trous prévus dans chacun des
panneaux. Assurez-vous que la flèche est dirigée vers l’ouverture de la vis à came lorsque vous
insérez les verrous à came.
À l’aide de 2 petites vis (G), installez la butée de porte (E) dans la position comme montré sur
le dessin.
