Loxit Lapbank TL 32 User manual

Loxit Limited, First Avenue, Poynton Industrial Estate, Poynton, Cheshire, UK. SK12 1YJ
www.loxit.com ꞁ [email protected]m ꞁ [phone]
Lapbank TL 32- 6760
WARNING
•Children must be under surveillance to ensure that they do not play with this piece of electrical
equipment.
•The product is shipped fully assembled, if the unit is being stored do not double stack.
•Ensure that all casters are released from their brakes and are running freely when being moved.
•This unit is not designed for rough terrain.
•Please treat sympathetically avoiding kerbs or changes in level and being especially careful when
changing floor surfaces or crossing sloping areas. Take your time. If in doubt ask a second person
to assist you.
•Ensure the outlet socket the trolley is connected to is easily accessible
•The weight of the trolley exceeds 25kg, Do not attempt to lift the trolley.
Maintenance Instructions
•There are no user maintenance or adjustment points on this machine. Simply clean dust and dirt
from the outside of the unit and inspect for damage or breaks.
•Cleaners and disinfectants must not be highly alkaline or acidic.
•The user should visually check the equipment for signs of wear or misuse before each time of
using and for the security of the screen or any accessories.
•The condition of electrical cables and plugs should be checked for wear or abrasion before use.
•In addition, the equipment should be visually inspected in more detail every three months to
ensure that the unit is functioning properly and if it is not the user should report this to the
manufacturer for advice or for the return of the unit to base for repair.
•Incidences of misuse must be reported immediately and the unit placed out of commission.
•All repairs to the unit must only be carried out by Loxit.
•The warranty is only valid in so far as the equipment has been used and maintained correctly
and has not been tampered with.
•Violent treatment will invalidate the warranty.
•During operation if the unit makes any unusual noises or smells turn off the power supply at the
mains immediately.
•Ambient temperature range +5deg C to +40 deg C.
Safety
Before Charging Please Check:
1. The wall socket is switched on
2. The RESET button on the RCD is pushed in
3. The red neon indicator switch on the power strip is switched on and lit if applicable, or the rocker
switch in the case of ChargeConnect products.

Loxit Limited, First Avenue, Poynton Industrial Estate, Poynton, Cheshire, UK. SK12 1YJ
www.loxit.com ꞁ [email protected]m ꞁ [phone]
4. The IEC lead is plugged into the IEC inlet and the IEC Inlet switch is turned on with the neon indicator
light illuminated.
5. The low voltage power leads are firmly connected to the power source (device transformer or
ChargeConnect) and the device.
Lapbank TL products must be connected to an RCD protected earthed mains supply when charging.
Power Rating:
230v –50 Hz –10 amps. TOTAL NOT TO EXCEED 10 amps. OUTPUT –230V AC –10 amps.
Fuses located within the plug and Power inlet IEC block are the only user serviceable parts within the
unit, any warranty and service issues should be referred to your supplier.
Power input IEC block fuse: Fast Blow Glass Fuse, 10A, 250V (F10AL250V)
Mains cable plug fuse: 10A BS1362 Fuse
In the event of the mains plug or lead being damaged, the unit should not be used until a new plug or
lead has been fitted by a competent person. The old plug or lead must be safely disposed of.
THE MAINS INPUT TO THE LAPBANK TL TROLLEY MUST ONLY BE PLUGGED INTO AND REMOVED FROM
A SWITCHED MAINS PLUG SOCKET WHICH IS TURNED OFF.
Please ensure the mains input cable is unplugged before unlocking the wheels (if applicable) and moving
the trolley.
DO NOT DROP THE RCD PLUG, it contains sensitive electronics and may become damaged.
Mains input cables must be inspected daily for damage and wear.
If any fault or damage is found with any mains input cable, remove all power sources and stop using
immediately. Contact Loxit Limited on [phone] for a replacement cable.
Visit www.loxit.com for contact details or sal[email protected]m to e-mail.
UNDER NO CIRCUMSTANCES SHOULD REPAIRS BE MADE TO THE MAINS INPUT CABLE.
•This Laptop storage and charging product must only be used by a competent adult and must not
be used if this can not be assured.
•If you are in any doubt please refer to your Health and Safety Co-ordinator and/or Health and
Safety Manual for guidance.
•This product requires PAT testing at maximum 12 monthly intervals.
•Portable Appliance Testing- This unit must only be earth bond and insulation tested using the IT
settings on any PAT tester.
•WEEE Directive- When the unit becomes redundant it must be disposed of in compliance with
the WEEE directive 2005.

Loxit Limited, First Avenue, Poynton Industrial Estate, Poynton, Cheshire, UK. SK12 1YJ
www.loxit.com ꞁ [email protected]m ꞁ [phone]
1. A. Unfasten the charge compartment hatch
by removing the three M5 bolts indicated.
B. Lift the hatch upwards and unhook it
from the Lapbank TL.
Repeat this for both sides.
2. Remove the cover panels on both sides of
the trolley.
3. Unlock and open the laptop
compartment doors. Remove
the eight M5 bolts indicated
then lift off the cover.
Cabling instructions

Loxit Limited, First Avenue, Poynton Industrial Estate, Poynton, Cheshire, UK. SK12 1YJ
www.loxit.com ꞁ [email protected]m ꞁ [phone]

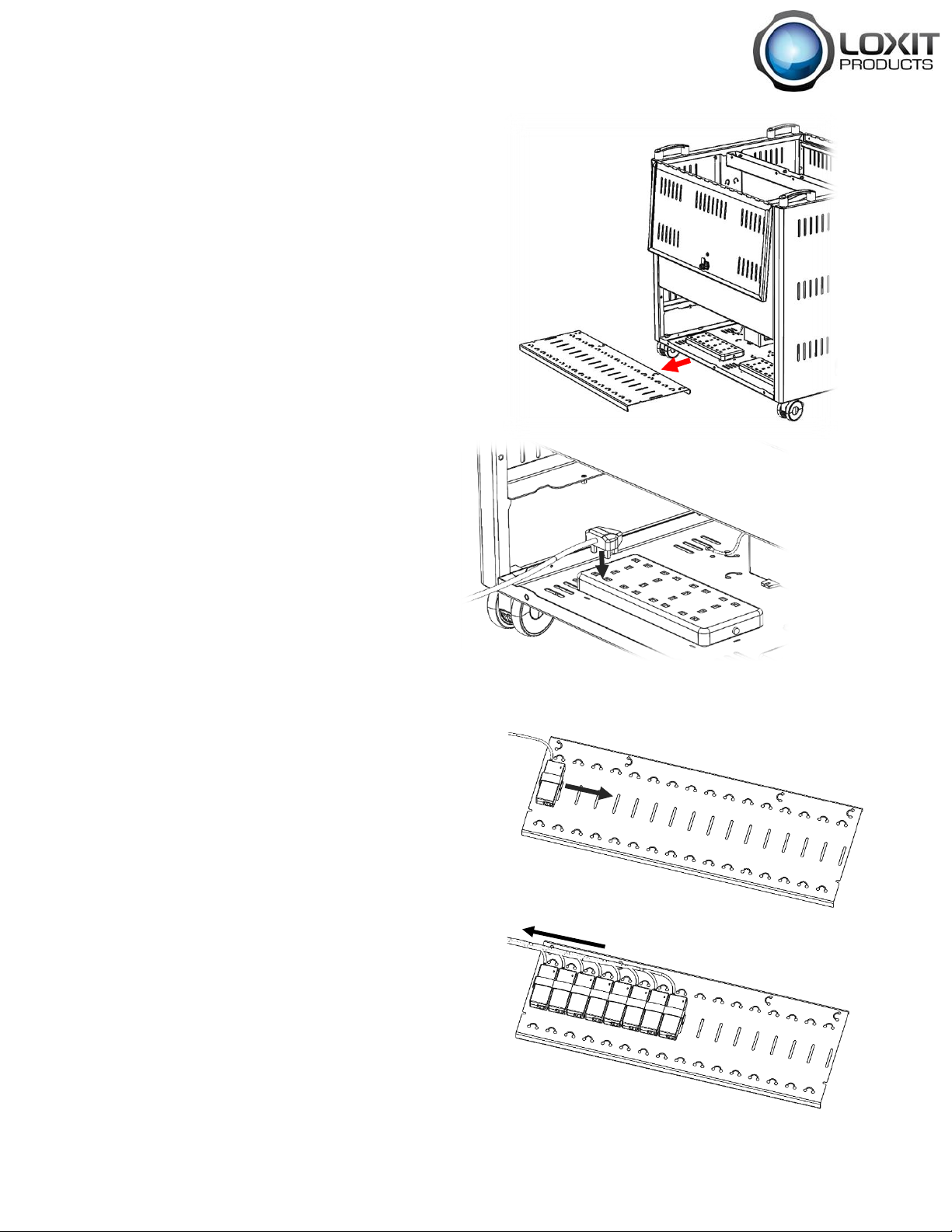

5. Plug the transformer mains leads into
the sockets, if possible unplug the
mains lead from the transformer.
6. A. Load 8 of the transformers onto the
left side of the tray and secure them in
place using cable ties or velcro straps
B. Route the charging cables to the left
and cable tie them in place.
4. Remove the transformer trays by unscrewing the two
M4 thumb screws (one at each side) and then lifting
the tray out. Do this for both transformer trays.

Loxit Limited, First Avenue, Poynton Industrial Estate, Poynton, Cheshire, UK. SK12 1YJ
www.loxit.com ꞁ [email protected]m ꞁ [phone]
11. Pass the cables through the grommets
in the central tray, make sure there is
enough slack to reach your device.
It is recommended to drop the
shortest cables through the nearest
grommet where possible.
Once all the cables are in place cable
tie them in place in the channels at
either side.
C. Load a further 8 transformers onto
the right side of the tray and secure
them in place using cable ties or velcro
straps. Route the charging cables to the
right and cable tie them in place.
7. Locate the loaded transformer tray back into the charge compartment and
secure using the M4 thumb Screws removed during step 4.
8. Plug the mains leads back into the transformers and secure any loose excess
cable using cable ties.
9. Repeat steps 4-8 for the other side.
10. Feed the charging cables up through the
channels at each side of the unit and into
the central tray, there should be 16 cables
per side.

Loxit Limited, First Avenue, Poynton Industrial Estate, Poynton, Cheshire, UK. SK12 1YJ
www.loxit.com ꞁ [email protected]m ꞁ [phone]
12. Replace the central cover and fix in
place using the eight M5 fixings
removed in step 3.
13. Replace both the side covers and fix in place
using the six M5 fixings removed in step 4.
14. A. Hook the charging compartment
hatches back into place
B. Secure the hatch using the three M5
fixings removed in step 1.
