LUCCI Air AIRFUSION SHOALHAVEN Installation guide

V1.0 EN -WS ( 08/2018 )
LUCCI
AIRFUSION SHOALHAVEN
CEILING FAN
⚫INSTALLATION
⚫OPERATION
⚫MAINTENANCE
⚫WARRANTY INFORMATION
CAUTION
READ INSTRUCTIONS CAREFULLY FOR SAFE
INSTALLATION AND FAN OPERATION.

Shoalhaven Fan Installation Instructions
1 | P a g e
THANK YOU FOR PURCHASING
Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and
follow all instructions carefully before assembly, installation and use of this ceiling fan. Please keep instructions
for future reference.
SAFETY PRECAUTIONS
1. In Europe: This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning the use of the appliance in a safe way and understand the hazards
involved. Cleaning and maintenance shall not be undertaken by children without supervision.
2. In Australia: The appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. An all-pole disconnection switch must be incorporated into the fixed wiring, in accordance with local wiring
rules.
IN AUSTRALIA
WARNING:
FOR SAFE USE OF THIS FAN AN ALL-POLE DISCONNECTION
MUST BE INCORPORATED INTO THE FIXED WIRING IN
ACCORDANCE WITH THE WIRING RULES.
As outline in clause 7.12.2 of AS/NZS 60335-1 for meeting the minimum
electrical safety of this standard.
Please note warranty will be void if installation is without a means for an
all-pole disconnection incorporated in the fixed wiring in accordance with
the wiring rules.
Example: If a fan is connected to a circuit that can be isolated via an all-
pole safety switch at the switchboard, then this is considered to be an
all-pole disconnection to the ceiling fan electrical circuit, meeting the

Shoalhaven Fan Installation Instructions
2 | P a g e
requirements of clause 7.12.2 of AS/NZS 60335.1.
A single-pole switch on the active of the receiver input of remote
control must also be included in the wiring, and located the same
room as the ceiling fan.
5. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
Contact your local government for information regarding the collection systems available. If electrical
appliances are disposed of in landfills or dumps, hazardous substances can leak into the ground water
and get into the food chain, damaging your health and well-being.
6. The structure to which the fan is to be mounted must be capable of supporting a weight of 30kg.
7. The fan should be mounted so that the blades are at least 2.3 m above the floor in Europe or 2.1 m above
the floor in Australia.
8. This fan is designed for indoor use only. Mounting the fan in a location where it is subject to water or
moisture is dangerous and may increase the risk of damage, injury or electrical shock and will void the
warranty.
9. Must be assembled and installed by a licensed electrician.
10. WARNING: If unusual wobbling or oscillating movement is observed, immediately stop using the ceiling
fan and contact the manufacturer, its service agent or suitably qualified persons.
11. The replacement of parts of the safety suspension system device shall be performed by the manufacturer,
its service agent or suitably qualified persons.
12. The fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a
sufficient strength to withstand 4 times the weight of the ceiling fan; that the mounting of the suspension
system shall be performed by the manufacturer, its service agent or suitably qualified persons.

Shoalhaven Fan Installation Instructions
3 | P a g e
PARTS LIST
•Unpack your ceiling fan carefully. Remove all parts and hardware.
•Lay out all the components on a smooth surface and make sure there are no components missing before
assembling. If parts are missing, return the complete product to the place of purchase for inspection or
replacement.
•Check whether the ceiling fan has been damaged during transport. Do not operate/install any product
which appears damaged in any way. Return the complete product to the place of purchase for inspection,
repair or replacement.
•Examine all parts, you should have the following:
:
FAN WITHOUT LIGHT
FAN WITH LED LIGHT
1.
Mounting bracket x 1
1.
Mounting bracket x 1
2.
Pre-assembled fan motor, down rod and
canopy x 1
2.
Pre-assembled fan motor, down rod and
canopy x 1
3.
Bottom cover x 1
3.
Light bracket x 1
4.
Blade x 3
4.
Globe x 1
5.
Blade bracket x 3
5.
Blade x 3
6.
Screw for mounting bracket x 2
6.
Blade bracket x 3
7.
Blade screw x 6 ( and 1 spare)
7.
Screw for mounting bracket x 2
8.
Balancing kit x 1 set
8.
Blade screw x 6 ( and 1 spare)
9.
Wall switch x 1 set
9.
Balancing kit x 1 set
10.
Wall switch x 1 set
Fig. 1

Shoalhaven Fan Installation Instructions
4 | P a g e
INSTALLING THE MOUNTING BRACKET
•The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the
blade to the nearest objects or walls.
•Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg,
with two long screws provided. Ensure at least 30mm of the screw is threaded into the support. (Fig. 2)
NOTE: The bracket screws provided are for use with wooden structures only. For structures other
than wood, the appropriate screw type MUST be used. Ensure the screws used are suitable for the
mounting surface and the surrounding environment.
ANGLED CEILING INSTALLATION
This fan hanging system supports a maximum 15 degree angled
ceiling installation. (Fig. 3)
HANGING THE FAN
Lift the fan assembly onto the mounting bracket. Ensure the key slot (A) of the hanger ball is positioned on
the key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig.4)
Fig. 2
Fig. 3
Fig. 4

Shoalhaven Fan Installation Instructions
5 | P a g e
INSTALLING THE FAN
BLADE ATTACHMENT
•Insert the blade screws through the blade bracket and place on the underside of the blade. (Fig. 5)
•Align the screws with the holes and secure the blade onto bottom of the fan motor. Ensure the screws are
tightened equally and evenly to reduce the chance of warping or unbalancing. Take care not to over tighten
the screws as this can damage the blades.
•Repeat the process for the remaining blades.
INSTALLING THE BOTTOM COVER (FOR FAN WITHOUT LIGHT)
•Install the bottom cover onto the motor shaft by rotating it clockwise. (Fig. 6)
INSTALLING THE LIGHT KIT (FOR FAN WITH LIGHT)
•Join the connectors (2) together and place into the connection box (1). (Fig. 7)
•Install the light bracket (3) onto the connection box (1) by securing the 3 screws (4). (Fig. 7)
•Install the globe (5) into the lamp holder. (Fig. 8)
Fig. 5
Fig. 6
Fig. 7
Fig. 8

Shoalhaven Fan Installation Instructions
6 | P a g e
ELECTRICAL WIRING DIAGRAM
WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A
LICENSED ELECTRICIAN.
NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED
WIRING.
NOTE: Wiring diagram includes the light kit wiring. The light wiring diagram and switch is omitted
when no light kit is used with the ceiling fan.
USE WITH WALL SWITCH WIRING DIAGRAM:
Ensure the motor earth wire is connected to the single earthing terminal block “2” in the diagram below.
(Fig. 9)
Fig. 9

Shoalhaven Fan Installation Instructions
7 | P a g e

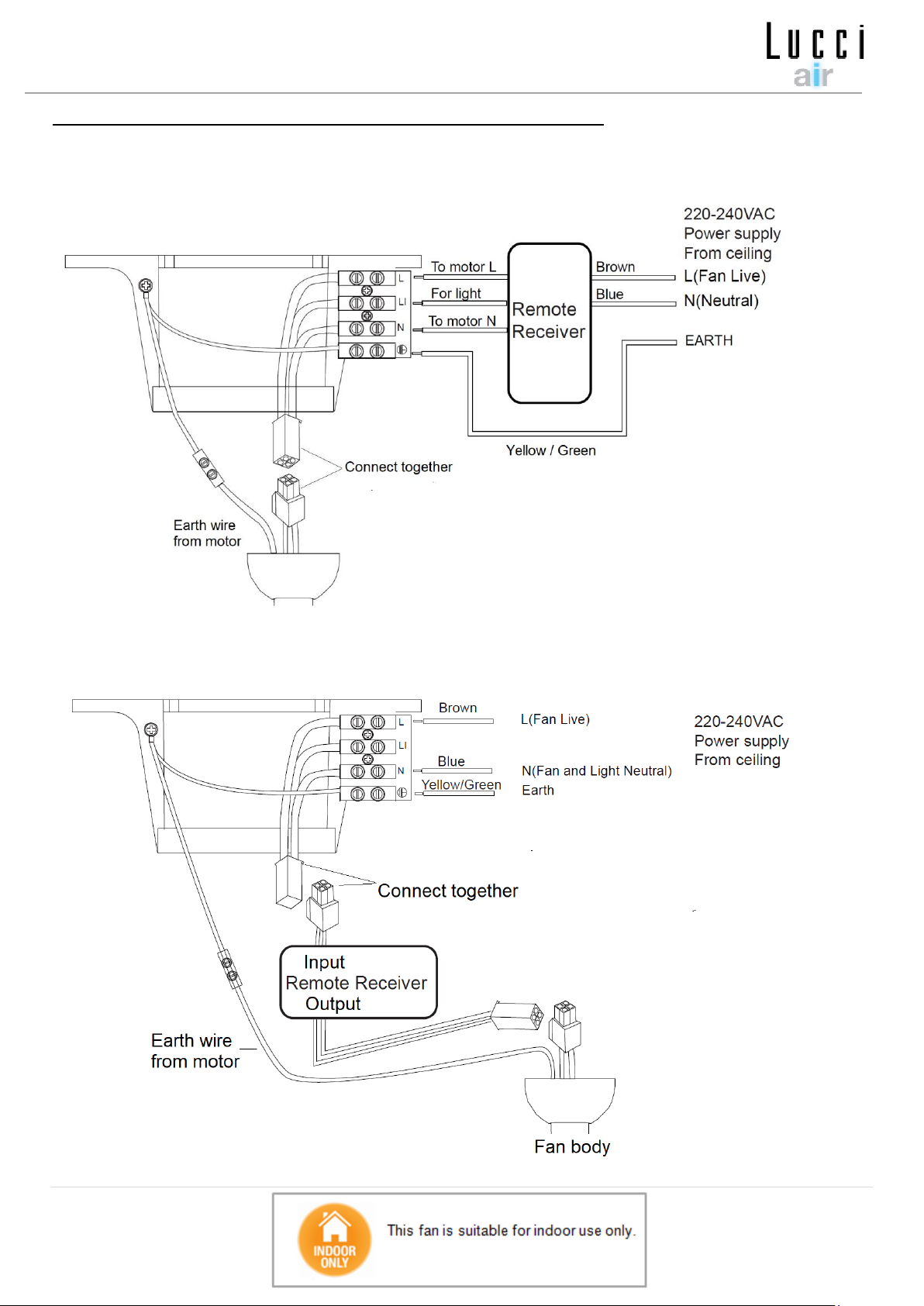

USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold separately)
Ensure the motor earth wire is connected to the single earthing terminal block “2” in the diagram (Fig. 9), for
(Fig.10 and Fig.11)
1/ Remote without quick connectors (manual wiring)
2/ Remote with quick connectors (using quick connectors)
Fig. 10
Fig. 11

Shoalhaven Fan Installation Instructions
8 | P a g e
FINISHING THE INSTALLATION
•After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan
wiring via the quick connector plug.
•Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s
accessible metal body back to the earth terminal at the terminal block on the mounting bracket.
•Cover the mounting bracket with the canopy. Ensure all electrical wiring is tucked inside the canopy and
that the wires are not damaged during this step. Secure the canopy to the hanger bracket using the screws
provided. (Fig. 12)
•Switch ON mains power supply to the fan. Test the fan operations or enjoy using the fan following
instructions the under “USING YOUR CEILING FAN” section of this instruction manual.
USING YOUR CEILING FAN
FAN WALL CONTROL
Turn on the power and check the operation of the fan.
• OFF Position – Fan off
• 3rd Position –Low fan speed
• 2nd Position – Medium fan speed
• 1st Position – High fan speed
LIGHT CONTROL
• Toggle Switch – On/off
The LED globe has a 3-step dimmable function which is controlled by an ON/OFF switch. Toggle the switch
ON/OFF to the luminaire 4 times within 5 seconds, the globe will light up in the following order:
100% brightness → 40% brightness → 15% brightness → 100% brightness.
To switch back to 100% brightness at any stage, turn OFF the luminaire, and then wait after 5 seconds turn
ON the luminaire, it will reset to 100% brightness.
Fig. 12
Fig. 13

Shoalhaven Fan Installation Instructions
9 | P a g e
REVERSING SWITCH
Your ceiling fan can operate in either summer or winter mode.
SUMMER Mode: The reverse switch shall be in the SUMMER position to make the fan rotate in an
anticlockwise direction. The airflow will be directed downwards, for cooling in summer.
WINTER Mode: The reverse switch shall be in the WINTER position to make the fan rotate in a clockwise
direction. The airflow will be directed upwards assisting in the circulation of warm air, for energy conservation
in winter.
AFTER INSTALLATION
WOBBLE:
NOTE: Ceiling fans tendto move during operation due to the fact that they are mounted on a rubber grommet.
If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of afew centimetres
is quite acceptable and DOES NOT suggest any problem.
TO REDUCE THE FAN WOBBLE: Please check that all screws which fix the mounting bracket and down rod
are secure.
BALANCING KIT: A balancing kit is provided to balance the ceiling fan on initial installation. Please refer to
the instruction on how to use the balancing kit. The balancing kit can be used to assist re-balancing should
the ceiling fan become un-balanced again. Store your balancing kit away after installation for future use if
required.
NOISE:
When it is quiet (especially at night) you may hear occasional small noises. Slight power fluctuations and
frequency signals superimposed in the electricity for off-peak hot water control, may cause a change in fan
motor noise. This is normal. Please allow a 24-hour “breaking-in” period, most noises associated with a new
fan disappear during this time. Please note that this is not a product fault and as such is not covered under
warranty –All electric motors are audible to some extent.
Fig. 14

Shoalhaven Fan Installation Instructions
10 | P a g e
CARE AND CLEANING:
NOTE: Always turn OFF the power at the mains switch before performing any maintenance or
attempting to clean your fan.
•Every 6 months periodic cleaning of your ceiling fan is the only maintenance required. Use a soft brush
or lint free cloth to avoid scratching the paint finish. Please turn off electricity power when you do so.
•Do not soak or immerse your ceiling fan in the water or other liquids. It could damage the motor or the
blades and create the possibility of an electrical shock.
•Ensure that the fan does not come in contact with any organic solvents or cleaners.
•To clean the fan blade, wipe with only a damp clean cloth with NO organic solvents or cleaners.
•The motor has a permanently lubricated ball bearing so there is no need to oil.
TECHNICAL INFORMATION
Fan Models
56” fan only
56” fan with light
Rated Voltage
220-240V~ 50Hz
Rated Wattage
(Motor)
85W
Rated wattage
(Lamp)
N/A
GX53,18W, 1700lm, 3000K, 3 step-dim
Weight
6.4kg
6.7kg
Canopy
Dimensions
H:55mm Dia:130mm

Shoalhaven Fan Installation Instructions
11 | P a g e
LUCCI CEILING FAN WARRANTY DETAIL
LUCCI WARRANTY HOTLINE- 1800 602 243
THIS WARRANTY IS VALID IN AUSTRALIA ONLY
In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between
9am & 5pm (EST) Monday to Friday. Please make sure you have all the ceiling fan details filled out at the end
of the manual before making the call.
Every Lucci ceiling fan is thoroughly inspected and tested before being released for sale. In addition to any
warranty rights or conditions under statutory regulations, Lucci warrants all of its ceiling fans against defective
workmanship and faulty materials for twenty four (24) months from the date of purchase. Lucci undertakes, at
its option, to repair or replace, free of charge, each product or part thereof on condition that;
1. The fan or relevant part has not been subjected to misuse, neglect, or been involved in an accident.
2. The repairs are not required as a result of normal wear and tear.
3. The product was installed by a licensed electrical contractor.
4. A copy of the original receipt of purchase is presented.
5. 12 month warranty applies when used in any non-domestic applications.
6. This warranty does not cover stains, scratch and scuff marks, or dents if the product is purchased
through a factory outlet or to refurbished items.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
Lucci Design cannot be held responsible for any repair other than those carried out by it or one of its
Authorised Service Agents. Please keep this warranty information in a safe place. This information
must be produced in the event of service being required.
Distributed by:
Beacon Lighting
140 Fulton Drive
Derrimut, Victoria, 3026
Australia
Ph [phone]
Fax [phone]
Email: [e-mail]

Shoalhaven Fan Installation Instructions
12 | P a g e
CEILING FAN WARRANTY INFORMATION
LUCCI WARRANTY HOTLINE- 1800 602 243
Complete and retain this form for your personal records and warranty purposes.
NAME…………………………………………………………………………………
ADDRESS……………………………………………………………………………
……………………………………………………POSTCODE……………………
MODEL NUMBER……………………………………………………………………
(PO# + DATECODE Sticker here)
PO NUMBER or DATECODE ………………………………………………………
DATE OF PURCHASE………………………………………………………………
INSTALLING LICENSED ELECTRICIAN……………………………………………
…………………………………………………………………………………………
LICENCE No…………………………………………………………………………
ATTACH PROOF OF PURCHASE HERE
THIS COMPLETED DETAIL PAGE SHOULD BE PRODUCED AND FAXED TO THE
WHOLESALER OR THEIR AUTHORISED AGENTS BEFORE OBTAINING
WARRANTY SERVICE
