Luci RIMiT sm User manual

09/29/2023
LRMSM-T1000＊-＊-DF-I-6(C)
To ensure safe usage
The following are the safety cautions to prevent any harm or damage to others.
Please read before the usage
Caution regarding installation
environment of power supply
Regarding the temperature, humidity, and other conditions of the operating
environment, follow the instructions in the manual for the power supply.
●The product has been manufactured with the utmost care; however, please understand that slight deviations in LED color are unavoidable due to the
●To mount in the light fixture, use mounting clips (Accessories) and confirm that the mounting clip is securely fixed.
characteristics of the LED.
●For safety, do not directly view the LED light source.Use a mounting rail (option) to mount the LED fixture, and make sure it is mounted securely.
Maintenance and Inspection
・LED fixture has a life span.
・Degradation occurs inside after a few years of installation even when the fixture looks fine from the outside.
Parts of the LED fixture degrade due to heat when the light is on for a long time. This causes not only
safety issues, but also reduces power efficiency and it is recommended to have regular maintenance and inspection.
・Cleaning and inspection should be performed at least once every 6 months.
・Inspection by a specialist, such as a product contractor, should be performed at least once every 2 years.
・If the LED fixture is used for a long time without having an inspection, there is a small possibility that it could lead to
fuming, igniting, electric shock and the like.
Inspection Methods
・Is LED operating normally?
・Is there any unusual smell, sound or heat?
・Are there any cracks, splits, or detached parts on any parts or joints?
Cleaning Method
・Wipe the LED fixture lightly with a soft cloth.
・To best clean the LED fixture, wipe dirt with a soft cloth which has been soaked in a neutral detergent diluted with
water and squeeze firmly. To finish off, wipe it with a damp cloth and dry it.
If the product is used against cautions, it may cause damage, electric shock, smoke or fire.
Indoor use only
Supplying power through the lead wires on both sides may cause failure and fire.
If using only one LED fixture, insulate the unused connector with self-adhesive tape
or electrical tape.
Use a DC24 V power supply. Never connect to any other power supply.
Always use overcurrent breakers and circuit breakers of the correct
capacity for the power supply.
If the capacity does not match, the breaker will not operate and abnormal
current will flow, which may cause a fire.

Always shut off the main power supplybefore performing work or
inspection.
Do not connect or disconnect the lead wires of the LED fixture while
power is supplied.
Firmly insert and connect the connectors.
Incomplete connection may cause heating, smoke, and fire.
Do not touch the ends of the connectors.
There is the risk of electrical shock.
The product must be allowed to dissipate heat.
Allow sufficient space for ventilation (heat dissipation) between the
LED fixture and building structure.
Avoid installing the light appliances close to each other. It may
shorten product life or cause a fire.
When there are abnormal situations, please cut off the power immedi -
ately, consult with electricians, and do not touch the lighting with
bare hands.
Do not use the product if the cover is damaged.
Risk of an accident and electrical shock.
Do not use a brush or an abrasive to polish metal parts.
Risk of damage and corrosion.
This LED fixture is for indoor use only.
Do not use the products in the following environments:
- Outdoors
-A location at high temperature (+35°C or higher)
(usage environment temperature is 0°C to +35°C
-A location where water may splash onto the product.
-A location with high humidity.
-A dusty location.
-A location with corrosive or inflammable gases.
-A highly airtight location.
-A location where the product is directly exposed to salt water or
organic solvents.
-A location where the product is exposed to direct sunlight.
-A location subject to the effects of electric or magnetic fields.
-A location subject to intense vibration or shock, or a location subject
to continuous vibration.
Do not do the following to the LED fixture:
- Forcibly remove the product after mounting it.
- Disassemble, modify, or add holes to the product.
- Forcibly pull or twist the product.
- Cut or damage the power cable/connector.
Use or connect with a damage cable.
- Do not apply pressure to the product.
- Drop the product or subject the product to intense vibration or shock.
- Solder the lead wire to the circuit board.
If the product is dirty, wipe with a dry cloth.
Do not use thinner, benzene, or other organic solvents to clean
the product and do not wash with water.
Only supply power through the lead wire on one side
using the dedicated connection cable for this product.
DC24V DC24V
Do not supply power through
the lead wires on both sides. When using only one LED fixture.
DC24V
Insulate
When installing the LED fixture in a box, please make sure to
provide the air ventilation hole.
Always test before connecting the LED fixture to a switch or dimmer.
Important notice for storage
Observe the storing temperature of our LED fixtures: 0°Cto 55°C
Please do not store the carton or the packages of our LED fixtures in the following
conditions:
- wet location
- places of high humidity
- places with much litter or dust
- places of exposing against sun light directly
- places with solvent such as paint is stored
During storing period, please do not leave the cartons or individual packages vertically.
Please do not place heavy objects on the carton.
Please do not use our LED fixtures as the working light during construction period.
A Certified Electrical Worker/Engineer is recommended to install
and inspect the product.


Luci RIMiT sm
LRMSM-T1008W-＊-DF-I-6
6.4W
max.270mA
80g
3.5m
0℃to＋35℃

(Example)
（4pcs）

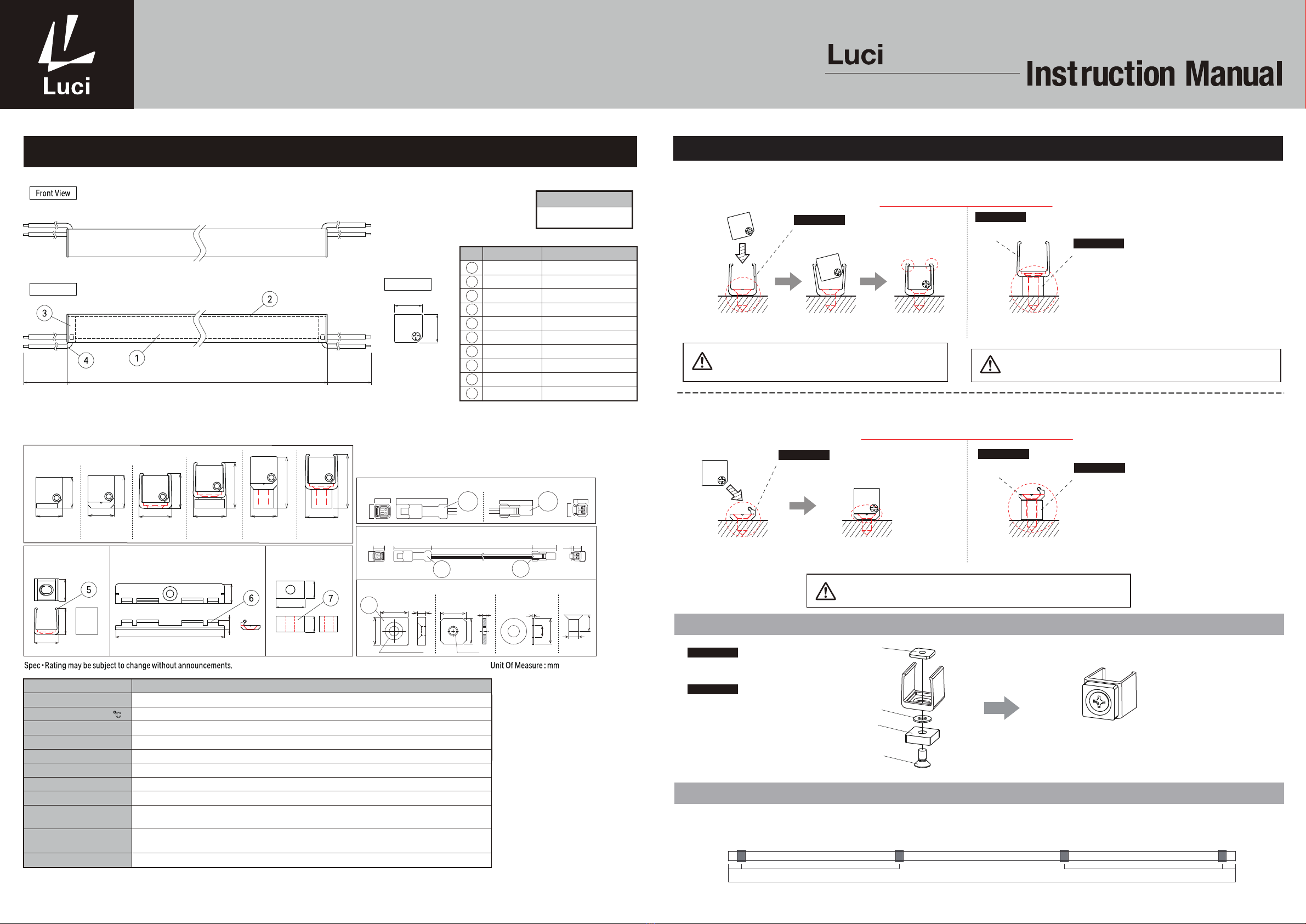

Product specification ※unit of measure=mm
Lightsource color
Max. connectable Length per run
Option parts
Mounting clip E for RIMiT,Mounting clip F for RIMiT,Lift Parts for RIMiT,
Magnet set A,Cable 5M TR Connector
Dimmable
○
Power consumption (Ta=25℃)
Input current (A/m)
Weight (L1008)
Environment
Material
Indoors (No Condensation)
Operating temperature
Natural white 4600K(N), White 3700K(W), Warm white 3500K(WW),
Warm white 2900K(L30), Warm white 2600K(L27), Warm white 2400K(L24)
Model No.
Item / Product Name
Aluminum,Polycarbonate
Input Voltage
DC24V
No Item Name Material etc.
1
2
3
4
5
6
7
8
9
10
Body
Cover
Side cover
Lead Wire
Connector
Mounting clip
Aluminum,White
Polycarbonate,Diffuser
ABS,White
Nylon
Lift Parts Polycarbonate,Clear
Polycarbonate,Clear
Mounting clip D Polycarbonate,Clear
UL1007 AWG26
※Lift parts must be used with the mounting clip.
Optionparts
Lift Parts for RIMiT
(LRM-PT-B)
Recommended position of clipE (magnet) and clip F
※Recommended mounting position (pitch: 20mm to 300mm, quantity: 2 to 5 pieces) depends on the length of the luminaire.
Please refer to the attached table for details.
Mounting clips are designed to hold the luminaire in place by spreading both sides.
Please leave at least 2mm of gap on both sides for maintenance.
Optionparts
Mounting clip E for RIMiT
(LRM-PT-E)
Please make sure to ush the at head of screws with the surface
of the mounting parts. Otherwise, the LED xture may not be
completely hooked and fall off.
Please make sure to ush the at head of screws with the surface of the mounting parts.
Otherwise, the LED xture may not be completely hooked and fall off.
Side View Side View
Installing the product
Fix the mounting clip with screw supplied by
installer (recommended: countersunk screw M3).
Fix the mounting clip F with screw supplied by
installer (recommended: countersunk screw M3).
Insert the LED xture into the clip tilting,
and t the dotted circle properly.
Fix the mounting clips and lift parts with screw
supplied by the installer
(recommended: countersunk screws M3 x 15mm or longer).
Optionparts
Mounting clip E for RIMiT
(LRM-PT-E)
・ Mounting clip F for RIMiT (LRM-PT-F)
Insert the LED xture into the clip tilting,
and t the dotted circle properly.
※Installlightingverticallyornotwantcliptobevisible
・ Mounting clip F for RIMiT (LRM-PT-F)
and Lift Parts for RIMiT (LRM-PT-B)
<※Lightingandclipmustbesameasdirectioninscrewdriven>
※Lift parts must be used with the mounting clip.
Optionparts
Lift Parts for RIMiT
(LRM-PT-B)
Optionparts
Mounting clip F for RIMiT
(LRM-PT-F)
Optionparts
Mounting clip F for RIMiT
(LRM-PT-F)
Option parts :
Mounting clip E for RIMiT
（LRM-PT-E ）
5pcs/1bag
Option parts :
Mounting clip F for RIMiT
（LRM-PT-F ）
5pcs/1bag
Option parts :
Lift Parts for RIMiT
（ LRM-PT-B ）
5pcs/1bag
Connector :
Option parts : Cable 5M TR Connector（CAD-5000-MEFE-O）
B)Mounting clip F
for RIMiT C)Mounting clip
E for RIMiT
A)Magnet tape
or (Double-sided
tape)
Installation dimensions (Side view)
※LEDcanʼtbeinstalledwith
liftpartsalone
E)Mounting clip F
for RIMiT
+ Lift Parts for RIMiT
F)Mounting clip E
for RIMiT
+ Lift Parts for RIMiT
D)Mounting clip E
for RIMiT
+ Magnet
10
10
3
8
1
8
M3
5
0.5
7.8
3.5
7.0
8.1 25.8
7.0
8.1 25.8
5000±20 16.5
16.5
1.5 5.5
1.5 5.5
6.7
6.7
8-1
8-1 8-2
8-2
10.5(10)
99
11
(11)
11.9
(11)
15.4
9
17.4
18.3
(11)
(11)
11.9 10
(4.5) 9
50
11
7
6.4
Option parts : Magnet setA
（MG-A）
5pcs/1bag
Magnet Plate Screw
Washer
CountersinkforM3 M3tap
9
【LRMSM-T1008W-*-DF-I-6】
L(1008)±2
9
9
100 100 Magnet set Neogium, Stainless steel
1008
size 25〜35 25〜35
1008
280 280
・ Mounting clip E for RIMiT (LRM-PT-E) ・
Mounting clip E for RIMiT (LRM-PT-E)
and Lift Parts for RIMiT (LRM-PT-B)
<※Lightingcanbefreelyorientedfor4-wayinstallation>
Fix the mounting clips and lift parts with screw
supplied by the installer
(recommended: countersunk screws M3 x 15mm or longer).
※If the countersunk screw is too short and
the plate cannot be tightened, remove the washer.
Magnet
Plate
Countersunk screw M3 (included)
※Washer
Optionparts
Optionparts
Mounting clip E for RIMiT
(LRM-PT-E)
Magnet set A
(MG-A)
Installing magnet to the mounting clip E

(Example)
1008
size 1008
1000
（Full Sticking）
Recommended position of magnetic tape and double-sided tape
・Wipe off any moisture, oil, dust, etc. on the back of the lighting xture and mounting surface.
・Stick magnetic tape or double-sided tape to the back of the lighting xture, excluding the end caps.
・After applying the tape on the lighting xture, leave it for 30 minutes to 1 hour to allow it to adhere rmly.
・Install the lighting xture to the mounting surface.
The power supply arranged by customers is not covered with the product warranty
by Luci and proper operation cannot be guaranteed.
It is recommended to check the power supply specification and manual when
choosing a power supply. Especially pay attention to the wire capacity if using a
150 W or higher wattage power supply.
Connecting LED fixtures
Up to 3.5 m
Series connection
Parallel connection
Up to 3.5 m
Up to 20 m
Up to 20 m
Please connect the power with care.
Power
supply
DC24V
Turn off the power when connecting
CAD-3000-MCNN-I
the labels indicate the current directions
Black
-White
Connect the same
lines in parallel
2Make‘line’with
less than 3.5 m
1
Power
supply
DC24V
Connecting to the power supply
Cautions
Turn off the power when connecting
■Cables used for connecting LED fixtures and Power supply must be a
suitable type and gauge.
■Cables should be joined with suitable terminal block or methods as
appropriate to the installation and operating environment.
Caution: When using thin dimension cable in long extended length, the
resistance of cable will increase. Voltage drop and heat dissipating may occur
and result in brightness decreasing.
Caution: When separating one cable to multiple circuits in the same gauge,
the current loading focuses on the junction of the branch circuit and high
temperature will accumulate from there. Please consider the loading of the
power supply (quantity of LED fixture) and review the wiring system to avoid
the above problem.
■When connecting the dimmer driver with power supply, unpredicted noise
might occur. It is a characteristic of electronic devices, not a malfunction of the
LED fixture. Please choose an appropriate power supply and consider a place
to install. Reducing the loading factor of LED fixture might improve the noise
from the power supply while the noise for the LED fixtures might be improved
by splitting the circuit of LED fixtures into multiple.
■When you adjust the length of the power supply cable, please be careful
not to damage the core wire.
The number of LED fixtures that can be connected to the power
supply depends on the output (W) of the power supply.
For Luci RIMiT sm, the maximum number connectable in series is
3.5 m.
It can be connected in series or in parallel.
However, please observe and use the maximum number of
connected units of 3.5 m.
It is recommended to connect the LED fixture at a load ratio of
70% (without dimming) or 60%(with dimming) of the power output
since the load varies depending on the derating and the usage
environment of the power supply.
→
DC output side
(Connected to LED fixture)
power supply
↑AC input side
Please do appropriate
treatment on the connection
of the cables depends on
the installation situation.
LED fixture
Length
Power output
With
dimming
Without
dimming
1m 9.2W~ 10.8W~
18.3W~21.4W~
27.5W~32.2W~
36.5W~42.7W~
2m
3m
4m
6.4W / m
5m 46W~ 54W~
55W~64.3W~
64.4W~75.6W~
6m
7m

