Luxibel B 25 User manual

75CH
Channel
Value
Function
CH1 000-255 First LED, R Dimmer,brightness 0-100%
CH2 000-255 First LED, G Dimmer,brightness 0-100%
CH3 000-255 First LED, B Dimmer,brightness 0-100%
CH4 000-255 Second LED, R Dimmer,brightness 0-100%
CH5
000-255 Second LED, G Dimmer,brightness 0-100%
CH6 000-255 Second LED, B Dimmer,brightness 0-100%
CH7-CH75 000-255 Third -----Twenty-fifth LED,R-G-B brightness
100CH
Channel
Value
Function
CH1 000-255 First LED, R Dimmer,brightness 0-100%
CH2 000-255 First LED, G Dimmer,brightness 0-100%
CH3 000-255 First LED, B Dimmer,brightness 0-100%
CH4 000-255 First LED, W Dimmer,brightness 0-100%
CH5 000-255 Second LED, R Dimmer,brightness 0-100%
CH6
000-255 Second LED, G Dimmer,brightness 0-100%
CH7 000-255 Second LED, B Dimmer,brightness 0-100%
CH8 000-255 Second LED, W Dimmer,brightness 0-100%
CH9-CH100 000-255 Third -----Twenty-fifth LED,R-G-B brightness
.Product Statement
1. This product is in good performance situation and completely packed before
leaving factory. Users should be strictly abide by the below cautions and operation
instructions, any damage caused by misuse is not within the company warranty;
2. There is no notice for the change of the technology information in the manual, or
the upgrading of the product.
LED Matrix Blinder
(25*10W RGBA 4in1 LED)
User Manual
Please read the instructions carefully
B 25

I.Safety Instruction
1.1. When opening the packing, take all accessories out, and remove the light to a
horizontal table for good operation. First check whether the accessories are
complete, then check carefully whether the whole light has no damage. If there is
any damage, please contact us as soon as possible.
1.2. AC Power：Check whether the local power supply is accordance with the
requirements of the product rated voltage.
1.3. The product is only suitable for indoor working environment. The light should
keep dry, keep away from wet, overheat or dusty environment. Don't come into
contact with water and other liquids to prevent or reduce the risk of electric shock or
fire.
1.4. Please do not install the light directly on the surface of the combustible
substance .
1.5. The people who install, operate and maintain of light professional certificate
required.
1.6. When there are faults of the light, please stop using the light immediately. Don't
try to repair, please contact the nearest authorized technical assistance center, if
the parts damage, always use the same type of parts replaced.
1.7. Don't touch any electrical wiring in the process of operation to prevent the risk
of electric shock.
1.8. To make sure the light working environment temperature, the highest do not
exceed 40 ℃，the lowest do not exceed - 20 ℃.
1.9. Under the stable cooling working situation, the highest temperature of the
housing of the light can reach 80 ℃, please do not touch.
1.10. The light is design according to the type of electric shock protection. The light
should be use in good connection grounding power system and the ground wire
must connect with the ground wire of the power supply system . The earth sign port
of the light should be connected to the installing fixtures.
25CH
Channel
Value
Function
CH1
000-255
First LED color choose
CH2
000-255
Second LED color choose
CH3
000-255
Third LED color choose
CH4
000-255
Fourth LED color choose
CH5
000-255
Fifth LED color choose
CH6
000-255
Sixth LED color choose
CH7
000-255
Seventh LED color choose
CH8
000-255
Eighth LED color choose
CH9
000-255
Ninth LED color choose
CH10
000-255
Tenth LED color choose
CH11
000-255
Eleventh LED color choose
CH12
000-255
Twelfth LED color choose
CH13
000-255
Thirteenth LED color choose
CH14
000-255
Fourteenth LED color choose
CH15
000-255
Fifteenth LED color choose
CH16
000-255
Sixteenth LED color choose
CH17
000-255
Seventeenth LED color choose
CH18
000-255
Eighteenth LED color choose
CH19
000-255
Nineteenth LED color choose
CH20
000-255
Twentieth LED color choose
CH21
000-255
Twenty -first LED color choose
CH22
000-255
Twenty -second LED color
choose
CH23
000-255
Twenty -third LED color choose
CH24
000-255
Twenty -fourth LED color choose
CH25
000-255
Twenty -fifth LED color choose

5CH
Cha
nnel
Value
Functi
on
Chan
nel
Value
Function
Value
Functio
n
CH1
000-007
off
008-067
On
068-127
Number
Show
Start
mode
CH2
000-024
0
125-149
5
025-049
1
150-174
6
050-074
2
175-199
7
075-099
3
200-224
8
100-124
4
225-255
9
128-187
Letter
show
Start
mode
CH2
000-009
A
130-139
N
010-019
B
140-149
O
020-029
C
150-159
P
030-039
D
160-169
Q
040-049
E
170-179
R
050-059
F
180-189
S
060-069
G
190-199
T
070-079
H
200-209
U
080-089
I
210-219
V
090-099
J
220-229
W
100-109
K
230-239
X
110-119
L
240-249
Y
120-129
M
250-255
5
Z
188-247
Sound
control
mode 1
CH2
000-016
Effect 1
136-152
Effect 9
017-033
Effect 2
153-169
Effect
10
034-050
Effect 3
170-186
Effect 11
051-067
Effect 4
187-203
Effect
12
068-084
Effect 5
204-220
Effect
13
085-101
Effect 6
221-237
Effect
14
102-118
Effect 7
238-255
Effect
15
119-135
Effect 8
248-255
Sound control mode 2（stand alone）
CH3
000-255
LED Color select
CH4
000-255
Dimmer, 0-100%
CH5
000-255
Strobe speed, slow to fast
1.11. Do not use the damage of the insulating layer wire and also do not use the
power cord overlap on the other wire. When not in use or clean the light, please
disconnect the power, don't pull the plug in hard or just drag the wires.
1.12. There are no components inside for maintenance. Before start operation the
light, please check whether all of the shell is installed. In the case of the shell
open used the light is prohibited.
Note: Under any installation, maintenance and clean the light, please confirm that
has cut off the power cord!
II. Product Specification
1.Channel:1CH,4CH,5CH,25CH,75CH and 100CH；
2.Control mode:Sound active, LED Auto run, DMX and Master/slave
3. DMX512,Auto run, Sound active, software computer control.
4. Can make as a wall for background.
5. LED self test: R-G-B-A-RGBA
6. LED display, easy to control
7. Voltage: AC100-240V 50/60HZ
8. Power: 200W
9. Light source: 25pcs 10W RGBA 4in 1 LED
10. Fuse: F5A 250V
11. Size: 58x58x12CM
12.Weight:13kg

III.LED Display
Item
Seq.
Display
Function
Button:
①
MENU
Enter the menu
②
DOWN
Next the menu
③
UP
Previous menu
④
ENTER
Enter the select function
LED
⑤
DMX
Strobe
DMX In
⑥
SLAVE
Strobe
Slave mode
⑦
MASTER
Strobe
Master mode
⑧
SOUND
Strobe
Sound mode
IV.LED display function：
Choose a function, press MENU button, choose the menu. Press ENTER
button enter the chosen function, LED display strobe, then press UP/DOWN button
to choose the function, press ENTER button to confirm. Or wait for 10 seconds or
press the MENU long time, then could enter the main mode.
Main function as follows:
VII. Chanel mode instruction（choose default address
code）
1CH
Channel
Value
Function
Value
Function
CH1
000-007
Off
128-142
Show 9
008-022
Show 1
143-157
Show 10
023-037
Show 2
158-172
Show 11
038-052
Show 3
173-187
Show 12
053-067
Show 4
188-202
Show 13
068-082
Show 5
203-217
Show 14
083-097
Show 6
218-232
Show 15
098-112
Show 7
233-247
Show 16
113-127
Show 8
248-255
Sound mode
4CH
Channel
Value
Function
CH1
000-255
R Dimmer, brightness 0-100%
CH2
000-255
G Dimmer, brightness 0-100%
CH3
000-255
B Dimmer, brightness 0-100%
CH4
000-255
W Dimmer, brightness 0-100%

13. Working time
Press MENU button to , press ENTER button，the led display could show
the working time, press MENU back to main menu.
14. Version
Press MENU button to , press ENTER butoon，the led display could show
the software version, press MENU back to main menu.
VI. How to operation
1. Master/slave mode to control.
2. DMX controller
Master/slave mode function
All light is master at the beginning ,Connect the lights, One to be master
and the other is slave. If there are no DMX signal, the master mode LED will light
up, the sound control LED will strobe according to the music, the other light will
readjustment the master light. when connect the DMX cable, the slave LED will
light up.
Two Light
For the slave light, slave 1（ ）running same as the master light，slave 2
（ ）running against the master light. If there are just two light, could set the
second light as slave light（ ）for better show.
DMX Controller
If control by DMX controller, then you need to set the address code to control the
light, the address code value is 1-512, the light could receive the signal
accordingly.
Press MENU button，select menu, press ENTER button，address will
strobe.Use UP /DOWN to select DMX512 address. After address ensure，press
ENTER button，until address stop strobe, After 8 seconds will return the menu. If
return the former but not change, press the menu button.

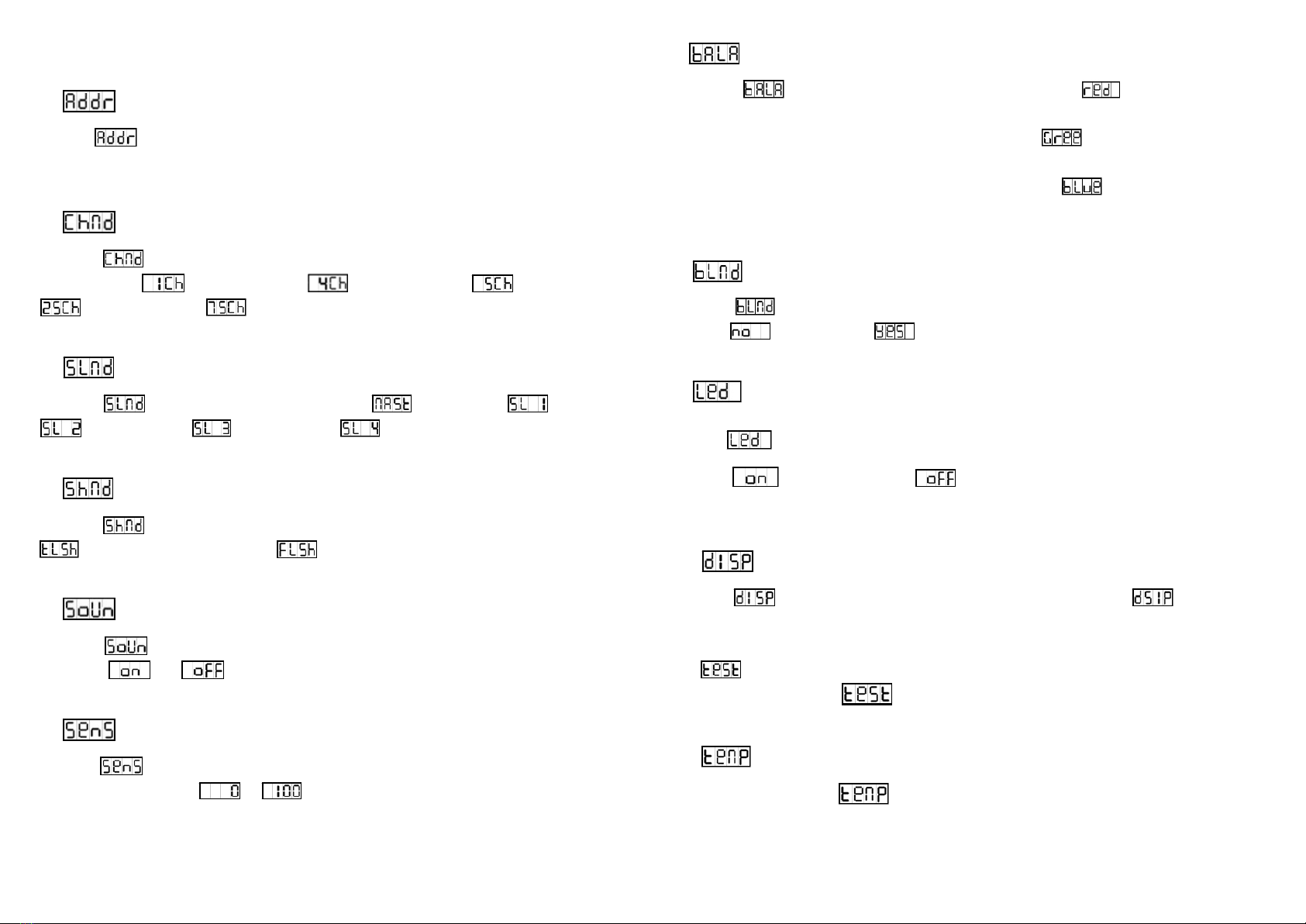

V. LED display function：
1. DMX512 Address Setting
Chose ，press ENTER button to confirm. Press UP/DOWN button to initial
address, and press ENTER button to save, After 10seconds or press MENU long
time to return to main menu.
2. Channel Mode
Choose , press ENTER button to confirm. Press UP/DOWN to choose the
channel, like (1 channel) or (4 channel) or (5 channel) or
(25 channel) or (75 channel) mode,etc. Press ENTER button to save
it. After 10seconds or press MENU long time to return to main menu.
3. Slave mode
Choose , press ENTER button to enter，(Master) or (slave 1) or
(slave 2) or (slave 3) or (slave 4) mode. Press ENTER
button to save，After 10seconds or press MENU long time to return to main menu.
4. Show mode
Choose , press ENTER button to confirm. Press UP/DOWN button to chose
(One/Two Light Show) or (Four Light Show) .Press ENTER button to
save, After 10seconds or press MENU long time to return to main menu.
5. Sound Control
Choose , press ENTER button to confirm. Press UP/DOWN button to
choose or .Press Enter button to save. After 10seconds or press
MENU long time to return to main menu.
6. Sound control sensitivity
choose ，press ENTER button to confirm. Press UP/DOWN to adjust，the
sensitivity value from to .After chosen, press ENTER button to save，
after 10seconds or press MENU long time to return
7. Manual dimmer
Choose , press ENTER button to confirm. Show （red dimmer），press
ENTER，use UP/DOWN button to add or decrease brightness value, and then,
press MENU to enter the mode. Choose UP show (green dimmer) ，press
ENTER, use UP/DOWN button to add or decrease brightness value, and then,
press MENU to enter the mode. Choose UP show (blue dimmer) ,press
MENU to enter the mode. After 10seconds or press MENU long time to return to
main menu.
8. LED display
Choose ，press ENTER button to confirm. Press UP/DOWN button to
choose (light on) or （light off) mode. After chosen, press ENTER
button to save. After 10seconds or press MENU long time to return to main menu.
9. LED display
Choose ，press ENTER button to confirm. Press UP/DOWN button to
choose (display on) or (display off) mode. After chosen, press
ENTER button to save. After 10 seconds or press MENU long time to return to
main menu.
10. LED display inversion
Choose ，press ENTER button to confirm, then enter the (inversion)，
after chosen, press MENU to enter the mode. After 10seconds or press MENU long
time to return to main menu.
11. Test
Press MENU button to ，press ENTER button, the led display will strobe,
the light will run built in program, press MENU to back to main menu.
12. Temperature
Press MENU button to , press ENTER button, the led display will show the
temperature, press MENU to back to main menu.
