Luxibel B Panel240CW User manual

B Panel240CW
User manual

User Manual
Table of contents
Product introduction 3
Safety 4
Maintenance 7
Installation 8
Control Menu 9
DMX-Mode 9
Technical Specifications 11

Product introduction
Thank you for purchasing this Luxibel product.
For your own safety, please read the instruction manual carefully before turn on the product for the first time.
Before unpacking the fixture, please make sure that the packaging is in good condition and that following items will
be found in the box:
•B PANEL240CW fixture
•1.5m power cable with powercon

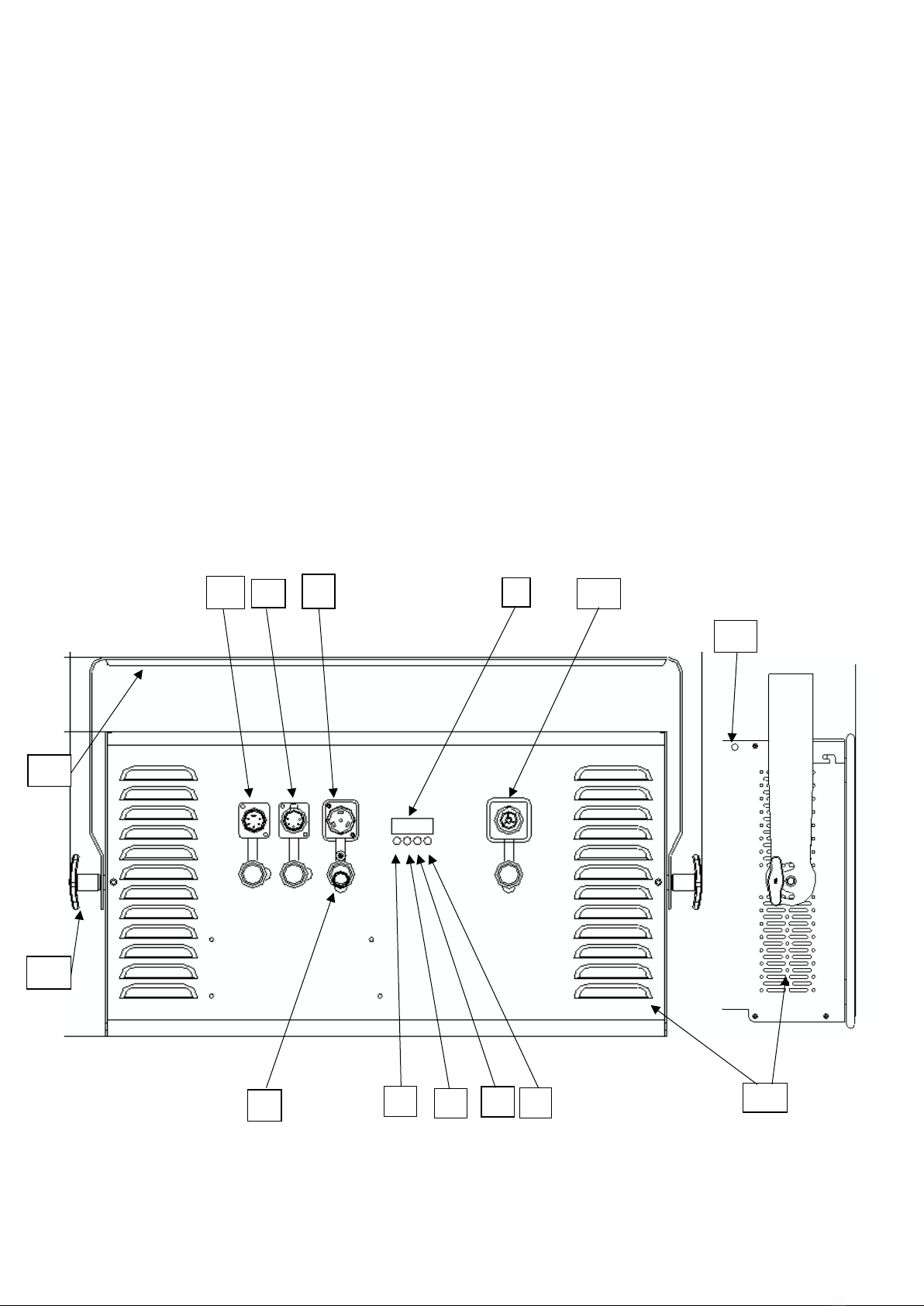

Description of the B PANEL240CW
1
DMX-Input 5 pin
8
Enter- Button
2
DMX-Output 5 pin
9
Tft display
3
PowerTRUE1 in
10
PowerTRUE1 out
4
Manual dimming button
11
Mounting bracket
5
Menu Button
12
Locking screw for Tilt lock
6
Up-Button
13
Eye for secondary safety
7
Enter- Button
14
Ventilation holes
3
9
11
12
5
14
10
6
7
4
8
1
2
13

5
Safety Notes
Each person which is responsible for the installation, the usage of service of this unit must be
qualified and has to follow the instruction in this manual.
This device is not meant for residential use.
Be careful when using the device. You risk an electrical shock from high voltage, if you touch
the wires! The device has left our company in manufactured proofed state. To maintain this
status and to ensure a permanent safe operation, it is absolutely necessary to follow the
safety instructions and warnings in this manual.
Errors caused by not following these instructions are not covered by the warranty. The
manufacturer will not accept liability for any resulting defects or problems.
•Keep the unit away from radiators or other heat sources!
•If the unit has been exposed to tremendous temperature changes (e.g. after
transportation), do not turn the device on immediately. The resulting condensation
could damage the unit. Don’t switch the unit on until the device reaches room
temperature.
•This device belongs to protection class I. This appliance must be grounded while in
use to protect the operator from electrical shock.
•Make sure that the cable has never been squeezed or damaged by sharp objects.
Check the device and the cables regularly.
•If the cable is damaged, it must be replaced immediately by the manufacturer, its
service agent or a qualified person in order to avoid danger.
•Lenses or glasses must be replaced if they are visually damaged, or their
effectiveness is impaired, e.g. by broken glass or by deep scratches.
•Ensure that wires never come in contact with other wires! Handle the power cord and
all connections with caution!
•Make sure that the line voltage is not higher than the voltage specified in this manual.
•Disconnect the unit from the AC mains when it is not in use or when cleaning it.
Disconnect the connection only by pulling the cable plug.
•Using the fixture for the first time, can result in light smoke and odors. This is a
normal process and does not constitute a defect.
•Maximum 12A interconnected
•Dry locations only.
Risk of burns!
Do not touch the unit during operation! The housing may reach high temperatures!
Risk to health!
Never look directly into the light source. Especially epileptics risk an epileptic shock.
Disconnect the unit from the AC mains when not in use or when cleaning it.
Defects caused by modifications of the device by unqualified handling or an unqualified
person are not covered by the warranty.
Keep the product away from children and unskilled people.

6
There are no wear parts in the device. Maintenance and service must be performed only by
an authorized service partner.
Before operate this unit, please carefully read this users guide and keep if
needed in future. It’s necessary to respect following rules.
The disposal of the device after lifecycle could damage the environment, need to
take it to special company for recycling or return to authorized dealer.
The products referred to in this manual conform to the European Community
Directives and are therefore marked with CE logo.
Keep this device away from children and unauthorized users, the manufacturer
will not take responsibility for the damage due to any disregard of the information
provided in this manual and wrong operation.
Before operate the device, please make sure the fixture is in good housing,
ensure pan and tilt can rotate in its complete range.
--0.5m
Please make sure minimal 0.5m distance need to kept between the fixture to any
flammable material.
The device can only run with 100-240V voltage, 50/60 Hz power, don’t connect
to any other wrong power. Disconnect the device from main power before open
the shield or maintenance.
The device is designed only for indoor usage, please keep it away from
moisture. Do not expose the device under the sun or directly to any other lighting
source.
Never look directly into the projecting lens when the fixture is power on, the light
may trigger epileptic seizures in photosensitive persons or persons with
epilepsy. Especially at beam effect, extreme caution and observance of these
safety instructions is mandatory.
Don’t put or install the device on a surface that subject to vibration or bumps.
Ta=45℃
The device is supposed to work in the temperate range -15° C and +45° C, do
not use the device when the temperate exceed this range.
The lens, shield need to be replaced when obviously broken, never use the
device when the shield is not completed closed.
Safety I class device, need to be earth connected.
When the fixture is hanged overhead, the safety rope must be fixed to the bottom
of the device to the appropriate fixing point.
Always carry the device by the bracket, do not take the head directly for
transportation.

7
Maintenance
Operation only allowed to qualified person, damages due to unprofessional operation or
remove of any parts inside will not be considered in warranty service. There are no
serviceable parts inside the device or package, service only leaves to authorized dealers.
Never allow the optical components contact with oil, fat or any other liquid.
A regular clearance of the device is needed for long-term usage, this is very helpful to
maintain the lifetime and brightness need to use a soft and lint-free cloth to clean the optical
system, fan and air flowing tunnel.
Trouble shooting
Problems
Possible reasons
Solutions
Device not
power up
Powercon or power cable
damaged
Faulty power supply
Change a good power cable to try
Replace new power supply
LED off
Temperature protection
Fan not working
Faulty LED
Dimmer and strobe set at 0
Faulty power supply
Check the temperature from menu
Check the fan speed info from menu
Replace new LED
Set dimmer channel at 255 and strobe
channel at 0~5
Replace new power supply
Device not
response to
DMX
Faulty communication IC
Faulty display PCB
Wrong DMX addressing
Faulty DMX cable
Replace the IC with back-up one in the
display PCB
Replace new display PCB
Check the address and setting
Change to a good DMX cable
Replacement of the fuse
Step 1: Unplug power cable from main power
Step 2: Unscrew the fuse holder out of the housing with a screwdriver
Step 3: Remove the broken fuse and replace with an exact same type of new fuse
Step 4: Insert the fuse holder back to the housing and screw tight and reconnect power

8
Installation
There are specific regulations like BGV C1 (old VBG 70) or country related regulations which
need to attend during the installation. The installation has to be handled by skilled persons
only!
Suspension device hast to be built and calculated in order to handle up to 10 times its
specific load limit over a time of one hour without permanent or harmful deformation.
Installation has to be done with a separate, independent suspension device like a safety
chain. A second suspension device has to be built in order to assure that in case of error no
part of an installation can fall off.
Trespassing the danger zone below the installation during the assembling is prohibited.
Installer has to take care of all safety and machinery installations are approved by authorized
persons before first operation or after changes before restarting.
Installer has to take care of all safety and machinery installations are approved by skilled
persons at least once a year.
Installer has to take care of all safety and machinery installations are approved by authorized
persons every four years during the acceptance inspection. Spotlight should ideally installed
outside peoples lounge area.
Attention
Installation overhead needs a high level of experience. This includes (but is not just limited
to) calculation and definition of load capacity, used installation material and regular safety
inspections of used material and the fixture itself. Never try to do the installation by yourself if
you are not qualified, instead you have to instruct a skilled installer. Inappropriate
installations can cause injuries and/or damage of property. Spotlight has to be installed
outside areas where people can touch it.
Professional truss system or similar licensed suspension systems have to be used if the
spotlight is used in suspension from ceiling or other constructions. Spotlights can never be
installed freely suspended!
Spotlights can cause injuries when fall off. If you are not trained in questions of safety for the
different kinds of installation do NOT install the spotlight! Assure that the mounting surface
can hold at least ten times the point load of the spotlight before installing the fixture.
Assure the specified safety distances to flammable material.
Attach the spotlight with its yoke and the use of a suitable hook/clamp to your truss system.
The therefor used opening has a diameter of about 12 mm. According to your installation
also similar but approved suspension devices are possible.
When installing the spotlight overhead make sure to safe the fixture by a safety chain which
is specified at least with a load limit of 12 times of the spotlights weight. Only safety chain
with approved connective can be used. Attach the safety chain to its designated opening and
attach it to the truss system or a similar and safe attachment point. Assure to close the
fasteners as specified.
To adjust the angle of the fixture open the locking screw, set the fixture in its position and
close it by hand.

9
Control Menu
1) Menu tree
Default settings shadowed.
MODEL NAME:B PANEL240CW
DMX Addr
XXX
OL (Dimmer)
0-255
FLAS (Strobe)
0-255
LED (Flip display)
0-1
CH
1CH / 2CH / 3CH
1000Hz
2500Hz
2800Hz
3300Hz
Freq rate
4000Hz
5000Hz
6600Hz
10000Hz
20000Hz
2) Master/Slave Function
When fixtures are connected with the signal power, there is an automatic function of
master/slave build in.
When no dmx is on the signal, the first fixture will act as master, all other fixtures
connected in the signal line will follow as slave. When dmx signal is put on, it will
disable the master/slave function automatically.

10
DMX Mode
DMX addressing
The device is controlled by universal DMX 512 protocol, DMX address is the start channel
used to receive instructions from the external controller. For independent control, each fixture
must be assigned its unique address control channels. For example, this device has Three
channel modes: 1/2/3. if we set the mode at standard 3 channels mode, and there are
several models need to be independently controlled, we just simply address first fixture at 1,
and second fixture at 21, third one at 41, etc.
If the devices have the same address, they will behave synchronically.
DMX addressing is limited, don’t set the address so high that without enough control
channels for the fixtures.
Connection
Use DMX cable with 5-pin XLR-plugs to connect the controller with the fixture or one fixture
with another.

11
Technical Specifications
Dimensions drawing
Physical
Dimensions (WxHxD): 526 x 316 x 125 mm | 20.71” x 12.44” x 4.92”
Packaging dimensions (WxHxD): 560 x 380 x 180 mm | 22.05” x 14.96” x 7.09”
Outer carton dimensions (2 pieces) (WxHxD): 580 x 400 x 370 mm | 22.05” x 14.57” x ”
Net weight: 8 kg | 17.63 lbs
Gross weight (1 piece): 9 kg | 19.84 lbs
Gross weight (2 pieces): 18.5 kg | 19.84 lbs
Mounting options
Hanging: 3x M12 hole
2nd suspension / safety wire: 1x eye in back of unit to pass carabiner
Control
Menu control: TFT 4 digit display with 4 buttons
Control: DMX512, manual dimming button
In/Link: XLR 5-pin
DMX Mode: 1/2/3 channels
Optical
Beam angle: 160°
Refresh rate: <1000 Hz
Colours: Cold White, 5000k
CRI: 95.8 Ra
Strobe: 0-20 Hz

12
Photometric data B PANEL240CW
Lux @ 2m: 790 lux
Lux @ 4m: 300 lux
Lux @ 6m: 150 lux
Electrical
Fixture rated power: 120W
LED engine: 240x White SMD LED
Input power: 100 - 240V ~ 50/60Hz Auto switching power supply
In/Link: PowerCon TRUE 1 - max. link current 10A
Environmental
Max. housing temperature: 50°
Cooling: Convectional –no fans
IP rating: IP20
Accessories
1x Powercord TRUE1
1x Barndoors
1x Gelframe*
1x Soft frost*
1x Intensifier*
*Gelframe, Soft frost and Intensifier are all mounted in front of the LEDs by unscrewing 2 finger screws

13
Contact
Luxibel
Bedrijvenpark De Veert 13/004
2830 Willebroek
Belgium +32 3
860 76 50
[e-mail]
www.luxibel.com
