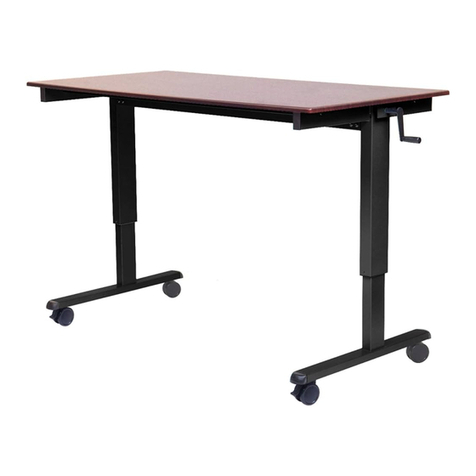

Luxor STAND-NESTC-72 User manual

Height Adjustable Nesting Table Assembly Guide
Assistance Required
Screwdriver needed

Step 1: Gather parts A, L, P, and the M3 hex wrench. Attach the crank handle holder to the top frame (A).
Step 2: Gather parts H, Q, and R. Place adapter parts (Q & R) onto the cross-rod (H). Slide the crossbar
into the top frame (A).
Note: Part Q has a set screw that is used later.
A
LP
L
H
R
Q

Step 3: Gather parts B, C, D, E, F, J,K,the M5 hex wrench, and caster wrench.
Attach the feet (E) to the legs (B & C) with 3 screws (1) per leg using the M5 hex wrench.
Attach the casters (E & F) to the feet, using the caster wrench.
B
C
D
D
J x 3
K x 3 E
FE
FJ x 3
K x 3

Step 4: Gather screws J, and the M5 hex wrench. Assistance is required in this step.
With assistance, and one side at a time, place and secure the leg assembles (B & C) to the top frame (A)
with 2 screws (J) per side, using the M5 hex wrench.
A
B
C
Front
Front
A
B
C
Part 1
Part 2
4
J x 2
J x 2

Part 1
Part 2
Step 5: Gather the M3 hex wrench.
Part 1 - Slide the cross-rod (H) and adapter (R) onto the gear box on the leg (C).
Part 2 - Hold the cross rod (H) level with the gear box on the leg (B), and slide the
adapter (Q) on the gear box. Secure the adapter (Q) to the cross-rod (H) by tightening
the set screw with the M3 hex wrench.
HR
Q
Front
A
B
C
H
Q
H

Step 5: Assistance is required in this step.
Note: The legs are only partially attached to the top frame at this time.
Part 1 - Carefully rotate the table into the upright position.
Part 2 - Pull the handles on the front of the table, and ip up the top
Step 6: Assistance is required in this step.
Note: The legs are only partially attached to the top frame at this time.
Carefully rotate the desk into the upright position.
Front
Front
Handle
Handle

Step 6: Gather screws (J) and the M5 hex wrench. Finish attaching legs (B & C) to the top frame (A)
with 2 screws (J) per side, using the M5 hex wrench.
6
B
C
J x 2
J x 2

Step 7: Gather screws (M), the plastic spacers (N), and the metal brackets (G). You will need a
screwdriver for this step. Attach the metal brackets (G), and the plastic spacers (N) to the legs (B &C)
with 2 screws (M) per side, using a screwdriver.
Screwdriver needed
B
C
G
G
N
N
M x 2
M x 2

Step 6: Gather the crank handle (S) and the two grommets (T).
Insert the grommets (T) into the top (A). Insert the crank handle (S) into either leg (B or C).
Conrm all of the screws are secure.
You have completed assembly, and are ready to use the table.
B
C
T
T
A
S
