Luxul Xen XGS-1008 User manual

Simply Connected
Quick Install Guide
XGS-1008
8-Port Gigabit Desktop Switch
Use the XGS-1008 to:
 Expand Your Home or Offi ce Network with 8-Ports
(10/100/1000)
 Future Proof Your Network with Gigabit Speeds
(10X Performance of Fast Ethernet)
 Set-up a Dedicated Network for Optimizing VoIP, Video,
Security, or Gaming Applications.
Quick Install GuideQuick Install Guide

2
XGS-1008 Quick Install Guide
a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685
luxul.com | 801-822-5450
Quick Install Guide
Model Number: XGS-1008
8-Port Gigabit Desktop Switch
© 2014 Luxul. All Rights Reserved.
No part of this publication may be modified or adapted in any way, for any
purposes without permission in writing from Luxul. The material in this manual
is subject to change without notice. Luxul reserves the right to make changes to
any product to improve reliability, function, or design. No license is granted, either
expressly or by implication or otherwise under any Luxul intellectual property rights.
An implied license only exists for equipment, circuits and subsystems contained in
this or any Luxul product.
DOCUMENT CONVENTIONS
The following graphical alerts are used in this document to indicate notable situations:
NOTE: Tips, hints, or special requirements that you should take note of.
CAUTION: Care is required. Disregarding a caution can result in data
loss or equipment malfunction.
WARNING!: Indicates a condition or procedure that could result in
personal injury or equipment damage.
FCC COMPLIANCE
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
CONTACT LUXUL
Sales
P: 801-822-5450
E: [email protected]
Technical Support
P: 801-822-5450
E: [email protected]

Simply Connected
3
© 2014 Luxul. All Rights Reserved.
Other trademarks and registered trademarks are the property of their respective owners
PACKAGE CONTENTS
Please check the contents carefully after you open the packing:
 XGS-1008 8-Port Gigabit Desktop Switch
 Power Adapter
 Quick Install Guide
If any of the listed items are missing or damaged, please contact the reseller from
whom you purchased the XGS-1008 for return/replacement.
HARDWARE DESCRIPTION

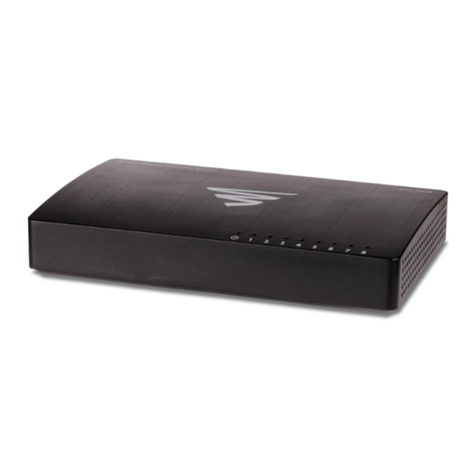

Front Panel and
The front panel of the XGS-1008 includes 8 Link/Activity LED’s and one power LED.
Please refer to the detailed description of these indicators in Section 1.4 below.
876 5 4 3 2 1POWER8-Port Gigabit Ethernet Switch
XGS-1008 Front Panel View

4
XGS-1008 Quick Install Guide
a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685
luxul.com | 801-822-5450
LED Indicators
The LED indicators of the XGS-1008 include 1 Power indicator and 8 Link/Activity
indicators. These LED indicators show the operating status of the XGS-1008 and
each switch connection.
The following chart shows the LED indicators of the XGS-1008 along with an
explanation of the indicator’s properties:
LED Color Status Description
Power Green ON This indicator lights up when the XGS-1008 is powered
— OFF If this indicator is not lit, please check the DC power
supply to ensure proper connection to the outlet and
the XGS-1008.
Link/
Activity
Green ON Indicates the XGS-1008 is connected at 1000Mbps.
Blinking Indicates the XGS-1008 is transmitting/receiving data
packets at 1000Mbps.
Orange ON Indicates the XGS-1008 is connected at 10/100Mbps.
Blinking Indicates the XGS-1008 is transmitting/receiving data
packets at 10/100Mbps.
— OFF Indicates the port is not connected to a device.
Rear Panel Layout
The Rear Panel of the XGS-1008 includes 8 10/100/1000Mbps RJ-45 Ethernet ports
and one DC power port used for DC power input.

Simply Connected
5
© 2014 Luxul. All Rights Reserved.
Other trademarks and registered trademarks are the property of their respective owners
12345678 POWER
XGS-1008 Rear Panel View
CAUTION: Please use the included power supply. If a different power
supply is used, it could damage the XGS-1008
PREPARING FOR INSTALLATION
System Requirements
Ethernet Cables to connect the XGS-1008 to Ethernet enabled devices
 Power should be AC 100-240V~ 0.1A(Max) 50/60Hz.
Installation Requirements
Install the XGS-1008 in a stable/safe place to avoid any possible damage
Inspect the AC power cord to ensure that it is correctly connected and
undamaged.
To avoid electric shock, DO NOT open the XGS-1008 housing (no user service-
able parts inside). Opening the XGS-1008 will void your warranty.
It is recommended that the XGS-1008 is positioned away from direct sun light
Ensure there is sufficient space around the XGS-1008 for proper ventilation and
heat dissipation. It is recommended to have at least 4-6 inches around all sides.
Before Connecting to the Network
Before connecting the XGS-1008 to the network, please check the following:
 Determine placement location. Do not place any heavy articles on the XGS-1008.

6
XGS-1008 Quick Install Guide
a: 14203 Minuteman Drive, Suite 201, Draper, UT 84020-1685
luxul.com | 801-822-5450
 Ensure there is adequate space for proper heat dissipation and ventilation around
the XGS-1008.
 Power socket should be within 4 feet of the XGS-1008.
 Check power adapter to confirm safe and secure connection.
XGS-1008 INSTALLATION
Connecting Devices
Use standard Ethernet CAT5, CAT5e or CAT6 cable to connect the XGS-1008 to
a device as described below (CAT6 must be used in order to achieve full Gigabit
bandwidth). The XGS-1008 will automatically adjust to the characteristics (speed/
duplex) of the device to which it is connected.
12345678 POWER
Connecting the XGS-1008 to a Device
When a device is properly connected, the Link/Activity LEDs for each port lights
up green/orange. Please refer to the LED Indicators section for definitions and
troubleshooting.

Simply Connected
7
© 2014 Luxul. All Rights Reserved.
Other trademarks and registered trademarks are the property of their respective owners
Connecting to a Router or Other Switch
12345678 POWER
XBR-2300
Enterprise Dual-WAN Router
POWER
100M
RESET
SYS
1 2 1 2 3
LANWAN
LAN
WAN
12123
Internet
Connecting the XGS-1008 to a Router or Switch
When a device is properly connected, the Link/Activity LEDs for each port light
up green/orange. Please refer to the LED Indicators section for definitions and
troubleshooting.

LUX-QIG-XGS-1008
