LYNXTechnik Yellobrik OBD 1210 User manual

yellobrik Quick
Reference
®
OBD 1210
MADI / Fiber Bidirectional Transceiver
yellobrik
®
LYNXTechnik AG Broadcast Television Equipment
WARNING
WARNING
LASER RADIATION
Do not view directly with
optical instruments
CLASS 1M LASER PRODUCT
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
®
Note: Two matched modules are
supplied. “A” version is shown.
“B” version connections are identical.
Not Used
Power
Connected
Not Used
Fiber Bidirectional
I/O (LC)
Coaxial MADI Input
DC Power Input
Coaxial MADI Output
Technical Specifications
Coax Input 1 x 75 Ohm BNC connector
Supported standards: AES10-2008
Cable length 250m ( Belden 1694A )
Coax Output 1 x 75 Ohm BNC connector
Amplitude: 750mV P/P
Cable length 250m ( Belden 1694A )
Fiber Optic 1 x LC Bidirectional Fiber Connection (Singlemode)
1310nm and 1550nm (WDM)
18 dBm Optical Budget
Max. Distance approx. 10km (6.2 miles - Singlemode)
Power +12VDC @ 2.6W nominal each module - ( supports 7 - 16VDC input range )
LED power present indicator
Note. OTT 1812 module shown, the OBD 1210 is identical in terms of mounting
Connections
The MADI coaxial inputs and outputs are connected to the
corresponding 75 Ohm BNC connections provided. The ber
connection os on the SFP sub module as indicated on the module.
The module uses a single bidirectional ber link which is a LC simplex
connection. Please ensure the ber cable used is Singlemode
(Multimode cable will not work)
The module ber connection is supplied with a rubber plug installed,
this is to prevent dust contamination. Please retain the plug and use if

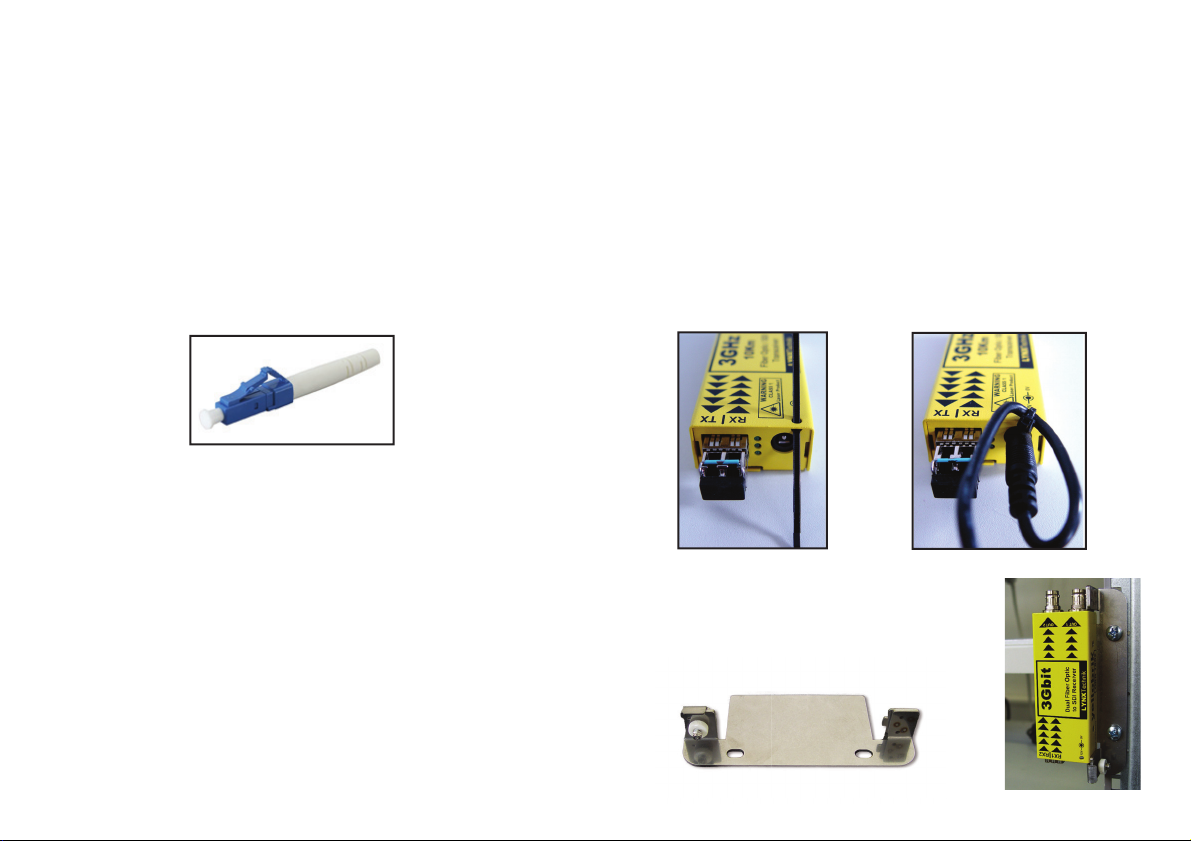

the cables are ever disconnected from the module. An example of a LC
connector is shown below:
Operation
The OBD 1210 kit is supplied as a matched pair (one “Type A” and one
“Type B” module) and are used to convert coaxial MADI signals (up to
64 channels IN and OUT) into a single bidirectional ber link for use in
long distance applications. The electrical / optical conversion
introduces no delay (zero latency) and there is no signal degradation.
Operation if fully automatic (plug and play) there are no user
adjustments for the module. The module supports hot swapping and
hot plugging of all connections.
NOTE
The modules use a single bidirectional ber link. This is WDM using
1310nm and 1550nm wavelengths. The modules should only be used in
point to point applications, and should not be used in a multiplexed
CWDM system (Even if the 1310 and 1550 CWDM ports are available)
Power Lead Strain Relief
The modules have a small hole in the case located above the power
connection to prevent the power lead being accidentally pulled out.
Use the supplied tie-wrap and secure the lead as shown below.
OTT 1812 module shown the OBD 1210 is identical
in
Optional Mounting Bracket
The optional RFR 1001 mounting brackets can be
used to permanently mount the modules on any
at surface or on 19” rack rails.
Power
The module requires a 7-16VDC power input (12VDC nominal) an LED is
provided to conrm power is connected. A 12VDC power supply is
provided, but if applying your own power, please provide a clean
7-16VDC power source. Each modules power consumption is approx
2.6W
Do not exceed 16VDC power input as module damage will result
