LYNXTechnik Yellobrik OTR 1840 User manual

yellobrik Quick
Reference
OTR 1840
3Gbit HDSDI / Fiber Optic Transceiver (CWDM)
LC Fiber Optic
Input / Output
HDSDI Video
Input
Transmitting
Data
LYNXTechnik AG www.lynx-technik.com
DC Power Input
Power
Connected
WARNING
WARNING
LASER RADIATION
Do not view directly with
optical instruments
CLASS 1M LASER PRODUCT
HDSDI Video
Output
Receiving
Data
Please visit the yellobrik website to see all the yellobriks
www.yellobrik.com
®
yellobrik
®
Technical Specifications
SDI Video 1 x SDI video input
1 x SDI Video output
75 Ohm BNC connectors
SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Multi-standard operation from 270Mbit/s to 3Gbit/s
Multi-rate reclocking
270Mbit/s - 1.48Gbit/s - 3Gbit/s
Return Loss: > 15dB to 1.5GHz and > 10dB up to 3GHz
Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
Fiber Optic 1 x fiber optic input
(Range 1260-1620nm, Sensitivity -3dBm to -19dBm)
1 x fiber optic output
(CWDM - 18 selectable wavelengths - ITU-T G.694.2)
Duplex (Singlemode) using LC/PC Connections
SMPTE 297M - 2006
Hot pluggable
TX active LED, and RX active on side of module
Single mode transmit / receive (duplex connector)
Max. distance approx. 40km (24.8 miles) @ 3Gbit/s (Singlemode)
Power +12VDC @ 1.9W nominal without SFP
+12VDC @ 2.7W nominal with SFP
( supports 7 - 16VDC input range )

Connections
The SDI video input and output is connected to the corresponding 75
Ohm BNC connections provided (up to 3Gbit). The ber connections
are made to the LC connector as indicated on the module. The

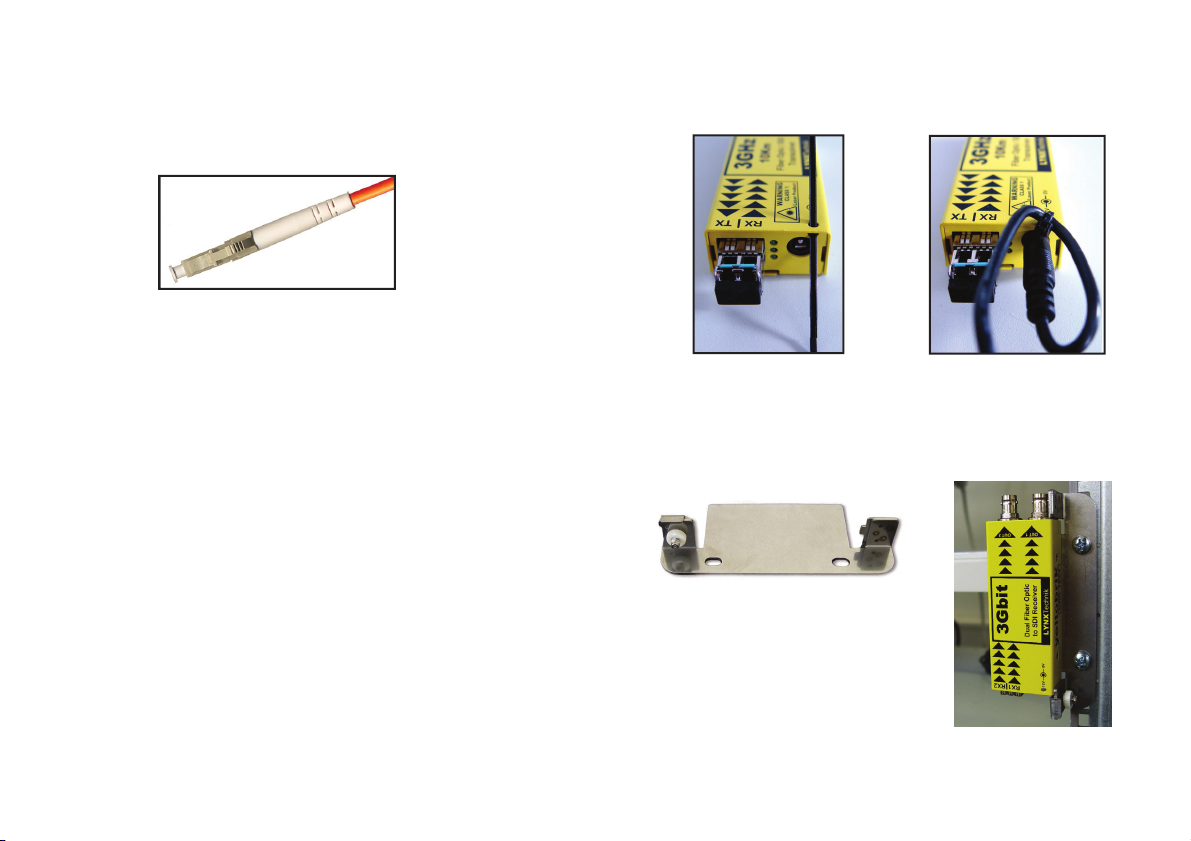

connection is LC Duplex (single mode). An example of a single LC
connector shown below, one is required for the input and output
connection.
Operation
The OTR 1840 combines a CWDM ber optic transmitter and receiver
into a single package. Dierent video formats can be transmitted and
received. Operation of the receiver and transmitter is automatic. For
transmission, the Input video format is automatically detected and the
video signal is reclocked and then transmitted over the ber optic
connection. For reception, the received SDI format is detected
automatically and provided on the HDSDI output connection
The OTR 1840 supports any SDI video signal from 270Mbit/s to 3Gbit/s.
Max distance is 40 Km (24.8 miles). Data send and receive activity is
indicated by the LEDs located on the side of the module. The module
supports hot swapping and hot plugging of connections.
This is a CWDM module and there are 18 dierent wavelength
selections for the ber transceiver SFP. Wavelength selections are
according to ITU-T G 694.2
Power
The module requires a 12V DC power input and a LED is provided to
conrm power is connected. A power supply is provided, but if
applying your own power, please provide a clean 12V DC power source.
Power Lead Strain Relief
The module has a small hole in the case located above the power
connection to prevent the power lead being accidentally pulled out.
Use the supplied tie-wrap and secure the lead as shown below.
Optional Mounting Bracket
The optional RFR 1001 mounting bracket can be used to permanently
mount the module on any at surface or on 19” rack rails.
