LYNXTechnik yellobrik OBD 1510 E User manual

Technical Specifications
Ethernet 2 x Ethernet ports, RJ45 Connectors.
10 BaseT UTP category 3,4 or 5 cable up to 328ft/100m (2 pairs)
100 BaseT XUTP category 5 cable up to 328ft/100m (2 pairs)
1000 BaseT XUTP category 5 cable up to 328ft/100m (4 pairs)
Auto detect bit rate (10/100/1000), or force to 10Mbit for
each port (selectable)
Automatic crossover detection or force manually for
each port (selectable)
Port speed / activity LED indication (next to Ethernet port)
Fiber Optic 1 x fiber optic I/O port (bidirectional)
Simplex (single mode) using LC/PC connection
WDM using 1310nm and 1550nm wavelengths
Optical budget = 18dB
Fiber TX active and RX active LEDs on side of module
Max. distance 10km (6.2 miles - Singlemode)
Power +12VDC power supply (included)
Supports external power input from 9 - 14 VDC
Power LED on side of module
Size 105mm x 40mm x 22mm (4.13” x 1.57” x 0.86”)
Model # OBD 1510 E
Includes 2 x OBD 1510 E modules (Type A and Type B), 2 x 12V
DC power supplies, wall mounting brackets and plastic
transport case
yellobrik Quick
Reference
®
OBD 1510 E
Ethernet to Fiber Bidirectional Transceiver
Fiber I/O Electrical
Ethernet Ports (2)
TX Active
yellobrik
®
LYNXTechnik AG Broadcast Television Equipment
DC Power Input
WARNING
WARNING
LASER RADIATION
Do not view directly with
optical instruments
CLASS 1M LASER PRODUCT
RX Active
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
®
Port LEDs
Green LED
3 blinks = 1Gbit
2 blinks = 100Mbit
1 blink = 10Mbit
Yellow LED = Activity
USB
(rmware update)
Power
Note: Two matched modules are
supplied. “A”version is shown.
“B” version connections are identical.

Connections
Two matched modules are supplied an A and B version, these must be
used together. Connections are identical for each module. The system
uses WDM ber technology, which allows for bidirectional connectivity
over a single dedicated ber link (closed loop)
The modules function as 3 port Ethernet switches with 2 standard RJ45
electrical Ethernet ports and a ber Ethernet port using a LC/PC optical
connection on each module. Note a single dedicated ber link is

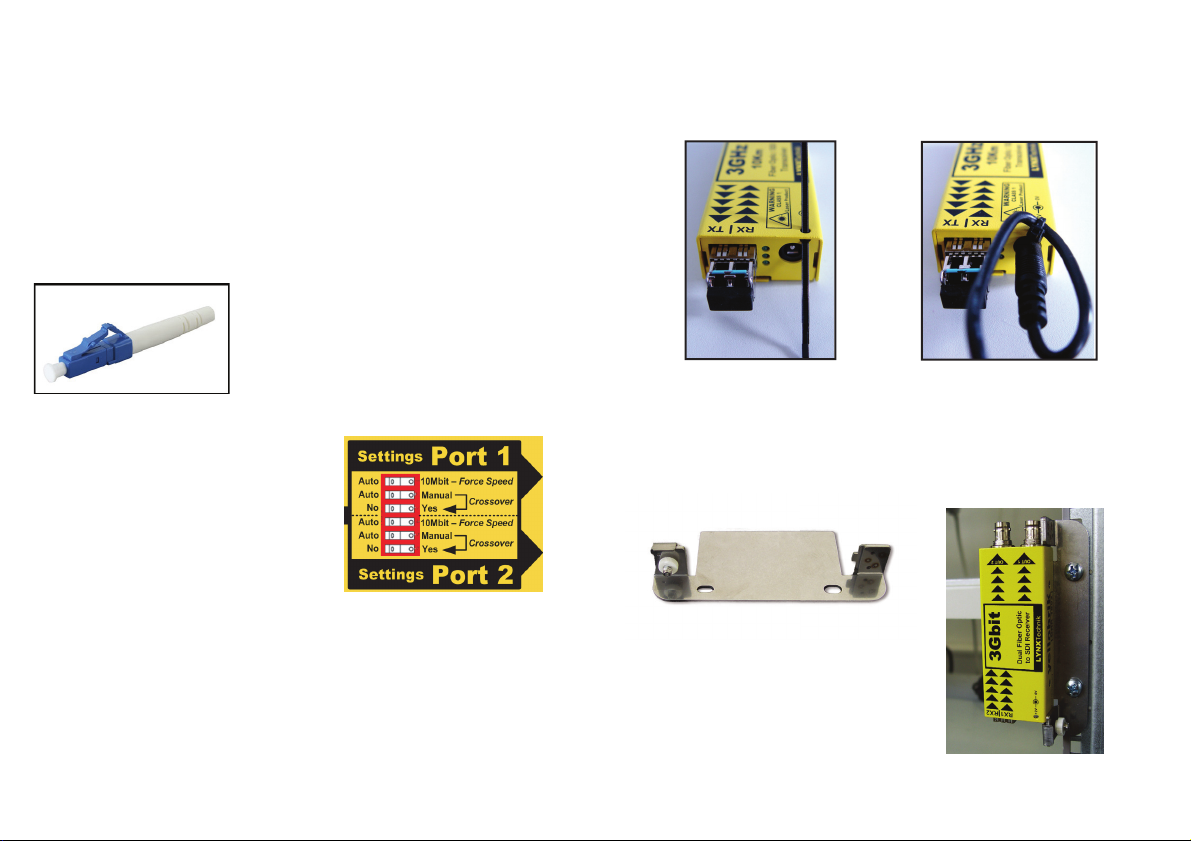

needed between locations. (LC simplex ber connector shown below)
Power Lead Strain Relief
The module has a small hole in the case located above the power
connection to prevent the power lead being accidentally pulled out.
Use the supplied tie-wrap and secure the lead as shown below.
*Note
The module must be used with SMF
(singlemode) ber cable. Multimode cable does
not support WDM and the link will not function.
The electrical port speeds can be set to
automatic mode (10/100/1000) or
forced to 10Mbit if required. It is also
possible to congure automatic or
manual crossover for the electrical
ports (forced manual crossover is
sometimes needed for older networks)
Note. If ber RX LED is OFF this indicates no signal is present, signal to
weak or is a non a valid signal.
Power
Each module requires a 12V DC power input and a LED is provided to
conrm power is connected. Power supplies are provided, but if
applying your own power, please provide a clean 7-15V DC power input
(12VDC nominal). Power consumption is approx 2.2W
Optional Mounting Bracket
The optional RFR 1001 mounting bracket can be used to permanently
mount the module on any at surface or on 19” rack rails.
