LYNXTechnik Yellobrik OBD 1210 User manual

We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
LYNXTechnik AG Broadcast Television Equipment
®
yellobrik Quick
Reference
yellobrik ®
®
12V 0V
О
Power
WARNING
CLASS 1
Laser Product
RX/TX
Multiplex RX / TX
IN OUT
LYNXTechnik AG
MADI
10km
MADI / Fiber Optic
Transceiver
BTYPE
Connect
to TYPE A
12V 0V
О
Power
WARNING
CLASS 1
Laser Product
RX/TX
Multiplex RX / TX
IN OUT
LYNXTechnik AG
MADI
10km
MADI / Fiber Optic
Transceiver
ATYPE
Connect
to TYPE B
OBD 1210
MADI / Fiber Bidirectional Transceiver
DC Power Input
LC Fiber Optic
In-/Output
Coax MADI Input
Coax MADI Output
WARNING
LASER RADIATION
Do not view directly with
optical instruments
CLASS 1M LASER PRODUCT
Technical Specications
Coax
Input
1 x 75 Ohm BNC connector
Supported standard: AES10-2008
Cable length 250m ( Belden 1694A )
Coax
Output
1 x 75 Ohm BNC connector
Amplitude: 750mV P/P
Cable length 250m ( Belden 1694A )
Fiber
Optic
1 x Bidirectional ber connection (LC/PC Connection)
Power +12V DC @ 2.7W nominal - (power supply included)
(supports 7 - 24V DC input range)
Power LED on side of module
TX Data
Present
RX Data
Present
Power
WARNING: Module laser is active
as soon as power is connected,
regardless of LED indication
Type A: OH-BD-1-1310-LC
TX: 1310nm | Optical Power: -8dBm to -3dBm | Max. 10km
RX: 1550nm | Sensitivity : -16dBm
Type B: OH-BD-1-1550-LC
TX: 1550nm| Optical Power: -8dBm to -3dBm | Max. 10km
RX: 1310nm | Sensitivity : -16dBm
TX and RX active LEDs on side of module

Note: OBD 1210 is identical in terms of mounting and securing

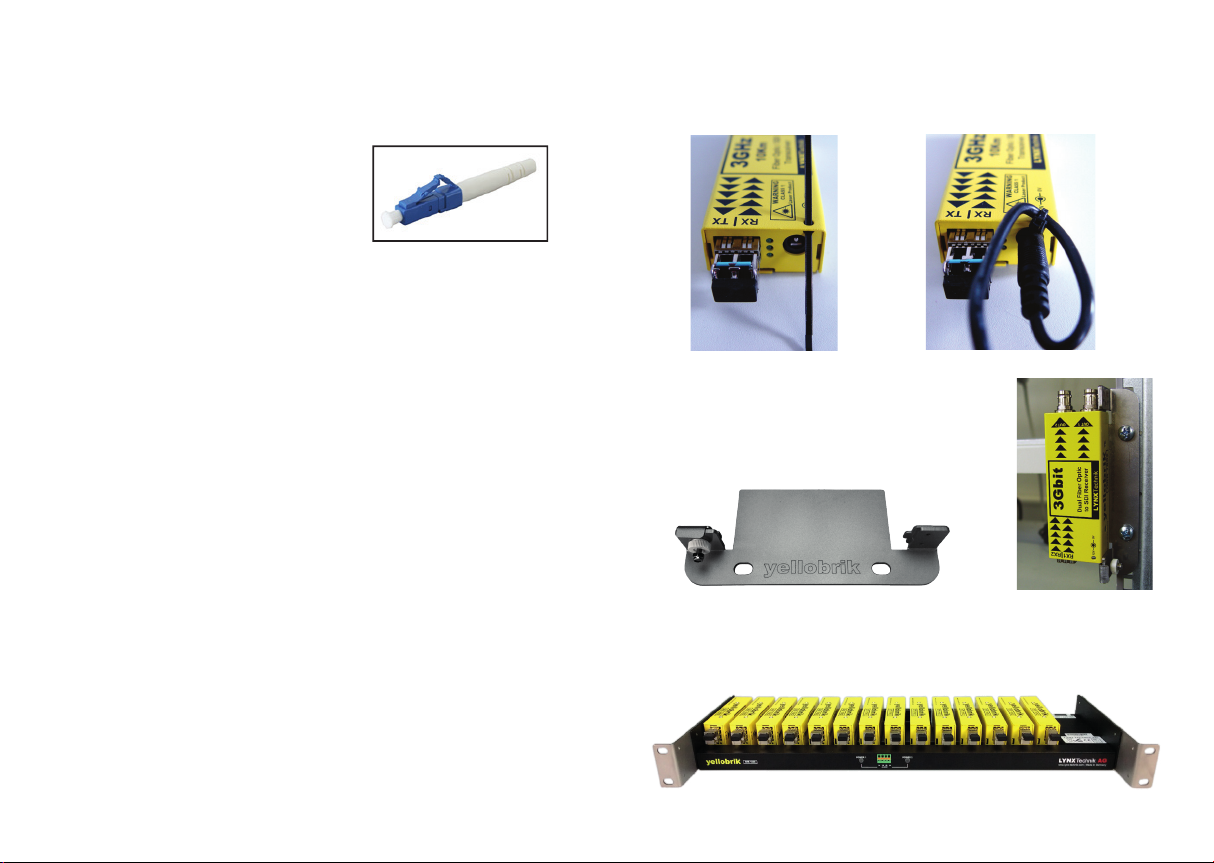

Optional Mounting Brackets
The optional RFR 1001 mounting brackets can be
used to permanently mount the modules on any
at surface or on 19‘‘ rack rails.
Power Lead Strain Relief
The modules have a small hole in the case located above the power
connection to prevent the power lead being accidentally pulled out.
Use the supplied tie-wrap and secure the lead as shown below.
The optional RFR 1000-1 rack mount can be used to permanently
mount up to 14 yellobrik modules. In addition, the RFR 1000-1 can
provide full power redundancy for all mounted yellobriks.
Note: The module is designed for use with
simplex SMF (Singlemode) ber cable.
Connections
The MADI in- and outputs are connected to the corresponding 75 Ohm
BNC connections provided.
The ber connection is made to the LC
connector as indicated on the module. An example of an LC connector
shown below.
Use the included dust plug to protect the optical connection from dust.
Operation
The OBD 1210 exclusively supports transmission of MADI signals
according to AES10-2008. The modules are supplied as pairs
(“Type A”
and“Type B” respectively) and must be used as a pair. This is a closed
WDM application using 1310nm and 1550nm wavelengths.
Data send
and receive activity is indicated by the LEDs located on the side of the
module.
Operation is fully automatic. No user settings are provided for this
module. The module supports hot swapping and hot plugging of
connections.
Note: The modules should be exclusively used in point to point applications and
never be used in a multiplexed CWDM system (Even if CWDM ports for
1310nm or 1550 nm are available)
Power
The module requires a clean 12V DC (7-24V DC) power source. An LED is
provided to conrm power is connected. A 12V DC power supply is
included with the module. If you are applying your own power source,
please provide a clean, 7-24V DC power source. Power consumption
information can be found in the technical specications table.
