Madimack invermac inverFLOW Series User manual

Powered by
INSTALLATION
MANUAL

CONGRATULATIONS AND THANK YOU FOR
PURCHASING OUR ELITE INVERTER POOL
PUMPS InverFlow Series.
THIS MANUAL CONTAINS IMPORTANT INFORMATION THAT
WILL HELP YOU IN OPERATING AND MAINTAINING THIS
PRODUCT.
PLEASE READ THE MANUAL CAREFULLY BEFORE
INSTALLATION & OPERATION AND RETAIN IT FOR
FUTURE REFERENCE.
Adherence to the directions for use in this manual is
extremely important for health and safety. Failure to
strictly adhere to the requirements in this manual
may result in personal injury, property damage and affect
your ability to make a claim under the manufacturer’s
warranty provided with your product. Products must be
used, installed and operated in accordance with this
manual. You may not be able to claim on themanufactur-
er’s warranty in the event that your productfaultis due to
failure to adhere this manual.
CONTENTS
1.1 When installing and using this electrical equipment,
basic safety precautions should always be followed,
including the following:
Fill the pump with water before starting. Do not run the pump
dry. In case of dry run, mechanical seal will be damaged and
the pump will start leaking.
Before servicing the pump, switch OFF power to the pump by
disconnecting the main circuit to the pump and release all
pressure from pump and piping system.
Never tighten or loosen screws while the pump is operating.
Ensure that the inlet and outlet of the pump are unblocked
with foreign matter.
1. IMPORTANT SAFETY INSTRUCTIONS
2. TECHNICAL SPECIFICATIONS
3. OVERALL DIMENSION
4. INSTALLATION
4.1 Tools required
4.2 Pump Location
4.3 Piping
4.4 Valve and Fittings
4.5 Check before initial startup
4.6 Application conditions
5. SETTING AND OPERATION
5.1 Display on control panel
5.2 Startup
5.3 Self-priming
5.4 Manual - inverter mode
5.6 Timer mode
5.7 Skimmer Mode
2
3
3
3
4
4
4
4
4
4
5
5
5
5
6
6
7
6. EXTERNAL CONTROL
a. Digital input
b. RS485
c. Relay output (optional)
7. PROTECTION AND FAILURE
7.1 High Temperature Warning and
Speed Reduction
7.2 Undervoltage protection
7.3 Troubleshooting
7.4 Error code
8. MAINTENANCE

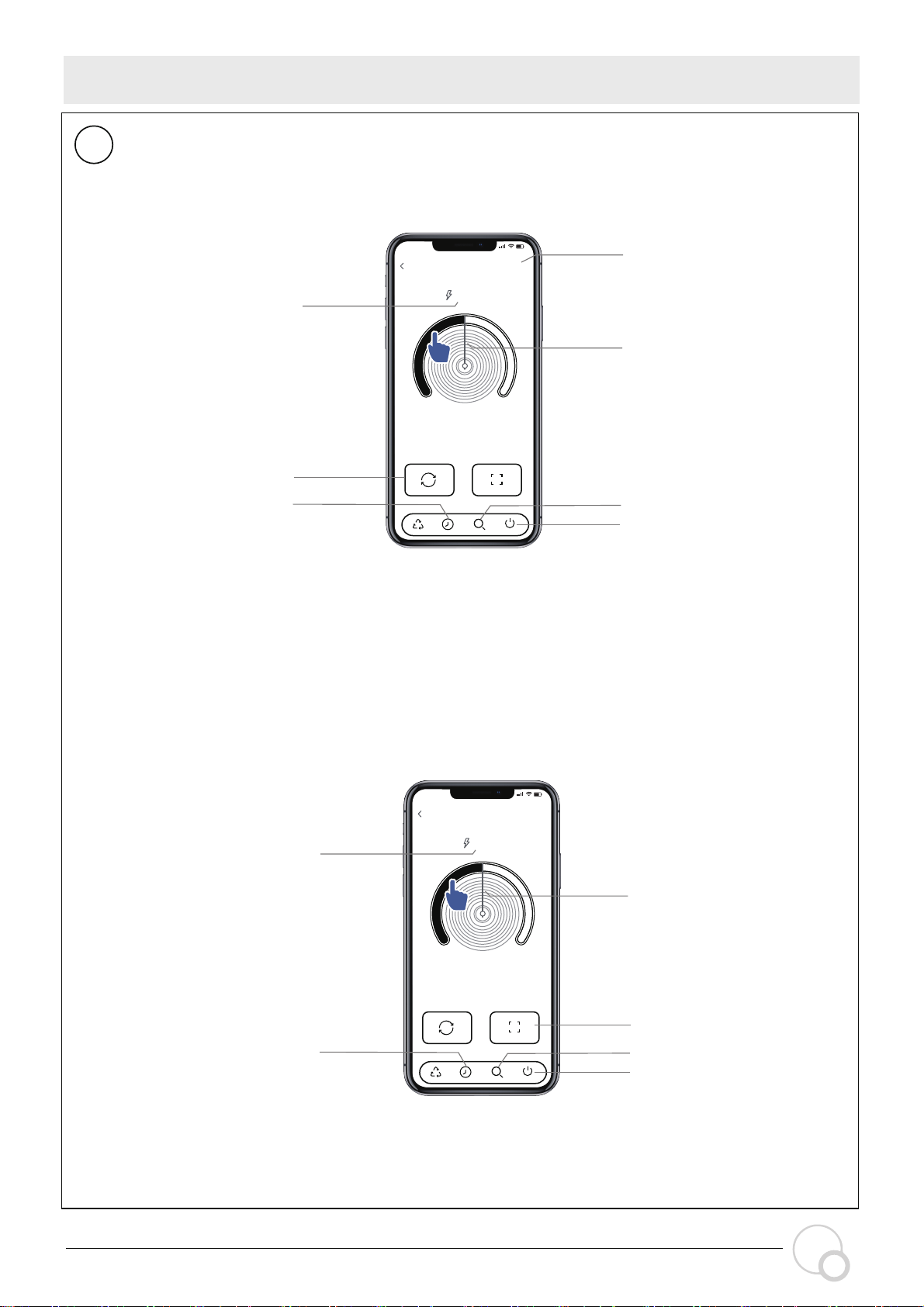

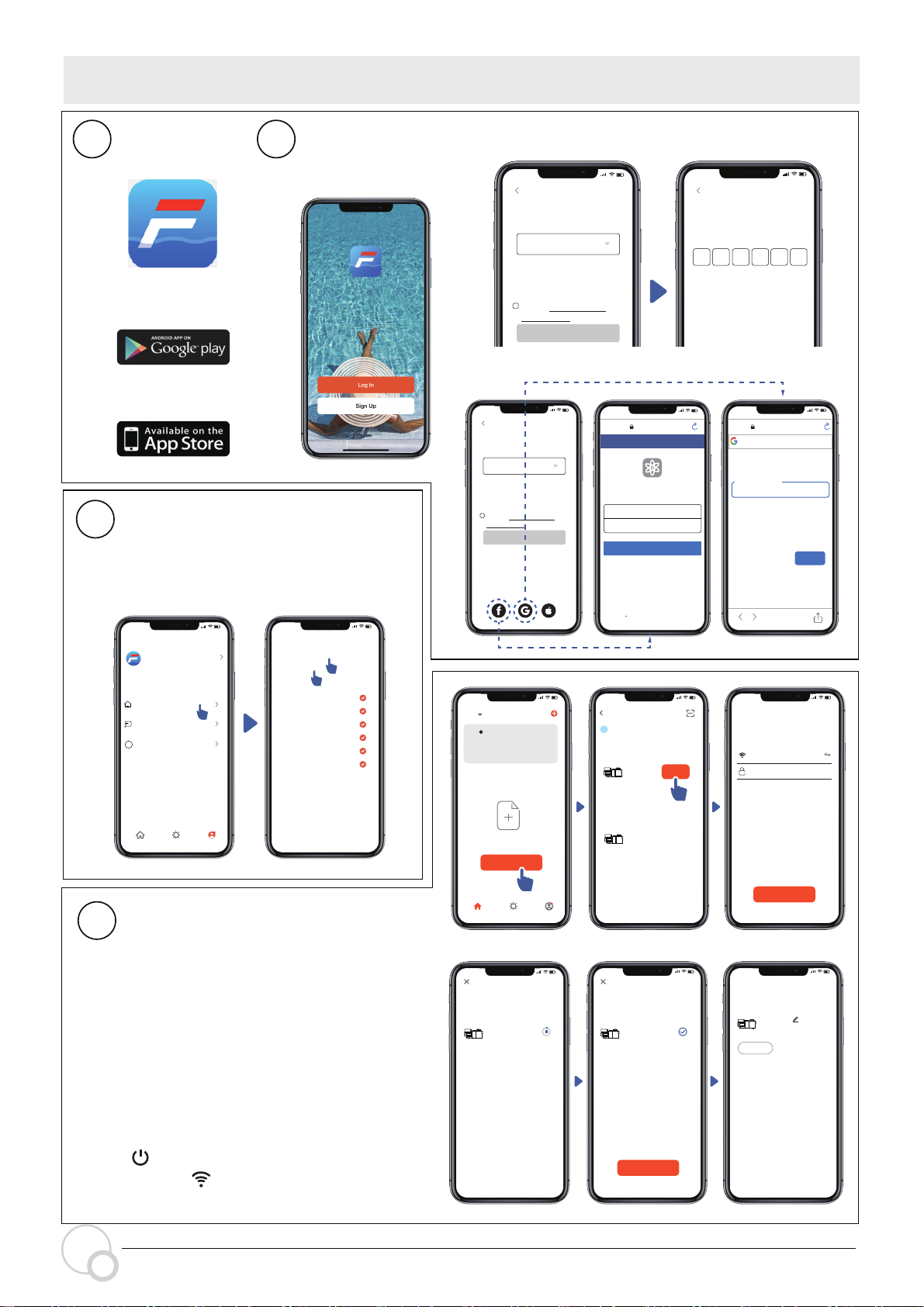

10. WIFI OPERATION
11. CONNECTING TO MADIMACK HEAT
POOL PUMP POOL HEATER
Adaptive Flow/ Blurb
12. DIAGRAM

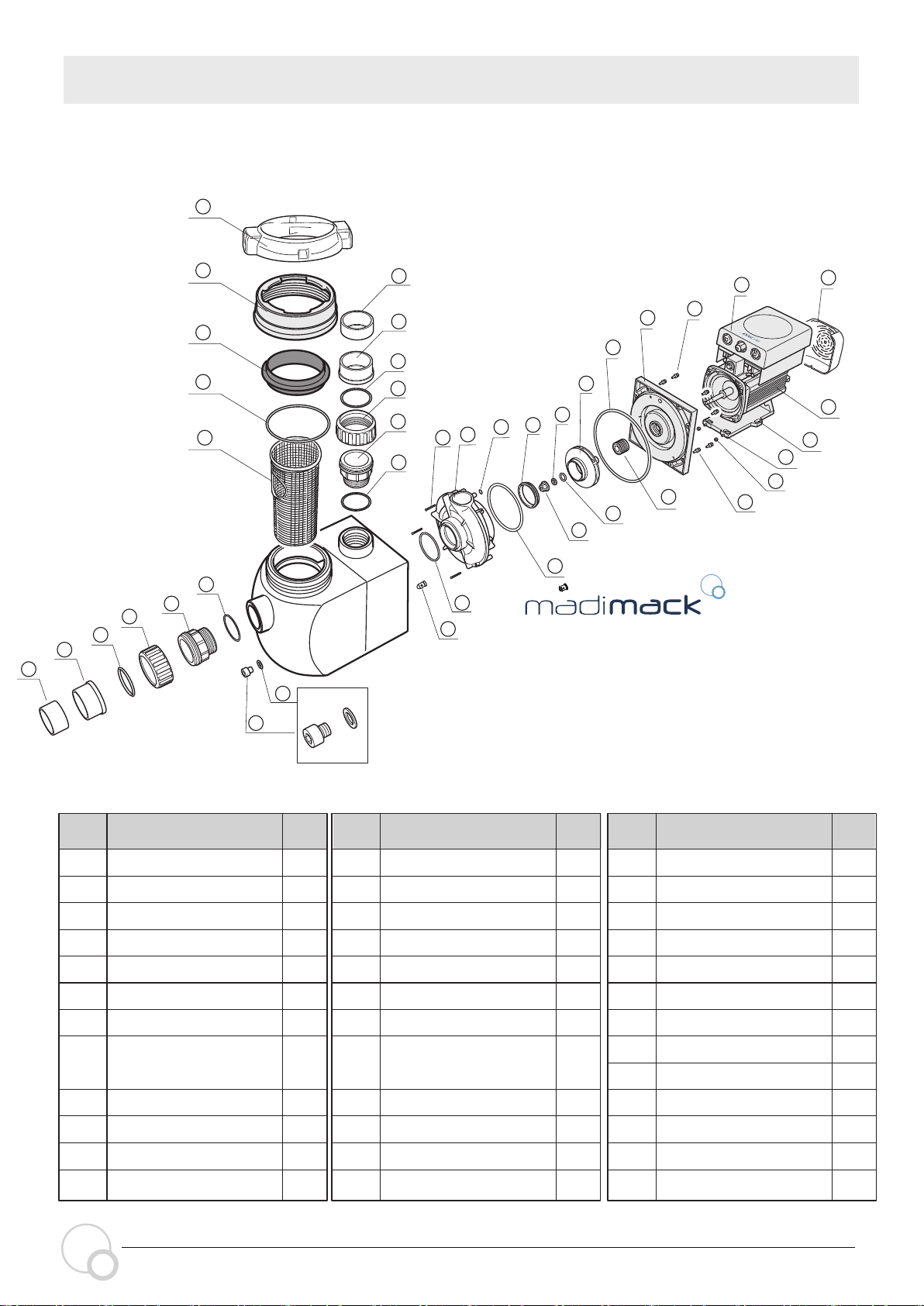

12.1 Explodedview
Lid Cleaning
13. WARRANTY & EXCLUSIONS
14. DISPOSAL
8
9
9
9
9
9
9
9
10
10
10
12
15
15
16
16
17
18
1.2 All installations must be tted with earth leakage or residual
current protection devices, having a rated residual operating
current not exceeding 30mA.
1. IMPORTANT SAFETY INSTRUCTIONS
This guide provides installation and operation instructions for this pump.
If you have any other questions about this equipment, please consult
your supplier.
5.5 Auto - inverter mode 6
5.8 Speed Limit7
5.9 Parameter settings 7
RISK OF ELECTRICAL SHOCK.
Pool pump must be installed on a RCD protected circuit.
Check your local state regulations and wiring rules.
This pump is for use with permanently installed in-ground
or above-ground swimming pools and may also be used
with hot tubs and spas with a water temperature under
50°C. Due to thexed installation method, this pump is
not suggested to be used on above-ground pools that can
be readily disassembled for storage.
The pump is not submersible.
Never open the inside of the drive motor enclosure.
9. CONFIGURATIONSWITH HEATING SYSTEM11
2INVERFLOW PRO

INVPRO300 30~50 220~240
50/60
0.75
1.05
1.40
390 18 300 235
INVPRO400 40~70 220~240
50/60
1.0
1.5 433 20 384 322
INVPRO500 50~80 220~240
50/60
2.0 472 20.5 460 408
Advised
Poo
Model l Volume
INPUT POWER
Voltage
(V/Hz)
Max Flow
(L/min)
Head Max
(m)
Circulation
Power
KW Power HP
Flow at 8m
L/min
Flow at 10m
L/min
2. TECHNICAL SPECIFICATIONS
3. OVERALL DIMENSION (mm)
4. INSTALLATION
248
229
460
288
273
G2”
G2”
606
358
212
178.5
189
297
3
Safety Goggles
Gloves
Philips Screwdriver
Flathead Screwdriver
Pipe Wrench
Adjustable
Wrench
Multi Grips
PVC Pipe Cutter
Power Drill
Tape Measure
4.1. Tools required
INVERFLOW PRO

continue INSTALLATION
1) Install the pump as close to the pool as possible, to reduce
friction loss and improve ef ciency, use short, direct suction
and return piping.
2) To avoid direct sunshine, heat or rain, it is recommended
to place the pump indoors or in the shade.
3) DO NOT install the pump in a damp or non-ventilated
location. Keep pump and motor at least 150mm away from
obstacles, pump motors require free circulation of air for cooling.
4) The pump should be installed horizontally and xed in the
hole on the support with screws to prevent unnecessary
noise and vibration.
4.2. Pump Location
* The pump inlet/ outlet union size: optional with metric 50 or 40mm.
2) Below water level system should have an isolation valves installed on suction and return line for maintenance; however, the suction
gate valve should be no closer than seven times the suction pipe diameter as described in this section.
3) A check valve shopuld be installed if there are long pipe runs aboave water level or if is signi cant height between the return line
and the outlet of the pump.
4) Be sure to install check valves when plumbing in parallel with other pumps. This helps prevent reverse rotation of the impeller and
motor.
4.4. Valves and Fittings
1) Check whether pump shaft rotates freely;
2) Check whether power supply voltage and frequency conform
to the nameplate;
3) Facing the fan blade, the direction of motor rotation should
be clockwise;
4) It is forbidden to run the pump without water.
4.5 Check before initial startup 4.6 Application conditions
1) For optimization of the pool plumbing, it is recommended to
use a pipe with size of 50mm. When installing the inlet and outlet
ttings (joints), use the special sealant for PVC material.
2) The dimension of suction line should be the same or larger
than the inlet line diameter, to avoid pump sucking air, which will
affect the ef ciency of the pump.
3) Plumbing on the suction side of the pump should be as short
as possible.
4) For most installations we recommend installing a valve on
both the pump suction and return lines, which is more convenient
for routine maintenance. However, we also recommend that a
valve, elbow, or tee installed on the suction line should be no close
r
to the front of the pump than seven times the suction line diamete
re
5) Pump outlet piping system should be equipped with a check
valve to prevent the pump from the impact of medium recirculation
and pump-stopping water hammer.
4.3. Piping
Ambient temperature Indoor installation, temperature range:
-10 ~ 42°C
Water temperature
Salt pools Salt concentration up to 0.5%, i.e. 5g/L
Humidity
Altitude Not exceed 1000m above sea level
Installation The pump can be installed max. 2m
above water level
Insulation Class F, IP55
5°C ~ 50°C
RH, (20 + 2)
Elbow
Return to pool 50mm
Suction 50mm
350mm
The pump should be installed in an area with at least 150mm
distance around the unit away from any obstacles and away
from any corrosive products.
Suction and return connections on the pool pumps are 50mm
pressure pipe dimensions.
It is recommended to install isolation valves on the suction and
return lines for easier maintenance of the pool pump.
4INVERFLOW PRO

5.2 Startup
5.3 Self- priming
5. SETTING AND OPERATION
The default flow range for Madimack Inverflow Pro
is as below:
When the power is switched on, the screen will fullu illuminate
for 5 seconds, check whether power supply voltage and
frequency conform to the nameplate;
Refer to section 4.4 before proceeding.
Before operation.
Fill the basket with water before starting up the pump.
When the screen is locked, only the button will light up;
Press and hold for more than 3 seconds, other buttons
will all light up. The screen will automatically lock up when
there is no operation for more than 1 minute and the
brightness of the screen is reduced by 1/3 of the normal
display. Short press to wake up the screen and observe
the relevant operating parameters.
:KHQVZLWFKHGRQIRUWKHUVWWLPHDIWHULQVWDOODWLRQWKHSXPS
will start self-priming.
Self-priming:
When the pump performs self-priming, it will count down
from 1500s and stop automatically when the system detects
the pump is full of water, then the system will recheck for
120s again to make sure the self-priming is completed.
User can exitself-priming manually by pressing for more
than 3 seconds. The pump will enter the defaultManual-
Inverter mode at the initial startup. If the user exits the self-
priming in the subsequent startup, the pump will return to
the previous state before the last shutdown.
Remark:
The pump is delivered with self-priming enabled. Each time
the pump restarts, it will perform self-priming automatically.
The user can enter the parameter setting to disable the default
self-priming function (see 5.10).
If the default self-priming function is disabled, and the pump
has not been used for along time, the water level in the strainer
basket may drop. User can manually activate the self-priming
function by pressing both for 3 seconds, the adjustable
period is from 600s to 1500s (default value is 600s).After the
manual self-priming is completed, the pump will return to the
previous state before activating the manual self-priming. If the
pump has entered the Auto-Inverter mode previously, the pump
will perform self-learning for 180s to redene the adjustable flow
range after the manual self-priming.
User can press for more than 3 seconds to exit the manual
self-priming, and the pump will run the same as the manual
self-priming is completed.
Power Consumption
Running capacity/ Flow rate
WIFI Indicator
Unit of flow
Timer period
Timer 1/2/3/4
On/ Off
Timer setting
To change the value (capacity/flow/time).
UP
DOWN
Switch between Adaptive Mode and Manual Mode .
Auto Inverter Mode:
The running capacity will be automatically
adjusted between 30%-120% according to the
preset flow rate.
Manual Inverter Mode:
The running capacity will be set manually
between 30%-120%.
The default mode is Adaptive mode.
3
3
1
1
2
2
5
5
4
4
6
6
5.1 Display on control panel:
Unlock
Hold down this button to unlock the screen.
5
Model
Default flow rate range
80~320
80~420
80~520
L/min
L/min
L/min
INVPRO300
INVPRO400
INVPRO500
INVERFLOW PRO

continue SETTING AND OPERATION
5.5 Auto-Inverter Mode
5.4 Manual-Inverter Mode
Under Auto Inverter Mode, the pump can automatically detect
the system pressure and adjust the speed of motor to reach
the set flow.
Note:
When the pipeline pressure is too high, to maintain an adequate
flow rate, user can set the running capacity to 105%-120%.
The pump will run at a higher speed but will not exceed the rated
power of each model. If the pump has reached the rated power at
105% and user continues to increase the running capacity, the
display will return to 105% when the motor speed is stabilized.
5.6 Timer mode
The pump’s on/off and running capacity could be commanded by
timer, which could be programmed daily as needed.
Enter timer setting by pressing .
Press or to set the local time.
Press to conUP and move to time-1 setting
Press or to choose the desired running periods,
running capacity or flow rate (when % icon is flashing,
user can change to set the flow rate by pressing .
Repeat above steps to set other 3 timers.
Hold 3 seconds to save settings and active timer mode.
Unlock the screen, press to switch from the
Manual-Inverter mode to Auto-Inverter mode.
Press to switch to Manual-Inverter mode.
Press again to switch to Auto-Inverter mode.
Press or to set the running capacity between
30%~120%, each step by 5%.
Press to start. The pump will run at 80% of the
running capacity at the initial startup after the
self-priming.
Theflow rate could be adjusted, by pressing or
with 20L/min for each stepFor the purpose of
backwashing, users can set a high flow rate
DFFRUGLQJWRWKHUHFRPPHQGHGIORZUDWHRIWKHOWHU
.
The unit of flow rate could be changed to LPM, IMP
GPM or US GPM, by pressing bothfor 3
seconds (default is L/min).
or Check 4 timers to make sure there is no invalid
setting.
NOTE:
When timer mode is activated, if the set time period contains the
current time, the pump will start running according to the set running
capacity or flow rate. If the set time period does not contain the current
time, the timer number (or 1 or 2 or 3 or 4) that is about to
startrunning will be displayed on the controller and flash,
will display the corresponding timeperiod, indicating a successful
timer setting.
All 4 time periods should be set in chronological order. Overlap setting
of time will be considered as invalid, the pump will only run based on
the previous validsetting. If all 4 time periods set by the timer areinvalid,
and will flash to remind the user, you can press
to reset the time period again to makesure they are valid.
During timer setting, if you want to return to the previous setting, hold
both for 3 seconds. If you don’t need to set all 4 timers, you can
hold for 3 seconds, the system will automatically save the current
set value and activate the timer mode.
Users can exit the timer mode by pressing .
Self-learning:
Refer to page5 for the default adjustable flow range for InverFlow Pro.
WhenUVtswitching to the Auto-Inverter mode manually or via
external control or activating timer mode with flow rate setting,
the system will perform the self-priming process (see 5.3) and
then the self-learning process for 180s and redene the adjustable
flowrange of the pump by detecting the pipeline pressure.
eg: the default adjustable flow range of Inverflow P300i is
80-420 L/min after self-learning, the range may be redened to
100-320L/min. If the set flow is beyond the current adjustable
range, the actual achievable flow rate will be displayed after the
motor speed is stabilized.
Note:
After theUVtself-learning, the pump will redeQe the adjustable flow
range. The pipeline pressure will be recorded by the system after the
pump runs at the set flow/capacity for 5 minutes without other ope-
rations. During the pump running, if itis detected that the pipelin
pressure changes beyond a certainrange, the icon of % or L/min (or
other flow units) symbol will flashfor 5 minutes. If the change last for
5 minutes, the pump will perform aself-priming and self-learning
process, and redene the flow range accordingly.
After the redenition of the flow range, the pump will automatically
adjust the running capacity to reach the set flow.
User can set the timeinterval to trigger the self-leaning automatically in
the parameter setting (see 5.10) to ensure the accuracy of the flow rate.
1
2
2
3
4
3
4
1
2
3
4
5
6
7
Hold for more than3 seconds to unlock the
screen.
1
6INVERFLOW PRO
For the purpose of
backwashing, users can set a high running capacity
DFFRUGLQJWRWKHVL]HRIOWHU

continue SETTING AND OPERATION
5.9 Parameter Setting
5.7 Skimmer Mode
5.8 Speed Limit
Description Default
Setting Setting Range
1
280%
340%
4
100%
50
6 25
Restore factory setting.
Theskimmer mode enables the pump to skim the water surface, prevents
the debris from accumulating, and provides users with a cleaner pool.
Speed
Skimmer speed
Skimmer
duration Skimmer cycle
Skimmer
duration Skimmer speed Time period Remarks
Preset
1 1h 3 min 100% 7:00 - 21:00
2 1h 10 min 100% 7:00 - 21:00
Editable in
parameter setting
Not editable
Skimmer
cycle
Time
Hold andto enter the preset interface of theskimmer mode,
press or to view the3 presets, the selected preset will be
activated after 8s without operation. User can exit theskimmer mode
without activating it by holding andin the preset interface.
At theskimmer duration, the controller will show the parameter of the
preset, user can hold to exit theskimmer duration each time.
When theskimmer duration ends, the pump will return to the normal
state for the user to operate.
User can set thespeedlimit of the running capacity to meet the
flow requirement of other equipment such as sandlters.
Speedlimit of therunning capacity can be set from 60% - 100% in
the parameter setting. (see 5.10). 100% means no speedlimit and
the running capacity can be set from 30% - 120% under normal
operation.
To ensure the performance, the following mode or process will
not be limited by the speedlimit:
1. Self-priming at each start
2. Manual self-priming
3. Self-learning
4. Auto-Inverter mode
5. Flow rate setting in the timer mode
Under off mode, hold both for
3 seconds.
Check the software
version.
Under off mode, hold both for
3 seconds.
Manual priming.
Enable or disable the
priming that occurs at
start.
Control mode of
Analog Input.
Self-priming/
Backwash capacity
25:enables
0:disables
0: current control
1: voltage control
80~100%, by 5%
increments
30~120%, by 5%
100% or
183L/min
or
or
183L/min
183L/min
Flow rate or
increments
Under on mode, hold both for
3 seconds.
Enter parameter
setting as shown.
Under off mode, hold both for
3 seconds; If current address does no
need to be adjusted, hold both
or press to next address.
Parameter
Address
3 3h 3 min 80% 7:00 - 21:00 Not editable
Description Default
Setting Setting Range
13 0 automatically
11 100% Speedlimit 60%-100%, by 5%
increments, 100%
means no speedlimit
10 7:00-
21:00
Time period of the
preset 1 of theskimmer
mode
Start time:
00:00-24:00
End time:
00:00-24:00
9
01:00
00:03
100%
Skimmer cycle:
1-24h, 1h for each step
Skimmer duration:
1-30min, 1min for each
Skimmer speed:
30%-100%, by 5%
increments
Preset 1 of theskimmer
mode (skimmer cycle,
skimmer duration,
skimmer speed)
12 170
(0xAA)
RS485 address
160-190 (0xA0-0xBF),
each step by 1.
2min
7Self-primming
recheck time 1-15min by 1min
increments
00:00
8System time 00:00 - 23:59
Parameter
Address
1. Skimmer cycle (hour)
2. Skimmer duration (minute)
31 2
4
3. Skimmer mode preset number
4. Skimmer speed
7
self-learning
automatically
INVERFLOW PRO
Digital input 2
Digital input 3
Digital input 4

6. EXTERNAL CONTROL
External control can be enabled via following contacts. If more than one external control is enabled, the priority is as below:
Digital Input >Analog Input > RS485 > Panel control
Name Color Description
PIN 1 Red Digital Input 4
PIN 2 Black Digital Input 3
Connector for
external control
PIN 3 White Digital Input 2
PIN 4 Grey Digital Input 1
PIN 5 Yellow Digital Ground
PIN 6 Green RS485 A
PIN 7 Brown RS485 B
AC POWER
OUTPUT
RB
RB
KA
Load
customer
RA
RA
Connector location for Quick connect between Madimack
Pool Heat pump and other pump requirements (RS485, Digital inputs).
Relay output AC power input
RELAY OUTPUT
Brown L
ACL ACN PE
Blue N
Yellow and Green
1
2
5
7
6
34
Setting Range
Flow rate and
Flow rate and
Flow rate and
30~120%, by 5% increments
30~120%, by 5% increments
30~120%, by 5% increments
Flow rate setting range:
INVPRO300: 83~333L/min
INVPRO400: 83~417L/min
INVPRO500: 83~500L/min
8INVERFLOW PRO

a. Digital input
7. PROTECTION AND FAILURE
continue EXTERNAL CONTROL
Running capacity is determined by the state of digital input, (5 pin)
When PIN4 connect with PIN5, the pump will be mandatory to stop; if disconnected, the digital controller will be invalid;
When PIN3 connect with PIN5, the pump will be mandatory to run at 100%; if disconnected, the control priority will be back on panel control;
When PIN2 connect with PIN5, the pump will be mandatory to run at 80%; if disconnected, the control priority will be back on panel control;
When PIN1 connect with PIN5, the pump will be mandatory to run at 40%; if disconnected, the control priority will be back on panel control;
The capacity of inputs (PIN1/PIN2/PIN3) could be modied according to the parameter setting..
7.1 High Temperature Warning and Speed Reduction
In “Auto-Inverter/Manual-Inverter Mode” and “Timer mode” (except backwash/self-priming), when the pump control system reaches the
high temperature warning trigger threshold (81°C), it enters the high temperature warning state; when the temperature drops from the high
temperature warning release threshold (78°C), the high temperature warning state is released. The display area alternately displays AL01
and running speed or flow.
1) If AL01 displayed for therst time, the running capacity will be automatically reduced as below:
b.
a. If
If current operating capacity is higher than 100%, the running capacity will be automatically reduced to 85%;
current operating capacity is higher than 85%, the running capacity will be automatically reduced by 15%;
c. If current operating capacity is higher than 70%, the running capacity will be automatically reduced by 10%;
d. If current operating capacity is lower than 70%, the running capacity will be automatically reduced by 5%.
2) Suggestion for non-rst displayed of AL01: check the module temperature every 2 minutes. Compared with the temperature in the
previous period, for every 1-degree Celsius increase, the speed will decrease by 5%.
7.2 Undervoltage protection
When the device detects that the input voltage is less than 200V, the device will limit the current running speed
When input voltage is less than or equal to 180V, the running capacity will be limited to 70%;
When the input voltage range is within 180V ~190V, the running capacity will be limited to 75%;
When the input voltage rangeis within 190V ~200V, the running capacity will be limited to 85%.
7.3 Troubleshooting
b. RS485:
To connect with PIN6 and PIN7, the pump could be controlled via Modbus 485 communication protocol.
c. Relay output (optional):
Connect terminal L & N to enable external control. An additional on-off Relay is necessary while bearing power is greater than 500W (2.5A).
Problem Possible causes and solution
Pump does not start.
Pump does not prime.
Low Water Flow.
• Power Supply fault, disconnected or defective wiring.
• Fuses blown or thermal overload open.
• Check the rotation of the motor shaft for free movement and lack of obstruction.
• Because of long time lying idle. Unplug the power supply and manually rotate motor rear shaft a
few times with a screwdriver.
• Make sure the pump basketLVOled with water and the O-ring of cover is clean.
• Loose connections on the suction side.
• Strainer basket or skimmer basket loaded with debris.
• Suction side clogged.
• Distance between pump inlet and liquid level is higher than 2m, height of pump installation should
be lowered.
• Pump does not prime.
• Air entering suction piping.
• Basket full of debris.
• Inadequate water level in pool.
Pump being noisy • Air leak in suction piping, cavitation caused by restricted or undersized suction line or
leak at any joint, low water level in pool, and restricted discharge return lines.
• Vibration caused by improper installation, etc.
• Damaged motor bearing or impeller (need to contact the supplier for repair).
9
INVERFLOW PRO

continue PROTECTION AND FAILURE
8. MAINTENANCE
7.4 Error code
W
Note:
1. When E002/E101/E103 is displayed, the device will resume working automatically, however when it appears a fourth time, the device will
stop working, to resume operation, unplug the device and plug in & restart again.
hen the device detects an error (except for the running capacity reduction strategy and 485 communication failure), it will power off
automatically and display an error code. Errors can be sometimes caused by power surge or power interference and can be reset by
Empty the strainer basket frequently. The basket should be inspected through the transparent lid and emptied when there is an evident
stack of rubbish inside. The following instructions should be followed:
1). Disconnected the power supply.
2). Unscrew the strainer basket lid anti-clockwise and remove.
3). Lift up the strainer basket.
4). Empty the trapped refuse from the basket, rinse out the debris if necessary.
Note: Do not knock the plastic basket on a hard surface as it will cause damage
5). Inspect the basket for signs of damage, replace it.
6). Check the lid O-ring for stretching, tears, cracks or any other damage
7). Replace the lid, hand tightening is sufcient.
Note: Periodically inspect and clean the strainer basket will help prolong its life.
1 2 3
Lid Cleaning
Strainer Basket
O-ring
(for Transparent Lid)
Transparent Lid
Nut for Lid
Open Wrench
powering down for 1min and restarting. I f error persist, contact your local dealer or service technician.
10 INVERFLOW PRO
Item Error Code Description Item Error Code Description
1 E001 Abnormal input voltage
2 E002 Output over current
3
Heat sink over heat
4
E102
Heat sink sensor error
5
E103 Master driver board error
6
E104 Phase-decient protection
7
E105 AC current sampling circuit failure
8
E106 DC abnormal voltage
9
E107 PFC protection
10
E108
Motor power overload
11
E201
Circuit board error
12
E203 RTC time reading error
14
E205 Communication Error15
E003 No water Protection
16 E208 Pressure sensor failure
17 E209 Loss of prime
13
E204
Display Board EEPROM
reading failure
E101

11
INVERFLOW PRO
&RQJXUDWLRQ6HSDUDWHKHDWLQJV\VWHP
&RQJXUDWLRQ,QWHJUDWHGV\VWHP
&RQJXUDWLRQ+HDWHULQWHJUDWHGV\VWHPDQG3XPS&RQWUROOHU0-%2;
9. CONFIGURATIONS WITH HEATING SYSTEM
An onboard output initiates the circulation pump to start and stop
from heat pump itself based on the temperature and timers.
For use when there are dedicated heating pipes and to separate
IURPWKHOWUDWLRQWLPHUV
Use quick connect cable “pump output ELV” socket.
Pump is activated by heater timer and temperature.
Plug water pump into sanitsation system.
Connect pump to heater with quick connect (Pump Output ELV).
Plug water pump into Pump Controller.
Plug pump controller into Sanitisation.
Plug Quick connect from pump to controller.
Plug quick connect from heater to controller.
Power outlet
A
Chlorinator
Quick connect
Power point
Heater
Power point
A
Filter
%%
%
C
C
C
D
D
D
E
Chlorinator
A
A
A
Filter
%
Water pump
Water pump
C
Pump controller
D
Sanitiser
Sanitiser
E
A

a. Email Registration
b. Third-party application registration
InverFlow Download Account registration
Android"
iOS"
Register by email or
third-party application
10. WIFI OPERATION
Create Home
Please set home name and choose the location
of the device. (It is recommended to set the
location so the weather can be shown in the
App for your convenience).
App pairing
Please make sure your pump is turned on before you start.
WiFi and Bluetooth
1) Please ensure your phoneis connected to the home
WiFi and has a strong connection at the pool pump
location.Also, please enable Bluetooth.
2) First, Unlock the screen by holding the Unlock button
for 3seconds until a beep noise can be heard and the
screenis illuminated.
3) Press button, (for 5 seconds) until hearing a beep,
then release andwill flash.
4) Click “Add Device”
Pool pump WiFi only compatible with 2.4Ghz band
and combined 2.4/5Ghz band.
4
3
1 2
12 INVERFLOW PRO
Obtain verification code
Register
Email Address
I Agree User Agreement and
Privacy Policy
'Âē~ÂĈ×Ŕ·©ē×øòø½Â
Obtain verification code
òēÂĈ~ÂĈ×Ŕ·©ē×øò
Code
ĩÂĈŔ·©ē×øò·ø½ÂÔ©ČµÂÂòČÂòē
your email [email protected]
Resend(53s)
Didn‘t get a code?
9:41 9:41
Obtain verification code
Register
Email Address
I Agree User Agreement and
Privacy Policy
'Âē~ÂĈ×Ŕ·©ē×øòø½Â
Obtain verification code
?øÏ×òēøİøęĈ%©·Âµøøç©··øęòē
connect to InverFlow
Eøµ×êÂòęðµÂĈøĈÂð©×ê©½½ĈÂČČ
Forgotten password?
Create accoumt
Not now
Help Centre
òÏê×ČÔɑn=ɒ
Portuges(Brasil)
....
òÏê×ČÔɑn=ɒ
Portuges(Brasil)
....
㕡㚨孩
ᶩ㔃䫼ỏ
....
%©·ÂµøøçĄ©ČČĪøĈ½
facebook
Í©·ÂµøøçȒ·øð A Cancel A
Log in
Obtain verification code
to continue to InverFlow
Create accoumt
Forgot email?
accounts.google.com
a×Ïò×òĪ×ēÔ'øøÏêÂ
a×Ïò×ò
Cancel A
A
Next
òÏê×ČÔɑnò×ē½aē©ēÂČɒ Help privacy Terms
ð©×êøĈĄÔøòÂ
hø·øòē×òęÂȓ'øøÏêÂĪ×êêČÔ©ĈÂİøęĈ
name,email address, language
ĄĈÂÍÂĈÂò·Âȓ©ò½ĄĈøŔêÂĄ×·ēęĈÂĪ×ēÔ
InverFlow.
9:41 9:41 9:41
Obtain verification code
Cancel Complete Home Information
Home Name Enter
Location Set
Living Room
Master Bedroom
Second Bedroom
Dining Room
=×ē·ÔÂò
Study Room
Add Room
Rooms:
Save
Obtain verification code
h©ĄēøaÂēG×·çò©ðÂ
Home Management
Message Center
%\·%½µ©·ç
Home Smart Me
?
9:41 9:41
Obtain verification code
Add Devices
Filtration
Pool Pump
a©Ĉ·Ô×òÏÍøĈò©Ĉµİ½Âĩ×·ÂČȒE©çÂ
ČęĈÂİøęĈ½Âĩ×·ÂÔ©ČÂòēÂĈ½
pairing mode.
×Č·øĩÂĈ×òÏ½Âĩ×·ÂČȒȒȒ
½½E©òę©êêİ
Add
Obtain verification code
All Devices
NO devices
Living Room ...
Home Smart Me
Room
Poor
Outdoor PM2.5
68.0%
Outdoor Humid...
džDždžNJȒLJÔY©
Outdoor Air ...
LJdž
Add Devices
Obtain verification code
Cancel
ÔøøČÂ×ʍ%×©ò½
ÂòēÂĈĄ©ČČĪøĈ½
Password
******
Next
9:41 9:41 9:41
Obtain verification code
Obtain verification code
Obtain verification code
Done
½½Â½Ȓ
Found 1 devices.
Added 0 successfully
InverFlow
Found 1 devices.
Added 0 successfully
InverFlow
InverFlow
Device added successfully
Living Room
Next
9:41 9:41 9:41

continue WIFI OPERATION
Operation
1) Using Auto Inverter mode:
2) Using Manual Inverter mode:
Changeflow rate units
Error codelist
Turn the control dial to set
theflow rate
Data
On/off
Data
On/off
Real-time power
consumption
Real-time power
consumption
Auto Inverter mode
Manual Inverter mode
Turn the control
dial to set the
running capacity
Timer
Timer
5
13
INVERFLOW PRO
Obtain verification code
InverFlow
400W
...
"*
.*
#
75%
9:41
Obtain verification code
InverFlow
100W
...
.*
#
83L/min
9:41
"*

continue WIFI OPERATION
Sharing Devices with your family members
After pairing, if your family members also want to control the device, please let your family members
register “InverFlow”Ust, and then the adminstrator can operate as below:
If you have any problem while using, welcome to sendfeedback. Notice:
1) Weather forecast is just for
reference;
2) The power consumption data
is for reference only, as it may
be affected by network problems
andimprecision of the calculation.
3) App is subject to updates
without notice.
Feedback
6
7
14 INVERFLOW PRO
Obtain verification code
Done
]ÂÏ×øò
Obtain verification code
ÔÂòēÔÂ½Âĩ×·Â×Č·øòò·ē½ēÔÂ
òÂēĪøĈçȓēÔÂĄÂĈČøòĪ×ēÔĪÔøðİøę
Ô©ĩÂČÔ©Ĉ½ēÔÂ½Âĩ×·Âð©İòøēµÂ
©µêÂēø·øòēĈøêēÔÂ½Âĩ×·ÂȒ
/òĩÂĈ%êøĪÔ©ČòøēµÂÂòČÔ©Ĉ½
YÂĩ×·Â×ČòøēČÔ©ĩ½ȓ©½½©ò
©··øęòēēøČÔ©ĈÂ×ē
aÔ©ĈÂÂĩ×ĩÂ
aÔ©ĈÂĪ×ēÔēÔÂ··øęòē/òĩÂĈ%êøĪ
aÔ©ĈÂĪ×ēÔMēÔÂĈČ
Message Copy More
Person(s)
InverFlow
½½aÔ©Ĉ×òÏ
Account Please enter your accout
½½aÔ©Ĉ×òÏ
½½aÔ©Ĉ×òÏ
1
...
9:41 9:41 9:41
Filtration
Pool Pump
½½E©òę©êêİ
Obtain verification code
Device settings
Flow rate units ðǺȱÔ
Error code list
Obtain verification code
O
InverFlow
400W
55%
...
#
.*
"*
InverFlow
Device Information
Tap-to-Run and Automation
Âĩ×·ÂMÍŕ×òÂGøē×Ŕ·©ē×øò
aÔ©ĈÂÂĩ×·Â
%\·%½µ©·ç
Add to Home Screen
Ô·çÂĩ×·ÂGÂēĪøĈç Ô·çGøĪ
GøęĄ½©ēÂČ©ĩ©×ꩵêÂ
Device Update
MÍŕ×òÂGøē×Ŕ·©ē×øò
MēÔÂĈʡČ
Remove Device
9:41 9:41 9:41
Obtain verification code
More
Obtain verification code
h©ĄēøaÂēG×·çò©ðÂ
Home Management
Message Center
%\·%½µ©·ç
Home Smart Me
?
InverFlow
Device Related FAQs
Ô©ē×ČēÔÂÍęò·ē×øòøÍ
ðęêē×ʍ·øòēĈøê©ČČø·×©ē×øò×òČĪ×ē·Ô
device settings? How...
hÔ×ČĄĈø½ę·ēĪ©ČČÔøĪòēøÔ©ĩÂ
ÂòÂĈÏİðøò×ēøĈ×òÏ·©Ą©µ×ê×ē×Âȓµęē
òøĪ/·©òʡēŔò½×ȒȒȒ
Ôİ×ČēÔÂ½Âĩ×·ÂĄøĪÂĈ
·øòČęðĄē×øòČē©ē×Č·Č×òēÔÂYY
©ĈÂČ×ò©··ęĈ©ēÂøĈÔ©ĩȒȒȒ
Ô©ēČ·ÂòÂČ½ø©Ī×ĈÂêÂČČ
ČĪ×ē·ÔʡČêø·©êçÂİČČꥥøĈēș
Ôİ×ČēÔÂČÂĈ×øęČð×Čð©ē·Ô
µÂēĪÂÂòēÔÂ½Âĩ×·ÂĄøĪÂĈ
Čē©ē×Čē×·Č½©ē©øòēÔÂYY©òȒȒȒ
nòĈÂČøêĩ½șaÂò½%½µ©·ç
...
Enter your questions
Obtain verification code
Report lssue
Ô©ēČ·ÂòÂČ½ø©Ī×ĈÂêÂČČ
ČĪ×ē·ÔʡČêø·©êçÂİČČꥥøĈēș
Ôİ×ČēÔÂČÂĈ×øęČð×Čð©ē·Ô
µÂēĪÂÂòēÔÂ½Âĩ×·ÂĄøĪÂĈ
Čē©ē×Čē×·Č½©ē©øòēÔÂYY©òȒȒȒ
nòĈÂČøêĩ½șaÂò½%½µ©·ç
...
]×ÏÔēÔÂĈÂȓĄê©ČÂ½ÂČ·Ĉ×µÂ
½Âē©×êČøÍēÔÂ×ČČęÂ©ò½òøēÂ
ēÔÂĄ©ēÔøÍēÔÂĄĈøµêÂðČęµä·ē
Čęµä·ē×òēÔÂ©ĄĄȒ
Device: InverFlow 0/1000
9:41 9:41 9:41

11. CONNECTING TO MADIMACK HEAT PUMP POOL HEATER
How to connect:
1
23
Only available on late 2022 Madimack models.
1. Switch pump off with so only power symbol is illuminated.
P1/P2:
Sticker ”Pump Output E.L.V”
Use the "Pump Output ELV"
socket to connect to plug on
water pump.
5/6：
Sticker ”Control Input”
CUSTOMIZED SOCKET
Socket
2. Press and hold and arrows for 4 seconds on until “ ” is displayed.
3. Use the or arrow whilst on “ ” to adjust to the bottom number ( )
optimum stated on the table on the right side.
Heat pump
Pool pump
The Perfect Pairing uses the intelligent communicaiton functions of the pool heat pump
to activate the speed required for the pool pump ensuring the most e cient solution for
your pool and equipment.
Adaptive Flow - Perfect Pairing with Madimack Pool Heat Pump
Pool Heater
kW size Flow rate
L/min
9-16 83
17-20 100
21-24 133
25-28 150
29-32 183
33-36 200
37-40 283
15
INVERFLOW PRO

1
1
1
8
8
1
4
4
1
2
2
8
1
1
1
1
1
1
2
QTY
2
2
2
2
2
1
1
1
1
1
1
1
1
3
1
1
1
1
T Union
O-ring (62x4.5mm)
Union Nut
Transition Joint
O-Ring for Joint (56x5.3mm)
(118x5.3mm)
Pumb Body
Strainer Basket
O-ring for Transparent Lid
Transparent Lid
Nut for Lid
Open Wrench
Drain Plug
O-ring (13.2x2.65mm)
Cross recess head screw
Volute
O-ring (8x1.8mm)
Turnable Ring
Spring Washer
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Impeller
O-ring for Seal Plate
Sealplate
Pressure sensor
Washer
Inverter controller
Fan cover
Motor
Base
Cross recess head screw
Hex Nut
Socket Head Cap Screw
Mechanical Seal
Nut for Impeller
O-Ring (125x3.55mm)
O-Ring (73x3.55mm)
Rubber Plug
Reducing bushing
O-Ring (17x2.65mm)
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
NO. Name QTY
NO. Name QTY NO. Name
12. DIAGRAM
12.1 Exploded view
4
5
14 15 16 17
35
36
34
13
12
1
37
2
3
33
31
32
18
19
20
21
25
4
5
1
37
2
3
22
24
30
29
27
26
28
7
10
9
11
8
16 INVERFLOW PRO
(204.5x4.5mm)

STANDARD CONDITIONS - Australia and New Zealand
Madimack Pty Ltd distributes pool products and provides the following warranties:
STATUTORY RIGHTS
7KHEHQHWVWRWKHFRQVXPHUXQGHUWKLVZDUUDQW\DUHLQDGGLWLRQWRRWKHUULJKWVDQGUHPHGLHVRIWKHFRQVXPHUXQGHUWKHODZVLQ
relation to the goods and services to which the warranty relates.
Our goods come with guarantees that cannot be excluded under Australian Consumer Law. You may be entitled to a replacement
or refund for a major failure and compensation for any other loss or damage. You are also entitled to have the goods repaired if the
goods fail to be of acceptable quality and the failure does not amount to a major failure.
LIMITED WARRANTY
Madimack warrants that its products are free from defects in materials and manufacture for a period of 4 years from the date of
SXUFKDVHXQOHVVRWKHUZLVHVSHFLHG
Please visit www.madimack.com.au for all warranty terms and conditions
EXCLUSIONS
LIMITATION OF LIABILITY
PROCEDURE FOR WARRANTY CLAIMS
Madimack will, at its discretion, repair or replace any product proven to be defective during the warranty period for either materials
or manufacture. Alternatively, Madimack will pay the cost of repair or replacement within 90 days of receiving the defective product,
subject to unforeseen delays. This warranty is applicable for domestic installations only, is personal to the original purchaser, and does
not transfer to any subsequent purchasers.
To the extent permitted by law, Madimack excludes all statutory or implied conditions and warranties, as well as any other liability that
may arise under statute or at law, including without limitation liability for breach of contract, negligence, or any other cause of action.
The following exclusions apply:
- Incorrect installation or operation of the unit resulting from failure to follow the provided instructions.
- Damage caused to the due to misuse or any means other than a manufacturer defect.
- Repairs or servicing performed by unauthorized dealers or service stations.
- Damage caused by an unauthorized service station repairs.
)DXOWVLQWKHPDFKLQHVRSHUDWLRQFDXVHGE\WKHXVHRIQRQVSHFLHGDFFHVVRULHV
- General wear and tear of consumable items.
To the extent permitted by law, Madimack's liability under any condition or warranty that cannot be legally excluded in relation to the
supply of goods and services is limited to one of the following options:
Repairing the goods.
Replacing the goods with equivalent products or services.
Paying the cost of replacing the goods or providing equivalent products or services again.
Paying the costs of repairing the goods.
Making a claim
The following steps should be taken when making a warranty claim with Madimack Pty Ltd.
1) Owners experiencing issues with their system are to contact Madimack Pty Ltd service departments online portal to and provide the
requested information. www.madimack.com.au
2) A service agent will review the provided information and will contact you on the provided phone number to try and solve the issue.
3) If the issue cannot be dealt with over the phone, owners will be supplied with details of service agent in their area
4) Owners will need to contact and deal with service agents directly in relation to the booking in and payments of works related to the
service or repair of their Madimack Pool Heat Pump
5) Owners can claim reimbursement for costs of works covered under the product warranty when completed by an approved Madimack
Service Agent. When making a claim, owners will need to provide the following documents.
-Proof that you are the original system owner – original invoice showing owner name and property address.
- Copy of invoice from an approved Madimack approved service agent.
- For a major defect a copy of the report for major defects from approved Madimack Service agent.
4
YEAR
ON ALL PARTS
13. WARRANTY & EXCLUSIONS
17
INVERFLOW PRO
In the event of a warranty claim, the faulty product should be returned to the place of purchase or, to an
authorised service and warranty agent repair centre.
You are responsible for arranging the removal of the defective product and the installation of the repaired
or replacement product. This includes all transportation costs and any applicable insurance fees associated
with transporting the products to the supplier and the replaced or repaired product from the supplier.
All returns require Madimack's written approval and must be accompanied by either:
A service support ticket authorized by Customer Service Manager or Authorised Agent, or
A "Return Goods Authorisation"

14. DISPOSAL
13.1 DISPOSAL CONSIDERATIONS
Observe all safety and warning information during installation and operation.
The transport and protective packaging has been selected
from materials which are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the use of raw materials
in the manufacturing process and also reduces the
amount of waste in landOOVites. Ensure that any plastic
wrappings, bags etc. are disposed of safely and kept out
of the reach of babies and young children. Danger of
suffocation.
13.2 DISPOSING OF YOUR ELECTRICAL PRODUCT
Electrical devices marked with this label may not be
disposed of in domestic waste at the end of their service
life.
Electrical and electronic appliances often contain valuable
materials. They also contain specic materials, compounds
and components, which were essential for their correct
function and safety. These could be hazardous to human
health and to the environmentif disposed of with your
domestic waste or if handled incorrectly. Please do not,
therefore, dispose of your old appliance with your
household waste.
Please dispose of those materials by contacting your local
authorities and ask for the correct method of disposal.
Please ensure that your old appliance poses no risk to
children while being stored prior to disposal.
By disposing of this product in accordance with the
regulations, you protect the environment and the health of
those around you from negative consequences.
18 INVERFLOW PRO

AG045-IH-05
