Magna-Matic MAG-8100 Series User manual

Original Instructions
MAG-8100 SERIES
PROFESSIONAL LAWN MOWER BLADE SHARPENERS

2
MAG-8100 LAWNMOWER BLADE SHARPENER
THANK YOU,
We sincerely appreciate your decision to make Magna-Matic your lawn mower blade sharpener. We understand
there are other choices in the marketplace, and we are extremely condent that after the rst few blades you
sharpen, it will be evident you’ve chosen the best machine for the job. Rest assured that if you have a question
or problem you will have complete customer support for all of our products.
800-328-1110 (USA & CANADA) or 920-564-2366
http://www.magna-matic.com
BOX INVENTORY
MAG-8100 (1/3 HP or 1/2 HP)
• MAG-8200 Sharpener
• (1) Grit Guard top
• (2) Grit Guard Sides
• (1) Grit Guard Bottom (can be ported or not)
• (1) Crank handle
• (1) Spanner Wrench
• (1) Arbor Wrench
This image shows 1/3 hp motor and non-ported grit
guard bottom.
Please be sure all the items are in the box and inspect for shipping damage, or
for missing parts. Contact Magna-Matic right away to remedy any problems due
to shipping. 800-328-1110

3
MAG-8100 (North America) MAG-8100 (Euro)
LxWxH 22” x 12” x 13” 55 x 30 x 33 cm
Weight 60 lbs 27 kg
Ship Weight 65 lbs 29 kg
Motor Specs BALDOR®/LEESON® BALDOR®/LEESON®
Horse Power 1/3 or 1/2 1/3 or 1/2
Motor RPM 3450 2850
Hertz 60 50
Volts 115 220
Phase 1 1
Amps (run) 10 6.5
Capacitors Single Single
Motor Type 1/3 HP ODP - 1/2HP TEFC 1/3 HP ODP - 1/2HP TEFC
Direction Single Direction Single Direction
Fan Cooled Yes Yes
Transmission Poly-V belt/pulley Poly-V belt/pulley
Grinding Wheels NORTON® Abrasives NORTON® Abrasives
Wheel
Dimensions
7” dia x 1” thick x 1-1/4” dia arbor
7” dia x 1/2” thick x 1-1/4” dia
arbor
17.7 cm dia x 2.5 cm thick x
3.18 cm dia arbor
17.7 cm dia x 1.27 cm thick x
3.18 cm dia arbor
MAG-8100
SPECIFICATIONS
22”
13”
12”

4
MAG-8100 LAWNMOWER BLADE SHARPENER
Before handling any equipment read and understand the instructions.
THE SAFE WAY IS THE ONLY WAY TO GRIND!
• Grounding Instructions - This tool must be grounded while in use to protect the operator from electric
shock. The tool is equipped with an approved three conductor cord and three prong grounding type plug
to t the proper grounding type receptacle. The green (or green and yellow) wire is the grounding wire.
• Extension Cords - Use only three wire extension cords which have three prong grounding type plugs and
three pole receptacles which accepts the tool’s plug. Replace or repair damaged cords.
• Keep Work Area Clean - Clean benches and oors to prevent slip, trip, or falls.
• Consider Working Environment - Don’t use power tools in damp or wet locations. Keep work area well lit.
Don’t expose power tools to rain.
• Do not use tool in presence of ammable liquids or gases.
• Keep Children Away - All visitors should be kept a safe distance from the work area. Do not let visitors
have contact with the tool or the extesion cord.
• Store Idle Tools - When not in use, tools should be stored in dry, high or locked-up places out of reach of
children.
• Do Not Force Tool - It will do the job better and safer at the rate for which it was designed.
• Do Not Over-Reach - Keep proper footing and balance at all times
• Use Safety Glasses - Also face or dust mask-wrap around goggles, or other eye protection.
• Wear Proper Apparel - Do not wear loose clothing or jewelry that can get caught in moving parts. Gloves
and non-skid footwear are requirewhen working. Wear protective hair covering to contain long hair.
• Do Not Abuse Cord - Never carry tool by cord or pull it to disconnect from receptacle.
• Keep cord away from heat, oil, and sharp edges.
• Disconnect Tool - When not in use; before servicing; when changing grinding wheels.
• Avoid Accidental Starting - Don’t carry plugged in tool. Be sure switch is o when plugging in.
• Grinding Wheels - Use only grinding wheels having a maximum operating speed of 5500 RPM.
KEEP GUARDS IN PLACE.
• Guard Against Electrical Shock - Prevent body contact with grounded surface. For example: pipes, radia-
tors, etc.
• Stay Alert - Watch what you are doing. Use common sense. Do not operate tool when you are tired, or
under the inuence of any drugs or alcohol.
• Check Damaged Parts - Before further use of the tool, a guard or other part that is damaged should be
carefully checked to determine that it will operate properly and perform its intended function.
• Check for alignment of moving parts, breakage of parts, mounting and any other condition that eect
its operation. All parts should be properly repaired or replaced. Do not use this tool if the switch does not
turn it on or o.
• Never Leave Tool Unattended - Turn the power o. Don’t leave the tool until it comes to a complete stop.
• Read “A Primer on Grinding Wheel Safety” http://www.magna-matic.com
WARNING WHEN USING ELECTRIC TOOLS, BASIC SAFETY PRECAU-
TIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY.
CAUTION LAWN MOWER BLADES HAVE SHARP EDGES - ALWAYS WEAR
PROTECTIVE GLOVES AND SAFETY GLASSES!

5
SAFETY LABELS
SAFETY COLOR DEFINITION
DANGER Interaction with the hazard will
cause severe injury or death.
WARNING Interaction with the hazard could
cause severe injury or death.
CAUTION Interaction with the hazard could
cause minor or moderate injury.
SAFETY
ICON DEFINITION
WARNING
Read all included
manuals and
bulletins included with this equip-
ment.
Always wear protective gloves when
operating this equipment.
Gloves are required.
Always wear protective eye wear
when operating this equipment.
Eye protection
required.
Always wear protective hearing
protection when operating this equip-
ment.
Hearing protection required.
Always wear respiratory protection
when operating this equipment.
Respiratory protection required.
SAFETY
ICON DEFINITION
DANGER Keep clear of the grinding wheel. Con-
tact will cause severe cuts or
abrasions.
Always keep safety guards in place.
DANGER
Disconnect power before servicing
machine
Always keep safety panels in place.
WARNING Keep clear of pulleys and belts. Con-
tact will cause severe injury.
Always keep safety guards in place.

6
MAG-8100 LAWNMOWER BLADE SHARPENER
ASSEMBLY & TESTING
CAUTION TURN OFF
AND UNPLUG
BEFORE SERVICING!
GRIT GUARD ASSEMBLY
1. Use #10 self-tapping screws to assemble the grit guard.
2. Start with the sides, they only t one possible way, check that the holes line up.
3. The grit guard sides t on the inside of the lips.
4. Assemble the grit guard bottom to the top and sides plates
5. The grit guard bottom three lips t on the outside of the grit guard box.

7
GRIT GUARD TO SHARPENER ASSEMBLY
1. Remove grinding wheel (see page 8-9)
2. Align the bottom of the grit guard to the yellow base of the sharpener. The bottom of the grit guard
should cradle the yellow base.
3. Use two #10 self-tapping screws to connect the grit guard bottom to the sharpener
4. By doing this step rst it will be easier to see which holes line up with the top of the grit guard and
the yellow grinding wheel compartment.
5. Use two button head screws from the indside of the grinding wheel compartment, use the two nylon
nuts to connect the top of the grit guard to the grinding wheel compartment.
WARNING WHEN USING ELECTRIC TOOLS, BASIC SAFETY PRECAU-
TIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY.
TESTING THE MAG-8100
Before turning the unit on, test the unit by checking if the grinding wheel moves freely. Ensure the MAG-8100
ON/OFF switch is in the OFF POSITION, plug the MAG-8100 into a 15 amp, 110 volt outlet. Switch the ON/OFF
switch to the ON POSITION to test the motor. The motor should achieve FULL speed in 1-2 seconds. If it does
not, (see page 15) or contact MAGNA-MATIC (800-328-1110).
ASSEMBLY & TESTING

8
MAG-8100 LAWNMOWER BLADE SHARPENER
ASSEMBLY
MOUNTING AND CHANGING GRINDING WHEELS
1. Be sure the MAG-8100 power cord is unplugged.
2. Use the two catch clamps to remove the black front cover.
3. Locate your spanner wrench and arbor wrench (both supplied by Magna-Matic.)
4. The arbor wrench ts into a square notch in the arbor behind the grinding wheel
5. The spanner wrench ts into the two holes in the arbor nut.
6. ARBOR HAS LEFT-HANDED THREADS.
Always inspect grinding wheels for possible damage - never mount a cracked grinding wheel.
DO NOT OVER-TIGHTEN ARBOR NUT - ONLY LIGHT PRESSURE TO TIGHTEN.
The motor will tighten the arbor nut every time the sharpener is turned on.
For optimum performance use only grinding wheels specied by Magna-Matic. All NORTON®
brand grinding wheels sold by Magna-Matic are speed tested for 5500 RPM
NOTE: ARBOR HAS LEFT-HANDED THREADS.
MAG-8100 OEM 1” WHEEL = 9000-23
Purchase replacement grinding wheels at:
https://www.magna-matic-direct.com/grinding-wheels/
The MAG-8100 Sharpener is only designed for straight at cutting edges.
The 1” wide grinding wheel is used for conventional lawn mower blades with straight at cutting edges. When you mount the
1” wheel use only the arbor nut. Do not use the arbor spacer with the 1” wide wheel. If you need a sharpener to do curved /
wavy cutting edges you need the MAG-8200M model sharpener.

9
Call with any questions!
800-328-1110
IMPORTANT STAND NOTE:
The MAG-8100 Series mounts in the same
oriention as the MAG-8000. So when you
follow your MAG-10400 Stand instructions
“STEP 7”.
The black base of the MAG-8100 is not
threaded so the mounting to the stand is
with a through bolt 1/4”.
The 10400-04 balancer arm base is a little
longer now for the new
MAG-8100 series.
IMPORTANT DUST COLLECTOR
NOTE:
The MAG-8100 Series mounts needs the
MAG-200 Dust Collector
mounted under the grit guard.
It is mounted on the opposite side that it
was for the MAG-8000.
For the MAG-8100 we have increased to a
4” diameter grit guard inlet and 4” diameter
yellow spiral hose. This increases the air
ow up 400 CFM from 250 CFM.
The table top orientation for the MAG-10400
stand for all MAG-8000, MAG-8100, and MAG-
8200 Sharpeners. This is covered in Step 7 of the
stand instruction sheet.
Use two 1/4-20 x 2” long hex bolts with 1/4 nuts
to directly mount the MAG-8100 directly to the
stand table top.
STAND SET-UP

10
MAG-8100 LAWNMOWER BLADE SHARPENER
30 DEGREE ANGLE
MOST BASIC ANGLE - READ FOLLOWING INFO!
30 degrees is the most consistent and easiest angle to maintain in the MAG-8100. It is the industry
average angle on most blades. If you are looking for the most simple way to consistently sharpen your
lawn mower blades, use 30 degrees according to following instructions.
ANGLE ADJUSTMENT
Turn off the sharpener. Lower the grinding wheel by using the aluminum crank handle within a 1/32”
from the worktable. You want to get the grinding wheel as close as possible to the white worktable
As the grinding wheel wears continue to lower the wheel to maintain this closeness to the worktable. By
doing this you will maintain 30 degrees on all your cutting edge angles of your lawn mower blades.
Do not lower the grinding wheel while the sharpener is ON. You risk grinding into the worktable which
will make it more difficult to maintain your blade edge angles.
If you do accidently grind into the worktable the MAG-8100 has an onboard replacement. There are two
of the 8100-39 worktables stacked. If you top one wears out just swap bottom to the top position. Two
worktables must be installed in the MAG-8100 or your blade will not be at the correct height to maintain
30 degrees. If you would like a larger worktable you can purchase two of part 8200-046 to have a 12”
long worktable.
ANGLE ADJUSTMENT
WARNING WHEN USING ELECTRIC TOOLS, BASIC SAFETY PRECAU-
TIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY.
CAUTION TURN OFF
AND UNPLUG
BEFORE SERVICING!
The grinding wheel must ALWAYS
be lowered to the worktable
to maintain 30 degrees.
Adjust wheel downward to
adjust for wear or to change
angles.
30°

11
Loosen
Tighten
GRINDING WHEEL
REPLACEMENT
CAUTION LAWN MOWER BLADES HAVE SHARP EDGES - ALWAYS WEAR
PROTECTIVE GLOVES AND SAFETY GLASSES!
Be sure the MAG-8100 power cord is unplugged. Using a 5/16” socket wrench remove the (3)
screws of the front steel guard. Locate your spanner wrench and arbor wrench (both supplied
by Magna-Matic.) The arbor wrench ts into a square notch in the arbor behind the grinding
wheel, and the spanner wrench ts into the two holes in the arbor nut. See diagrams below.
Always inspect grinding wheels for possible damage - never mount a cracked grinding wheel.
DO NOT OVER-TIGHTEN ARBOR NUT - ONLY LIGHT PRESSURE TO TIGHTEN.
The motor will tighten the arbor nut every time the sharpener is turned on.
For optimum performance use only grinding wheels specied by Magna-Matic. All NORTON®
brand grinding wheels sold by Magna-Matic are speed tested for 5500 RPM
NOTE: ARBOR HAS LEFT-HANDED THREADS.
OEM WHEEL 1” WIDE = 9000-35
OEM WHEEL 1/2” WIDE = 8000-30

12

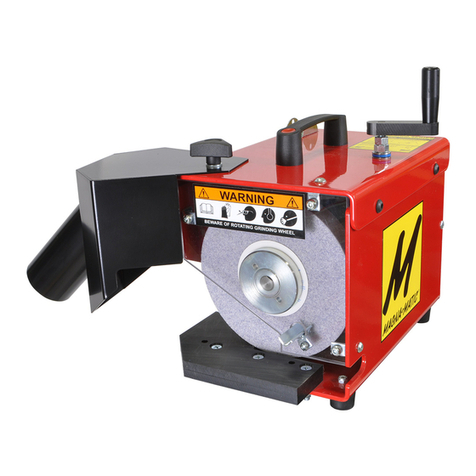

MAG-8100 LAWNMOWER BLADE SHARPENER
SHARPENING A LAWN MOWER BLADE
Be sure to wear protective clothing while handling and sharpening lawn mower blades. Wear safety
glasses and protective gloves. Always de-burr the underside of the blade, prior to sharpening the blade.
BLADE & SHARPENER PREPARATION
1. Clean the blade to its base material, using the MAG-12008 blade cleaner, or alternate cleaning
process. Inspect the blade for fractures. (never weld mower blades)
2. Check the straightness with the gauge rod of the MAG-1000 blade balancer
(never straighten bent blades)
3. Obtain a balance reading from the MAG-1000 to indicate the light end of the lawn mower blade.
Once the light end is sharpened, that end is complete. The heavy end is used to remove material
for balance. See MAG-1000 instructions for more details on blade balancing.
(never weld mower blades)
4. Adjust the cutting edge angle to 30 degrees.
CONVENTIONAL BLADE SHARPENING
1. Switch the ON/OFF switch to ON position
2. Place the conventional blade on the worktable, you should push and pull the blade across the
grinding wheel. Notice approach the grinding wheel as shown.
3. Stay perpindicular to the rotation of the wheel.
4. Keep firm downward pressure on the top of the blade so that contact is maintained with the
worktable. This is important because the angle is referenced off the worktable and underside of the
blade.
5. The force into the grinding wheel should be substantial resulting in a continuous stream of sparks
and a deep smooth grinding sound.
6. The grinding process should be continuous without interruption until finished.
CONVENTIONAL BLADES
CAUTION LAWN MOWER BLADES HAVE SHARP EDGES - ALWAYS WEAR
PROTECTIVE GLOVES AND SAFETY GLASSES!
IT IS TAKING A LOT OF GRINIDNG TO GET A SHARP BLADE?
Are the grinding marks on the “trailing edge” (top edge) of the mower blade cutting edge?
That means your blades were at a steeper angle then you are grinding now. If your blades were
previously sharpened with some other method it is very likely your cutting edge angles are near 45
degrees. It is very common for blades sharpened on other machines or with an angle grinder to be way
up at 45 degrees or steeper. This often happens when people “free-hand” grind.
The MAG-8200 is going to make a consistent 30 degree angle - so your first grinding may take much
longer and use more of the grinding wheel because you are re-machining your blades. This correction
requires a lot of steel be removed to go from 45 down to 30 degrees.
Don’t worry, once fix all your blades and make them 30 degrees, every sharpening after that will be very
fast because you will grind a consistent angle everytime from now on with your MAG-8200.

13
Keep constant pressure downward to
maintain flat contact with the blade underside and worktable.
Slide the blade back and
forth across the grinding wheel.
Apply pressure into the
grinding wheel to remove
material.
MAG-8100 Sharpener
Overhead-View
Right-Handed
Blade
Left-Handed
Blade

14
MAG-8100 LAWNMOWER BLADE SHARPENER
GENERAL CARE:
Keep the MAG-8100 clean, use compressed air to blow the machine o󰀨 periodically.
POLY-V BELT REPLACEMENT & ADJUSTMENT
• Unplug the sharpener from power source.
• Remove the steel pulley cover, 6 screws (5/16” wrench or socket)
• Remove the old belt.
• First put the belt over the grinding wheel pulley.
• Next put the belt on the smooth part of the idler pulley
• Pull the belt over the motor pulley, on to the smooth part.
• By pulling on the belt you will compress the idler pulley.
• Now rotate the pulleys and push the belt over to get all the little ribs of the belt into the groves in the
pulleys.
• Ensure all 6 ribs are seated in all 3 pulleys, and rotate the pulleys by hand to check.
The poly-V belt is always under proper tension by the idler pulley.
MAG-8100 SERVICE & CARE
CAUTION LAWN MOWER BLADES HAVE SHARP EDGES - ALWAYS WEAR
PROTECTIVE GLOVES AND SAFETY GLASSES!

15
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Motor fails to start
Fan guard bent/dam-
aged and contacting
fan.
Replace fan guard, if possible, straighten it.
Motor has been running,
then fails to start
Fuse or circuit breaker
tripped. Replace fuse or reset the breaker.
Motor has been running,
then fails to start
Motor overloaded or
load jammed.
Inspect to see that the load is free. Verify amp draw of motor versus nameplate
rating.
Motor has been running,
then fails to start
Capacitor may have
failed.
First discharge capacitor. To check capacitor, set volt-ohm meter to RX100 scale
and touch its probes to capacitor terminals. If capacitor is OK, needle will jump
to zero ohms, and drift back to high. Steady zero ohms indicates a short circuit;
steady high ohms indicates an open circuit.
Motor has been running,
then fails to start
Starting switch has
failed.
See wiring diagram and connect the black wire from the motor and the black
wire from the cord to bypass the switch.
Motor runs but dies down Voltage drop
If voltage is less than 10% of the motor’s rating contact power company or check
if some other equipment is taking power away from the motor. If motor is run us-
ing an extension cord, verify that this extension cord is properly sized for motor’s
current draw.
Motor takes too long to
accelerate Defective capacitor Test capacitor per previous instructions.
Motor takes too long to
accelerate Bad bearings Noisy or rough feeling bearings should be replaced.
Motor takes too long to
accelerate Voltage too low.
Make sure that the voltage is within 10% of the motor’s nameplate rating. If not,
contact power company or check if some other equipment is taking power away
from the motor.
Motor overload protector
continually trips
Ambient temperature
too high.
Verify that the motor is getting enough air for proper cooling. Most motors are
designed to run in an ambient temperature of less than 40°C. (Note: A properly
operating motor may be hot to the touch.)
Start capacitors continu-
ously fail.
Voltage to motor is too
low.
Verify that voltage to the motor is within 10% of the nameplate value. If the mo-
tor is rated 110-125 V, the deviation must be calculated from 125 V.
MAG-8100 is vibrating Grinding wheel is out-
of-round
Dress the wheel and old lawn mower blade. Use a perfectly at area, like
around the mounting hole. Place it in the sharpener like you would normally,
and slowly apply pressure into the wheel. Do not go back and forth, just apply
even pressure, and let the wheel true itself.
MAG-8100 is vibrating Bad motor bearings Remove the grinding wheel, and run the MAG-8100. Inspect the motor shaft
and bearings.
MAG-8100 is vibrating Loose pulleys or
bearings Tighten set screws, locking agent should be used.
MAG-8100 is vibrating Poor belt tension Check and tension belt
MAG-8100 is vibrating Bad drive shaft
bearings Check and replace the two spindle bearings
MAG-8100 crank will not
adjust the wheel up or
down
Adjustment truck is
jammed Inspect the adustment truck and guide rods for foreign material, clean.
Unable to remove
grinding wheel Turning wrong direction The arbor nut has left-handed threads. Turn clockwise to loosen. Use both the arbor and spanner wrench.
Di󰀩cult to remove
grinding wheel
Extremely tight, wheel
has not been changed
in a long time.
Using both the spanner and arbor wrenches, Allow the arbor wrench to stop
against the yellow body, Use a plastic hammer and tap the end of the spanner
wrench, imparting vibration will shock the nut loose. In extreme situations you
can apply heat, only to the arbor nut. Last resort, you can break the wheel o󰀨
the arbor.

16
MAG-8100 LAWNMOWER BLADE SHARPENER
Description Diagram
Relief Angle One:
Top view - built into the blade
(generally 2-5 degrees)
Relief Angle Two:
End view - To be re-sharpened
(industry average is 30º)
Relief Angle Three:
End view - built into the blade
Top View of Blade Land-side:
Worn Blade Edge
Worn away bottom surface at tip. As shown, is a
sign of poor blade maintenance. The blade will
tear the grass, resulting in a poor looking lawn.
1
2
No Tip = Dull
3
Blade Tip Geometry.
What part of a rotary lawn mower blade cuts the grass?
It is a common misconception that lawn mower blades cut like a knife. It actually has more in common
with the way circular saw teeth cut. The confusion comes from the two shapes; a lawn mower blade
looks like a rectangle, and the circular saw is a circle. Keep in mind that when the
lawn mower blade is in motion it is also a circle. The primary di󰀨erence is that a circular saw is for
wood or metal. Because these materials are much more dense, more cutting teeth are required. Turf is
considerably less dense than wood or steel so only two teeth are required.
The tips of the blade do the majority of the cutting work; they are the cutting teeth of the blade.
Repeated observation of worn cutting edges show that the rst 1-2 inches do the majority of the cut-
ting. To produce a cutting tip, three relief angles are necessary.
Training Video
Generally 0° Optimum

17
Cutting Diameter
Cutting Edge
Lift
Lift
30°
Cutting Edge
Cutting Tip
Cutting Tip
Understanding the Rotary Lawn Mower Blade
The rst 1-2 inches of any lawn mower blade do the majority of the cutting work and take the most wear. This
is where the most grinding is required to reproduce a cutting tip again.
Often people think that the full cutting edge must be ground back parallel to the rest of the blade. This is not
necessary and can create a dangerous fracture point if done (see image #2). Image #1 shows the over-head
view of the blade that, over the life of the blade will become “tapered looking” from wear and re-sharpening.
This follows the natural wear pattern of a rotary lawn mower blade’s use. We recommend this method be-
cause less steel is removed. Leaving more steel there will help prevent a fracture that could discharge a part
of the blade from the deck.
SAFETY
GOOD
BAD
FRACTURE POINT
IMPORTANT NOTES:
Welding, straightening, sharp corners, and
overheating the lawn mower blade may
create fractures that break the blade under
normal use and may cause injury.
Training Video

18
MAG-8100 LAWNMOWER BLADE SHARPENER
KEY # PART NUMBER DESCRIPTION QUANTITY
1 8100-23 Front grinding wheel cover 1
2 H-10C0375TSWZ/F #10-24 X 3/8 HEX HEAD SELF TAPPING SCREW TYPE F 30
3 9000-19 Arbor nut 1
4 9000-23 Grinding wheel 7”x1”x1-1/4” soft 1
5 9000-20 Arbor 1
6 8100-01 or 200-19 8100-01 is the 1/3 HP motor and 200-19 is the 1/2 HP motor option 1
7 8100-31 Cord retension 1
8 9000-54 ON / OFF toggle switch 1
9 200-18 Red switch cover 1
10 9000-12 Cord set 1
11 9000-58 Carry handle 1
12 H-37WLZ 3/8” lock washer 4
13 H-37C075HSZ 3/8”-16 x 3/4” hex screw 4
14 H-25C050KSD 1/4”-20 x 1/2” dog poitn set screw 2
15 8200-030 Motor pulley 1
16 8200-018 3/8” bronze washer 1
17 H-25C150SSZ 1/4”-20 x 1.50” long socket screw 1
18 8200-027 Drive belt tensioner plate 1
19 8200-008 1-3/8” internal retaining ring 2
20 8200-029 Idler pulley 1
21 8100-41 Idler bearing 2
22 8200-028 Drive belt tensioner shaft 1
23 H-25WFZ700 1/4” over-sized M6 washer 1
24 H-25WLZ 1/4” lock washer 1
25 H-25CNFZ 1/4”-20 nut 1
26 H-25N100KSS 1/4”-20 x 1.00 shoulder bolt 1
27 8100-27 Pulley inside cover 1
28 8100-25 Pulley cover bottom 1
29 8100-42 Drive belt 1
30 8100-26 Pulley cover 1
31 8200-033 Tensioner plate pivot 1
32 8200-016 Curved spring washer 1
33 8200-011 3/8” external retaining ring 1
34 8200-031 Drive shaft pulley 1
35 H-25WFZ700 1/4” over-sized M6 washer 1
36 H-25WLZ 1/4” lock washer 2
37 H-25C050HSZ 1/4”-20 x 1/2” long 12
38 8200-032 Spring holder 1
39 8200-013 Spring for belt tension 1
40 8100-24 Pulley cover top 1
41 8200-078 Grit guard bottom 1
42 8200-075 Grit guard top 1
43 8200-076 Grit guard sides 2
44 H-25CNINFZ 1/4”-20 nyloc nut 4
45 8100-39 Worktable (standard size) 2
46 H-25C125PFZ 1/4”-20 x 1.25” long phillips screw 4
47 8100-28 Angle nut 3
48 9000-13 Crank handle base 1
49 9000-14 Crank handle 1
MAG-8100 PARTS KEY

19
MAG-8100 PARTS DIAGRAMS
01
03
02
04
05

20
MAG-8100 LAWNMOWER BLADE SHARPENER
06
07
10
08 09
11 13
12
