Magnum Industrial MI-51350 User manual

MODEL NO.: MI-51350 & MI-51453
OPERATING MANUAL

2
Table of Contents
Table of Contents .....................................................................................................................................2
Warnings...................................................................................................................................................3
Specifications ...........................................................................................................................................6
Shipping Contents ....................................................................................................................................7
Unpacking .............................................................................................................................................7
Cleaning................................................................................................................................................7
Contents of the Shipping Container ......................................................................................................8
Assembly..................................................................................................................................................9
Motor Cover ..........................................................................................................................................9
Handwheel Assembly............................................................................................................................9
Miter Gauge and Fence Storage Hooks................................................................................................9
Extension Wing ...................................................................................................................................10
Blade Installation/Replacement...........................................................................................................10
Riving Knife and Guard Installation.....................................................................................................11
Mounting Rails & Extension Table ......................................................................................................12
Switch Installation ...............................................................................................................................12
Electrical Connections............................................................................................................................12
Adjustments............................................................................................................................................13
Handwheel Adjustments .....................................................................................................................13
Insert Adjustment ................................................................................................................................13
Miter Gauge ........................................................................................................................................13
Riving Knife Adjustment......................................................................................................................14
Blade Alignment..................................................................................................................................15
Adjusting 45 and 90 Positive Stops..................................................................................................16
Changing the Belt................................................................................................................................17
Maintenance...........................................................................................................................................17
Cleaning..............................................................................................................................................17
Lubrication...........................................................................................................................................17
Miscellaneous .....................................................................................................................................17
Troubleshooting......................................................................................................................................18
Table & Cabinet Parts List (Bow Front Type)......................................................................................19
Table & Cabinet Parts List (Flat Front Type).......................................................................................22
Motor and Trunnion Assembly Breakdown .........................................................................................25
Blade Guard Parts and Assembly.......................................................................................................30
Wiring Diagrams.....................................................................................................................................32
The specifications in this manual are given as general information and are not binding. Sellers have the
right to effect at any time and without prior notice, changes or alterations to parts, fittings, and accessory
equipmentdeemednecessaryforanyreasonwhatsoever.

3
1.
Readandunderstandthe entireowner'smanualbeforeattempting assembly oroperation.
2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with
allofthesewarnings maycause seriousinjury.
3. Replacethewarninglabelsiftheybecome obscuredorremoved.
4. This table saw is designed and intended for use by properly trained, experienced personnel and sales
agent only. If you are not familiar with the proper and safe operation of a table saw, do not use until
propertrainingandknowledge have beenobtained.
5. Do not use this table saw for other than its intended use. If used for other purposes, Manufacturer
disclaims any real or implied warranty and holds itself harmless from any injury that may result from
thatuse.
6. Always wear approved safety glasses/face shields while using this table saw. Everyday eyeglasses
onlyhave impactresistant lenses; they are not safety glasses.
7. Before operating this table saw, remove tie, rings, watches and other jewelry, and roll sleeves up past
the elbows. Remove all loose clothing and confine long hair. Non-slip footwear or anti-skid floor strips
arerecommended. Do not weargloves.
8. Wearearprotectors(plugsormuffs) during extended periods ofoperation.
9. Some dust created by power sanding, sawing, grinding, drilling and other construction activities
contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples
ofthesechemicalsare:
Lead from lead based paint.
Crystalline silicafrom bricks,cement and other masonry products.
Arsenicandchromiumfromchemicallytreatedlumber.
Your risk of exposure varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals, work in a well-ventilated area and work with approved safety equipment,
suchasface or dust masks that are specifically designed tofilter outmicroscopic particles.
10. Donotoperate this machine while tired orunderthe influence of drugs, alcohol or any medication.
11. Makecertainthemachine isproperlygrounded.
12. Make all machine adjustments or maintenance with the machine unplugged from the power source. A
machine under repair should be RED TAGGED to show it must not be used until maintenance is
complete.
13. Remove adjusting keys and wrenches. Form a habit of checking to see that keys and adjusting
wrenches areremovedfromthe machinebeforeturningiton.
14. Keep safety guards in place at all times when the machine is in use. If removed for maintenance
purposes,useextremecautionandreplacetheguardsimmediately.
15. Check the alignment of the riving knife, fence and miter slot to the blade. A caution decal is installed
oneachguardtoremind the operator ofthe dangers of improper machine operation.
16. Check damaged parts. Before further use of the machine, a guard or other part that is damaged
should becarefully checked to determine that it will operate properly and perform its intended function.
Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any
other conditions that may affect its operation. A guard or other part that is damaged should be
properlyrepairedorreplaced.
17. Provideforadequatespacesurrounding workareaandnon-glare, overheadlighting.
18. Keepthe floor around the machine clean andfree of scrap material, oil and grease.

4
19. Keepvisitors a safe distance from the work area. Keepchildren away.
20. Make your workshop child proof with padlocks, master switches or byremoving safety keys.
21. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are
carelessactsthat canresultinseriousinjury.
22. Maintain a balanced stance at all times so that you do not fall or lean against the blade or other
moving parts.Do not overreach oruseexcessiveforce to perform anymachineoperation.
23. Use the right tool at the correct speed and feed rate. Do not force a tool or attachment to do a job for
which it was not designed. The right tool will do the job better and safer.
24. Userecommendedaccessories;improperaccessoriesmaybehazardous.
25. Maintain tools with care. Keep blade sharp and clean for the best and safest performance. Follow
instructionsforlubricatingandchangingaccessories.
26. Check the saw blade for cracks or missing teeth. Do not use a cracked or dull blade or one with
missing teeth orimproper set. Make sure the blade issecurely locked onthe arbor.
27. Keep hands clear of the blade area. Do not reach past the blade to clear parts or scrap with the saw
blade running. Never saw freehand. Avoid awkward operations and hand positions where a sudden
slip could cause your handtocontact the blade.
28. Do not attempt to saw boards with loose knots or with nails or other foreign material, on its surface.
Do not attempt to saw twisted, warped, bowed or “in wind” stock unless one edge has been jointed for
guiding purposespriortosawing.
29. Do not attempt to saw long or wide boards unsupported where spring or weight could cause the
boardtoshiftposition.
30. Always use the riving knife, blade guard, push stick and other safety devices for all operations where
they can be used. On operations such as dadoing or molding where the blade guard cannot be used,
use feather boards, fixtures and other safety devices and use extreme caution. Reinstall the riving
knifeandbladeguardimmediatelyaftercompletingtheoperationthatrequiredtheirremoval.
31. Be sure the saw blade rotates clockwise when viewed from the motor side (Left side) of the machine.
32. Turn off the machine before cleaning. Use a brush or compressed air to remove chips or debris —do
notuse your hands.
33. Donotstand onthe machine. Serious injury could occur ifthe machine tips over.
34. Never leave the machine running unattended. Turn the power off and do not leave the machine until it
comestoacomplete stop.
35. Removelooseitemsandunnecessary work piecesfrom thearea beforestarting the machine.
Familiarize yourself with the following safety notices used in this manual:
This means that if precautions are not heeded, it may result in minor injury and/or
possiblemachinedamage.
This means that if precautions are not heeded, it may result in serious injury or possibly
even death.

5
Specifications TSCE-10L
Stock Number .............................................................................................................MI-51350 (3 HP, 1 Ph)
..........................................................................................................................MI-51453 (5 HP, 1 Ph)
Blade Diameter ....................................................................................................... ............................ 10"
Arbor Diameter ..................................................................................................................................... 5/8"
Maximum Depth of Cut ............................................................................................................................... 3"
Maximum Thickness at 45 Cut ...........................................................................................................2-1/8"
TableinFrontofSawBladeatMaximumCut........................................................................................10"
Maximum Width of Dado.....................................................................................................................13/16”
Maximum Diameter of Dado ....................................................................................................................... 8"
Dust Port Diameter.................................................................................................................................. 4"
Table Height ....................................................................................................................................33-7/8"
Table Size (with extension) .......................................................................................................29"D x 42"W
Table Size (without extension) ..................................................................................................29"D x 20"W
Arbor Speed .............................................................................................................................. 4300 RPM
Motor ………… ..............................................................................................................3HP, 1Ph, 230V only
…….....................................................................................................................5 HP, 1Ph, 230V only
Net Weight (approx) . ........................................................................................................................ 330lbs.

6
Shipping Contents
Unpacking
Remove box and wood crating completely from
around saw. Check for shipping damage. Report
any damage immediately to your distributor and
shipping agent. Do not discard any shipping
material until the Table Saw is assembled and
running properly.
Compare the contents of your container with the
parts lists in the next two pages to make sure all
parts are intact. Missing parts, if any, should be
reported to your distributor. Read the instruction
manual thoroughly for assembly, maintenance
andsafetyinstructions.
1. Unbolt the sawfrom the skid.
2. Carefully slide the saw from the pallet onto
thefloor.
Do not connect the tablesaw
to the power source until all assembly has
been completed! Failure to comply may
causeseriousinjury!
The Table Saw should be placed in an area with
a sturdy level floor, good ventilation and
sufficient lighting. Leave enough space around
the machine for mounting extension wings and
rail assemblies, and loading and off-loading
stockandgeneralmaintenancework.
Cleaning
Exposed metal surfaces, such as the table top
and extension wings, have been given a
protective coating at the factory. This should be
removed with a soft cloth moistened with
kerosene. Do not use acetone, gasoline, or
lacquer thinner for this purpose. Do not use
solvents on plastic parts, and do not use an
abrasive pad because it may scratch the
surfaces.

7
Contents of the Shipping Container
Main Saw Container
1 Table Saw(A)
1 Switch(B)
1 TableInsert(C)
1 Owner'sManual(D)
Extension Tables
Two extension tables are packaged in individual
boxes.
(One extension table with sliding table)
1 ,QVSHFWLRQ 5HFRUG (not shown)
Side CoverBox
Extension Tables
B
MainSawContainer
1 SideCover
Contents of Side Cover Box
Small Box
The small box consists of the following items:
1 BladeGuardAssembly(D)
1 Riving Knife andPawlAssembly(E)
1 Handwheel and SwivelHandle (F)
1 Lock Knob(G)
2 Large Hook for UsRip Fence (H)
1 SmallHook forMiter Gauge (J)
1 Push Stick(K)
1 MiterGaugeAssembly(L)
1 ArborWrench(M)
D
Contents of the Small Box
C
A

8
G
H
J
H
C
A

9
A

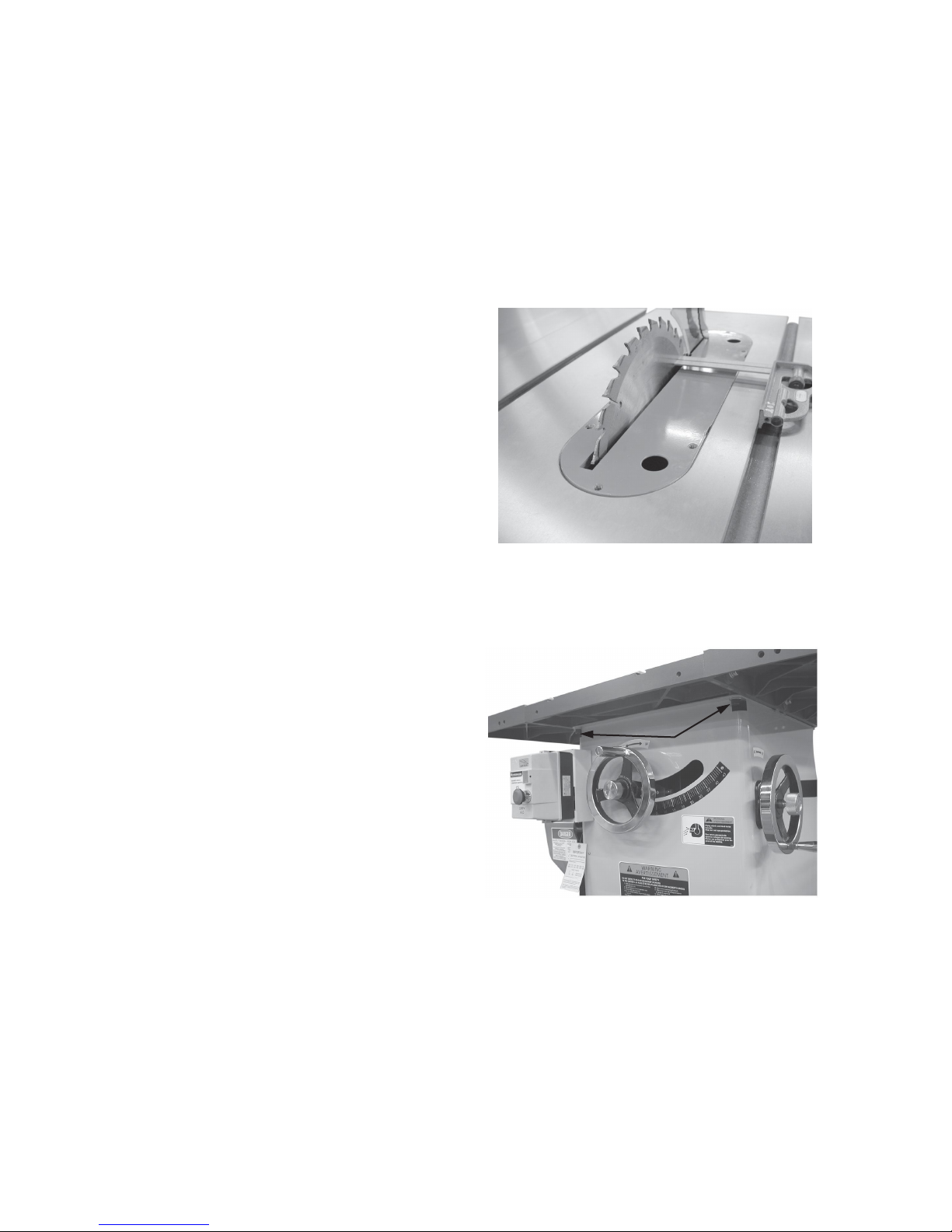

Extension Wing
Referring to Figures 4 and 5:
Hardware: (6) 7/16”x1-1/2” Hex Cap Bolts, (6) 7/16”
Lock Washers, (6) 7/16” Flat Washers & (2)
Extension Tables
Tools: 17mm Wrench, Straight Edge
1. Attach the left extension wing (A) to the
table (B) with three each hex cap screws (E),
lock washers (F) and flat washers (G). Snug so
the extension wing can still be manually
adjustedbutdonottighten.
2. Adjust the extension wing horizontally so the
front edge is flush with the front edge of the
saw table (C). Then, using the straightedge as
reference, adjust vertically so the tops of the
extension wing andsawtable areflush.
3. Tighten the three extension wing mounting
screws.
4. Remove the mounting hardware (Fig. 5) from
the table on the right side; then attach the right
extension wing inthesamemanner.
Blade Installation/Replacement
Use care when working with or
aroundsharp saw blade toprevent injury!
To install or replace a blade (refer to Figure 6):
Tools: 27mm Wrench
1. Disconnectmachinefrompowersource.
2. Raise the blade height all the way up and set
the blade tilt to 0º (refer to Handwheel
Adjustmentsonpage14).
3. Removethetableinsert.
4.
Rotate the arbor to line up the slot (C) with the
arbor lock (D).
5. Press the arbor lock (D) in the direction shown
by the arrow to engage it into the slot (C) in the
arbor. At the same time remove the arbor
nut (A), loosening with a 27mm wrench if
necessary.
6. Removethecollar(B).
7. Install the blade, making sure the cutting teeth
at the top of the blade point toward the front of
the saw. If unsure, refer to Figure 8 for the
properbladeorientation.
8. Replace the collar (B) and arbor nut (A).
9. Engage the arbor lock (D) and tighten the nut
(A) with a27mm wrench.
10. Lower the blade below the table.
B
C
Figure 4
Figure 5
B
Figure 6
A
C
D

10
Riving Knife and Guard Installation
Description
Referring to Figure 7:
The complete riving knife and guard assembly is
shown in A.
Installation
Referring to Figure 8:
1. Set the saw blade to the 90 degree position
and raise it all the way (refer to Handwheel
Adjustmentsonpage13).
2. Removethetable insert(J).
3. Located inside the table and accessible
through the insert opening (Figure 8 inset),
place the quick-release clamp lock handle (K)
inthe unlock position.
4. The floating clamp block (L) is spring loaded
and will move away (O) from the fixed
block (M), leaving a gap.
5. Insert the bottom of the riving knife (N1, N2) all
the way into the gap between the clamp blocks
(L, M); then lock the handle (K).
6. Replace the insert (J) back on the table. The
saw blade and riving knife should protrude
through the slot intheinsert.
You should feel a snap as each piece locks in
position. Attempt to lift as a test to make sure that
they are securely locked in place.
Adjustment
The clamping blocks (L, M, Fig. 8) are adjusted at
the factory and no further adjustment of the blade
guard and riving knife assembly should be
necessary. However, proper alignment is very
important. Before operating the table saw, read
Riving Knife Adjustment (p.14) to verify and follow
the adjustment procedure if necessary.
Note: please use the correct thickness of Riving
Knife to fit your blade.
E
A
Figure 7
Figure 8
J
N1
P
M

11
Mounting Rails & Extension Table
With the extension wings properly aligned, the
rail and fence assembly can now be mounted to
the saw. Refer to the Rip Fence Owner's Manual
for mounting instructions for the rails, fence
Electrical Connections
A qualified electrician must
complete all electrical connections! Failure
to comply may result inserious injury!
and optional wooden extension table.
Switch Installation
Referring to Figure 9:
Attaching the Switch Bracket Assembly
Tool: 10PP :UHQFK
1. /RRVHQ KH[ 1 XW DQG /RFN :DVKHU IURP W KH
6 Z L W F K 3 O D W H & D UU L Q J H % R OW .
2.3ODFH VZLWFK EUDFNHW DVVHPEO\ LQWR FDELQHW
I U R Q W / H I W V L G H .
3.$OLJQ WKH VZLWFK DQG W LJKWHQ D O O KDUGZDUH.
Figure 9
The machine must be
properly grounded while in use to protect the
operator from electric shock! Failure to
complymay resultinseriousinjury!
If a plug is provided with your machine, do not
modify the plug. If it will not fit your electrical
receptacle, have a qualified electrician install the
properconnectionstomeetallelectricalcodes.
1. Disconnect the machine from the power
source, (unplug).
2. Openthe saw cabinet door.
3. Remove the cover from the motor junction
box.
4. Change wires following the diagram on the
inside of the cover.
5. Replace the cover and close the cabinet
door.
Confirm power at the site is the same as the saw
before making any electrical connections.
Reviewthe electricalschematicsonpage29-30.
The on and off switch is thermally protected . If
the saw motor is overloaded, or a momentary
interruption of electrical current is sensed, the
saw will shut off. Allow a few minutes for the
saw to cool down and reset by pushing the off
button .
Using extension cords can cause a loss in
power to your machine. It is best if the saw is
plugged directly into an outlet on a dedicated
circuit.

12
C
A
D
Adjustments
Handwheel Adjustments B
Referring to Figure 10:
The front handwheel (B) controls the raising and
lowering of the blade (blade height).
The side handwheel (D) controls the blade tilt. The
blade can be adjusted for a tilt between 90º
(vertical or a setting of 0ºon the scale) and 45ºleft
tilt(D).
Blade height
1. Loosen the lock knob (A) on the front
handwheel (B).
2. Turn the handwheel (B) clockwise to raise and
counterclockwisetolowertheblade.
3. Tighten the lockknob(A).
Blade tilt adjustment
1. Loosen the lock knob (C) on the side
handwheel(D).
2. Turn the handwheel (D) counterclockwise to
adjust the saw blade down to 45º OHIW tilt.Turn
clockwise to adjust the saw blade to maximum
of 90º.
3. After selecting the position, tighten the lock
knob(C).
Insert Adjustment
Adjust the setscrews in the insert with a 3mm hex
wrench (Figure 11) to ensure that the insert is
stable and flush with the table top.
Figure 10
Figure 11
Miter Gauge
Referring to Figure 12:
1. Operate miter gauge by loosening the lock
knob (A) and turning the miter body (B) to the
desired angle. To move gauge beyond index
stops of 45 and 90 , flip down the stop (C).
2. Adjust index stops by turning one of three
adjustmentscrews(D).
Note: Always make test cuts. Do not rely solely on
miter gauge indicator marks. There are holes in the
miter gauge body that will allow you to mount a
woodenextensionfence. Figure 12
A
B
D
C

13
Riving Knife Adjustment
Lateral alignment
The saw blade and riving knife must be in line as
close as possible with each other (lateral
alignment) for the prevention of kickback. Upon
initial blade guard and riving knife installation no
further adjustment should be necessary. Alignment
should be checked and adjusted, if required, after
eachbladechange.
Check the alignment as follows:
1. Remove the blade guard and pawl (A, E,
Fig. 7).
2. Place a straightedge (A, Fig. 13) on the table
so it rests against the blade (B, Fig 13) and
riving knife (C, Fig. 13). Rotate the blade so the
top ofthe blade tooth touches the straightedge.
The saw blade and riving knife must be in line.
Ifadjustmentisrequired:
3. Removethetableinsert.
4. Loosen the lock handle (A, Fig. 14) and
remove the riving knife, making a note as to
which direction the riving knife needs to be
moved to align it with the saw blade.
5. Using a 3mm hex wrench, make adjustments
to four set screws (D, Fig. 15) accessible
through openings located in the corners of the
floating clamp block (B, Fig. 15).
6. Ifnecessary,repeattheaboveprocedure.
Blade proximity alignment
The gap between the saw blade and riving knife
must be between 3 and 8mm (Figure 16) to reduce
the possibility of kickback. If adjustment is needed,
note whether the blade to knife gap needs to be
increasedordecreased.Thenadjustasfollows:
1. Remove the blade guard, pawl, table insert and
rivingknife.
Referring to Figure 15:
2. With a 4mm hex wrench, loosen two socket
headflat screws(E).
Note: These screws are accessible through
openings on the floating clamp block (B)
located diagonally on either side of the lock
handle (A). They secure the fixed clamp
block (C) to the riving knife extension plate (F).
Loosening these screws (E) will allow the fixed
clamp block (C) to slide back and forth on the
extensionplate(F).
3. Slide the fixed clamp block (F) toward or away
from the saw blade asrequired.
C
B
A
Figure 13
A
Figure 14
Figure 15
Figure 16
F

14
4. Tighten the socket headflat screws ( (E).
5. Reinsert the riving knife; tighten the lock handle
(A, Fig. 14) and check that the saw blade/knife
gapis between 3 - 8mm (Figure 16).
Note: Attempt to make the gaps as even as
possible.
Blade Alignment
Tools: 8mm hex wrench, combination square,
marker
Blade alignment with the table is adjusted at the
factory. After a period of use, or, after moving the
saw to another location, the blade may no longer
be aligned with the table.
To check and align the blade (refer to Figure 17):
1. Disconnect thesawfrom the power source.
2. Raise the blade guard up a way from the blade.
3. Choose a tooth on the far side of the blade
(towards the rear) and position the tooth
slightly above the table insert. Mark the tooth
with a marker. Measure the distance from the
side of the blade to the right T-slot edge using
a combination square. Make sure to measure
between the teeth not on the tooth (Figure 17).
4. Rotate the blade toward the front so that the
marked tooth is just above the insert. Measure
the distance from the side of the blade to the
right T-slot edge. The two measurements
should bethesame.
5. If they are not the same, loosen four hex
socket cap screws (A, Fig. 18) that hold the
table tothe base. Two are shown in Figure 18.
6. Make the needed adjustments and tighten the
four hex socketcap screwsfirmly.
7. Check the alignment once again after
tightening hardware.
Figure 17
Figure 18
A

15
Adjusting 45 and 90 Positive Stops
The stops have been adjusted at the factory. After
a period of use, or, after moving the saw to another
location, the stops may no longer be set properly.
Tocheckandadjust the stops:
Tools: 12mm wrench, combination square
1.
Disconnectsawfrompowersource.
2. Raise the saw blade to its maximum height
usingthehandwheel.
3. Set the blade at 90 degrees to the table by
turning the blade tilting handwheel clockwise
as far as it will go.
4. Place a combination square on the table
against the blade and check to see that the
blade is at a 90 angle to the table, Figure 19.
Make sure square is not touching a blade
tooth.
5. If blade is not at 90 degrees, open the motor
cover door, loosen lock nut (A, Fig. 20) and
turn adjusting stop screw (B, Fig. 20) on the
front trunnion in, or out. The adjusting stop
screw should stop against the front trunnion
bracket when the blade is 90 to thetable.
6. Tighten the lock nut (A, Fig. 20).
7. Set the blade at 45 degrees to the table by
turning the blade tilting handwheel counter-
clockwise as far as it will go. Place a
combination square on the table against the
blade. Make sure square is not touching a
bladetooth.
8. If the blade is not 45 degrees, remove the
raising and lowering handle. Loosen lock nut
(A, Fig. 21) and turn adjusting stop screw
(B, Fig. 21) on the front trunnion in, or out. The
adjusting stop screw should stop against the
front trunnion bracket when the blade is 45 to
thetable.
9. Check the accuracy of the pointer (C, Fig. 21)
onthe angle scale andadjust,if necessary.
Assembly and adjustment of the saw are now
complete. Make sure all fasteners are tight. The
saw may now be placed into operation.
Figure 19
Figure 20
Figure 21

16
Changing the Belt
Make all machine adjustments
or maintenance with the machine unplugged
from the power source. Failure to comply may
causeseriousinjury!
Referring to Figure 22:
1. Disconnect the machine from the power
source, unplug.
2. Lower the blade toits lowest point.
3. Loosentwohexcap bolts (A).
4. Take the tension off of the belt (B) by lifting up
on themotor.
5. Remove the belt from the arbor and motor
pulleys.
6. Replace and tension the belt. The weight of the
motor should apply enough tension to the belt.
Tighten the hex cap bolts (A).
7. Check the belt tension after the saw has been
used for a few hours. Adjust as necessary.
Figure 22
Maintenance
Always disconnect power to the machine before performing maintenance. Failure
to dothis may result inserious personal injury.
Cleaning
Note: The following maintenance schedule
assumes the saw is being used every day.
Daily:
Wipe down the table surface and grooves
with a rust preventive.
Clean pitch and resin from the saw blade.
Weekly:
Table surface must be kept clean and free of
rust for best results. Apply a coat of paste
wax to the surface to facilitate this. An
alternative is to apply white talcum powder,
rubbed in vigorously once a week with a
blackboard eraser; this will fill casting pores
and form a moisture barrier. This method
provides a table top that is slick and allows
rust rings to be easily wiped from the
surface. Important also is the fact that
talcum powder will not stain wood or mar
finishes as wax pickup does.
Clean motor housing with compressed air.
Wipe down the fence rails with a dry silicon
lubricant.
Periodic:
Keep the inside of the cabinet and trunnion
area clean.
Check for excessive play in the tilting and
raising mechanism and in the saw arbor and
re-adjustasrequired.
Check for belt tension and wear. Readjust or
replace beltasrequired.
Lubrication
Grease the tilting worm gear, raising worm
gear, castor system worm gear and the
trunnion areas with a good grade non-
hardening grease.
Check all adjustments after lubricating.
Miscellaneous
Routinely check condition ofthefollowing items:
Mounting bolts
Power switch
Saw blade
Blade guard assembly

17
Troubleshooting
Trouble
Possible Cause
Solution
Saw stops or will
not start
Overload tripped
Saw unplugged from wall or motor
Fuse blown or circuit breaker tripped
Cord damaged
Allow motor to cool and reset by
pushing off switch
Check all plug connections
Replace fuse or reset circuit breaker
Replace cord
Does not make
accurate 45 or
90 cuts
Stops not adjusted correctly
Angle pointer not set accurately
Miter gauge out of adjustment
Check blade with square and adjust
stops
Check blade with square and adjust
pointer
Adjust miter gauge
Material binds
blade when
ripping
Fence not aligned with blade
Warped wood
Excessive feed rate
Splitter not aligned with blade
Check and adjust fence
Select another piece of wood
Reduce feed rate
Align splitter with blade
Saw makes
unsatisfactory
cuts
Dull blade
Blade mounted backwards
Gum or pitch on blade
Incorrect blade for cut
Gum or pitch on table
Sharpen or replace blade
Turn blade around
Remove blade and clean
Change blade to correct type
Clean table
Blade does not
come up to
speed
Extension cord too light or to long
Low shop voltage
Motor not wired for correct voltage
Replace with adequate size cord
Contact your local electric company
Refer to motor junction box
Saw vibrates
excessively
Stand on uneven floor
Damaged saw blade
Bad V-belts
Bent pulley
Improper motor mounting
Loose hardware
Reposition on flat, level surface
Replace saw blade
Replace V-belts
Replace pulley
Check and adjust motor
Tighten hardware
Rip fence binds
on guide rails
Guide rails orextension wing not installed
correctly
Guide of rip fence not adjusted properly
Reassemble guide rails, refer to fence
manual
Adjust guides, refer to fence manual
Material kicked
back from blade
Rip fence out of alignment
Splitter not aligned with blade
Feeding stock without rip fence
Splitter not in place
Dull blade
Letting go of material before it is past
blade
Anti-kick back plates dull
Align rip fence with miter slot
Align splitter with blade
Install and use rip fence
Install and use splitter (with guard)
Replace blade
Push material all the way past blade
before releasing work
Replace or sharpen anti-kick back
plates
Blade does not
raise or tilt freely
Sawdust anddebris inraising and tilting
mechanisms
Clean and regrease

18
Table and Cabinet Assembly (Flat FrontType)

19
Table and Cabinet Assembly (Flat FrontType)
lndex
No.
Part
No.
Description
Size
Qty.
1…………
MI-51350-1…………….……
Lock Knob……………….
………………
.…1
2…………
MI-51350-2…………………
Miter Gauge Body.………
……………...
.…1
3…………
MI-51350-3…………………
Hex Nut…………………..
M5………….
.…3
4…………
MI-51350-4…………………
Pointer……………………
……………...
.…1
5…………
MI-51350-5…………………
Stop Link………………...
……………...
.…1
6…………
MI-51350-6…………………
Set Screw.………………...
M5 x5……….
.…1
7…………
MI-51350-7…………………
Special Pin……………….
M3 x6……….
.…1
8…………
MI-51350-8…………………
Screw……………………..
M5 x20……...
.…3
9…………
MI-51350-9…………………
Guide Bar.………………..
……………...
.…1
10………..
MI-51350-10………………..
Guide Washer……………
……………...
.…1
11………..
MI-51350-11………..……...
Flat Head Screw…………
M6 x8……….
.…1
12………..
MI-51350-12……….….…...
Set Screw.………………...
1/4 x3/8”…..
.…6
13………..
MI-51350-13……………….
Table Insert………………
……………...
.…1
13A……...
MI-51350-13A.………….….
Dado Insert (optional)..…
……………...
.…1
14………..
MI-51350-14…………….….
Table……………………...
……………...
.…1
15………..
MI-51350-15….…………….
Extension Wing………….
……………...
.…2
16………..
MI-51350-16………………...
Hex Cap Screw…………..
7/16 x1-1/2”.
.…6
17………..
MI-51350-17………………...
Lock Washer.…………….
7/16”………..
.…6
18………..
MI-51350-18……..………....
Flat Washer.……………...
7/16”………..
.…6
19………..
MI-51350-19………………...
Motor Cover……………..
……………...
.…1
20………..
MI-51350-20………..……….
Flange Nut……..………..
M6………….
.…1
21………..
MI-51350-21………………...
Handle……………………
……………...
.…1
22………..
MI-51350-22………………...
Foam Strip……………….
……………...
.…1
23………..
MI-51350-23………………...
Flat Washer……………...
1/4”…………
...12
24………..
MI-51350-24………………...
Spring…………………….
……………...
.…1
25………..
MI-51350-25………………...
Hex Cap Bolt.……………
M6 x50……...
.…1
26………..
MI-51350-26………………...
Lock Washer.…………….
1/4”…………
...10
27………..
MI-51350-27………………...
Hex Nut…………………
1/4”…………
.…4

20
Table and Cabinet Assembly (Flat FrontType)
lndex
No.
Part
No.
Description
Size
Qty.
28………..
MI-51350-28…..…………….
Tilt Scale……………………
……………...
.…1
29………..
MI-51350-29…..…………….
Set Screw…………………
……………...
.…1
30………..
MI-51350-30………………...
Power Cord………………...
14GA x 3C…..
.…2
MI-51453-30………………...
Power Cord………………...
14GA x 4C…..
.…2
31………..
MI-51350-31………………...
Carriage Bolt………………
1/4” x3/4”..…
.…4
32………..
MI-51350-32……………..….
Switch Base..………….……
……………...
.…1
33………..
MI-51350-33……………..….
Magnatic Swith……………
3hp.1ph.220v
.…1
MI-51453-33……………..….
Magnatic Swith……………
5hp.3ph.220v
.…1
34………..
MI-51350-34…..……….…….
Screw……………………….
3/16” x3/4”…
.…2
35………..
MI-51350-35………………….
Flat Washer…………….….
3/16”………..
.…2
36………..
MI-51350-36…..…….……….
Push Stick Storage Hook….
……………...
.…1
37………..
MI-51350-37…..……….…….
Cable Gland………………..
……………...
.…3
38………..
MI-51350-38………………….
Sanp Bushing ………….…..
1/2”…………
.…2
39………..
MI-51350-39………………....
Hex Nut……….…….………
M6.………...
.…4
40………..
MI-51350-40…..….………….
Tap Screw…….…………….
……………...
.…4
41………..
MI-51350-41…………...…….
Cabinet……………………..
……………...
.…1
42………..
MI-51350-42…………...…….
Fence Hook..……………….
……………...
.…2
43………..
MI-51350-43……………...….
Hex Socket Head Screw…...
1/4”x3/4”.….
.…6
44………..
MI-51350-44………………….
Mitre Gauge Hook…………
……….…….
.…1
45………..
MI-51350-45………………….
Dust Hose Adapter…….…..
……………...
.…1
46………..
MI-51350-46………………….
Screw…………..…………...
M6x15…..…
.…4
47………..
MI-51350-47…..……….…….
Hex Socket Head Screw.….
7/16” x3/4”…
.…4
48………..
MI-51350-48…………………
Lower Panel…..…………….
…….………..
.…1
49………..
MI-51350-49…………..…….
Cord Connector Box………
……….…….
.…1
50………..
MI-51350-50………………....
Dust Hose Adapter…………
……………...
.…1
