Mainstays MS3336132978 User manual

MAINSTAYS 5PC MODERN DINING SET
Manufactured By: Saigon Furniture Co.,Ltd.
Zhangzhou, China.
TEL: [phone] EMAIL: [email protected]
We are available to assist you Monday - Friday
from 9:00 am - 5:00 pm Eastern Standard Time.
1-877-637-3590
If you have any question regarding assembly, please call our toll-free number for assistance.
MAXIMUM LOAD
110 LBS (50 KGS)
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Page 1/8
Lot Number:
Date Purchased:
DO NOT RETURN THE PRODUCT TO THE STORE, individual stores do not stock parts.
If a part is missing or damaged, please call 1-877-637-3590 or send e-mail to
[email protected] and have your instructions, parts list ready to provide the
model name, part name.
Parts will be shipped FREE of charge within 90 days of the purchase with proof of purchase.
Additional parts are available for a fee.
Stock # D2118.0083-MP
1 hour approx
assembly time
Two adult
assembly suggested
MAXIMUM LOAD
242 LBS (110 KGS)
Share your feedback to help other
shoppers
Review your purchases, thank you!
Vendor Stock No. MS3336132978 (D2118.0083-MP)
V220318

Manufactured By: Saigon Furniture Co.,Ltd.
Zhangzhou, China.
TEL: [phone] EMAIL: [email protected]
We are available to assist you Monday - Friday
from 9:00 am - 5:00 pm Eastern Standard Time.
1-877-637-3590
General Information, Tips & Tricks
Read and understand all the steps carefully before starting.
Please follow the steps in the correct orders to avoid difficulties or damages to the parts during
assembly. If each step is not followed in the correct order the assembly will be difficult and may
result in damages.
Make sure all the parts are included. Most boards are labeled with a removable sticker.
Work in a spacious area, preferably on a carpeted surface, near where the unit will be used.
Please wait until all steps are completed before tightening bolts.
Please make sure all bolts are tightly fastened before the unit is used.
Help and support
If you have any question regarding assembly, please call our toll-free number for assistance
.
DO NOT RETURN THE PRODUCT TO THE STORE, individual stores do not stock parts.
If a part is missing or damaged, please call 1-877-637-3590 or send e-mail to
[email protected] and have your instructions, parts list ready to provide the
model name, part name.
Parts will be shipped FREE of charge within 90 days of the purchase with proof of purchase.
Additional parts are available for a fee.
Safety and care
Do not allow children to climb or play on the unit.
Clean the product with your favorite furniture polish and a soft cloth.
Do not use harsh chemicals or abrasive cleaners.
Move your new furniture carefully with two people. Never push or drag the unit.
Page 2/8
Quality Guarantee
Should this product be defective in workmanship, materials or fail under normal use, we will send
replacement parts (excluding table top) for up to one (1) year from the date of purchase. If you have
issues with your table top, please return the dining set to Walmart within their Return Policy guideline.
Every Saigon Furniture product is designed to meet your highest expectations. We guarantee that
you will be satisfied with your purchase.
This warranty gives you specific legal rights and you may also have other rights which vary from
State to State.
The warranty applies to Walmart customer who purchased the product from Walmart stores or
Walmart.com with proof of purchase only.
DO NOT USE POWER DRILL / DRIVERS FOR INSERTING
BOLTS AS THIS COULD DAMAGE THE UNIT.
ONLY USE ALLEN WRENCH !
MAINSTAYS 5PC MODERN DINING SET
ndor Stock No. MS3336132978 (D2118.0083-MP)

M6 x 12mm Bolt x18
(2 for spare)
VERIFY THAT ALL PARTS ARE LISTED BEFORE BEGINNING

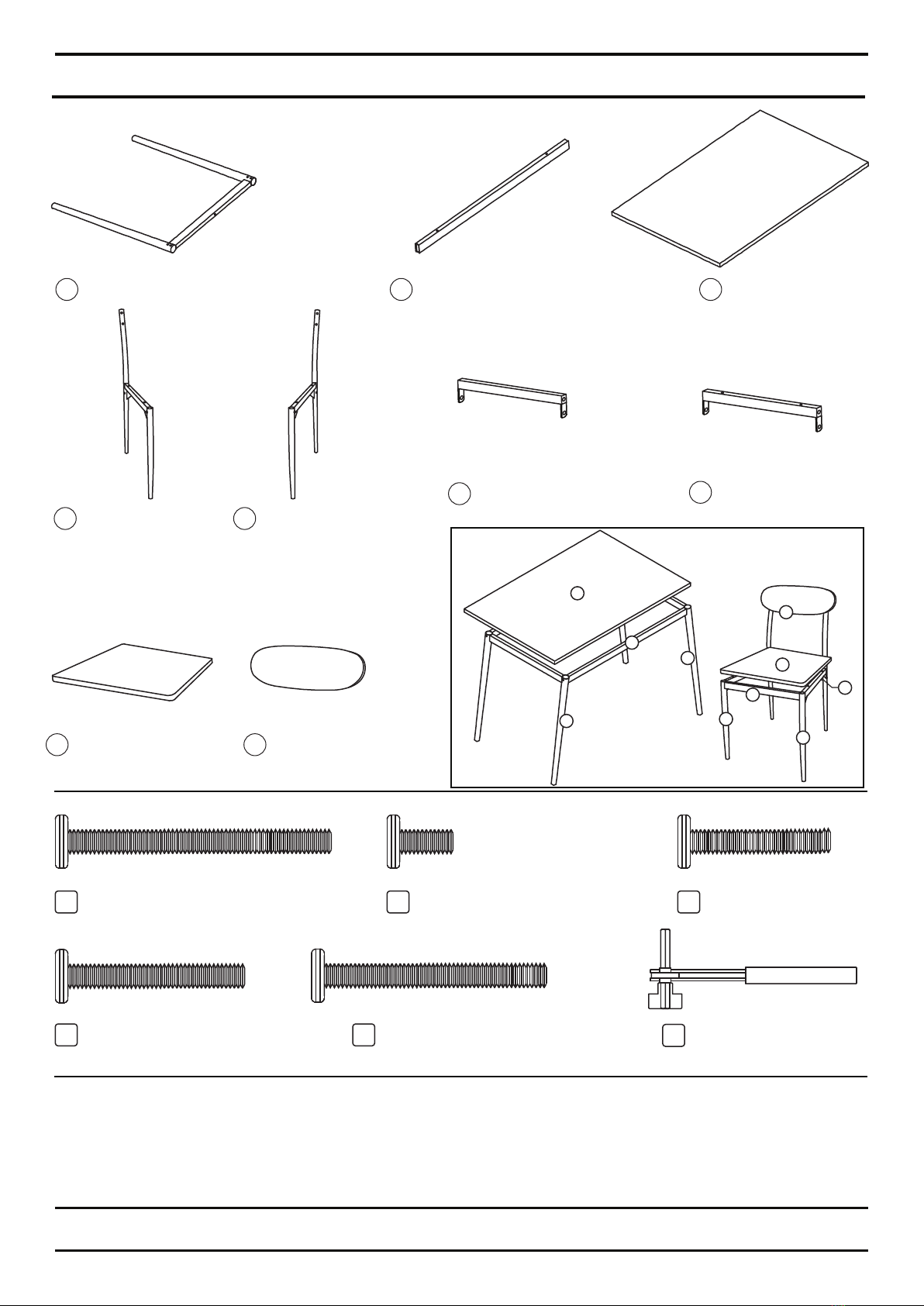

Parts and Hardware List
Page 3/8
Front Rail x4
Chair Left Leg x4
Back Rail x4
Table Leg x2 Table Top x1
ATable Apron x2 B C
DChair Right Leg x4 E
FG
Chair Seat x4
H
1 2 3
4
Backrest x4
I
M6 x 60mm Bolt x8
M6 x 40mm Bolt x26
(2 for spare)
M6 x 32mm Bolt x34
(2 for spare)
M6 x 50mm Bolt x6
5
M4 Ratchet tool x1
6
H
I
D
E
GF
C
A
B
A

1
Please call for replacement parts or assistance: 1-877-637-3590
Saigon Furniture Co,. Ltd.Page 4/8

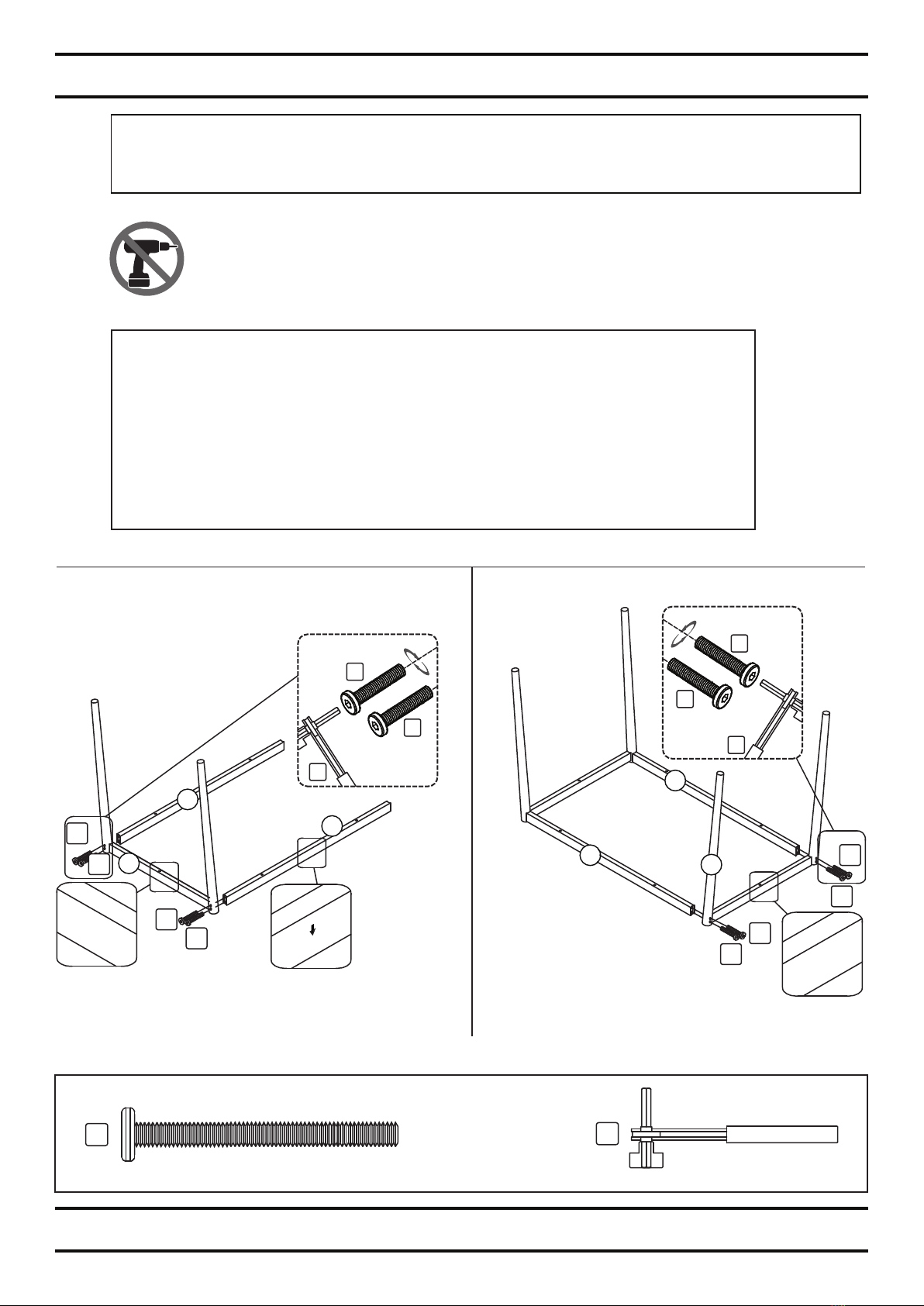

1. Unpack the unit and confirm that you have all the hardware and parts listed.
2. Align and assemble Table Legs (A) to Table Aprons (B) using Bolts (1). Tighten the Bolts
with M4 Ratchet Tool (6) provided.
Table Assembly
M6 x 60mm Bolt x8
1
DO NOT USE POWER DRILL / DRIVERS FOR INSERTING
BOLTS AS THIS COULD DAMAGE THE UNIT.
ONLY USE ALLEN WRENCH !
M4 Ratchet tool x1
IMPORTANT:
It is important to assemble the table with the “Outside” label on part
“A” to the outside of the table.
It is also important to assemble with the “Top” label on part “B”
pointing to where the top of the table is going to be affixed.
This is so the legs angle outward when complete, as shown on the
front page.
1
B
B
OUTSIDE
1
1
1
6
1
1
A
1
1
1
1
A
B
B
OUTSIDE
6
1
1
TOP
6

2
Please call for replacement parts or assistance: 1-877-637-3590
Saigon Furniture Co,. Ltd.Page 5/8

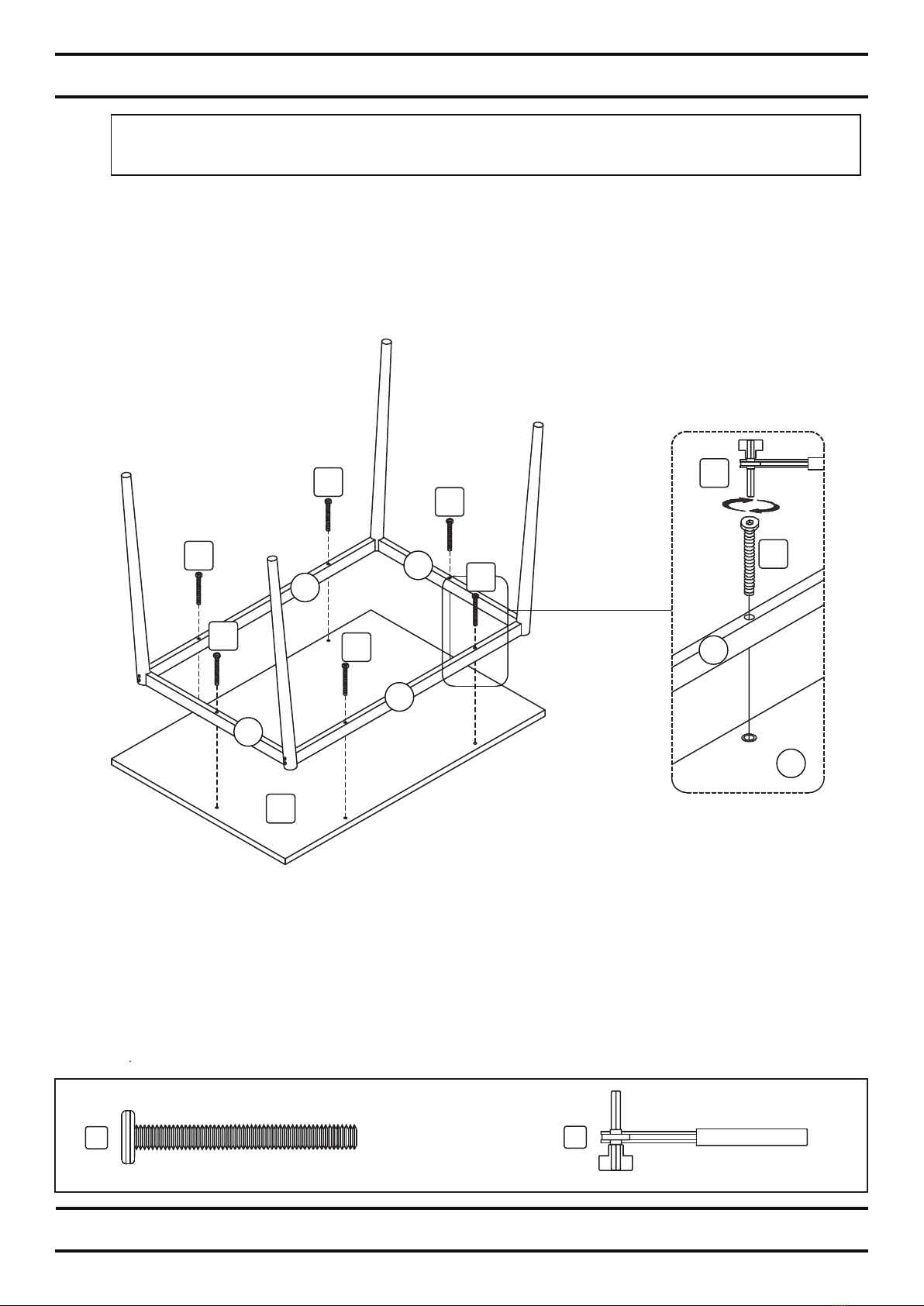

Attach the Table Top (C) to the pre-assembled frame using Bolts (5). Tighten the Bolts with
M4 Ratchet Tool (6) provided.
Table Assembly
5M6 x 50mm Bolt x6
5
5
5
5
5
5
C
A
A
B
6
M4 Ratchet tool x1
5
6
B
C
B

3
Page 6/8
Chair Assembly
Please call for replacement parts or assistance: 1-877-637-3590
Saigon Furniture Co,. Ltd.
3
M6 x 32mm Bolt x16
2
M6 x 12mm Bolt x16
2
3
3
3
3
22
x4Chairs
x4Chairs
x4Chairs
6
M4 Ratchet tool x1
D
E
F
G
FG
D
E
G
F
2
D

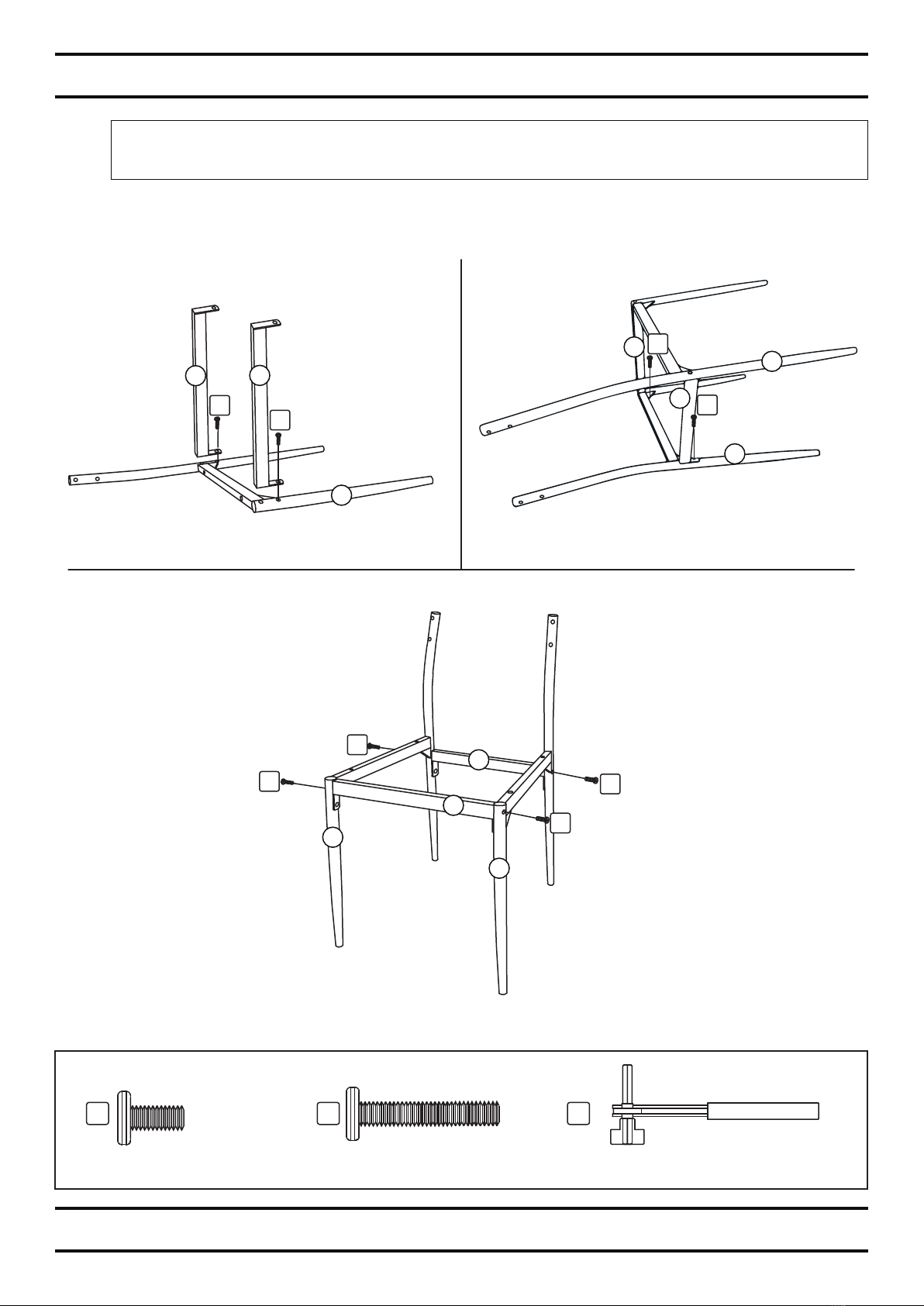

Align and assemble Chair Legs (D), (E) to Back Rail (F), Front Rail (G) using Bolts (2), (3).
Tighten the Bolts with M4 Ratchet Tool (6) provided.

Page 7/8
Chair Assembly
Please call for replacement parts or assistance: 1-877-637-3590
Saigon Furniture Co,. Ltd.

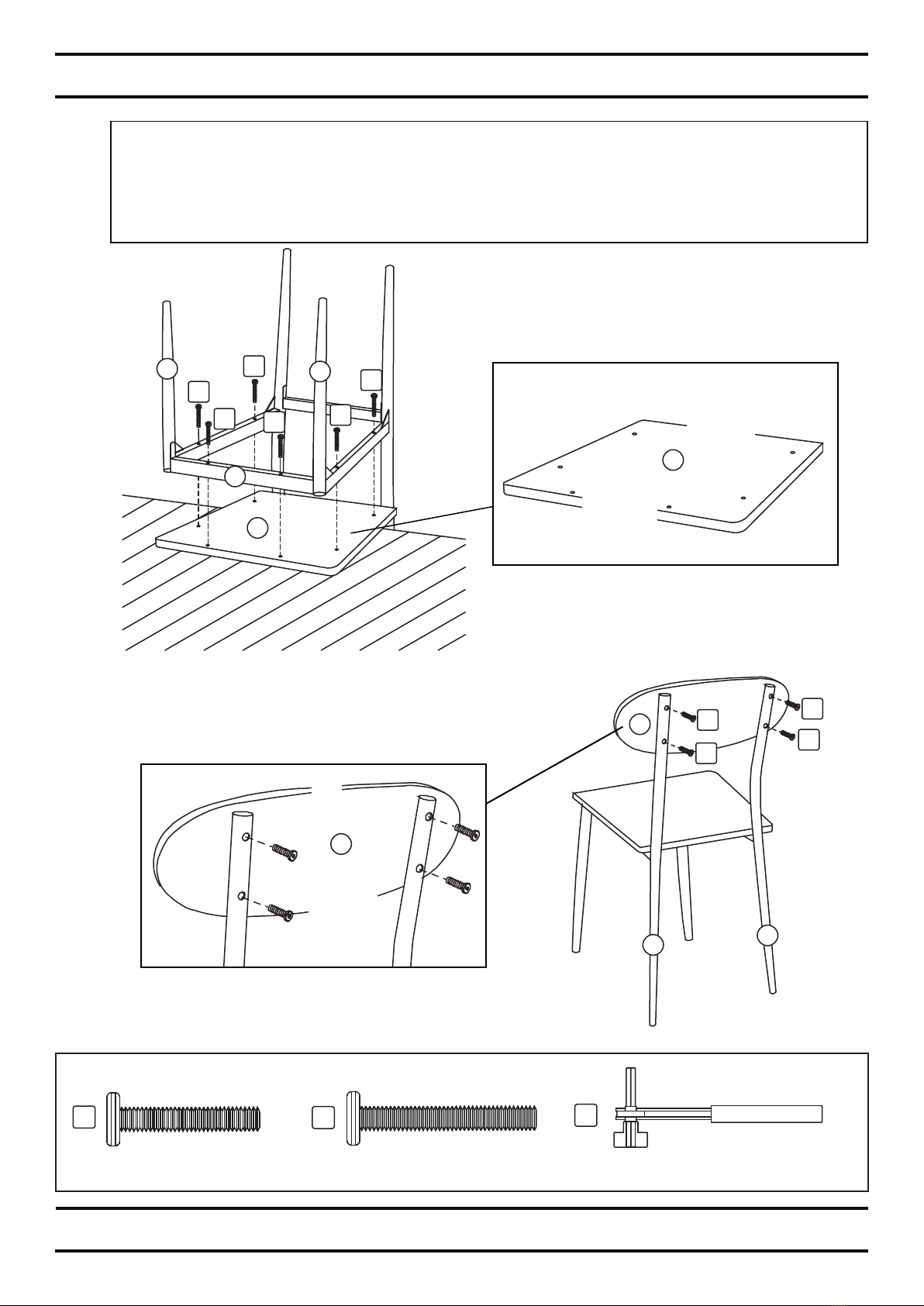

41. Attach Seat (H) onto the side rails of the Chair Legs using Bolts (4).
Tighten the Bolts with M4 Ratchet Tool (6) provided.
2. Assemble Backrest (I) to the back Legs using Bolts (3).
Tighten the Bolts with M4 Ratchet Tool (6) provided.
Repeat the procedure to assemble the other Chairs.
M6 x 40mm Bolt x24
4
3
M6 x 32mm Bolt x16
6
M4 Ratchet tool x1
3
3
3
3
4
4
4
4
4
4
D
G
H
E
D
E
I
DOWN
UP
H
I
FRONT
BACK
x4Chairs
x4Chairs

IF YOU NEED TO ORDER ANY PARTS PLEASE USE THE LIST BELOW.
Please email defect photos and proof of purchase to [email protected]
Parts will be shipped FREE of charge within 90 daysof the purchase with proof of purchase.
Spare parts and services only support the purchase made from Walmart Store or Walmart.com
Please call for replacement parts or assistance: 1-877-637-3590
Saigon Furniture Co,. Ltd.Page 8/8

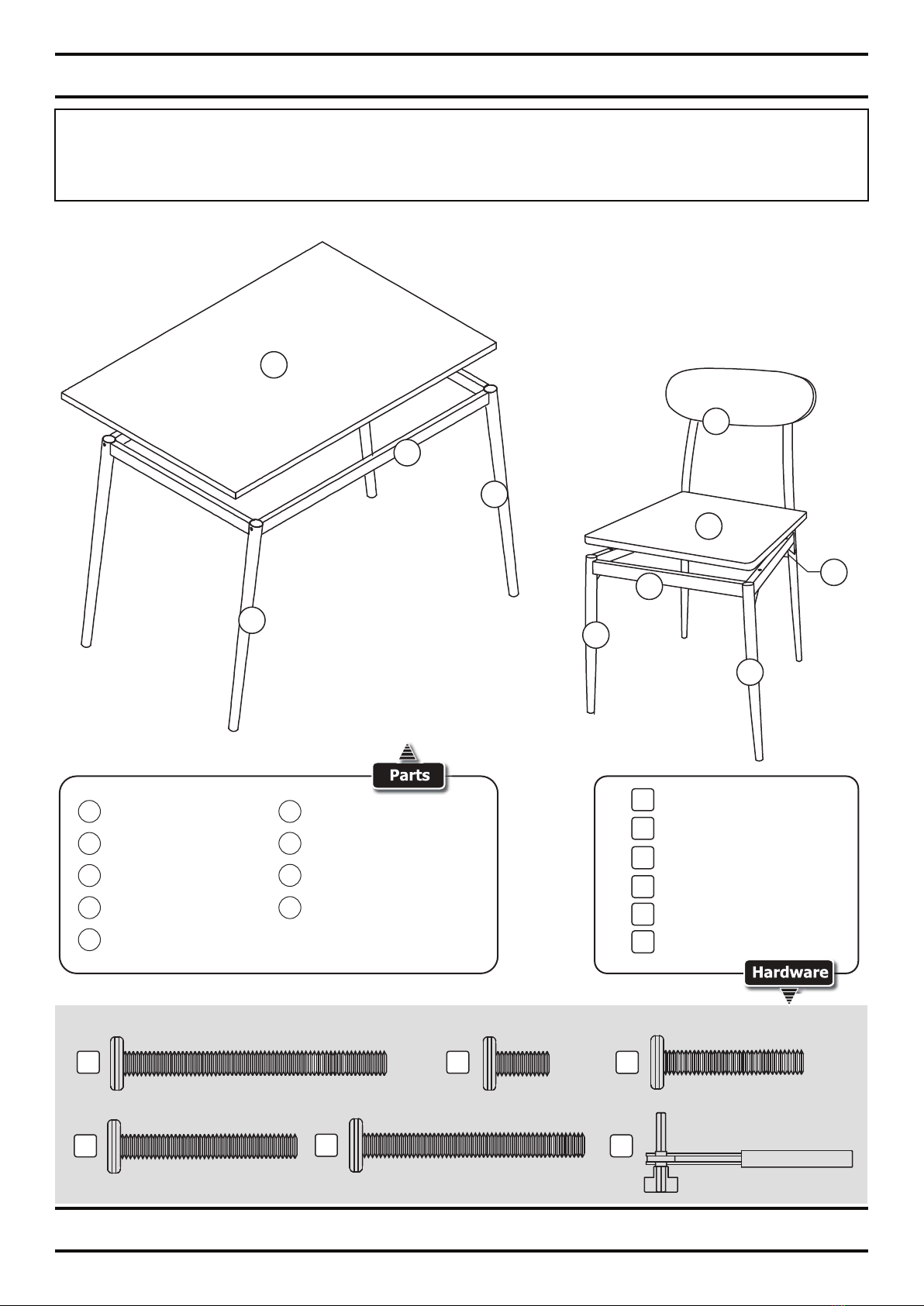

Replacement Parts Vendor Stock No. MS3336132978 (D2118.0083-MP)
2
1
3
Table Apron x2
Top Leg x2
Table Top x1
B
A
C
H
I
D
E
GF
C
Chair Left Leg x4
D
Front Rail x4
Back Rail x4
G
F
HSeat x4
IBackrest x4
Chair Right Leg x4
E
123
4
4
5
M6 x 60mm Bolt x8
M6 x 12mm Bolt x16
M6 x 32mm Bolt x32
M6 x 40mm Bolt x24
M6 x 50mm Bolt x6
6
5
6
M4 Ratchet tool x1
B
A
A
