Mainstays MS18-D2-1011-09 User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2018-01-25 Rev. 0001-A Factory: FOCIDI
Arris TV Stand
Model # MS18-D2-1011-09
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to
the store where it was purchased. Please call our customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
866-942-5362
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
www.whalenstyle.com
Or e-mail your request to [e-mail]
LOT NUMBER:
DATE PURCHASED: / /

2
MANUFACTURER: Whalen Furniture Manufacturing
CATALOG: Arris TV Stand
MODEL # MS18-D2-1011-09
MADE IN CHINA
1. Please read the Assembly Instructions prior to assembling this product.
2. Remove all hardware from the box and sort by size.
3. Check to see that all hardware and parts are present BEFORE assembling.
4. Ask a friend to assist you with the assembly of this furniture.
5. To avoid damage, assemble the product on a sturdy, level and protective surface.
6. Please wait until all steps are completed before fully tightening Bolts.
7. Make sure all Bolts are tightly fastened before the unit is used.
MAXIMUM RECOMMENDED WEIGHT LOADS
FITS UP TO MOST 177.8 cm / 70 in FLAT PANEL TVs
MAXIMUM LOAD 61.3 kg / 135 lb
MAXIMUM LOAD 22.7 kg / 50 lb
GENERAL INFORMATION, TIPS
and
TRICKS
This product is sold with one set of Tipping Restraint Hardware Kit. You must install the
Tipping Restraint Hardware between the wall and the TV stand to prevent any accidents or
damages. When properly installed, this restraint can provide protection against the
unexpected tipping of the unit due to small tremors, bumps or climbing. The restraint is only a
deterrent and is not a substitute for proper adult supervision. Use of tip-over restraints may
only reduce, but not eliminate, the risk of tip-over.
THIS UNIT IS NOT INTENDED FOR USE WITH CRT TVS. USE ONLY WITH
FLAT PANEL TVS AND AUDIO/VIDEO EQUIPMENT MEETING RECOMMENDED SIZE AND
WEIGHT LIMITS. NEVER USE WITH LARGER/HEAVIER THAN RECOMMENDED FLAT PANEL
TVS OREQUIPMENT. TOAVOID INSTABILITY, PLACE FLAT PANEL TV IN THE CENTRE OF THE
UNIT; THE BASE OF THE TELEVISION MUST BE ABLE TO REST ON THE SUPPORTING
SURFACE OF THE UNIT WITHOUT OVER-HANGING THE EDGES. IMPROPERLY
POSITIONED FLAT PANEL TVS, OR FLAT PANEL TVS INCLUDING OTHER EQUIPMENT THAT
EXCEED RECOMMENDED SIZE AND WEIGHT LIMITS COULD FALL OFF OR BREAK THE UNIT,
CAUSING POSSIBLE SERIOUS INJURY.
PLACE TV BEHIND THE STOPPER

3
Parts and Hardware List
Please read completely through the instructions and verify that all listed parts and hardware
are present before beginning assembly.
A- Top Panel with Metal Frame B- Middle Metal Frame C- Bottom Panel with Metal Frame
(Qty. 1) (Qty. 1) (Qty. 1)
D- Spine (Qty. 1) E- Leg (Qty. 2) F- Top Frame Support (Qty. 1)
G- Middle Glass Shelf (Qty. 1) H- Stop Rail (Qty. 1) I- Cable Wheel (Qty. 2)
(1) Flange Nut (2) 5/8” Bolt (3) 1” Bolt (4) 1-5/8” Bolt
(Qty. 1+1 extra) (Qty. 7+1 extra) (Qty. 6+1 extra) (Qty. 10+1 extra)
(5) 2-1/2” Bolt (6) Lock Washer (7) Flat Washer (8) Glass Bumper
(Qty. 1+1 extra) (Qty. 4+1 extra) (Qty.4+1 extra) (Qty. 8+1 extra)
Hex Wrench Touch-up Pen Tipping Restraint Hardware Kit (Qty. 1)
(Qty. 1) (Qty. 1) (Inside Plastic Bag)
Tools required: Hex wrench (provided) and Phillips screwdriver (not provided).

4
Assembly Instructions
NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled,
go back and fully tighten all bolts. This will make the assembly easier.
1. Unpack the unit and confirm that you have all the hardware and required parts.
2. Locate the Spine (D) and set the back face down on a scratch-free surface.
3. Fit the Top Shelf Frame (A) onto the Spine (D) making sure the mounting holes on the end
bracket overlap the threaded sockets on the spine properly.
4. Fasten the Top Frame Support (F) to the middle rail of the Top Shelf Frame (A) and the Spine
(D) with three 5/8” Bolts (2) and three Washers (6 and 7).
A
F
D
D
A
D
A
F
Lock Washer
(3 used in this step)
⑥
Flat Washer
(3 used in this step)
⑦
5/8” Bolt
(3 used in this step)
②

5
Assembly Instructions
5. Fasten the Middle Shelf Frame (B) to the Spine (D) with two 1-5/8” Bolts (4).
1-5/8” Bolt
(2 used in this step)
④
D
4
B
D
B

6
Assembly Instructions
6. Fasten the Bottom Shelf Frame (C) to the Spine (D) with two 1” Bolts (3).
3
C
D
D
C
1” Bolt
(2 used in this step)
③

7
Assembly Instructions
7. Align and attach one Leg (E) to the Shelf Frames (A and B) with four 1-5/8” Bolts (4).
8. Fasten the Leg (E) to the Bottom Shelf Frame (C) with two 1” Bolts (3).
9. Repeat the same procedure to attach the other Leg (E) at the opposite side.
1” Bolt
(4 used in this step)
③
1-5/8” Bolt
(8 used in this step)
④
4
C
BA
E
E
A/B
E
3
C
E

8
Assembly Instructions
10.Stand the unit upright.
11.Fasten the Top Shelf Frame (A) to the Spine (D) by inserting one 2-1/2” Bolt (5) with the
Washers (6 and 7) through the drilled holes on the spine and securely screw into the Flange
Nut (1).
A
D
6
75
1
A
D
2-1/2” Bolt
(1 used in this step)
⑤
Flange Nut
(1 used in this step)
①
Lock Washer
(1 used in this step)
⑥
Flat Washer
(1 used in this step)
⑦

9
Assembly Instructions
12.Evenly place the Glass Bumpers (8) on the Middle Shelf Frame (B).
13.Place the Middle Glass Shelf (G), with the black side of glass down, onto the Glass Bumpers
(8). Push the glass all the way back against the spine.
Glass Bumper
(8 used in this step)
⑧
G
8
8
A
B
C
G
B

10
Assembly Instructions
14.Attach 2 Cable Wheels (I) to the backside of the Spine (D) with the 5/8” Bolts (2). Tighten the
bolts with enclosed 4 mm hex wrench.
NOTE: You can use the cable wheels to help keep your entertainment center’s cables and
cords organized.
5/8” Bolt
(4 used in this step)
②
A
D
2
I
D
I
I

11
Assembly Instructions
NOTE: You must install the Strip Stopper to prevent the TV from tipping when placing your flat
panel television directly on the console.
15.Remove the paper backing from the Stop Rail (H), then properly align the Stop Rail with the
top edge of the stopper template on Top Panel (A). Press down on the Stop Rail to help
adhesion.
16.Carefully remove the stopper template from the Top Panel (A).
A
H
A

12
Assembly Instructions

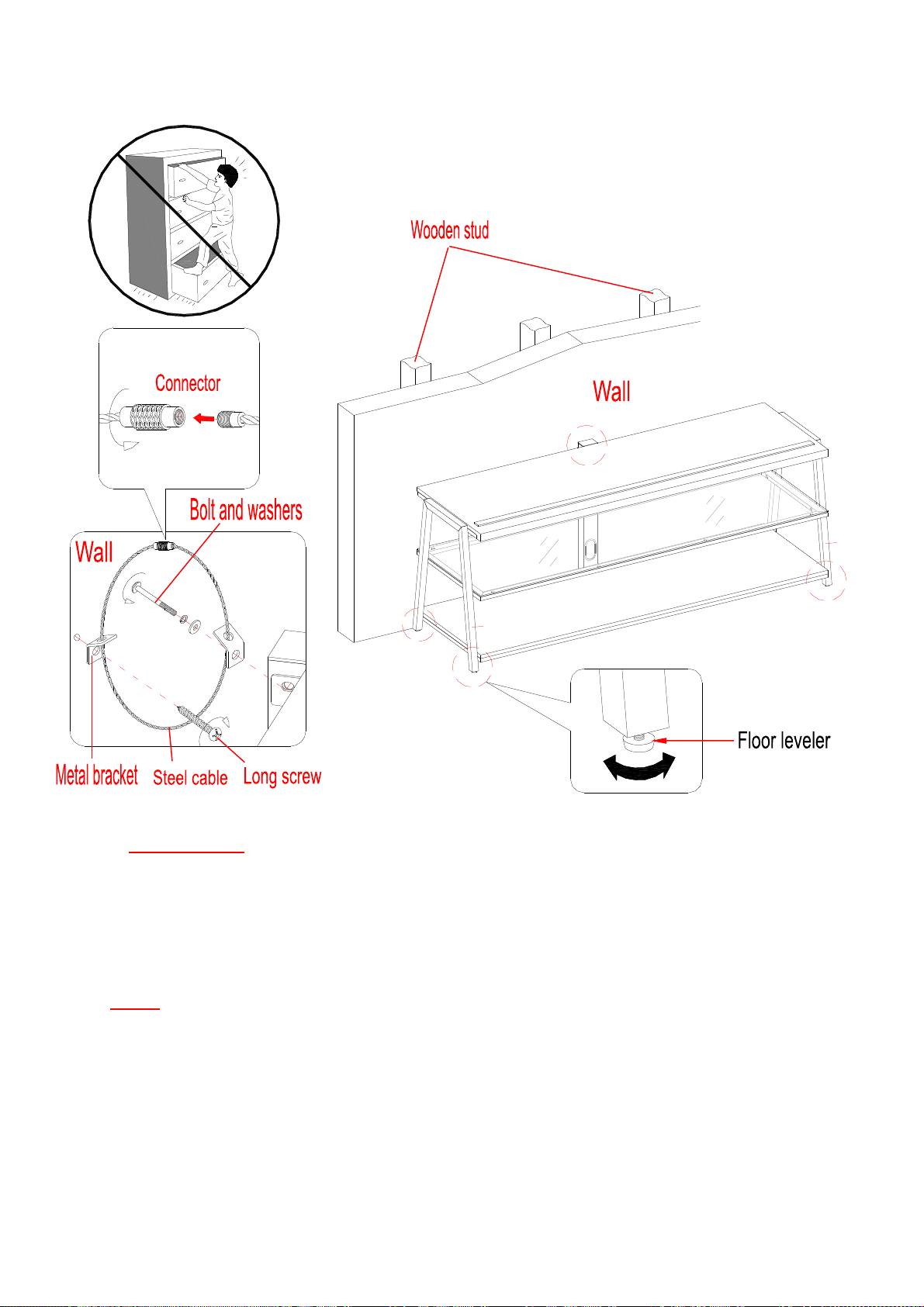

Tools required: hex wrench (provided), Phillips screwdriver, stud finder, power drill,
and 3 mm/0.1 in drill bit.
17.Position the assembled unit at the desired location against a wall. If necessary, adjust the
pre-attached Floor Levelers at the bottom of the Legs (E) to level the unit. Now, follow the
instructions printed on the plastic bag containing the Tipping Restraint Hardware to attach the
tip-over restraint to the spine and the wall.
NOTE: Young children can be seriously injured by tipping furniture. You must install the
Tipping Restraint Hardware with the unit to prevent any accidents or damage to the unit. The
tipping restraint is intended only as a deterrent, they are not a substitute for proper adult
supervision. The tipping restraint is not an earthquake restraint. If you wish to add the extra
security of earthquake restraints, they must be purchased and installed separately.
18.The table-top console is now ready for use. Be sure to position your Flat Panel TV in the
center of the console.
E
E
E

13
Care and Maintenance
Use a soft, clean cloth that will not scratch the surface when dusting.
Use of furniture polish is not necessary. Should you choose to use polish, test first in an
inconspicuous area.
Using solvents of any kind on your furniture may damage the finish.
Never use water to clean your furniture as it may cause damage to the finish.
Always use coasters under beverage glasses and flowerpots.
Liquid spills should be removed immediately. Using a soft, clean cloth, blot the spill gently. Avoid
rubbing.
Always use protective pads under hot dishes and plates. Heat can cause chemical changes that
may create spotting within the furniture finish.
Stains or marks from crayons or ink markers will be difficult to remove.
In the event that your furniture is stained or otherwise damaged during use, we recommend that
you call a professional to repair your furniture.
Check bolts/screws periodically and tighten them if necessary.
Further Advice about Furniture Care
It is best to keep your furniture in a climate-controlled environment. Extreme temperature and
humidity changes can cause fading, warping, shrinking and splitting of wood. It is advised to keep
furniture away from direct sunlight as sun may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Follow these important and
helpful tips that will enhance your furniture as it ages.
A touch-up pen has been provided to minimize the small nicks or scratches that may occur
during assembly or shipping.
We hope you enjoy your purchase for many years.
Thank you for your purchase!
QUALITY GUARANTEE
We are confident that you will be delighted with your Whalen Furniture purchase.
Should this product be defective in workmanship or materials or fail under normal use, we
will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture
product is designed to meet your highest expectations. We guarantee that you will
immediately see the value of our fine furniture.
This warranty gives you specific legal rights and you may also have other rights which vary
from State to State.
Customer Service: 866-942-5362
8:30 a.m. - 4:30 p.m., PST, Monday to Friday
www.whalenstyle.com

ESTE INSTRUCTIVO CONTIENE INFORMACION IMPORTANTE DE SEGURIDAD.
POR FAVOR LEA Y MANTENGA PARA USO FUTURO.
Fecha 2018-01-25 Rev. 0001-A Fábrica: FOCIDI
Soporte para TV Arris
Modelo # MS18-D2-1011-09
ENSAMBLE REQUERIDO POR ADULTO
Si tienen alguna pregunta acerca del ensamble o si alguna parte está faltante, no retorne este
producto a la tienda donde lo compró. Por favor llame a nuestro departamento de ayuda al cliente
teniendo su instructivo y lista de partes para proveer el modelo, nombre de parte o el número de
fábrica:
866-942-5362
Hora Estándar del Pacífico: 8:30 a.m. - 4:30 p.m., de Lunes a Viernes
O visite nuestra página de Internet 24 horas al dia, 7 días a la semana para asistencia
www.whalenstyle.com
O mande un correo electrónico a [e-mail]
NÚMERO de LOTE:
FECHA de COMPRA: / /

2
FABRICANTE: Whalen Furniture Manufacturing
CATALOGO: Soporte para TV Arris
MODELO # MS18-D2-1011-09
HECHO EN CHINA
1. Por favor lea el instructivo antes de comenzar el ensamble.
2. Retirar todo el material de ferretería de la caja y acomodar por medida.
3. Checar que todo elmaterial de ferretería ypartes esten completos ANTES de comenzarel ensamble.
4. Pida ayuda a un amigo para ensamblar esta unidad.
5. Para evitar daños, ensamble esta unidad en una area libre, limpia y nivelada.
6. Espere que todos los pasos se terminen antes de apretar todos los pernos por completo.
7. Asegurese que todos los Pernos esten bien apretados antes de utilizar al unidad.
MÁXIMOS PESOS RECOMENDADOS
PARA LA MAYORÍA DE TELEVISIONES
PANTALLA PLANA DE 177.8 cm / 70 pulgadas
CARGA MÁXIMA 61.3 kg / 135 lb
CARGA MÁXIMA 22.7 kg / 50 lb
INFORMACION GENERAL, RECOMENDAC
IONES Y TRUCOS
Este producto se vende con un juego de restricción de movimiento. Usted debe instalar este
juego entre su pared y la consola para prevenir accidentes o daños. Cuando se instala
apropiadamente, este puede protejer contra caida inesperadas de la consola debido a
temblores, golpes o en caso de subirse en ella. Este juego sirve solo como un impedimiento
y no sustituye la supervición por parte de un adulto. El uso de este tipo de topes pueden
prevenir, pero no eliminar, la posibilidad de que la unidad se caiga o se incline.
POSICIONE LA
TELEVISIÓN
ATRAS DEL TOPE
ESTA UNIDAD NO DEBE UTILIZARSE CON TELEVISIONES CRT O DE
TUBO. UTILIZARSE ÚNICAMENTE CON TELEVISIONES DE PANTALLA PLANA Y EQUIPO DE
AUDIO/VIDEO QUE TENGAN LA MEDIDA/PESO RECOMENDADO. NUNCA UTILIZAR CON
TELEVISIONES MÁS GRANDES/PESADAS DE LAS RECOMENDADAS. PARA EVITAR
INESTABILIDAD COLOQUE EN EL CENTRO DE LA UNIDAD; LA BASE DE LA TELEVISIÓN
DEBE DE REPOSAR SOBRE LA SUPERFICIE DE SOPORTE DE LA UNIDAD SIN REBASAR
LAS ORILLAS. TELEVISIONES DE PANTALLA PLANA COLOCADAS INAPROPIADAMENTE, O
TELEVISIONES DE PANTALLA PLANA INCLUYENDO EQUIPO QUE SOBREPASA LAS
MEDIDAS Y PESOS RECOMENDADOS PUEDEN CAERSE Y/O ROMPER LA UNIDAD,
CAUSANDO POSIBLES DAÑOS O LESIONES.

3
Lista de partes y material de ferretería
Por favor lea completamente las instrucciones y verifique que estén todas las partes antes de iniciar
el ensamblado .
A- Panel superior con marco de metal B- Marco medio de metal C- Panel inferior conmarcodemetal
(Cant. 1) (Cant. 1) (Cant. 1)
D- poste E- Pata F- Soporte para marco superior
(Cant. 1) (Cant. 2) (Cant. 1)
G- Repisa media de vidrio (Cant. 1) H- Riel tope (Cant. 1) I- Guía del cable (Cant. 2)
(1) Tuerca especial (2) Perno de 5/8” (3) Perno de 1” (4) Perno de 1-5/8”
(Cant. 1+1 extra) (Cant. 7+1 extra) (Cant. 6+1 extra) (Cant. 10+1 extra)
(5) Perno de 2-1/2 (6) Arandela de presión (7) Arandela plana (8) Tope para vidrio
(Cant. 1+1 extra) (Cant. 4+1 extra) (Cant.4+1 extra) (Cant. 8+1 extra)
Llave hexagonal Plumón de retoque Juego de restricción de movimiento (Cant. 1)
(Cant. 1) (Cant. 1) (Dentro de la bolsa de plástico)
Herramienta requerida: Llave hexagonal (proveida) y desarmador estrella (no incluido).

4
Instructivo de ensamble
NOTA: Por favor no apriete completamente todos los pernos, hasta que termine con el
ensamble de las partes, después asegure completamente todos los pernos, ésto lo hará más
fácil durante el ensamble.
1. Desempacar la unidad y confirmar que se tienetodo el material de ferretería y partes requeridas.
2. Localizar el ensamble de poste (D) y ponerlo boca abajo en una superficie libre.
3. Coloque el panel superior con marco de metal (A) sobre el ensamble de poste (D) asegurándose
de que los orificios de montaje en el soporte del extremo se superpongan correctamente con los
insertos roscados del poste
4. Sujetar el soporte (F) al riel medio del marco de repisa superior (A) y al poste (D) con 3
pernos de 5/8” (2) y 3 arandelas (6 y 7).
A
F
D
D
A
D
A
F
Arandela de presión
(3 usados en este paso)
⑥
Arandela plana
(3 usados en este paso)
⑦
Perno de 5/8”
(3 usados en este paso )
②

5
Instructivo de ensamble
5. Sujetar el marco de repisa medio (B) al poste (D) con 2 pernos de 1-5/8” (4).
D
4
B
D
B
Perno de 1-5/8”
(2 usados en este paso)
④

6
Instructivo de ensamble
6. Sujetar el marco de repisa inferior (C) al poste (D) con 2 pernos de 1” (3).
3
C
D
D
C
Perno de 1”
(2 usados en este paso)
③
