Majestic Cadiz User manual

Cadiz Installation Guide - Surface Profiles –2022
1
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
Thank you for purchasing this Cadiz shower screen. Please study these instructions
carefully before assembly and installation.
Checking of Parts
Parts are listed at the beginning of this guide. Please check all supplied parts immediately
and contact the Majestic Shower Company in the event of any missing or damaged parts.
These instructions are for left and right handed units. All parts are reversible.
Handling of Parts
When handling glass, use suction glass lifters and take care to ensure that corners or edges
are not knocked. Do not place glass on hard surfaces - place cushioning material under-
neath to prevent the glass from shattering.
Unwrap all metal parts carefully to prevent damaging the plated surfaces.
Pre Installation Checks
Prior to undertaking installation, check the accuracy of the following against specifications
for the particular installation location:
- Verticality and flatness of walls. Where wall profiles are used, some lean in or lean out of
the wall relative to the floor or tray can be accommodated (+/- 9mm if 24mm profile is used,
+/- 6mm if 17mm profile is used).
- Levelness and flatness of the floor or tray. Where a profile or underframe is used under-
neath a glass panel, any minor hollows in the mounting surface must be solidly packed to
prevent deflection under the weight of the glass as this may over stress the glass.
Installation Tips
The general principle of assembly is to assemble parts in the steps shown - first a dry
assembly to check fits or mark cutting or drilling positions and then a final assembly with
silicone.
When cutting aluminium extrusion, wrap the profile with masking tape first and cut through
the taped area - this will help protect the surrounding surface. Use a fine file to smooth cut
edges.
If anti-calcium glass has been specified, the treated side of the glass will be indicated and
should always face inwards towards the wet side of the shower area.
DO NOT ASSEMBLE WITHOUT FULLY READING THESE INSTRUCTIONS

Cadiz Installation Guide - Surface Profiles –v2022
2
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
2 x Glass to Wall Hinge assemblies with
rubber packing strips 2 x Glass to Wall Bracket assemblies
with wall plugs and screws
1 x Glass Return Panel 1 x Glass Door 1 x Finger Pull Handle (pre installed) OR
1 x Door Handle or Towel Rail Assembly
OR
1 x 10mm
Spacer
2 x Door
Mounting
Blocks
1 x Underframe Insert
1 x Horizontal Seal
1 x Vertical Door to Wall
Seal
Rubber cushioning strip
Surface Wall Profile
1 x 17mm OR 24mm
OR
1 x Vertical Door to Return
panel Seal

Cadiz Installation Guide - Surface Profiles –v2022
3
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com

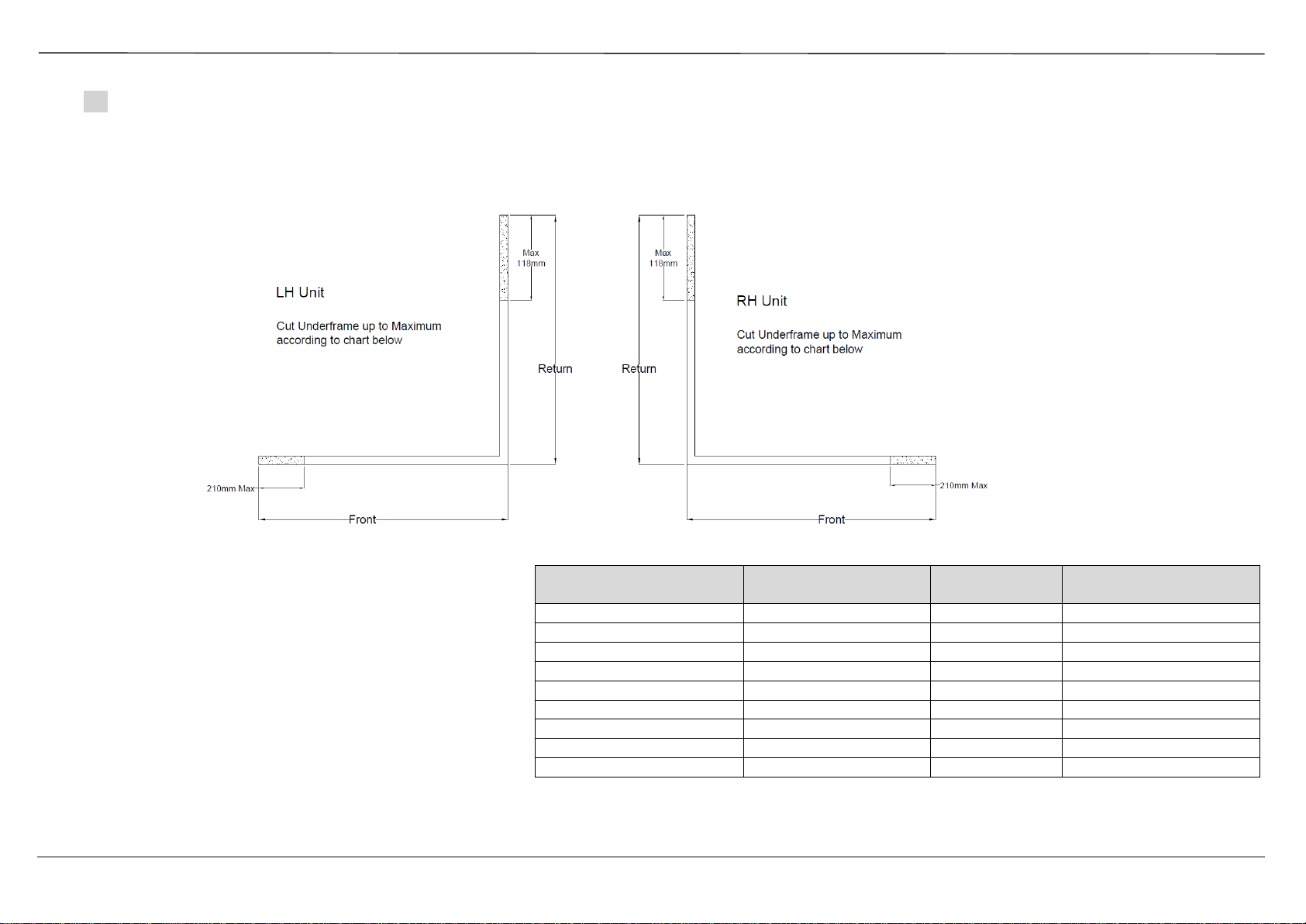

1A Standard Enclosure –if you have a bespoke enclosure, please skip to step 1.
If you have purchased a standard enclosure the underframe for the enclosure will be sent out in identical lengths. This means you can turn the enclosure to suit the handing
required. The below image shows the left- and right-hand enclosures, the below chart tells you the maximum cut that could be required
All Glass has been supplied with an Anti-Calcium coating to the
glass which has been supplied on both sides to make the glass
reversible
If you have any questions, please contact the office before
cutting
STANDARD ENCLOSURE
SIZE
UNDERFRAME SENT
FRONT
(Exact Cut)
RETURN
(Maximum Cut)
800 x 800
790mm x 790mm
10mm
18mm
850 x 800
840mm x 840mm
10mm
68mm
900 x 800
890mm x 890mm
10mm
118mm
800 x 900
890mm x 890mm
110mm
18mm
850 x 900
890mm x 890mm
60mm
18mm
900 x 900
890mm x 890mm
10mm
18mm
800 x 1000
990mm x 990mm
210mm
18mm
850 x 1000
990mm x 990mm
160mm
18mm
900 x 1000
990mm x 990mm
110mm
18mm

Cadiz Installation Guide - Surface Profiles –v2022
4
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
1
Wall leans OUT
18 mm
Wall leans IN
0 mm
9 mm
Wall does not lean
Temporarily assemble the underframe and place it in position on the floor or tray.
The front section of underframe is factory cut to the correct length to suit your Door and
MUST NOT be shortened.
The side section of underframe is supplied at maximum length to be cut down on
site to accommodate any lean in or lean out of the wall relative to the floor.
If you are using 24 mm Recessed Wall profiles and if your wall leans inwards, cut
0-9 mm from the wall end of each underframe side; if it leans outwards, cut 9-18
mm from each side. If the wall is at right angles to the floor or tray, cut 9 mm from
each side.
FRONT
(Door)
SIDE
(Return Panel)
1
2

Cadiz Installation Guide - Surface Profiles –v2022
5
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
Tray
-10mm
Wall leans OUT
Wall leans IN
10 mm
5 mm
0 mm Wall does not lean
For 17 mm wall profile:
If your wall leans inwards, cut 0-5 mm from the wall end of each underframe side; if it leans
outwards, cut 5-10 mm from each side. If the wall is at right angles to the floor or tray, cut
5 mm from each side.
If the underframe is being installed on a tray, its position in relation to the edge of
the tray must also be considered. Ideally, the outer edge of the underframe should
10 mm back from the edge of the tray on all sides.
3
4

Cadiz Installation Guide - Surface Profiles –v2022
6
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com

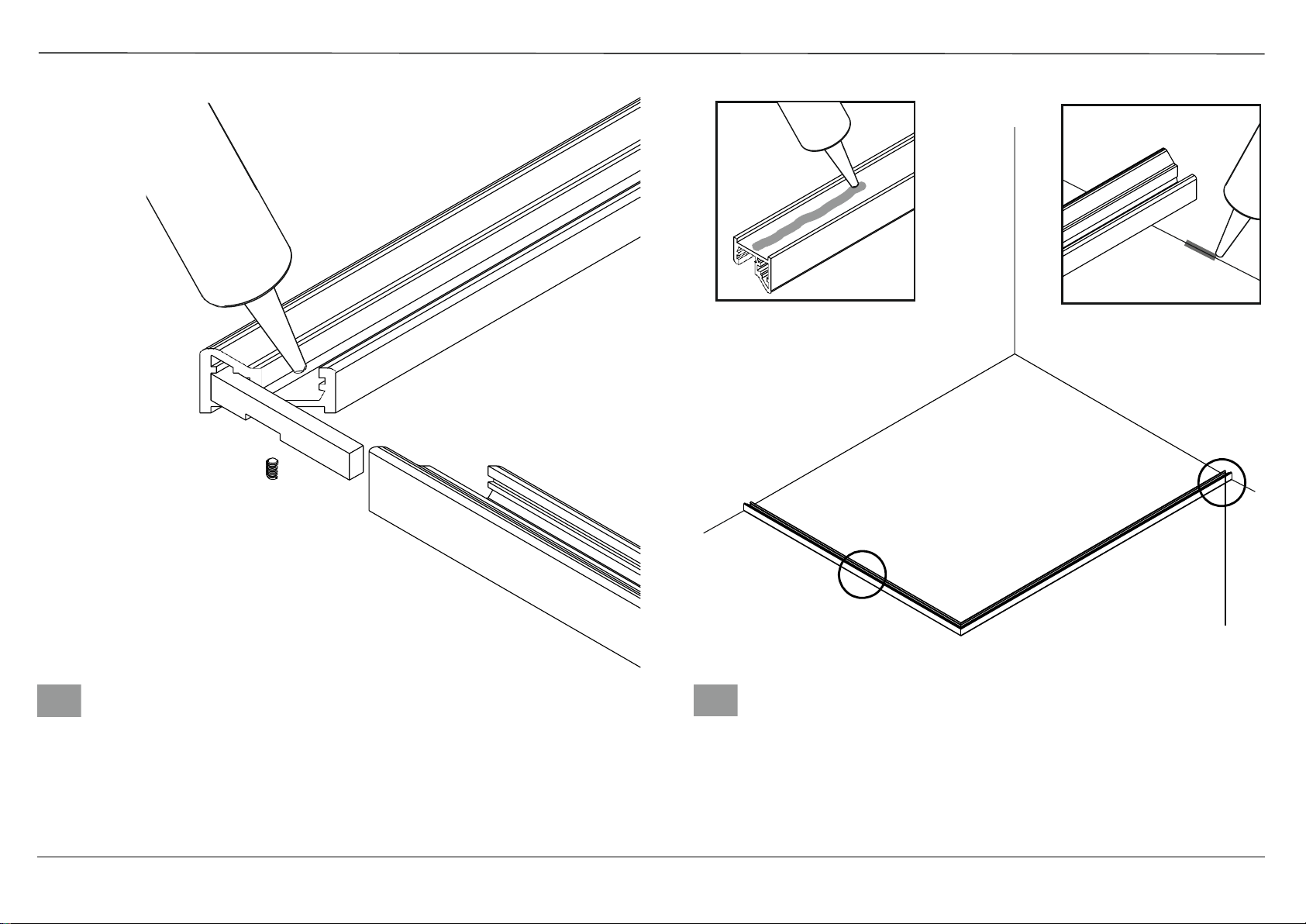

After cutting the side of the underframe to size, apply silicone to the mitred faces of the
front and side sections and assemble the underframe using the connectors provided. Fully
tighten the grub screws.
Replace the assembled underframe in position on the floor or tray and mark its position.
Run a substantial bead of silicone along the centre of the underframe to seal it
against the floor or tray and apply a small amount of silicone in the corners where
the underframe will sit against the wall.
Replace the underframe in position where you have marked the floor or tray and
tape it in place whilst the silicone sets.
5
6

Cadiz Installation Guide - Surface Profiles –v2022
7
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com

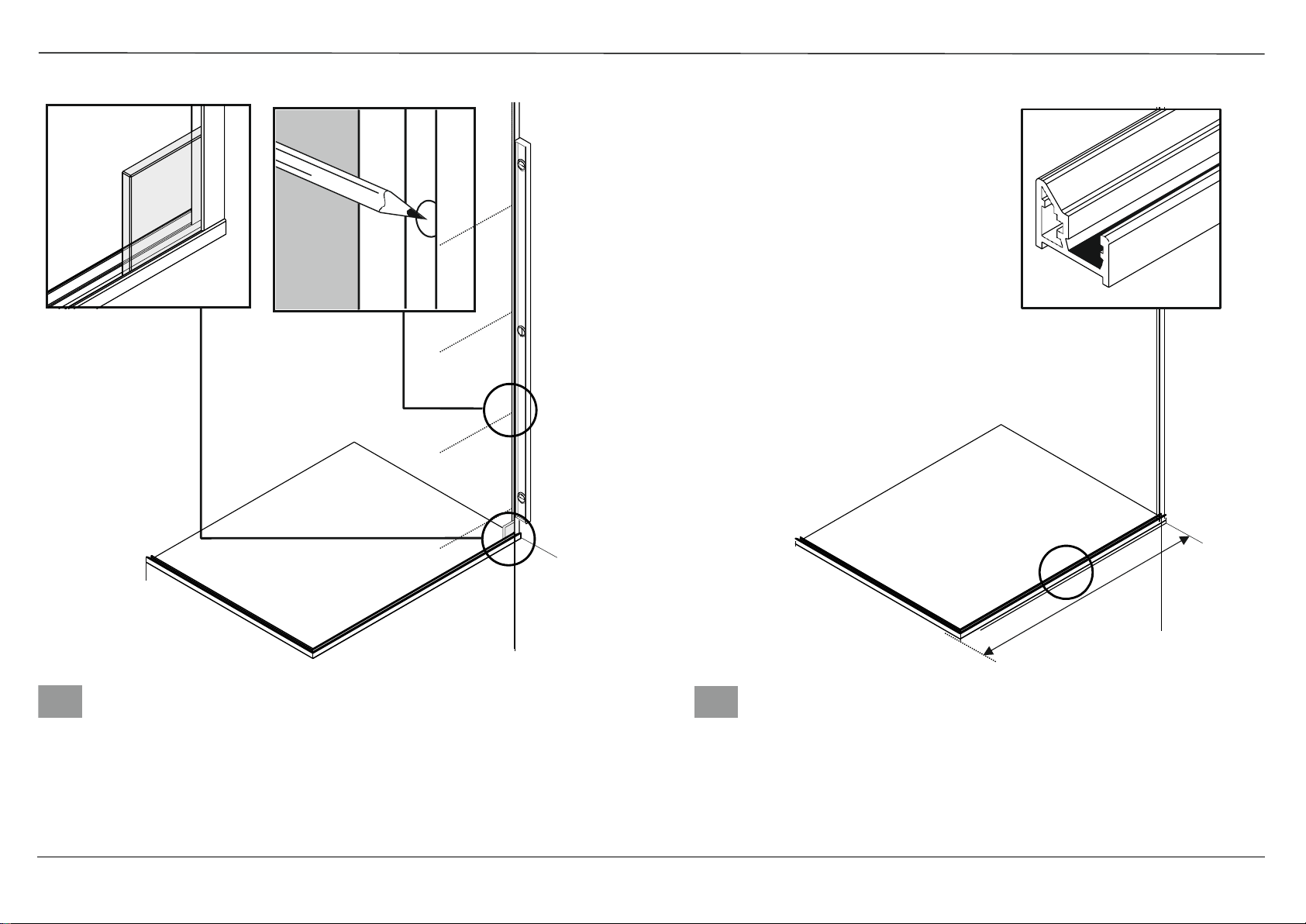

Insert the 10 mm spacer into the underframe channel and use it to align the wall profile. Push
the profile down as far as it will go and, using a spirit level to ensure that it is perfectly vertical,
mark the screw hole positions on the wall. Remove the profile.
Drill 6 mm holes where marked and insert wall plugs.
Reposition the wall profile and insert the top and bottom screws to hold it in place.
Remove the 10mm spacer and insert a rubber strip into the underframe channel
where the Return panel will sit.
Return
Panel
7
8

Cadiz Installation Guide - Surface Profiles –v2022
8
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
Panel
Return
Using suction glass lifters, lift the Return panel into the wall profile channel and carefully
lower into the underframe channel.
Ensure that the Return panel is pulled forward in the underframe to align as shown. 10 Check that the front edge of the Return panel is plumb vertical, using additional
rubber strips under the glass if necessary to pack it up and noting the position of
these strips.
Do not use more than 3 thicknesses of rubber under the glass.
FRONTunderframe
9

Cadiz Installation Guide - Surface Profiles –v2022
9
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com

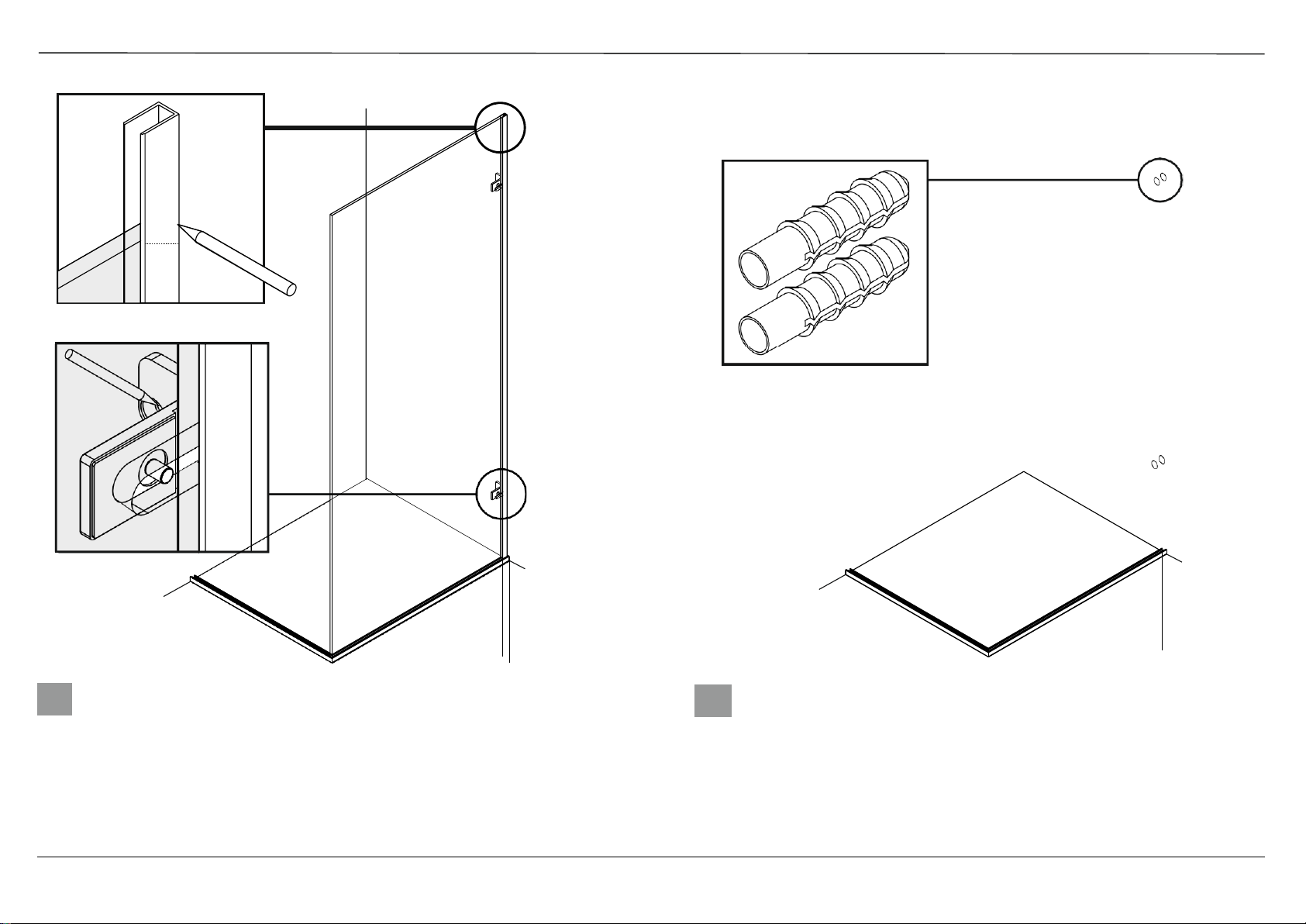

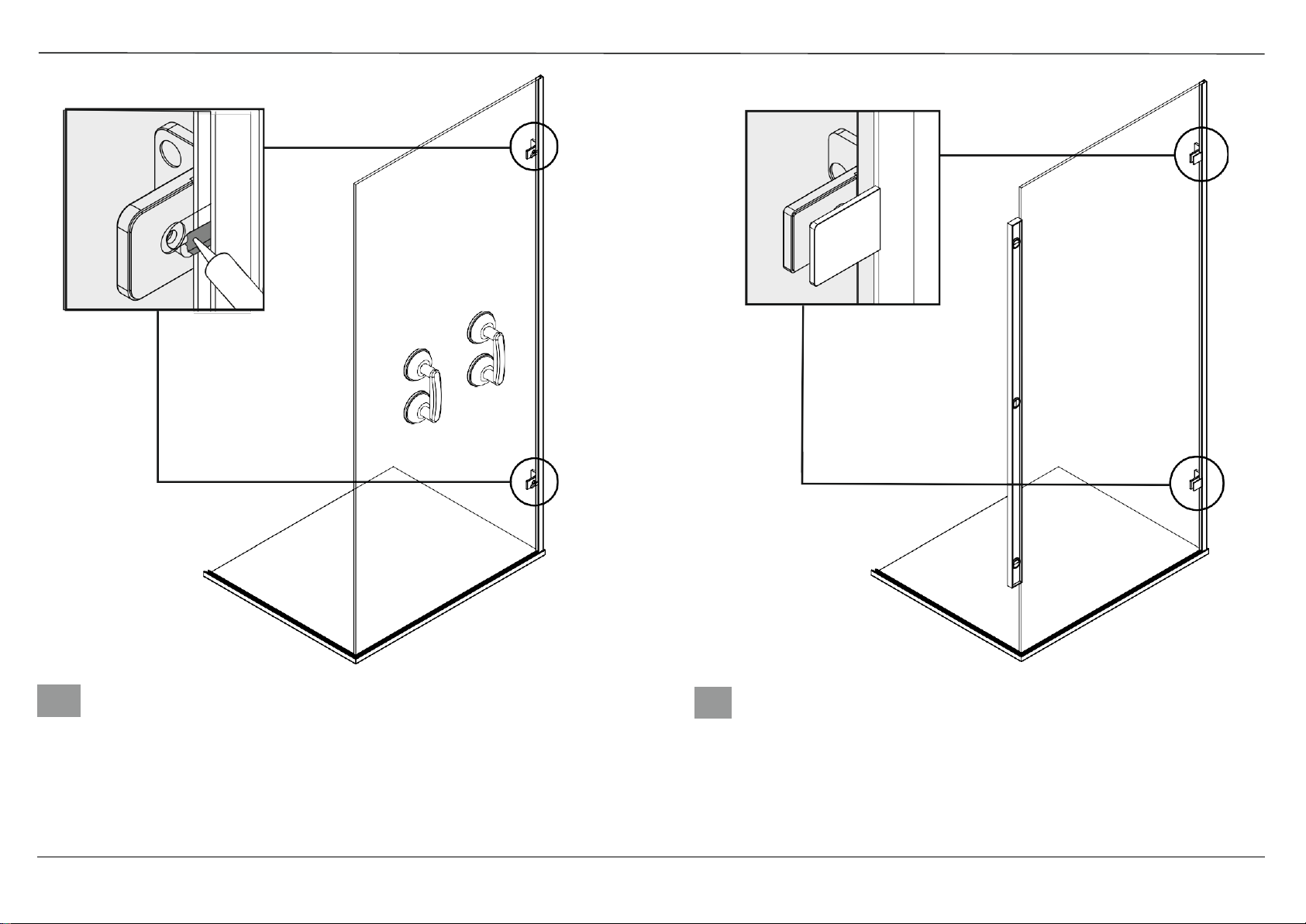

11 Disassemble the Glass to Wall brackets being careful not to damage the face plates. With the
clear plastic gaskets inserted between the brackets and the glass and the wall screw plates
facing inwards, align the brackets centrally in the slots in the glass, hold them in place and
mark the screw hole positions.
Mark the wall profile at the top edge of the glass so that it can be trimmed flush.
12 Use the suction glass lifters to remove the Return panel, making a note of the
number and position of the rubber strips that you have placed under the panel.
Unscrew and remove the wall profiles.
Drill 7mm holes for the wall brackets in the positions marked and insert the wall
plugs. Apply a small amount of silicone around the holes in the wall to prevent any
water from leaking into the wall.

Cadiz Installation Guide - Surface Profiles –v2022
10
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
13 Cut the wall profile to length using a Junior hacksaw and then file the cut end smooth.
Run a bead of silicone along the wall side of the wall profile and screw it tightly in place.
Loosely screw the Glass to Wall brackets to the wall.
14 Check that the rubber strips are correctly positioned where the Return panel will
sit.
Run beads of silicone along the inside of the vertical wall profile as shown, and the
underframe channel where the Return panel will sit. Place a generous amount of silicone
into the bottom corner where the wall profile and underframe channel meet.

Cadiz Installation Guide - Surface Profiles –v2022
11
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
15
16

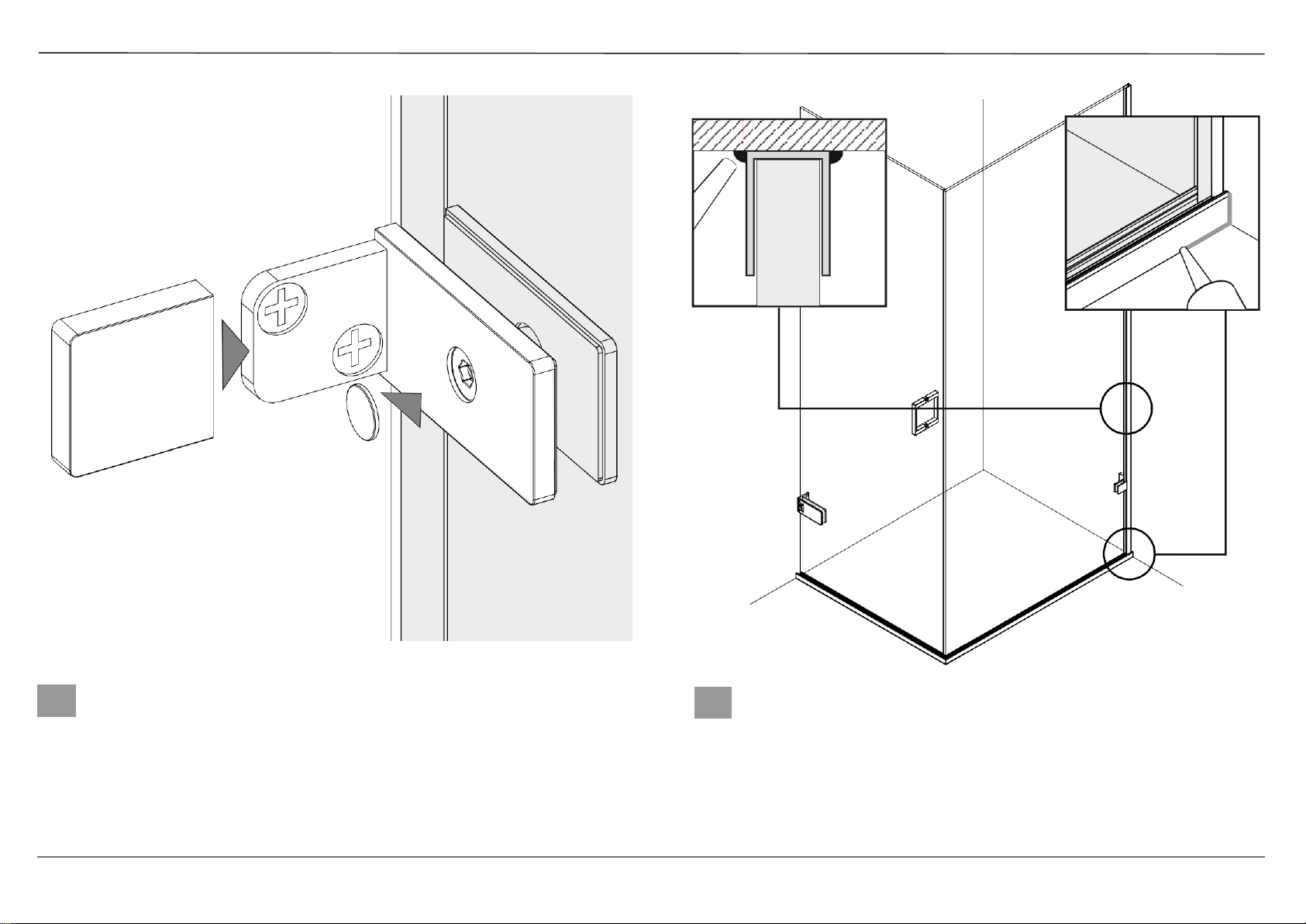

Using suction glass lifters, replace the glass Return panel into the silicone filled profiles in the
correct position.
To prevent leakage around the wall brackets, fill the glass slots with silicone before fitting the
faceplates.
16 Loosely fix the face plates of the glass to wall brackets through the slots in the glass,
ensuring that the clear gaskets are inserted on both sides of the panel. Fully tighten
the wall screws.
Recheck that the Return panel is plumb vertical and in the correct position in the
underframe, then fully tighten the glass to wall bracket face plates.
15

Cadiz Installation Guide - Surface Profiles –v2022
12
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com

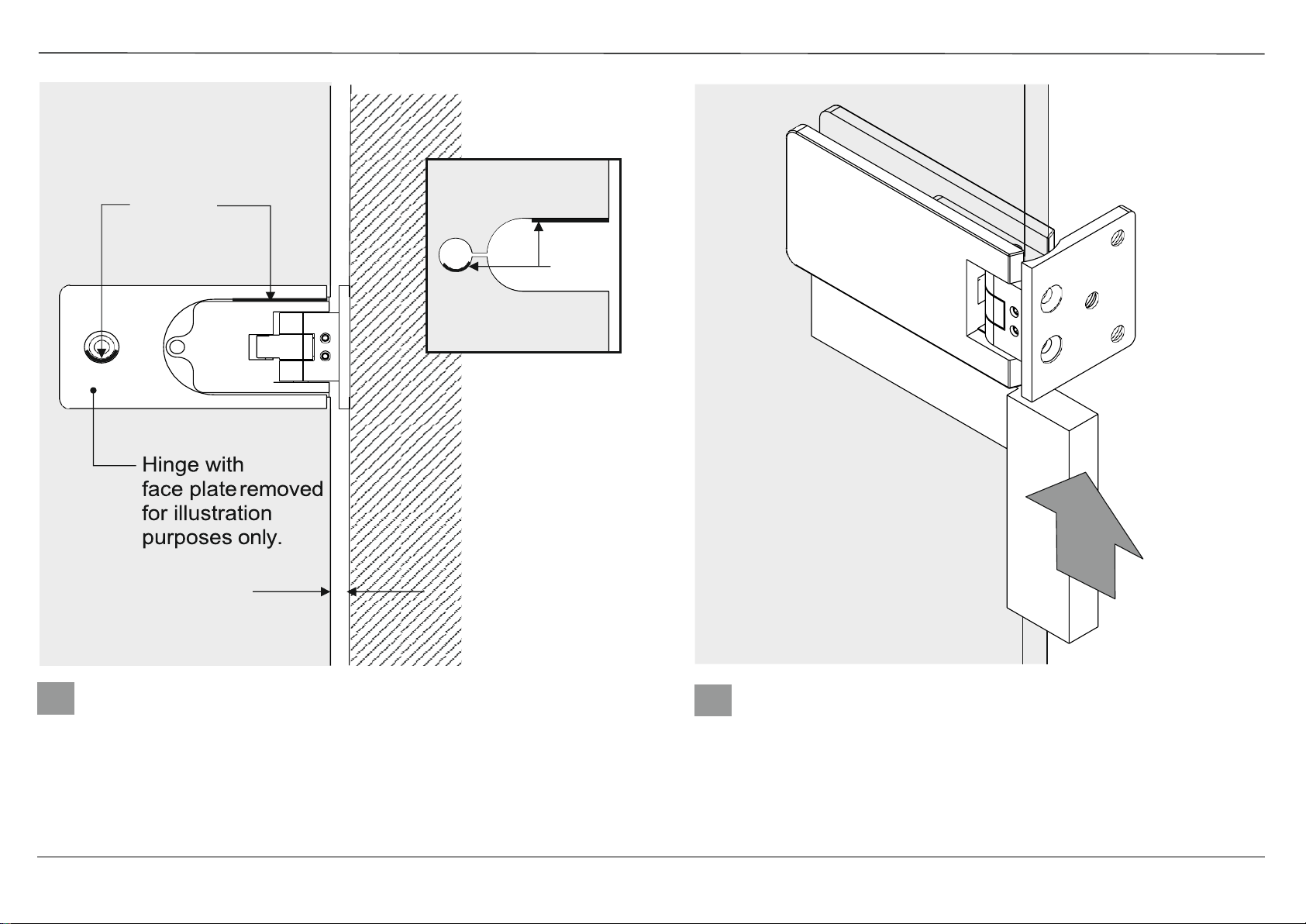

17 Insert short pieces of the self adhesive rubber strip supplied in each door hinge slot on the
Door as shown to ensure that the door does not drop under its own weight over time.
Disassemble the hinges, being careful not to damage the polished surfaces, and assemble
them to the door ensuring that each face of the glass is separated from the hinges by a gasket.
18 Position the hinges centrally in their slots and use a set square to align them with
the edge of the glass. Check that the holes are adequately packed with the rubber
strips by using a set square to ensure that the hinges are at 90 degrees to the
edge of the glass when upward pressure is applied to them.
Fully tighten the hinge screws to 10-12 NM torque.
.
DOOR
WALL
Rubber
packing
strips
8 mm gap
between glass
and wall
Rubber
strips
DOOR

Cadiz Installation Guide - Surface Profiles –v2022
13
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com

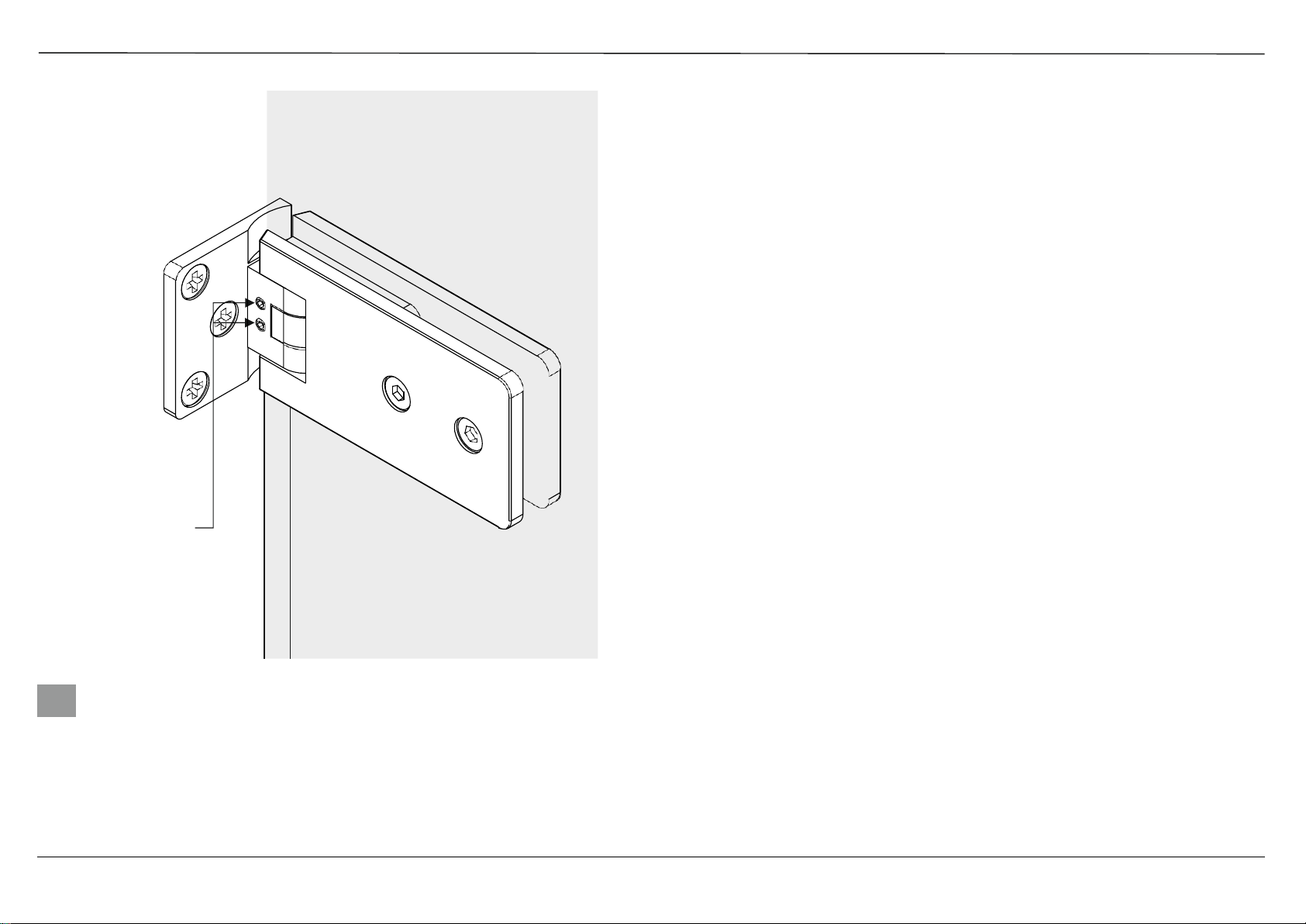

NOTE: Steps 19-20 require one person to support the door at all times whilst another person Align the Door with the Return panel, checking that it is plumb vertical. Mark the
19 must be inside the enclosure with face plates, gaskets and screws.

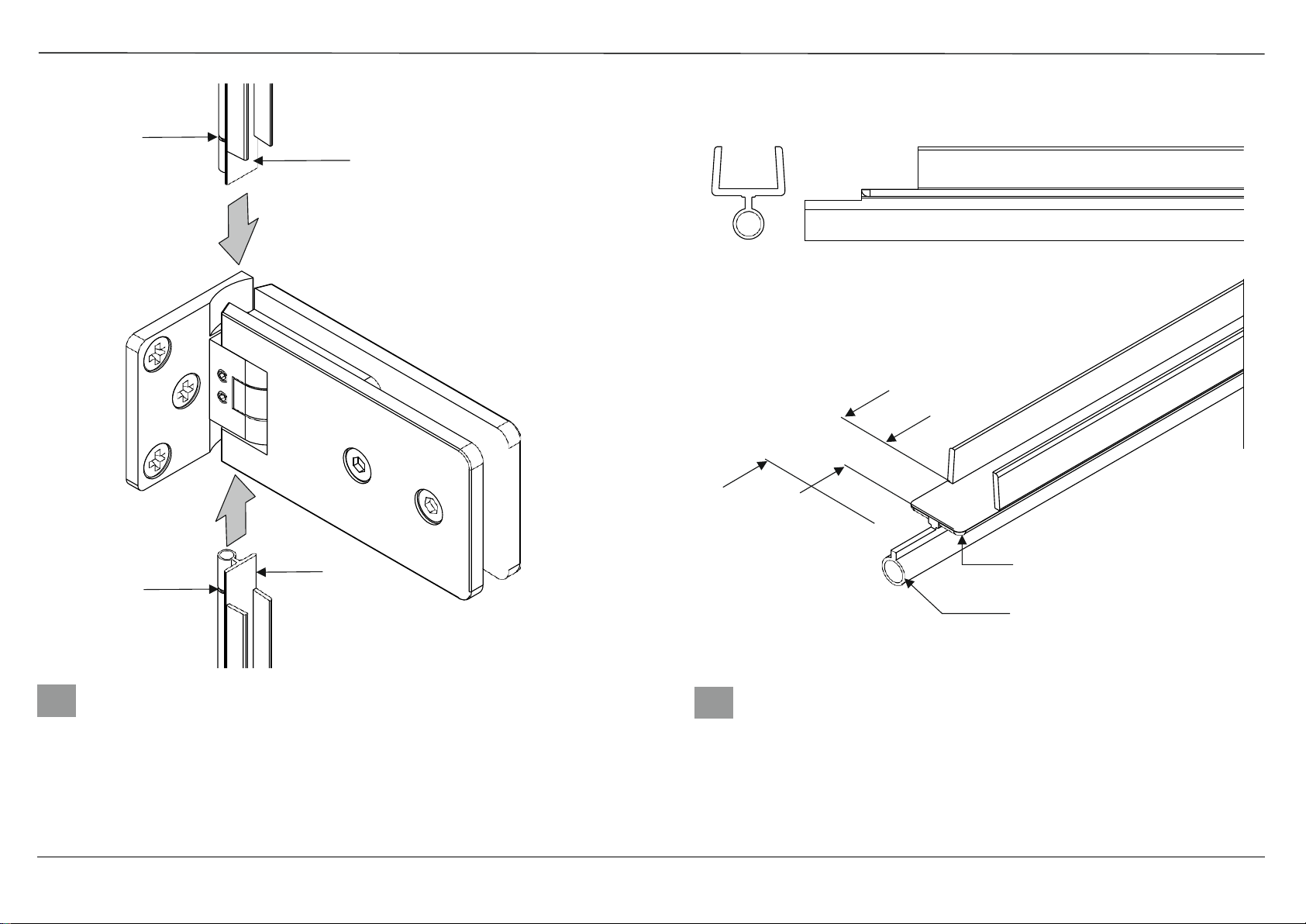

Toprotect the glass when the door is being manoeuvred, fit the vertical seal to the edge of the
Return panel as shown. The seal is supplied over length and should be trimmed level with the
top of the panel.
Position the door mounting blocks in the underframe channel as shown and lift the door on to
the blocks.
20 screw holes for the hinges and then remove the Door and set aside.

Cadiz Installation Guide - Surface Profiles –v2022
14
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
21 Drill 7 mm holes in the wall where marked and insert wall plugs. Replace the door.
Using only the four outer screw holes, tightly screw the hinges to the wall. To prevent damage
to the hinge plates, open the door outwards to gain access to the inner screw holes, insert
screws and tighten fully.
22 The other length of vertical seal is to be cut in 3 sections to fit to the door above,
below and between the hinges.
For maximum resistance to leakage, the seal sections should be cut as shown
above to allow them to fill the gaps in the hinge through which water might
otherwise escape.
12.5mm
Slit bubble here
Notch
Slit

Cadiz Installation Guide - Surface Profiles –v2022
15
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
Slit
Notch
10 mm
20 mm
Remove sharp corners
End to touch top of
underframe
23 Open the door and slide the 3 sections of seal on to the edge of the glass door, pushing the
notched ends inside the hinge as shown. 24 The bottom end of the Door to Wall seal should extend down to the top of the
underframe but should be notched as shown so that it does not interfere with
the horizontal seal which will be fitted to the bottom of the Door.
VIEW FROM
INSIDE OF
HINGE
GLASS NOT
SHOWN
Notch
Slit

Cadiz Installation Guide - Surface Profiles –v2022
16
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
25 Cut the horizontal seal to the width of the door for fitting to the bottom edge of the door with
the deflector blade facing inwards.
On the handle side of the door, notch the deflector blade and side wall of the seal, as shown
in the top illustration, to clear the vertical seal on the Return panel.
26 Push the underframe insert into the underframe channel under the door noting
the difference in orientation for outward and inward opening doors.
The vertical blade of the insert should be notched at each end as shown to allow
any water to drain back from the underframe to the inside of the shower
enclosure.
Handle side of door viewed from inside of door
OUTWARD
OPENING
DOOR
INWARD
OPENING
DOOR
5-6mm
Notch

Cadiz Installation Guide - Surface Profiles –v2022
17
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
27 If you have the Finger Pull handle option, the door will be supplied with the handle
pre-fitted as shown. 28 Alternatively, if you have a back-to-back handle, fit this to the door as shown,
ensuring the black plastic washers are located in the holes on both sides of the
glass.
Tighten the grub screws on the inside handle to secure.
Grub screw
INSIDE OF
SHOWER
Plastic washer
OUTSIDE OF
SHOWER

Cadiz Installation Guide - Surface Profiles –v2022
18
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
29 Using a smear of silicone, fit the chromium screw covers provided to the wall bracket
screws and the cover plates to the wall screw sections. 30 Run a small bead of silicone along the outside edge of the underframe where it
meets the tray or floor and on the vertical edges where it meets the wall.
Similarly, run a bead of silicone into the corners where the wall profile meets the
wall, both on the inside and the outside of the enclosure.

Cadiz Installation Guide - Surface Profiles –v2022
19
The Majestic Shower Company Limited
17 Flitch Industrial Estate, Chelmsford Road, Dunmow, CM6 1XJ
Telephone [phone]
Facsimile [phone] [email protected] www.majesticshowers.com
Bias
adjustment
screws
Adjust the bias on the hinges using the 2 small grub screws on the inside and
outside of the hinge. For an outward opening door, the two grub screws on the
outside of each hinge should be undone until their heads are flush with the hinge.
The grub screws on the inside of the hinge can then be tightened, pulling the door
in to the seal.
Reverse this process for inward opening doors.
31
