Makita MAC5200 User manual

MAC700 - 02/04
OWNERS MANUAL FOR
Oil Lubricated Air Compressor
MODEL NO.
MAC700 | MAC2400 | MAC5200
Model No. MAC700 MAC2400 MAC5200
Horsepower 22.5 3
SCFM @ 40 PSIG 3.8 4.8 6.9
SCFM @ 90 PSIG 3.3 4.2 6.5
Cut-In Pressure 100 PSI 100 PSI 110 PSI
Cut-Out Pressure 130 PSI 130 PSI 140 PSI
Bore 47 mm 51 mm 47 mm
Stroke 44 mm 44 mm 44 mm
Voltage -Single Phase 120 120 120
Motor RPM 1720 1720 3420
Amperage @ max pressure 12.4 12.3 13.8
Tank Size 2.6 Gallon 4.2 Gallon 5.2 Gallon
CSA/US Listed Yes Yes Yes
SPECIFICATION CHART
Minimum Circuit Requirement: 15 AMPS
* A circuit breaker is preferred. Use only a fuse or circuit breaker that is the same rating
as the branch circuit the air compressor is operated on. If the air compressor is
connected to a circuit protected by fuses, use time delay fuses.
IMPORTANT:
Read the Safety Guidelines and ALL
instructions carefully before operating.
www.makitatools.com

2
TABLEOF CONTENTS OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200
TABLE OF CONTENTS
SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
DUTY CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ON RECEIPT INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
DESCRIPTION OF OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
INSTALLATION AND BREAK IN PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Location of the air compressor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Lubrication and oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Initial start up procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Extension cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Grounding instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
OPERATING PROCEDURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Daily start up checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
ROUTINE MAINTENANCE SCHEDULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Filling with oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Changing the oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
COLD WEATHER CONDITIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
FACTORY SERVICE CENTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

SAFETY INSTRUCTIONS
3
OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
*** SAVE THESE INSTRUCTIONS ***
WARNING
IMPROPER OPERATION OR MAINTENANCE OF
THIS PRODUCT COULD RESULT IN SERIOUS
INJURY AND PROPERTY DAMAGE.
READ AND UNDERSTAND ALL WARNINGS
AND OPERATING INSTRUCTIONS BEFORE
USING THIS EQUIPMENT.
HAZARD WHAT CAN HAPPEN HOW TO PREVENT IT
Risk of Unsafe
Operation.
Unsafe operation of your air
compressor could lead to
serious injury to you or others.
•Review and understand all
instructions and warnings in
this manual.
•Become familiar with the
operation and controls of the
air compressor.
•Keep operating area clear of
all persons, pets, and
obstacles.
•Keep children away from the
air compressor at all times.
•Do not operate the product
when fatigued or under the
influence of alcohol or drugs.
Stay alert at all times.
•Never defeat the safety
features of this product.
•Equip area of operation with
a fire extinguisher.
•Do not operate machine with
missing, broken, or
unauthorized parts.

4
SAFETY INSTRUCTIONS OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200
HAZARD WHAT CAN HAPPEN HOW TO PREVENT IT
Risk of Air Tank
Bursting.
Risk of Attachments
and Accessories
Bursting.
The following conditions could
lead to a weakening of the
tank, and
RESULT IN A VIOLENT TANK
EXPLOSION RESULTING IN
SERIOUS INJURY TO YOU
OR OTHERS:
•Failure to properly drain
condensed water from the
tank, causing rust and
thinning of the tank wall.
•Modifications or attempted
repairs to the tank.
•Unauthorized modifications to
the pressure switch, safety
valve, or any other
components, which control
tank pressure.
Exceeding the pressure rating
of air tools, spray guns, air
operated accessories, tires
AND other inflatables can
cause them to explode or fly
apart, and could result in
serious injury to you and
others.
•Drain the tank DAILY or
after each use. If tank
develops a leak, replace it
immediately with a new
tank or new compressor
unit.
•Never drill into, weld, or
make any modifications to
the tank or its attachments.
Never attempt to repair a
damaged or leaking tank.
Replace with a new tank.
•The tank is designed to
withstand specific operating
pressures. Never make
adjustments or parts
substitutions to alter the
factory set operating
pressures.
•For essential control of air
pressure, you must install a
pressure regulator and
regulated air pressure
gauge to the air outlet of
your compressor.
•Follow the equipment
manufacturers
recommendation and never
exceed the maximum
allowable pressure rating of
attachments. Never use the
compressor to inflate small
low-pressure objects such
as children’s toys, footballs,
basketballs, etc.

SAFETY INSTRUCTIONS
5
OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200

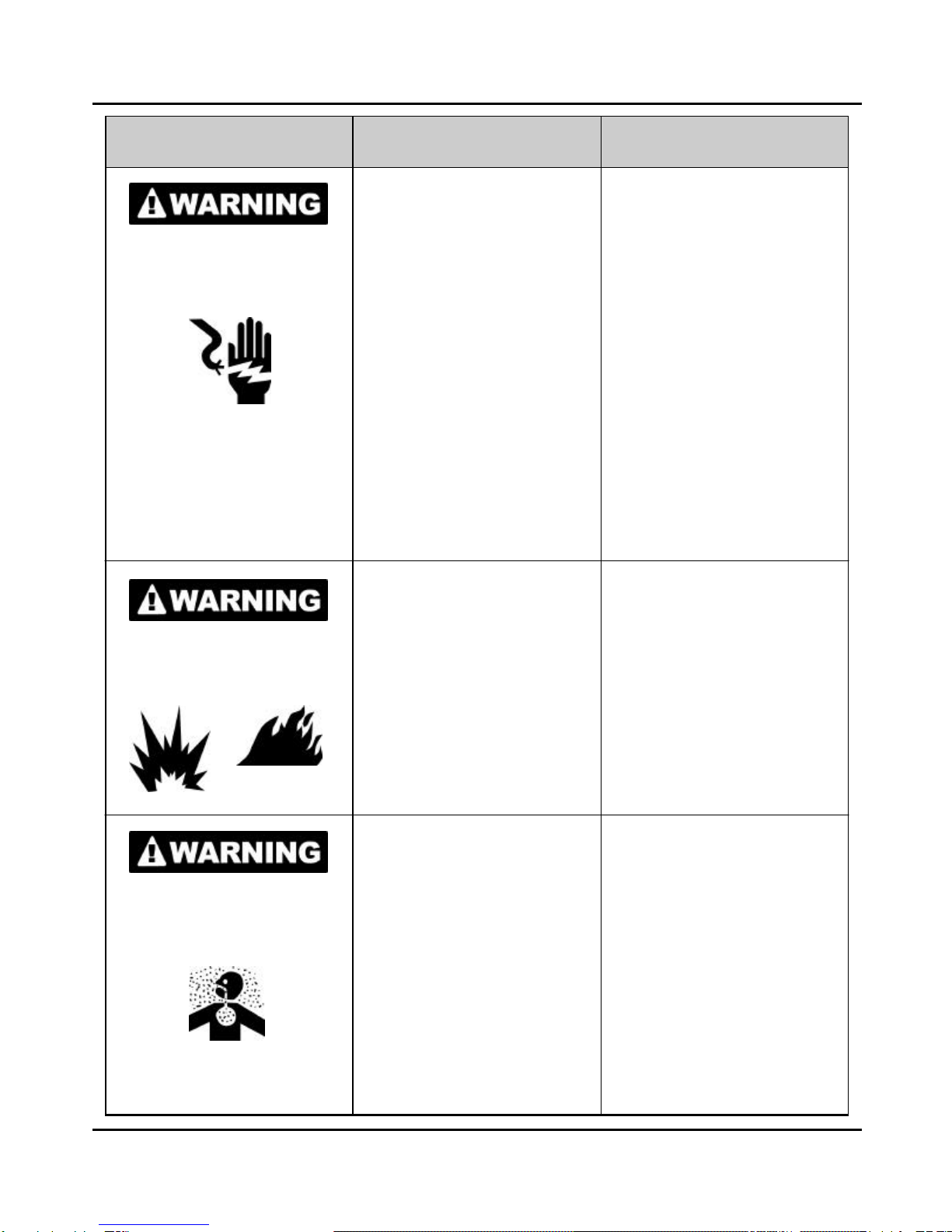

HAZARD WHAT CAN HAPPEN HOW TO PREVENT IT
Risk of Electric Shock.
Risk of Explosion or
Fire.
Risk to Breathing.
•Your air compressor is
powered by electricity. Like
any other electrically
powered device, if it is not
used properly, it may cause
electrical shock.
•Electrical grounding: failure
to provide adequate
grounding to this product
could increase the risk of
electric shock.
It is normal for electrical
contact within the motor and
pressure switch to spark,
whenever the compressor
starts or stops. Never operate
the compressor in an
atmosphere where flammable
vapors are present. Doing so
can result in serious injury to
you or others.
•The compressed air from
your compressor is not safe
for breathing. The air stream
may contain carbon
monoxide or other vapors, or
particles from the tank or
other components.
•Sprayed materials such as
paint, paint solvents, paint
remover, insecticides, weed
killers, etc., contain harmful
vapors and poisons.
•Any electrical wiring or
repairs required to this
product should be performed
by qualified service
personnel or a licensed
electrician, in accordance
with national and local
electrical codes.
•Make certain that the
electrical circuit to which the
compressor is connected
provides proper electrical
grounding, correct voltage,
and adequate fuse
protection.
•Never operate the
compressor outdoors when it
is raining, or in a wet
environment.
•Always operate the
compressor in a well-
ventilated area, free of
gasoline or solvent vapors.
•If spraying flammable
materials, locate compressor
at least 20 feet away from
spray area.
•Store flammable materials in
a secure location away from
compressor.
•Never inhale air from the
compressor, either directly or
from a breathing device
connected to the compressor.
Work in an area equipped
with good cross ventilation.
•Read and follow the safety
instructions provided on the
label or safety data sheet for
the material you are spraying.

6
SAFETY INSTRUCTIONS OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200

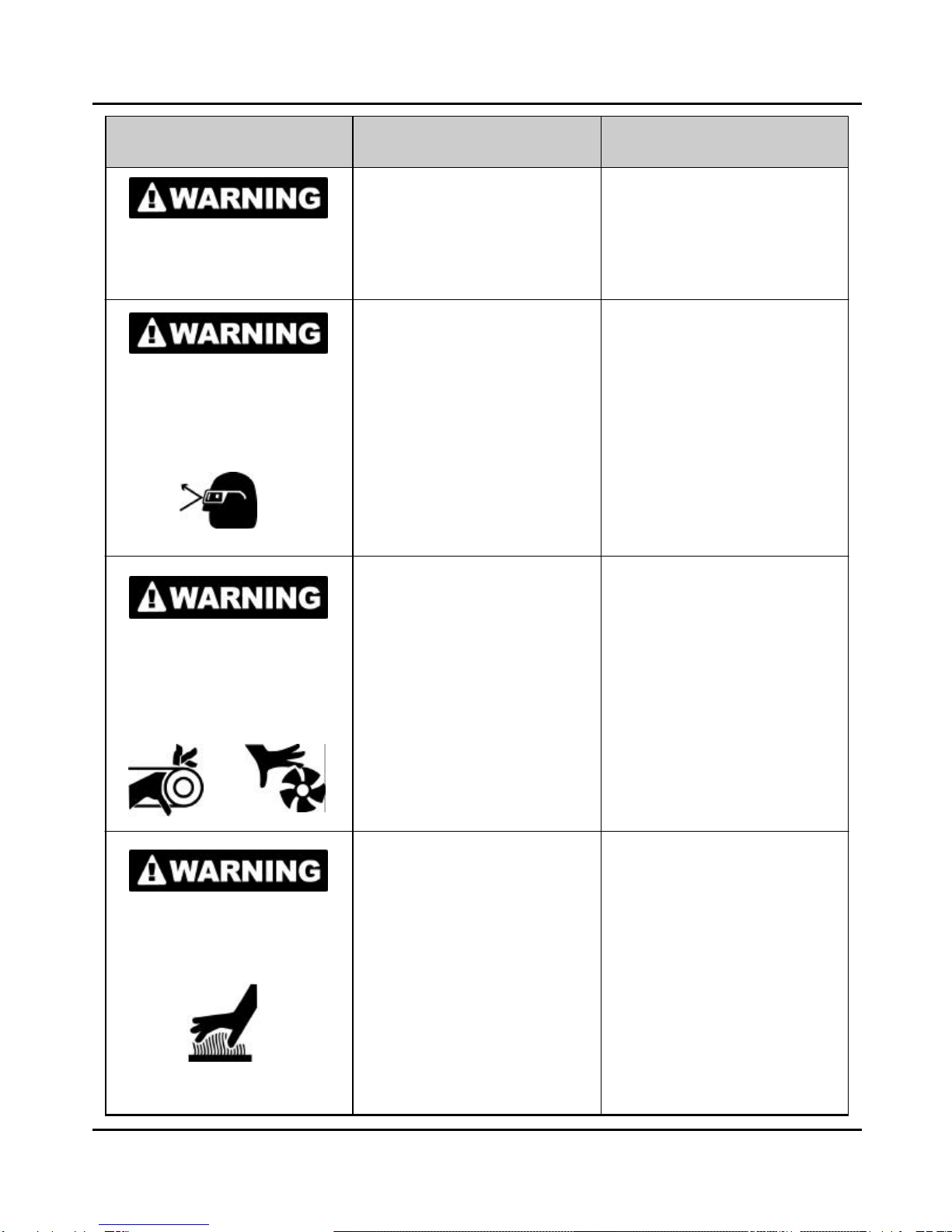

HAZARD WHAT CAN HAPPEN HOW TO PREVENT IT
Risk to Breathing.
(Continued)
Risk from
Compressed Air.
Risk from
Moving Parts.
Risk of Burn.
•Breathing compressor or
sprayed materials vapor can
result in serious injury.
The compressed air stream
can cause soft tissue damage,
and can propel dirt, chips,
loose particles and small
objects at high speed, resulting
in property damage or personal
injury.
The compressor cycles
automatically when the
pressure switch is in the
on/auto position. If you attempt
repair or maintenance while the
compressor is operating or
plugged in, you can expose
yourself to moving parts. These
moving parts can cause
serious injury.
Contact with hot parts such as
the compressor head or outlet
tubes could result in a serious
skin burn.
•Use an approved respirator
designed for use with your
specific application.
•Always wear approved safety
glasses with side shields
when using the compressor.
•Never point any nozzle or
sprayer toward any part of
the body or at other people or
animals.
•Always turn the compressor
off and bleed pressure from
the air line before attempting
maintenance, attaching tools
or accessories.
•Always unplug the
compressor and release air
pressure from the tank and
any attachments before
attempting any maintenance
or repair.
•Never operate the
compressor with guards or
covers which are damaged or
removed.
•Never touch hot components
during or immediately after
operation of the compressor.
Do not reach around
protective shrouds or attempt
maintenance until unit has
been allowed to cool.

GLOSSARY - DUTY CYCLE - ON RECEIPT INSPECTION
7
OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200
GLOSSARY
DUTY CYCLE
GENERAL INFORMATION
ON RECEIPT INSPECTION
CFM: Cubic feet per minute.
SCFM: Standard cubic feet per minute; a
unit of measure of air delivery.
PSIG: Pounds per square inch gauge; a
unit of measure of pressure.
CUT-IN PRESSURE: While the motor is off,
air tank pressure drops as you continue to
use your accessory or air tool. When the
tank pressure drops to a certain level the
motor will restart automatically re-started is
called "cut-in pressure".
CUT-OUT PRESSURE: When you turn on
your air compressor, it begins to run, air
pressure in the air tank begins to build. It
builds to a certain pressure before the motor
automatically shuts off - protecting your air
tank from pressure higher than its design
rating. The pressure at which the motor
shuts off is called "cut-out pressure".
All Makita manufactured air compressors are recommended to be operated on not more than a
50% duty cycle. This means an air compressor that pumps air more than 50% of one hour is
considered misuse because the air compressor is undersized for the required air demand.
This air compressor requires oil. Now you can enjoy all the benefits of having an oil lubricated
professional air compressor. When oil is changed regularly, it will give you long, trouble-free life.
Your air compressor can be used for operating paint spray guns, air tools, caulking guns, grease
guns, air brushes, sandblaster, inflating tires or spraying weed killers, insecticides, etc. An air
pressure regulator is supplied for these applications.
Separate air transformers which combine the functions of air regulation and/or moisture and dirt
removal should be used where applicable.
DAMAGE: Each air compressor outfit is carefully tested and checked before shipment. With
improper handling, damage may result in transit and cause problems with compressor operation.
Immediately upon arrival, check equipment for both concealed and visible damages to avoid
expenses being incurred to correct such problems. This should be done regardless of any visible
signs of damage to the shipping container. If this

8
STORAGE - DESCRIPTION OF OPERATION OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200
ON RECEIPT INSPECTION ... Continued
STORAGE
DESCRIPTION OF OPERATION
product was shipped directly to you, report any damages to the carrier and arrange for
inspection of goods immediately.
Before you store the air compressor, make sure you do the following:
DRAIN VALVE: The drain valve is located at the bottom of the air tank and is used to drain
condensation at the end of each use.
MOTOR THERMAL OVERLOAD PROTECTOR: The electric motor has a manual thermal
overload protector. If the motor overheats for any reason, the thermal overload protector will shut
off the motor. Turn pressure switch to the “off” position and wait for unit to cool before pushing
the reset button and restarting the compressor.
ON/AUTO - OFF SWITCH: Turn this switch to “on” to provide automatic power to the pressure
switch and to “off” to remove power when finished using the compressor or when compressor
will be left unattended.
AIR INTAKE FILTER: This filter is designed to clean air coming into the compressor pump. This
filter must always be clean and free from obstructions. See “Maintenance”.
AIR COMPRESSOR PUMP: To compress air, the piston moves up and down in the cylinder. On
the down stroke, air is drawn in through the air intake valve. The exhaust valve remains closed.
On the upstroke of the piston, air is compressed. The intake valve closes and compressed air is
forced out through the exhaust valve, through the outlet tube, through the check valve and into
the air tank. Useable air is not available until the compressor has raised the air tank pressure
above that required at the air outlet.
CHECK VALVE: When the air compressor is operating, the check valve is “open”, allowing
compressed air to enter the air tank. When the air compressor reaches “cut-out” pressure, the
check valve “closes”, allowing air pressure to remain inside the air tank.
Review the “Maintenance” and “Operating Procedures” sections and perform
maintenance necessary.Be sure to drain water from the air tank.
Protect the electrical cord and air hose from damage (such as being stepped
on or run over).Store the air compressor in a clean and dry location.
1)
2)

INSTALLATION AND BREAK-IN PROCEDURES
9
OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200
DESCRIPTION OF OPERATION ... Continued
INSTALLATION AND BREAK-IN PROCEDURES
PRESSURE SWITCH UNLOADING VALVE: The pressure switch unloading valve located on
the side of the pressure switch, is designed to automatically release compressed air from the
compressor head and the outlet tube when the air compressor reaches “cut-out” pressure.
PRESSURE SWITCH: The pressure switch automatically starts the motor when the air tank
pressure drops to the factory set “cut-in” pressure. It stops the motor when the air tank pressure
reaches the factory set “cut-out” pressure.
SAFETY VALVE: If the pressure switch does not shut off the air compressor at its “cut-out”
pressure setting, the safety valve will protect against high pressure by “popping out” at its factory
set pressure (slightly higher than the pressure switch “cut-out” setting).
OUTLET PRESSURE GAUGE: The outlet pressure gauge indicates the air pressure available at
the outlet side of the regulator. This pressure is controlled by the regulator and is always less or
equal to the tank pressure. See “Operating Procedures”.
TANK PRESSURE GAUGE: The tank pressure gauge indicates the air pressure in the tank.
REGULATOR: The air pressure coming from the air tank is controlled by the regulator knob.
Turn the knob clockwise to increase pressure and counter-clockwise to decrease pressure. To
avoid minor re-adjustment after making a change in pressure setting, always approach the
desired pressure from a lower pressure. When reducing from a higher to a lower setting, first
reduce to some pressure less than desired pressure. Depending on the air requirements of each
particular accessory, the outlet regulated air pressure may have to be adjusted while you are
operating the accessory.
LOCATION OF THE AIR COMPRESSOR:
Locate the air compressor in a clean, dry and well-ventilated area. The air filter must be kept
clear of obstructions, which could reduce air delivery of the air compressor. The air compressor
should be located at least 12 inches away from the wall or other obstructions that will interfere
with the flow of air. The air compressor head and shroud are designed to allow for proper
cooling. If humidity is high, an air filter can be installed on the air outlet adapter to remove
excessive moisture. Follow the instructions packaged with the air filter for proper installation.
LUBRICATION AND OIL:
CAUTION: Do not attempt to operate this air compressor without first adding oil to the
crankcase. Serious damage will result from even limited operation unless filled with oil and
broken in correctly. Make sure to closely follow initial start-up procedures. Compressor oil is
provided; on a level surface, please fill the crankcase to proper level indicated on the sight glass.
WARNING: Compressors are shipped without oil. A small amount of oil may be present in the
pump upon receipt of the air compressor. This is due to factory testing and does not mean the
pump contains oil.

10
INSTALLATION AND BREAK-IN PROCEDURES OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200
INSTALLATION AND BREAK-IN PROCEDURES ... Cont’d
CAUTION: Multi-Viscosity motor oils, like 10W30, should not be used in an air compressor. They
leave carbon deposits on critical components, thus reducing performance and compressor life.
Use air compressor oil only.
Initial Start Up Procedure:
Extension Cords:
To avoid voltage drop, power loss, and overheating of the motor, use extra air hose instead of an
extension cord. Low voltage can cause damage to the motor.
If an extension cord must be used:
Please see the chart below as the MINIMUM requirements:
Open the air receiver's drain valve.
Plug power supply cord into correct power source.
Run the compressor for a minimum of twenty (20) minutes in the no-load
condition to lubricate the bearings and pistons, and to seat the piston rings.
Close air receiver drain valve. Your compressor is now ready for use.
1)
2)
Use only an approved 3-wire extension cord that has a 3-blade grounding
plug and a 3-slot receptacle that will accept the plug on the air compressor.
Make sure the extension cord is in good condition.
3)
4)
Amp Rating Length of cord in feet
(120 volts) 25’ 50’ 100’ 150’
10 - 12 16 14 10 8
12 - 14 16 12 10 8
14 - 16 16 12 10 8
16 - 18 14 12 8 8
18 - 20 14 12 8 8

OPERATING PROCEDURES
11
OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200
INSTALLATION AND BREAK-IN PROCEDURES ... Cont’d
OPERATING PROCEDURES
Piping:
Plastic or PVC pipe is not designed for use with compressed air. Regardless of its indicated
pressure rating, plastic pipe can burst from air pressure. Use only metal pipe for air distribution
lines. If a pipe line is necessary, use pipe that is the same size, or larger than, the air tank outlet.
Piping that is too small will restrict the flow of air. If piping is over 100 feet long, use the next
larger size. Bury underground lines below the frost line and avoid pockets where condensation
can gather and freeze. Apply pressure before underground lines are covered to make sure all
pipe joints are free of leaks.
Grounding Instruction:
WARNING: Risk of electric shock!
In the event if a short circuit, grounding reduces the risk of shock by providing an escape wire
for the electric current. This air compressor must be properly grounded. The air compressor is
equipped with a cord having a grounding wire with an appropriate grounding plug. The plug must
be used with an outlet that has been installed and grounded in accordance with all local codes
and ordinances. The outlet must have the same configuration as the plug.
DO NOT USE AN ADAPTER.
Inspect the plug and cord before each use. Do not use if there are signs of damage.
DANGER: Improper grounding can result in electrical shock. Do not modify the plug that has
been provided. If it does not fit the available outlet, the correct outlet should be installed by a
qualified electrician.
Daily Start-Up Checklist:
Before attaching air hose or accessories, make sure the pressure switch lever
is set to “OFF” and the air regulator or shut-off valve is closed.
Attach hose and accessories. Too much air pressure causes a hazardous risk
of bursting. Check the manufacturer's maximum pressure rating for air tools
and accessories. The regulator outlet pressure must never exceed the
maximum pressure rating.
Turn the pressure switch lever to “ON/AUTO” and allow tank pressure to build.
Motor will stop when tank pressure reaches “cut-out” pressure.
Open the regulator by turning it clockwise. Adjust the regulator to the correct
pressure setting. Your compressor is ready for use.
Always operate the air compressor in well-ventilated areas; free of gasoline or
other solvent vapors. Do not operate the compressor near the spray area.
1)
2)
3)
4)
5)

12
MAINTENANCE OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200
OPERATING PROCEDURES ... Continued
MAINTENANCE
When you are finished:
Set the pressure switch lever to “OFF”.
Using the air tool or accessory, bleed the tank pressure down to zero.
Remove the air tool or accessory.
Drain water from air tank by opening drain cock valve on bottom of tank.
WATER WILL CONDENSE IN THE AIR TANK. IF NOT DRAINED, WATER
WILL CORRODE AND WEAKEN THE AIR TANK CAUSING A RISK OF AIR
TANK RUPTURE.
Note:
If drain cock valve is plugged, release all air pressure. The valve can then be
removed, cleaned, then reinstalled.
After the water has been drained, close the drain valve. The air compressor
can now be stored.
6)
7)
8)
9)
10)
WARNING: UNIT CYCLES AUTOMATICALLY WHEN POWER IS ON. WHEN
DOING MAINTENANCE,YOU MAY BE EXPOSED TO VOLTAGE SOURCES,
COMPRESSED AIR OR MOVING PARTS. PERSONAL INJURIES CAN OCCUR.
BEFORE PERFORMING ANY MAINTENANCE OR REPAIR, UNPLUG THE COM-
PRESSOR AND BLEED OFF ALL AIR PRESSURE.
To ensure efficient operation and longer life of the air compressor unit, a routine
maintenance schedule should be prepared and followed. The following routine
maintenance schedule is geared to a unit in a normal working environment operating on
a daily basis. If necessary, the schedule should be modified to suit the conditions under
which your compressor is used. The modifications will depend upon the hours of
operation and the working environment. Compressor units in an extremely dirty and/or
hostile environment will require a greater frequency of all maintenance checks.

ROUTINE MAINTENANCE SCHEDULE
13
OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200
ROUTINE MAINTENANCE SCHEDULE
COLD WEATHER CONDITIONS
Drain water from the air tank, any moisture separators or transformers.
Check for any unusual noise and/or vibration.
Manually check all safety valves to make sure they are operating properly.
Inspect air filter, replace if necessary.
Inspect air lines and fittings for leaks; correct as necessary.
1)
2)
3)
4)
5)
Remove the oil filler plug.
Slowly pour the proper oil into the pump crankcase.
Always keep oil level in the middle of the sight glass.
1)
2)
3)
Remove the oil drain plug. Allow oil to drain completely.
Replace the oil drain plug (The use of a sealing compound or Teflon tape to
avoid leakage is recommended.)
Refill with the recommended oil to the proper level.
1)
2)
3)
Each year of operation or if a problem is suspected:
Filling with oil:
Changing the oil:
Note: Every 300 hours or 3 months, whichever comes first.
Check condition of air compressor pump intake and exhaust valves.
Check condition of check valve. Replace if damaged or worn out.
Ambient Temperatures at
Point of operation SAE Viscosity ISO Viscosity
-16°C TO 0°C (3.2°F - 32°F) SAE 10W ISO 32
1°C TO 26°C (33.8°F - 78.8°F) SAE 20W ISO 68
ABOVE 27°C (80.6°F) SAE 30W ISO 100

14
SERVICE INSTRUCTIONS OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200
SERVICE INSTRUCTIONS
Release all air pressure from air tank and unplug outfit.
Remove shroud.
Loosen the top and bottom nut of the outlet tube and remove.
Remove the pressure release tube and fitting.
Unscrew the check valve (turn counterclockwise) using a socket wrench.
Check that the valve disc moves freely inside the check valve and that the
spring holds the disc in the upper, closed position. The check valve may be
cleaned with a suitable solvent.
Apply sealant to the check valve threads. Reinstall the check valve (turn
clockwise).
Replace the pressure release tube and fitting.
Replace the outlet tube and tighten top and bottom nuts.
Replace the shroud.
1)
2)
The motor does not get up to full power or speed.
Fuses blow out when starting the motor; lights dim and remain dim when
motor is started and is running.
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
Units with External Brass Check Valve Replacement:
Motor:
The motor has a manual reset thermal overload protector switch. If the motor overheats for any
reason, the overload protector will shut off the motor. The motor must be allowed to cool down
before resetting the overload switch and restarting. If the overload protector shuts the motor off
frequently, check for a possible voltage problem. Low voltage can also be suspected when:
Air Filter - Inspection and Replacement:
Keep the air filter clean at all times. Do not operate the compressor with the
air filter removed.
A dirty air filter will not allow the compressor to operate at full capacity. Before
you use the compressor, check the air filter to be sure it is clean.
If it is dirty, check and replace the filter element.
WARNING: Safety Valve – Inspection ... IF THE SAFETY VALVE DOES NOT
WORK PROPERLY, OVER-PRESSURIZATION MAY OCCUR, CAUSING AIR TANK
RUPTURE OR AN EXPLOSION. OCCASIONALLY PULL THE RING ON THE
SAFETY VALVE TO MAKE SURE THAT THE SAFETY VALVE OPERATES
FREELY. IF THE VALVE IS STUCK OR DOES NOT OPERATE SMOOTHLY, IT
MUST BE REPLACED WITH THE SAME TYPE OF VALVE.

TROUBLESHOOTING GUIDE
15
OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200
TROUBLESHOOTING GUIDE
PERFORMING REPAIRS MAY EXPOSE VOLTAGE SOURCES, MOVING PARTS OR COM-
PRESSED AIR SOURCES. PERSONAL INJURY MAY OCCUR. PRIOR TO ATTEMPTING ANY
REPAIRS, UNPLUG THE COMPRESSOR AND BLEED OFF TANK AIR PRESSURE.
PROBLEM CAUSE CORRECTION
Excessive tank pressure -
safety valve pops off.
Air leaks at fittings.
Air leaks at or inside check
valve.
Air leaks at pressure switch
unloader valve.
Air leaks in air tank or at air
tank welds.
Air leaks between head and
valve plate.
Defective pressure switch.
Improper wiring.
Fittings are not tight enough.
Defective or dirty check valve.
Defective pressure switch
unloader valve, or defective
check valve.
Defective air tank.
Blown head gasket.
Move the pressure switch
lever to the "OFF" position. If
the unit doesn't shut off,
unplug. If the electrical
contacts are welded together,
replace the pressure switch.
If the contacts are good, check
to see if the pin in the pressure
release valve is stuck. If it
does not move freely, replace
the valve.
Adjust or replace pressure
switch.
Tighten fittings where air can
be heard escaping. Check
fittings with a soap and water
solution.
DO NOT OVER TIGHTEN.
A defective check valve results
in a constant air leak at the
pressure release valve where
there is a pressure in the tank
and the compressor is shut off.
Remove and clean or replace
check valve.
DO NOT OVER TIGHTEN.
Contact a trained service
technician.
Air tank must be replaced. Do
not repair the leak. WARNING
DO NOT DRILL INTO, WELD
OR OTHERWISE MODIFY
AIR TANK OR IT WILL
WEAKEN. THE TANK CAN
RUPTURE OR EXPLODE.
Replace gasket or contact
Authorized Service Technician.

16
TROUBLESHOOTING GUIDE OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200
PROBLEM CAUSE CORRECTION
Pressure reading on the
regulated pressure gauge
drops when accessory is used.
Air leak from safety valve.
Compressor is not supplying
enough air to operate
accessories.
Motor will not run.
It is normal for "some"
pressure drop to occur.
Possible defective safety valve.
Prolonged excessive use of air.
Compressor is not large
enough for air requirement.
Restricted air intake filter.
Unit is not plugged in.
Hole in hose.
Check valve restricted.
Air leaks.
Motor overload protection
switch has tripped.
Tank pressure exceeds
pressure switch "cut-in"
pressure.
If there is an excessive
amount of pressure drop when
the accessory is used, adjust
the regulator following the
instructions.
Note: Adjust the regulated
pressure under flow conditions
(while accessory is being
used).
Operate safety valve manually
by pulling on ring. If valve still
leaks, it should be replaced.
Decrease amount of air usage.
Check the accessory air
requirement. If it is higher than
the SCFM or pressure
supplied by your air
compressor, you need a larger
compressor.
Clean or replace air intake
filter. Do not operate the air
compressor in the paint spray
area.
Plug unit into "live" electrical
outlet.
Check and replace if required.
Remove and clean, or replace.
Tighten fittings. (See Air Leaks
section of troubleshooting
guide).
Let motor cool off and reset
overload switch.
Motor will start automatically
when tank pressure drops
below "cut-in" pressure of
pressure switch.

TROUBLESHOOTING GUIDE
17
OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200
PROBLEM CAUSE CORRECTION
Motor will not run. (con’t)
Regulator knob has continuous
air leak. Regulator will not shut
off at air outlet.
Check valve is stuck open.
Loose electrical connections.
Possible defective capacitor.
Paint spray on internal motor
parts.
Possible defective motor.
Fuse Blown, circuit breaker
tripped.
Pressure unloader valve on
pressure switch has not
unloaded head pressure.
Dirty or damaged regulator
internal parts.
Remove and clean, or replace.
Check wiring connection inside
pressure switch and terminal
box area.
Return to an Authorized
Warranty Service Center for
inspection or replacement if
necessary.
Have checked at an
Authorized Warranty Service
Center. Do not operate the
compressor in the paint spray
area. See flammable vapor
warning.
Have checked at an
Authorized Warranty Service
Center.
Check fuse box for blown fuse
and replace. If necessary,
reset circuit breaker. Do not
use a fuse or circuit breaker
with higher rating than
specified for your particular
branch circuit.
Check for low voltage
conditions and/or proper
extension cord.
Disconnect the other electrical
appliances from circuit or
operate the compressor on its
own branch circuit.
Bleed the line by pushing the
lever on the pressure switch to
the "off" position; if the valve
does not open, replace it.
Replace regulator.

18
FACTORY SERVICE CENTERS OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200
1-800-4-MAKITA - RETAIN THIS PORTION FOR YOUR RECORDS
Arizona
3707 E. Broadway Road,
Suite 6
Phoenix, AZ 85040
[phone]
California
41850 Christy Street
Fremont, CA 94538-5107
[phone]
14930 Northam Street
La Mirada, CA 90638-5753
[phone]
1970 Fulton Avenue
Sacramento, CA 95825
[phone]
7674 Clairemont Mesa Boulevard
San Diego, CA 92111
[phone]
16735 Saticoy Street,
Suite 105
Van Nuys, CA 91406
[phone]
Colorado
11839 E. 51st Avenue
Denver, CO 80239-2709
[phone]
Florida
750 East Sample Road
Pompano Beach, FL 33064
[phone]
Georgia
4680 River Green Parkway NW
Duluth, GA 30096
[phone]
Illinois
1450 Feehanville Drive
Mt. Prospect, IL 60056-6011
[phone]
Maryland
7397 Washington Boulevard
Suite 104
Elkridge, MD 21075
[phone]
Massachusetts
232 Providence Highway
Westwood, MA 02090
[phone]
Minnesota
6427 Penn Avenue South
Richfield, MN 55423
[phone]
Missouri
9876 Watson Road
St. Louis, MO 63126
[phone]
Nebraska
4129 S. 84th Street
Omaha, NE 68127
[phone]
Nevada
3375 S. Decatur Boulevard
Suites 22-24
Las Vegas, NV 89102
[phone]
New Jersey
251 Herrod Boulevard
Dayton, NJ 08810-1539
[phone]
New York
4917 Genesee Street
Cheektowaga, NY 14225
[phone]
Oregon
828 19th Avenue, N.W.
Portland, OR 97209
[phone]
Pennsylvania
1904 Babcock Boulevard
Pittsburgh, PA 15209
[phone]
Puerto Rico
200 Guayama Street
Hato Rey, PR 00917
[phone]
Tennessee
1120 Elm Hill Pike, Suite 170
Nashville, TN 37210
[phone]
Texas
12801 Stemmons Fwy. Suite 809
Farmers Branch, TX 75234
[phone]
12701 Directors Drive
Stafford, TX 77477-3701
[phone]
3453 IH-35 North, Suite 101
San Antonio, TX 78219
[phone]
Wisconsin
2245 S. 108th Street
West Allis, WI 53227
[phone]
When you need service: Send
complete tool (prepaid) to one of the
Makita Factory Service Centers listed,
or to an Authorized Makita Service
Center. Be sure to attach a letter to the
outside of the carton detailing the
problem with your tool.
Date Purchased:
Dealer’s Name and Address:
Model No.
Serial No.

WARNING - NOTES
19
OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contains chemicals known to the State of California to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are specially designed to filter out
microscopic particles.
NOTES

20
WARRANTY OWNERS MANUAL
MAKITA - MAC700 / MAC2400 / MAC5200
MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted
to be free of defects from workmanship and materials for the period of ONE YEAR from the
date of original purchase. Should any trouble develop during this one year period, return the
COMPLETE tool, freight prepaid, to one of Makita’s Factory or Authorized Service Centers. If
inspection shows the trouble is caused by defective workmanship or material, Makita will
repair, (or at our option, replace), without charge.
This warranty does not apply where:
• Repairs have been made or attempted by others;
• Repairs are required because of normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Alterations have been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES FROM THE SALE OR USE OF THE PRODUCT. THIS
DISCLAIMER APPLIES BOTH DURING AND AFTER THE TERM OF THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF "MERCHANTABILITY" AND "FITNESS FOR A SPECIFIC PURPOSE,"
AFTER THE ONE YEAR TERM OF THIS WARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary
from state to state. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you. Some
states do not allow limitation on how long an implied warranty lasts, so the above limitation
may not apply to you.
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japan
