Makita PM001G User manual

INSTRUCTION MANUAL
Cordless Backpack Mist Blower
PM001G
ENGLISH: Original instructions
Read before use.

2ENGLISH
SPECIFICATIONS
Model: PM001G
Capacities Air volume 7.4 - 14.3 m3/min *1
Air speed (average) 28.0 - 53.0 m/s
Air speed (max.) 34.0 - 64.0 m/s
Tank capacity 15 l
Volume of total residual 50 ml or less
Dimensions (L x W x H)
(with end nozzle)
320 mm x 600 mm x 690 mm
Rated voltage D.C. 36 V - 40 V max
Net weight *2 11.9 kg
*3 13.2 - 15.7 kg
Protection degree IPX4
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydi󰀨erfromcountrytocountry.
*1:Maximumairowrateis858m3/h.
*2: Weight when the tank is empty, without the batteries, with pipes, nozzle and harnesses.
*3:Thelightestandheaviestcombinationofweight,accordingtoEPTA-Procedure01/2014.Theweightmaydi󰀨er
depending on the attachment(s), including the battery cartridge(s).
Applicable battery cartridge and charger
Battery cartridge BL4050F / BL4080F
Charger DC40RA / DC40RB / DC40RC
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
andchargersmaycauseinjuryand/orre.
WARNING: Do not use a corded power supply such as portable power pack with this machine.

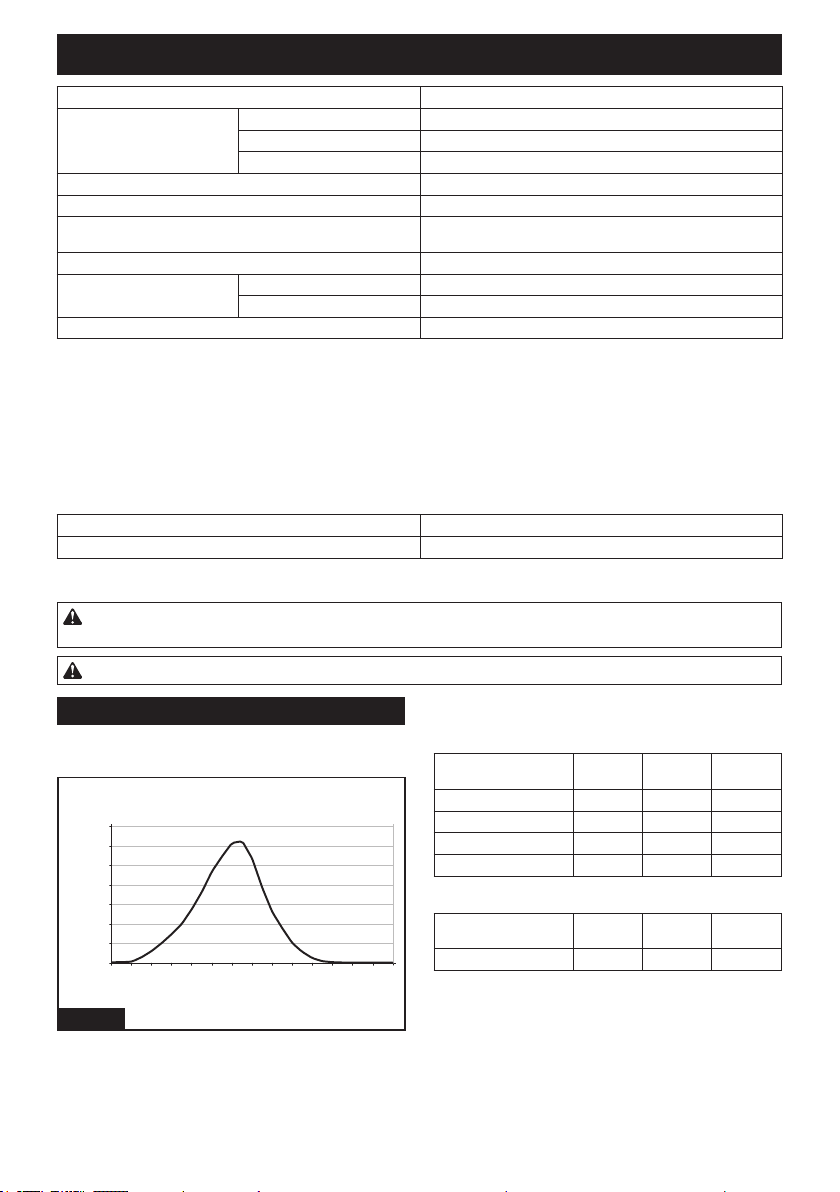

Spraying specications
Horizontal spray range
14%
12%
10%
8%
6%
4%
2%
0%
012345678910 11 12 13 14
(1)
(2)
Fig.1
►1.Distancefromowdelivery(m)2. Percentage of
medium deposited on the ground
Droplet size
Droplet size with standard nozzle
Adjustment knob
setting
Dv 0.1 Dv 0.5 Dv 0.9
122μm 57μm 112μm
237μm 102μm 251μm
340μm 111μm 267μm
442μm 115μm 280μm
Droplet size with ULV nozzle
Adjustment knob
setting
Dv 0.1 Dv 0.5 Dv 0.9
1 - 4 14μm 41μm 85μm

3ENGLISH
Discharge rate for working positions
0°
- 30°
+ 30°
Fig.2
Discharge rate with standard nozzle
Adjustment knob
setting
Nozzle angle
- 30° 0° 30°
10.23 l/min 0.19 l/min 0.12 l/min
21.13 l/min 0.71 l/min 0.34 l/min
31.37 l/min 0.95 l/min 0.49 l/min
41.55 l/min 1.21 l/min 0.51 l/min
Discharge rate with ULV nozzle
Adjustment knob
setting
Nozzle angle
- 30° 0° 30°
1 - 4 0.05 l/min 0.04 l/min 0.03 l/min
NOTE:Thevaluesinthissprayingspecicationsmay
di󰀨erdependingontheworkingconditionsorambient
temperature.
Symbols
The followings show the symbols which may be used
for the equipment. Be sure that you understand their
meaning before use.
Take particular care and attention.
Read instruction manual.
Wear eye and ear protection.
Wear respiratory protection.
Do not expose to moisture.
Wear sturdy boots with nonslip soles.
Steeltoed safety boots are recommended.
Wear protective gloves.
Wear protective clothes.
Keep bystanders away when spraying.
Keep hands away from rotating parts.
Long hair may cause entanglement
accident.
Keep bystanders away.
Weight when the tank is empty.
Weight when the tank is full.
Ni-MH
Li-ion
Only for EU countries
Due to the presence of hazardous com-
ponents in the equipment, waste electrical
and electronic equipment, accumulators
and batteries may have a negative impact
on the environment and human health.
Do not dispose of electrical and electronic
appliances or batteries with household
waste!
In accordance with the European Directive
on waste electrical and electronic equip-
ment and on accumulators and batteries
and waste accumulators and batteries,
as well as their adaptation to national law,
waste electrical equipment, batteries and
accumulators should be stored separately
and delivered to a separate collection point
for municipal waste, operating in accor-
dance with the regulations on environmen-
tal protection.
This is indicated by the symbol of the
crossed-out wheeled bin placed on the
equipment.
Guaranteed sound power level according
to EU Outdoor Noise Directive.
Sound power level according to Australia
NSW Noise Control Regulation.
Intended use
The machine is intended for blowing mist.
Noise
The typical A-weighted noise level determined accord-
ing to ISO22868:
Sound pressure level (LpA) : 84.5 dB (A)
Sound power level (LWA) : 103.3 dB (A)
Uncertainty (K) : 2.3 dB(A)
NOTE: The declared noise emission value(s) has
been measured in accordance with a standard test
method and may be used for comparing one tool with
another.
NOTE: The declared noise emission value(s)
may also be used in a preliminary assessment of
exposure.

4ENGLISH
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can di󰀨er from the declared
value(s) depending on the ways in which the tool is
used especially what kind of workpiece is processed.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (tak-
ing account of all parts of the operating cycle such
as the times when the tool is switched o󰀨 and when
it is running idle in addition to the trigger time).
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to ISO22867:
Work mode: operation without load
Vibration emission (ah) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE: The declared vibration total value(s) may also
be used in a preliminary assessment of exposure.
WARNING: The vibration emission during
actual use of the power tool can di󰀨er from the
declared value(s) depending on the ways in which
the tool is used especially what kind of workpiece
is processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
o󰀨 and when it is running idle in addition to the
trigger time).
Declarations of Conformity
For European countries only
The Declarations of conformity are included in Annex A
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING Read all safety warnings, instruc-
tions, illustrations and specications provided with
this power tool. Failure to follow all instructions listed
belowmayresultinelectricshock,reand/orserious
injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7. Power tools can produce electromagnetic
elds (EMF) that are not harmful to the user.
However, users of pacemakers and other similar
medical devices should contact the maker of their
device and/or doctor for advice before operating
this power tool.
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
powertoolsmayresultinseriouspersonalinjury.
2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
willreducepersonalinjuries.
3. Prevent unintentional starting. Ensure the
switch is in the o󰀨-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
resultinpersonalinjury.

5ENGLISH
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts.Looseclothes,jewelleryor
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8.
Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
causesevereinjurywithinafractionofasecond.
9. Always wear protective goggles to protect your eyes
from injury when using power tools. The goggles
must comply with ANSI Z87.1 in the USA, EN 166 in
Europe, or AS/NZS 1336 in Australia/New Zealand. In
Australia/New Zealand, it is legally required to wear a
face shield to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
powertoolwilldothejobbetterandsaferatthe
rate for which it was designed.
2.
Do not use the power tool if the switch does not turn
it on and o󰀨. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4.
Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool
or these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
5. Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may a󰀨ect the power tool’s operation. If dam-
aged, have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
foroperationsdi󰀨erentfromthoseintendedcould
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
resultinpersonalinjury.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
onetypeofbatterypackmaycreateariskofre
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packsmaycreateariskofinjuryandre.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nalstogethermaycauseburnsorare.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help.Liquidejectedfromthebatterymaycause
irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modied.Damagedormodiedbatteries
may exhibit unpredictable behaviour resulting in
re,explosionorriskofinjury.
6. Do not expose a battery pack or tool to re or
excessive temperature.Exposuretoreortem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outsidethespeciedrangemaydamagethe
batteryandincreasetheriskofre.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
3. Follow instruction for lubricating and chang-
ing accessories.

6ENGLISH
Cordless Backpack Mist Blower
Safety Instructions
WARNING: Read all safety warnings and
all instructions. Failure to follow the warnings and
instructionsmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
General Instructions
1. To ensure correct and safe operation, the user
must read, understand and follow this instruc-
tion manual to assure familiarity with the
handling of the machine. Users insu󰀩ciently
informed will risk danger to themselves as well
as others due to improper handling.
2. It is recommended to lend the machine only
to people who have proven to be experienced
with mist blowers.
3. Children and young persons aged under 18
years must not be allowed to operate the
machine. Persons over the age of 16 years
may however use the machine for the purpose
of being trained only while under the direct
supervision of a qualied trainer.
4. Only use plant protection products that are
specically approved for use with mist blow-
ers by the manufacturer and that meet all
applicable safety regulations, standards, and
ordinances.
5. All operating and servicing people should be
trained and familiarized with the proper han-
dling procedures for the chemical products
being used, as well as with liquid chemical
disposal regulations.
6. To reduce the risk of injury when using chem-
ical products, wear proper protective apparel
when lling, using and cleaning the mist
blower. Always follow all of the chemical man-
ufacturer’s instructions with respect to proper
eye, skin and respiratory protection.
7. When using toxic chemicals, the operator and
any bystanders may need to wear a properly
tted respirator for the chemical being used.
Refer to the chemical product label. Breathing
toxic chemicals can cause serious or fatal
injury.
Intended use of the machine
1. The machine is only intended for spraying
liquid chemicals and other liquids to control
pests and weeds in fruit, ower and vegetable
gardens, on trees and bushes and on other
plants, such as co󰀨ee, tobacco and cotton. It
is also useful for the maintenance of young
trees to control the bark beetle and other pests
and plant diseases. Never use for any other
purposes.
Training
1. Read the instructions carefully. Be familiar
with the controls and the correct use of the
machine.
2. Never allow children, persons with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge or people
unfamiliar with these instructions to use the
machine. Local regulations may restrict the
age of the operator.
3. Never operate the machine while people, espe-
cially children, or pets are nearby.
4. Keep in mind that the operator or user is
responsible for accidents or hazards occurring
to other people or their property.
Preparation
1. Always wear substantial footwear and long
trousers while operating the machine.
2. Do not wear loose clothing or jewellery that
can be drawn into the air inlet. Keep long hair
away from the air inlets.
3. To prevent dust irritation the wearing of a face
mask is recommended.
4. While operating the machine, always wear
non-slip and protective footwear. Non-skid,
closed-toed safety boots and shoes will reduce the
riskofinjury.
5. Always wear rubber/chemical-resistant gloves
and rubber/chemical boots when working with
the machine.
Handling of chemicals
1. Some chemicals may contain toxic and/or
caustic substances. Such chemicals can be
dangerous and cause serious or fatal injury to
persons and animals and/or severe damage
to plants and the environment. Avoid direct
contact with chemicals. Follow the chemical
manufacturer’s instructions with respect to
any contact with its product.
2. Read the manufacturer’s label and instruction
manual each time before mixing or using
the chemical and before storing or disposal.
Careless or improper use may cause serious
or fatal injury.
3. Carefully read the labels on chemical contain-
ers before use. Chemicals are classied into
categories of toxicity. Each category will have
unique handling characteristics. Familiarize
yourself with the characteristics for the cate-
gory of the chemical you are using. Chemicals
may be used only by persons trained in
their handling and the appropriate rst-aid
measures.
4. Chemicals may be harmful to persons, animals
and the environment if improperly used. It
is advisable not to use some chemicals that
are caustic, corrosive or poisonous with the
machine.
5. Mix only compatible pesticides. Wrong mix-
tures can produce toxic fumes. When handling
and spraying chemicals, make sure you are
operating in accordance with your local envi-
ronmental protection rules and guidelines.
Do not spray when it is windy. To help protect
the environment, use only the recommended
dosage.

7ENGLISH
6. Avoid opening your mouth such as eating,
drinking, or smoking while handling chemicals
or while you are spraying. Never blow through
nozzles, tubes, pipes or any other component
by your mouth. Always handle chemicals in a
well-ventilated area while wearing appropriate
protective clothing and safety equipment.
7. Do not store or transport chemicals together
with food, drink, or medicines, and never
reuse a chemical container for any other
purposes. Do not transfer liquid chemicals to
other containers, especially food and/or drink
containers.
8. Keep the product’s label ready to read to or
show the persons you consult. Clean all chem-
ical spills immediately. In case of accidental
contact or ingestion of chemicals or in case of
contamination of clothing, stop working and
immediately consult the chemical manufac-
turer’s instructions. If doubtful about what to
do, ask a doctor or poison control center for
advice immediately.
9. Dispose of any residue observing the laws and
regulations of your region of residence.
10. Keep chemicals out of reach of children, other
unauthorized people and animals. When not
in use, store chemicals in a safe and locked
place. Follow the manufacturer’s recommen-
dations for proper storage.
Preparing chemicals
1. Prepare chemical solutions following the
chemical manufacturer’s instructions.
2. Prepare solution only enough for the job at
hand so that no solution is left over.
3. Mix chemicals only by following instructions.
Wrong mixtures can produce toxic fumes or
explosive mixtures.
4. Never spray undiluted chemicals.
5. Prepare solution and ll the container out-
doors only in a well-ventilated place.
Storing chemicals
1. Do not store spray solution in the container for
more than one day.
2. Always store and transport spray solution only
in approved containers.
3. Never store or transport the spray solution in
containers intended for foods, drinks or animal
feed.
4. Do not store or transport spray solution with
foods, drinks or animal feed.
5. Keep spray solution out of the reach of chil-
dren, other unauthorized people and animals.
6. Store the spray solution in a locked place
secured against unauthorized use.
Disposing of chemicals
1.
Never dispose of residual chemicals or contam-
inated rinsing solutions in waterways, drains,
sewers, street gutters, manholes or the like.
2. When disposing of contaminated rinse,
observe your all applicable laws, regulations
and ordinances.
3. Strictly observe the precautionary instructions
of the chemical manufacturer.
Filling the tank
1. Make sure that the draining lever and nozzle
lever are closed.
2. Before using the mist blower with chemicals,
ll the tank with fresh water to assure that
you have assembled it properly and practice
spraying. Also, check for any leaks at this
time. When thoroughly familiar with the mist
blower operation, follow normal operating
procedures.
3. Fill the tank in well-ventilated areas or
outdoors.
4. Do not use ammables in the mist blower,
which may cause explosion resulting in seri-
ous or fatal injury.
5. Do not use caustic or corrosive materials in
the mist blower, which could result in damage
to the machine.
6. Do not use liquid with temperature exceeds 50
°C (122 °F) to reduce the risk of scalding and
damage to the machine.
7. To ll the tank, place the mist blower on a level
surface. To reduce the risk of contaminating
the surrounding environment, be careful not to
overll the tank with chemical solution.
8. To reduce the risk of injury, do not ll the tank
while wearing the machine on your back.
9. If you ll the solution container with a hose
attached to a central water supply, be sure the
end of the hose is out of the solution to reduce
the risk of backow.
10. Calculate the correct amount of chemical solu-
tion so that it is used up at one time, with no
extra solution left over in the tank.
11. After lling, tighten the tank cap rmly.
12. Check for leakage while relling and during
operation. A leak from the tank or a loose t-
ting could soak your clothing and come into
contact with your skin.
13. Fill the tank with liquid according to operator's
body size or strength.
Operation
1. Switch o󰀨 the machine and remove the battery
cartridges and make sure that all moving parts
have come to a complete stop
• whenever you leave the machine.
• before clearing blockages.
• before checking, cleaning or working on
the machine.
• if the machine starts to vibrate
abnormally.
2. Operate the machine only in daylight or in
good articial light.
3. Do not overreach and keep proper balance and
footing at all times.
4. Always be sure of your footing on slopes.
5. Walk, never run.
6. Keep all cooling air inlets clear of debris.
7. Never spray in the direction of bystanders.
8. Operate the machine in a recommended posi-
tion and on a rm surface.
9. Do not operate the machine at high places.

8ENGLISH
10. Never point the nozzle at anyone in the vicinity
when using the machine.
11. Never block suction inlet and/or mist blower
outlet.
• Be careful not to block suction inlet or
mist blower outlet with dust or dirt when
operating in dusty area.
• Do not use nozzles other than the nozzles
provided by Makita.
12. Do not operate the machine near open window,
etc.
13. Operating the machine only at reasonable
hours is recommended - not early in the
morning or late at night when people might be
disturbed.
14. If the machine strikes any foreign objects or
should start making any unusual noise or
vibration, immediately switch o󰀨 the machine
to stop it. Remove the battery cartridges
from the machine and inspect the machine
for damage before restarting and operating
the machine. If the machine is damaged, ask
Makita Authorized Service Centers for repair.
15. Do not insert ngers or other objects into
suction inlet or mist blower outlet.
16. Prevent unintentional starting. Ensure the
switch is in the o󰀨-position before inserting
battery cartridges, picking up or carrying the
machine. Carrying the machine with your n-
ger on the switch or energizing the machine
that has the switch on invites accidents.
17. Do not operate the machine near ammable
materials.
18. Avoid operating the machine for a long time in
low temperature environment.
19. Do not use the machine when there is a risk of
lightning.
20. When you use the machine on muddy ground,
wet slope, or slippery place, pay attention to
your footing.
21. Do not use the machine in bad weather where
visibility is limited. Failure to do so may cause
fall or incorrect operation due to low visibility.
22. Do not submerge the machine into a puddle.
23. Do not leave the machine unattended outdoors
in the rain.
24. Do not use the machine in the snow.
25. During operation, keep the cord away from
obstacles. The cord caught by obstacles may
cause serious injury.
26. Avoid working in freezing temperatures as the
liquid in the tank may freeze.
After operation
1. Always wash yourself thoroughly with soap
and water after spraying or handling chemi-
cals. Shower immediately, and wash all pro-
tective clothing separately from other items.
Follow any additional recommendations of the
chemical manufacturer.
2. Empty, rinse and clean the tank and strainer
after each use. This helps to prevent the
solution from crystallizing, which could later
cause clogging and chemical damage to the
machine. In addition, residual chemicals may
have undesirable e󰀨ects during subsequent
spraying with a di󰀨erent type of chemical (e.g.,
residual herbicide may damage or kill plants
being sprayed with a pesticide).
3. Do not store the machine with spray solution
in the tank.
Maintenance and storage
1. Keep all nuts, bolts and screws tight to be sure
the machine is in safe working condition.
2. If the parts are worn or damaged, replace them
with parts provided by Makita.
3. Store the machine in a dry place out of the
reach of children.
4. When you stop the machine for inspection,
servicing, storage, or changing accessory,
switch o󰀨 the machine and make sure that all
moving parts come to a complete stop, and
remove the battery cartridges. Cool down
the machine before making any work on the
machine. Maintain the machine with care and
keep it clean.
5. Always cool down the machine before storing.
6. Do not expose the machine to rain. Store the
machine indoors.
7. When you lift the machine, be sure to bend
your knees and be careful not to hurt your
back.
8. When washing the machine, do not let water
enter the electrical mechanism such as bat-
tery, motor, and terminals.
9. When storing the machine, avoid direct sun-
light and rain, and store it in a place where it
does not get hot or humid.
10. When carrying the machine, be sure to hold
the machine rmly.
11. When carrying the machine, be careful not to
get the cord caught by obstacles.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
onetypeofbatterypackmaycreateariskofre
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packsmaycreateariskofinjuryandre.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nalstogethermaycauseburnsorare.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help.Liquidejectedfromthebatterymaycause
irritation or burns.

9ENGLISH
5. Do not use a battery pack or tool that is dam-
aged or modied.Damagedormodiedbatteries
may exhibit unpredictable behaviour resulting in
re,explosionorriskofinjury.
6. Do not expose a battery pack or tool to re or
excessive temperature.Exposuretoreortem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outsidethespeciedrangemaydamagethe
batteryandincreasetheriskofre.
Electrical and battery safety
1. Do not dispose of the battery(ies) in a re.
The cell may explode. Check with local codes for
possible special disposal instructions.
2. Do not open or mutilate the battery(ies).
Released electrolyte is corrosive and may cause
damage to the eyes or skin. It may be toxic if
swallowed.
3. Do not charge battery in rain, or in wet
locations.
4. Do not charge the battery outdoors.
5. Do not handle charger, including charger plug,
and charger terminals with wet hands.
6. Do not replace the battery with wet hands.
7. Do not replace the battery in the rain.
8. Do not wet the terminal of battery with liquid
such as water, or submerge the battery. Do not
leave the battery in the rain, nor charge, use,
or store the battery in a damp or wet place. If
the terminal gets wet or liquid enters inside of bat-
tery, the battery may be short circuited and there is
ariskofoverheat,re,orexplosion.
9. After removing the battery from the machine or
charger, be sure to store it in a dry place.
10. If the battery cartridge gets wet, drain the
water inside and then wipe it with a dry cloth.
Dry the battery cartridge completely in a dry
place before use.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product.
MISUSE or failure to follow the safety rules stated
in this instruction manual may cause serious
personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble or tamper with the battery
cartridge.Itmayresultinare,excessiveheat,
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a
re,excessiveheat,orexplosion.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tapeormasko󰀨opencontactsandpackupthe
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliantproductsmayresultinare,exces-
sive heat, explosion, or leak of electrolyte.

10 ENGLISH
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge.Itmaycauseheating,catchingre,
burst and malfunction of the tool or battery car-
tridge,resultinginburnsorpersonalinjury.
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near high-voltage electri-
cal power lines. It may result in a malfunction or
breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causingres,personalinjuryanddamage.Itwill
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
ASSEMBLY
CAUTION: Always be sure that all the battery
cartridges are removed before carrying out any
work on the machine. Failure to remove all the bat-
terycartridgesmayresultinseriouspersonalinjury
from accidental start-up.
Assembling blower pipes
1. Loosen the clamp screw.
1
Fig.3
►1. Clamp screw
2. Install the control handle to the swivel pipe and
tighten the clamp screw.
1
2
3
Fig.4
►1. Control handle 2. Swivel pipe 3. Clamp screw
NOTICE: Be careful not to twist the cable of the
control handle when attaching the control handle
to the swivel pipe.

11 ENGLISH
3. Loosen the screw on the hose clamp, and then
attach the hose clamp to the end nozzle. Align the
grooves on the end nozzle with the protrusions on the
swivel pipe, then attach the end nozzle to the swivel
pipe, and then tighten the screw on the hose clamp.
6
12
3
45
Fig.5
►1. End nozzle 2. Hose clamp 3. Swivel pipe
4. Groove 5. Protrusion 6. Screw
4.
Loosen the screw on the hose clamp, then attach the
nozzle lever to the hose clamp, and then attach the hose
clamptotheexiblepipe.Attachtheswivelpipetotheex-
ible pipe, and then tighten the screw on the hose clamp.
2
1
4
3
5
Fig.6
►1. Swivel pipe 2. Nozzle lever 3. Hose clamp
4. Flexible pipe 5. Screw
5. Loosen the screw on the hose clamp, and then
attachthehoseclamptotheexiblepipe.Attachthe
exiblepipetotheelbow,andthentightenthescrewon
the hose clamp.
3
2
1
Fig.7
►1. Flexible pipe 2. Hose clamp 3. Elbow
NOTICE: Make sure that the screw on the hose
clamp is not facing outward as shown in the
gure.
1
Fig.8
►1. Screw

12 ENGLISH
6. Clamp the control cable to the cable holders.
1
2
Fig.9
►1. Cable holder 2. Control cable
NOTICE: Make sure that the control cable is
securely xed to the cable holder.
Adjusting the belt and shoulder
harness
1. Put on the machine, then lock the buckle of the
waistbelt,andthenadjustthelengthofthewaistbelt.
1
Fig.10
►1. Buckle
2. Adjustthelengthoftheshoulderharness.
1
Fig.11
►1. Shoulder harness
Adjusting the control lever position
Loosen the clamp screw. Move the control handle along
the swivel pipe to the most comfortable position, and
then tighten the clamp screw.
1
2
3
Fig.12
►1. Control handle 2. Swivel pipe 3. Clamp screw
Attaching the di󰀨usion cover
Youcandi󰀨usethemistbyattachingthedi󰀨usioncover
totheendnozzleasshowninthegure.
1
Fig.13
►1.Di󰀨usioncover

13 ENGLISH

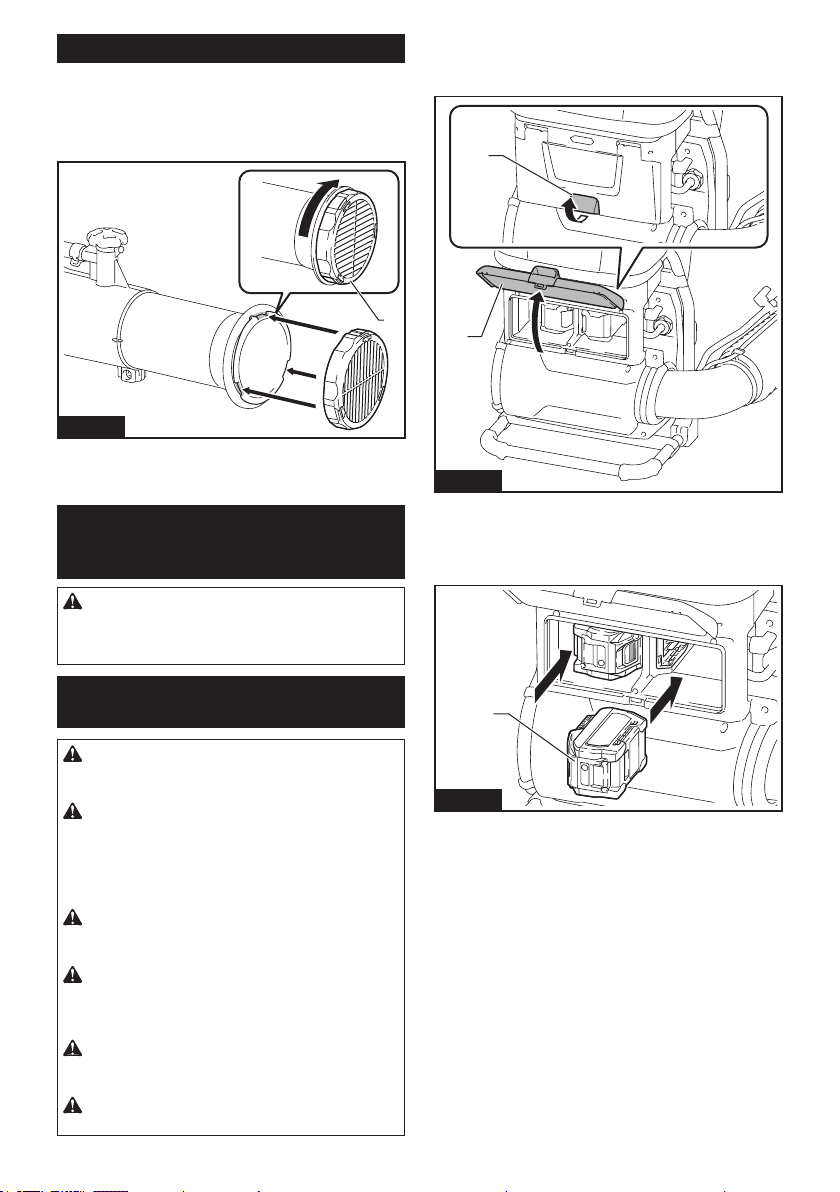

Attaching the deector
Optional accessory
You can discharge the mist upward or downward by attach-
ingthedeectortotheendnozzleasshowninthegure.
1
Fig.14
►1.Deector
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the machine
is switched o󰀨 and all the battery cartridges are
removed before adjusting or checking function on
the machine.
Installing or removing battery
cartridge
CAUTION: Always switch o󰀨 the machine
before installing or removing of the battery
cartridge.
CAUTION: Hold the machine and the battery
cartridge rmly when installing or removing bat-
tery cartridge. Failure to hold the machine and the
batterycartridgermlymaycausethemtoslipo󰀨
your hands and result in damage to the machine and
batterycartridgeandapersonalinjury.
CAUTION: Make sure that you lock the battery
cover before use. Otherwise, mud, dirt, or water may
cause damage to the product or the battery cartridge.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
it may accidentally fall out of the machine, causing
injurytoyouorsomeonearoundyou.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
CAUTION: Hold the battery cover rmly when
installing or removing the battery cartridge.
To install the battery cartridge;
1. Pull up the locking lever upward, and then open
the battery cover.
1
2
Fig.15
►1. Locking lever 2. Battery cover
2. Align the tongue on the battery cartridge with the
slot on the machine, and then slide the cartridge until it
locks in place with a little click.
1
Fig.16
►1. Battery cartridge
3. Close the battery cover and push it until it is
latched with the locking lever.

14 ENGLISH
To remove the battery cartridge;
1. Pull up the locking lever and open the battery
cover.
2. Pull out the battery cartridge from the machine
while sliding the button on the front of the cartridge.
1
Fig.17
►1. Battery cartridge
3. Close the battery cover.
Battery check button
You can check the remaining battery capacity by press-
ing the battery check button.
1
2
Fig.18
►1. Battery indicator 2. Battery check button
Battery indicator status Remaining
battery
capacity
On O󰀨 Blinking
50% to 100%
20% to 50%
0% to 20%
NOTE: The indicator lamp for remaining battery
capacityisjustforareference.Theactualbattery
capacitymaydi󰀨erdependingontheusagecondi-
tions or ambient temperature.
NOTE: While the machine is in operation, the indica-
tor lamp does not light up even if you press the check
button.
NOTE:Thelampautomaticallygoeso󰀨afterafew
seconds.
NOTE: If two battery cartridges are installed, the
batteryinstalledontherightsideisusedrst.
NOTE: If two battery cartridges are installed, the
machine automatically switches the battery when the
battery in use becomes empty.
Indicating the remaining battery capacity
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
1
2
Fig.19
►1. Indicator lamps 2. Check button
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambienttemperature,theindicationmaydi󰀨erslightly
from the actual capacity.
NOTE:Therst(farleft)indicatorlampwillblinkwhen
the battery protection system works.

15 ENGLISH
Machine/battery protection system
The machine is equipped with a machine/battery
protectionsystem.Thissystemautomaticallycutso󰀨
power to the motor to extend machine and battery life.
The machine will automatically stop during operation if
the machine or battery is placed under one of the fol-
lowing conditions:
Overload protection
When the machine or battery is operated in a manner
that causes it to draw an abnormally high current,
the machine automatically stops and the main power
lamp blinks in green. In this situation, turn the machine
o󰀨andstoptheapplicationthatcausedthemachine
to become overloaded. Then turn the machine on to
restart.
Overheat protection
When the machine is overheated, the machine stops
automatically and the main power lamp lights up in red.
In this case, let the machine and battery cool before
turning the machine on again.
NOTE: The main power lamp blinks in red when the
battery is overheated.
Overdischarge protection
When the battery capacity is not enough, the machine
stops automatically and the main power lamp blinks in
red. In this case, remove the battery from the machine
and charge the battery or change the battery to fully
charged one.
Protections against other causes
Protection system is also designed for other causes that
could damage the machine and allows the machine to
stop automatically. Take all the following steps to clear
the causes, when the machine has been brought to a
temporary halt or stop in operation.
1. Turnthemachineo󰀨,andthenturnitonagainto
restart.
2. Charge the battery(ies) or replace it/them with
recharged battery(ies).
3. Let the machine and battery(ies) cool down.
If no improvement can be found by restoring protection
system, then contact your local Makita Service Center.
NOTICE: If the machine stops due to a cause
not described above, refer to the section for
troubleshooting.
Main power switch
WARNING: Always turn o󰀨 the main power
switch when not in use.
To turn on the machine, press the main power switch.
Thelampslightupingreen.Toturno󰀨,pressandhold
themainpowerswitchuntilthelampsgoo󰀨.
1
2
Fig.20
►1. Speed indicator 2. Main power switch
The speed can be changed in three levels. To change
the speed mode, press the main power switch. When
you change the speed mode, the corresponding speed
indicators light up.
NOTE:Themachineemploystheautopower-o󰀨
function. To avoid unintentional start up, the main
power switch will automatically shut down when the
machine is not operated for a certain period after the
main power switch is turned on.
NOTE: If the main power lamp lights up in red or
blinks in red or green, refer to the instructions for
machine/battery protection system.
Switch action
WARNING: Before installing the battery car-
tridge into the machine, always check to see that
the switch trigger actuates properly and returns
to the "OFF" position when released.
To start the machine, pull the switch trigger while pulling
the activation lever. The speed increases by increas-
ing pressure on the switch trigger. Release the switch
trigger to stop.
2
1
Fig.21
►1. Switch trigger 2. Activation lever

16 ENGLISH
Opening and closing the levers
The machine is equipped with three levers.
Nozzle lever
The nozzle lever is used for blowing mist. Normally,
close the nozzle lever, and open the nozzle lever only
when blowing mist.
1
2
Fig.22
►1. Closed 2. Open
Draining lever
The draining lever is used for draining the liquid in the
tank. When operating the machine, always close the
lever.
1
2
Fig.23
►1. Closed 2. Open

17 ENGLISH
Tank lever
Thetankleverisusedwhenreplacingthelter.When
operating the machine, always open the lever.
1
2
Fig.24
►1. Closed 2. Open
Feed amount adjustment knob
Youcanadjusttheamountofliquidfedtotheend
nozzle. To feed the maximum amount of liquid, turn the
knob so that "4" is aligned with the triangular mark. To
feed the minimum amount of liquid, turn the knob so
that "1" is aligned with the triangular mark.
21
Fig.25
►1.Feedamountadjustmentknob2. Triangular mark
Electronic function
The machine is equipped with the electronic function for
easy operation.
• Constant speed control
The speed control function provides the constant
rotation speed regardless of load conditions.
• Feed valve function
The machine is equipped with the feed valve. The
feed valve automatically opens to feed the liquid in
the tank when the switch trigger is pulled, and it auto-
matically closes when the switch trigger is released.
Accidental re-start preventive function
When you turn on the machine while pulling the activation
lever and switch trigger, the machine does not start and the
mainpowerlampblinksingreen.Tostartthemachine,rst
release the switch trigger, and then turn on the machine.
OPERATION
CAUTION: When putting on the machine, be
sure to put shoulder harness on your both shoul-
ders. Otherwise, the machine may fall when you put
onorusethemachine,andcauseaninjury.
CAUTION: When putting on the machine,
be sure to put on the machine on your back.
Otherwise, the machine may fall during operation and
causeaninjury.
CAUTION: Do not place the machine on the
ground while it is running. Sand or dust may enter
from suction inlet and cause a malfunction or per-
sonalinjury.
Beforeoperatingthemachine,adjustthelengthofthe
shoulder harness and the waist belt.
1. Placethemachineonaatandstablesurface.
2. Make sure that the levers are in the following
positions.
• The draining lever is in the closed position.
1
Fig.26
►1. Draining lever

18 ENGLISH
• The tank lever is in the open position.
1
Fig.27
►1. Tank lever
• The nozzle lever is in the closed position.
1
Fig.28
►1. Nozzle lever
3. Open the tank cap, and then set the strainer.
1
2
Fig.29
►1. Tank cap 2. Strainer
4. Pour the liquid into the tank, and then tighten the
tank cap.
Fig.30
5. Put on the machine, then lock the buckle of the
waist belt.

19 ENGLISH
6. Turn the nozzle lever so that the nozzle lever is in
the open position.
1
Fig.31
►1. Nozzle lever
7. Turn on the machine, and then hold the control
handlermlyandperformthemistblowingoperation.
After the operation, turn the nozzle lever so that the
nozzle lever is in the closed position.
When setting down the machine, unlock the buckle of
the waist belt, and then set down the machine slowly.
1
Fig.32
►1. Buckle
NOTE: You can stir the liquid in the tank by turning
thestrainerasshowninthegure.
1
Fig.33
►1. Strainer
MAINTENANCE
CAUTION: Always be sure that all the battery
cartridges are removed from the machine before
storing or carrying the machine or attempting to
perform inspection or maintenance.
To maintain product SAFETY and RELIABILITY,
repairs,anyothermaintenanceoradjustmentshould
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
Draining the liquid
When draining the liquid in the tank, remove the hose from the
main unit, and then drain the liquid in the tank into the container
by opening the draining lever. After draining the liquid, be sure to
close the draining lever, and attach the hose to the main unit.
1
2
Fig.34
►1. Draining lever 2. Hose

20 ENGLISH
NOTE: To empty the tank completely, tilt the main unit
slightly toward the outlet of hose.
Cleaning the machine
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
Cleanthemachinebywipingo󰀨dustwithadryclothor
one dipped in soapy water and wrung out.
Remove dust or dirt from the suction inlet.
1
Fig.35
►1. Suction inlet
Cleaning the lter
Cleanthelterregularly.Tocleanthelter,followthestepsbelow.
1. Remove the battery cartridges, and then close the
tank lever.
2. Removetheltercapbyturningitcounterclock-
wise,andthenremovethelter.
21
Fig.36
►1. Filter cap 2. Filter
3. Cleanthelterwithrunningwater.
4. Attachtheltertothemainunit,andthentighten
theltercap.
5. Open the tank lever.
Storage
Before storing the machine, perform full maintenance.
Store the machine in a place out of the reach of children
and not exposed to moisture, rain, or direct sunlight.
You can connect the band of the pipe to the machine as
shownintheguretostandupthepipe.
1
Fig.37
►1. Band
Changing the nozzle
You can change the standard nozzle to the ULV (Ultra
Low Volume) nozzle. The ULV nozzle can discharge
nermistthanthestandardnozzle.Tochangethe
nozzle, follow the steps below.
1. Loosen the screw and remove it, and then remove
the front side of the end nozzle.
1
2
Fig.38
►1. Screw 2. End nozzle
