INSTRUCTION MANUAL
MANUEL D'INSTRUCTION
MANUAL DE INSTRUCCIONES
Narrow Crown Stapler
Agrafeuse pour agrafes à dos
étroit
Engrapadora de Corona
Estrecha
AT638A
IMPORTANT: Read Before Using.
IMPORTANT : Lire avant usage.
IMPORTANTE: Lea antes de usar.

2ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: AT638A
Air pressure 0.49 - 0.83 MPa (70 - 120 PSIG)
Staple length 13 mm (1/2″) - 38 mm (1-1/2″)
Staple capacity 100 pcs.
Minimum hose diameter 6.5 mm (1/4″)
Dimensions (L x W x H) 230 mm x 75 mm x 251 mm
(9″ x 2-15/16″ x 9-7/8″)
Net weight 1.2 kg (2.7 lbs)
• Due to our continuing program of research and development, the specications herein are subject to change
without notice.
• Specications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
SAFETY WARNINGS
Important safety instructions
For personal safety and proper operation and main-
tenance of the tool, read this instruction manual
carefully before using the tool.
WARNING: WHEN USING THIS TOOL, BASIC
SAFETY PRECAUTIONS SHOULD ALWAYS BE
FOLLOWED TO REDUCE THE RISK OF PERSONAL
INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
Personal Protective Equipment
1. Always wear safety glasses to avoid eye injury
from dust or fasteners. The safety glasses
should conform with the requirements of ANSI
Z87.1.
WARNING:It is an employer's responsibility
to enforce the use of safety eye protection
equipment by the tool operators and by other
persons in the immediate working area.
2. Wear hearing protection to protect your ears
against exhaust noise and head protection.
Also wear light but not loose clothing. Sleeves
should be buttoned or rolled up. No necktie
should be worn.
Flammable Atmospheres
1. Do not operate tool in explosive atmospheres,
such as in the presence of ammable liquids,
gases or combustible dust.
Tool modication
1. The tool should not be modied unless autho-
rized in the tool manual or approved in writing
by the tool manufacturer.
Tool maintenance
1. Refer to the tool maintenance instructions for
detailed information on the proper mainte-
nance of a tool.
Recommended fasteners and accessories
1. Use only fasteners made or recommended by
the tool manufacturer, or fasteners that per-
form equivalently to those recommended by
the manufacturer.
2. Use only accessories made or recommended
by the tool manufacturer, or accessories that
perform equivalently to those recommended
by the manufacturer.
Inspect tool before operating to:
1. Use only power source specied in the instruc-
tion manual.
Operate the tool within the specied air pres-
sure on the tool label for safety and longer tool
life. Do not exceed the recommended max.
operating pressure. The tool should not be
connected to a source whose pressure poten-
tially exceeds 1.38 MPa (200 PSIG).
2. Never use the tool with other than compressed
air. If bottled gas (carbon dioxide, oxygen,
nitrogen, hydrogen, air, etc.) or combustible
gas (hydrogen, propane, acetylene, etc.) is
used as a power source for this tool, the tool
will explode and cause serious injury.
3. Always check the tool for its overall condition
and loose screws before operation. Tighten as
required.
4. Make sure all safety systems are in working
order before operation. The tool must not
operate if only the trigger is pulled or if only
the contact element is pressed against the
wood. It must work only when both actions are
performed. Test for possible faulty operation
with fasteners unloaded and the contact ele-
ment in fully pulled position.
5. Always check contact element as instructed in
this manual. Fasteners may be driven acciden-
tally if the safety mechanism is not working
correctly.
Operating controls
1. Do not use a tool with missing or damaged
safety warning label(s.)

3ENGLISH
2. A tool that is not in proper working order must
not be used. Tags and physical segregation
shall be used for control.
3. Do not remove, tamper with, or otherwise
cause tool operating controls to become
inoperable.
4. Do not operate tool if any portion of the tool
operating controls is inoperable, discon-
nected, altered, or not working properly.
Tool handling
1. Only persons who have read and understand
the tool operating/safety instructions should
operate the tool.
2. Always assume that tool contains fasteners.
3. Do not point tool toward yourself or anyone
whether it contains fasteners or not.
4. Keep bystanders and children away while
operating tool.
5. Do not actuate tool unless tool is placed rmly
against the workpiece.
6. Respect tool as a working implement.
7. Do not engage in horseplay.
8. Stay alert, focus on your work and use com-
mon sense when working with tools.
9. Do not use tool while tired, after having con-
sumed drugs or alcohol, or while under the
inuence of medication.
10. Do not overreach. Keep proper footing and
balance at all times.
11. Do not hold or carry tool with a nger on the
trigger.
12. Drive fasteners into proper work surface only.
13. Do not drive fasteners into other fasteners.
14. After driving a fastener, tool may spring back
(“recoil”) causing it to move away from the
work surface. To reduce risk of injury always
manage recoil by:
a) always maintaining control of tool.
b) allowing recoil to move tool away from
work surface.
c) not resisting recoil such that tool will
be forced back into the work surface. In
“Contact Actuation Mode,” if workpiece
contact is allowed to re-contact work
surface before the trigger is released, an
unintended discharge of a fastener will
occur.
d) keeping face and body parts away from
tool.
15. When working close to an edge of a workpiece
or at steep angles use care to minimize chip-
ping, splitting or splintering, or free ight or
ricochet of fasteners, which may cause injury.
16. Keep hands and body away from fastener
discharge area of tool.
17. Do not load tool with fasteners when any one
of the operating controls is activated.
18. Do not operate tool with any power source
other than that specied in tool operating/
safety instructions.
19. Do not operate tool with any operating pres-
sure other than that specied in tool operating/
safety instructions.
20. Always select an actuation system that is
appropriate to the fastener application and the
training of the operator.
21. Use extra caution when driving fasteners into
existing walls or other blind areas to prevent
contact with hidden objects or persons on
other side (e.g., wires, pipes.)
22. Do not lift, pull or lower tool by the hose.
Disconnecting tool
Disconnect tool from the power source when:
1. Not in use;
2. Performing any maintenance or repairs;
3. Clearing a jam;
4. Elevating, lowering or otherwise moving the
tool to a new location;
5. Tool is outside of the operator’s supervision or
control; or
6. Removing fasteners from the magazine.
Additional safety instructions
1. The area should be sufciently illuminated to
assure safe operations. The area should be
clear and litter-free.
2. There may be local regulations concerning
noise which must be complied with by keeping
noise levels within prescribed limits. In certain
cases, shutters should be used to contain
noise.
3. Check walls, ceilings, oors, roong and
the like carefully to avoid possible electrical
shock, gas leakage, explosions, etc. caused by
striking live wires, conduits or gas pipes.
4. On rooftops and other high locations, drive
fasteners as you move forward. It is easy to
lose your footing if you drive fasteners while
inching backward. When driving against per-
pendicular surface, drive fasteners from the
top to the bottom. You can perform the opera-
tions with less fatigue by doing so.
5. Do not leave the loaded tool or the air com-
pressor under pressure for a long time out in
the sun. Be sure that dust, sand, chips and
foreign matter will not enter the tool in the
place where you leave it setting.
6. Perform cleaning and maintenance right after
nishing the job. Keep the tool in tip-top condi-
tion. Lubricate moving parts to prevent rusting
and minimize friction-related wear. Wipe off all
dust from the parts.
7. Do not disconnect the air hose with a nger
on the trigger. An unexpected driving will cause
serious injury when the air hose is connected.
8. When you drop or strike the tool, check the
tool damage or crack and make sure that
safety systems are in working order before
operation. As there is high pressure inside the
tool, failure to do so will cause serious injury.
9. Ask Makita's Authorized service centers for
periodical inspection of the tool.
10. To maintain product SAFETY and RELIABILITY,
maintenance and repairs should be performed
by Makita Authorized or Factory Service
Centers, always using Makita replacement
parts.
SAVE THESE INSTRUCTIONS.

4ENGLISH
WARNING: MISUSE or failure to follow the
safety rules stated in this instruction manual may
cause serious personal injury.
Symbols
The followings show the symbols used for tool.
Read and understand tool labels and man-
ual. Failure to follow warnings could result
in death or serious injury.
Operators and others in work area must
wear safety glasses with side shields.
Keep ngers away from trigger when
not driving fasteners to avoid accidental
discharge.

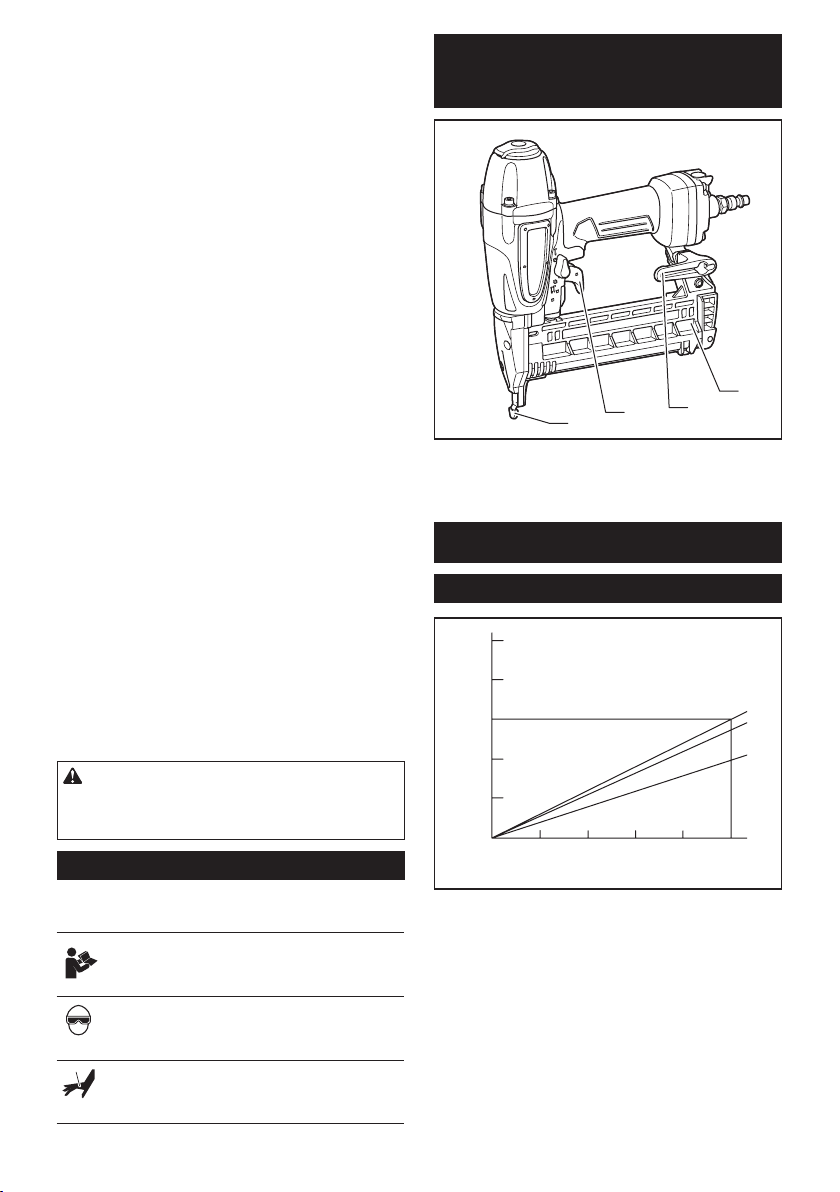

PARTS DESCRIPTION
1
2
3
4
► 1. Trigger 2. Nose adapter (contact element)
3. Hook 4. Magazine
INSTALLATION
Selecting compressor
2
1
100
0.5
1
1.5
2
2.5
20 30 40 50
3
4
5
1. Stapling frequency (times/min) 2. Compressor air
output per minute (CFM (ft3/min.)) 3. 0.83 MPa (120
PSIG) 4. 0.66 MPa (95 PSIG) 5. 0.49 MPa (70 PSIG)
The air compressor must comply with the requirements
of ANSI B19.3.
Select a compressor that has ample pressure and air
output to assure cost-efcient operation. The graph
shows the relation between stapling frequency, applica-
ble pressure and compressor air output.
Thus, for example, if stapling takes place at a rate of
approximately 50 times per minute at a compression of
0.83 MPa (120 PSIG), a compressor with an air output
over 1.5 CFM ( ft3/minute) is required.
Pressure regulators must be used to limit air pressure to
the rated pressure of the tool where air supply pressure
exceeds the tool's rated pressure. Failure to do so may
result in serious injury to tool operator or persons in the
vicinity.

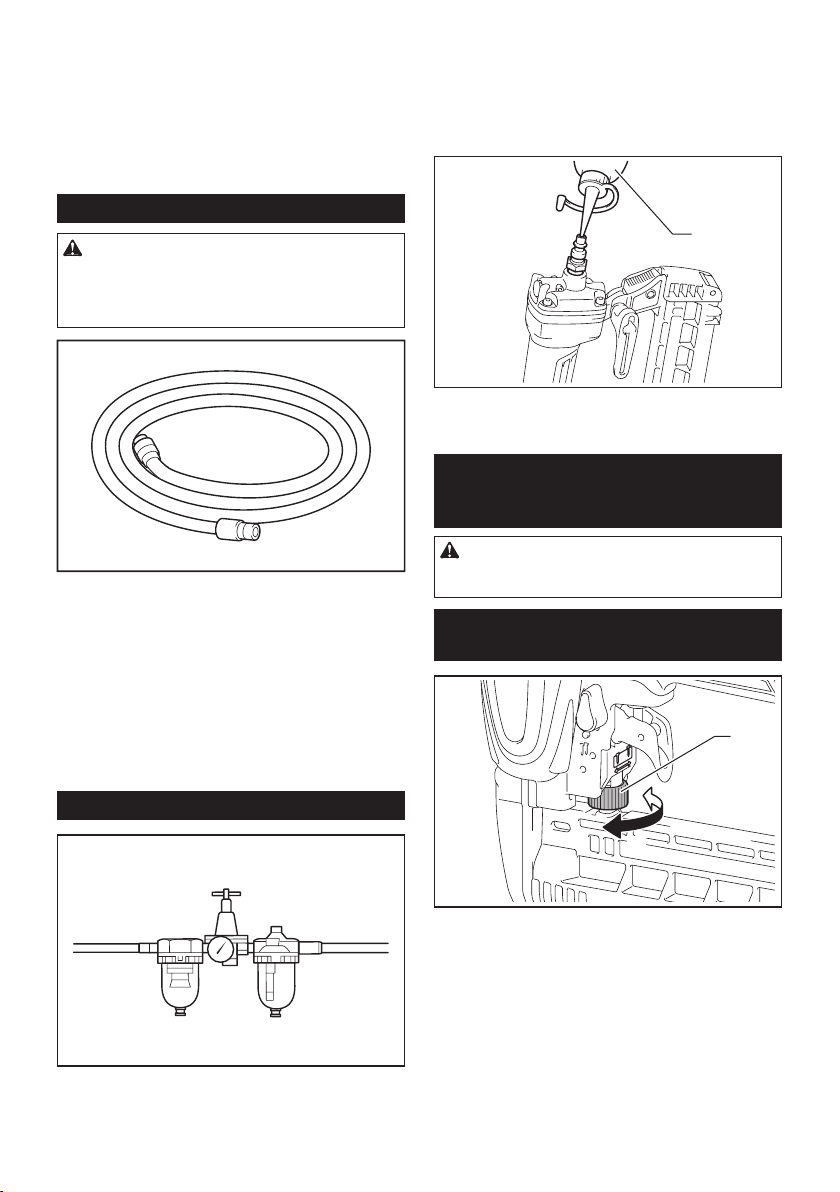

Selecting air hose
CAUTION: Low air output of the compressor,
or a long or smaller diameter air hose in relation
to the stapling frequency may cause a decrease in
the driving capability of the tool.

5ENGLISH
Use an air hose as large and as short as possible to
assure continuous, efcient stapling operation.
With an air pressure of 0.49 MPa (70 PSIG), an air hose
with an internal diameter of over 6.5 mm (1/4″) and a
length of less than 20 m (6.6 ft.) is recommended when
the interval between each stapling is 0.5 seconds.
Air supply hoses shall have a minimum working pres-
sure rating of 1.03 MPa (150 PSIG) or 150 percent of
the maximum pressure produced in the system which-
ever is higher.
Lubrication
To insure maximum performance, install an air set (oiler,
regulator, air lter) as close as possible to the tool.
Adjust the oiler so that one drop of oil will be provided
for every 50 staples.
When an air set is not used, oil the tool with pneumatic
tool oil by placing 2 (two) or 3 (three) drops into the air
tting. This should be done before and after use.
For proper lubrication, the tool must be red a couple of
times after pneumatic tool oil is introduced.
1
► 1. Pneumatic tool oil
FUNCTIONAL
DESCRIPTION
CAUTION: Before adjusting or checking
function on the tool, always return the trigger and
disconnect the air hose from the tool.
Adjusting depth of stapling
1
B
A
► 1. Adjuster
To adjust the depth of stapling, turn the adjuster.
The depth of stapling is the deepest when the adjuster
is turned fully in the A direction shown in the gure. It will
become shallower as the adjuster is turned in the B direction.
If staples cannot be driven deep enough even when the
adjuster is turned fully in the A direction, increase the
air pressure.
If staples are driven too deep even when the adjuster is
turned fully in the B direction, decrease the air pressure.
Generally speaking, the tool service life will be longer
when the tool is used with lower air pressure and the
adjuster set to deeper depth of staple driving.
Hook
CAUTION: Never hook the tool at high loca-
tion or on potentially unstable surface.
CAUTION: Do not hang the hook from the
waist belt. If the stapler accidentally drops, it may
result in misring and personal injuries.
1
► 1. Hook
The hook is convenient for hanging the tool temporarily.

6ENGLISH

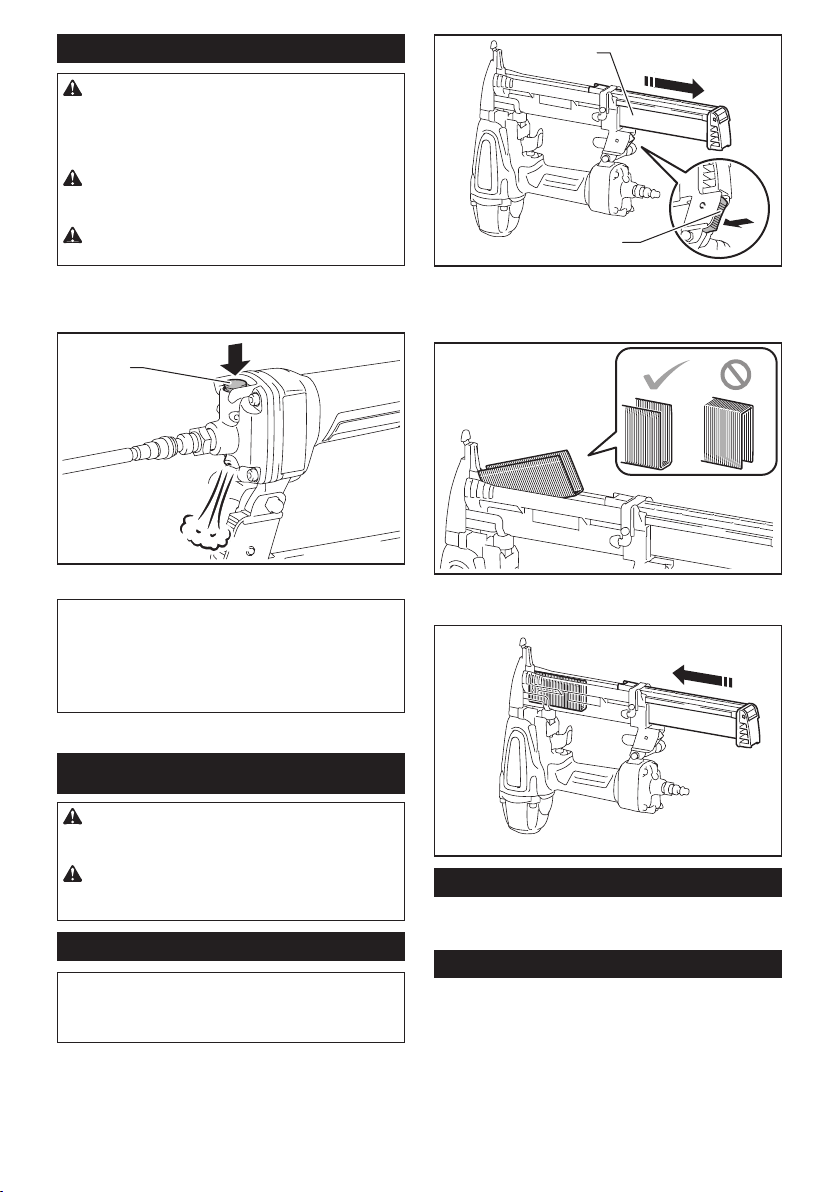

Air duster
CAUTION: Do not aim the ejection port of the
air duster to someone. Also, keep your hands and
foot away from the ejection port. If the air duster
button is accidentally pushed, it may cause a per-
sonal injury.
CAUTION: Always check your surroundings
before using the air duster. Blown dust or objects
may hit someone.
CAUTION: Do not connect or disconnect the
air hose while pushing the air duster button.
The air supplied to the tool can also be used as an air
duster. You can clean the work area by pressing the
button on the grip end.
1
► 1. Button
NOTICE: After using the air duster, the driving force
of the tool will temporarily decline. Wait until the air
pressure recovers in this case.
NOTICE: Perform a test blow if you use the air
duster immediately after the oil was applied. The oil
may be sprayed with the air.
ASSEMBLY
CAUTION: Before carrying out any work on
the tool, always return the trigger and disconnect
the air hose from the tool.
CAUTION: Load the same type, size and
uniform length of staples when loading multiple
strips of staples in the magazine.

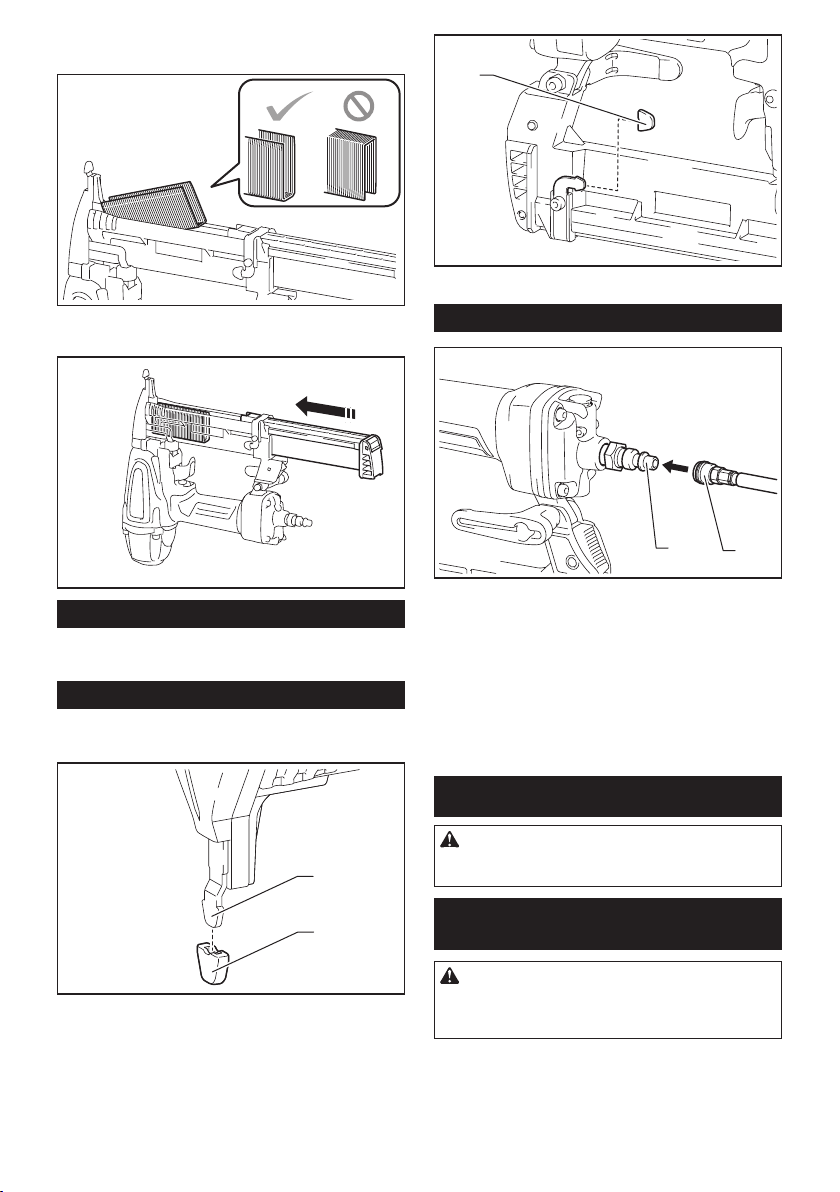

Loading stapler
NOTE: Always hold the rear of the sliding door when
you press the lever. The sliding door opens suddenly
with the lever pressed when staples are stored in the
magazine.
1. Press the lever and open the sliding door of the
magazine.
1
2
► 1. Lever 2. Sliding door
2. Insert a strip of staples into the opening of the
magazine all the way.
3. Close the sliding door until the sliding door is
locked.
Removing staples
To remove staples, follow the procedures of “Loading
stapler” in reverse.

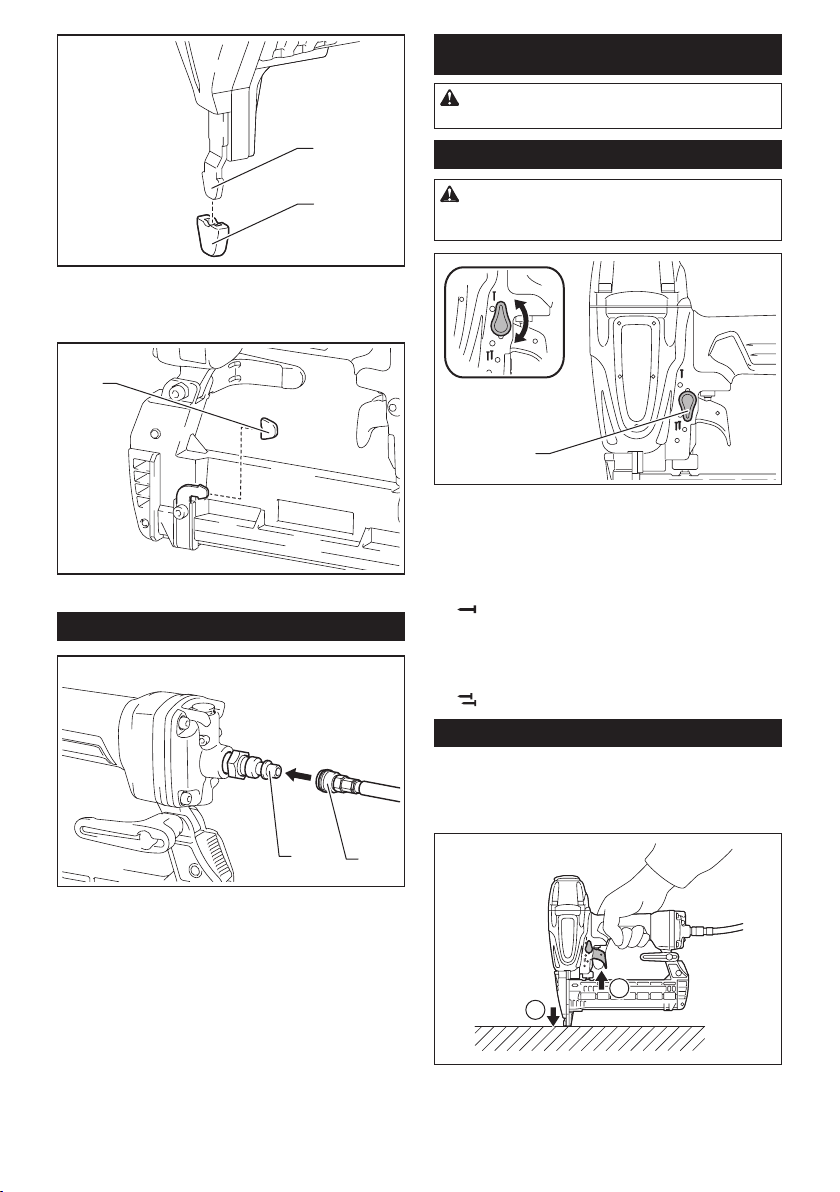

Nose adapter
To prevent the surface of workpiece from being
scratched or damaged, use the nose adapter.

7ENGLISH
1
2
► 1. Nose adapter 2. Contact element
A spare nose adapter is stored in the place shown in
the gure.
1
► 1. Spare nose adapter
Connecting air hose
12
► 1. Air tting 2. Air socket
Slip the air socket of the air hose onto the air tting on
the stapler. Be sure that the air socket locks rmly into
position when installed onto the air tting.
A hose coupling must be installed on or near the tool in
such a way that the pressure reservoir will discharge at
the time the air supply coupling is disconnected.
OPERATION
CAUTION: Make sure all safety systems are in
working order before operation.

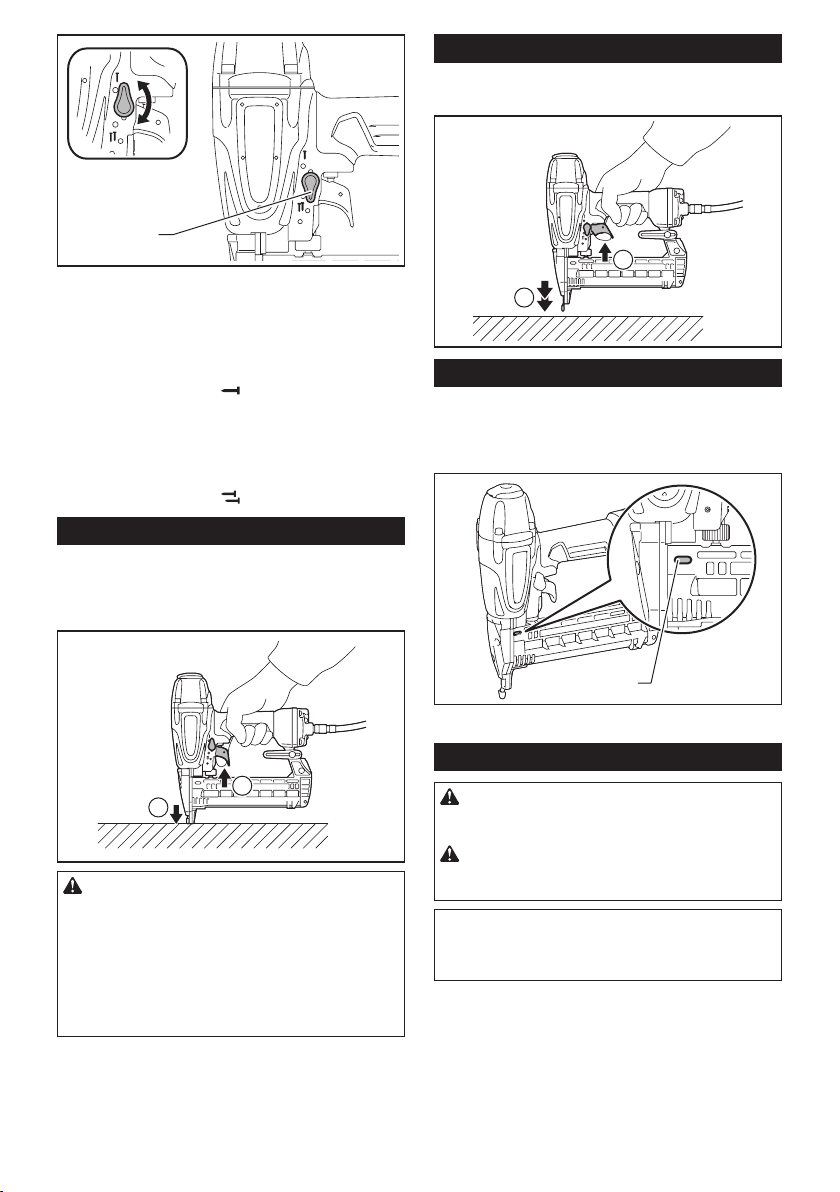

Selecting the operation mode
CAUTION: Always make sure that the actua-
tion mode selector is properly set to the position
for the desired stapling mode before stapling.
1
► 1. Actuation mode selector
Single sequential actuation mode:
You can drive one staple by one sequential operation.
Select this mode when driving a staple carefully and
accurately.
To choose this mode, set the actuation mode selector to
the position.
Contact actuation mode:
You can drive staples repetitively by placing the contact
element with the trigger held.
To choose this mode, set the actuation mode selector to
the position.
Single sequential actuation
Place the contact element against the workpiece and
pull the trigger fully.
After stapling, release the contact element, and then
release the trigger.
2
1

8ENGLISH
CAUTION: Do not place the contact element
against the workpiece with excessive force. Also,
pull the trigger fully and hold it on for 1-2 seconds
after stapling.
Even in the “Single sequential actuation” mode, half-
pulled trigger causes an unexpected stapling, when
the contact element re-contacts the workpiece.
Contact actuation
Pull the trigger rst and then place the contact element
against the workpiece.
1
2
Empty indicator
When the remaining number of staples in the magazine
becomes low, the empty indicator turns to red. Reload
the staples when the empty indicator becomes red.
1
► 1. Empty indicator
Removing jammed staples
CAUTION: Always return the trigger and
disconnect the hose before removing jammed
staples.
CAUTION: Do not use deformed staples or
strip of staples. Failure to do so causes poor staple
feeding.
NOTE: Always hold the rear of the sliding door when
you press the lever. The sliding door opens suddenly
with the lever pressed when staples are stored in the
magazine.
Follow the procedure of “Removing staples” to remove
the strip of staples, and remove jammed staples from
the staple rail.
MAINTENANCE
CAUTION: Before attempting to perform
inspection or maintenance, always return the trig-
ger and disconnect the air hose from the tool.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
Staples
Handle staple strips and their box carefully. If the staple
strips have been handled roughly, they may be out of
shape, causing poor staple feed.
Avoid storing staples in a very humid or hot place or
place exposed to direct sunlight.
Maintenance of stapler
Always check the tool for its overall condition and loose
screws before operation. Tighten as required.
With tool disconnected, make daily inspection to assure
free movement of the contact element and trigger. Do
not use tool if the contact element or trigger sticks or
binds.
When the tool is not to be used for an extended period
of time, lubricate the tool using pneumatic tool oil and
store the tool in a safe place. Avoid exposure to direct
sunlight and/or humid or hot environment.

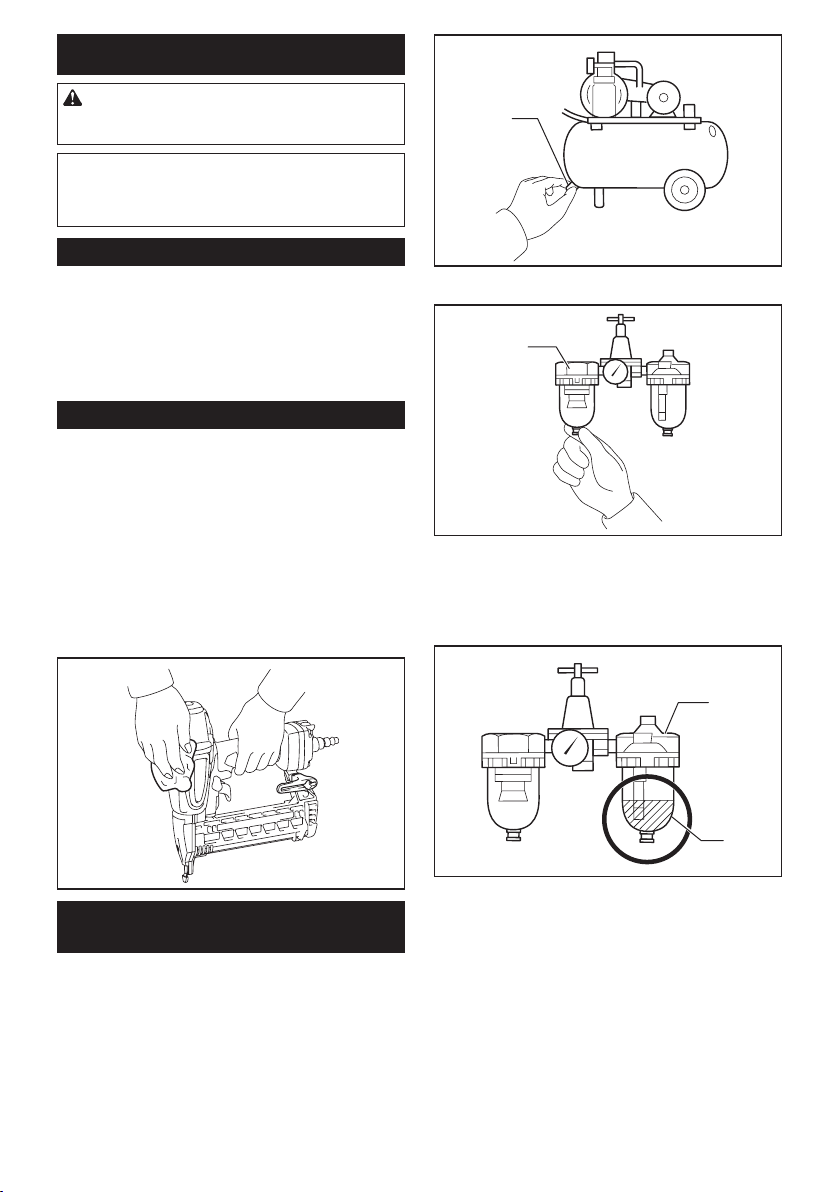

Maintenance of compressor, air set
and air hose
After operation, always drain the compressor tank and
the air lter. If moisture is allowed to enter the tool,
it may result in poor performance and possible tool
failure.

9ENGLISH
1
► 1. Drain cock
1
► 1. Air lter
Check regularly to see if there is sufcient pneumatic
oil in the oiler of the air set. Failure to maintain sufcient
lubrication will cause O-rings to wear quickly.
1
2
► 1. Oiler 2. Pneumatic oil
Keep the air hose away from heat (over 60°C, over
140°F), away from chemicals (thinner, strong acids or
alkalis). Also, route the hose away from obstacles which
it may become dangerously caught on during operation.
Hoses must also be directed away from sharp edges
and areas which may lead to damage or abrasion to
the hose.
To maintain product SAFETY and RELIABILITY,
repairs, any other maintenance or adjustment should
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or attachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Staples
• Air hose
• Safety goggles
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
differ from country to country.
MAKITA LIMITED ONE YEAR
WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested
before leaving the factory. It is warranted to be free of
defects from workmanship and materials for the period
of ONE YEAR from the date of original purchase.
Should any trouble develop during this one year period,
return the COMPLETE tool, freight prepaid, to one
of Makita’s Factory or Authorized Service Centers. If
inspection shows the trouble is caused by defective
workmanship or material, Makita will repair (or at our
option, replace) without charge.
This Warranty does not apply where:
• repairs have been made or attempted by others:
• repairs are required because of normal wear and
tear:
• the tool has been abused, misused or improperly
maintained:
• alterations have been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY
INDIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES FROM THE SALE OR USE OF THE
PRODUCT. THIS DISCLAIMER APPLIES BOTH
DURING AND AFTER THE TERM OF THIS
WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED
WARRANTIES, INCLUDING IMPLIED WARRANTIES
OF "MERCHANTABILITY" AND "FITNESS FOR A
SPECIFIC PURPOSE," AFTER THE ONE YEAR TERM
OF THIS WARRANTY.
This Warranty gives you specic legal rights, and you
may also have other rights which vary from state to
state. Some states do not allow the exclusion or lim-
itation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
Some states do not allow limitation on how long an
implied warranty lasts, so the above limitation may not
apply to you.

10 FRANÇAIS
FRANÇAIS (Mode d’emploi original)
SPÉCIFICATIONS
Modèle : AT638A
Pression d’air 0,49 - 0,83 MPa (70 - 120 PSIG)
Longueur d’agrafe 13 mm (1/2″) - 38 mm (1-1/2″)
Capacité d’agrafage 100 pièces
Diamètre minimum du tuyau 6,5 mm (1/4″)
Dimensions (L x P x H) 230 mm x 75 mm x 251 mm
(9″ x 2-15/16″ x 9-7/8″)
Poids net 1,2 kg (2,7 lbs)
• Étant donné l’évolution constante de notre programme de recherche et de développement, les spécications
contenues dans ce manuel sont sujettes à modication sans préavis.
• Les spécications peuvent varier suivant les pays.
• Poids conforme à la procédure EPTA du 01/2003
CONSIGNES DE
SÉCURITÉ
Consignes de sécurité importantes
Par mesure de sécurité personnelle et pour assurer
une utilisation et un entretien adéquats, veuillez
lire attentivement ce manuel d’instructions avant
d’utiliser l’outil.
MISE EN GARDE : PAR MESURE DE SÉCURITÉ,
DES PRÉCAUTIONS DE BASE DOIVENT ÊTRE
PRISES LORS DE L’UTILISATION DE CET OUTIL,
AFIN DE RÉDUIRE LES RISQUES DE BLESSURE.
CES PRÉCAUTIONS COMPRENNENT LES
SUIVANTES :
LISEZ TOUTES LES
INSTRUCTIONS.
Équipement de protection personnelle
1. Portez toujours des lunettes de sécurité pour
éviter les blessures aux yeux au contact de
la poussière ou des xations. Les lunettes de
sécurité doivent répondre aux exigences de la
norme ANSI Z87.1.
MISE EN GARDE : L’employeur a la responsa-
bilité d’imposer le port d’un dispositif de pro-
tection des yeux aux utilisateurs des outils et à
toute personne présente dans la zone de travail.
2. Portez une protection d’oreilles pour les
protéger contre le bruit d’échappement, et
portez un casque de sécurité. Les vêtements
portés doivent être légers et ne doivent pas
être amples. Veuillez boutonner ou rouler vos
manches. Ne portez pas de cravate.
Atmosphères inammables
1. N’utilisez pas l’outil dans les atmosphères
explosives, par exemple en présence de
liquides inammables, de gaz ou de pous-
sières combustibles.
Modication de l’outil
1. L’outil ne doit être modié que si cela est auto-
risé dans le manuel de l’outil ou approuvé par
écrit par le fabricant de l’outil.
Entretien de l’outil
1. Reportez-vous aux instructions d’entretien
de l’outil pour des informations détaillées sur
l’entretien adéquat d’un outil.
Fixations et accessoires recommandés
1. Utilisez exclusivement les xations fabriquées
ou recommandées par le fabricant de l’outil,
ou des xations qui offrent un rendement équi-
valent à celles recommandées par le fabricant.
2. Utilisez exclusivement les accessoires fabri-
qués ou recommandés par le fabricant de
l’outil, ou des accessoires qui offrent un ren-
dement équivalent à ceux recommandés par le
fabricant.
Inspectez l’outil avant de l’utiliser :
1. Utilisez uniquement la source d’alimentation
spéciée dans le manuel d’instructions.
Utilisez l’outil sans dépasser la pression d’air
spéciée sur l’étiquette de l’outil, pour votre
sécurité et pour prolonger la durée de service
de l’outil. Ne dépassez pas la pression d’utili-
sation max. recommandée. L’outil ne doit pas
être raccordé à une source dont la pression
est susceptible de dépasser 1,38 MPa (200
PSIG).
2. Cet outil doit être exclusivement utilisé avec
de l’air comprimé. L’utilisation d’une bou-
teille de gaz (dioxyde de carbone, oxygène,
nitrogène, hydrogène, air, etc.) ou de gaz
combustible (hydrogène, propane, acétylène,
etc.) comme source d’alimentation de cet outil
entraînera une explosion et risque de causer
une blessure grave.
3. Avant d’utiliser l’outil, assurez-vous qu’il est
en bon état et qu’aucune de ses vis n’est des-
serrée. Le cas échéant, serrez les vis.
