Makita HR005GZ User manual
HR005G
EN Cordless Rotary Hammer INSTRUCTION MANUAL 9
FR Perforateur Sans Fil MANUEL D’INSTRUCTIONS 21
DE Akku-Bohrhammer BETRIEBSANLEITUNG 34
IT Martello rotativo a batteria ISTRUZIONI PER L’USO 47
NL Accuboorhamer GEBRUIKSAANWIJZING 61
ES Martillo Rotativo Inalámbrico MANUAL DE
INSTRUCCIONES 74
PT Martelete Rotativo a Bateria MANUAL DE INSTRUÇÕES 87
DA Akku-borehammer BRUGSANVISNING 100
EL 112
TR KULLANMA KILAVUZU 126
2
2
3
1
1
Fig.1
1
2
Fig.2
1
2
AB
Fig.3
1
Fig.4
1
Fig.5
1
2
Fig.6
1
2
Fig.7
3
Fig.8
1
2
Fig.9
1
Fig.10
1
2
Fig.11
1
Fig.12
1
2
Fig.13
1
2
Fig.14
4
1 2
Fig.15
1
2
Fig.16
1 2
3
Fig.17
1
234
Fig.18
1
2
Fig.19
1
Fig.20
5
1
Fig.21
1
2
3
Fig.22
1
2
3
Fig.23
1
2
Fig.24
123
4
Fig.25
(1)
Fig.26
6
Fig.27
Fig.28
Fig.29
Fig.30
1
Fig.31
4
2
1
3
Fig.32
2
1
3
Fig.33
7
1
Fig.34
12
1 2
Fig.35
Fig.36
1
Fig.37
12
Fig.38
1
Fig.39
8
1
Fig.40
12
1 2
Fig.41
9ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: HR005G
Capacities Carbide-tipped bit 40 mm
Core bit 105 mm
No load speed (RPM) 250 - 500 min-1
Blows per minute 1,450 - 2,900 min-1
Overall length with BL4025 484 mm
with BL4040 500 mm
Rated voltage D.C. 36 V - 40 V max
Net weight 7.4 - 8.2 kg
without notice.
-
est combination, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
BL4020 / BL4025 / BL4040* / BL4050F*
Charger DC40RA / DC40RB / DC40RC
residence.
WARNING: Only use the battery cartridges and chargers listed above.
Recommended cord connected power source
Portable power pack PDC01 / PDC1200
Intended use
The tool is intended for hammer drilling and drilling in
brick, concrete and stone as well as for chiselling work.
Noise
-
ing to EN62841-2-6:
Sound pressure level (LpA) : 90 dB (A)
Sound power level (LWA) : 101 dB (A)
NOTE: The declared noise emission value(s) has
been measured in accordance with a standard test
another.
NOTE: The declared noise emission value(s)
exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
trigger time).
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN62841-2-6:
Work mode: hammer drilling into concrete
Vibration emission (ah, HD): 4.1 m/s2
2
10 ENGLISH
Work mode: chiselling function with side grip
Vibration emission (ah, Cheq): 3.8 m/s2
2
Work mode: chiselling function with side handle
Vibration emission (ah, Cheq): 4.2 m/s2
2
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
NOTE:
WARNING:
The vibration emission during actual
-
ue(s) depending on the ways in which the tool is used
especially what kind of workpiece is processed.
WARNING:
Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (tak-
ing account of all parts of the operating cycle such
it is running idle in addition to the trigger time).
EC Declaration of Conformity
For European countries only
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
with this power tool. Failure to follow all instructions
Save all warnings and instruc-
tions for future reference.
(cordless) power tool.
CORDLESS ROTARY HAMMER
SAFETY WARNINGS
Safety instructions for all operations
1. Wear ear protectors. Exposure to noise can
cause hearing loss.
2. Use auxiliary handle(s), if supplied with the
tool.
3. Hold the power tool by insulated gripping
surfaces, when performing an operation where
the cutting accessory may contact hidden
wiring.
tool "live" and could give the operator an electric
shock.
Safety instructions when using long drill bits with
rotary hammers
1. Always start drilling at low speed and with the
bit tip in contact with the workpiece. At higher
2. Apply pressure only in direct line with the bit
and do not apply excessive pressure. Bits can
bend, causing breakage or loss of control, result-
Additional safety warnings
1. Wear a hard hat (safety helmet), safety glasses
and/or face shield. Ordinary eye or sun glasses
are NOT safety glasses. It is also highly recom-
mended that you wear a dust mask and thickly
padded gloves.
2.
Be sure the bit is secured in place before operation.
3.
Under normal operation, the tool is designed to
produce vibration. The screws can come loose
easily, causing a breakdown or accident. Check
tightness of screws carefully before operation.
4. In cold weather or when the tool has not been
used for a long time, let the tool warm up for
a while by operating it under no load. This
will loosen up the lubrication. Without proper
5.
sure no one is below when using the tool in
high locations.
6.
7. Keep hands away from moving parts.
8. Do not leave the tool running. Operate the tool
only when hand-held.
9. Do not point the tool at any one in the area
injure someone seriously.
10.
Do not touch the bit, parts close to the bit, or
workpiece immediately after operation; they
may be extremely hot and could burn your skin.
11. Some material contains chemicals which may
be toxic. Take caution to prevent dust inhala-
tion and skin contact. Follow material supplier
safety data.
12. Always be sure that the tool is switched
removed before handing the tool to other
person.
13. Before operation, make sure that there is no
buried object such as electric pipe, water pipe
or gas pipe in the working area. Otherwise, the
shock, electrical leakage or gas leak.
14. Do not operate the tool at no-load
unnecessarily.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
11 ENGLISH
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble or tamper with the battery
cartridge.
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
national regulations.
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
Installing the batteries to
-
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge.
-
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near a high-voltage elec-
trical power lines.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
Important safety instructions for
wireless unit
1. Do not disassemble or tamper with the wire-
less unit.
2. Keep the wireless unit away from young chil-
dren. If accidentally swallowed, seek medical
attention immediately.
3. Use the wireless unit only with Makita tools.
4. Do not expose the wireless unit to rain or wet
conditions.
5. Do not use the wireless unit in places where
the temperature exceeds 50 °C (122 °F).
6. Do not operate the wireless unit in places
where medical instruments, such as heart
pace makers are nearby.
12 ENGLISH
7. Do not operate the wireless unit in places
where automated devices are nearby. If oper-
or error.
8. Do not operate the wireless unit in places
under high temperature or places where
static electricity or electrical noise could be
generated.
9. The wireless unit can produce electromagnetic
user.
10. The wireless unit is an accurate instrument. Be
careful not to drop or strike the wireless unit.
11. Avoid touching the terminal of the wireless
unit with bare hands or metallic materials.
12. Always remove the battery on the product
when installing the wireless unit into it.
13. When opening the lid of the slot, avoid the
place where dust and water may come into the
slot. Always keep the inlet of the slot clean.
14. Always insert the wireless unit in the correct
direction.
15. Do not press the wireless activation button
on the wireless unit too hard and/or press the
button with an object with a sharp edge.
16. Always close the lid of the slot when
operating.
17. Do not remove the wireless unit from the slot
while the power is being supplied to the tool.
unit.
18. Do not remove the sticker on the wireless unit.
19. Do not put any sticker on the wireless unit.
20. Do not leave the wireless unit in a place where
static electricity or electrical noise could be
generated.
21. Do not leave the wireless unit in a place sub-
ject to high heat, such as a car sitting in the
sun.
22. Do not leave the wireless unit in a dusty or
powdery place or in a place corrosive gas
could be generated.
23. Sudden change of the temperature may bedew
the wireless unit. Do not use the wireless unit
until the dew is completely dried.
24. When cleaning the wireless unit, gently wipe
with a dry soft cloth. Do not use benzine, thin-
ner, conductive grease or the like.
25. When storing the wireless unit, keep it in the
supplied case or a static-free container.
26. Do not insert any devices other than Makita
wireless unit into the slot on the tool.
27. Do not use the tool with the lid of the slot dam-
aged.
cause malfunction.
28. Do not pull and/or twist the lid of the slot more
than necessary.
from the tool.
29. Replace the lid of the slot if it is lost or
damaged.
SAVE THESE INSTRUCTIONS.
FUNCTIONAL DESCRIPTION
CAUTION: Always be sure that the tool is
before adjusting or checking function on the tool.
Installing or removing battery cartridge
CAUTION:
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
cartridge.
Fig.1: 1. Red indicator 2. Button 3.
while sliding the button on the front of the cartridge.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
CAUTION: Do not install the battery cartridge
forcibly.
Indicating the remaining battery capacity
-
light up for a few seconds.
Fig.2: 1. Indicator lamps 2. Check button
Indicator lamps Remaining
capacity
Lighted Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
malfunctioned.
13 ENGLISH
NOTE: Depending on the conditions of use and the
NOTE:
Tool / battery protection system
-
-
placed under one of the following conditions:
Overload protection
-
caused the tool to become overloaded. Then turn the
tool on to restart.
Overheat protection
Overdischarge protection
Switch action
WARNING: Before installing the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released.
CAUTION: When not operating the tool,
depress the trigger-lock button from side to
lock the switch trigger in the OFF position.
Fig.3: 1. Switch trigger 2. Trigger-lock button
the trigger-lock button is provided. To start the tool,
depress the trigger-lock button from A side and pull the
switch trigger. Release the switch trigger to stop. After
use, press in the trigger-lock button from B side.
Speed change
-
est speed) to 5 (full speed).
Fig.4: 1.
Refer to the table below for the relationship between the
blows per minute.
Number Revolutions per
minute
Blows per minute
5500 2900
4470 2700
3380 2150
2290 1650
1250 1450
CAUTION: Do not turn the adjusting dial when
the tool is running. Failure to do so may result in
the loss of control of the tool and cause an injury.
NOTICE: If the tool is operated continuously at
low speed for a long time, the motor will get over-
loaded, resulting in tool malfunction.
NOTICE: The speed adjusting dial can be turned
only as far as 5 and back to 1. Do not force it past
5 or 1, or the speed adjusting function may no
longer work.
NOTE: Soft no-load rotation function
reduce the vibration under no-load.
Once operation starts with a bit against concrete,
blows per minute increase and reach the numbers as
shown in the table.
function even with the motor rotating.
Lighting up the front lamp
Fig.5: 1. Lamp
CAUTION: Do not look in the light or see the
source of light directly.
Pull the switch trigger to light up the lamp. The lamp
keeps on lighting while the switch trigger is being pulled.
releasing the switch trigger.
NOTICE:
few seconds, the active feedback sensing tech-
nology is not working properly. Ask your local
Makita Service Center for repair.
NOTE:
the lamp. Be careful not to scratch the lens of lamp, or
Selecting the action mode
NOTICE: Do not rotate the action mode chang-
ing knob when the tool is running. The tool will be
damaged.
NOTICE: To avoid rapid wear on the mode
change mechanism, be sure that the action mode
changing knob is always positively located in one
of the three action mode positions.
14 ENGLISH
Rotation with hammering
mode changing knob to the -
bide-tipped drill bit.
Fig.6: 1. Action mode changing knob 2. Pointer
Hammering only
For chipping, scaling or demolition operations, rotate
the action mode changing knob to the
bull point, cold chisel, scaling chisel, etc.
Fig.7: 1. Pointer 2. Action mode changing knob
Torque limiter
NOTICE: As soon as the torque limiter actuates,
This will help pre-
vent premature wear of the tool.
NOTICE: Drill bits such as hole saw, which tend
to pinch or catch easily in the hole, are not appro-
priate for this tool.
The torque limiter will actuate when a certain torque
level is reached. The motor will disengage from the
output shaft. When this happens, the drill bit will stop
turning.
Electronic function
The tool is equipped with the electronic functions for
Constant speed control
The speed control function provides the constant rota-
tion speed regardless of load conditions.
Soft start
The soft-start function minimizes start-up shock, and
Active Feedback sensing Technology
-
eration due to the drill bit locking, etc., the motor is
NOTE:-
tion does not work if the acceleration does not reach
NOTE:
In this case, release the switch trigger, and then pull
the switch trigger to restart the tool.
Electric brake
This tool is equipped with an electric brake. If the tool
is released, have the tool serviced at a Makita service
center.
ASSEMBLY
CAUTION: Always be sure that the tool is
before carrying out any work on the tool.
Side handle
Fig.8
CAUTION: Use the side handle only when
chipping, scaling or demolishing. Do not use it
when drilling in concrete, masonry, etc. The tool
drilling.
Fig.9: 1. Side handle 2. Clamp nut
The side handle can be swung in a vertical direction
direction. Loosen the clamp nut to swing the side han-
dle to a desired position, and then tighten the clamp nut
Side grip (auxiliary handle)
CAUTION: Always use the side grip to ensure
safe operation.
CAUTION: After installing or adjusting the
secured.
it counterclockwise, swing it to the desired position and
Fig.10: 1. Side grip
Installing or removing drill bit
Grease
installing the bit.
Coat the shank end of the bit beforehand with a small
amount of grease (about 0.5 - 1 g). This chuck lubrica-
tion assures smooth action and longer service life.
Fig.11: 1. Shank end 2. Grease
Insert the drill bit into the tool. Turn the drill bit and push
it in until it engages.
Fig.12: 1. Drill bit
To remove the drill bit, pull the chuck cover down all the
Fig.13: 1. Drill bit 2. Chuck cover
15 ENGLISH
Chisel angle (when chipping,
scaling or demolishing)
The chisel can be secured at the desired angle.
To change the chisel angle, rotate the action mode
changing knob to the
desired angle.
Fig.14: 1. Action mode changing knob 2. Pointer
Rotate the action mode changing knob to the -
Depth gauge
The depth gauge is convenient for drilling holes of
uniform depth.
Press and hold the lock button, and then insert the
depth gauge into the hex hole.
Fig.15: 1. Depth gauge 2. Lock button
Make sure that the toothed side of the depth gauge
faces the marking.
Fig.16: 1. Marking 2. Toothed side
release the lock button to lock the depth gauge.
NOTE: Make sure that the depth gauge does not
Dust extractor attachment
Optional accessory
Installing the dust extractor
attachment
1. Loosen the side grip on the tool.
2. Install the dust cover so that the claws of the dust
grip.
Fig.17: 1. Dust cover 2. Claw 3. Groove
3.
4. Set the suitable bellows or dust cover extension
Fig.18: 1. Dust cover extension 2. Dust cover
3. Joint 4. Bellows
Connecting the tool to the vacuum
cleaner
1.
Fig.19: 1.2. Hose holder
NOTE:
of the tool.
WARNING: Use the mounting part of the tool
only for attaching the holder joint.
cause an unexpected accident.
2. Fix the hose to the hose holder.
Fig.20: 1. Hose holder
NOTE:
Using depth gauge for drilling
operation
extension to the depth gauge.
Fig.21: 1. Depth gauge extension
Dust extractor attachment (for
hammering only)
Optional accessory
1. Install the hose holder (A/B).
When the side handle is installed to tool, loosen the
clamp nut, and then remove the hex bolt. Install the
hose holder (A) between the hex bolt and the clamp nut
Fig.22: 1. Hex bolt 2. Hose holder (A) 3. Clamp nut
When the side grip is installed to the tool, loosen the
side grip, mount the hose holder (B) to the shaft, and
Fig.23: 1. Hose holder (B) 2. Shaft 3. Side grip
2.
Fig.24: 1.2. Hose holder (C)
NOTE:
of the tool.
WARNING: Use the mounting part of the tool
only for attaching the holder joint.
cause an unexpected accident.
3. Attach the dust cover and the hose to the tool, and
Fig.25: 1. Dust cover 2. Hose 3. Hose holder (A/B)
4. Hose holder (C)
4. Connect the hose to the hose of the vacuum
NOTE: If the hose is not included, attach the dust
cover to the cleaner's hose or attach it to Makita's
hose ø28.
5.
the tip of the chisel or bull point. The recommended
distance is 30 mm to 100 mm.
Fig.26: (1) 30 mm to 100 mm
16 ENGLISH
OPERATION
CAUTION: Always use the side handle / side
both side handle / side grip and switch handle
during operations.
CAUTION: Always make sure that the work-
piece is secured before operation. Failure to prop-
CAUTION: Do not pull the tool out forcibly
even the bit gets stuck. Loss of control may
cause injury.
CAUTION: Do not leave the tool stabbed in
the workpiece. -
NOTE:
Fig.27
Hammer drilling operation
CAUTION: There is tremendous and sudden
twisting force exerted on the tool/drill bit at the time of
hole break-through, when the hole becomes clogged
with chips and particles, or when striking reinforcing
rods embedded in the concrete. Always use the side
both side grip and switch handle during opera-
tions.
Set the action mode changing knob to the
Position the drill bit at the desired location for the hole,
then pull the switch trigger. Do not force the tool. Light
clogged with chips or particles. Instead, run the tool at
NOTE:
while operating the tool with no load. The tool auto-
Chipping/Scaling/Demolition
Set the action mode changing knob to the
not bounce around, uncontrolled.
Fig.28
Blow-out bulb
Optional accessory
After drilling the hole, use the blow-out bulb to clean the
dust out of the hole.
Fig.29
WIRELESS ACTIVATION
FUNCTION
Optional accessory
What you can do with the wireless
activation function
The wireless activation function enables clean and com-
Fig.30
To use the wireless activation function, prepare follow-
ing items:
• A vacuum cleaner which supports the wireless
activation function
The overview of the wireless activation function setting is
as follows. Refer to each section for detail procedures.
1. Installing the wireless unit
2. Tool registration for the vacuum cleaner
3. Starting the wireless activation function
Installing the wireless unit
Optional accessory
CAUTION:
surface when installing the wireless unit.
NOTICE: Clean the dust and dirt on the tool
before installing the wireless unit. Dust or dirt
wireless unit.
NOTICE: To prevent the malfunction caused by
static, touch a static discharging material, such
as a metal part of the tool, before picking up the
wireless unit.
NOTICE: When installing the wireless unit,
always be sure that the wireless unit is inserted
in the correct direction and the lid is completely
closed.
1.
Fig.31: 1. Lid
2.
Insert the wireless unit to the slot and then close the lid.
with the recessed portions on the slot.
Fig.32: 1. Wireless unit 2.3. Lid
4. Recessed portion
17 ENGLISH
The hooks on the back of the lid will lift the wireless unit
Fig.33: 1. Wireless unit 2. Hook 3. Lid
After removing the wireless unit, keep it in the supplied
case or a static-free container.
NOTICE: Always use the hooks on the back of
the lid when removing the wireless unit. If the
hooks do not catch the wireless unit, close the lid
Tool registration for the vacuum
cleaner
NOTE: A Makita vacuum cleaner supporting the
wireless activation function is required for the tool
registration.
NOTE: Finish installing the wireless unit to the tool
before starting the tool registration.
NOTE: During the tool registration, do not pull the
switch trigger or turn on the power switch on the
vacuum cleaner.
NOTE: Refer to the instruction manual of the vacuum
cleaner, too.
-
tion beforehand.
1. Install the batteries to the vacuum cleaner and the
tool.
2.
"AUTO".

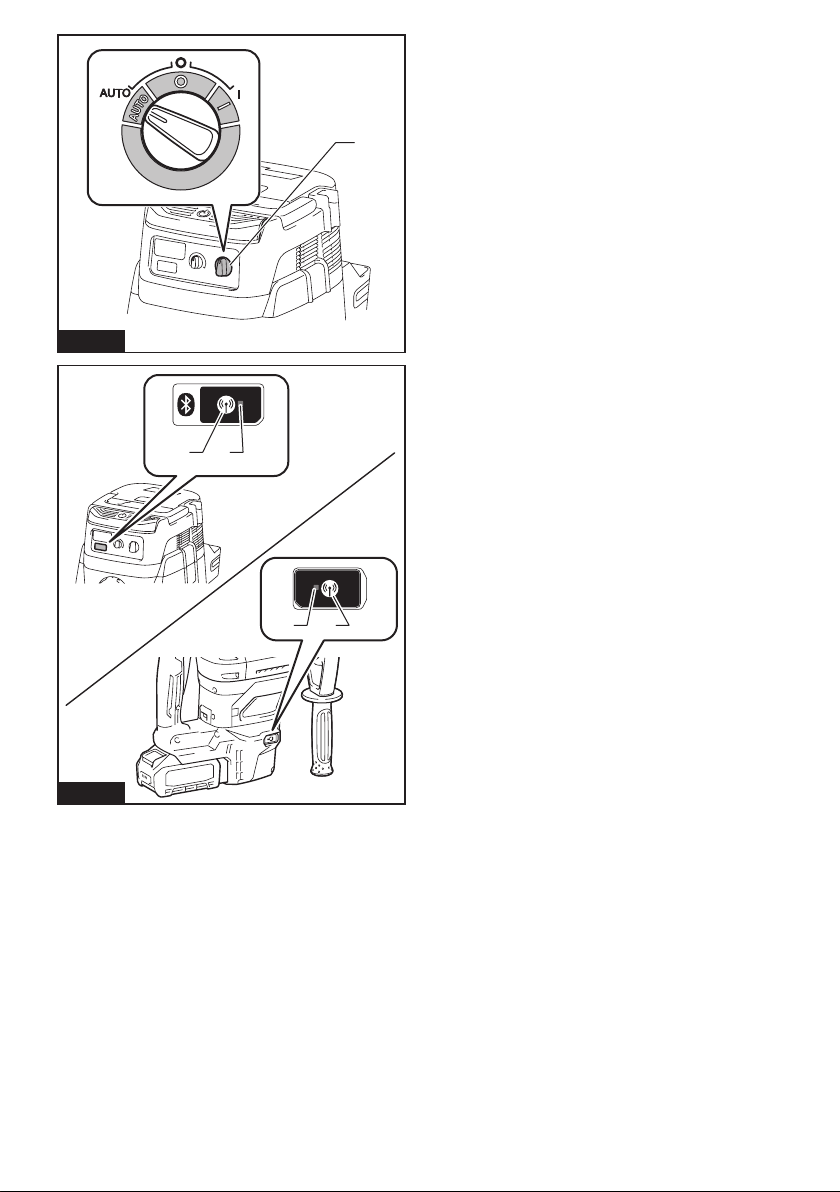

Fig.34: 1.
3. Press the wireless activation button on the vac-
uum cleaner for 3 seconds until the wireless activation
lamp blinks in green. And then press the wireless acti-
Fig.35: 1. Wireless activation button 2. Wireless
activation lamp
If the vacuum cleaner and the tool are linked success-
for 2 seconds and start blinking in blue.
NOTE:
in green after 20 seconds elapsed. Press the wireless
activation button on the tool while the wireless acti-
vation lamp on the cleaner is blinking. If the wireless
activation lamp does not blink in green, push the wire-
NOTE: When performing two or more tool registra-
-
Starting the wireless activation
function
NOTE: Finish the tool registration for the vacuum
cleaner prior to the wireless activation.
NOTE: Refer to the instruction manual of the vacuum
cleaner, too.
After registering a tool to the vacuum cleaner, the
switch operation of the tool.
1. Install the wireless unit to the tool.
2. Connect the hose of the vacuum cleaner with the
tool.
Fig.36
3.
"AUTO".
Fig.37: 1.
4. Push the wireless activation button on the tool
Fig.38: 1. Wireless activation button 2. Wireless
activation lamp
5. Turn on the tool. Check if the vacuum cleaner runs
while the tool is operating.
To stop the wireless activation of the vacuum cleaner,
push the wireless activation button on the tool.
NOTE: The wireless activation lamp on the tool will
stop blinking in blue when there is no operation for
vacuum cleaner to "AUTO" and push the wireless
activation button on the tool again.
NOTE:
There is a time lag when the vacuum cleaner detects
a switch operation of the tool.
NOTE: The transmission distance of the wireless unit
circumstances.
NOTE: When two or more tools are registered to
another user is using the wireless activation function.
18 ENGLISH
Description of the wireless activation lamp status
Fig.39: 1. Wireless activation lamp
The wireless activation lamp shows the status of the wireless activation function. Refer to the table below for the
meaning of the lamp status.
Status Wireless activation lamp Description
Color
On
Blinking
Duration
Blue 2 hours The wireless activation of the vacuum cleaner is available. The
for 2 hours.
When
the tool is
running.
The wireless activation of the vacuum cleaner is available and the
tool is running.
Tool
registration
Green 20 seconds
vacuum cleaner.
2 seconds
lamp will start blinking in blue.
Cancelling
tool
registration
Red 20 seconds
2 seconds
wireless activation lamp will start blinking in blue.
Others Red 3 seconds The power is supplied to the wireless unit and the wireless activa-
tion function is starting up.
- - The wireless activation of the vacuum cleaner is stopped.
Cancelling tool registration for the
vacuum cleaner
Perform the following procedure when cancelling the
tool registration for the vacuum cleaner.
1. Install the batteries to the vacuum cleaner and the
tool.
2.
"AUTO".
Fig.40: 1.
3. Press the wireless activation button on the vac-
uum cleaner for 6 seconds. The wireless activation
lamp blinks in green and then become red. After that,
press the wireless activation button on the tool in the
Fig.41: 1. Wireless activation button 2. Wireless
activation lamp
-
less activation lamps will light up in red for 2 seconds
and start blinking in blue.
NOTE:
red after 20 seconds elapsed. Press the wireless acti-
vation button on the tool while the wireless activation
lamp on the cleaner is blinking. If the wireless acti-
vation lamp does not blink in red, push the wireless
19 ENGLISH
Troubleshooting for wireless activation function
-
ment parts for repairs.
State of abnormality Probable cause (malfunction) Remedy
The wireless activation lamp does
not light/blink.
The wireless unit is not installed into the tool.
into the tool.
The terminal of the wireless unit and/or
wireless unit and clean the slot.
The wireless activation button on the
tool has not been pushed.
Push the wireless activation button on the tool
cleaner is not set to "AUTO".
"AUTO".
-
The wireless unit is not installed into the tool.
into the tool.
The terminal of the wireless unit and/or
wireless unit and clean the slot.
cleaner is not set to "AUTO".
"AUTO".
Incorrect operation
the tool registration/cancellation procedures again.
from each other (out of the transmission
range).
Get the tool and vacuum cleaner closer to each
other. The maximum transmission distance is
to the circumstances.
- the power button on the vacuum
cleaner is turned on.
perform the tool registration/cancellation procedures
again.
The tool registration procedures for the
Perform the tool registration procedures for both the
tool and the vacuum cleaner at the same timing.
waves.
appliances such as Wi-Fi devices and microwave
ovens.
The vacuum cleaner does not run
along with the switch operation of
the tool.
The wireless unit is not installed into the tool.
into the tool.
The terminal of the wireless unit and/or
wireless unit and clean the slot.
The wireless activation button on the
tool has not been pushed.
sure that the wireless activation lamp is blinking in blue.
cleaner is not set to "AUTO".
"AUTO".
More than 10 tools are registered to the
vacuum cleaner.
Perform the tool registration again.
If more than 10 tools are registered to the vacuum cleaner,
The vacuum cleaner erased all tool registrations.
Perform the tool registration again.
from each other (out of the transmission
range).
Get the tool and vacuum cleaner closer each other.
The maximum transmission distance is approxi-
circumstances.
waves.
appliances such as Wi-Fi devices and microwave
ovens.
The vacuum cleaner runs while the
tool is not operating.
Other users are using the wireless
activation of the vacuum cleaner with
their tools.
tools or cancel the tool registration of the other
tools.
20 ENGLISH
MAINTENANCE
CAUTION: Always be sure that the tool is
before attempting to perform inspection or
maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
accessories or attachments might present a risk of
for its stated purpose.
-
Center.
• SDS-MAX Carbide-tipped drill bits
• SDS-MAX bull point
• SDS-MAX cold chisel
• SDS-MAX scaling chisel
• Bit grease
• Side handle
• Side grip
• Depth gauge
• Blow-out bulb
• Dust extractor attachment
• Wireless unit
NOTE:
This manual suits for next models
3
Table of contents
Languages:
Other Makita Rotary Hammer manuals
Makita
Makita M8700 User manual
Makita
Makita HR1840 User manual
Makita
Makita HK0500 User manual
Makita
Makita BHR202 Quick start guide
Makita
Makita HR2450FT Manual
Makita
Makita HR4002 User manual
Makita
Makita HR5201C User manual
Makita
Makita HR2452 Manual
Makita
Makita HR2400 User manual
Makita
Makita HR2440F Manual
Makita
Makita HR005G User manual
Makita
Makita DHR171 User manual
Makita
Makita HR2000 Manual
Makita
Makita HR3200C User manual
Makita
Makita HR140DZJ User manual
Makita
Makita HR2470T User manual
Makita
Makita BHR162 User manual
Makita
Makita BHR162 User manual
Makita
Makita DHR165 Manual
Makita
Makita HR4003C User manual
