Makita 5007NB-A User manual

Circular Saw
No load
speed
Blade
diameter
185 mm (744") MODEL 5007NB-A
Equippedwith Electric Blade Brake
Overall 1 Net
length weight
INSTRUCTION MANUAL
185 mm
(7-1/4")
SPEC IF I CAT I 0 N S
60 mm 46 mm 5,800 295 mm 5.0 kg
(2-3/8") (1-3/4") Rlmin. (1
1 -5/8") (1 1 .O Ibs)

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING:
WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PER-
TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools
in damp
or wet locations. Keep work area well lit. Don't expose power tools to rain.
Don't use tool in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. Whennotinuse, tools should be stored
in dry, and high
or locked-up place
- out of reach of children.
DON'T FORCETOOL.
It will dothejob betterandsafer at the ratefor which
it was intended.
USE RIGHT TOOL. Don't force small tool or attachment to do the job of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESSPROPERLY. Don't wear loose clothingorjewelry. They canbe caught
in moving parts. Rubber gloves and nonskid footwear are recommended
when workingoutdoors. Wear protective hair covering to contain long hair.
USE SAFETY GLASSES. Also use face or dust mask
if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry toolby cordor yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructionsfor lubricatingand changing acces-
sories. Inspecttoolcords periodicallyandifdamaged, haverepairedby autho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from
oil and grease.
DISCONNECTTOOLS. When not
in use, before servicing, and when chang-
ing accessories, such as blades, bits, cutters.

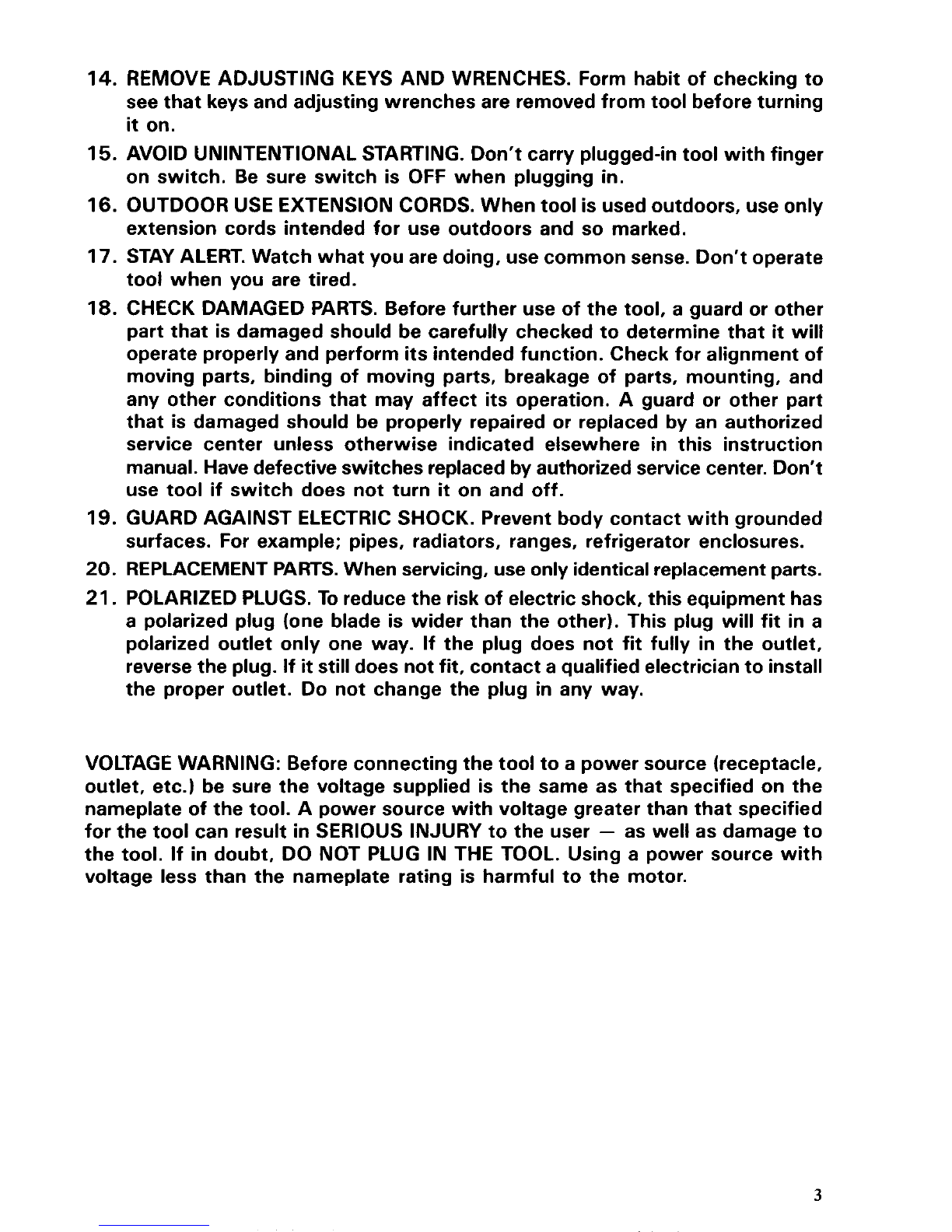

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
see that keysand adjusting wrenches are removedfromtool before turning
it on.
15. AVOID UNINTENTIONALSTARTING. Don't carry plugged-intool withfinger
on switch. Be sure switch is OFF when plugging
in.
16. OUTDOOR USE EXTENSIONCORDS. Whentool is usedoutdoors, use only
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what youare doing, use common sense. Don't operate
tool when you are tired.
18. CHECK DAMAGEDPARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checkedto determine that
it will
operate properly and performitsintended function. Check for alignment of
moving parts, binding of moving parts, breakage of parts, mounting, and
any other conditions that may affect its operation. A guard or other part
that is damaged should be properly repaired or replaced by an authorized
service center unless otherwise indicated elsewhere in this instruction
manual. Havedefective switches replacedby authorizedservicecenter. Don't
use tool if switch does not turn
it on and off.
19. GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS.Whenservicing, useonly identicalreplacementparts.
21. POLARIZEDPLUGS. To reducethe risk of electric shock, this equipment has
a polarized plug (one blade is wider than the other). This plug will
fit in a
polarized outlet only one way. If the plug does not
fit fully in the outlet,
reversethe plug. If
it still does not fit, contactaqualifiedelectriciantoinstall
the proper outlet. Do not change the plug in any way.
VOLTAGE WARNING: Before connectingthe tool toa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplateof the tool. A power source withvoltage greater than that specified
for the tool can result
in SERIOUS INJURYto the user - as well as damage to
the tool.
If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating
is harmful to the motor.
3

Use Of Extension Cord
If the extensioncord isintendedto be usedoutdoors, the cord shall be marked
withthe suffix W-A followingthe cordtype designation, for example
- SJTW-
A, to indicate
it is acceptable for outdoor use. Use an extension cord heavy
enoughtocarry the currentthe tool will draw. Undersize cord will cause a drop
in linevoltage resulting in loss of power and over-heating. Makesure the exten-
sion cord is
in good condition before using. Use the table below to determine
the proper wire size required in the extension cord.
25 Ft.
50
Ft.
75 Ft.
100Ft.
150Ft.
Ampere rating 2.10
- 3.50 - 5.10 - 7.10 - 12.10 -
(on nameplate) I :.io I 3.40 1 5.00 I 7.00 I 12.00 I 16.00 1
18 18 18 18 16 14
18 18 18 16 14 12
18 18 16 14 12 10
18 16 14 12 10
16 14 12 12
-
- -
I Ext. Cable Lenath I Wire Size (AmericanWire Gauae)
I
4

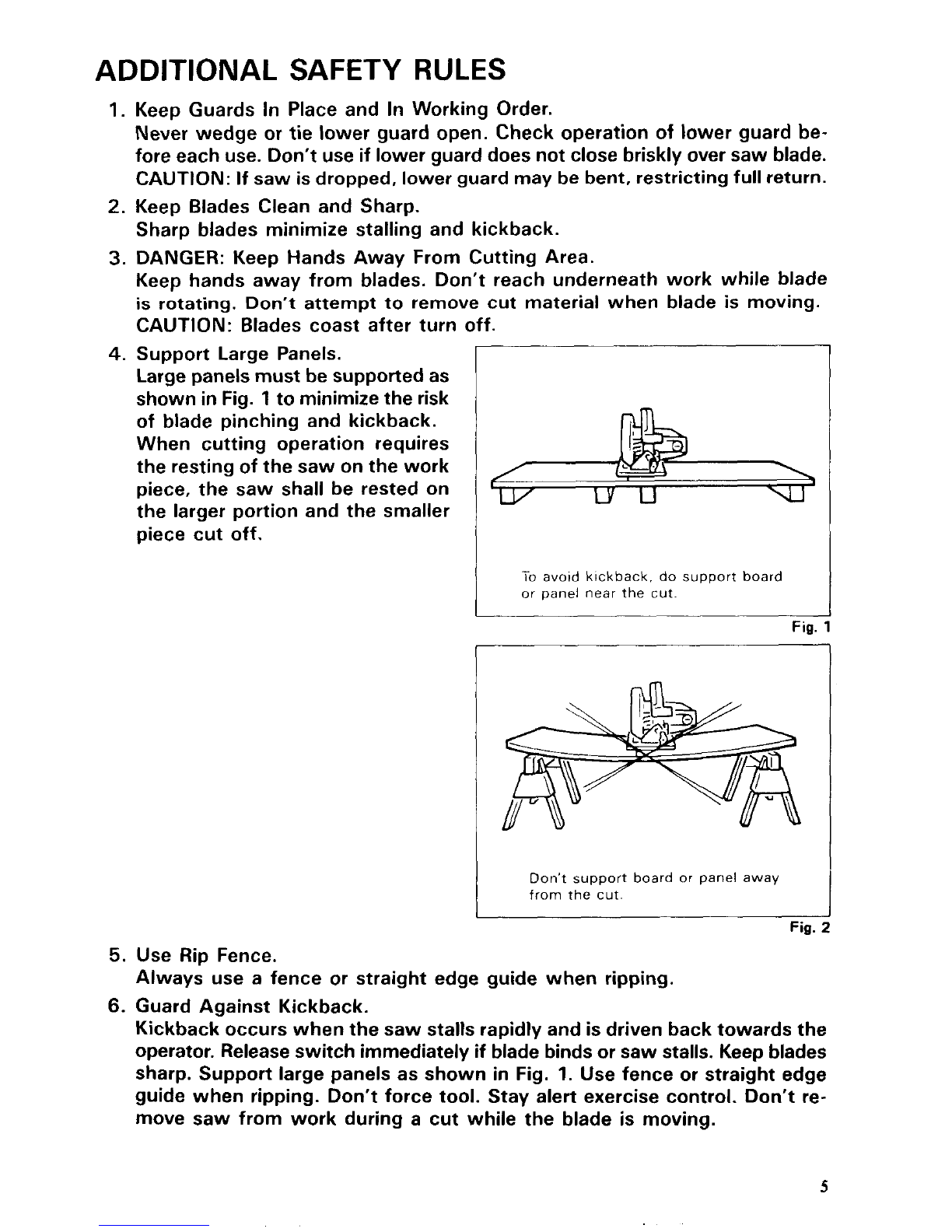

ADDITIONAL SAFETY RULES
1. Keep Guards In Place and In Working Order.
Never wedge or tie lower guard open. Check operation of lower guard be-
fore eachuse. Don’t use
if lower guarddoes notclose briskly over saw blade.
CAUTION: Ifsaw isdropped, lowerguard may be bent, restrictingfull return.
2. Keep Blades Clean and Sharp.
Sharp blades minimize stalling and kickback.
3. DANGER: Keep Hands Away From Cutting Area.
Keep hands away from blades. Don’t reach underneath work while blade
is rotating. Don’t attempt to remove cut material when blade is moving.
CAUTION: Blades coast after turn off.
4. Support Large Panels.
Largepanelsmustbe supported as
shown
in Fig. 1 tominimizetherisk
of blade pinching and kickback.
When cutting operation requires
the restingofthesaw onthe work
piece, the saw shall be rested on
the larger portion and the smaller
piece cut off.
To avoid kickback, do support board
or panel near the cut.
Fig. 1
Don’t support board or panel away
from the cut.
Fig.,
5. Use Rip Fence.
6. Guard Against Kickback.
Always use a fence or straight edge guide when ripping.
Kickbackoccurswhenthesaw stalls rapidlyand
is drivenbacktowardsthe
operator. Releaseswitchimmediately if bladebindsor saw stalls. Keepblades
sharp. Support large panels as shown
in Fig. 1. Use fence or straight edge
guide when ripping. Don‘t force tool. Stay alert exercise control. Don’t re-
move saw from work during a cut while the blade
is moving.
5

NEVER place your hand or fingers
behindthe saw.
If kickback occurs,
the saw could easily jump back-
wards over your hand, possibly
causing severe injury.
Fig.
7. Lower Guard. Raise lower guard with the retracting handle.
8. Adjustments. Before cuttingbesure depthand bevel adjustments are tight.
9. Use Only Correct Blades In Mounting. Don't use blades with incorrect size
holes. Never use defective or incorrect blade washers or bolts.
IO. Avoid Cutting Nails. Inspect for and remove all nails from lumber before
cutting.
1 1. Whenoperating the saw, keepthe
cord away from the cutting area
andposition
it so that it willnotbe
caught on the workpiece during
the cutting operation.
Operatewithproper handsupport,
proper workpiece support, and
supply cordroutingaway from the
work area.
A typical illustration of proper hand
support, workpiece support, and
supply cord routing.
Fig. I
WARNING :
It isimportanttosupport the workpiece properly and toholdthe saw firmly
toprevent
loss of controlwhich couldcause personal injury. Fig. 4 illustrates
typical hand support of the saw.
6

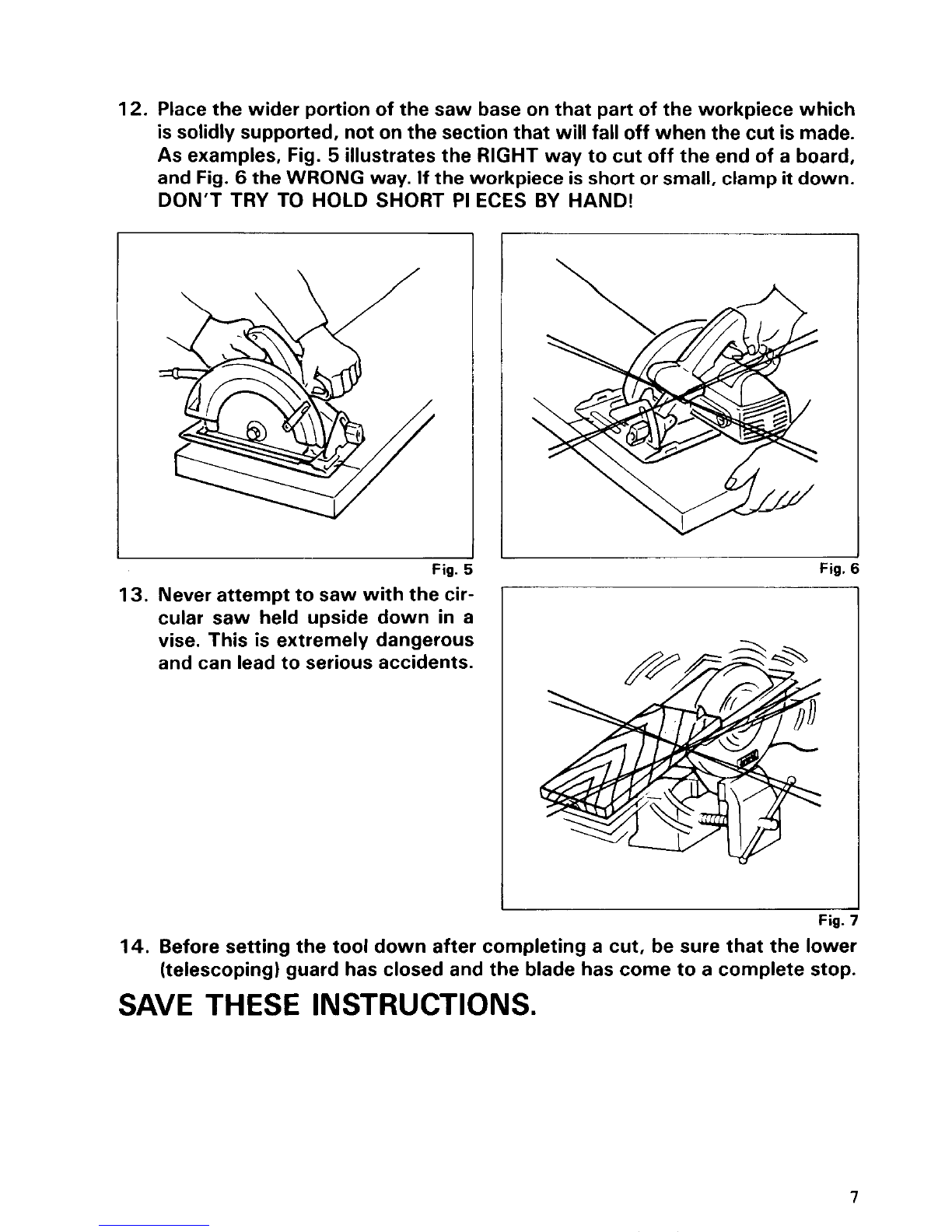

12. Placethe wider portionof the saw baseonthat part of the workpiecewhich
issolidly supported, not
on the sectionthat will fall off when the cutismade.
As examples, Fig.
5 illustrates the RIGHT way tocut off the end of a board,
and Fig.
6 the WRONG way. If the workpiece is short or small, clamp it down.
DON'T TRY
TO HOLD SHORT PI ECES BY HAND!
\ /
Fig. 5
Fig. I
13. Neverattempttosaw withthe cir-
cular saw held upside down in a
vise. This
is extremely dangerous
and can lead toserious accidents.
Fig.
14. Before setting the tool down after completinga cut, be sure that the lower
(telescoping) guard has closed and the blade has come toa complete stop.
SAVE THESE INSTRUCTIONS.
7

CAUTION :
Always be sure that the tool is switched off and unpluggedbeforeremovingor installing
the blade.
Removing
or Installingsaw blade
To remove the blade, press the shaft lock
so that the blade cannot revolve and use
the wrench to loosen the hex boltcounter-
clockwise.
Then remove the hex bolt, outer flange and
the blade.
To install the blade, follow the removal
procedure inreverse.
BE SURE TO TIGHTEN THE HEX BOLT
SE CU R E LY.
Fig. Z
Hex bolt Saw blade \
1-7
~
Fig.
CAUTION :
0 Be sure the blade is installedwith teeth pointingup at the front of the tool.
0 Use only the Makitawrench to installor removethe blade.
Fig. 10
CAUTION :
0 Use a shallowdepthof cutwhen cutting thin workpiece for cleaner, safer cuts.
0 After adjustingthedepth of cut, alwaystighten the lever securely.
8

Bevel cutting
Loosen the nut on the bevel scale plateon
the front of the base. Set for
a desired
angle
(0 - 45") by tilting accordingly,then
tighten the nutfirmly.
Sighting
For straight cuts, align the right notch on
the front of the base with your cuttingline
on the vyorkpiece.
For 45" bevel cuts, align the small notch
inthe front of the base with
it.
For 45" -1 1- For straight
bevel cuts
cuts (90")
ij
-+, Baseplate
Switch action
To start the tool, simply pull the trigger.
Release the trigger tostop.
CAUTION :
Before plugging in the tool, always check
to
see that the trigger switch actuates pro-
perly and returns to the 'OFF" Position
when released.
Fig. 13
9

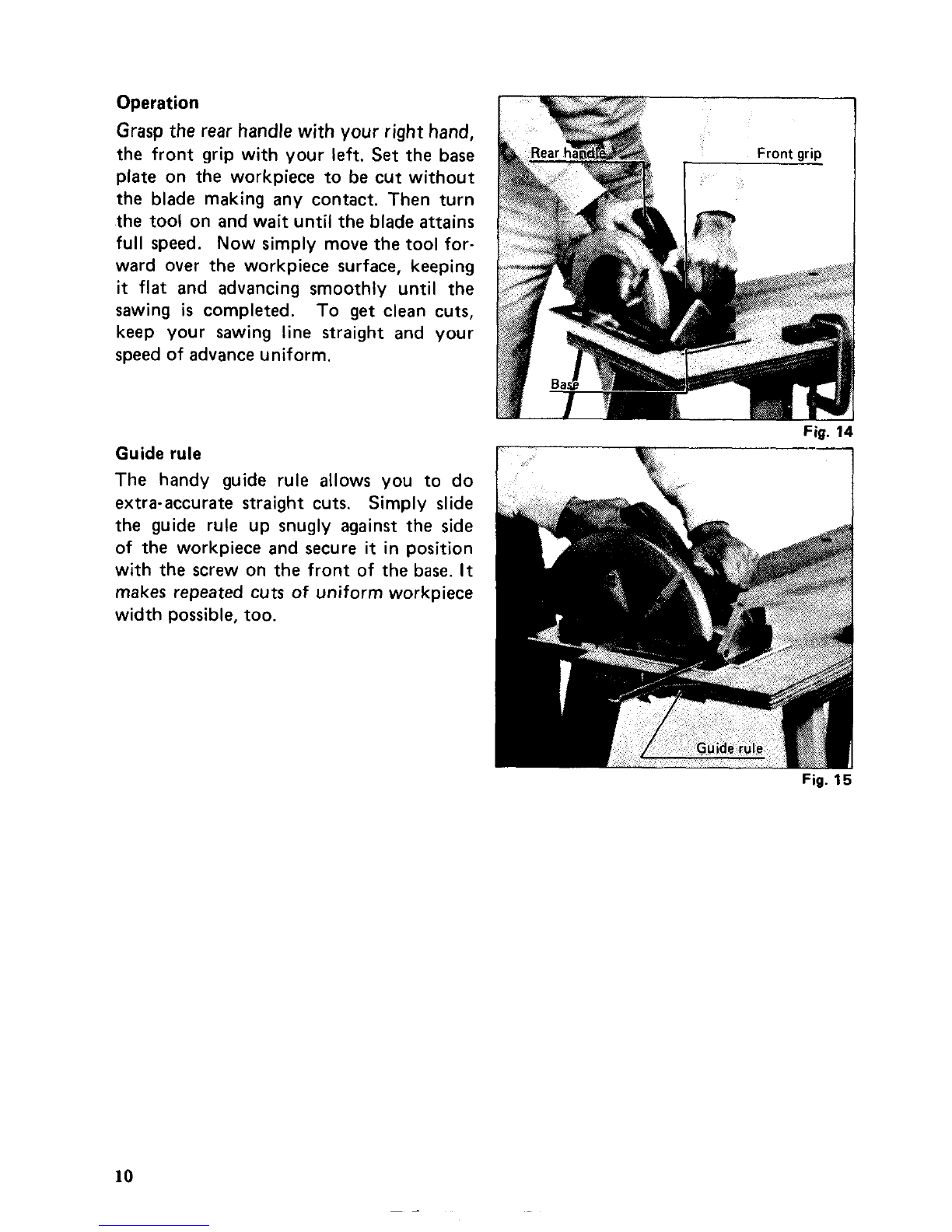

Operation
Grasp the rear handlewith your right hand,
the front grip with your left.
Set the base
plate on the workpiece to be cut without
the blade making any contact. Then turn
the tool on and wait untilthe blade attains
full speed. Now simply move the tool for-
ward over the workpiece surface, keeping
it flat and advancing smoothly until the
sawing
is completed. To get clean cuts,
keep your sawing line straight and your
speed of advance uniform.
Fig. 14
Guide rule
The handy guide rule allows you to
do
extra-accuratestraight cuts. Simply slide
the guide rule up snugly against the side
of the workpiece and secure
it in position
with the screw on the front of the base.
It
makes repeated cuts of uniformworkpiece
width possible, too.
Fig. 15
10

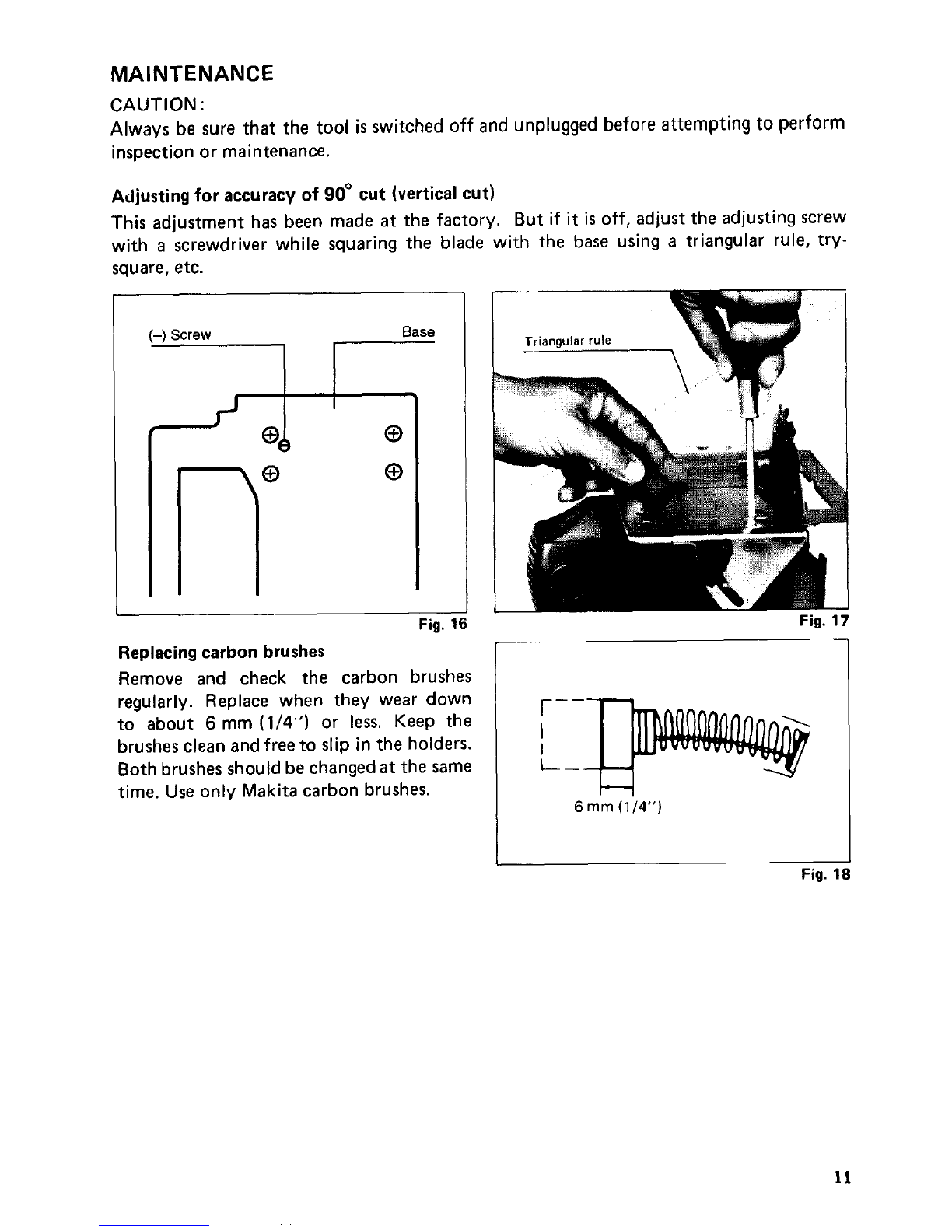

MAINTENANCE
CAUTION :
Always be sure that the tool is switchedoff and unpluggedbeforeattempting to perform
inspectionor maintenance.
Adjustingfor accuracy
of 90" cut (verticalcut)
This adjustment has been made
at the factory. But if it is off, adjust the adjustingscrew
with
a screwdriver while squaring the blade with the base using a triangular rule, try-
square, etc.
I
I 7
(-) Screw
--IF
r
Fig. 11
Replacingcarbonbrushes
Remove and check the carbon brushes
regularly. Replace when they wear down
to about
6 mm (1/4,') or less. Keep the
brushescleanandfreeto slip inthe holders.
Bothbrushesshouldbe changed
at the same
time. Use only Makitacarbonbrushes.
Triangular rule
Fig. 1
r---
I
I
L-
I
H
6 mm (1/4")
Fig. 18
11

Use a screwdriver to remove the brush
holder cap
as shown inthe figure.
I
I
Brushholder cap
Fig. 19
I I
Carbonbrush
&
Fig. 20
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or
adjustment should
be performed by Makita Authorized or Factory Service Centers, al-
ways usingMakita replacementparts.
12

OPTIONAL ACCESSORIES
The accessorieslistedin this manualare available at an extra cost from your Makta distributoror Makita
factoryservicecenter Service centers are
listed onthe warranty card packed with your tool.
CAUTION
These accessories or attachments are recommended for use with your Makita tool specified in this
manual The
use of any other accessories or attachments might present a risk of injury to persons
The accessories or attachments should
be used only in the proper and intended manner
NO
0 Guide rule
(Part No. 164818-4)
Hole No
Diameter d,ameter teeth Part No
(Part No. 164095-8)
185-11B
Chisel tooth combination saw blade
For ripand cross-cut work
Most frequently used for
general carpentry
7 114" 5/8"
1185mml l1588mm) l6 721252
0 Wrench 13
(Part No. 782016-4 )
Carbide-tipped saw blade
Faster, smoother, longer sawing
without blade sharpening.
Cuts wood, drywall, plastics,
hard wood, etc.
13

Nov-01-'85 US
185 mm (7-1/4")
CIRCULAR SAW
Model 5007NB-A
Note: The switch and other part configurations
may differ from country to country.
14

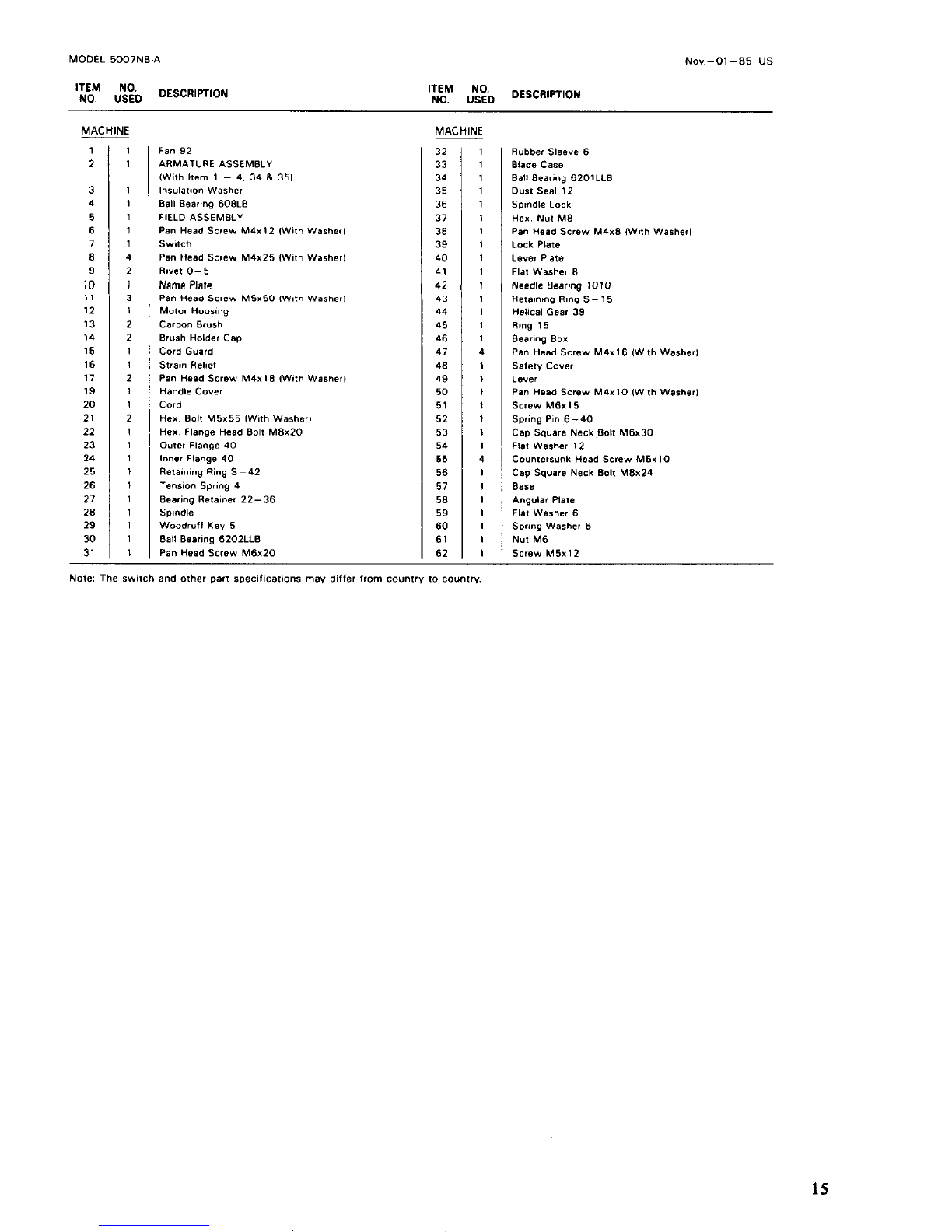

MODEL 5007NB-A
'itM &, DESCRIPTION
__ MACHINE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
19
20
21
22
23
24
25
26
27
20
29
30
31
Nov-01-'05
US
'itM DESCRIPTION
MACHlNE
1 Fan 92 32 1
1 ARMATURE ASSEMBLY 33 1
lWith Item 1 - 4 34 E 351 34 1
1 lns~lation Washer 35 1
1
Ball Bearing 608LB 36 1
1 FIELDASSEMBLY 37 1
1
Pan Head Screw M4xl2 lWnh Warherl 30 1
1
Swatch 39 1
4
Pan Head Screw M4x25 IWith Washer1 40 1
2
Rivet 0-5 41 1
I Name Plate 42 1
3 Pan Head Screw M5x50 IWith Washer1 43 1
1 Motor
Housing 44 1
2 Carbon Brush 45 1
2 Brush Holder Cap 46 1
1
Cord Guard 47 4
1
Strain Relief 40 1
2
Pan Heed Screw M4x18 IWith Warherl 49 1
1 Handle Cover 50 1
1
Cord 51 1
2 Hex Bolt M5r55 IWifh Warherl 52 1
1 Hex Flange Head Bolt MBx20 53 1
1 Outer Flange 40 54 1
1
Inner Flange 40 55 4
1 Tension Spring 4 57 1
1
Bearing Retainer 22-36 58 1
1
Spindle
59 1
1 Woodruff Key 5
60 1
1 Ball Bearing 6202LLB 61 1
1 Pan Head Screw M6x20
62 1
1 Retaining Ring S-42 56 1
Rubber Sleeve 6
Blade Care
Dust Seal 12
Sptndle Lock
Hex Nut MB
Pan Head Screw M4rB IWith Warherl
Lock Plate
Lever Plate
Flat Washer
8
Needle Bearing 1010
Retaining Ring S- 15
Helical Gear 39
Ring 15
Pan Head Screw M4x16 lWilh Washer)
LWW
Pan Head Screw M4x10 IWith Washer)
Screw M6x15
Spring Pin 6-40
Cap Square Neck Bolt M6x30
Flat
Washer 12
Countersunk Head Screw M5x10
Cap Square Neck Bolt MBx24
Bare
Angular Plate
Flat Washer
6
Spring Washer 6
Nut M6
Screw M5x12
Ball 8earlng 6201LLB
Bsarlng BOX
Safety cover
15

7 I
I
MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
I
hvcry Makita tool is thoroughly inspectedand tested before leaving the factory. It
is warranted to
be free
of defects from workmanship and materials for the penod of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period. return the COMPLETE
tool, freight prepaid, to one
of Makita’s Factory or Authorized Service Centers. If inspection shows
thc trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made or attempted by others:
e repairs are required because of normal wear and tear
The tool has been abused, misused or improperly maintained;
alterationshave been made to the tool.
IN NO I:VENT SHALL MAKITA BE LlABLt I:OR ANY INDIRtCT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE
OF THE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM
OF THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES 01’ “MERCHANTABILITY” AND “FITNtSS FOR A SPICIFIC PURPOSE,”
AI’TER
THE ONE-YEAR TERM OFTHISWARRANTY.
{ *
j
Thic Hnrrant) givci )uu specific legal right,, rnd you may also have other right%which vary from
(iatr. to state Some Litdtc) do not nllou the exrlurion or limitdtion of incidental or consequential
ddmdgcs. 50 the rhuw limitation or exlurisn may not appl) 10 )ou Some statec do not allou
liniitdtiun on hou long :in
implicd uarrmty last,, co the ahove limitdtion may not apply to you.
e --*---P-*--P---
MCA -1 2/93
Makita Corporation of America
2650 Gainesville Hwy
Buford, GA 30518
8835088069
PRINTED IN U.S.A.
1993-12-C
