Makita DRS780 User manual

INSTRUCTION MANUAL
Cordless Rear Handle Saw
DRS780
ENGLISH: Original instructions
Read before use.

2ENGLISH
SPECIFICATIONS
Model: DRS780
Blade diameter 185 mm
Max. Cutting depth at 0° 65 mm
at 45° bevel 45 mm
at 53° bevel 38 mm
No load speed 5,100 min-1
Overall length 446 mm
Rated voltage D.C. 36 V
Net weight 5.0 - 5.7 kg
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydifferfromcountrytocountry.
• Theweightmaydifferdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi-
est combination, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Batterycartridge BL1815N / BL1820 / BL1820B / BL1830 / BL1830B / BL1840 /
BL1840B / BL1850 / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF
• Someofthebatterycartridgesandchargerslistedabovemaynotbeavailabledependingonyourregionof
residence.
WARNING: Only use the battery cartridges and chargers listed above.Useofanyotherbatterycartridges
andchargersmaycauseinjuryand/orre.
Symbols
Thefollowingsshowthesymbolsusedfortheequip-
ment.Besurethatyouunderstandtheirmeaningbefore
use.
Read instruction manual.
Ni-MH
Li-ion
OnlyforEUcountries
Donotdisposeofelectricequipmentor
batterypacktogetherwithhouseholdwaste
material!
In observance of the European Directives,
on Waste Electric and Electronic
EquipmentandBatteriesandAccumulators
and Waste Batteries and Accumulators
and their implementation in accordance
withnationallaws,electricequipmentand
batteriesandbatterypack(s)thathave
reached the end of their life must be col-
lectedseparatelyandreturnedtoanenvi-
ronmentallycompatiblerecyclingfacility.
Intended use
Thetoolisintendedforperforminglengthwaysand
crosswaysstraightcutsandmitrecutswithanglesin
woodwhileinrmcontactwiththeworkpiece.
Noise
ThetypicalA-weightednoiseleveldeterminedaccord-
ing to EN62841-2-5:
Soundpressurelevel(LpA):92dB(A)
Soundpowerlevel(LWA):103dB(A)
Uncertainty(K):3dB(A)
NOTE:Thedeclarednoiseemissionvalue(s)has
been measured in accordance with a standard test
methodandmaybeusedforcomparingonetoolwith
another.
NOTE:Thedeclarednoiseemissionvalue(s)
mayalsobeusedinapreliminaryassessmentof
exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can differ from the declared
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
off and when it is running idle in addition to the
trigger time).

3ENGLISH
Vibration
Thevibrationtotalvalue(tri-axialvectorsum)deter-
mined according to EN62841-2-5:
Work mode: cutting wood
Vibrationemission(ah,W):2.5m/s2or less
Uncertainty(K):1.5m/s2
NOTE:Thedeclaredvibrationtotalvalue(s)hasbeen
measured in accordance with a standard test method
andmaybeusedforcomparingonetoolwithanother.
NOTE:Thedeclaredvibrationtotalvalue(s)mayalso
beusedinapreliminaryassessmentofexposure.
WARNING: The vibration emission during
actual use of the power tool can differ from the
declared value(s) depending on the ways in which
the tool is used especially what kind of workpiece
is processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
off and when it is running idle in addition to the
trigger time).
EC Declaration of Conformity
For European countries only
TheECdeclarationofconformityisincludedasAnnexA
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided
with this power tool. Failure to follow all instructions
listedbelowmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
Theterm"powertool"inthewarningsreferstoyour
mains-operated(corded)powertoolorbattery-operated
(cordless)powertool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
whichmayignitethedustorfumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
youtolosecontrol.
Electrical Safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tricshockifyourbodyisearthedorgrounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5.
When operating a power tool outdoors, use an exten-
sion cord suitable for outdoor use. Use of a cord suit-
able for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7.
Power tools can produce electromagnetic elds
(EMF) that are not harmful to the user. However,
users of pacemakers and other similar medical
devices should contact the maker of their device and/
or doctor for advice before operating this power tool.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
powertoolsmayresultinseriouspersonalinjury.
2. Use personal protective equipment. Always
wear eye protection.Protectiveequipmentsuch
asadustmask,non-skidsafetyshoes,hardhator
hearing protection used for appropriate conditions
willreducepersonalinjuries.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool.Carryingpowertoolswith
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.
4.
Remove any adjusting key or wrench before turning
the power tool on.Awrenchorakeyleftattachedtoa
rotatingpartofthepowertoolmayresultinpersonalinjury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts.Looseclothes,jewelleryor
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8.
Do not let familiarity gained from frequent use
of tools allow you to become complacent and

4ENGLISH
ignore tool safety principles. A careless action can
causesevereinjurywithinafractionofasecond.

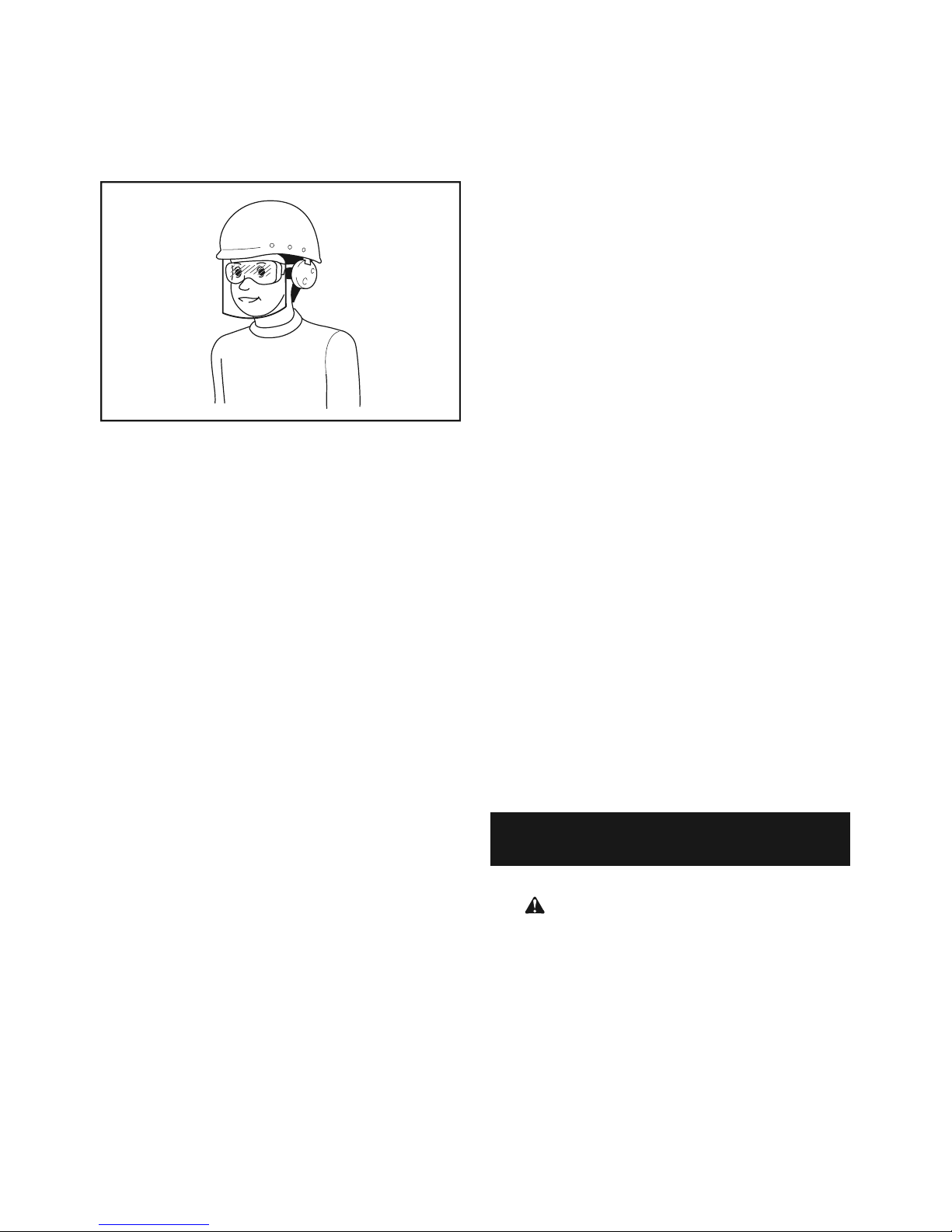

9. Always wear protective goggles to protect your eyes
from injury when using power tools.The goggles must
comply with ANSI Z87.1 in the USA, EN 166 in Europe,
or AS/NZS 1336 in Australia/New Zealand. In Australia/
New Zealand, it is legally required to wear a face shield
to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
powertoolwilldothejobbetterandsaferatthe
rate for which it was designed.
2.
Do not use the power tool if the switch does not turn
it on and off.Anypowertoolthatcannotbecontrolled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools.Suchpreventivesafetymeasuresreduce
theriskofstartingthepowertoolaccidentally.
4.
Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool
or these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
5. Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power
tool repaired before use.Manyaccidentsarecaused
bypoorlymaintainedpowertools.
6. Keep cutting tools sharp and clean.Properly
maintained cutting tools with sharp cutting edges
arelesslikelytobindandareeasiertocontrol.
7.
Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
8. Keep handles and grasping surfaces dry, clean
and free from oil and grease.Slipperyhandlesand
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
9. When using the tool, do not wear cloth
work gloves which may be entangled. The
entanglement of cloth work gloves in the moving
partsmayresultinpersonalinjury.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
onetypeofbatterypackmaycreateariskofre
whenusedwithanotherbatterypack.
2. Use power tools only with specically desig-
nated battery packs.Useofanyotherbattery
packsmaycreateariskofinjuryandre.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another.Shortingthebatterytermi-
nalstogethermaycauseburnsorare.
4.
Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact acciden-
tally occurs, ush with water. If liquid contacts eyes,
additionally seek medical help.Liquidejectedfrom
thebatterymaycauseirritationorburns.
5. Do not use a battery pack or tool that is dam-
aged or modied.Damagedormodiedbatteries
mayexhibitunpredictablebehaviourresultingin
re,explosionorriskofinjury.
6. Do not expose a battery pack or tool to re or
excessive temperature.Exposuretoreortem-
peratureabove130°Cmaycauseexplosion.
7.
Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specied in the instructions. Charging improp-
erlyorattemperaturesoutsidethespeciedrangemay
damagethebatteryandincreasetheriskofre.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts.Thiswillensurethatthesafetyofthepower
tool is maintained.
2. Never service damaged battery packs. Service
ofbatterypacksshouldonlybeperformedbythe
manufacturer or authorized service providers.
3. Follow instruction for lubricating and chang-
ing accessories.
Cordless circular saw safety
warnings
Cutting procedures
1. DANGER: Keep hands away from cutting
area and the blade. Keep your second hand
on auxiliary handle, or motor housing. If both
handsareholdingthesaw,theycannotbecutby
the blade.
2.
Do not reach underneath the workpiece. The guard
cannotprotectyoufromthebladebelowtheworkpiece.
3. Adjust the cutting depth to the thickness of
the workpiece. Less than a full tooth of the blade
teeth should be visible below the workpiece.
4. Never hold the workpiece in your hands or
across your leg while cutting. Secure the
workpiece to a stable platform. It is important to
supporttheworkproperlytominimisebodyexpo-
sure, blade binding, or loss of control.

5ENGLISH
5. Hold the power tool by insulated gripping
surfaces, when performing an operation where
the cutting tool may contact hidden wiring.
Contact with a “live” wire will also make exposed
metal parts of the power tool “live” and could give
the operator an electric shock.
6. When ripping, always use a rip fence or
straight edge guide.Thisimprovestheaccuracy
of cut and reduces the chance of blade binding.
7.
Always use blades with correct size and shape
(diamond versus round) of arbour holes. Blades that
do not match the mounting hardware of the saw will run
off-centre, causing loss of control.
8. Never use damaged or incorrect blade wash-
ers or bolt. The blade washers and bolt were
speciallydesignedforyoursaw,foroptimum
performanceandsafetyofoperation.
Kickback causes and related warnings
— kickback is a sudden reaction to a pinched,
jammedormisalignedsawblade,causingan
uncontrolled saw to lift up and out of the workpiece
toward the operator;
—
whenthebladeispinchedorjammedtightlybythekerf
closing down, the blade stalls and the motor reaction
drivestheunitrapidlybacktowardtheoperator;
— if the blade becomes twisted or misaligned in the cut,
the teeth at the back edge of the blade can dig into the
top surface of the wood causing the blade to climb out
ofthekerfandjumpbacktowardtheoperator.
Kickbackistheresultofsawmisuseand/orincorrect
operating procedures or conditions and can be avoided
bytakingproperprecautionsasgivenbelow.
1.
Maintain a rm grip with both hands on the saw and
position your arms to resist kickback forces. Position
your body to either side of the blade, but not in line
with the blade.Kickbackcouldcausethesawtojump
backwards,butkickbackforcescanbecontrolledbythe
operator, if proper precautions are taken.
2. When blade is binding, or when interrupting a cut
for any reason, release the trigger and hold the saw
motionless in the material until the blade comes to
a complete stop. Never attempt to remove the saw
from the work or pull the saw backward while the
blade is in motion or kickback may occur. Investigate
and take corrective actions to eliminate the cause of
blade binding.
3. When restarting a saw in the workpiece, centre
the saw blade in the kerf so that the saw teeth
are not engaged into the material. If a saw blade
binds,itmaywalkuporkickbackfromthework-
piece as the saw is restarted.
4. Support large panels to minimise the risk of
blade pinching and kickback. Large panels tend
to sag under their own weight. Supports must be
placed under the panel on both sides, near the line
of cut and near the edge of the panel.
5. Do not use dull or damaged blades.
Unsharpenedorimproperlysetbladesproduce
narrow kerf causing excessive friction, blade
binding and kickback.
6. Blade depth and bevel adjusting locking levers
must be tight and secure before making the
cut.Ifbladeadjustmentshiftswhilecutting,itmay
cause binding and kickback.
7. Use extra caution when sawing into existing
walls or other blind areas. The protruding blade
maycutobjectsthatcancausekickback.
8. ALWAYS hold the tool rmly with both hands.
NEVER place your hand, leg or any part of your
body under the tool base or behind the saw,
especially when making cross-cuts. If kickback
occurs,thesawcouldeasilyjumpbackwardsover
yourhand,leadingtoseriouspersonalinjury.

6ENGLISH
9. Never force the saw. Push the saw forward at a
speed so that the blade cuts without slowing.
Forcing the saw can cause uneven cuts, loss of
accuracy,andpossiblekickback.
Lower guard function
1.
Check the lower guard for proper closing before each
use. Do not operate the saw if the lower guard does not
move freely and close instantly. Never clamp or tie the
lower guard into the open position. If the saw is acciden-
tallydropped,thelowerguardmaybebent.Raisethelower
guard with the retracting handle and make sure it moves
freelyanddoesnottouchthebladeoranyotherpart,inall
angles and depths of cut.
2. Check the operation of the lower guard spring. If
the guard and the spring are not operating prop-
erly, they must be serviced before use. Lower guard
mayoperatesluggishlyduetodamagedparts,gummy
deposits, or a build-up of debris.
3. The lower guard may be retracted manually only for
special cuts such as “plunge cuts” and “compound
cuts”. Raise the lower guard by the retracting han-
dle and as soon as the blade enters the material, the
lower guard must be released. For all other sawing,
thelowerguardshouldoperateautomatically.
4. Always observe that the lower guard is cover-
ing the blade before placing the saw down on
bench or oor. An unprotected, coasting blade
will cause the saw to walk backwards, cutting
whatever is in its path. Be aware of the time it
takes for the blade to stop after switch is released.
5.
To check lower guard, open lower guard by hand,
then release and watch guard closure. Also check to
see that retracting handle does not touch tool hous-
ing. Leaving blade exposed is VERY DANGEROUS
andcanleadtoseriouspersonalinjury.
Additional safety warnings
1.
Use extra caution when cutting damp wood, pres-
sure treated lumber, or wood containing knots.
Maintain smooth advancement of tool without decrease
in blade speed to avoid overheating the blade tips.
2. Do not attempt to remove cut material when
blade is moving. Wait until blade stops before
grasping cut material. Blades coast after turn off.
3. Avoid cutting nails. Inspect for and remove all
nails from lumber before cutting.
4.
Place the wider portion of the saw base on that part
of the workpiece which is solidly supported, not on
the section that will fall off when the cut is made. If
the workpiece is short or small, clamp it down. DO
NOT TRY TO HOLD SHORT PIECES BY HAND!
5. Before setting the tool down after completing a
cut, be sure that the guard has closed and the
blade has come to a complete stop.
6. Never attempt to saw with the circular saw
held upside down in a vise. This is extremely
dangerous and can lead to serious accidents.
7. Some material contains chemicals which may be
toxic. Take caution to prevent dust inhalation and
skin contact. Follow material supplier safety data.
8. Do not stop the blades by lateral pressure on
the saw blade.
9. Do not use any abrasive wheels.
10. Only use the saw blade with the diameter that
is marked on the tool or specied in the man-
ual.Useofanincorrectlysizedblademayaffect
the proper guarding of the blade or guard opera-
tionwhichcouldresultinseriouspersonalinjury.
11.
Keep blade sharp and clean. Gum and wood pitch
hardened on blades slows saw and increases potential
forkickback.Keepbladecleanbyrstremovingitfrom
tool, then cleaning it with gum and pitch remover, hot
water or kerosene. Never use gasoline.
12. Wear a dust mask and hearing protection when
use the tool.
13. Always use the saw blade intended for cutting
the material that you are going to cut.
14.
Only use the saw blades that are marked with a speed
equal or higher than the speed marked on the tool.
15. (For European countries only)
Always use the blade which conforms to EN847-1.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity with
product (gained from repeated use) replace strict adher-
ence to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this instruc-
tion manual may cause serious personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instructions
and cautionary markings on (1) battery charger, (2)
battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.

7ENGLISH
4.
If electrolyte gets into your eyes, rinse them out
with clear water and seek medical attention right
away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current ow, over-
heating, possible burns and even a breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10.
The contained lithium-ion batteries are subject to
the Dangerous Goods Legislation requirements.
Forcommercialtransportse.g.bythirdparties,
forwardingagents,specialrequirementonpack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
inganexpertforhazardousmaterialisrequired.
Pleasealsoobservepossiblymoredetailed
national regulations.
Tape or mask off open contacts and pack up the
batteryinsuchamannerthatitcannotmove
around in the packaging.
11. Follow your local regulations relating to dis-
posal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliantproductsmayresultinare,exces-
siveheat,explosion,orleakofelectrolyte.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
havebeenaltered,mayresultinthebatterybursting
causingres,personalinjuryanddamage.Itwill
alsovoidtheMakitawarrantyfortheMakitatooland
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing or removing battery
cartridge
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge.Failuretoholdthetoolandthebattery
cartridgermlymaycausethemtoslipoffyourhands
andresultindamagetothetoolandbatterycartridge
andapersonalinjury.
CAUTION: Always bring down the base when
installing/removing the batteries. Be careful not to
pinch your ngers.
CAUTION: Do not use the battery adapter with
the circular saw. The cable of the battery adapter
may hinder the operation and result in personal
injury.
4
2
5
1
3
►1. Lever 2. Hook 3. Red indicator 4. Button
5.Batterycartridge
Beforeremovingthebatterycartridge,liftthehookup
andloosentheleverfordepthadjustmenttolowerthe
toolbase.Thenslidethebatteryfromthetoolwhile
sliding the button on the front of the cartridge.
Toinstallthebatterycartridge,alignthetongueonthe
batterycartridgewiththegrooveinthehousingandslip
itintoplace.Insertitallthewayuntilitlocksinplace
withalittleclick.Ifyoucanseetheredindicatoronthe
uppersideofthebutton,itisnotlockedcompletely.

8ENGLISH
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
itmayaccidentallyfalloutofthetool,causinginjuryto
youorsomeonearoundyou.
CAUTION: Do not install the battery cartridge
forcibly.Ifthecartridgedoesnotslideineasily,itis
notbeinginsertedcorrectly.
NOTE:Thetooldoesnotworkwithonlyonebattery
cartridge.
Tool / battery protection system
Thetoolisequippedwithatool/batteryprotectionsys-
tem.Thissystemautomaticallycutsoffpowertothe
motortoextendtoolandbatterylife.Thetoolwillauto-
maticallystopduringoperationifthetoolorbatteryis
placed under one of the following conditions.
Overload protection
When the tool is operated in a manner that causes it to
drawanabnormallyhighcurrent,thetoolautomatically
stops. In this situation, turn the tool off and stop the
application that caused the tool to become overloaded.
Then turn the tool on to restart.
Overheat protection
Whenthetoolisoverheated,thetoolstopsautomatically,and
thebatteryindicatorblinkabout60seconds.Inthissituation,
let the tool cool down before turning the tool on again.
On Blinking
Overload alert
If the tool is operated with excessive load, the mode indicator
will blink in green. The mode indicator stops blinking and then
lightsuporturnsoffifyoureducetheloadonthetool.
1
►1. Mode indicator
Overdischarge protection
Whenthebatterycapacitybecomeslow,thetoolstops
automatically.Iftheproductdoesnotoperateeven
when the switches are operated, remove the batteries
from the tool and charge the batteries.
Indicating the remaining battery
capacity
2
1
►1.Batteryindicator2. Check button
Pressthecheckbuttontoindicatetheremainingbattery
capacities.Thebatteryindicatorscorrespondtoeach
battery.
Battery indicator status Remaining
battery
capacity
On Off Blinking
50% to 100%
20% to 50%
0% to 20%
Charge the
battery
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
1
2
►1. Indicator lamps 2. Check button
Pressthecheckbuttononthebatterycartridgetoindi-
catetheremainingbatterycapacity.Theindicatorlamps
light up for a few seconds.

9ENGLISH
Indicator lamps Remaining
capacity
Lighted Off Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
Thebattery
mayhave
malfunctioned.
NOTE: Depending on the conditions of use and the
ambienttemperature,theindicationmaydifferslightly
fromtheactualcapacity.
Automatic speed change function
Thistoolhas"highspeedmode"and"hightorque
mode".
Thetoolautomaticallychangestheoperationmode
depending on the work load. When the work load is low,
thetoolwillruninthe"highspeedmode"forquicker
cutting operation. When the work load is high, the tool
willruninthe"hightorquemode"forpowerfulcutting
operation.
1
►1. Mode indicator
The mode indicator lights up when the tool is running in
"hightorquemode".
Mode indicator status Operation mode
On Off
High speed mode
Hightorquemode
Adjusting depth of cut
CAUTION: After adjusting the depth of cut,
always tighten the lever securely.
Loosen the lever on the depth guide and move the base
up or down. At the desired depth of cut, secure the base
bytighteningthelever.
For cleaner, safer cuts, set cut depth so that no more
thanonebladetoothprojectsbelowworkpiece.Using
proper cut depth helps to reduce potential for danger-
ousKICKBACKSwhichcancausepersonalinjury.
1
►1. Lever
Bevel cutting
CAUTION: After adjusting the bevel angle,
always tighten the lever securely.
Loosentheleverandsetforthedesiredanglebytilting
accordingly,thentightentheleversecurely.
1
►1. Lever

10 ENGLISH

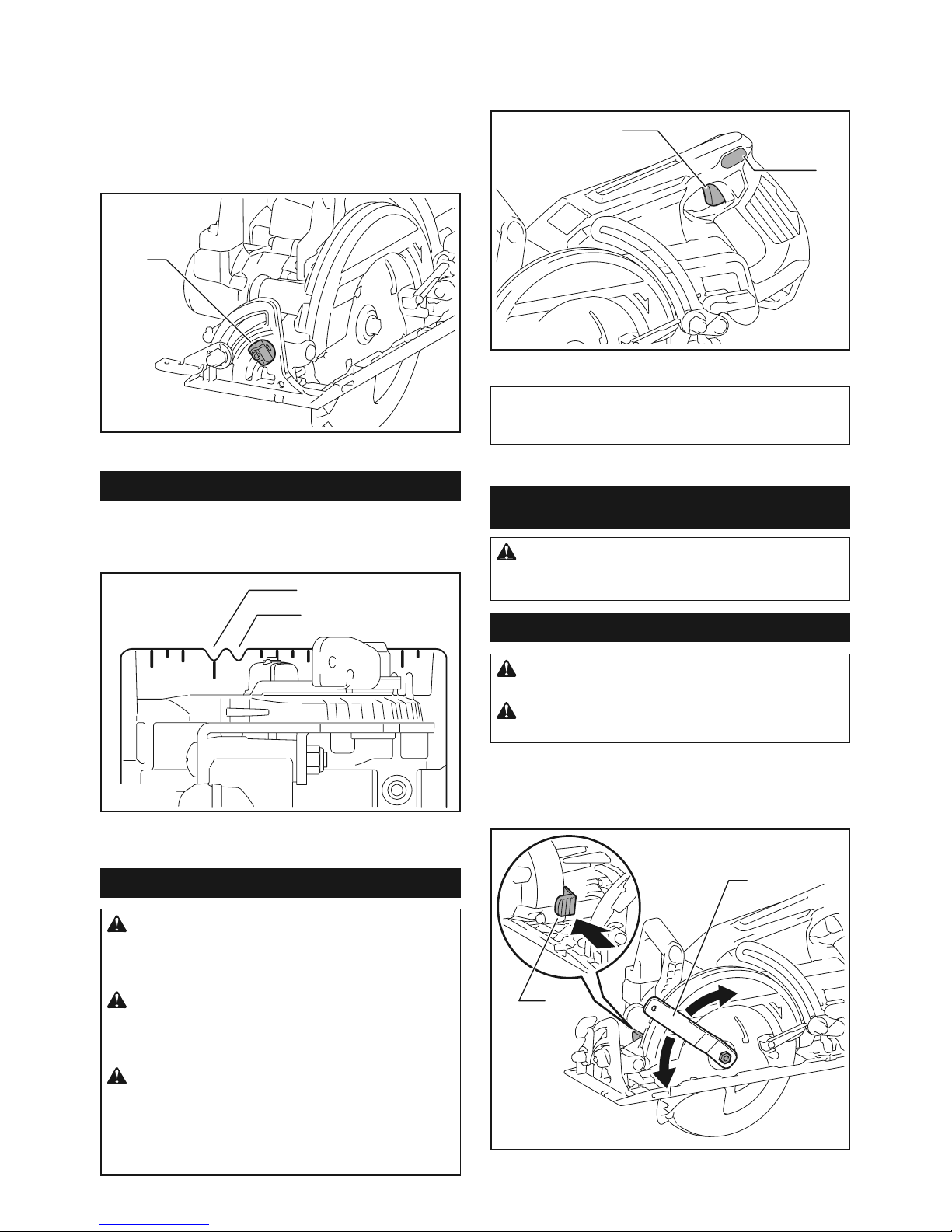

Positive stopper
The positive stopper is useful for setting the des-
ignatedanglequickly.Turnthepositivestopperso
thatthearrowonitpointsyourdesiredbevelangle
(22.5°/45°/53°).Loosentheleverandthentiltthetool
base until it stops. The position where the tool base
stopsistheangleyousetwiththepositivestopper.
Tighten the lever with the tool base at this position.
1
►1. Positive stopper
Sighting
For straight cuts, align the 0° position on the front of the
basewithyourcuttingline.For45°bevelcuts,alignthe
45° position with it.
2
1
►1.Cuttingline(0°position)2.Cuttingline(45°
position)
Switch action
WARNING: Before installing the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released.
WARNING: NEVER defeat the lock-off button
by taping down or some other means. A switch with
anegatedlock-offbuttonmayresultinunintentional
operationandseriouspersonalinjury.
WARNING: NEVER use the tool if it runs when
you simply pull the switch trigger without press-
ing the lock-off button. A switch in need of repair
mayresultinunintentionaloperationandserious
personalinjury.ReturntooltoaMakitaservicecenter
for proper repairs BEFORE further usage.
Topreventtheswitchtriggerfrombeingaccidentally
pulled, a lock-off button is provided. To start the tool,
depress the lock-off button and pull the switch trigger.
Release the switch trigger to stop.
2
1
►1. Switch trigger 2. Lock-off button
NOTICE: Do not pull the switch trigger hard
without pressing in the lock-off button. This can
cause switch breakage.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before carrying out any work on the tool.
Removing or installing circular saw blade
CAUTION: Be sure the circular saw blade is
installed with teeth pointing up at the front of the tool.
CAUTION: Use only the Makita wrench to
install or remove the circular saw blade.
Toremovethecircularsawblade,presstheshaftlockfullyso
that the circular saw blade cannot revolve and use the wrench
to loosen the hex bolt clockwise. Then remove the hex bolt,
ring(countryspecic),outerangeandcircularsawblade.
2
1
►1. Shaft lock 2. Wrench

11 ENGLISH

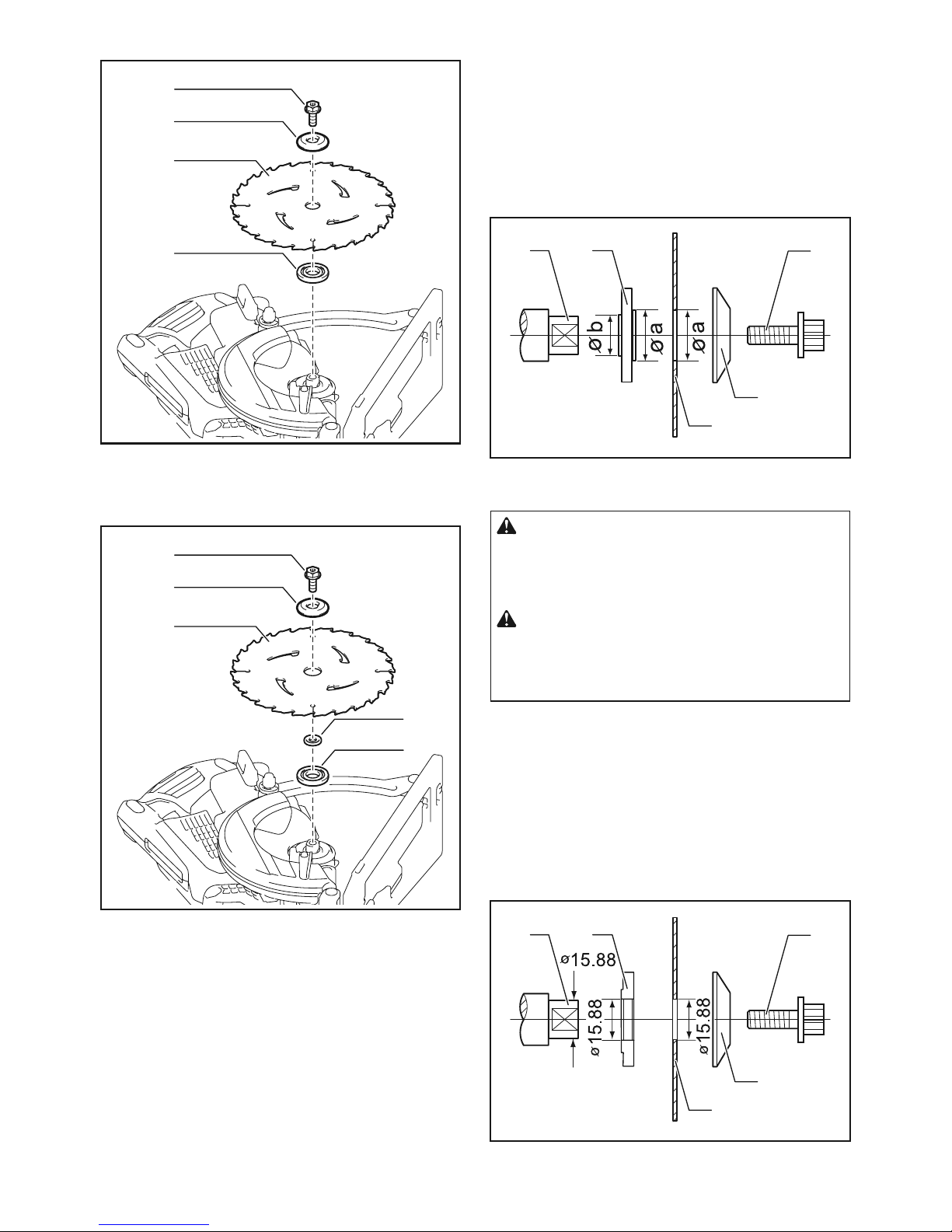

For tool without the ring
2
1
3
4
►1. Hex bolt 2.Outerange3. Circular saw blade
4.Innerange
For tool with the ring
2
1
3
4
5
►1. Hex bolt 2.Outerange3. Circular saw blade
4. Ring 5.Innerange
To install the circular saw blade, follow the removal
procedure in reverse.
For tool with the inner ange for other than
15.88 mm hole-diameter saw blade
Theinnerangehasacertaindiameterprotrusionon
one side of it and a different diameter protrusion on the
other side. Choose a correct side on which protrusion
tsintothesawbladeholeperfectly.Mounttheinner
angeontothemountingshaftsothatthecorrectside
ofprotrusionontheinnerangefacesoutwardandthen
placesawbladeandouterange.
12
3
4
5
►1. Mounting shaft 2.Innerange3. Circular saw
blade 4.Outerange5. Hex bolt
WARNING: BE SURE TO TIGHTEN THE HEX
BOLT COUNTERCLOCKWISE SECURELY. Also
be careful not to tighten the bolt forcibly. Slipping
your hand from the hex wrench can cause a per-
sonal injury.
WARNING: Make sure that the protrusion "a"
on the inner ange that is positioned outside ts
into the saw blade hole "a" perfectly. Mounting the
blade on the wrong side can result in the dangerous
vibration.
For tool with the inner ange for a
15.88 mm hole-diameter saw blade
(country specic)
Mounttheinnerangewithitsrecessedsidefacing
outward onto the mounting shaft and then place circu-
larsawblade(withtheringattachedifneeded),outer
angeandhexbolt.

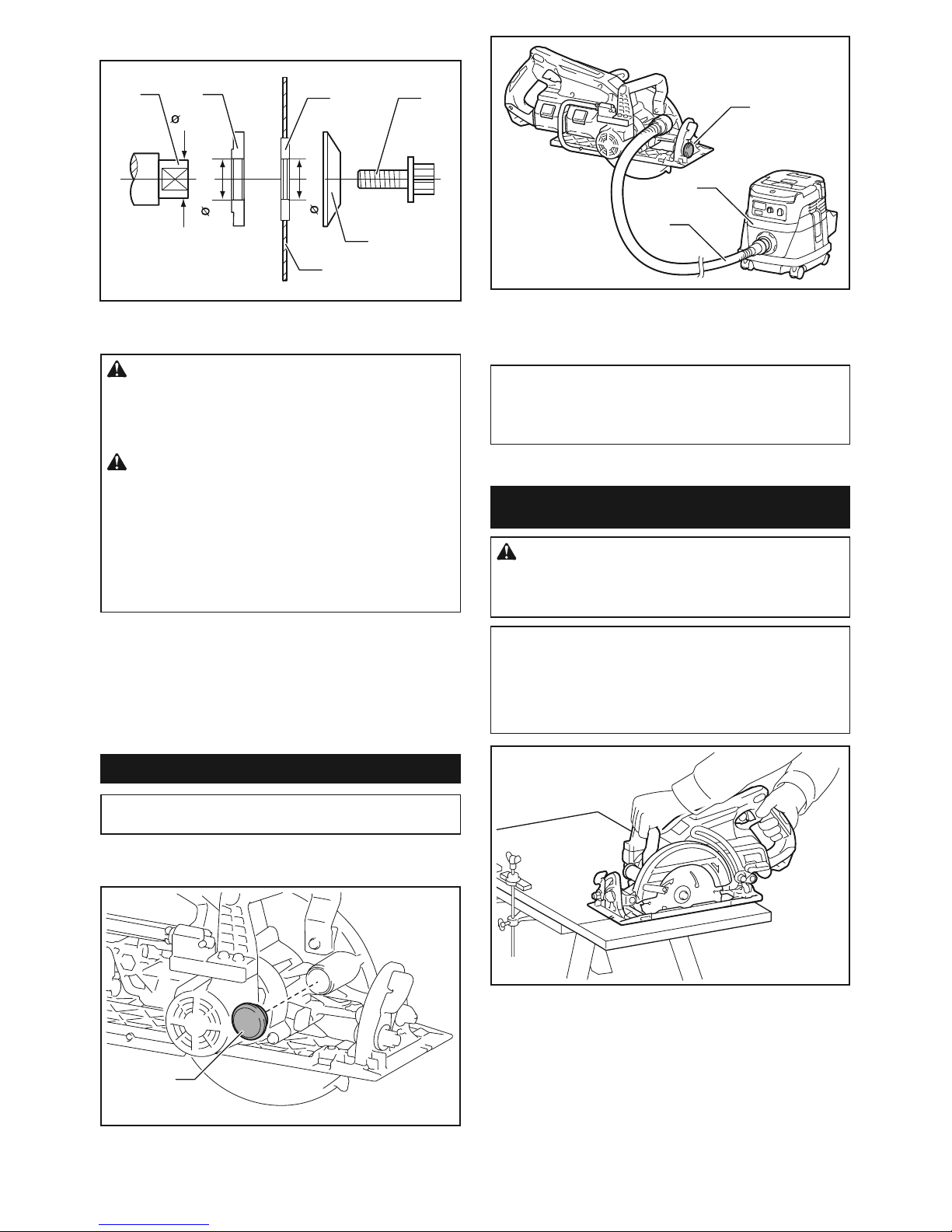

For tool without the ring
12
3
4
5
►1. Mounting shaft 2.Innerange3. Circular saw
blade 4.Outerange5. Hex bolt

12 ENGLISH
For tool with the ring
12
3
4
5
6
15.88
15.88
15.88
►1. Mounting shaft 2.Innerange3. Circular saw
blade 4.Outerange5. Hex bolt 6. Ring
WARNING: BE SURE TO TIGHTEN THE HEX
BOLT COUNTERCLOCKWISE SECURELY. Also
be careful not to tighten the bolt forcibly. Slipping
your hand from the hex wrench can cause a per-
sonal injury.
WARNING: If the ring is needed to mount the
blade onto the spindle, always be sure that the
correct ring for the blade's arbor hole you intend
to use is installed between the inner and the outer
anges.Useoftheincorrectarborholeringmay
result in the improper mounting of the blade causing
blade movement and severe vibration resulting in
possible loss of control during operation and in seri-
ouspersonalinjury.
Blade guard cleaning
When changing the circular saw blade, make sure to
also clean the upper and lower blade guards of accu-
mulated sawdust as discussed in the Maintenance
section. Such efforts do not replace the need to check
lower guard operation before each use.
Connecting a vacuum cleaner
NOTE: In some countries, the tool does not have the
dust nozzle.
Whenyouwishtoperformcleancuttingoperation,
connectaMakitavacuumcleanertoyourtool.
1
►1. Rubber cap
3
2
1
►1. Rubber cap 2. Vacuum cleaner 3. Hose
Remove the rubber cap from the dust nozzle and con-
nect the vacuum cleaner's hose as illustrated.
NOTE: To prevent the rubber cap from being lost,
store it on the front of the tool.
NOTE: When not using the vacuum cleaner, attach
the rubber cap onto the dust nozzle.
OPERATION
CAUTION: Be sure to move the tool forward
in a straight line gently. Forcing or twisting the tool
will result in overheating the motor and dangerous
kickback,possiblycausingsevereinjury.
NOTE:Whenthebatterycartridgetemperatureis
low,thetoolmaynotworktoitsfullcapacity.Atthis
time,forexample,usethetoolforalight-dutycutfor
awhileuntilthebatterycartridgewarmsupashigh
as room temperature. Then, the tool can work to its
fullcapacity.
Holdthetoolrmly.Thetoolisprovidedwithbothafront
grip and rear handle. Use both to best grasp the tool.
Ifbothhandsareholdingsaw,theycannotbecutby
the circular saw blade. Set the base on the workpiece
tobecutwithoutthecircularsawblademakingany
contact. Then turn the tool on and wait until the circular
sawbladeattainsfullspeed.Nowsimplymovethetool
forwardovertheworkpiecesurface,keepingitatand
advancingsmoothlyuntilthesawingiscompleted.
Togetcleancuts,keepyoursawinglinestraightand
yourspeedofadvanceuniform.Ifthecutfailsto

13 ENGLISH
properlyfollowyourintendedcutline,donotattempt
to turn or force the tool back to the cut line. Doing so
maybindthecircularsawbladeandleadtodangerous
kickbackandpossibleseriousinjury.Releaseswitch,
wait for circular saw blade to stop and then withdraw
tool. Realign tool on new cut line, and start cut again.
Attempt to avoid positioning which exposes operator to
chipsandwooddustbeingejectedfromsaw.Useeye
protectiontohelpavoidinjury.

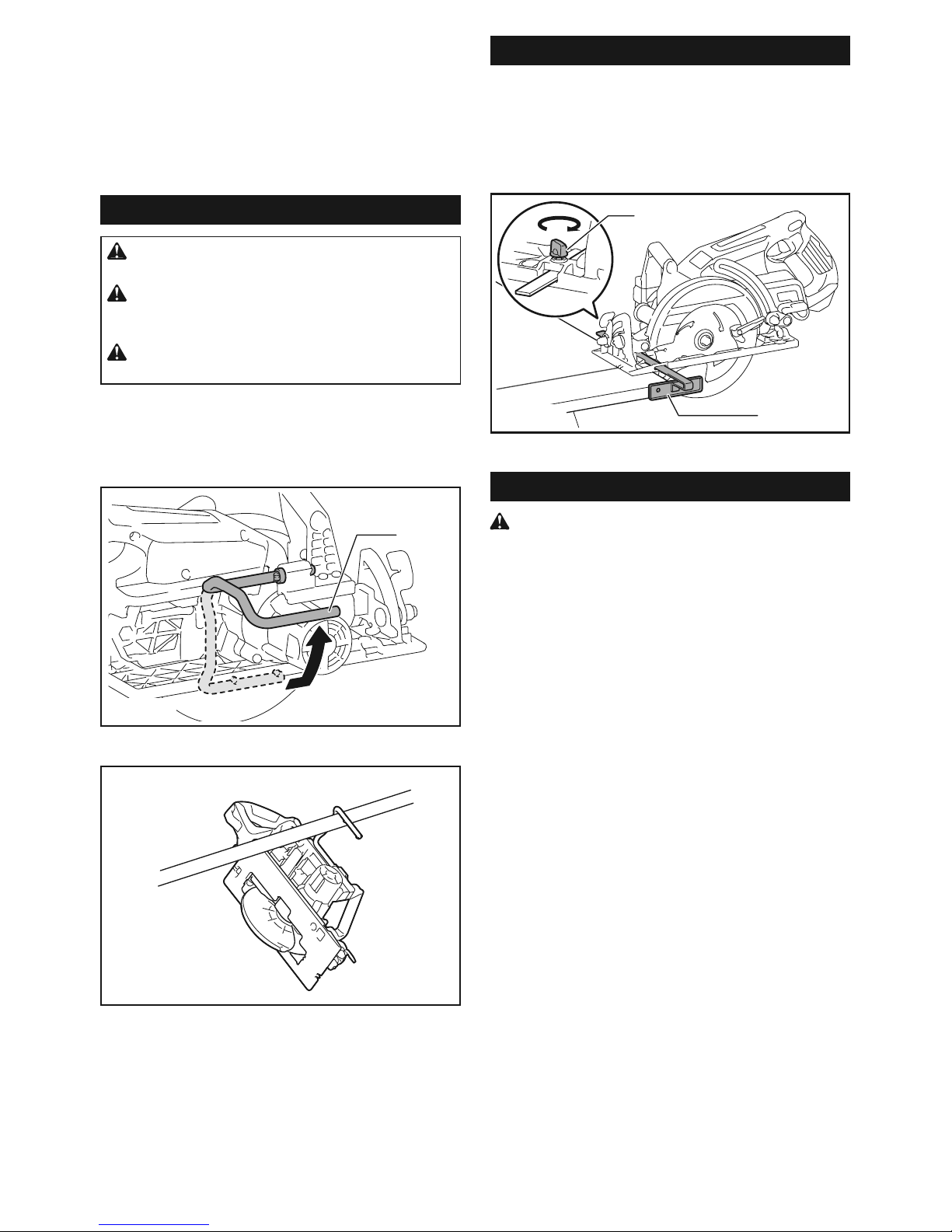

Hook
CAUTION: Always remove the batteries when
hanging the tool with the hook.
CAUTION: Never hook the tool at high loca-
tions or on the surfaces where the tool may lose
the balance and fall.
CAUTION: Do not pull the tool hooked
downward.
Thehookisconvenientforhangingthetooltemporarily.
Tousethehook,simplyliftuphookuntilitsnapsinto
the open position.
Whennotinuse,alwayslowerhookuntilitsnapsinto
the closed position.
1
►1. Hook
Rip fence (Guide rule)
Optional accessory
Thehandyripfenceallowsyoutodoextra-accurate
straightcuts.Simplyslidetheripfenceupsnugly
against the side of the workpiece and secure it in posi-
tion with the clamping screw on the front of the base. It
also makes repeated cuts of uniform width possible.
1
2
►1.Ripfence(Guiderule)2. Clamping screw
Lanyard (tether strap) connection
Safety warnings specic for use at height
Read all safety warnings and instructions. Failure
tofollowthewarningsandinstructionsmayresultin
seriousinjury.
1. Always keep the tool tethered when working
"at height". Maximum lanyard length is 2 m
(6.5 ft).
2. Use only with lanyards appropriate for this tool
type and rated for at least 6.5 kg (14.4 lbs).
3. Do not anchor the tool lanyard to anything on
your body or on movable components. Anchor
the tool lanyard to a rigid structure that can
withstand the forces of a dropped tool.
4. Make sure the lanyard is properly secured at
each end prior to use.
5. Inspect the tool and lanyard before each use
for damage and proper function (including
fabric and stitching). Do not use if damaged or
not functioning properly.
6. Do not wrap lanyards around or allow them to
come in contact with sharp or rough edges.
7. Fasten the other end of the lanyard outside
the working area so that a falling tool is held
securely.
8. Attach the lanyard so that the tool will move
away from the operator if it falls. Dropped tools
willswingonthelanyard,whichcouldcauseinjury
or loss of balance.
9. Do not use near moving parts or running
machinery.Failuretodosomayresultinacrush
or entanglement hazard.
10. Do not carry the tool by the attachment device
or the lanyard.
11. Only transfer the tool between your hands
while you are properly balanced.

14 ENGLISH
12. Do not attach lanyards to the tool in a way that
keeps guards, switches or lock-offs from oper-
ating properly.
13. Avoid getting tangled in the lanyard.
14.
Keep lanyard away from the cutting area of the tool.
15. Use multi-action and screw gate type cara-
bineers. Do not use single action spring clip
carabineers.
16. In the event the tool is dropped, it must be
tagged and removed from service, and should
be inspected by a Makita Factory or Authorized
Service Center.
1
►1.Holeforlanyard(tetherstrap)
MAINTENANCE
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
CAUTION: Clean out the upper and lower
guards to ensure there is no accumulated saw-
dust which may impede the operation of the lower
guarding system.Adirtyguardingsystemmaylimit
the proper operation which could result in serious
personalinjury.Themosteffectivewaytoaccomplish
this cleaning is with compressed air. If the dust is
being blown out of the guards be sure the proper
eye and breathing protection is used.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.

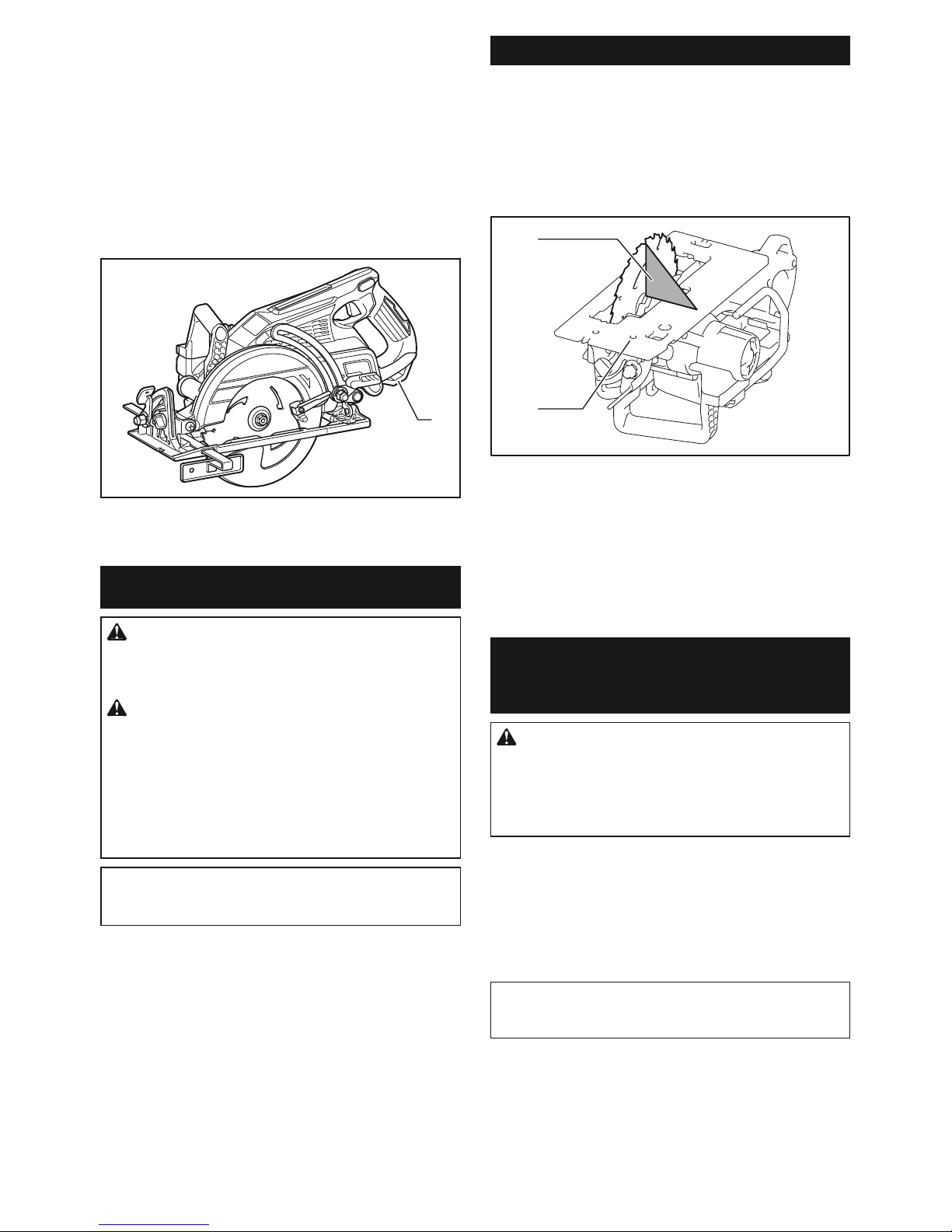

Adjusting 0°-cut accuracy
Thisadjustmenthasbeenmadeatthefactory.Butifitis
off,youcanadjustitasthefollowingprocedure.
1. Slightlyloosentheleverononthebevelscale
plate.
2. Make the base perpendicular to the blade using
atriangularruleorsquarerulebyturningtheadjusting
bolt.
1
2
►1. Triangular rule 2.Adjustingbolt
3. Tighten the lever and then make a test cut to
check the verticalness.
To maintain product SAFETY and RELIABILITY,
repairs,anyothermaintenanceoradjustmentshould
beperformedbyMakitaAuthorizedorFactoryService
Centers,alwaysusingMakitareplacementparts.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual.Theuseofanyother
accessories or attachments might present a risk of
injurytopersons.Onlyuseaccessoryorattachment
for its stated purpose.
Ifyouneedanyassistanceformoredetailsregard-
ingtheseaccessories,askyourlocalMakitaService
Center.
• Circular saw blade
• Wrench
• Ripfence(Guiderule)
• Makitagenuinebatteryandcharger
NOTE:Someitemsinthelistmaybeincludedinthe
toolpackageasstandardaccessories.Theymay
differfromcountrytocountry.

15

www.makita.com
Makita Europe N.V.
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japa
n
Jan-Baptist Vinkstraat 2,
3070 Kortenberg, Belgium
885559-222
EN
20180912
